High Quality Braid Reinforced Elastic Silicone Rubber Tube Weave Silicone Hose

1 / 5

High Quality Braid Reinforced Elastic Silicone Rubber Tube Weave Silicone Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SB-SRRT

Material

Rubber

Maximum Voltage

<10KV

Thermal Rating

200

Working Temp

-60~200c

Grade

Normal or Food Grade

Type

Insulation Sleeve & Tube

Classification

Organic Insulating Material

Certification

ISO9001, IATF16949

HS Code

3917310000

Production Capacity

1000000 Meter/Month

Specification

ID: 0.8~15MM

★

Product Overview

High quality braid reinforced elastic silicone rubber tube weave silicone hose.

Structure: Extruded silicone rubber tube reinforced with performance fiber braided, then extruded with silicone rubber and treated.
Key Features: The tube is flexible and yet able to stand high working pressure at high Temperature. It offers excellent heat and cold resistance.
Applications: Widely used in electrical appliances industry, water pipe, gas pipe, and can be installed in coffee makers etc.

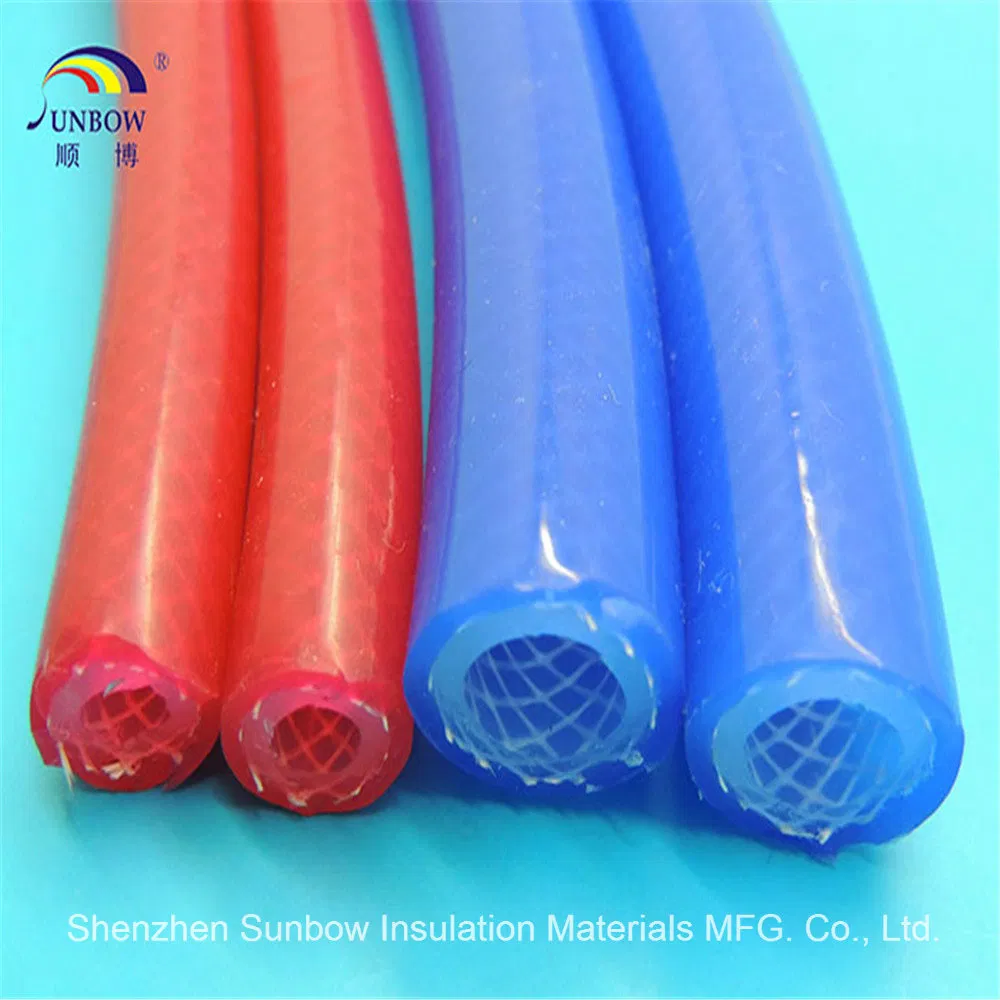

Color: Standard color is white; other colors available upon request.

📋

Performance Specification

Item	Performance	Note
Dielectric breakdown voltage (KV AC)	≥7.0	In air
	≥6.0	In water
	≥5.0	In 2% salt water
Thermal endurance	No indication of crack	200ºC × 1 hours
Working pressure	2.5Mpa	No breaking

📏

Dimensions & Tolerances

Inner Diameter (mm)	Tolerance (mm)	Wall Thickness (mm)	Tolerance (mm)
3.0	+0.4, -0.2	1.5	+/-0.2
4.0	+0.4, -0.2	2.0	+/-0.2
5.0	+0.4, -0.2	2.0	+/-0.2
7.0	+0.4, -0.2	2.0	+/-0.2
8.0	+0.4, -0.2	2.0	+/-0.2
8.0	+0.4, -0.2	3.0	+/-0.2

* Remark: Other sizes can be made to customer's requirements.

🖼️

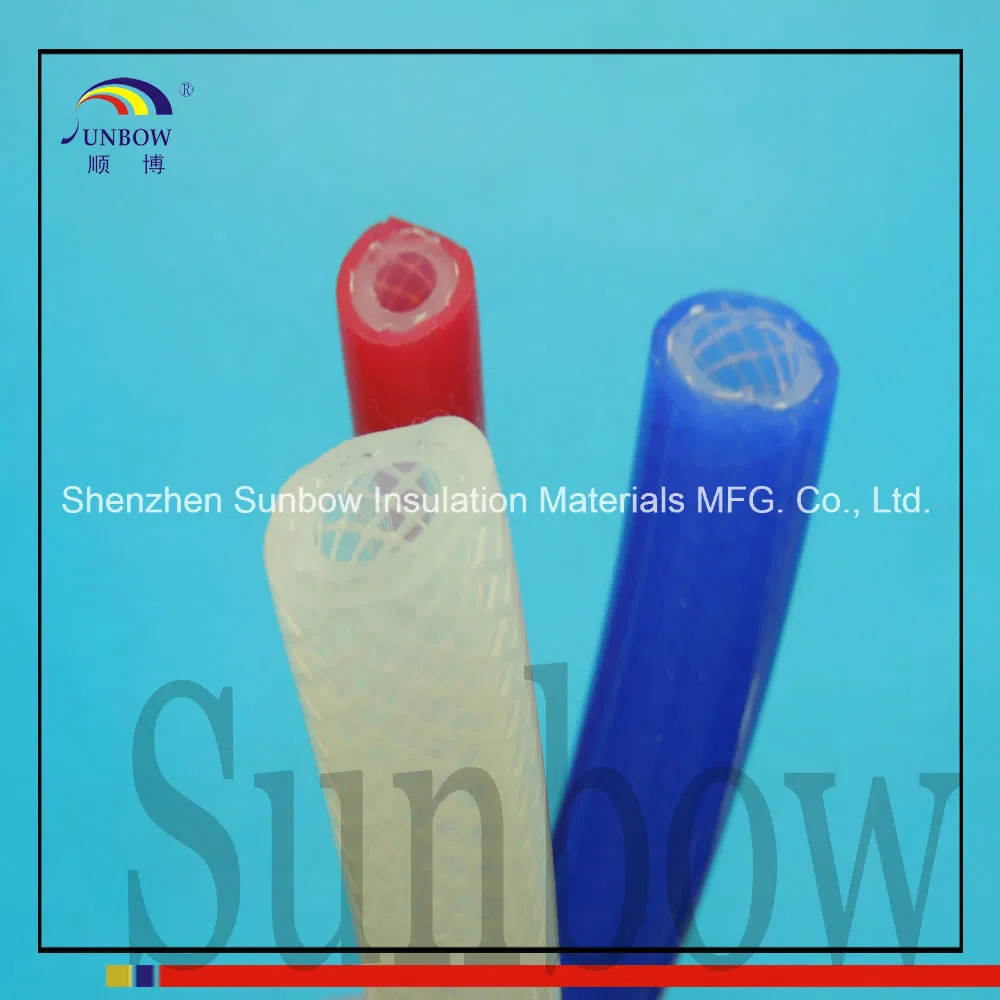

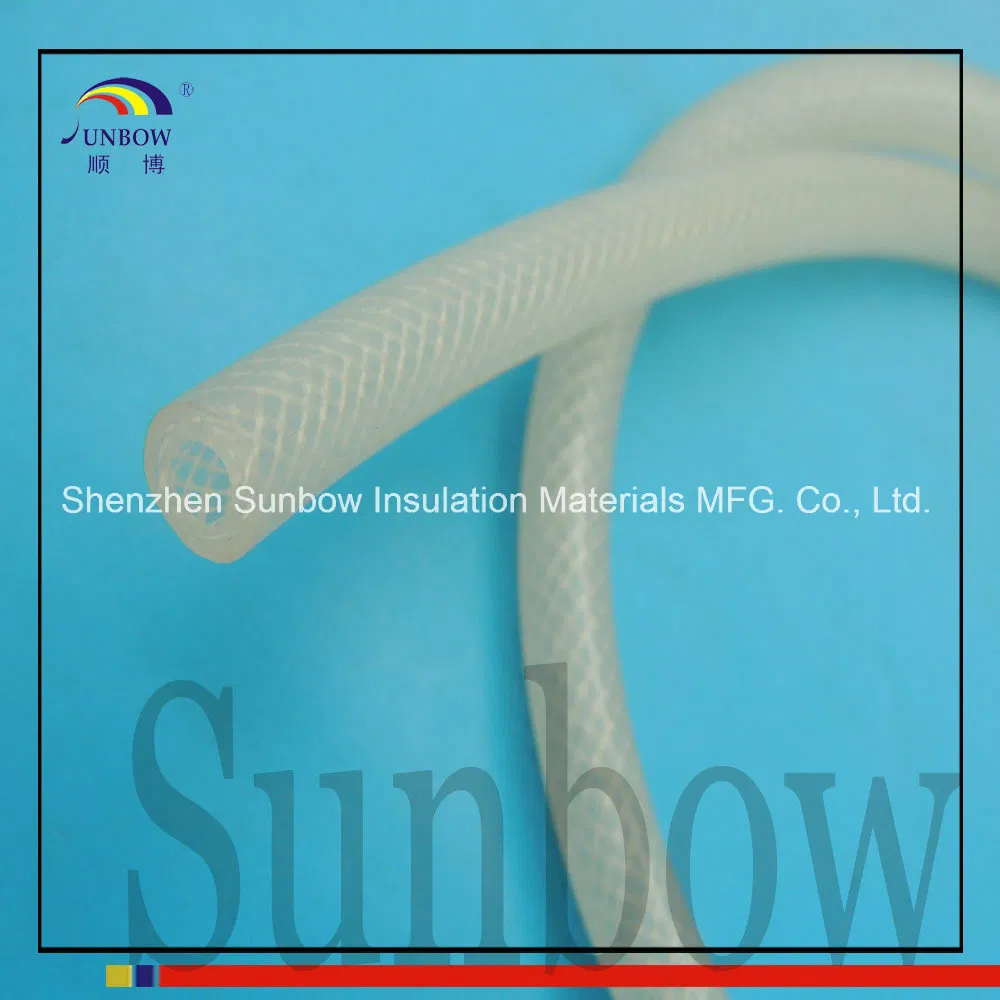

Product Display

Frequently Asked Questions

Q1: What is the working temperature range for this silicone tube? A: The tube is designed to operate efficiently within a temperature range of -60ºC to 200ºC.

Q2: Can this tubing handle high-pressure applications? A: Yes, it has a working pressure rating of 2.5Mpa without breaking, thanks to its fiber braid reinforcement.

Q3: Is the SB-SRRT model available in food-grade quality? A: Yes, we offer both Normal grade and Food Grade options to suit different industry requirements.

Q4: What certifications does this product hold? A: This product is manufactured under ISO9001 and IATF16949 quality management systems.

Q5: What are the primary applications for braid reinforced silicone hoses? A: They are commonly used in coffee makers, water and gas piping, and various electrical appliances requiring high thermal resistance.

Q6: Are custom sizes and colors available? A: Yes, while white is the standard color, other colors and specific dimensions can be customized based on requirements.
