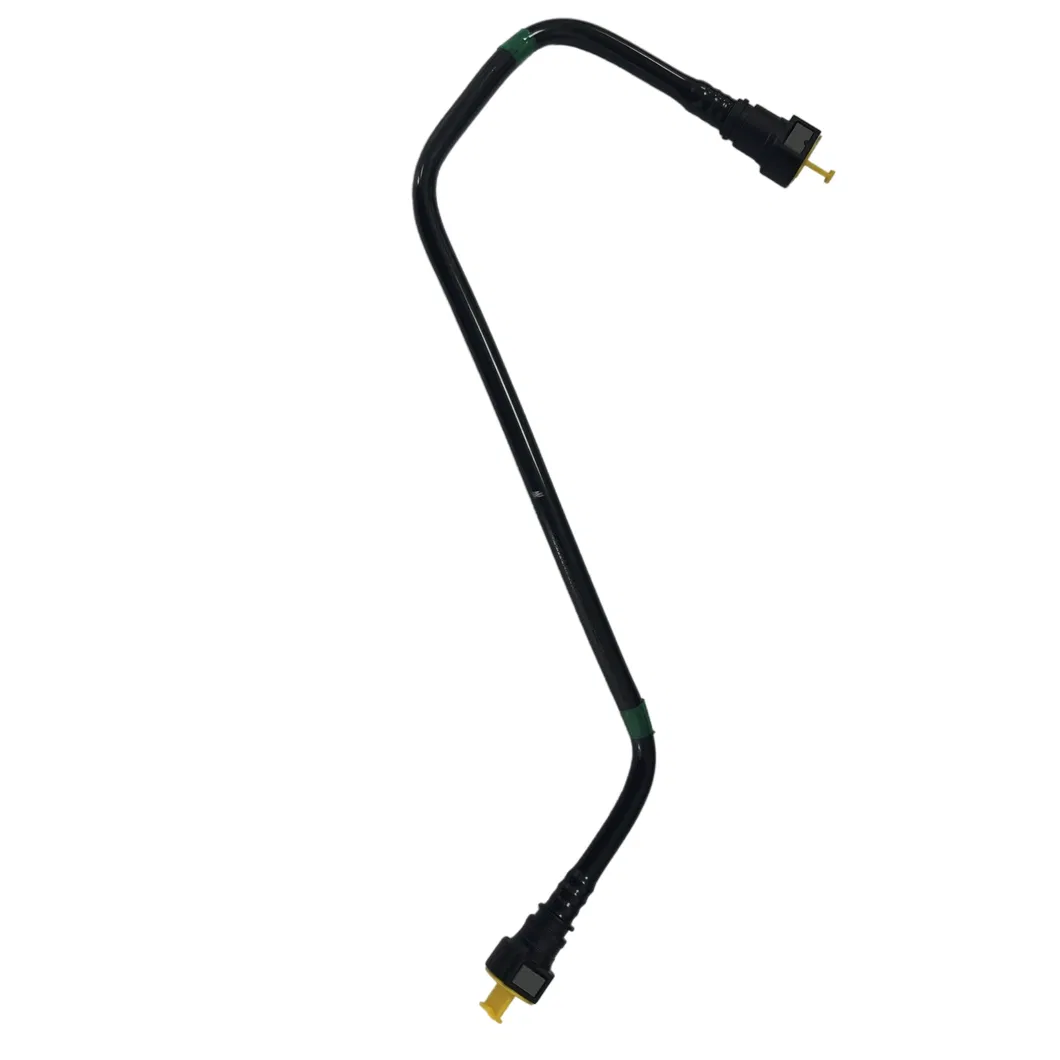

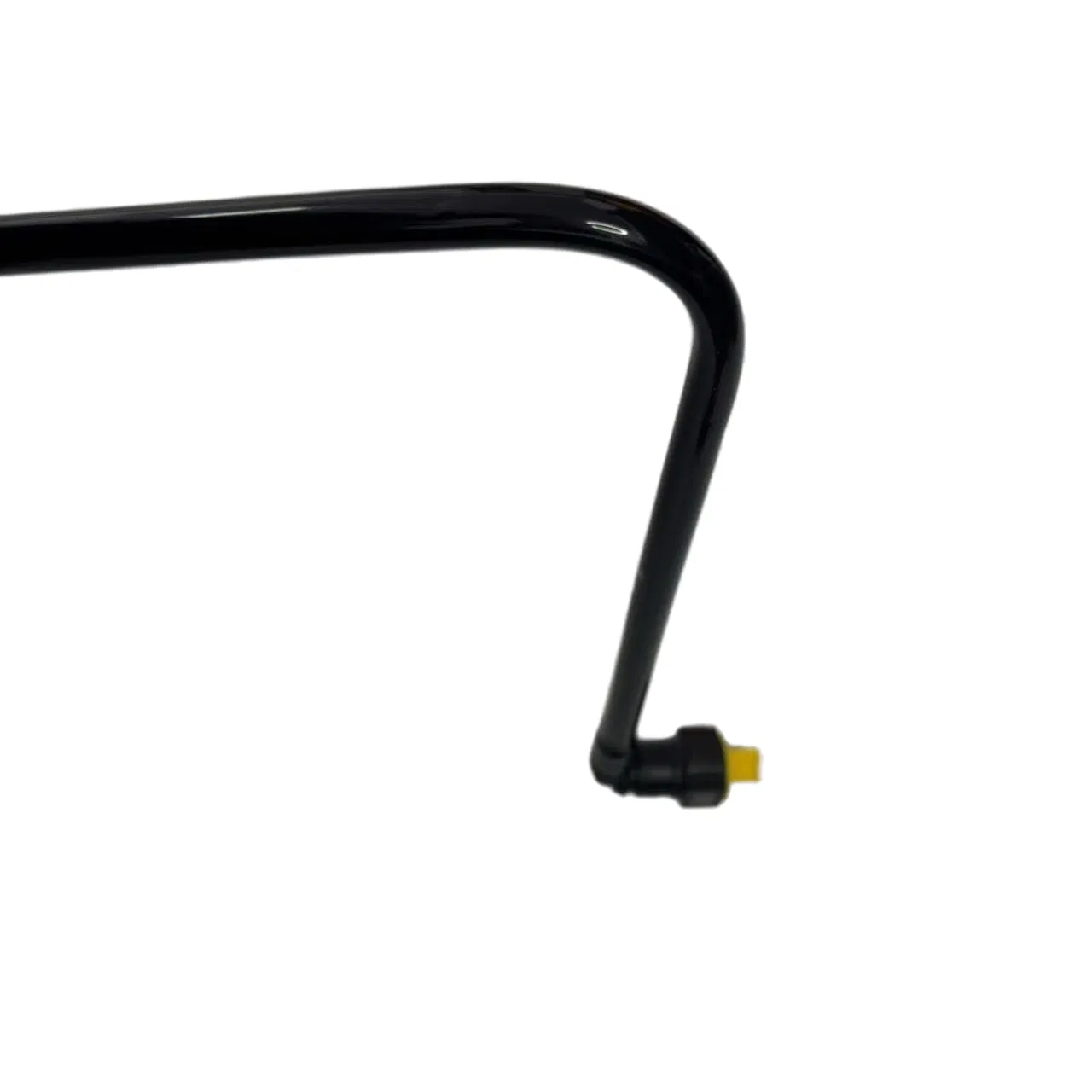

Multilayer nylon tubes are usually made of high-performance nylon materials such as PA66 and PA12, which provide lightweight benefits, high temperature resistance, chemical corrosion resistance, and impact resistance.
Nylon 66: Suitable for automotive, aviation, and high-speed rail fields with high strength and durability.
Nylon 12: Known for low density, low temperature toughness, and chemical resistance, ideal for new energy vehicles.
Multilayer nylon tubes are primarily used in industrial scenarios requiring complex performance combinations, such as new energy vehicle fluid pipelines (thermal management systems, battery packaging) and thermal management.
The multi-layer structure design combines different materials to improve overall performance. For example, nylon combined with rubber or metal achieves a balance between lightweight design and pressure resistance.
| Parameter Name | Description / Value | Parameter Name | Description / Value |
| Product Name | Multilayer Reinforced Nylon Pipe | Working Pressure | 0.5Mpa - 20Mpa |
| Structure Design | 3-Layer (Corrosion-resistant Nylon + Reinforcement + Wear-resistant Nylon) | Blasting Pressure | ≥ 2 Times Working Pressure |
| Application | Braking, Pneumatic, Hydraulic Systems | Pulse Pressure | ≥ 1 Million Cycles |
| Inner Diameter (ID) | 4mm / 6mm / 8mm / 10mm (Customizable) | Operating Temperature | -40ºC ~ +120ºC (Peak +150ºC) |
| Outer Diameter (OD) | 8mm / 12mm / 16mm / 20mm | Resistance | Mineral oil, Hydraulic oil, Ethanol |
