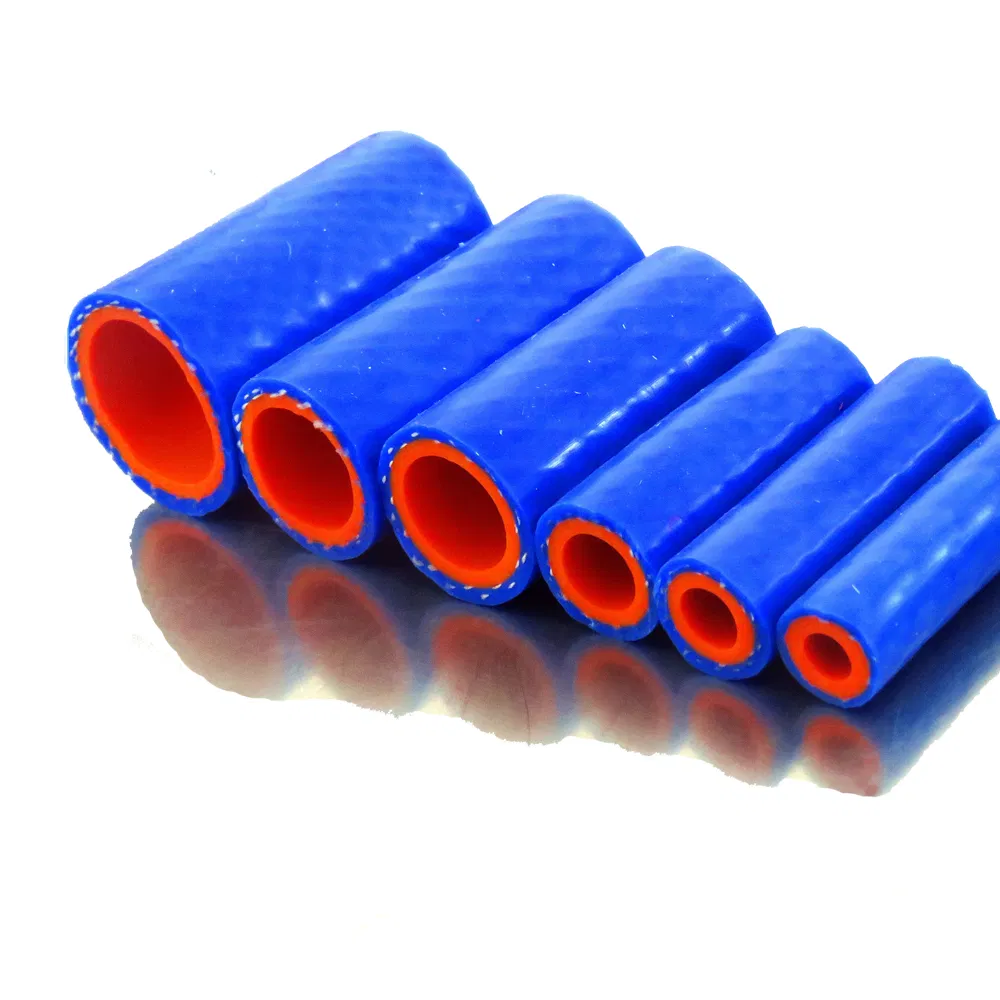

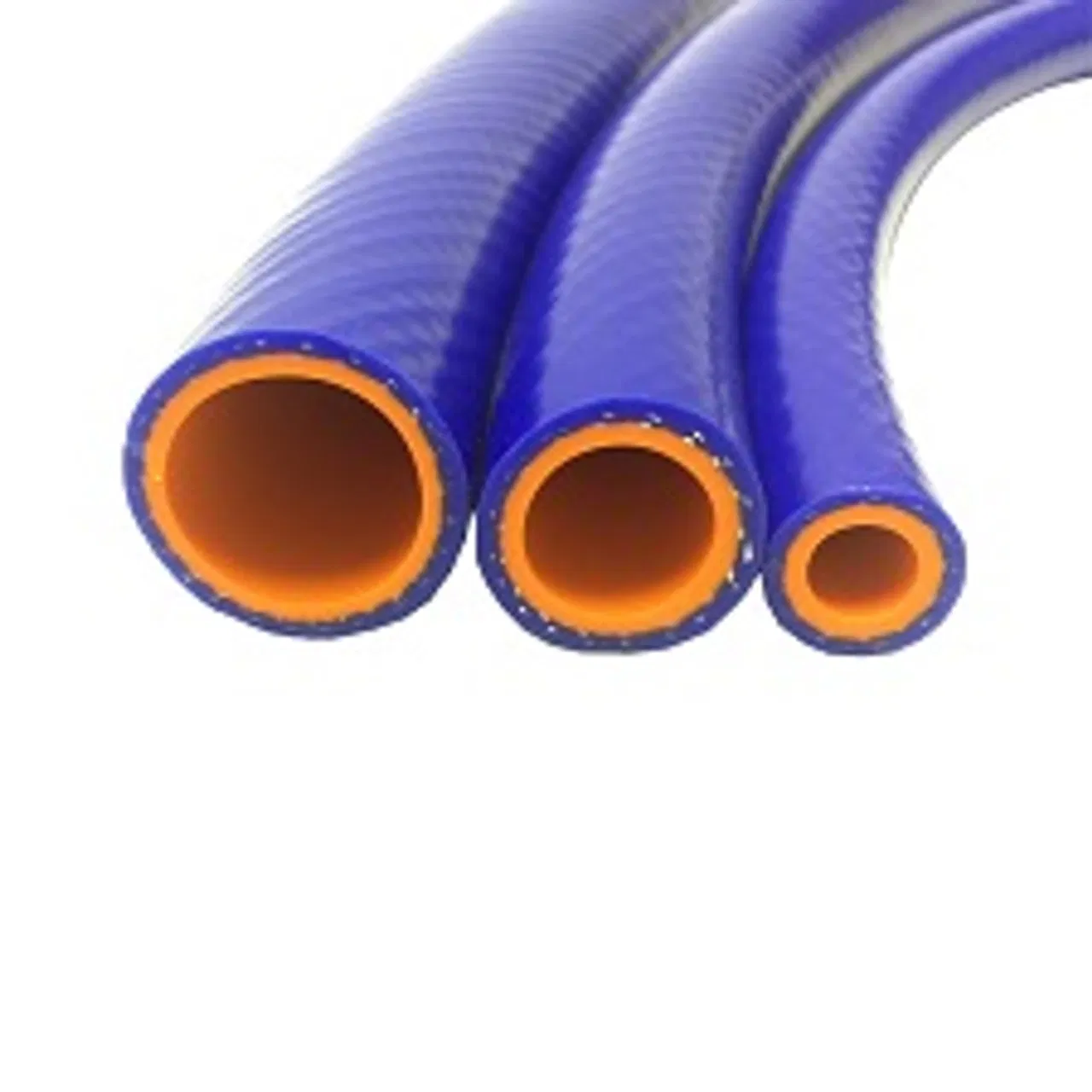

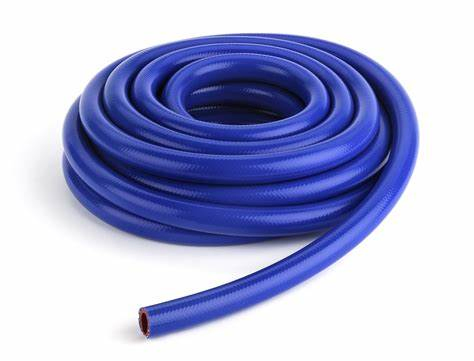

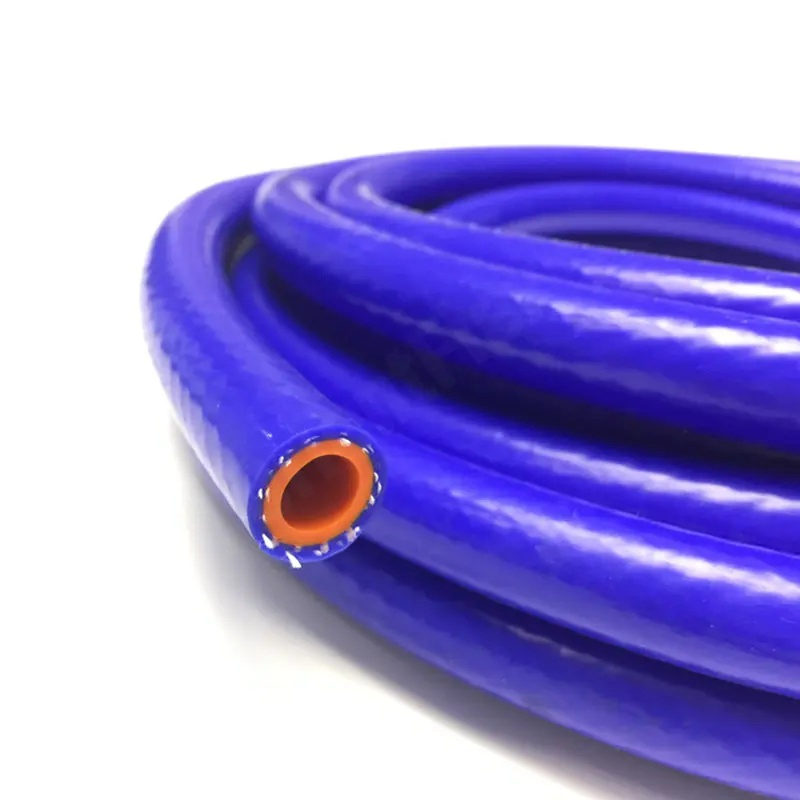

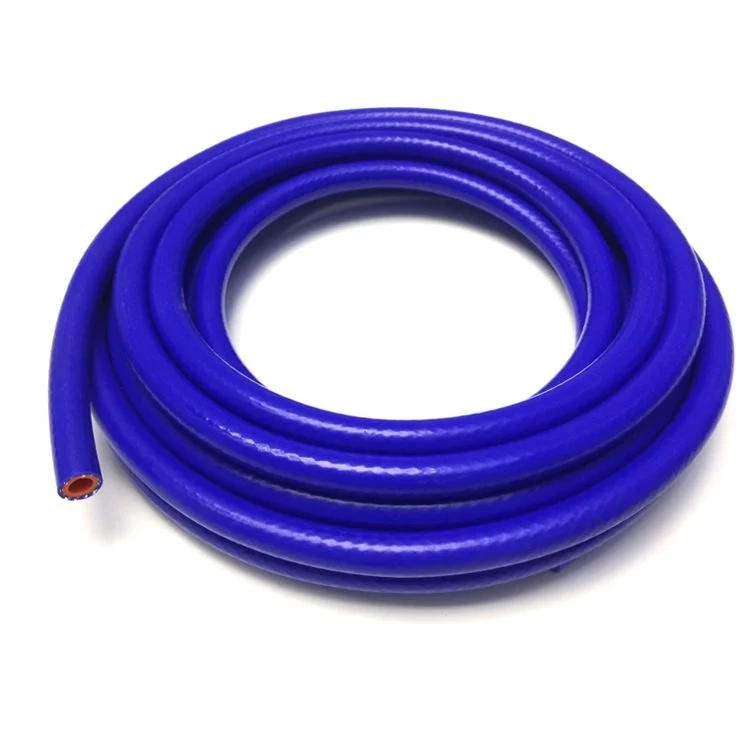

2ply Reinforced Silicone Heater Coolant Hose

1 / 5

2ply Reinforced Silicone Heater Coolant Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

200625

Capability

Coolant Rubber Hose

Color

Blue

Product Name

Silicone Heater Hose

Standard

SAE J20r3 Class a

Applications

Auto Coolant System

Size

1/4-2 Inch

Quality

Top

OEM Services

Available

Delivery Time

15 Days

W.P.

300 Psi

B.P.

1200 Psi

HS Code

4009310000

Capacity

30000 Meters/Day

🔍 Product Description

Silicone EPDM Rubber Hose - Water Heater Hose SAE J20R3 Class A

Silicone Heater Hoses are constructed with polyester-reinforced silicone, making them extremely durable and suited for high-temperature applications such as radiators, heaters, and other coolant transfer hose uses.

Exceptional Temperature Resistance: -70°F to +400°F (-57°C to +204°C).
High Durability: Polyester textile reinforcement for robust performance.
Versatile Application: High flexibility for various installation requirements.
Environmental Resistance: Superior resistance to weathering, coolant deterioration, and ozone.
Certified Quality: Exceeds SAE 20R3 Class A performance standards.

Description	I.D. (mm)	O.D. (mm)	Wall (mm)	Length (m)	Packaging
Silicone Heater Hose 1/4"	6.35	13.5	3.575	25 / 50	Box
				250	Reel
				Silicone Heater Hose 3/8"	10	18	4	25/50/250	Box/Reel
Silicone Heater Hose 1/2"	12.7	20.7	4	25/50/250	Box/Reel
Silicone Heater Hose 5/8"	16	24	4	25/50/250	Box/Reel
Silicone Heater Hose 3/4"	19	27	4	25/50/250	Box/Reel
Silicone Heater Hose 1"	25	34	4.5	25/50/100	Box/Reel

🖼️ Product Visuals

❓ Frequently Asked Questions

1. What is the temperature range for this silicone heater hose?

The hose is designed to withstand extreme temperatures ranging from -70°F to +400°F (-57°C to +204°C).

2. Does the hose meet specific industry standards?

Yes, it exceeds the performance requirements of SAE J20R3 Class A, ensuring high reliability for automotive cooling systems.

3. What kind of reinforcement is used in the hose construction?

The hose features high-strength polyester textile reinforcement for maximum durability and pressure resistance.

4. What are the primary applications for this product?

It is ideal for auto coolant systems, radiators, heaters, and other high-temperature coolant transfer applications.

5. What is the maximum working pressure (W.P.)?

The working pressure is rated at 300 Psi, with a burst pressure (B.P.) reaching up to 1200 Psi.

6. Is OEM service available for custom requirements?

Yes, we provide professional OEM services to meet your specific size, color, and technical specifications.
