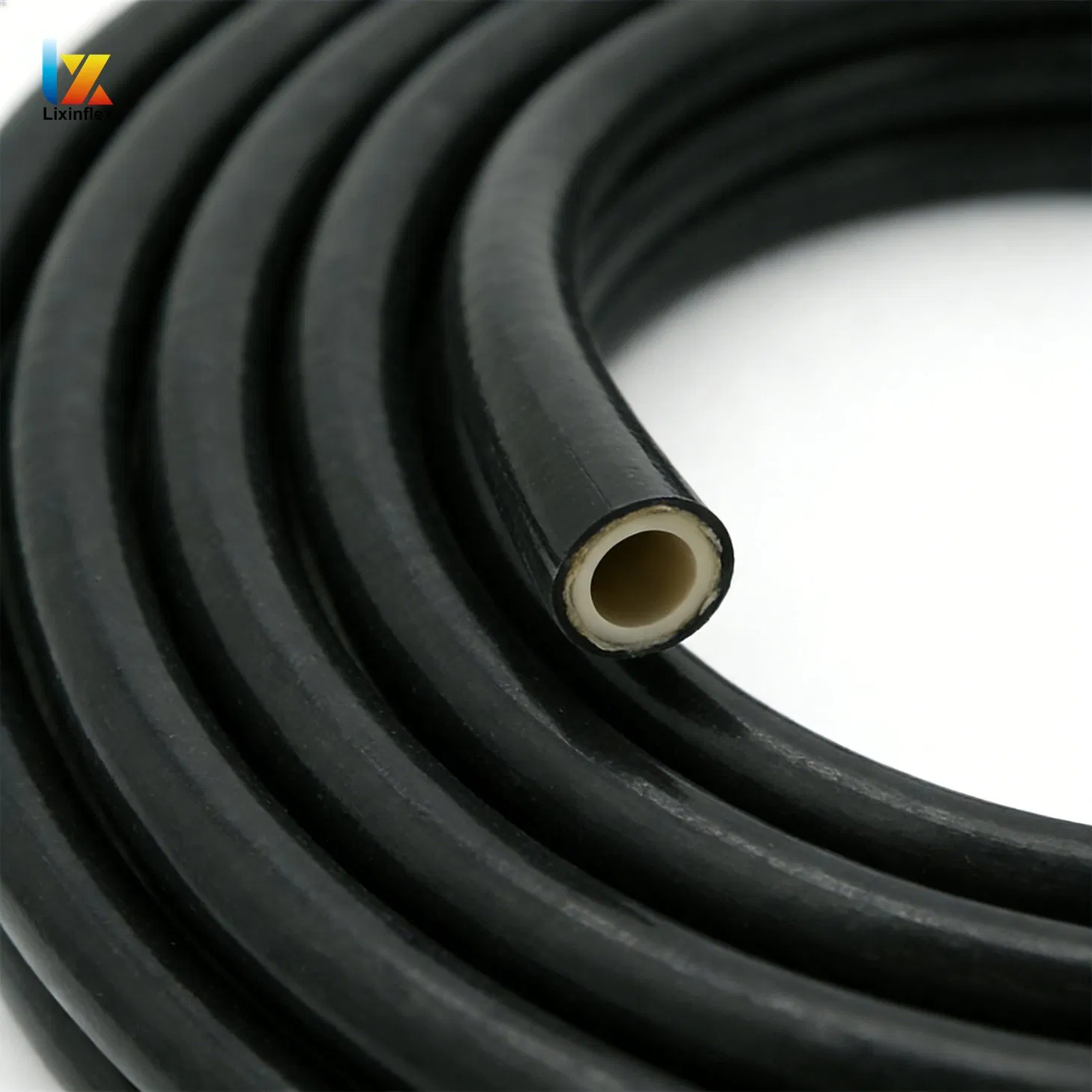

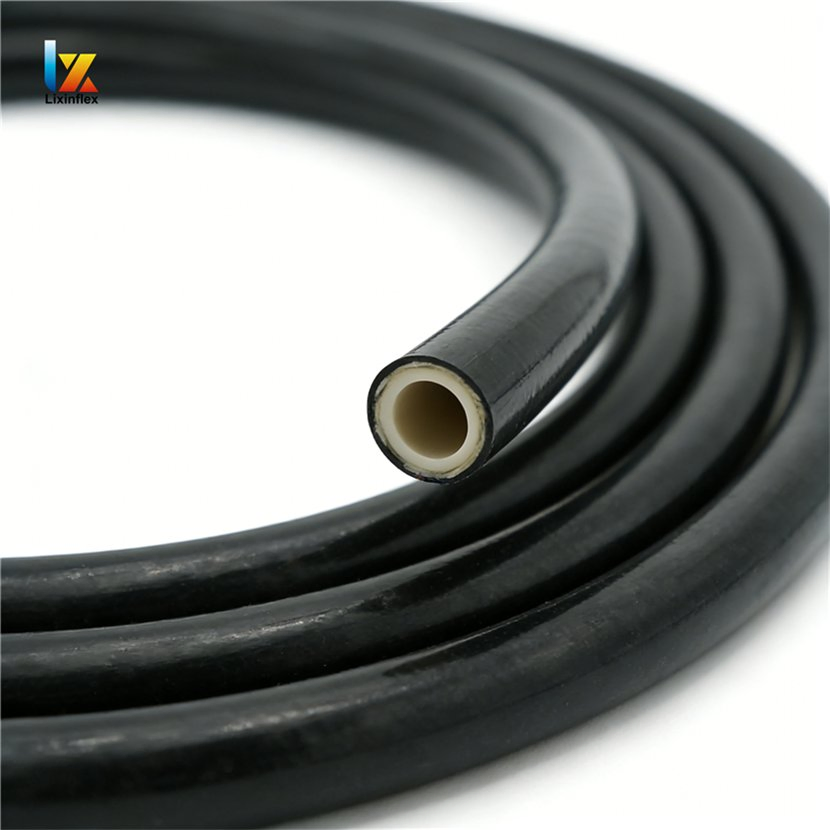

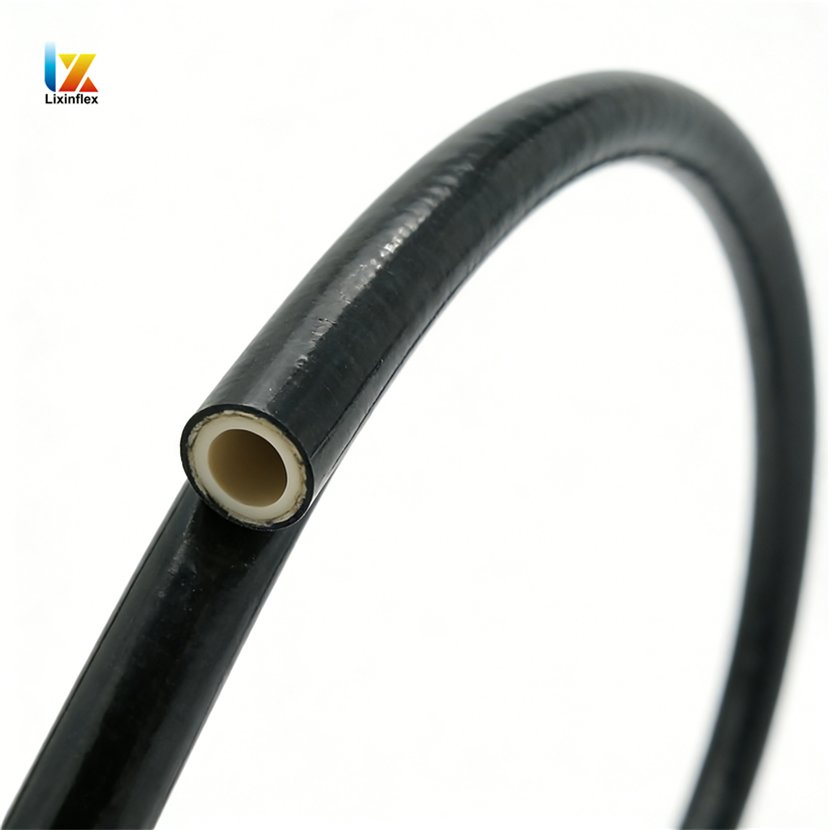

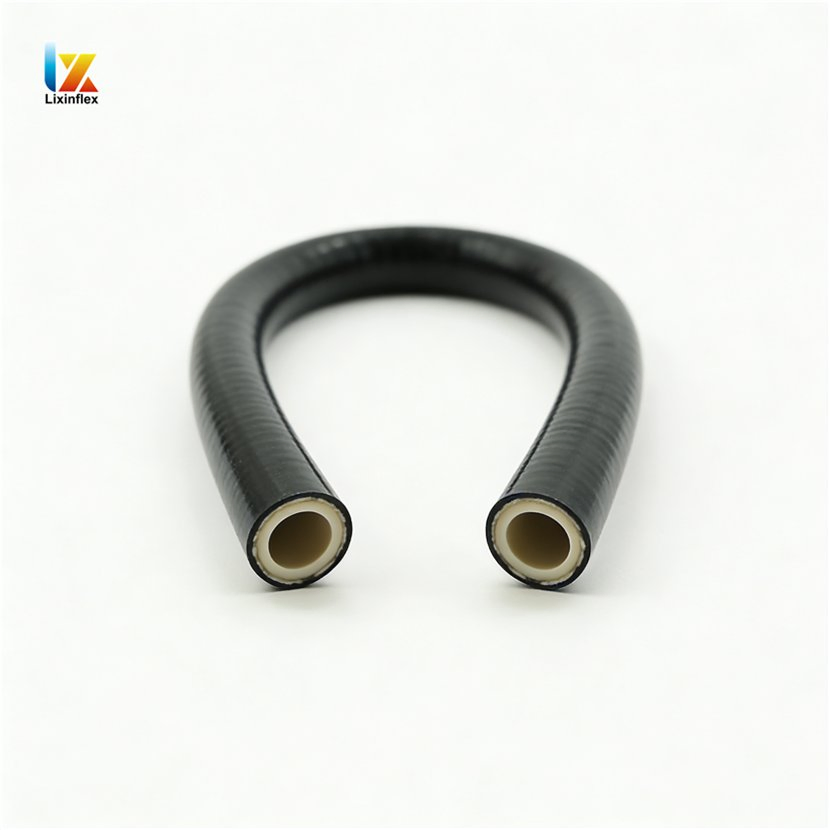

Smooth Surface Good Quality Fabric Reinforced Air Silicone Hose

ℹ

Basic Info & Specifications

Model NO.	Rubber Hose	Color	Black, Red, Blue, Yellow, etc.
Product Name	Fabric-Textured Air Hose	Keywords	Air Hose
Cover	EPDM Rubber, Weather and Ozone-Resistant	Tube	NR/SBR Rubber
Temperature Range	-35°C to +80°C	Reinforcement	High Tensile Textile Cord
Working Pressure	10 Bar / 20 Bar	Burst Pressure	30 Bar / 60 Bar
Length Options	30m, 40m, 50m, 60m, 100m	HS Code	4016209000

⚙

Product Description

MULTIPURPOSE RUBBER INDUSTRIAL AIR, OIL, AND WATER COMPRESSOR HOSES

Experience exceptional performance with our premium Air Hose products designed specifically for a wide range of applications. Our Air and Fluid Hose Assembly Set integrates seamlessly with spray guns, ensuring optimal fluid transfer with top-notch durability.

Air and Fluid Hose Assembly Set with Fittings for Spray Guns
Air Brake Hose with SAE J1402 Compliance
Synthetic Rubber High-Pressure Weather-Resistant Construction
High-pressure air brake hose with braided reinforcement
Multipurpose High-Pressure Flexible Rubber Hose for Air/Water

📊

Performance Parameters

Product Code	Inner Diameter (inch)	Inner Diameter (mm)	Work Pressure (MPa)	Layers	Max Length (M)
RAF/RWF-13	1/2''	13	1.0	2	60
RAF/RWF-19	3/4''	19	1.0	2	60
RAF/RWF-25	1''	25	1.0	2	60
RAF/RWF-32	1-1/4''	32	1.0	4	40
RAF/RWF-51	2''	51	1.0	4	40
RAF/RWF-102	4''	102	1.0	4	40

⭐

Functional Advantages

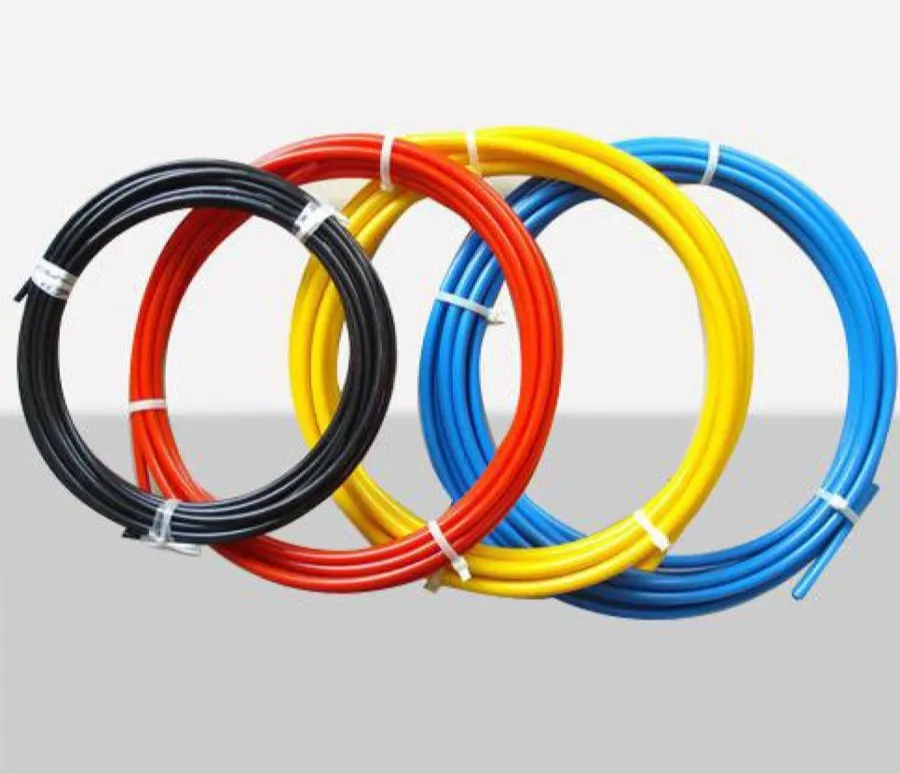

PU PA Air Hoses

Features: Excellent high-pressure resistance, vibration resistance, corrosion resistance, and good bending performance. Suitable for various fittings with high precision control of diameters.

PVC Air Hoses

Applications: Pneumatic devices, gas flushing systems, and machinery maintenance. Made from highly resilient PVC material and high-tensile polyester reinforcement.

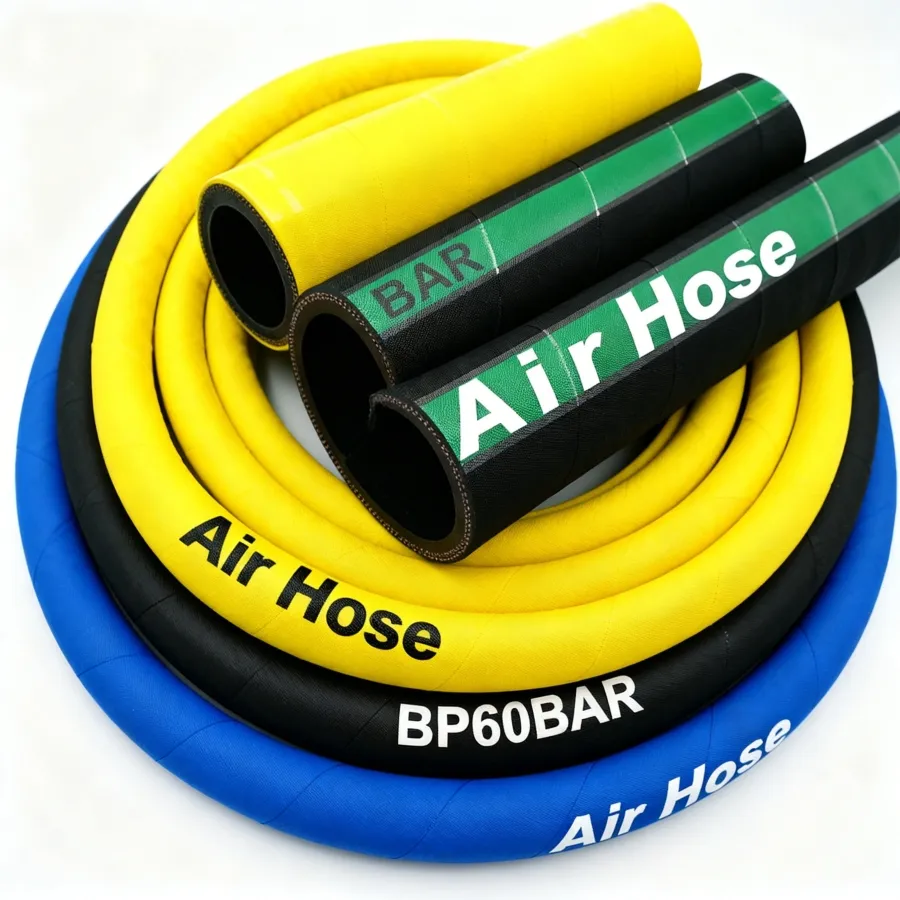

Fabric-textured Air Hose

Structure: Black synthetic rubber inner layer with multi-layer synthetic fabric reinforcement. Lightweight and flexible with excellent anti-aging and wear resistance.

🛠

Core Applications

SPRAY GUN USAGE: Consistent fluid delivery for superior finishes.

AIR BRAKE SYSTEMS: Robust air transfer solutions compliant with SAE J1402.

GENERAL CONSTRUCTION: Handles high-pressure air for pneumatic tools.

INDUSTRIAL & HOME PROJECTS: Versatile use across various sectors and DIY tasks.

❓

Frequently Asked Questions

Q1: What are the main applications for these rubber hoses?

They are widely used in mining, agriculture, construction, shipbuilding, and steel production for conveying air, water, and inert gases.

Q2: What temperature range can these hoses withstand?

Our hoses are designed to operate efficiently within a temperature range of -35°Celsius to +80°Celsius.

Q3: Do your air brake hoses meet specific industry standards?

Yes, our air brake hoses are compliant with SAE J1402 standards, ensuring safety and durability in vehicle systems.

Q4: Are custom specifications available (OEM/ODM)?

Yes, we accept OEM and ODM customization for dimensions, colors, and pressure ratings to meet your specific requirements.

Q5: What is the typical lead time for production?

The typical production cycle for normal orders is approximately 30 days, while samples can be prepared within 7 working days.

Q6: What makes the fabric-textured air hose special?

It is lightweight, flexible, and features multi-layer synthetic fabric reinforcement which provides high burst pressure resistance and minimal deformation.
