Corrosion and Aging Resistance Stainless Steel Wire Reinforced PVC Vacuum Hose for Oil and Powder for Water Oil Powder Suction Discharge Conveying

Product Overview

Model NO.

customized

Water Absorption

＜0.01%

Contraction Percentage

＜0.4%

Tensile Strength

30~40MPa

Tube and Cover

Transparent PVC

Reinforcement

Steel Wire Spiral

Application

Equipment, Engine Parts, Heavy Machine

Characteristics

Light Weight, Flexible, Elastic

Temperature

-29℃ to 80℃

Origin

China

Capacity

5,000,000 meters/Month

Product Description

Wire reinforced PVC Hose is suitable for a range of applications including delivery of food, water chemicals or other waste materials. Constructed from clear PVC with a high tensile steel helix, it is water resistant, durable, and smooth-bore, offering excellent abrasion, rot, and chemical resistance.

Suction and delivery hoses (S&D hoses) transfer media via gravity and negative pressure. This hose acts like a vacuum without collapsing or kinking under pressure. Manufactured from flexible PVC with a high-tensile carbon steel wire helix, it is ideal for transferring industrial liquids and food products.

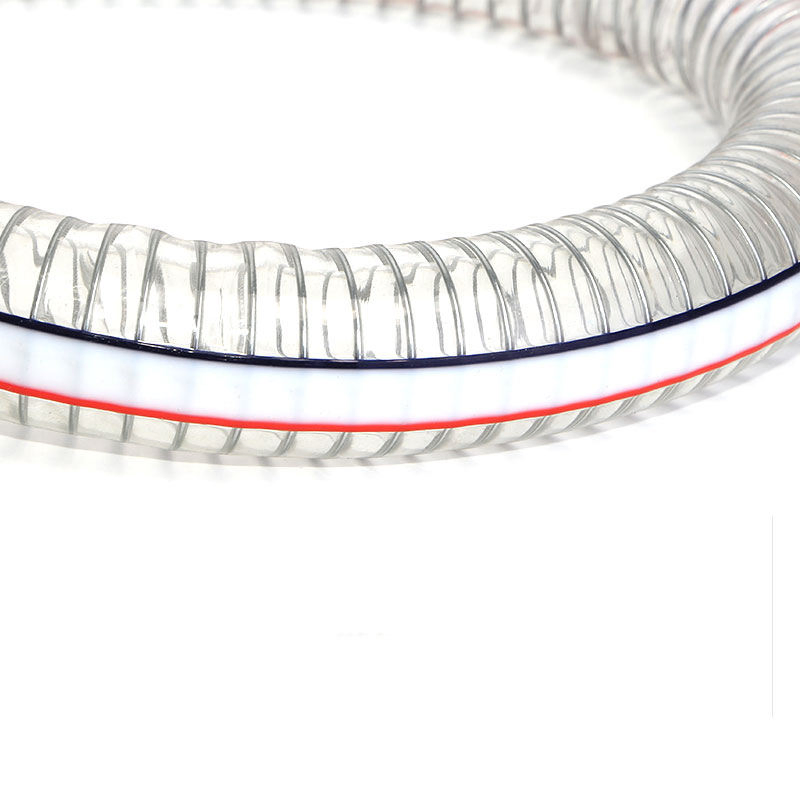

Construction Tube and cover: transparent PVC
Reinforcement: steel wire spiral

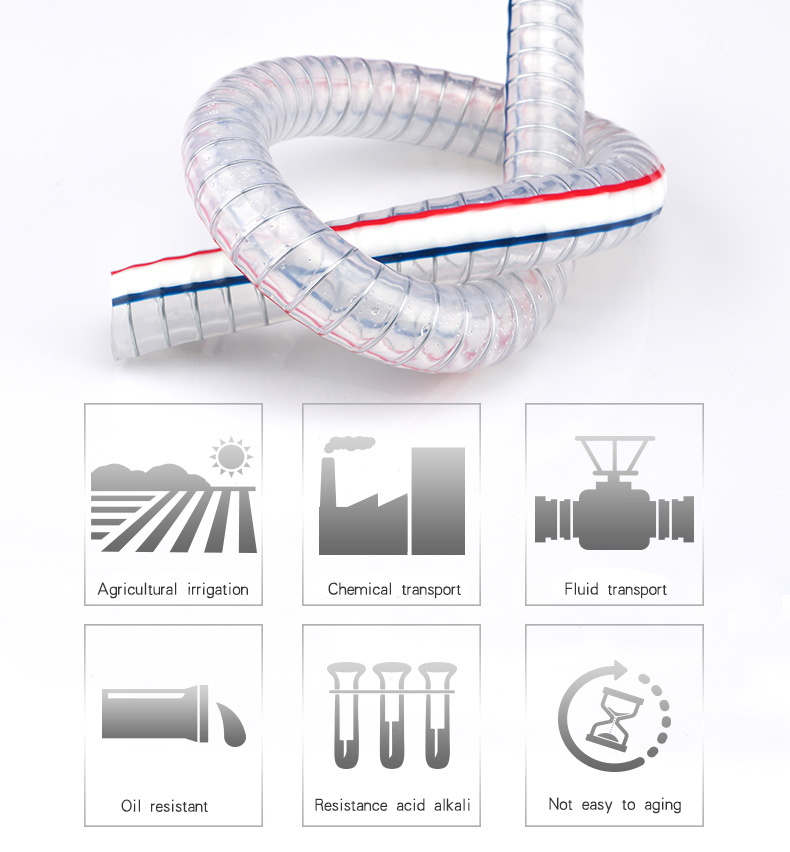

Applications Water supply & draining, farm irrigation, pneumatic machines, high pressure cleaning, engine parts, and construction sites.

Main Characteristics Light weight, flexible, elastic, anti-UV, acid & alkali-proof, and long service life. Food grade options available.

Product Parameters

STANDARD DUTY SPECIFICATIONS

Size (inch)	ID (mm)	OD (mm)	Working Pressure (Bar)	Burst Pressure (Bar)	Weight (g/m)	Length (m/roll)
1/2''	12	18	8	24	210	100
3/4''	19	25	6	18	320	50
1''	25	31	6	18	450	50
1-1/2''	38	45	6	18	700	50
2''	50	58	5	15	1200	50
3''	76	86	4	12	2000	30
4''	102	112	4	12	3000	30

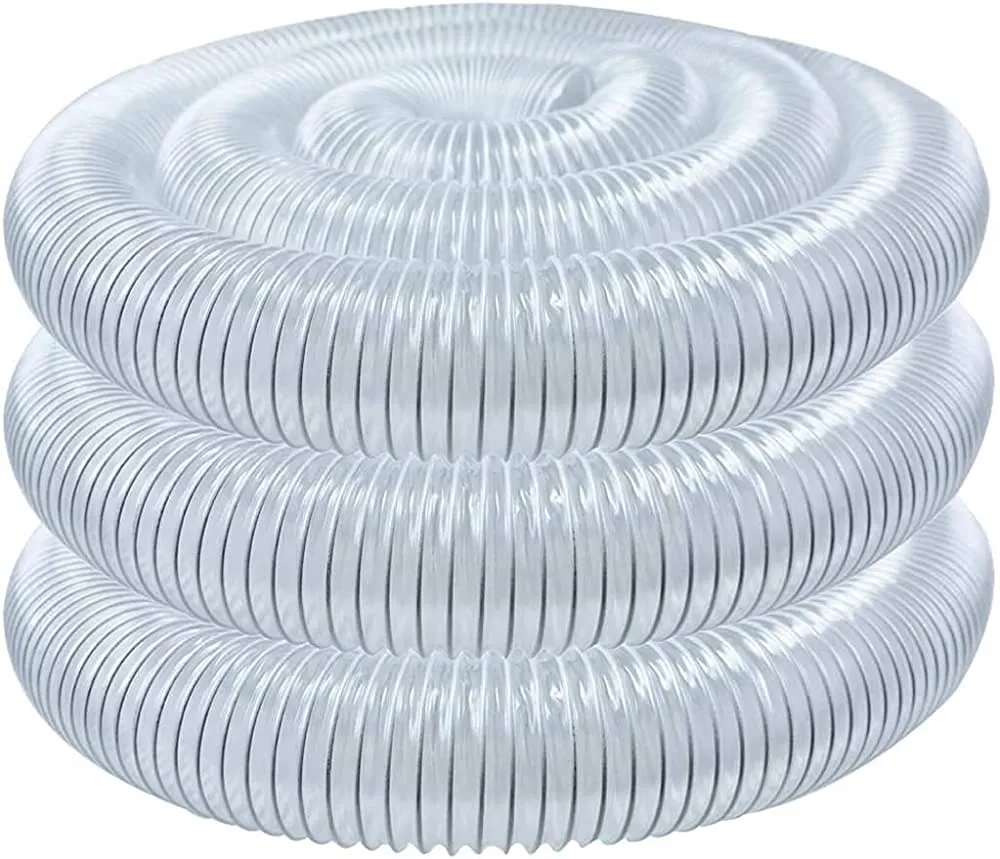

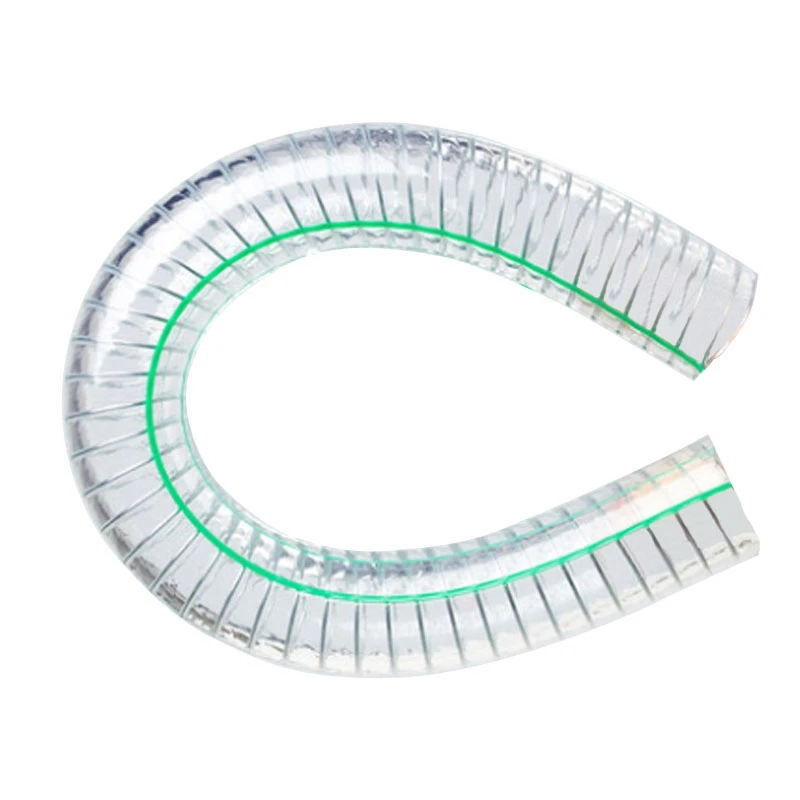

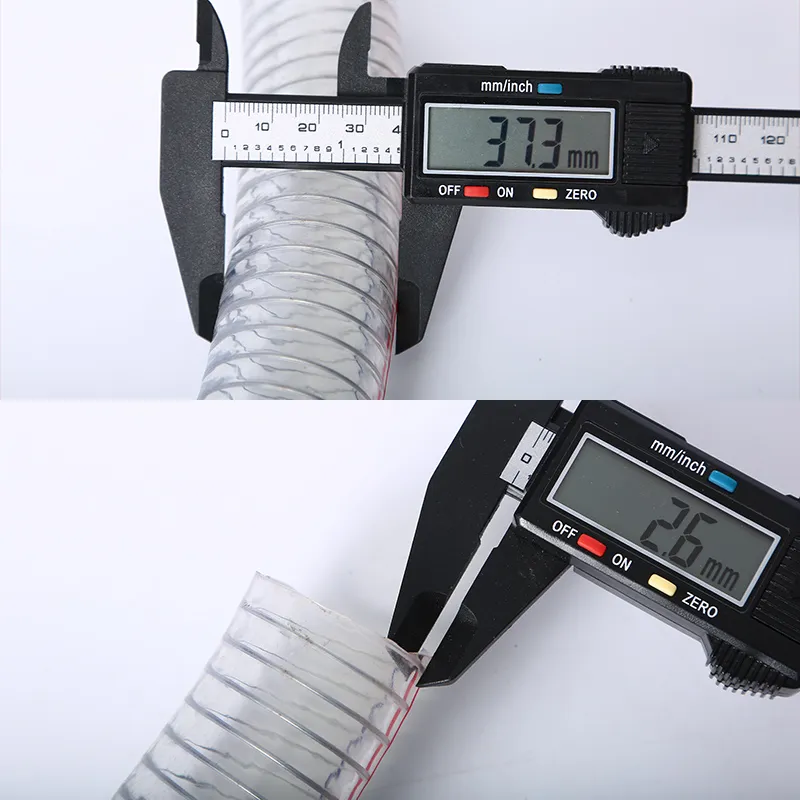

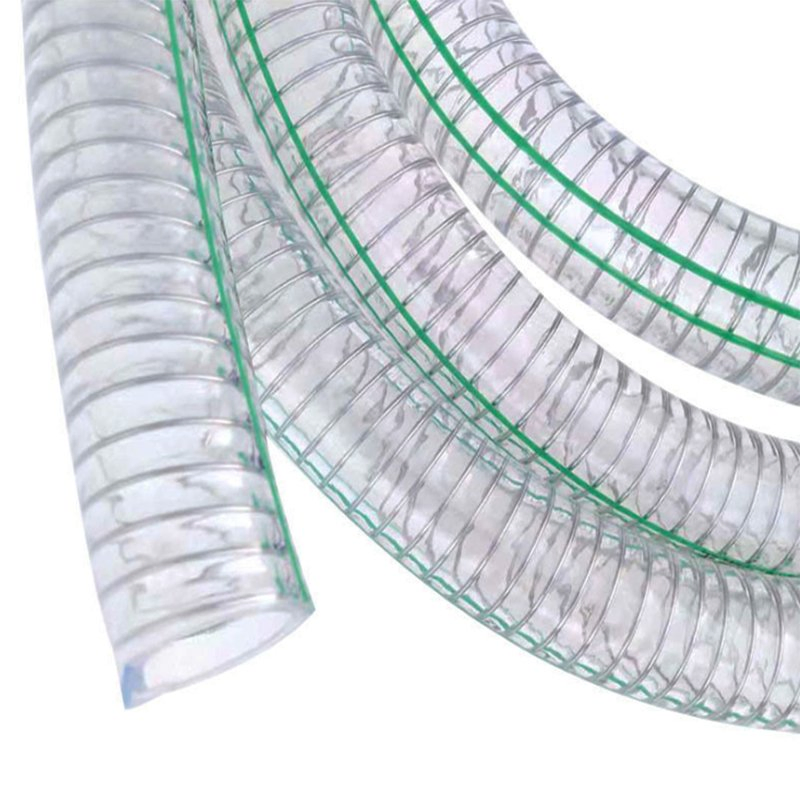

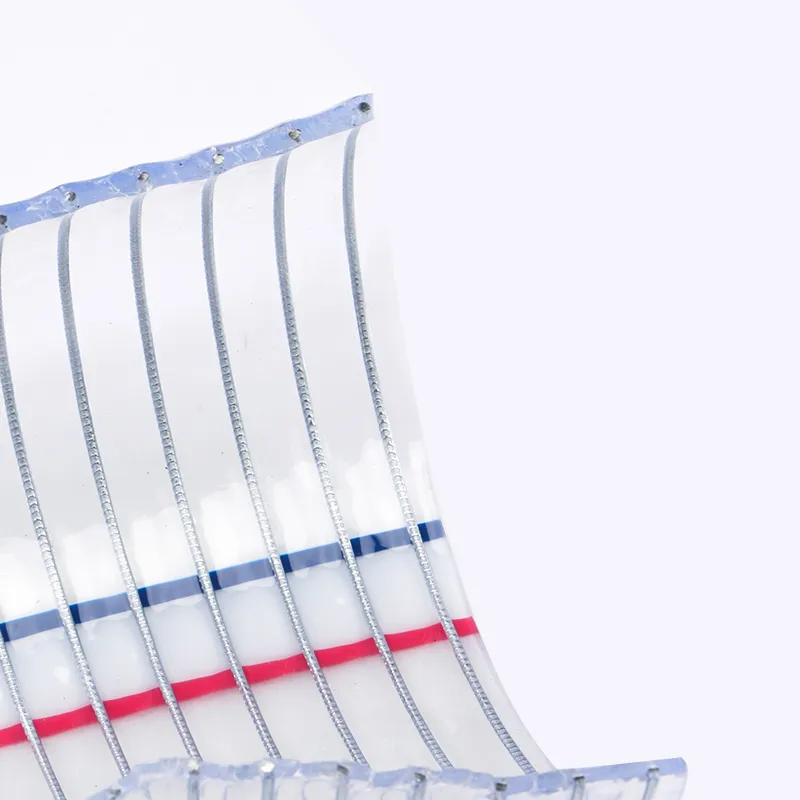

Detailed Photos

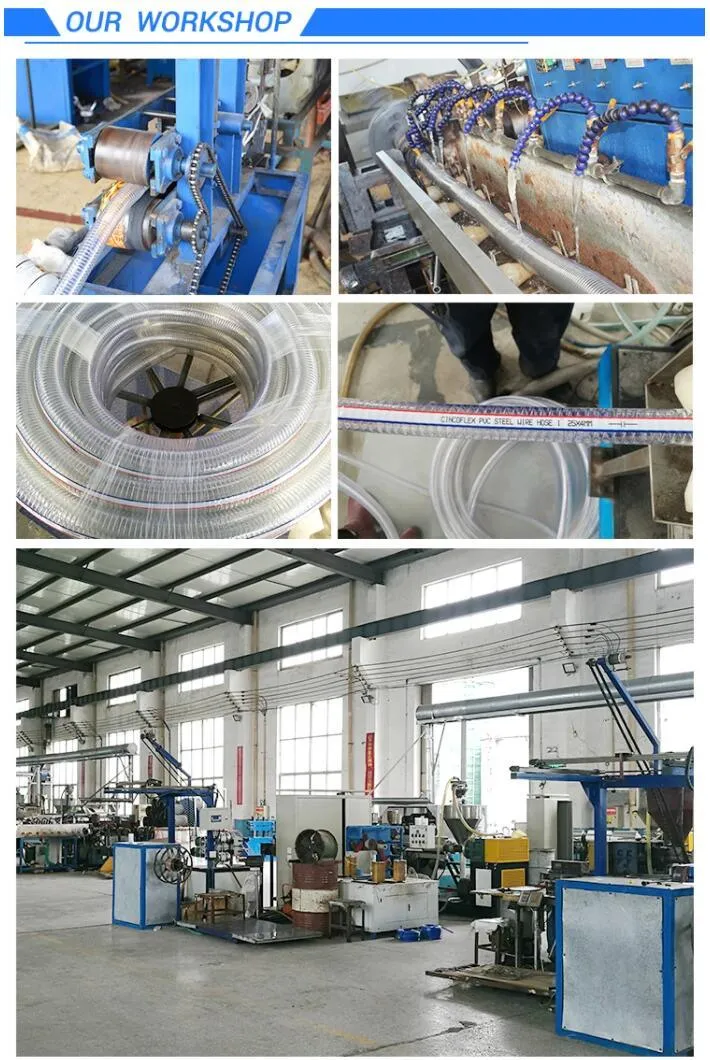

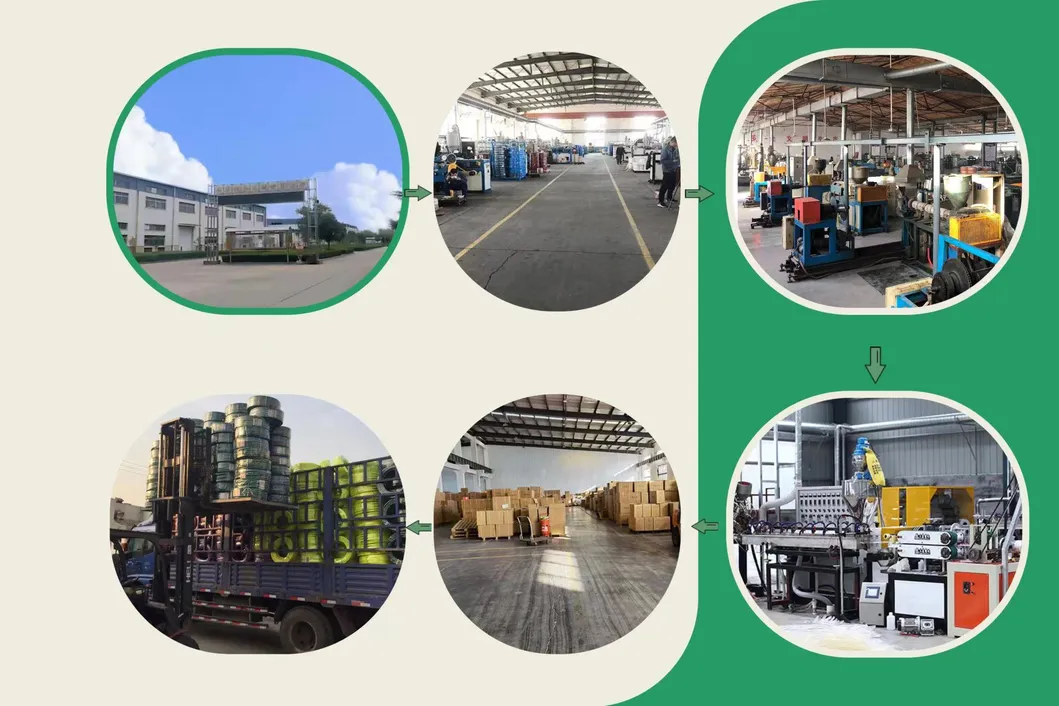

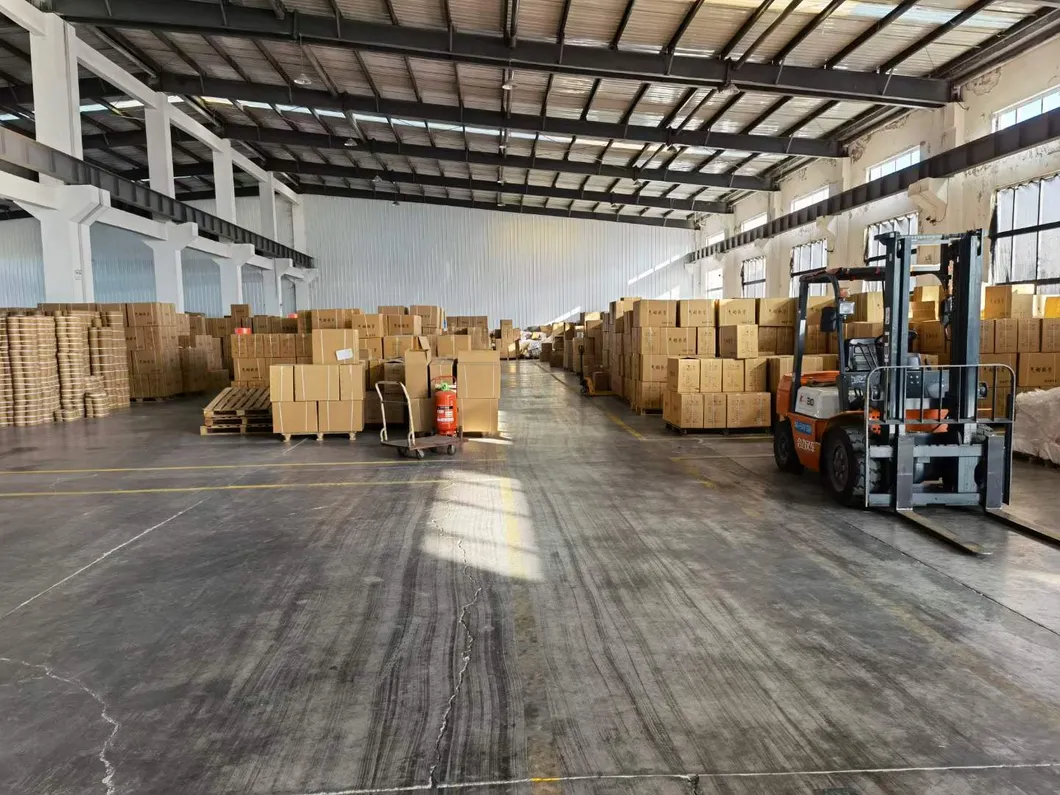

Manufacturer Profile

Our facility integrates production, sales, and scientific research into a modern high-tech polymer composite material manufacturer. We produce hundreds of varieties, including pneumatic hoses, high-pressure fluid hoses, garden hoses, and steel wire reinforced pipes. We adhere to the principle of "quality first, service first" and aim for continuous innovation to meet customer needs.

Our Advantages

A PVC steel wire fiber composite hose is a dependable solution for diverse industries. Its rigid construction, flexibility, and abrasion resistance make it essential for applications where performance is critical.

Smooth PVC inner tubes ensure low flow resistance.
Reinforcement Layer: High-quality synthetic fibers (polyester/nylon) embedded for pressure resistance.
Highly compatible with chemicals, oils, and gases.

Frequently Asked Questions

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge, though the cost of freight is to be covered by your side.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. For non-stock items, it usually takes 25-35 days depending on the quantity.

What is your payment term?

T/T 30% payment in advance, balance paid before shipment. We also accept L/C, West Union, and PayPal for smaller values.

What are your main global markets?

Our main markets include North America, South America, Southeast Asia, Mid East, and Western Europe.

Can I have my own customized product?

Yes, we provide logo printing and customized package design based on our Minimum Order Quantity (MOQ).

Is the hose suitable for high-temperature applications?

Our standard PVC wire reinforced hose is rated for temperatures from -29ºC up to 80ºC. Special high-temperature resistant versions can be produced upon request.
