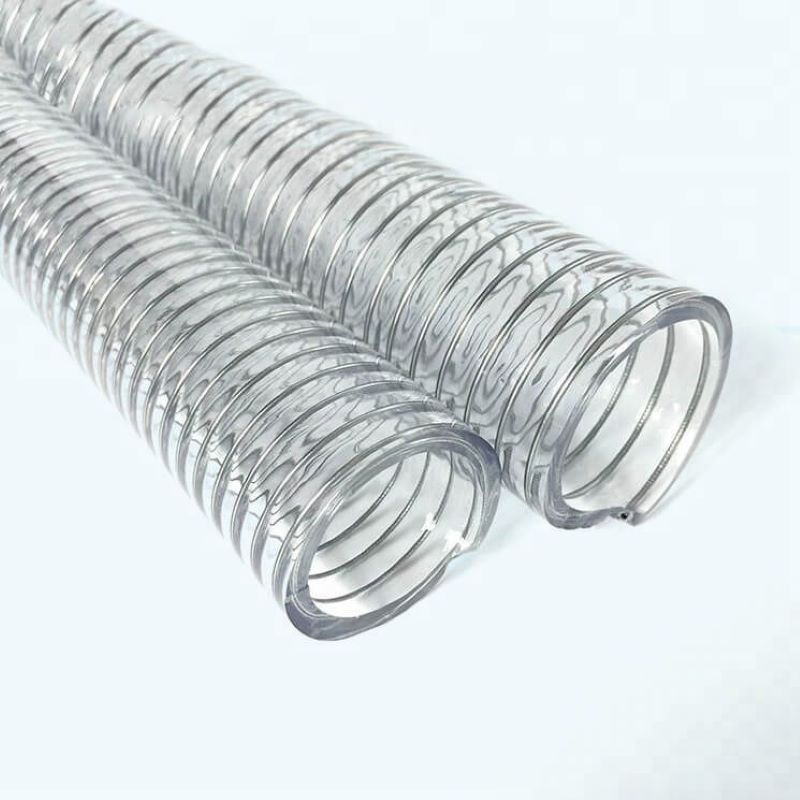

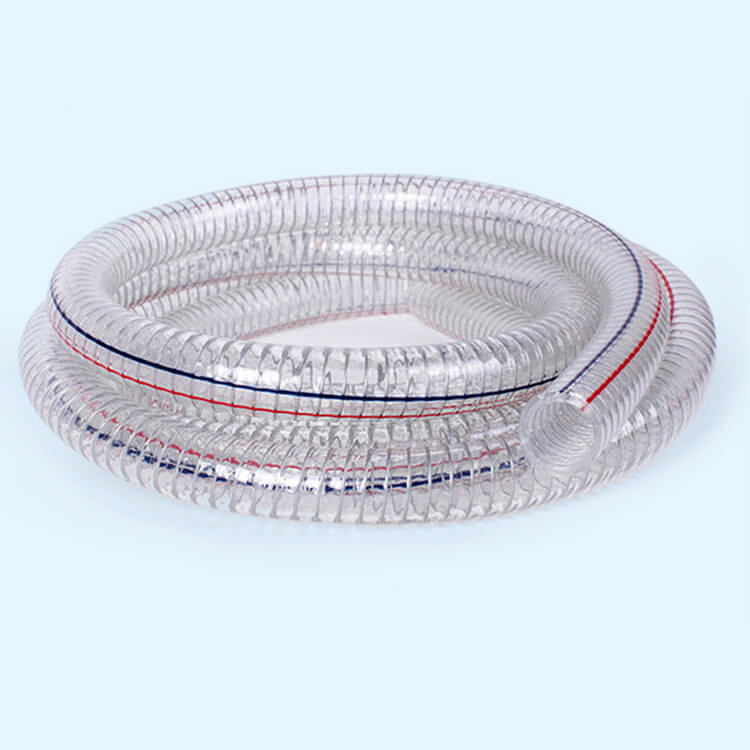

Top Quality Transparent Steel Wire Wound Reinforced Silicone Hose for Water Fluid Dust Mine

🔵 Basic Product Information

Model NO.

pvc steel wire hose

Product Name

PVC Steel Wire Reinforced Hose

Usage

Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe

Application

Industrial Fluid Transfer and Suction

Thickness

5mm-22mm

Working Pressure

2-8 Bar

Standard

ISO9001

Certification

CE ISO

Specification

1/4"-10"

Feature

Non Toxic

MOQ

1000m

Sample

Free Sample

HS Code

39173900

Capacity

6000tons/Year

📦 Packaging & Delivery

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

Transport

Woven Plastic Cloth Wrapped

🛠️ Product Description

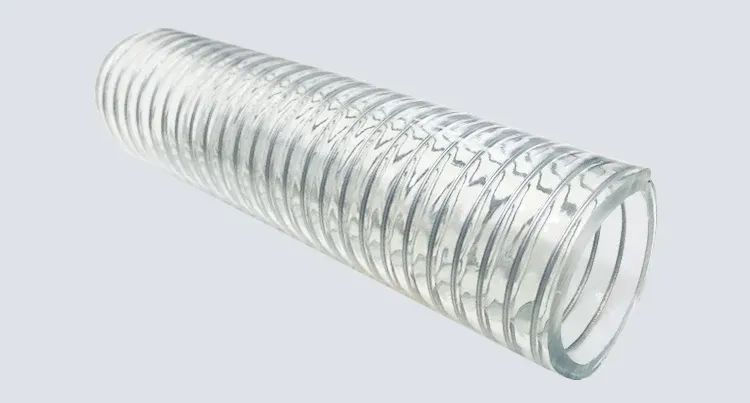

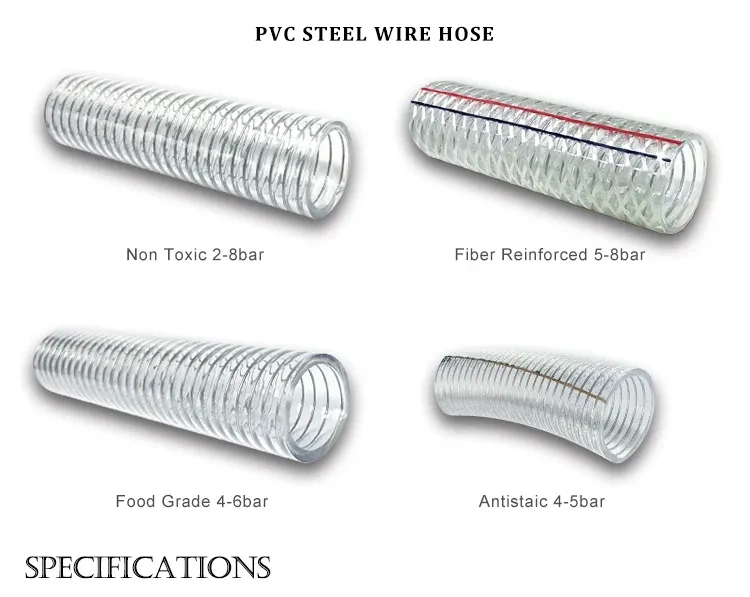

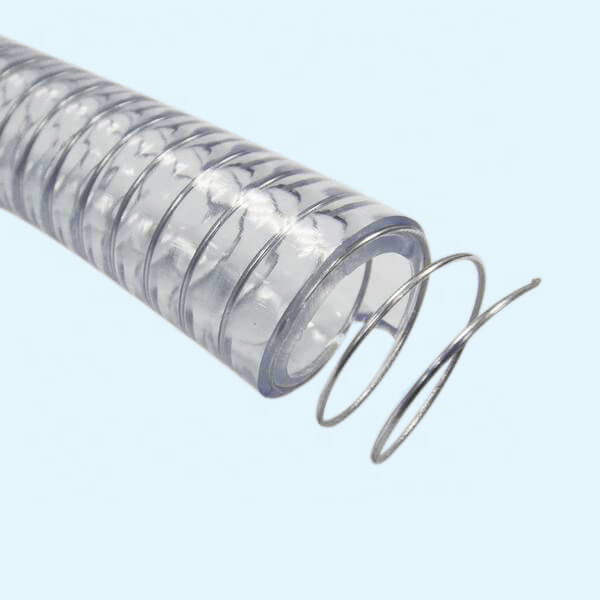

Top Quality Transparent Steel Wire Wound Reinforced Silicone Hose For Water Fluid Dust Mine

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
1/4	6	11	8	120	24	360	115	100
5/16	8	14	8	120	24	360	150	100
3/8	10	16	8	120	24	360	200	100
1/2	12	18	8	120	24	360	220	100
5/8	15	22	6	90	18	270	300	50
3/4	19	26	6	90	18	270	360	50
1	25	33	5	75	16	240	540	50
1-1/4	32	40	5	75	16	240	700	50
1-1/2	38	48	5	75	15	225	1000	50
2	50	62	5	75	15	225	1600	50
3	76	90	4	60	12	180	3000	30
4	102	118	4	60	12	180	4500	20

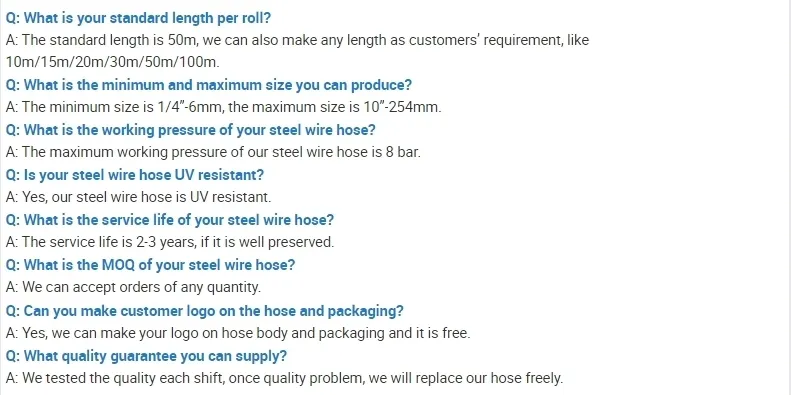

❓ Frequently Asked Questions

What are the main applications of this steel wire reinforced hose?

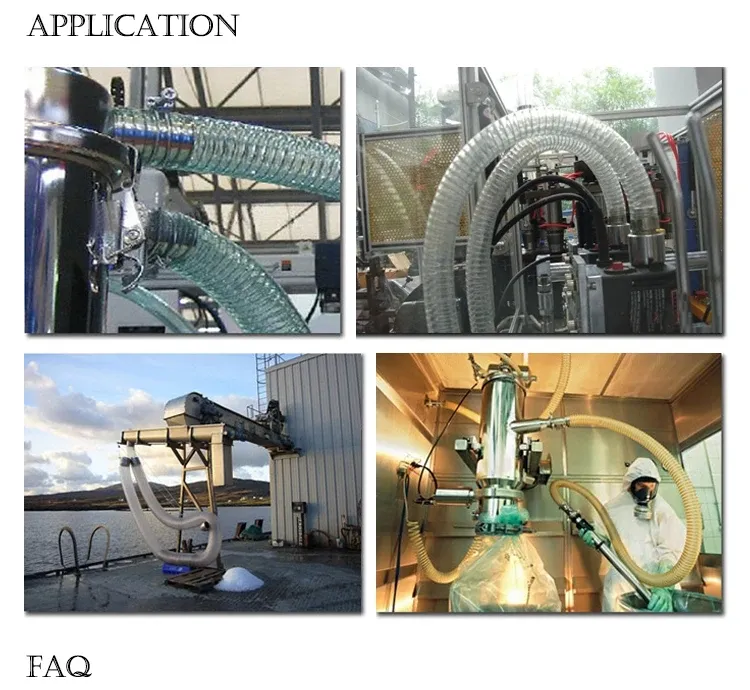

It is widely used for industrial fluid transfer, water supply and drainage, agricultural irrigation, and as a protective conduit for wires and cables.

Is the PVC steel wire hose non-toxic and safe to use?

Yes, the product is manufactured with non-toxic features and meets ISO9001 and CE certifications, ensuring safety for various fluid transfer needs.

What is the pressure range this hose can withstand?

The working pressure typically ranges from 2 to 8 Bar, depending on the specific size and thickness of the hose.

Can I request a sample before placing a bulk order?

Absolutely. We offer free samples so you can verify the quality and specifications before committing to the 1000m MOQ.

How is the hose packaged for international transport?

To ensure safety during transit, the hoses are securely wrapped in woven plastic cloth, typically in coils of various lengths.

What sizes are available for this reinforced hose?

We offer a wide range of specifications from 1/4" up to 10" in diameter to meet different industrial requirements.
