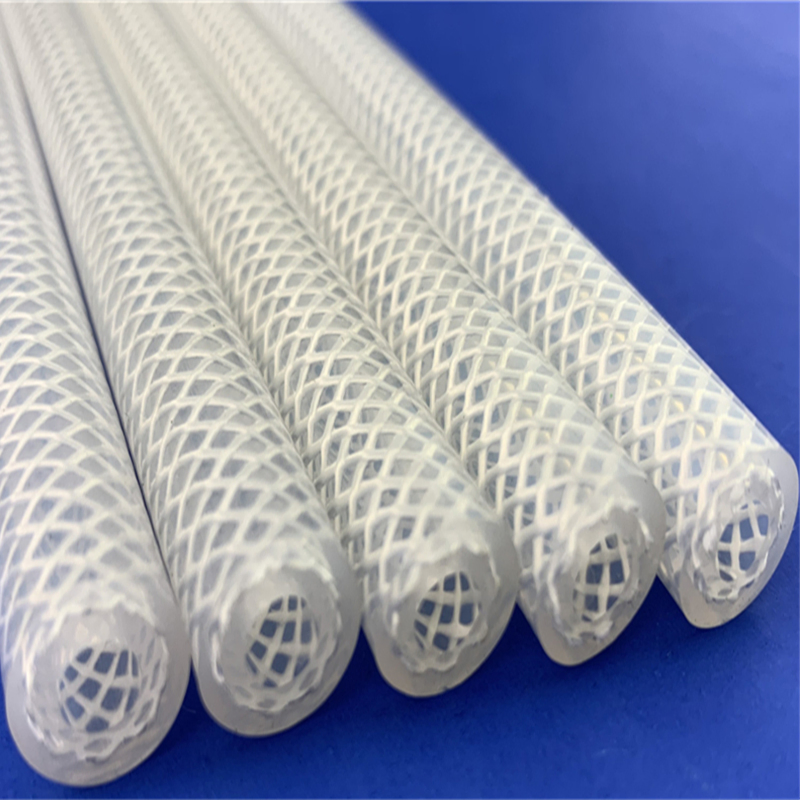

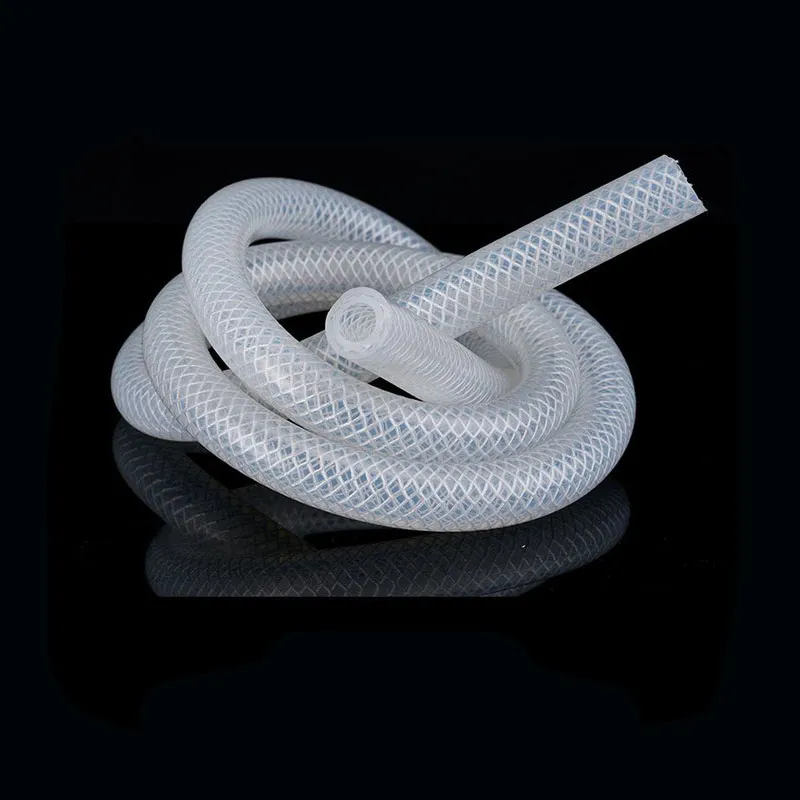

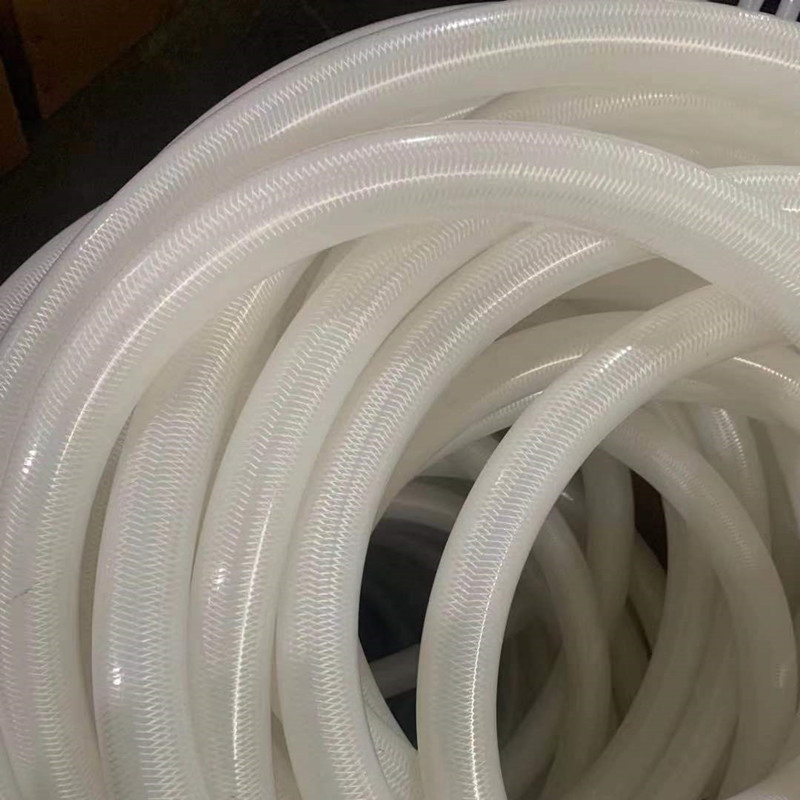

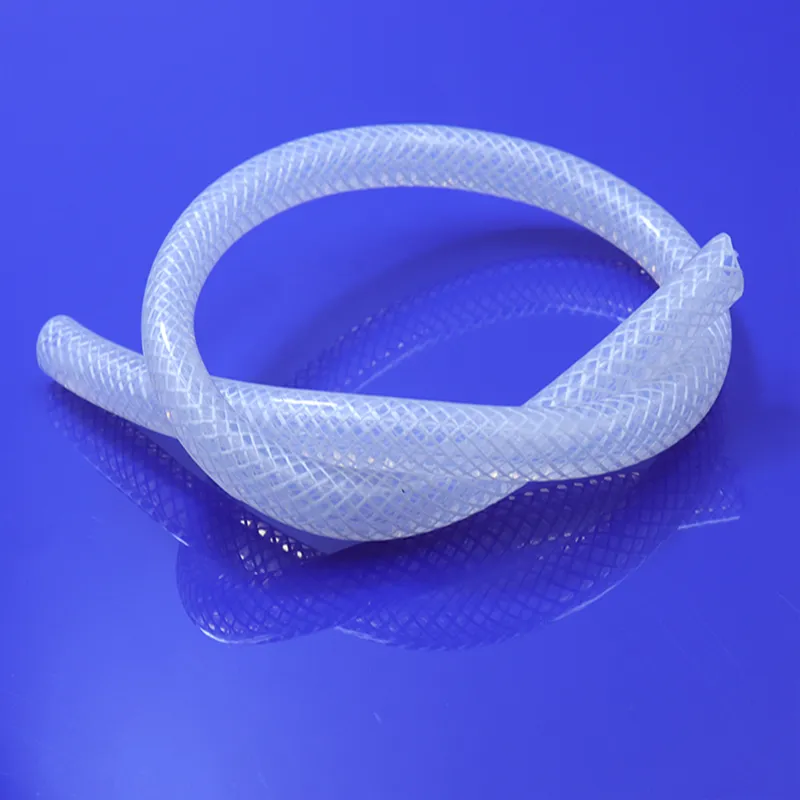

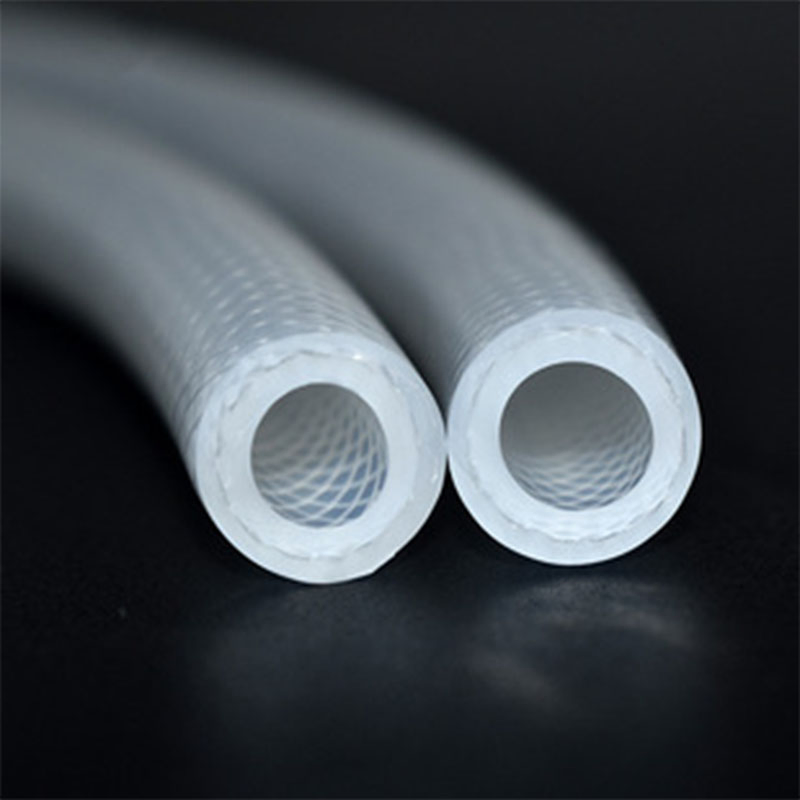

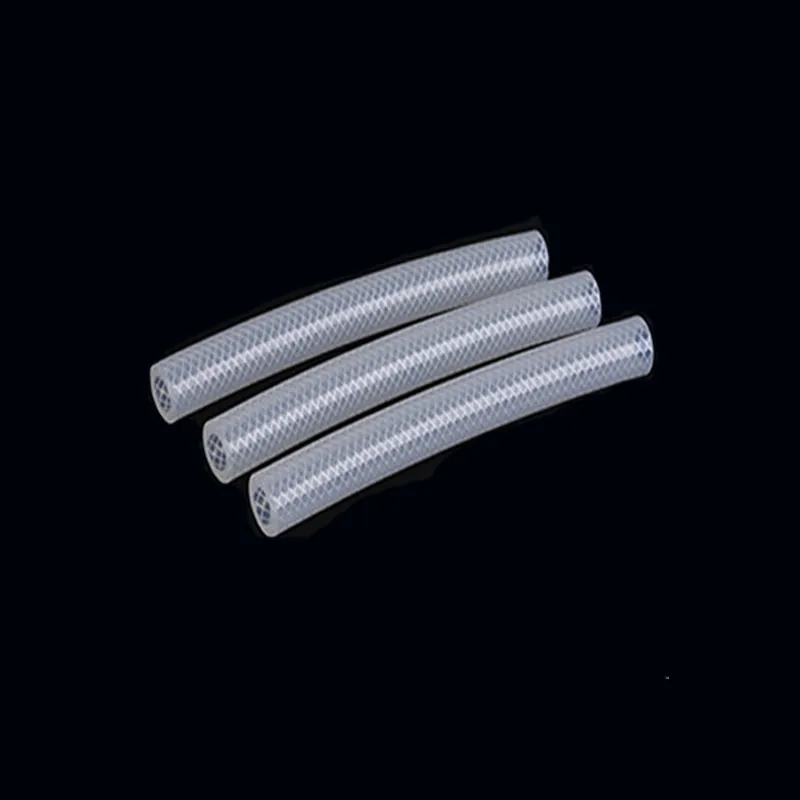

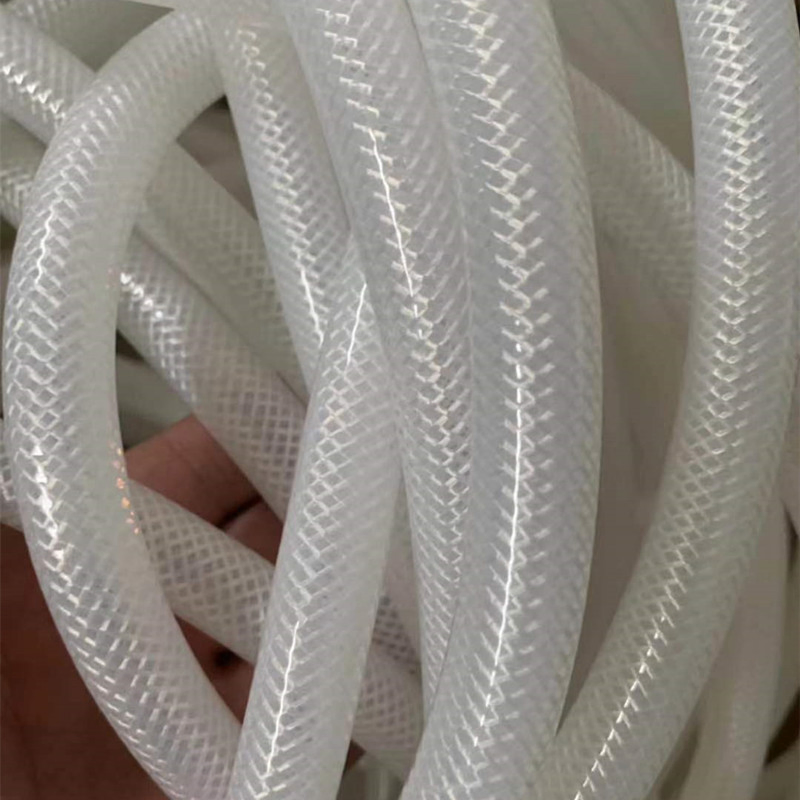

It is usually composed of an internal silicone layer, a middle woven fabric, and an external high-temperature adhesive layer. The silicone braided tube has high compressive strength, cold resistance, high temperature resistance, and corrosion resistance.
We are a professional manufacturer with full experience and skills, supporting customized products to provide you with a one-stop service.
| Product Name | Braided Silicone Hose |
|---|---|
| Material | Silicone |

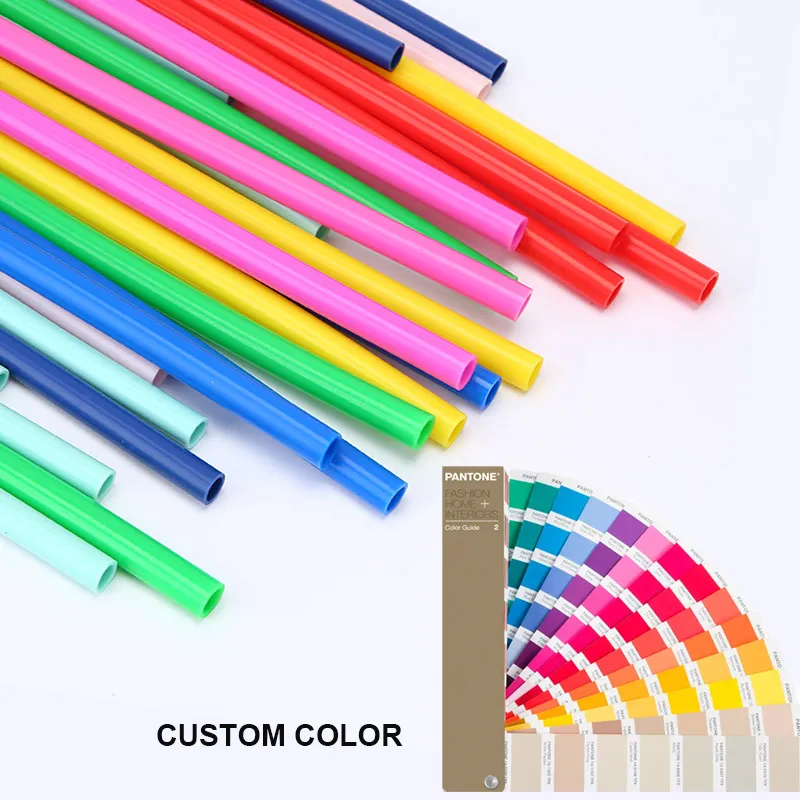

| Color | White, Blue or Customized |
| Working Temp | -40~250 ºC |
| Hardness | 30~80 shore A |
| Characteristics | (1) High Compressive strength, (2) Cold and Heat Resistance, (3) Chemical Stability, (4) Good Mechanical Performance |
| Application | Food machine |

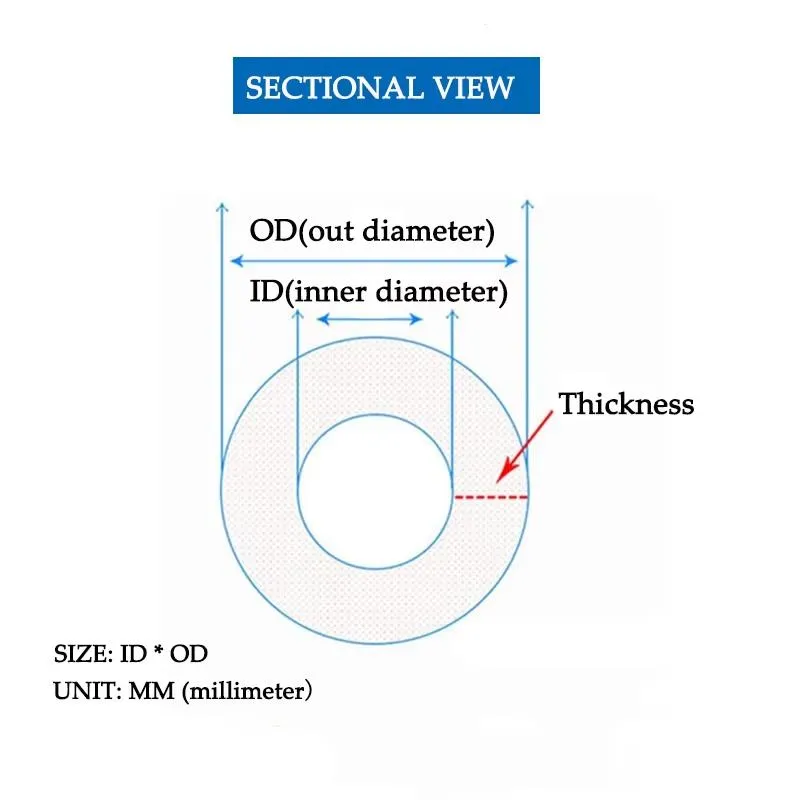

| Size Detail | ID (mm) | OD (mm) | Thickness (mm) | W.P (bar) | B.P (bar) |
|---|---|---|---|---|---|
| 2*8 | 2 | 8 | 3 | 13.79 | 30 |
| 3*9 | 3 | 9 | 3 | 12.07 | 30 |
| 5*11 | 5 | 11 | 3 | 11.72 | 30 |
| 12*20 | 12 | 20 | 4 | 7.8 | 23.4 |
| 16*24 | 16 | 24 | 4 | 5.16 | 15.5 |
| 22*32 | 22 | 32 | 5 | 8.48 | 17 |
We are professional to manufacture all kinds of rubber, plastic and polyurethane products. Our main products including silicone tubes, silicone balls, silicone sealing, rubber tube, rubber ball, sponge cleaning ball, etc. We can do custom according to clients' drawings, requests and samples. We provide professional OEM services.
