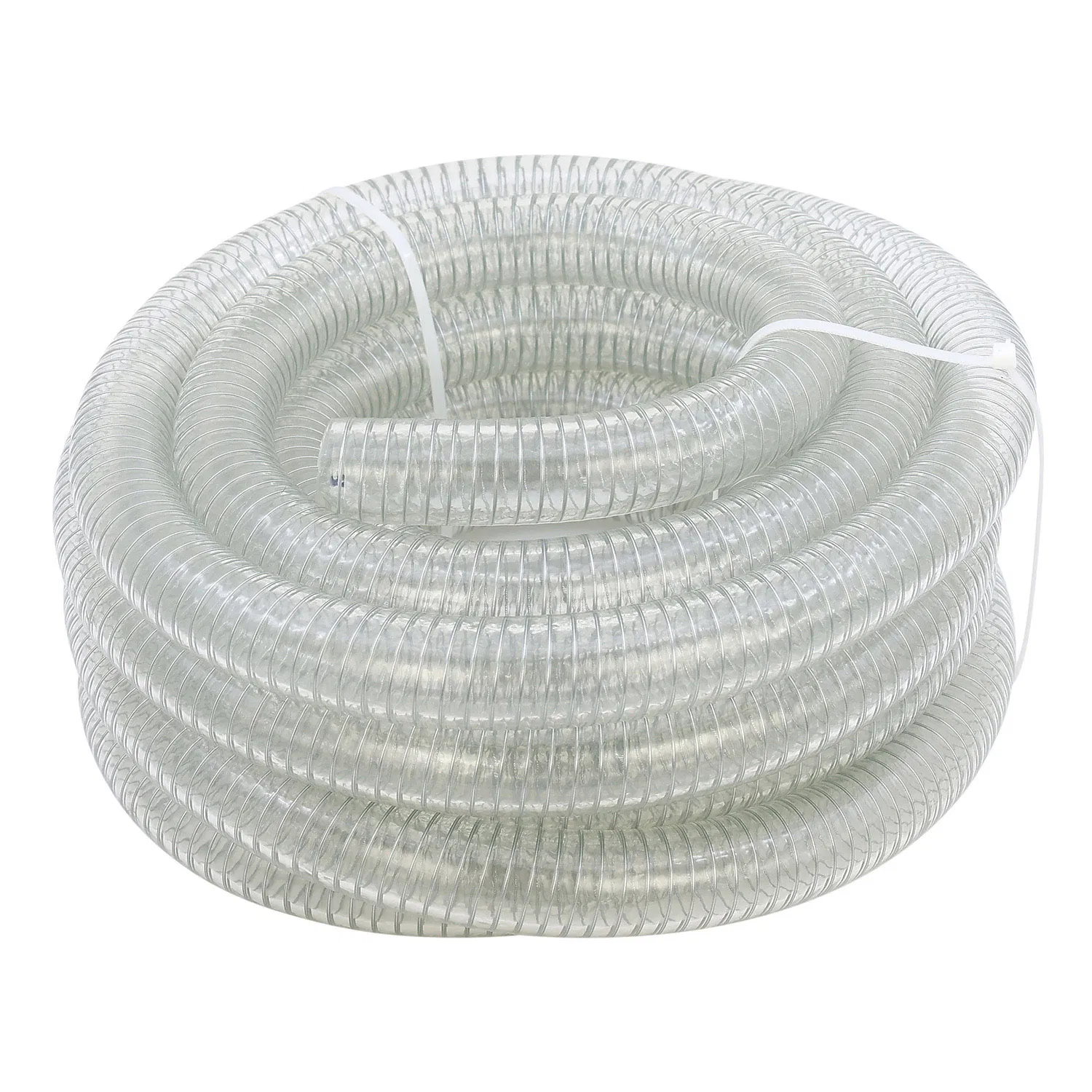

Weather Solutions Spring Hose Flexible PVC & Steel Wire Reinforced Transparent Silicone Oil Suction Hose Plastic Hose

1 / 5

Weather Solutions Spring Hose Flexible PVC & Steel Wire Reinforced Transparent Silicone Oil Suction Hose Plastic Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

PVC Steel Hose

Type

Thermoplastic Pipe

Usage

Drainpipe, Water Supply Pipe, Agricultural Irrigation Pipe

Length

30m/50m/100m

Certificate

ISO/Reach/FDA/RoHS/CE

Specification

1" to 10"

Production Capacity

50000 Tons / Year

Shape

Round

Product Description

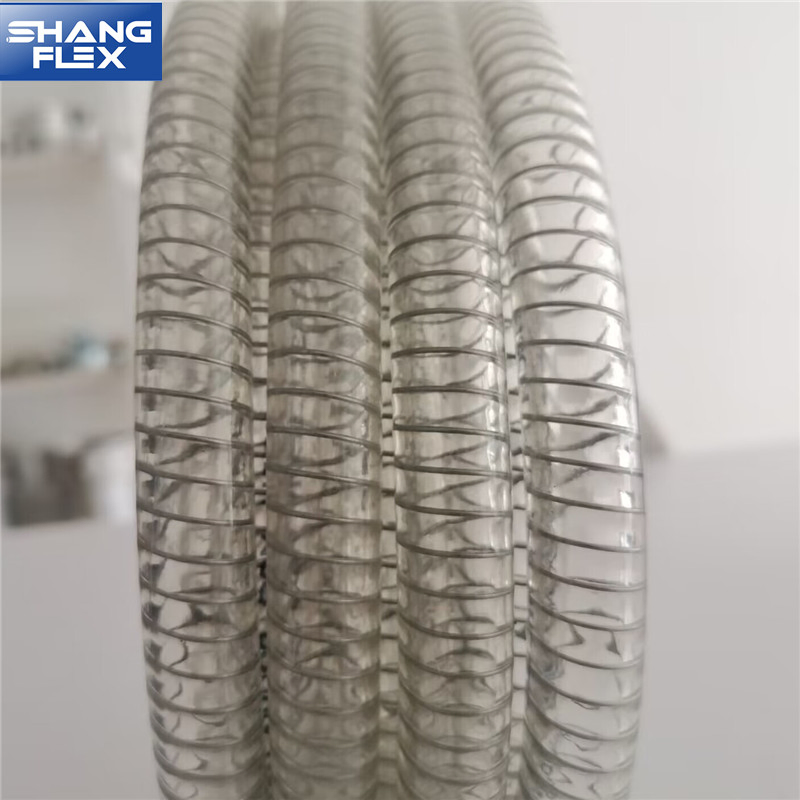

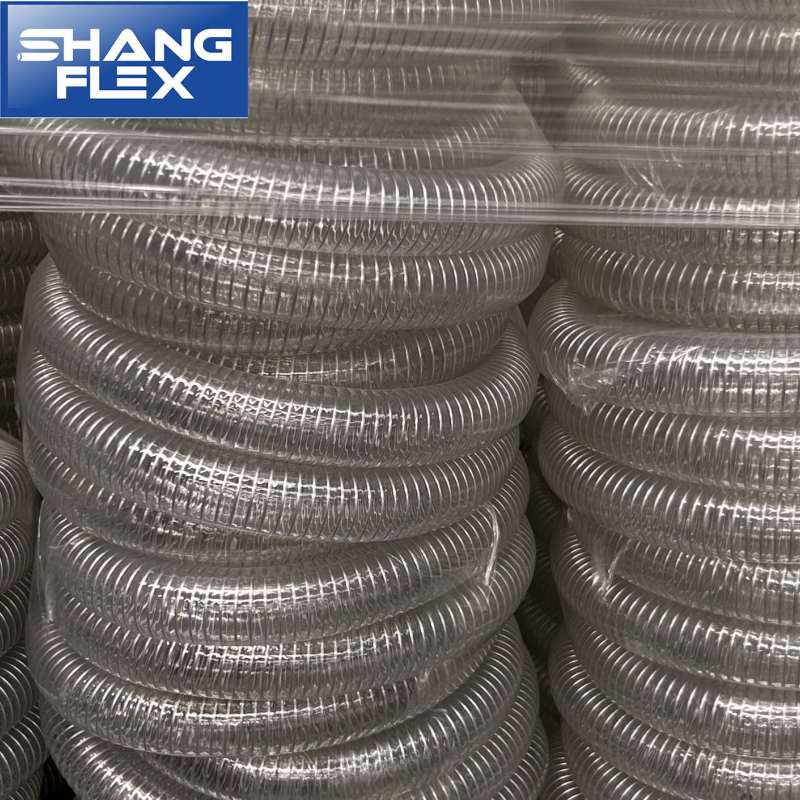

Non Toxic Spiral Steel Wire Reinforced PVC Hose

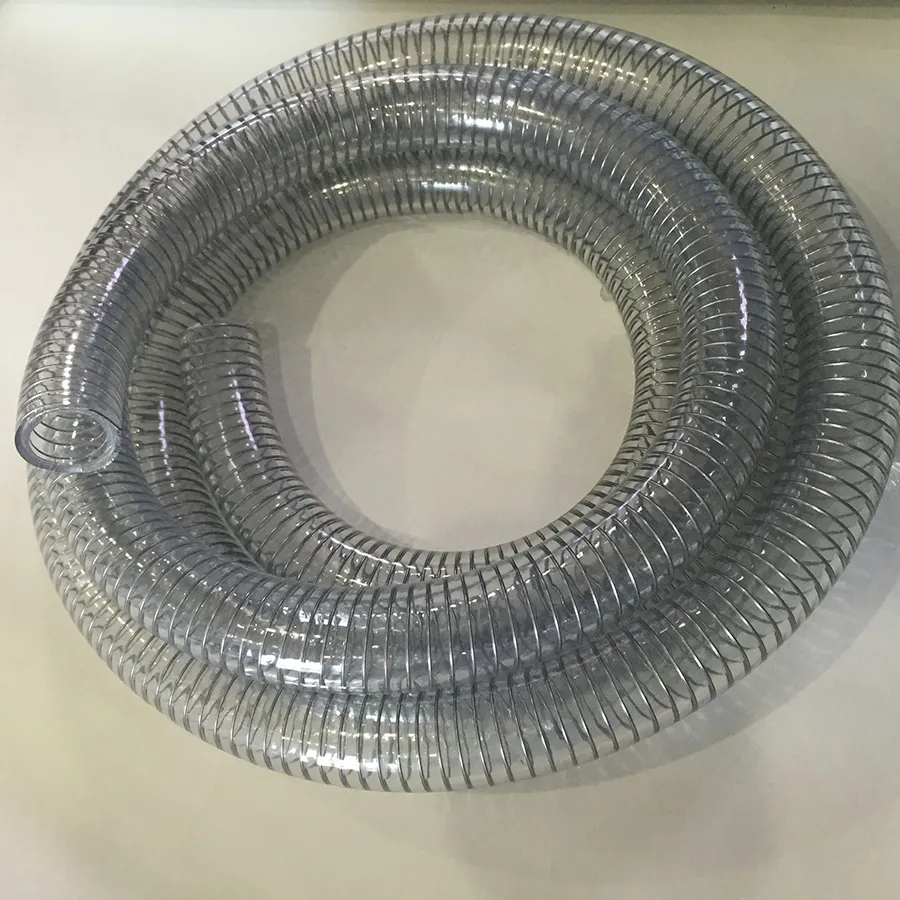

PVC Steel Wire Reinforced Hose

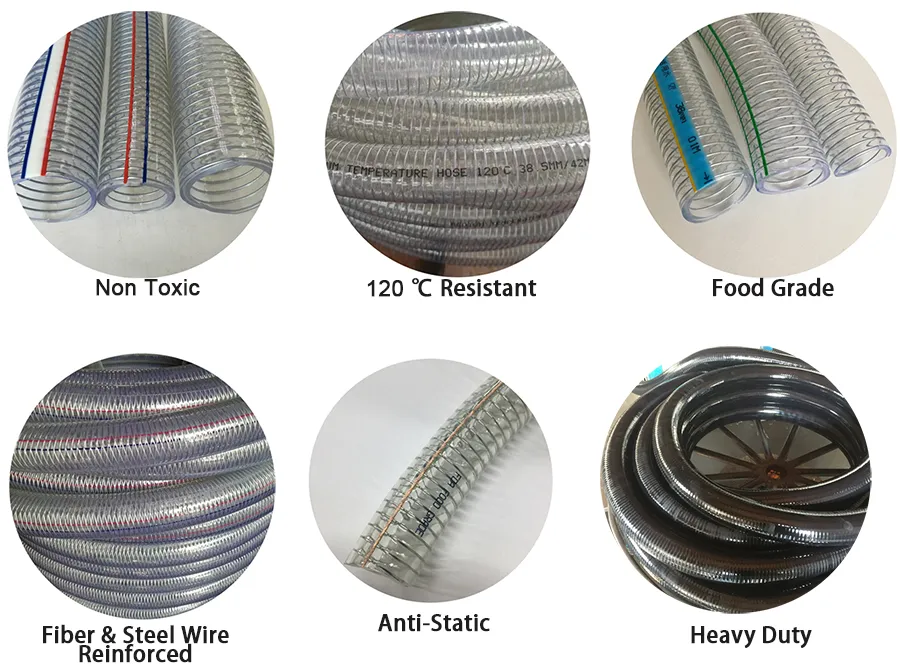

Product Features

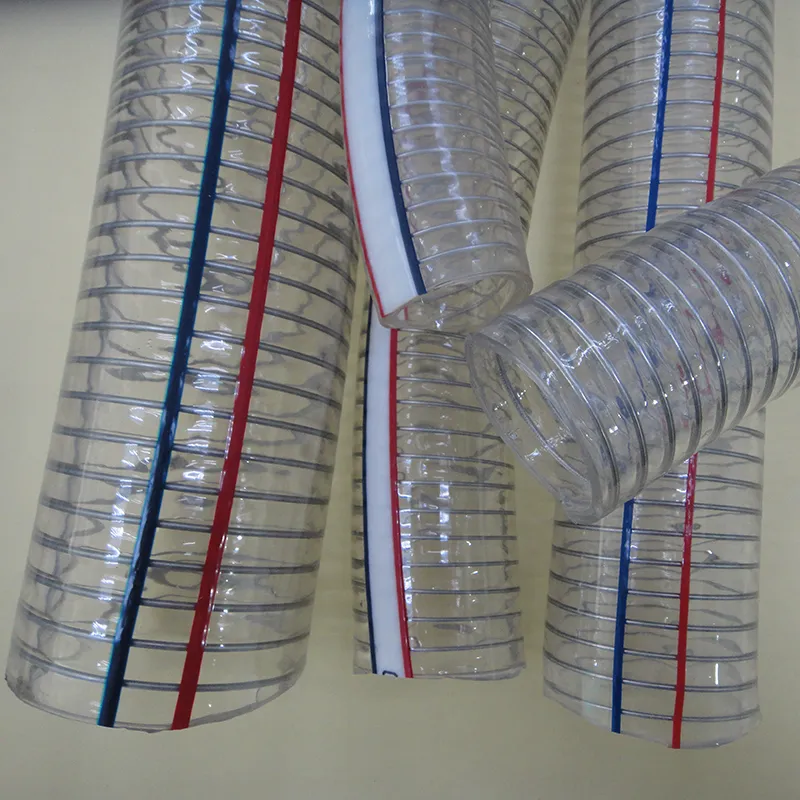

Non-toxic PVC inner tube and cover with spring steel wire helix embedded inside.
Clear wall allows for visual flow inspection inside the hose.
High pressure resistance; bursting pressure is 3 times the working pressure.
Anti-collapsible and anti-kinking properties.
Chemical resistant and UV stabilized for outdoor longevity.
Temperature range: -5ºC to 70ºC (High temp version up to 120ºC).
Food grade quality available, phthalate-free and heavy metal element-free (FDA/REACH/ROHS).
Anti-static options with inserted copper wire to prevent electric shock and blockages.

Technical Specifications

Inner Diameter		Outer Diameter (mm)	Length (m/roll)	Working Pressure (bar)	Burst Pressure (bar)	Weight (kg/m)
1/4"	6	11	100	8	24	0.115
1/2"	12	18	100	8	24	0.220
1"	25	33	50	5	16	0.540
2"	50	62	50	5	15	1.600
3"	76	90	30	4	12	3.000
4"	102	116	20	4	12	4.300

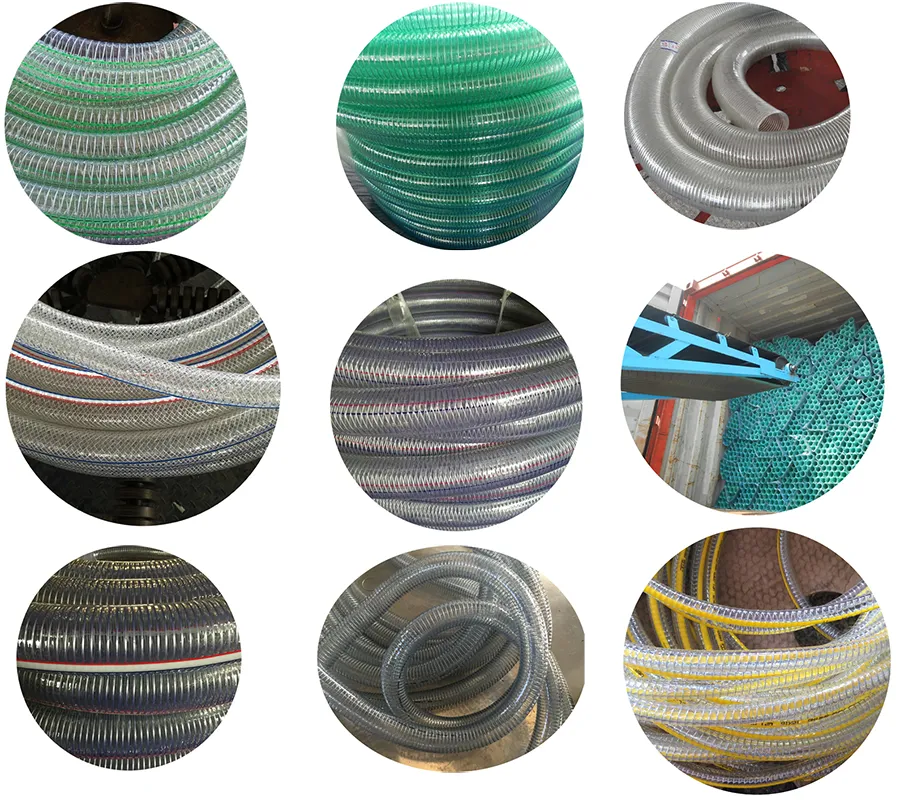

Production & Packaging

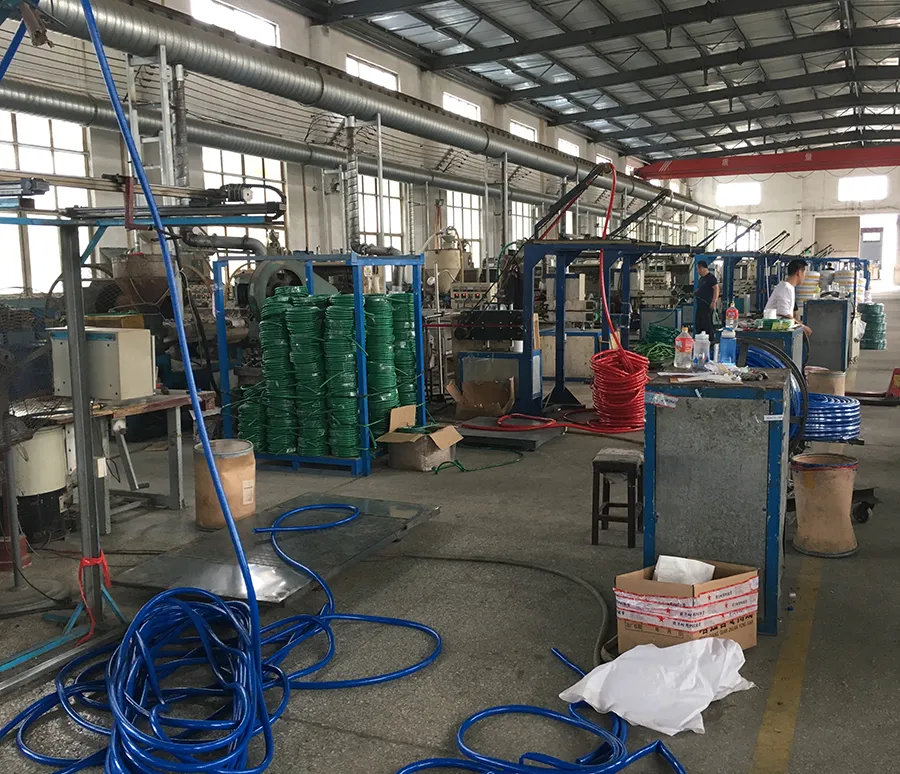

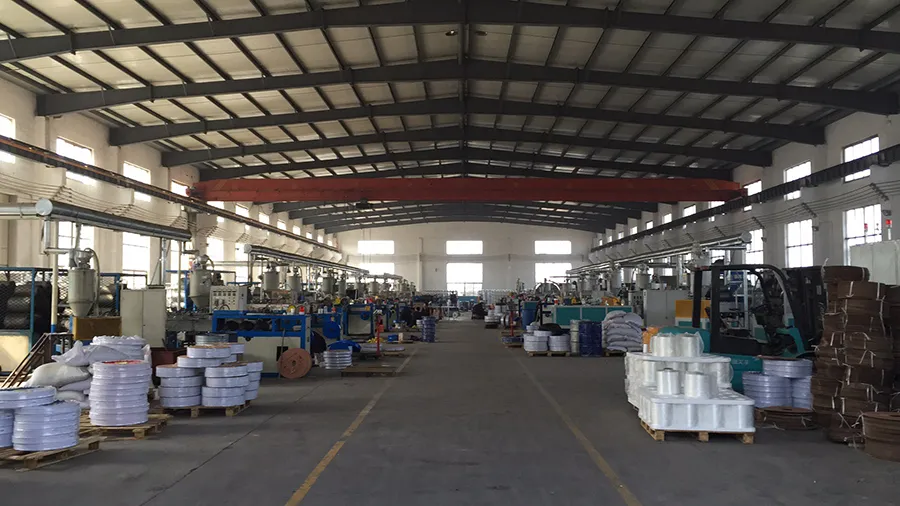

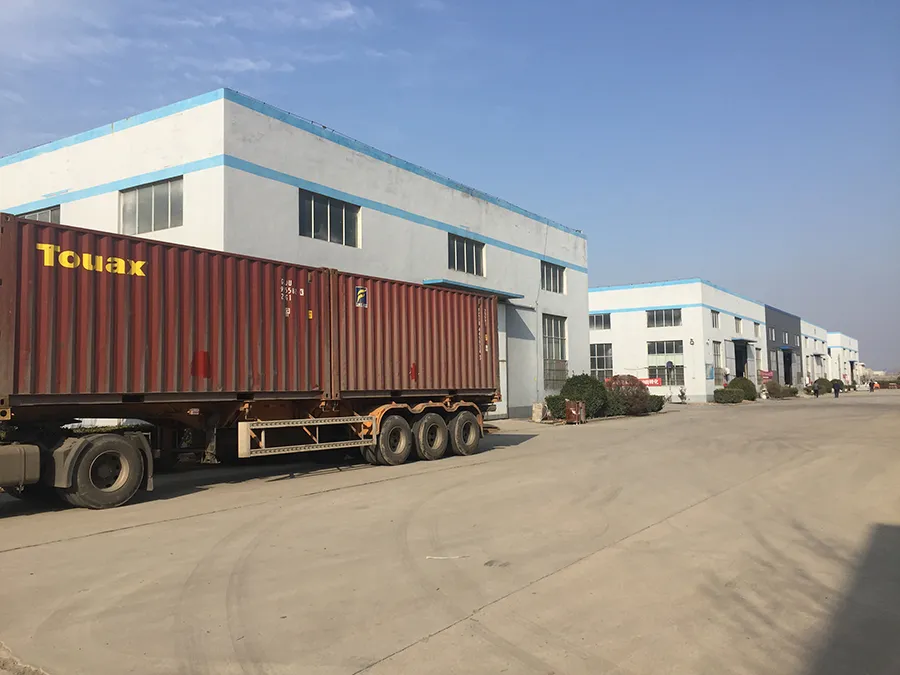

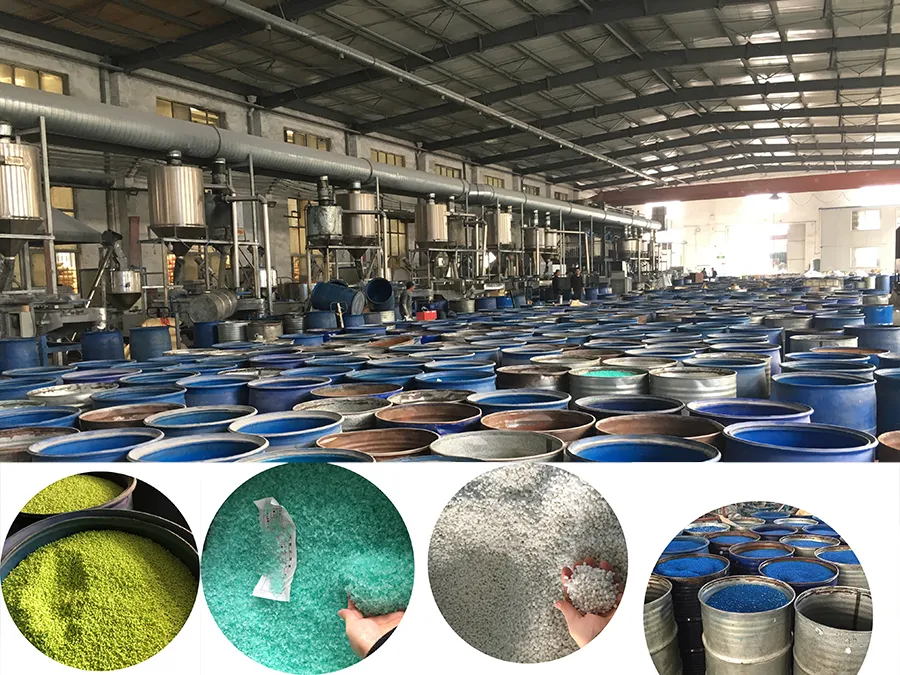

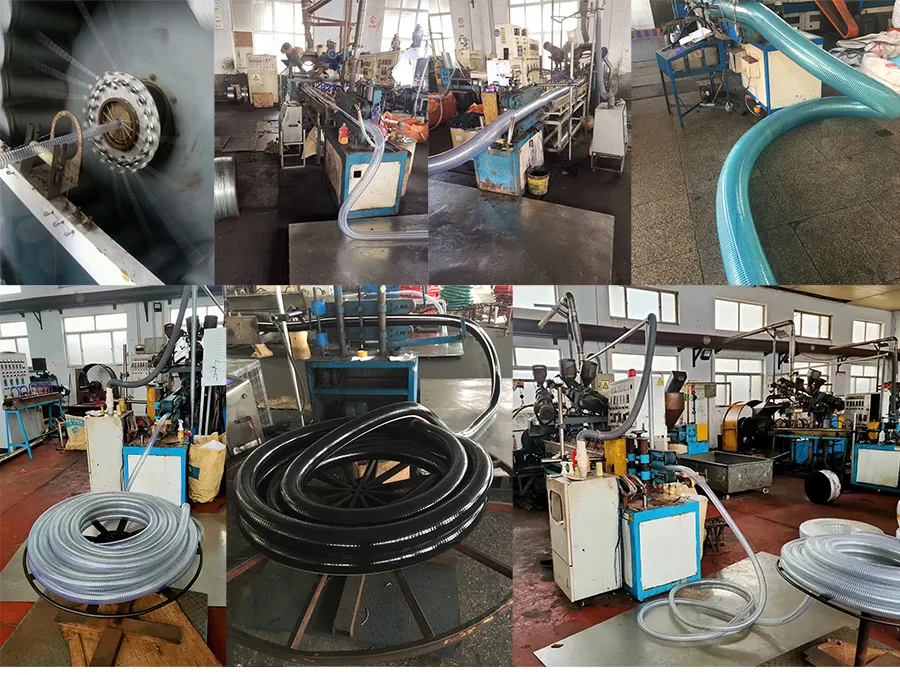

Factory Overview

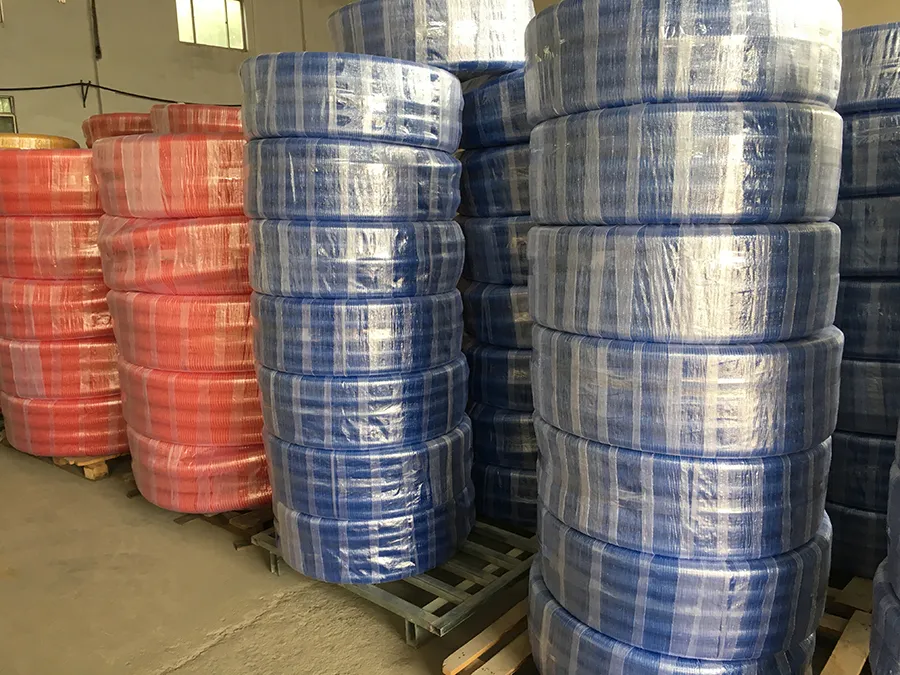

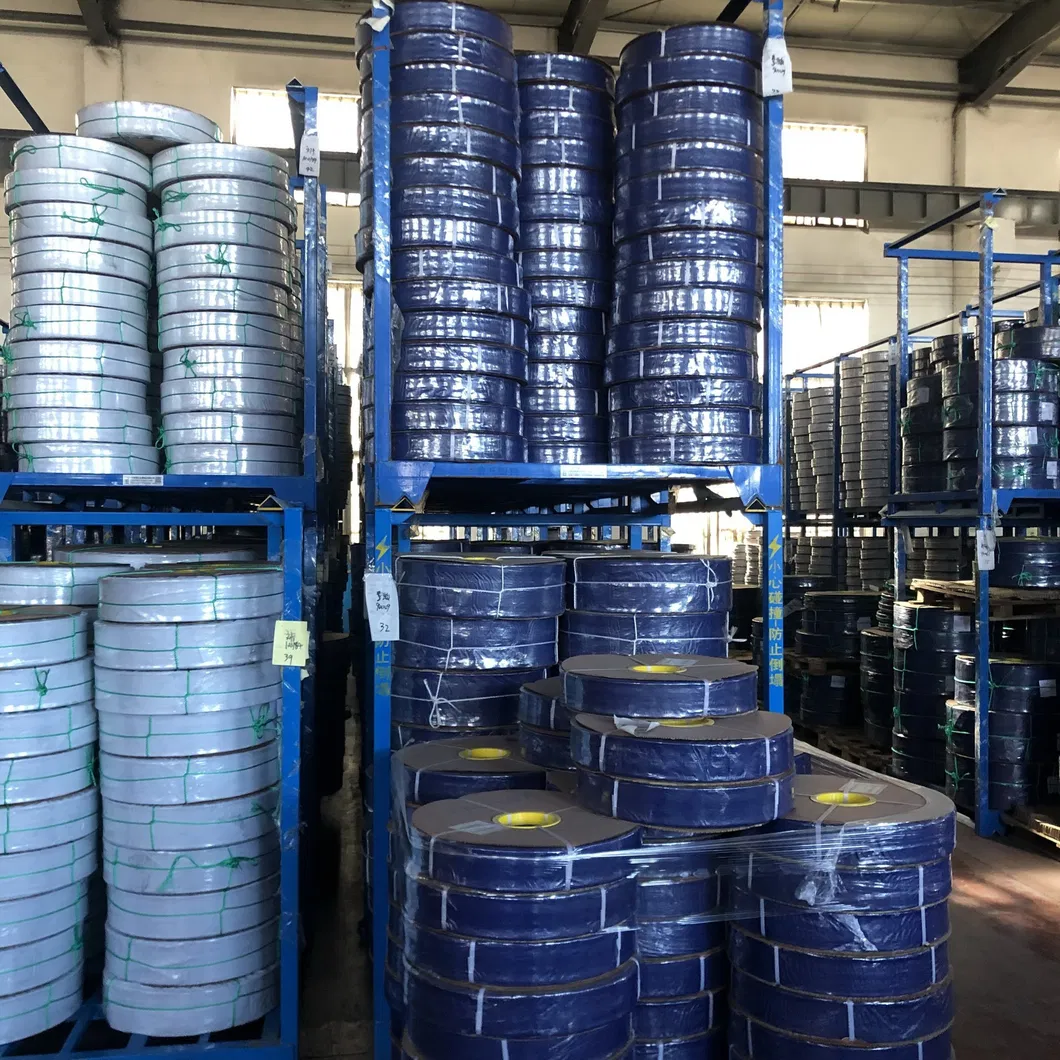

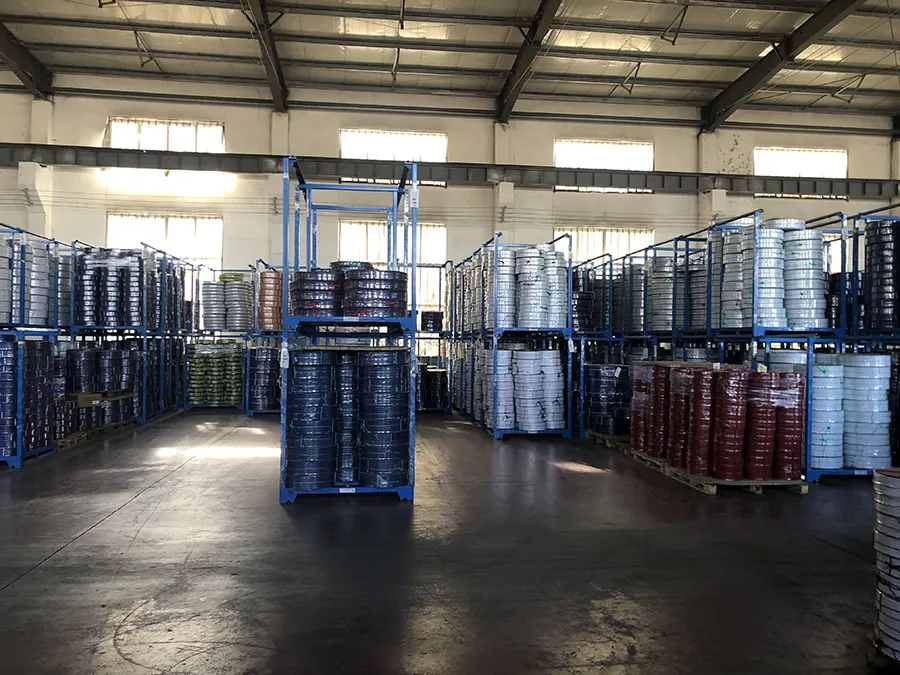

Warehouse Storage

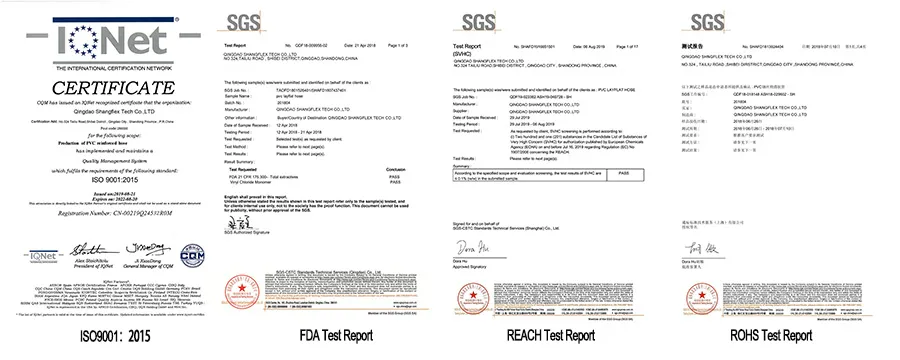

Certifications

Frequently Asked Questions (FAQ)

Q1: What are the main features of the PVC Steel Wire Reinforced Hose?

The hose features a non-toxic PVC structure with an embedded spring steel wire helix. It is transparent for flow visibility, highly resistant to minus pressure, and offers excellent anti-kinking and anti-collapsible properties.

Q2: What is the temperature range for this hose?

The standard operating temperature range is -5ºC to 70ºC. However, we also offer a high-temperature resistant version that can operate in conditions up to 120ºC.

Q3: Is the hose suitable for food and beverage delivery?

Yes, we provide food-grade quality hoses made from top-grade PVC and environmental plasticizers. These are free of phthalates and heavy metals, meeting FDA, REACH, and ROHS requirements for delivering milk, wine, beer, and drinking water.

Q4: Can this hose handle suction and vacuum applications?

Absolutely. The steel wire reinforcement makes the hose minus-pressure resistant, meaning it can maintain its shape and function effectively under suction and vacuum conditions for liquids, granules, and powders.

Q5: What is the anti-static version of the hose?

The anti-static version includes an inserted copper wire. This design helps discharge static electricity generated by the flow of materials, protecting users from electric shocks and preventing material buildup.

Q6: What certifications do your products carry?

Our production processes are ISO9001:2008 and ISO14001:2008 certified. Products are manufactured to meet American, European, and Australian standards, including FDA, REACH, ROHS, BS3746, and AS2070.
