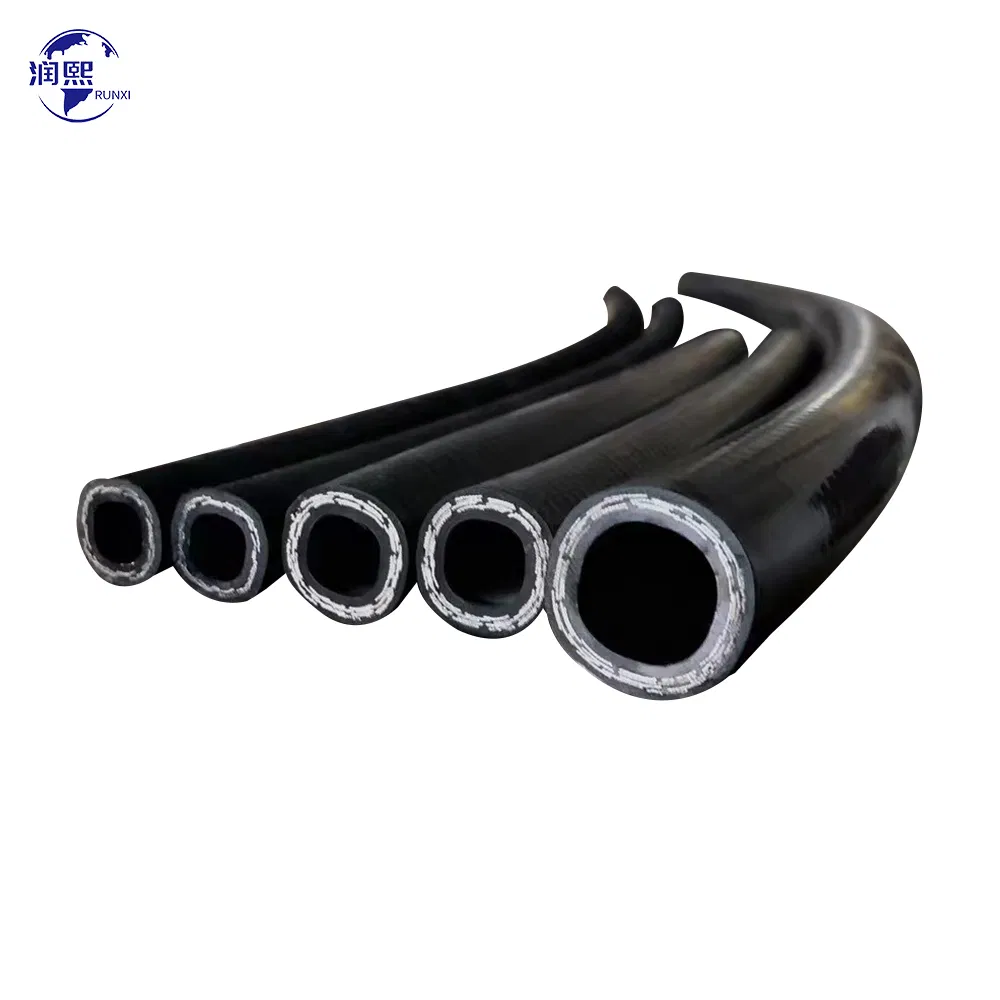

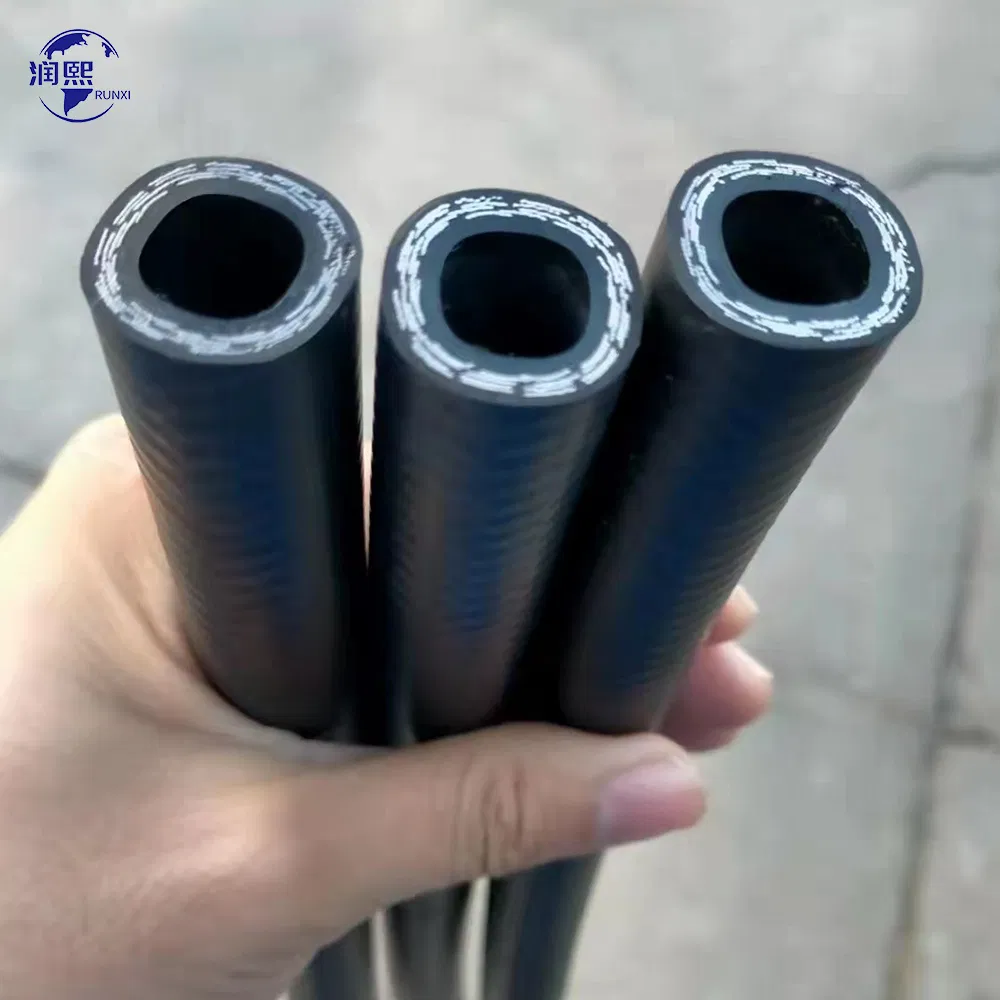

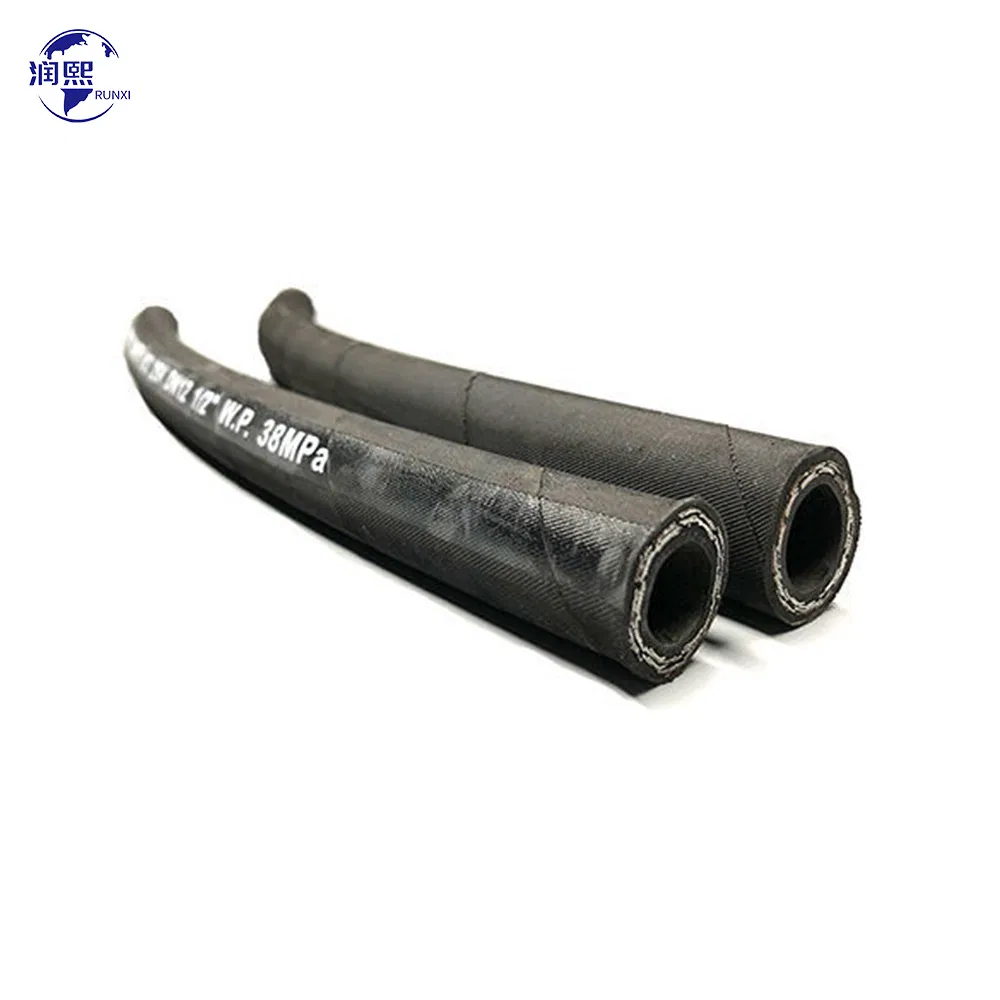

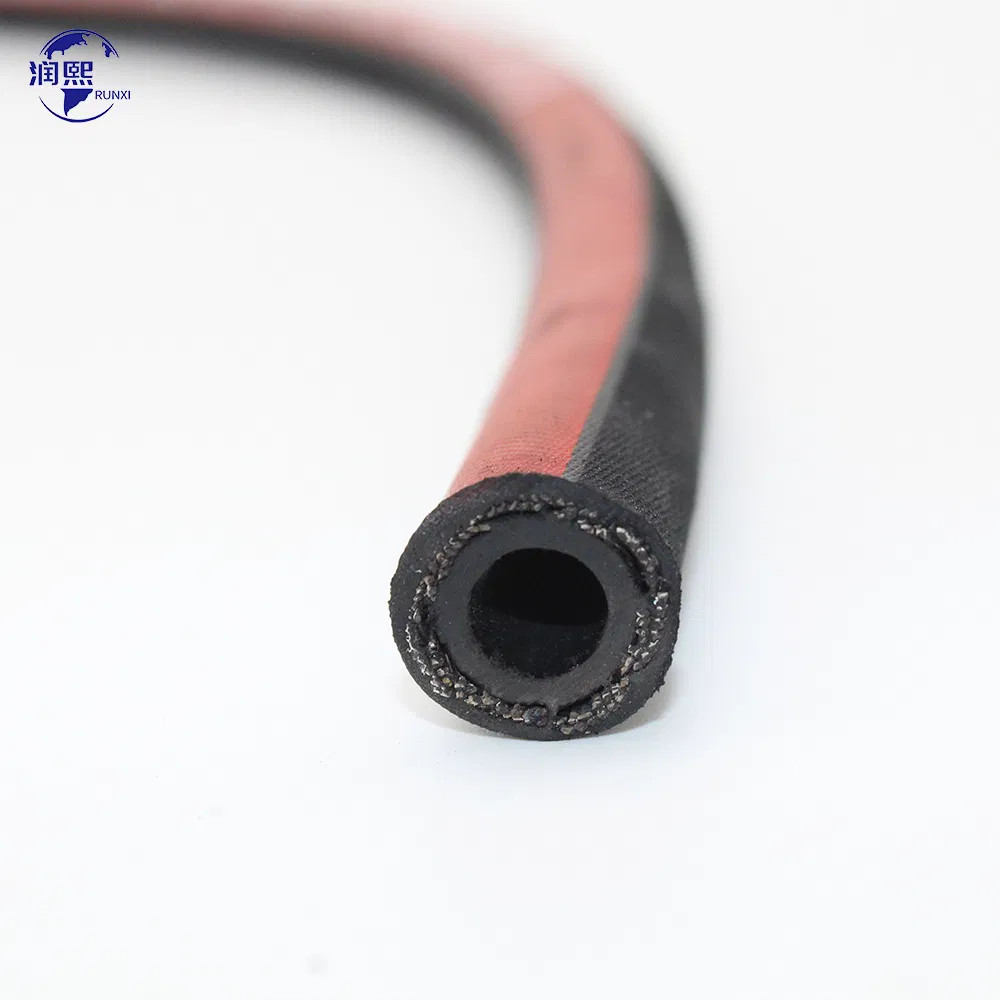

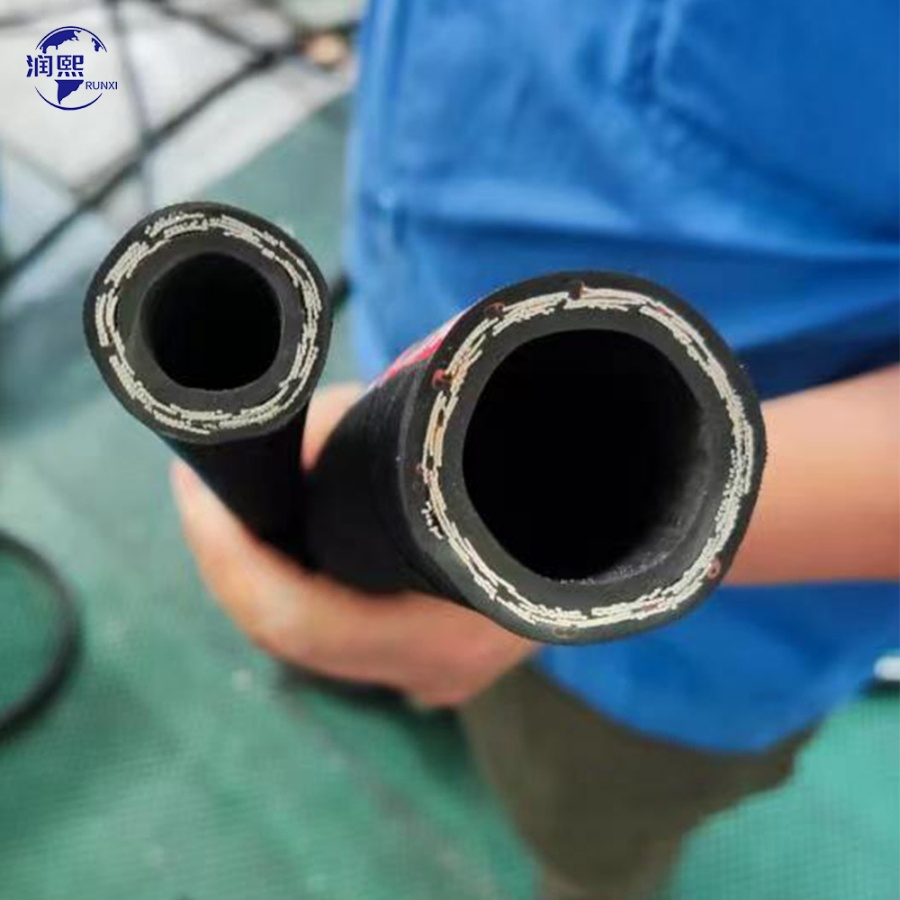

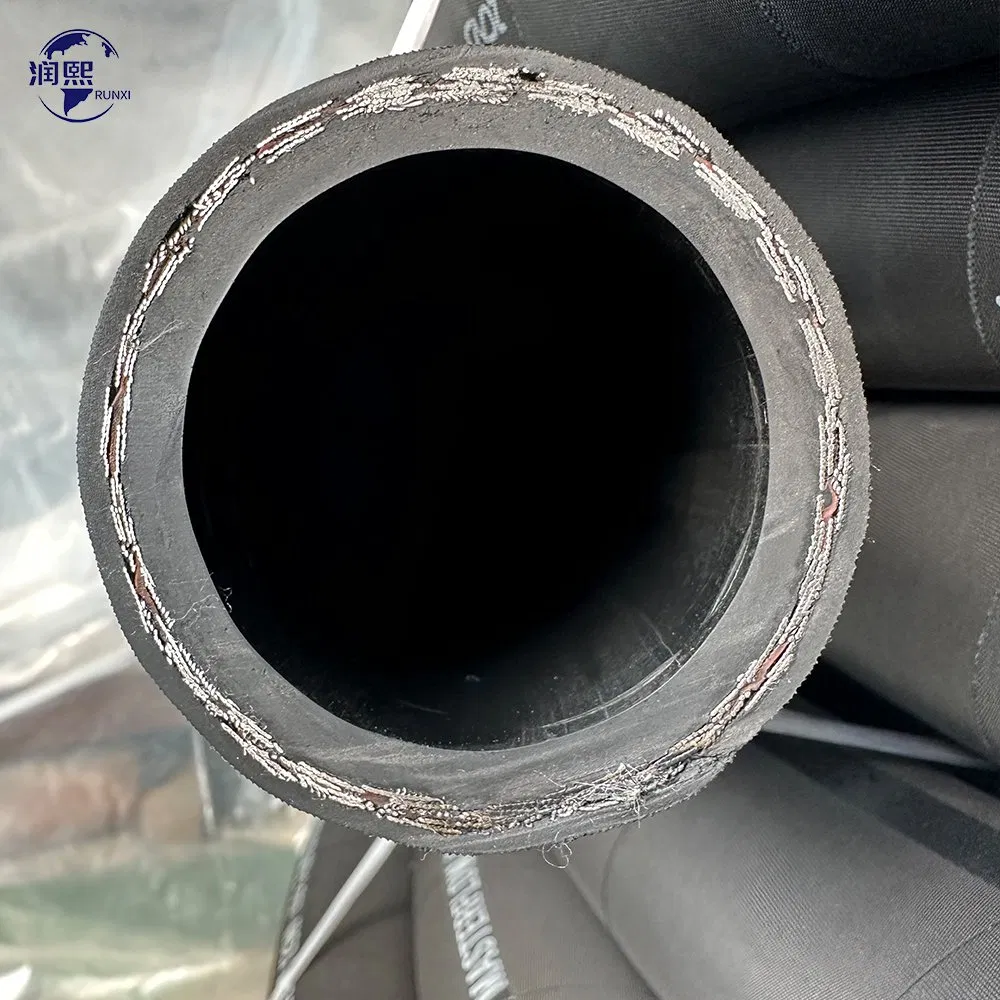

High pressure hose is made of internal rubber, middle rubber, 2, 4 or 6 layers of wire-wood, and external rubber.

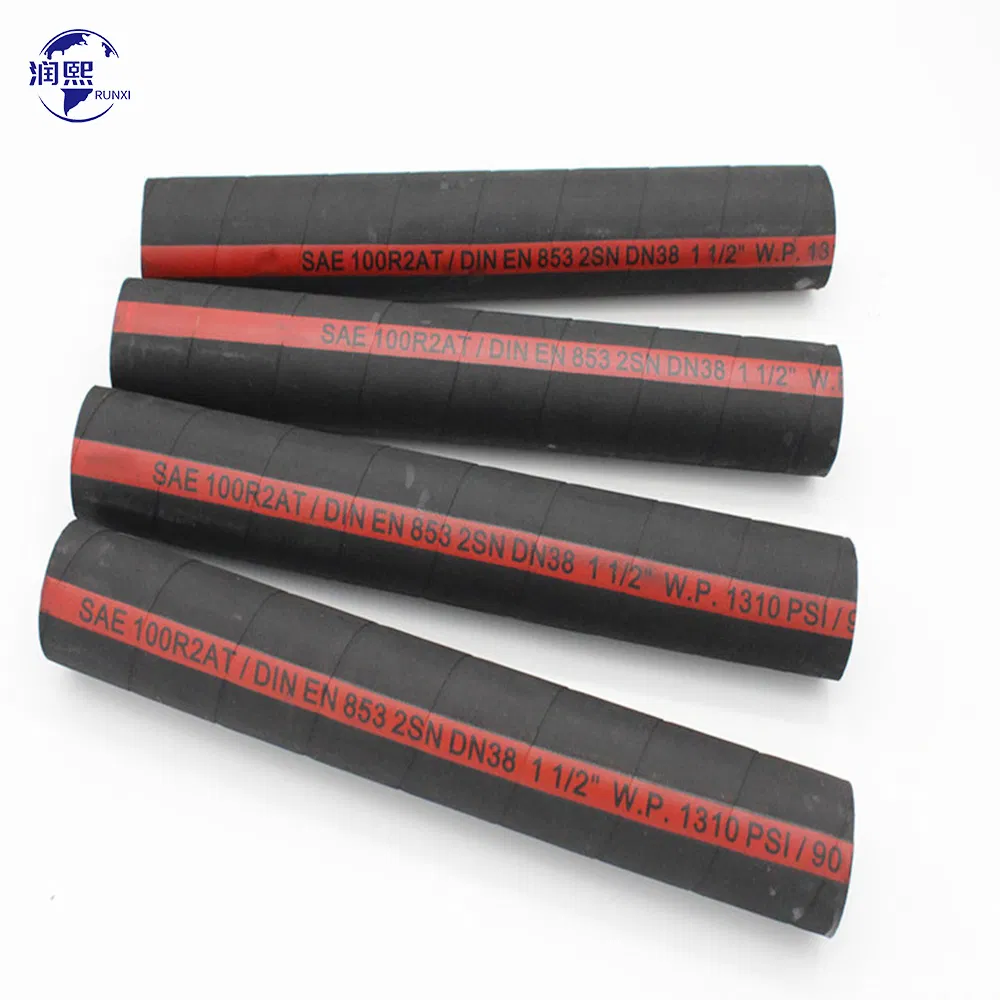

Hydraulic Hose Size Chart (SAE 100R2AT / EN853 2SN):
| Part No. | SIZE (inch) | I.D (mm) | O.D (mm) | W.P (bar) | B.P (bar) | WEIGHT (g/m) |
|---|---|---|---|---|---|---|
| P04-2SN | 1/4″ | 6.4 | 14.5 | 400 | 1600 | 380 |
| P05-2SN | 5/16″ | 8 | 16.7 | 350 | 1400 | 435 |
| P06-2SN | 3/8″ | 9.5 | 19.2 | 330 | 1320 | 550 |
| P08-2SN | 1/2″ | 12.7 | 21.8 | 275 | 1100 | 640 |
| P10-2SN | 5/8″ | 16 | 25.4 | 250 | 1000 | 750 |
| P12-2SN | 3/4″ | 19 | 29.9 | 215 | 850 | 925 |
| P16-2SN | 1″ | 25.4 | 37.8 | 165 | 650 | 1290 |
| P20-2SN | 1 1/4″ | 31.8 | 46.4 | 125 | 500 | 1895 |
| P24-2SN | 1 1/2″ | 38.1 | 52.7 | 90 | 360 | 2120 |
| P32-2SN | 2″ | 50.8 | 65.4 | 80 | 320 | 2765 |
Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
Our products are exported to more than 30 countries, including Iran, Russia, USA, UK, Korea, Vietnam, Iraq, Singapore, Indonesia, Azerbaijan, and Japan. We have obtained high praise from clients due to excellent quality and competitive prices.

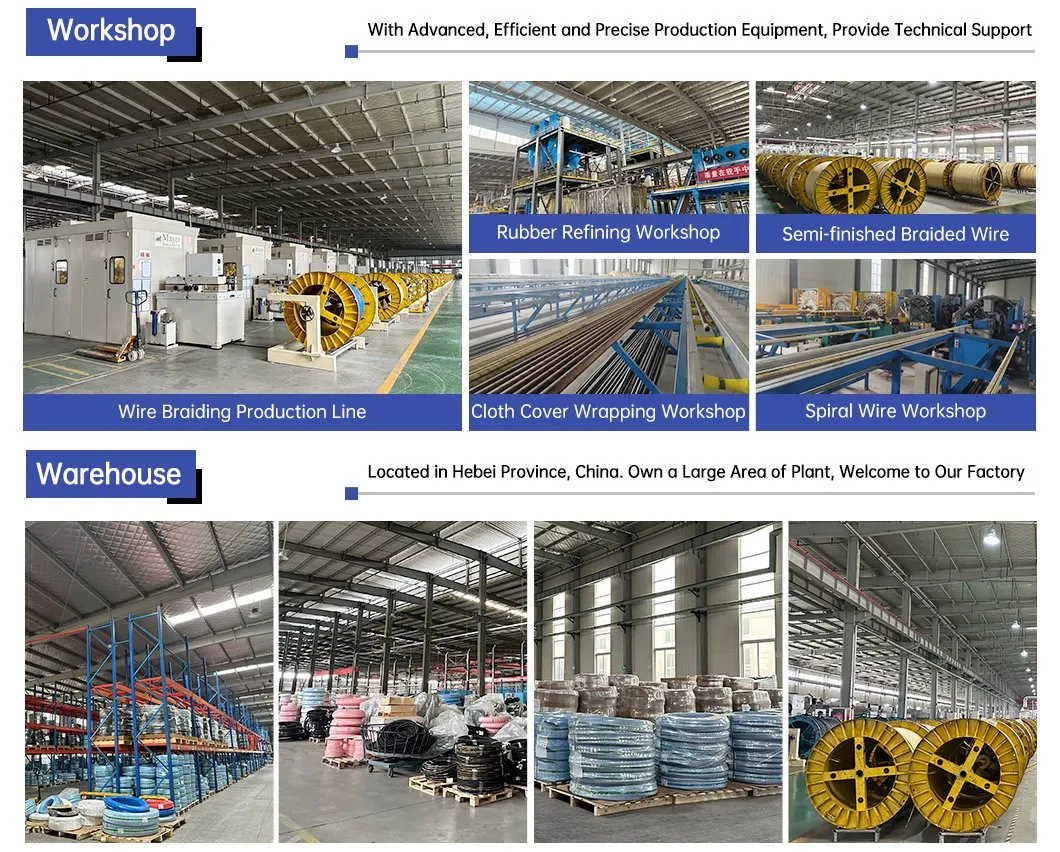

We are a technology-based enterprise specialized in R&D and marketing of multiple rubber products. Our expertise includes Telecom towers, High pressure hoses, Hydraulic hoses (SAE & DIN series), Drilling Rotary hoses, Hose Assemblies, and Hose Production Lines.
Delivery time depends on order quantity; usually 3-5 days per container. After finishing the crimping, cutting, and skiving process, we pack the hoses using woven bags and plastic film. Special packing is available upon request.
