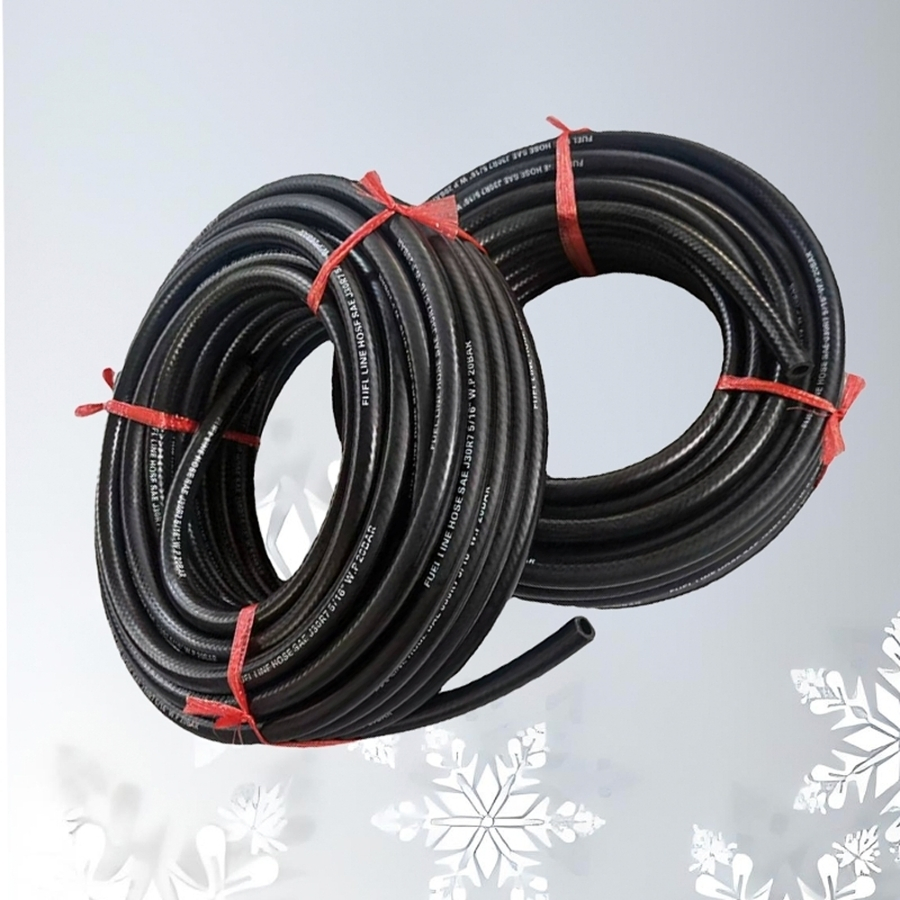

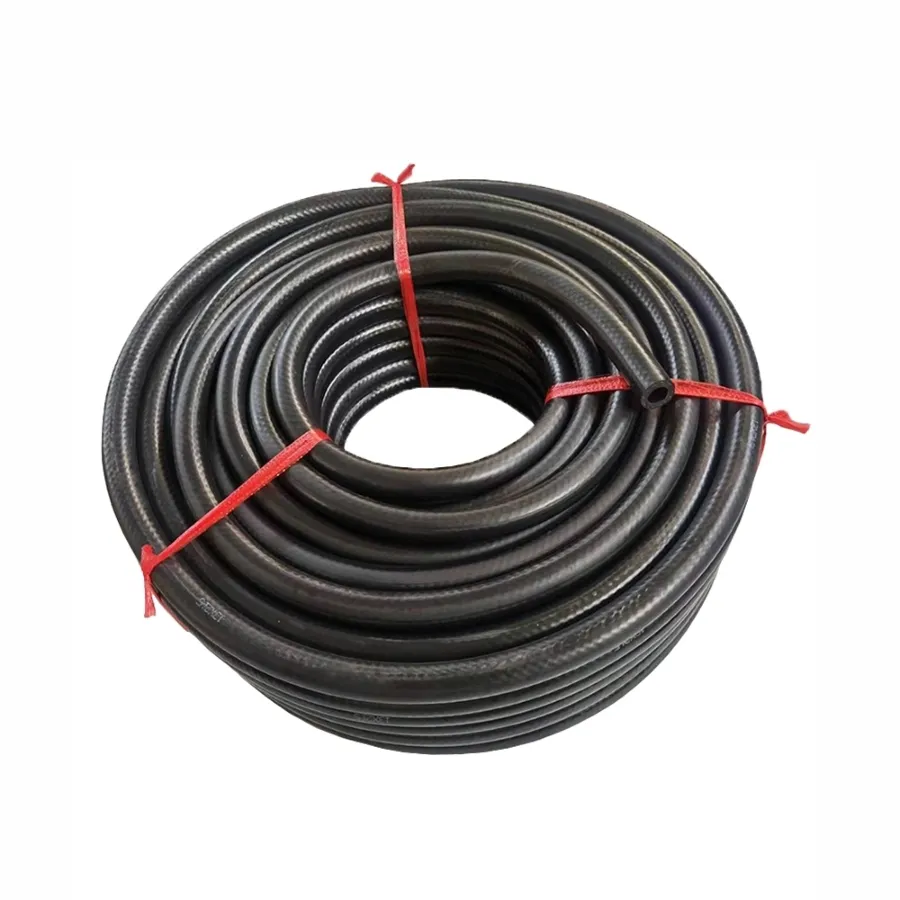

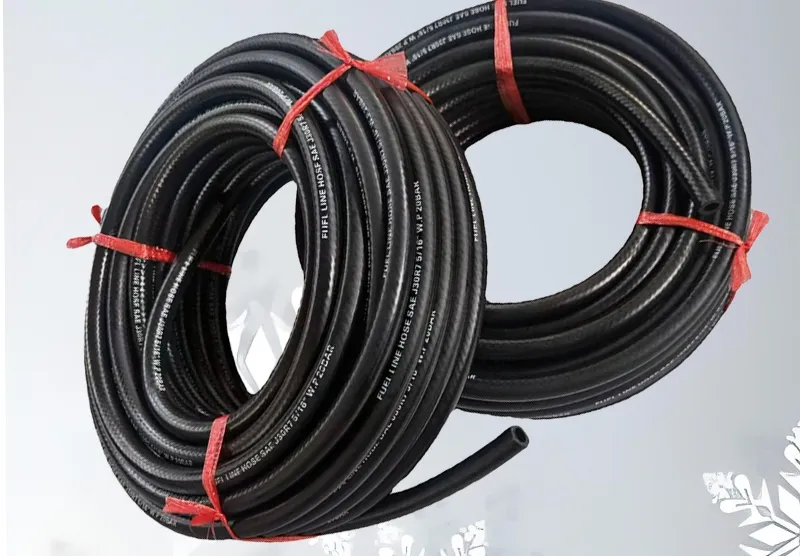

AUTOMOBILE FUEL HOSE
Featuring single-ply or double-ply textile braid layers, it delivers reliable performance at 20 bar working pressure (burst pressure up to 50 bar for dual braid). Ideal for water, air, mild chemicals, and hydraulic fluids, this hose thrives in outdoor and industrial settings.
Available in ID 8mm-50mm with optional smooth/ribbed surfaces. Our products are ISO 6134 and SAE J20 compliant for global acceptance, suitable for various hydraulic and automotive systems.
| Size (Inch / mm) | Length per roll | Layers | W.P / B.P | |
|---|---|---|---|---|
| 5/32'' | 4x10mm | 20m or 50m | 1 | 300psi/900psi |
| 3/16'' | 5x11mm | 20m or 50m | 1 | 300psi/900psi |
| 1/4'' | 6x12mm | 20m or 50m | 1 | 300psi/900psi |
| 5/16'' | 8x14mm | 20m or 50m | 1 | 300psi/900psi |
| 3/8'' | 10x17mm | 20m | 1 | 300psi/900psi |
| 1/2'' | 12x19mm | 20m | 1 | 300psi/900psi |
| 5/8'' | 16x23mm | 20m | 1 | 300psi/900psi |
| 3/4'' | 19x27mm | 20m | 1 | 300psi/900psi |
| 1'' | 25x34mm | 20m | 1 | 300psi/900psi |

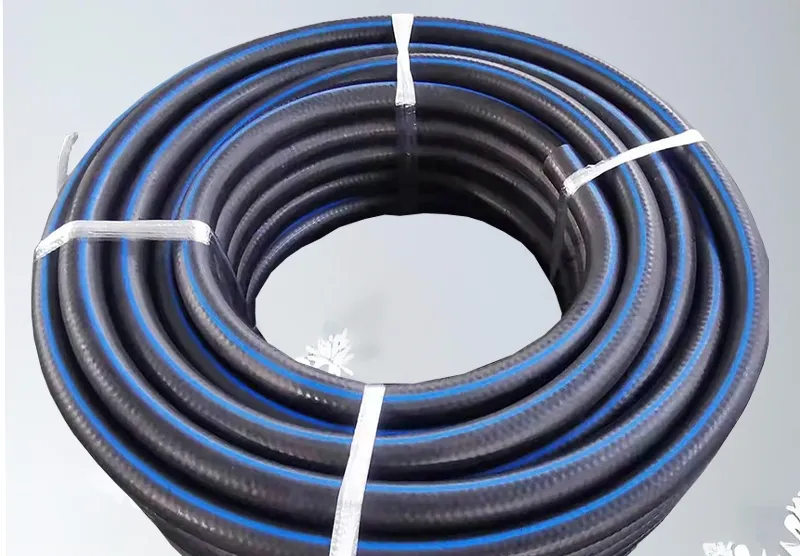

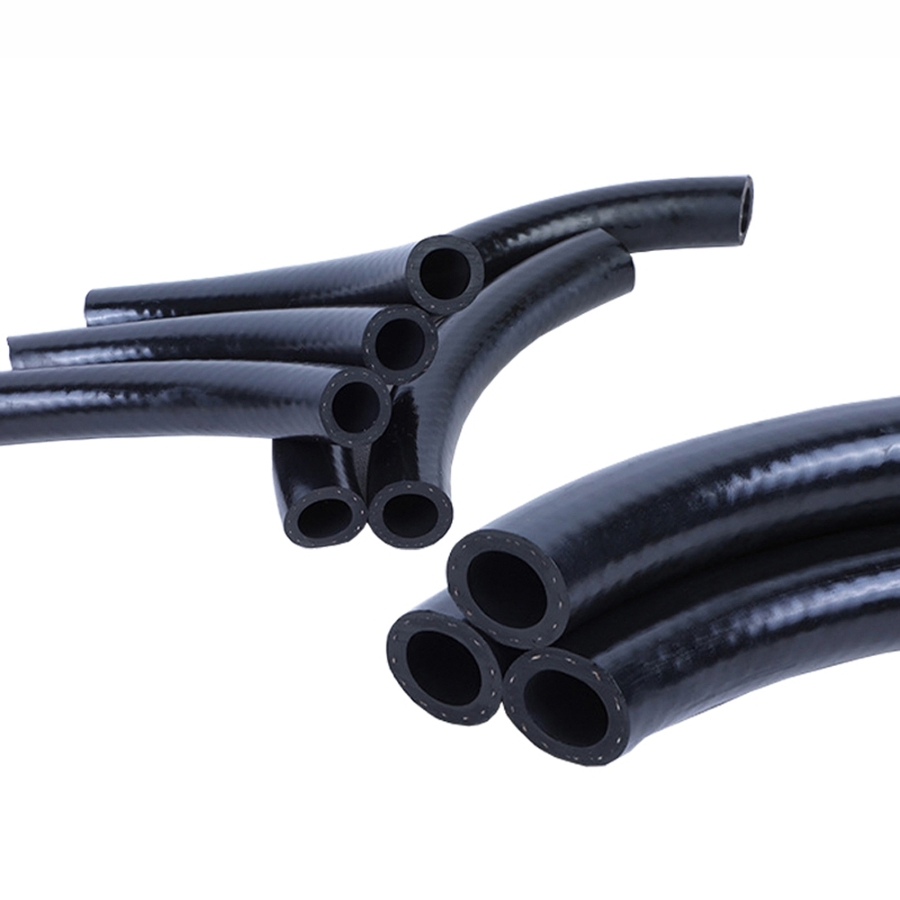

DURABLE CONSTRUCTION
This fuel transfer hose features a tube made from a special elastomer compound, ensuring abrasion and heat resistance and guaranteeing long-lasting performance in various working conditions.
CUSTOMIZATION OPTIONS
The product allows for customization of the model number and can be ordered in various sizes to meet the specific requirements of different industrial applications.

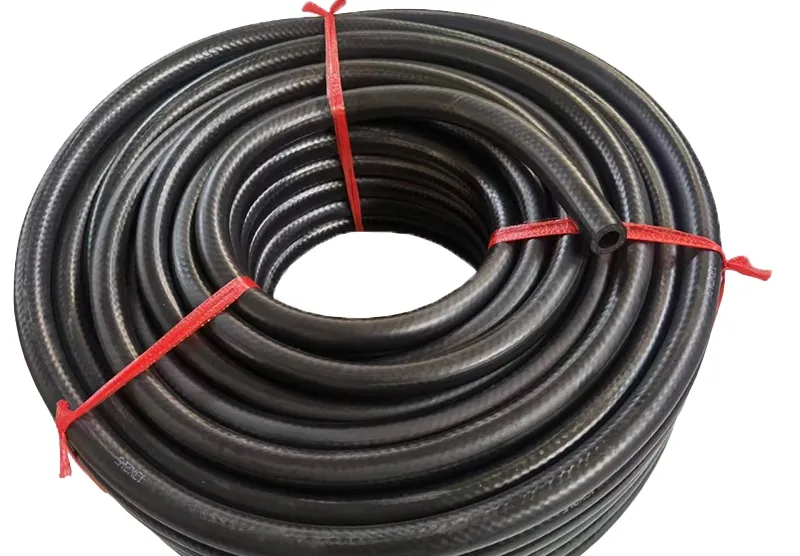

WIDE TEMPERATURE RANGE
The hose operates effectively within a wide temperature range of -40°C to +130°C, making it suitable for use in extreme environments.

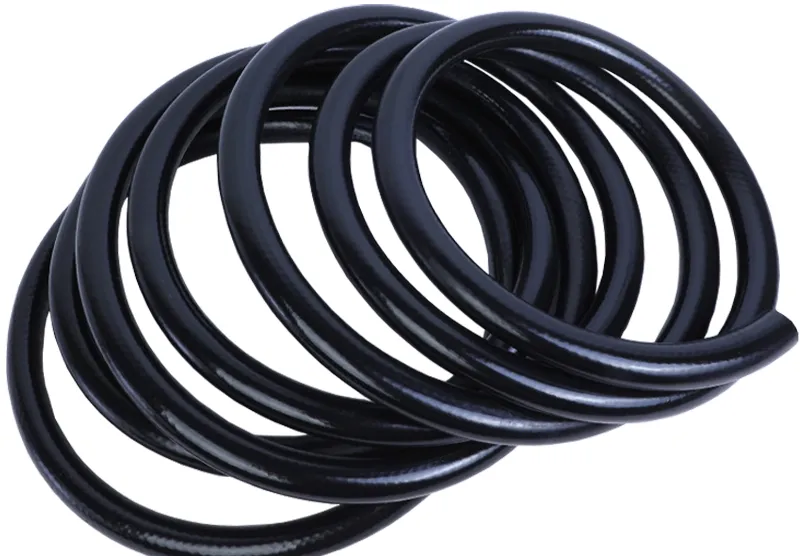

VERSATILE APPLICATION
Suitable for fuel, oil, and gas lines in marine, automotive, and construction industries. Includes options for smooth or corrugated covers.
