4.76 3/16 6.35 1/4 0.250 0.188 Inch 0.71mm 0.028 Inch Thickness Algal Zinc Pvf Coated Coating Double Wall Steel Car Brake Bundy Tube Fuel Pipe

1 / 5

4.76 3/16 6.35 1/4 0.250 0.188 Inch 0.71mm 0.028 Inch Thickness Algal Zinc Pvf Coated Coating Double Wall Steel Car Brake Bundy Tube Fuel Pipe

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Type

Brake Hose

Material

Steel

Position

Front

Certification

ISO/TS16949, DOT, IATF-16949, ISO9001

Standard

ASTM A254, SAE J527, DIN74234

Surface

Copper, Zinc, PVF Coating

OD Range

4.76mm ~ 12.7mm

Thickness

0.70mm

Packaging & Delivery

Package Size

50.00cm * 50.00cm * 22.00cm

Gross Weight

19.000kg

Lead Time

30-40 Days based on quantity

Product Description

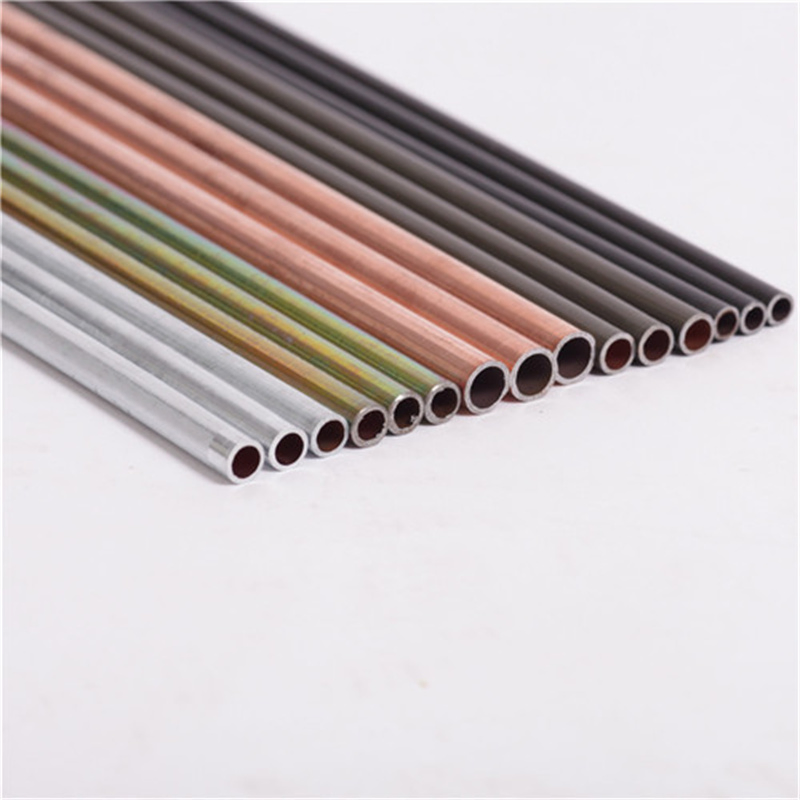

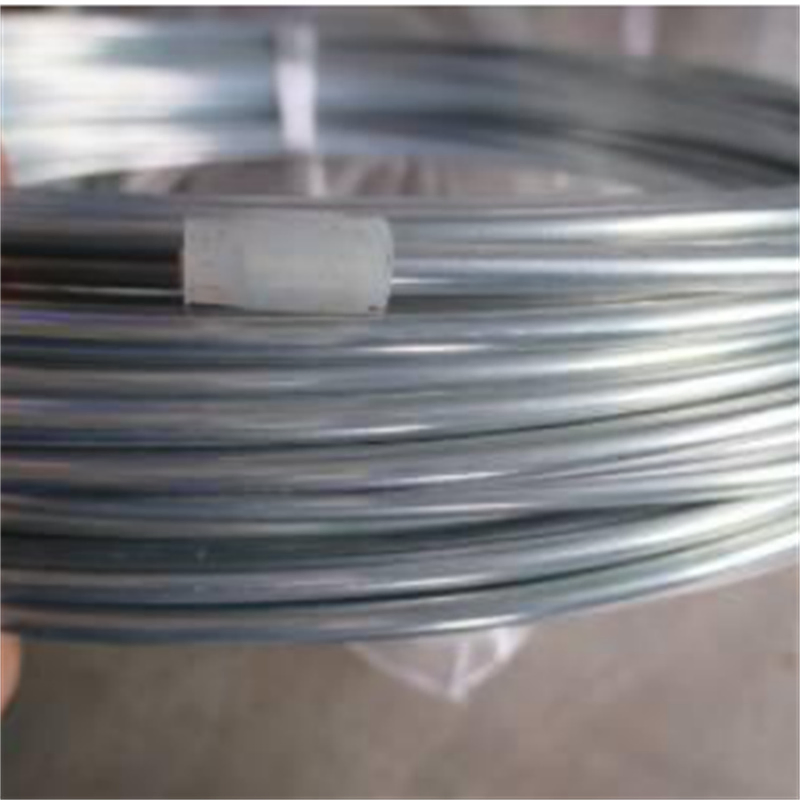

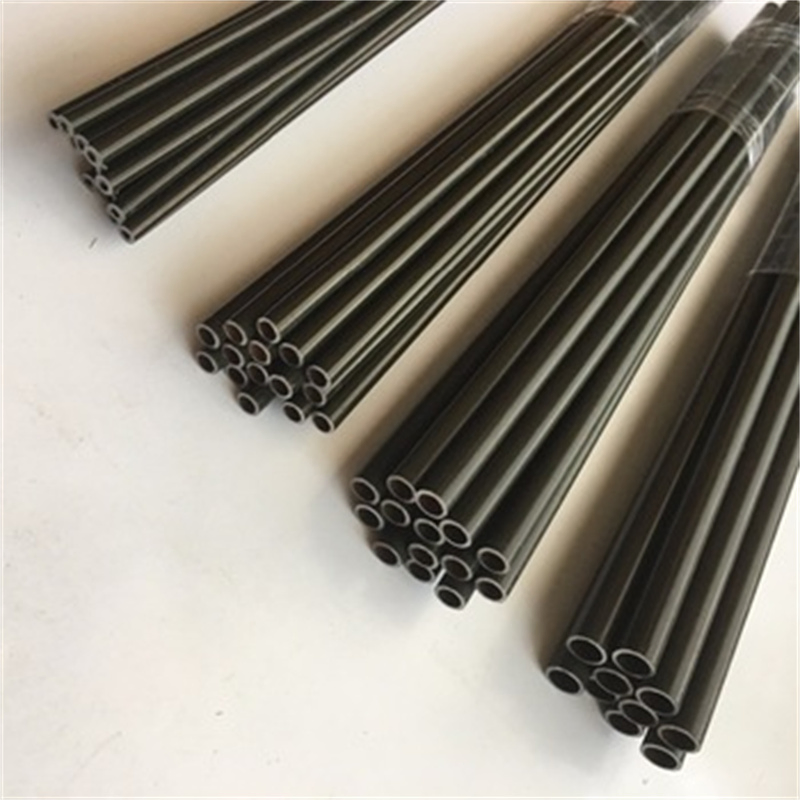

Double Wall Steel Car Brake Bundy Tube Fuel Pipe

Welded steel pipe / bundy tube / bundy pipe
Diameter: 3/16", 6mm, 1/4", 5/16", 3/8" etc.
Wall thickness: 0.7±0.05mm

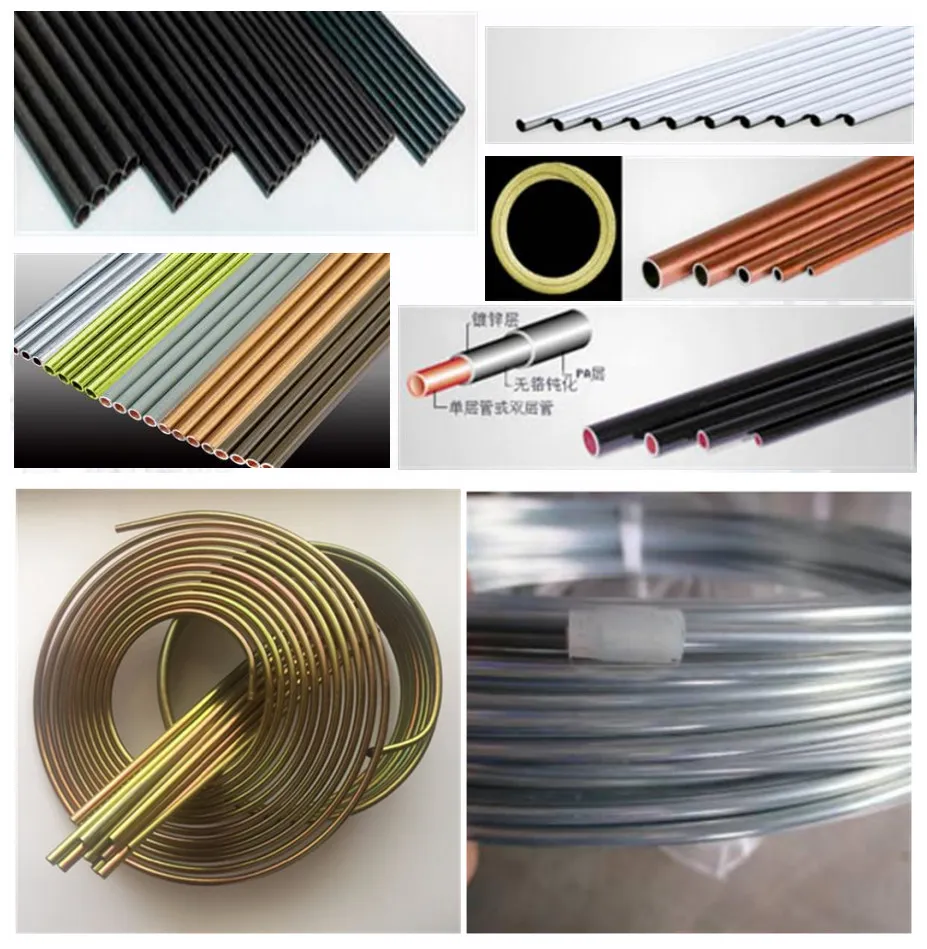

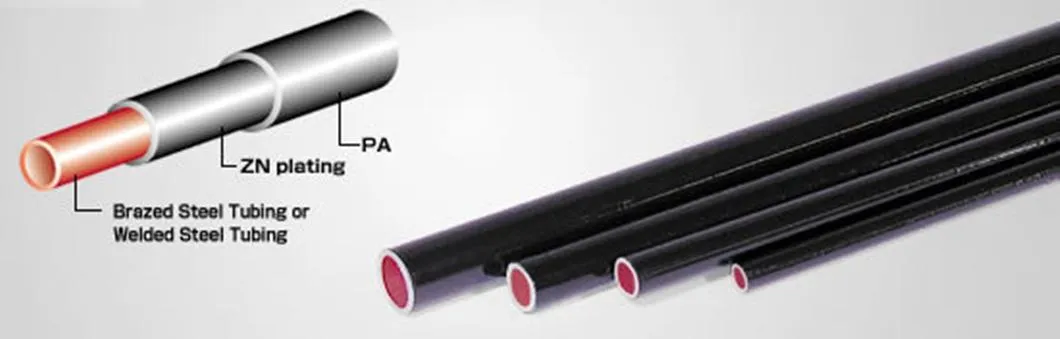

Surface treatment: White Zinc, Copper, Yellow Zinc, PVF etc.
Type: Single wall and double wall
Application: Refrigeration and Automobile Brake Systems

Technical Item	Specifications / Standards
Standards	SAE J527, ASTM A254, TSE 5130, DIN 74234
Out Diameter	4.2mm to 12.7mm (1/2")
Material	Low Carbon Steel / BHG2
Surface Treatment	Galvanization (White/Olive/Colored Zinc), PVF Coated
Features	High Pressure resistance, High internal cleanliness

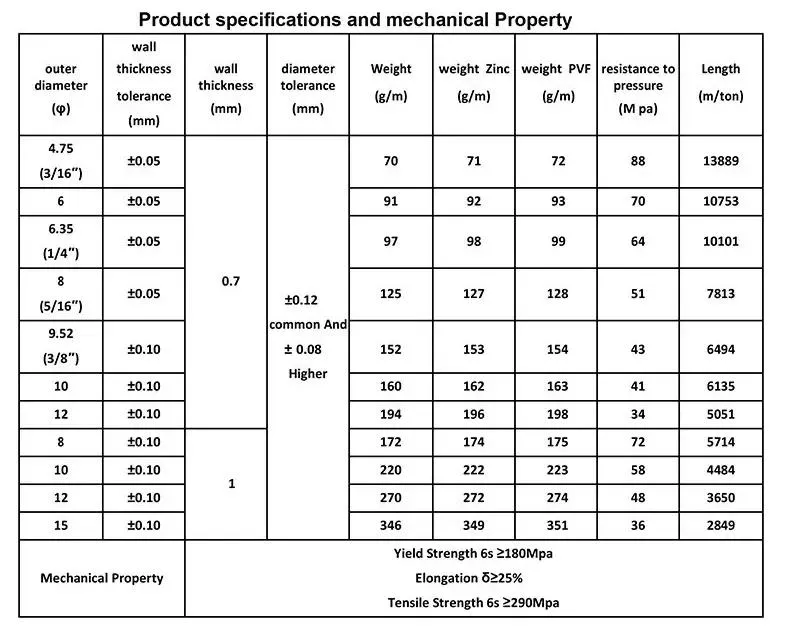

Inspection & Quality Test

Inspection Item	Unit	Standard Value
Zinc Plated Thickness	µm	6 / 13 / 25
Tensile Strength	Mpa	>= 290
Yield Strength	Mpa	>= 170
Burst Pressure	Mpa	55
Salt Spray Test	Hours	2000-3000 (No Red Rust)

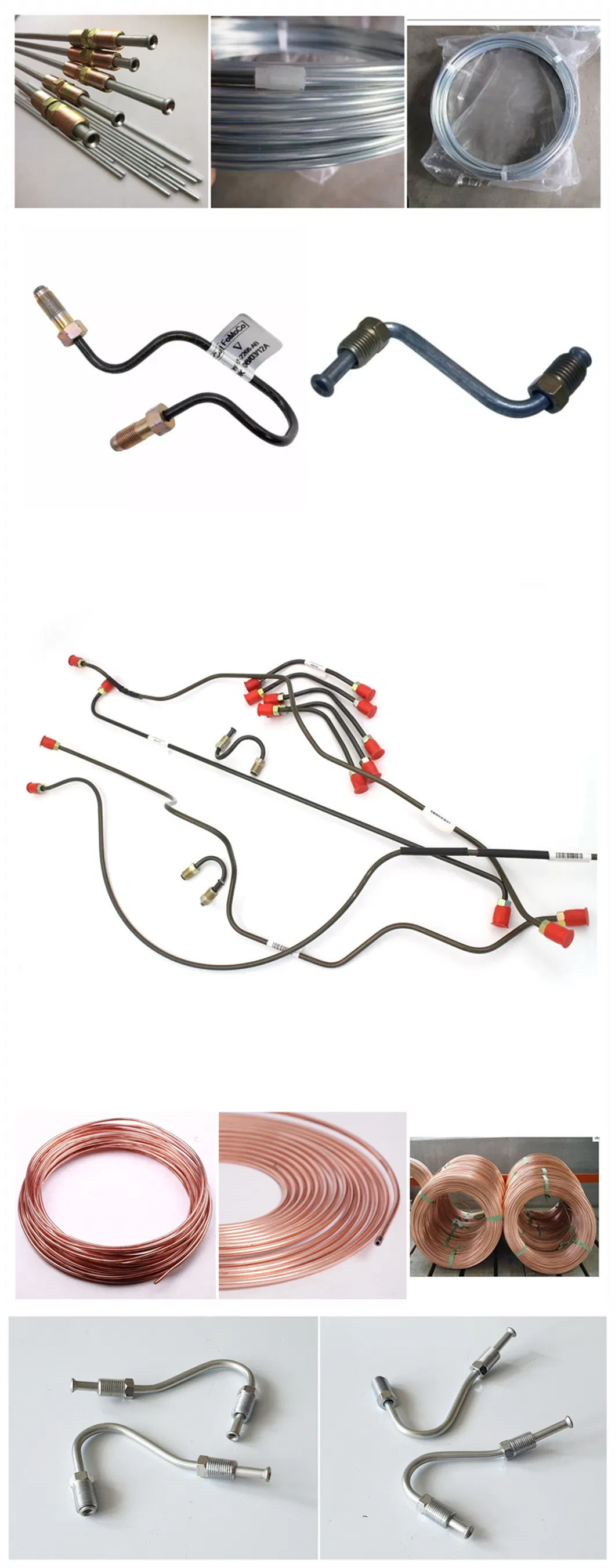

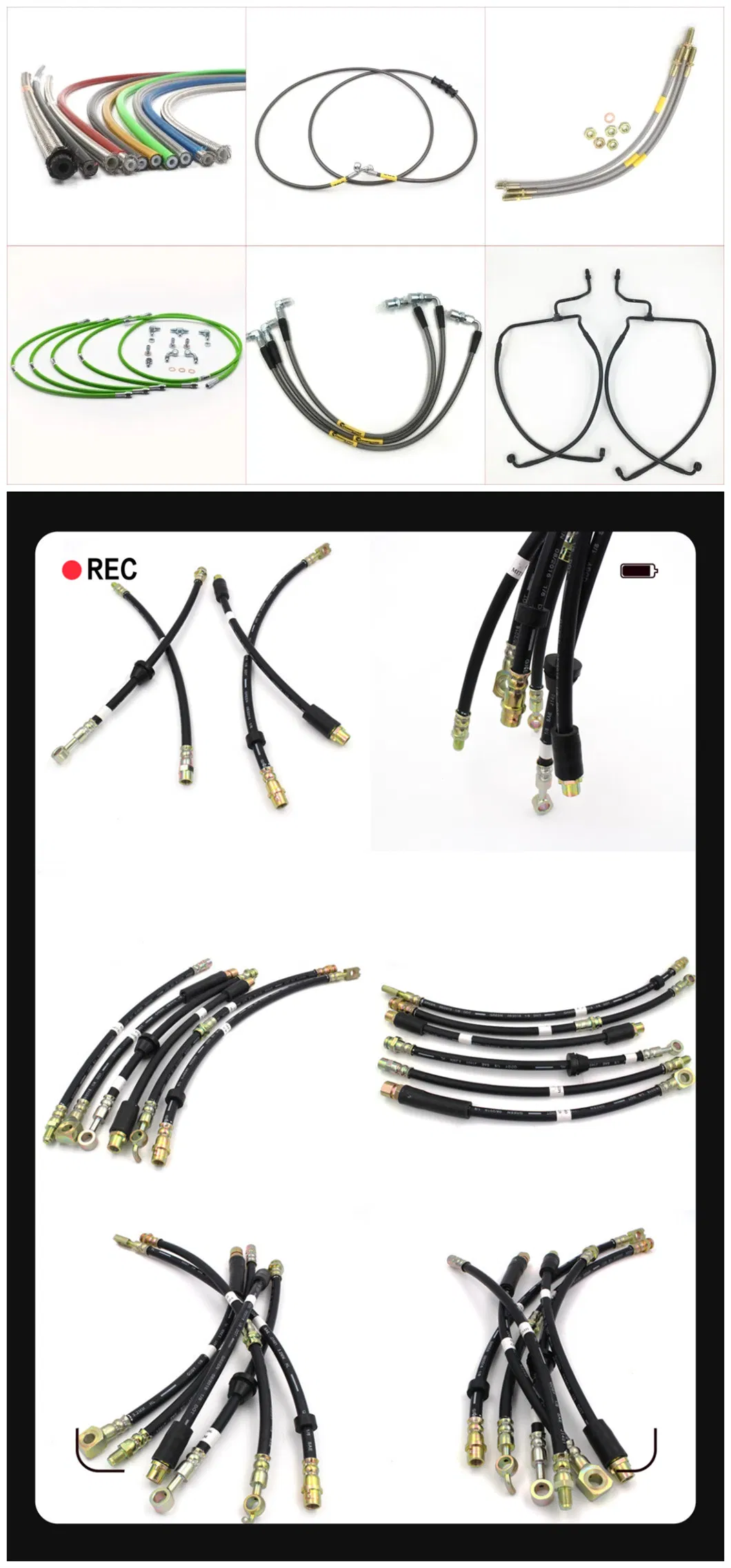

Related Components

Brake hose & assembly
Rubber brake hose fittings
PTFE S.S braided brake lines
Air brake hose systems

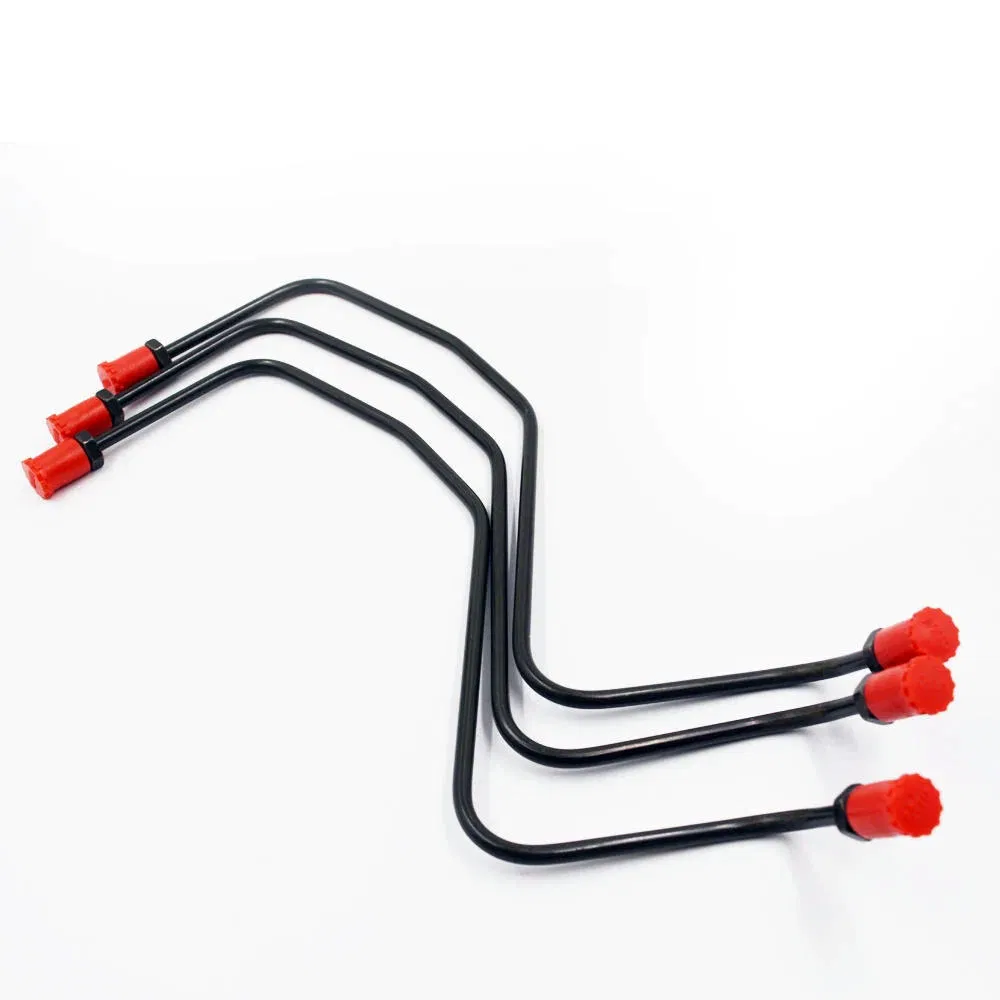

Bundy steel tube assembly

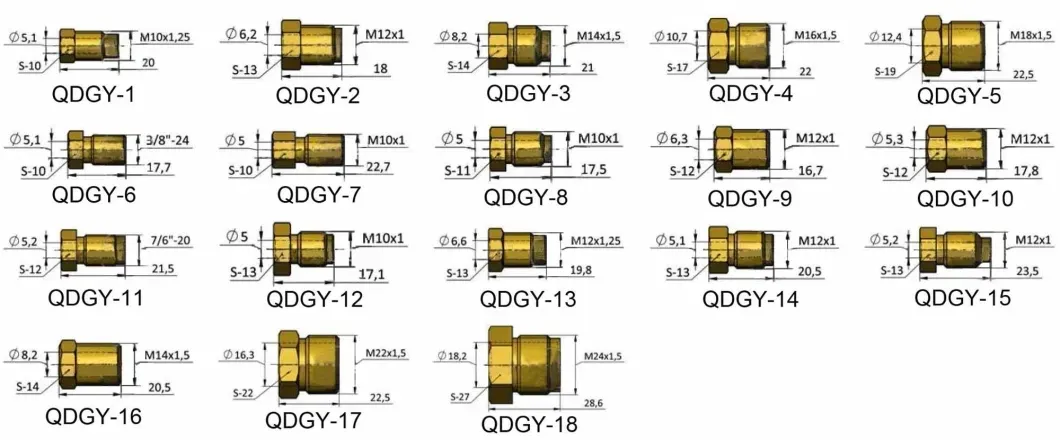

Female & male fittings, Banjo bolts

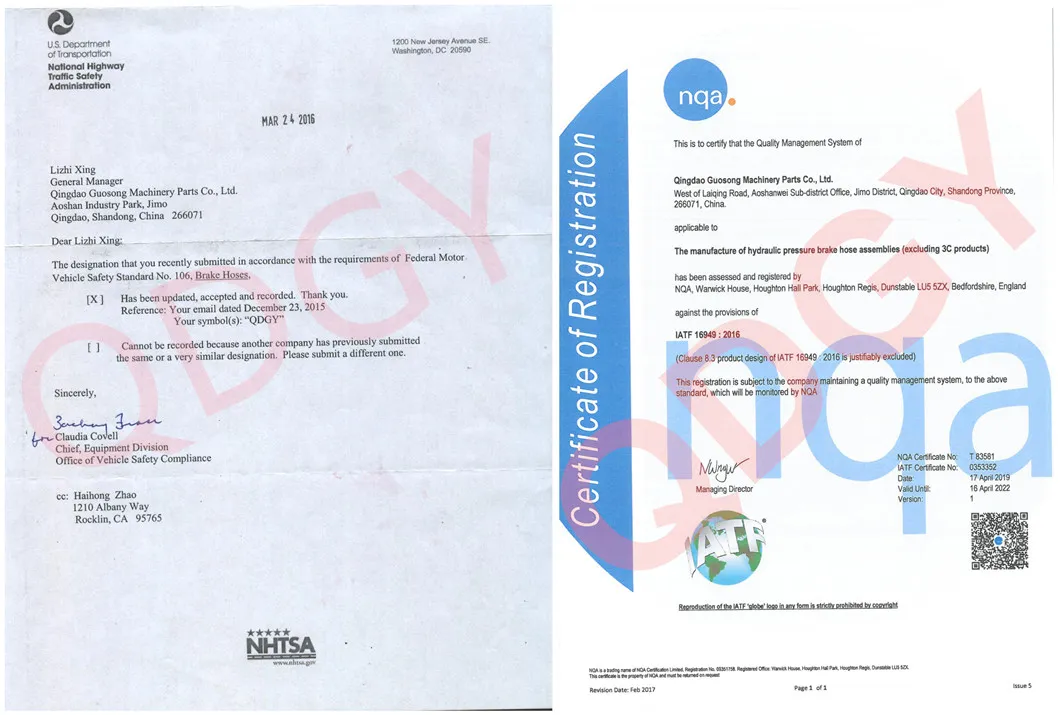

Certifications & Application

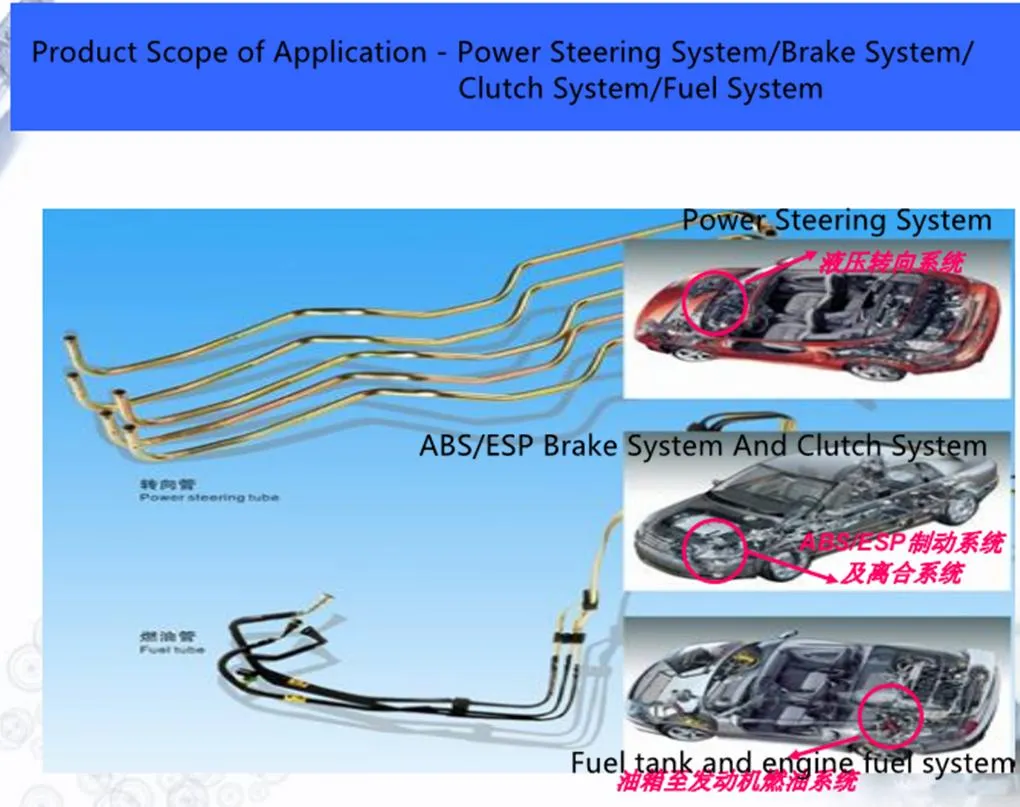

Application Scope: Power Steering Systems, Brake Systems, Clutch Systems, and Fuel Systems for various automotive models.

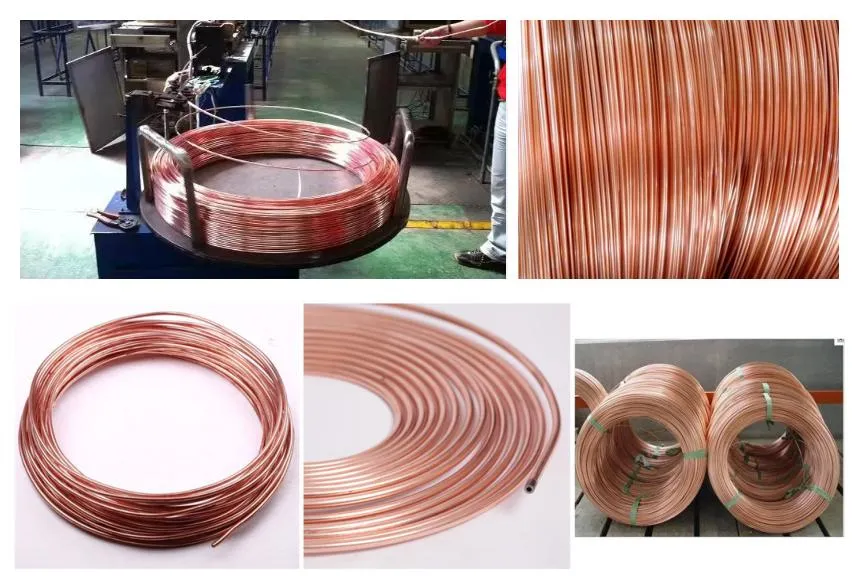

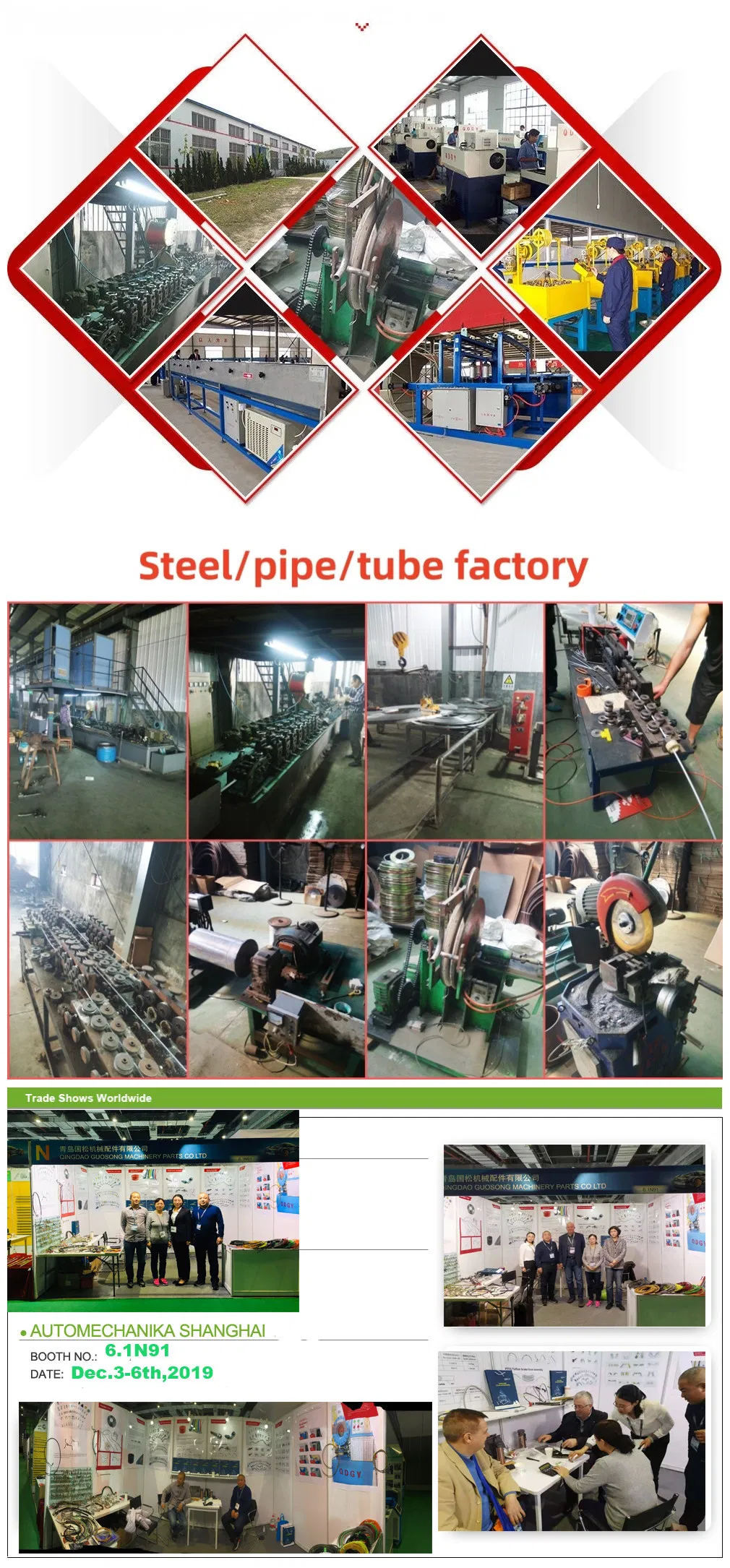

Production Capabilities

Frequently Asked Questions

What materials are used for the brake tubes?

The tubes are primarily manufactured from low-carbon steel (BHG2) and feature copper coating for enhanced durability and brazing capability.

What surface treatments do you offer for corrosion resistance?

We offer several treatments including White Zinc, Yellow Zinc, Olive Green Zinc, and high-performance PVF (Polyvinyl Fluoride) coating.

Are these tubes compatible with high-pressure systems?

Yes, our double-wall steel tubes are designed to withstand burst pressures up to 55 Mpa, making them ideal for automotive brake systems.

Which international standards do your products meet?

Our products comply with SAE J527, ASTM A254, DIN 74234, and TSE 5130 standards.

How long is the salt spray resistance for PVF coated tubes?

Our PVF coated tubes can withstand salt spray tests for over 1000 to 3000 hours without the appearance of red rust.

Can the tubes be customized to specific lengths?

Yes, we provide tubes in coils or cut-to-length according to specific customer requirements and drawings.
