SAE 100 R1at 14 Nw 6 800 Bar 6m Brake Stripe High Power Steering Quality Wire Braid Hydraulic Hose Pipe for Forklift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specification

Color:Black

Model:1sn 2sn 4sp 4sh R15 R16 R17

Length:20m, 40m, 60m or as Your Request

Hose I.D.:3/16''~3"

Max Work Pressure:3630psi (25MPa)

Min Burst Pressure:14500psi (100MPa)

Bending Radius:90mm

Weight:0.19~2.35kg/M

Origin:China

🔍 Rubber Hydraulic Hose SAE100 R2 AT

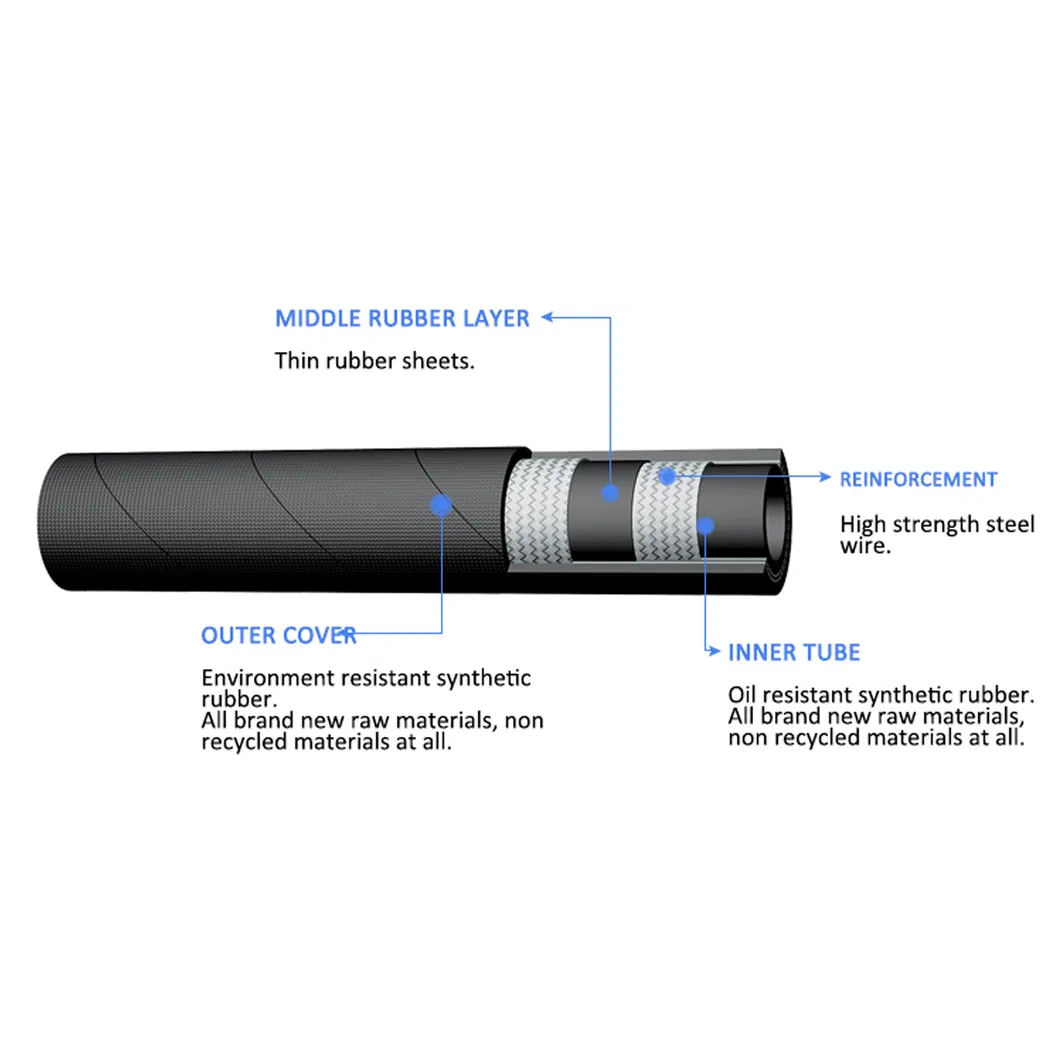

Description of all size 1/4 to 2 inch hydraulic hose:

🏗️

Tube: Oil resistant synthetic rubber.
Reinforcement: One high tensile steel braid.
Cover compound: Abrasion, ozone and hydrocarbon resistant synthetic rubber.
Constant operation: -40 °C to +100 °C (-40 °F to +212 °F); air max T = +70 °C (+160 °F)
Safety factor: 1:4
Surface: Smooth & cloth options available.

📊 SAE 100 R2 Technical Data

Items Number	Hose Size		Max W.P.		Min B.P		Min.B.R	Weight
Items Number	in	mm	Mpa	psi	Mpa	psi	mm	Kg/m
2SN-3	3/16	14.1	41.5	6019	165	23930	90	0.27
2SN-4	1/4	15.7	40.0	5801	160	23204	100	0.34
2SN-5	5/16	17.3	35.0	5076	140	20304	115	0.39
2SN-6	3/8	19.7	33.0	4786	132	19144	130	0.49
2SN-8	1/2	23.0	27.5	3989	110	15956	180	0.59
2SN-10	5/8	26.2	25.0	3625	100	14500	200	0.71
2SN-12	3/4	30.1	21.5	3118	86	12472	240	0.89
2SN-16	1	38.9	16.5	2393	65	9430	300	1.37
2SN-20	1 1/4	49.5	12.5	1813	50	7252	420	2.27
2SN-24	1 1/2	55.9	9.0	1305	36	5220	500	2.44
2SN-32	2	68.6	8.0	1160	32	4640	630	3.00

📸 Product & Quality Display

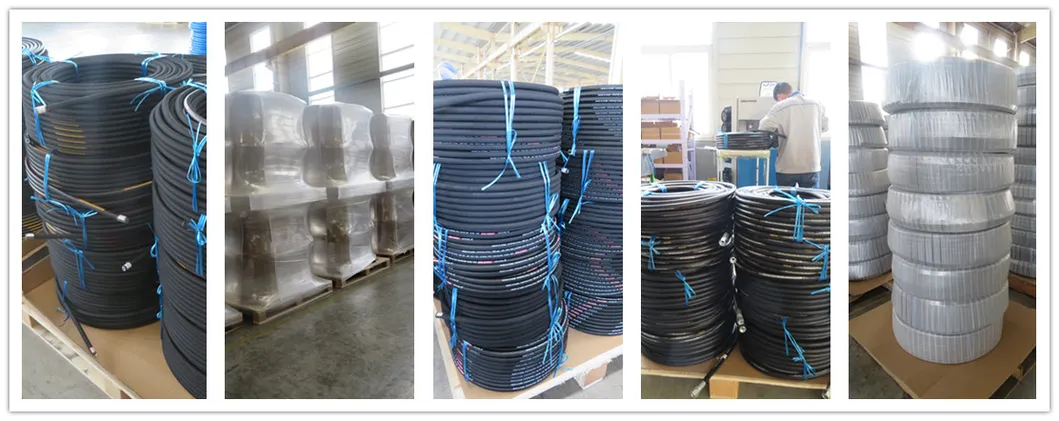

📦 Packing Details

Woven Belt: 20meters/roll, 50meters/roll, 100meters/roll.
Wooden Box: Standard wooden box or frame (common for hose assembly).
Customization: Special packing is available based on requirements.

❓ Frequently Asked Questions

Q1: Can you produce hoses according to specific samples? A: Yes, we can produce by your samples or technical drawings, including building custom molds and fixtures.

Q2: What is the sample policy for international clients? A: Samples can be supplied if parts are in stock, provided that the customer covers the sample and courier costs.

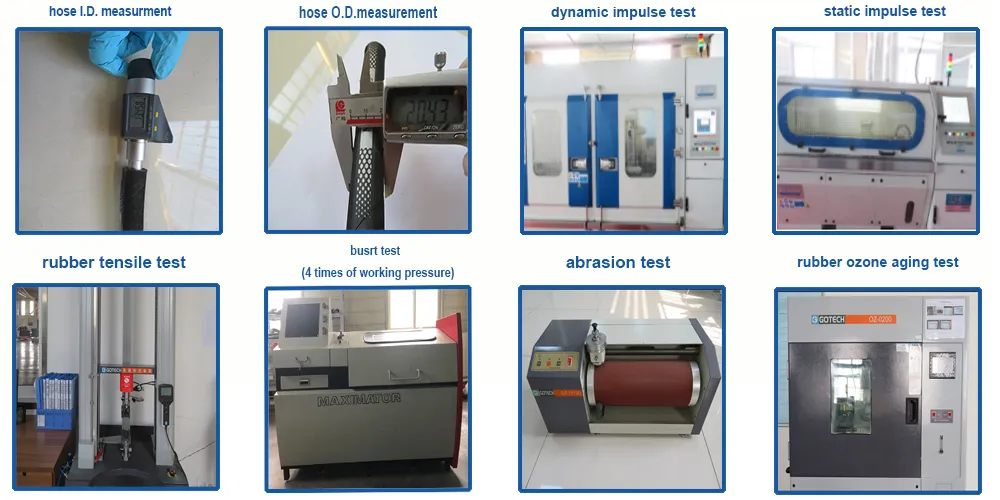

Q3: How is the product quality ensured before delivery? A: We perform 100% testing on all goods before they are shipped to ensure they meet performance standards.

Q4: What lengths are available for the hydraulic hoses? A: Standard lengths include 20m, 40m, and 60m rolls, but we can also provide custom lengths as per your request.

Q5: What are the primary packaging options? A: We offer woven belts for rolls, and wooden boxes or frames for hose assemblies. Special requirements can also be met.

Q6: How do you maintain long-term business relationships? A: We focus on maintaining high quality and competitive pricing while treating every customer with respect as a business partner.
