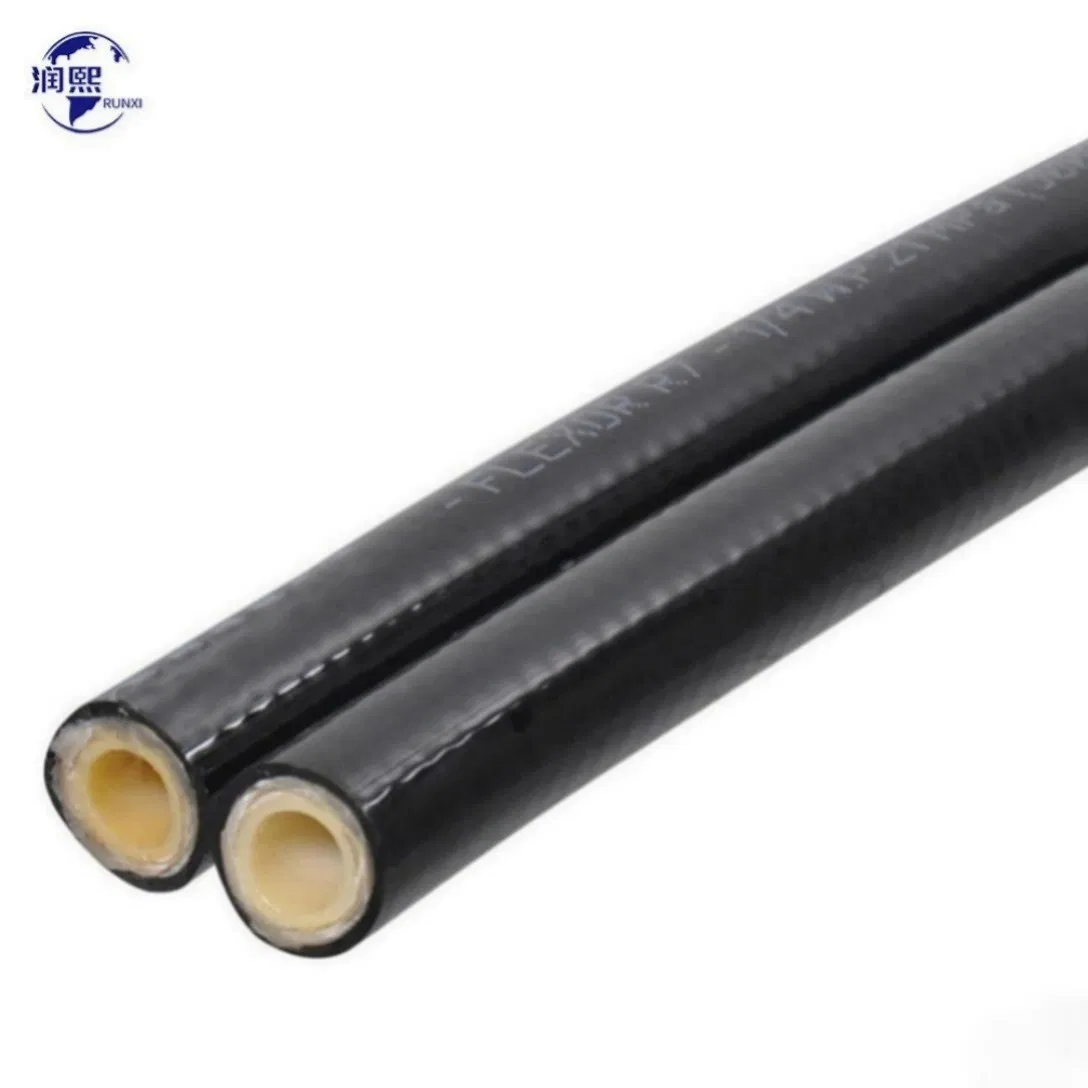

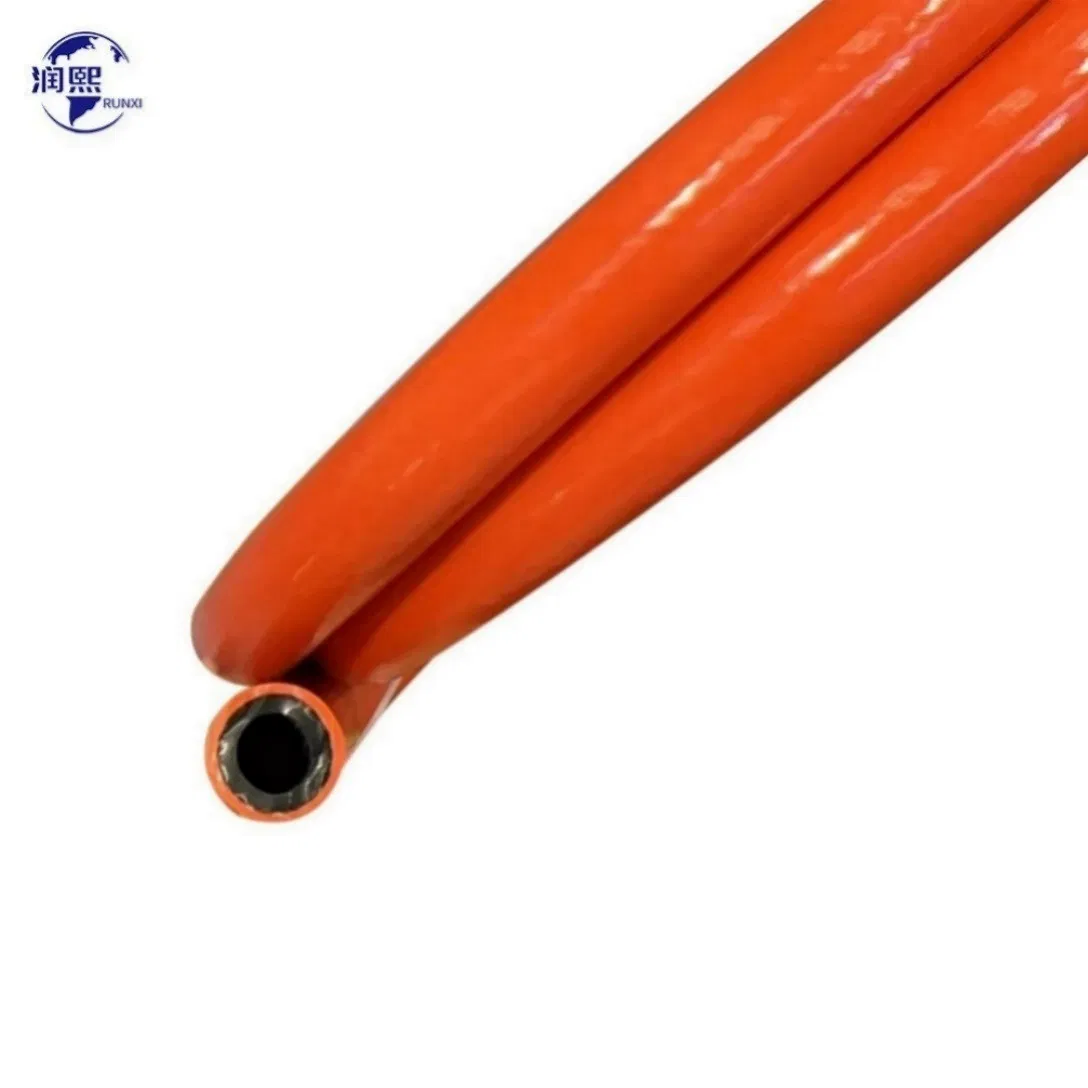

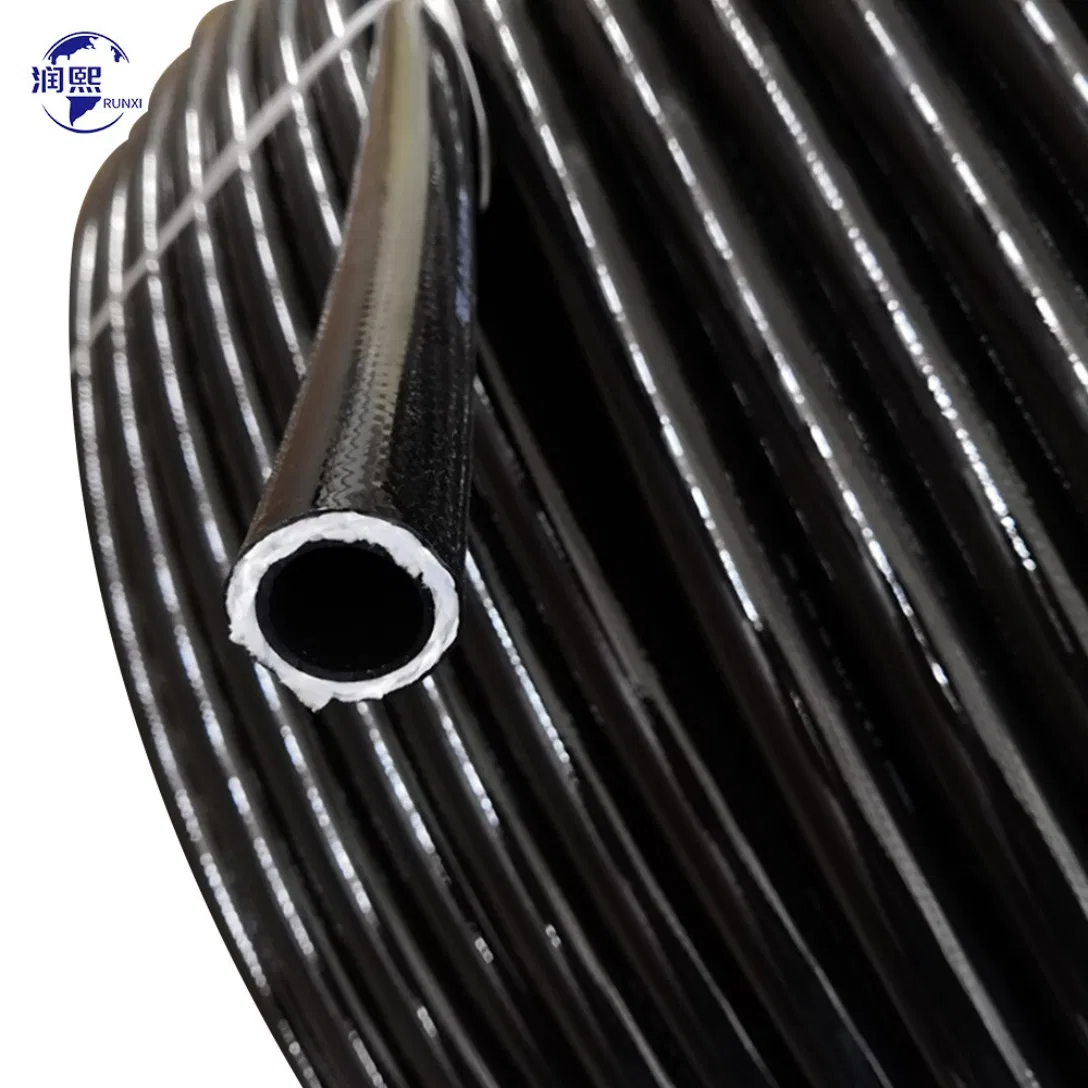

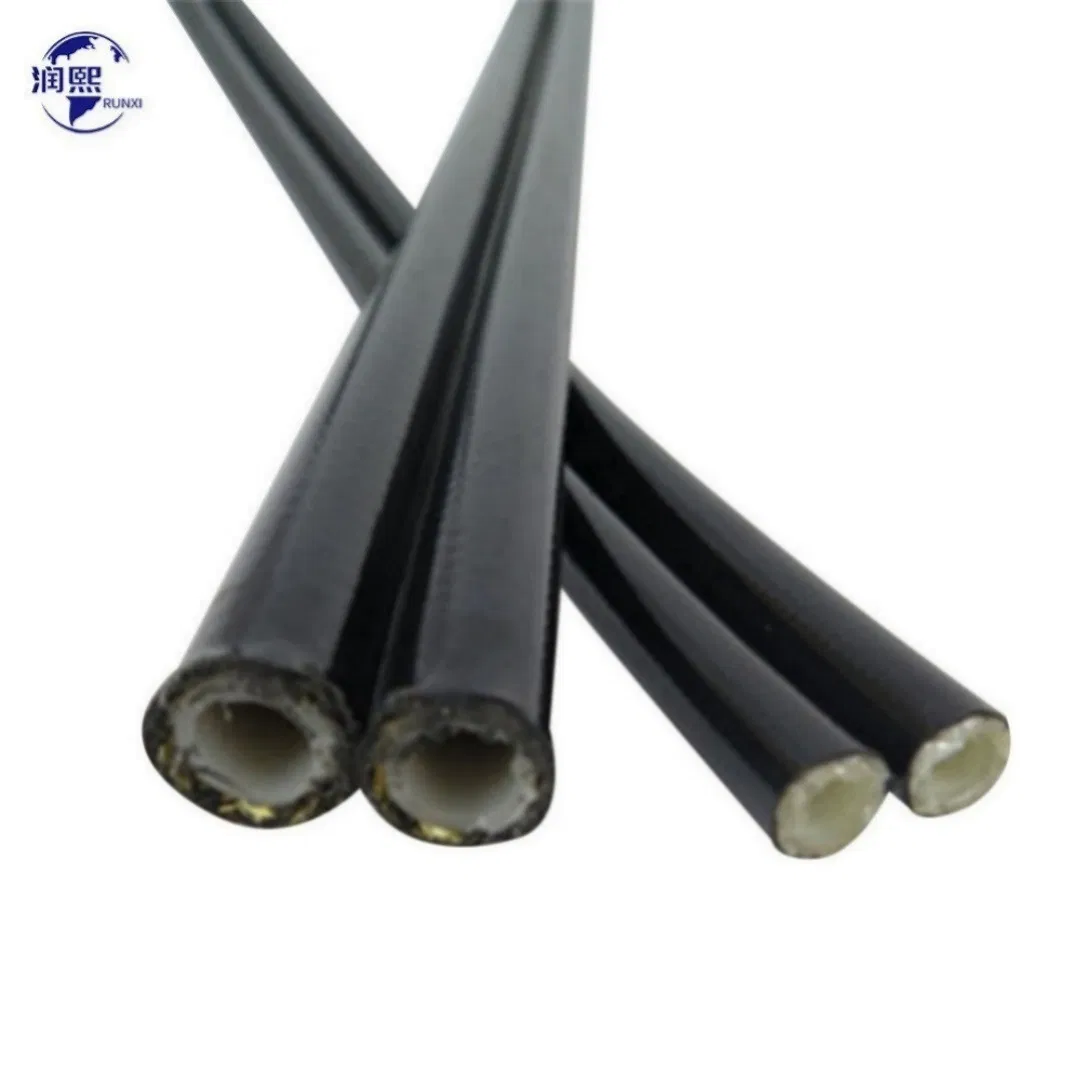

Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
1 / 5
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems
Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems

Thermoplastic Hose Meeting SAE 100 R7 Specifications for Hydraulic Steering Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Product Name
Thermoplastic Hydraulic Hose
Standard
SAE 100 R7/R8
Color
Red/Black/Blue/Orange, etc.
Application
Petroleum Base Hydraulic Fluids
Surface
Smooth
Temperature
-40 to 93°C
Size Range
3/16 - 1 Inch
Feature
Flexible, Corrosion & Abrasion Resistant
Thermoplastic Hose Banner
⚙️
SAE 100R7/Thermoplastic Hydraulic Hose is designed for medium-pressure applications, ideal for conveying petroleum-based fluids, water-based fluids, and liquid transfer. It is widely used in construction, mining, agriculture, machinery, and aerospace due to its chemical stability and wear resistance.

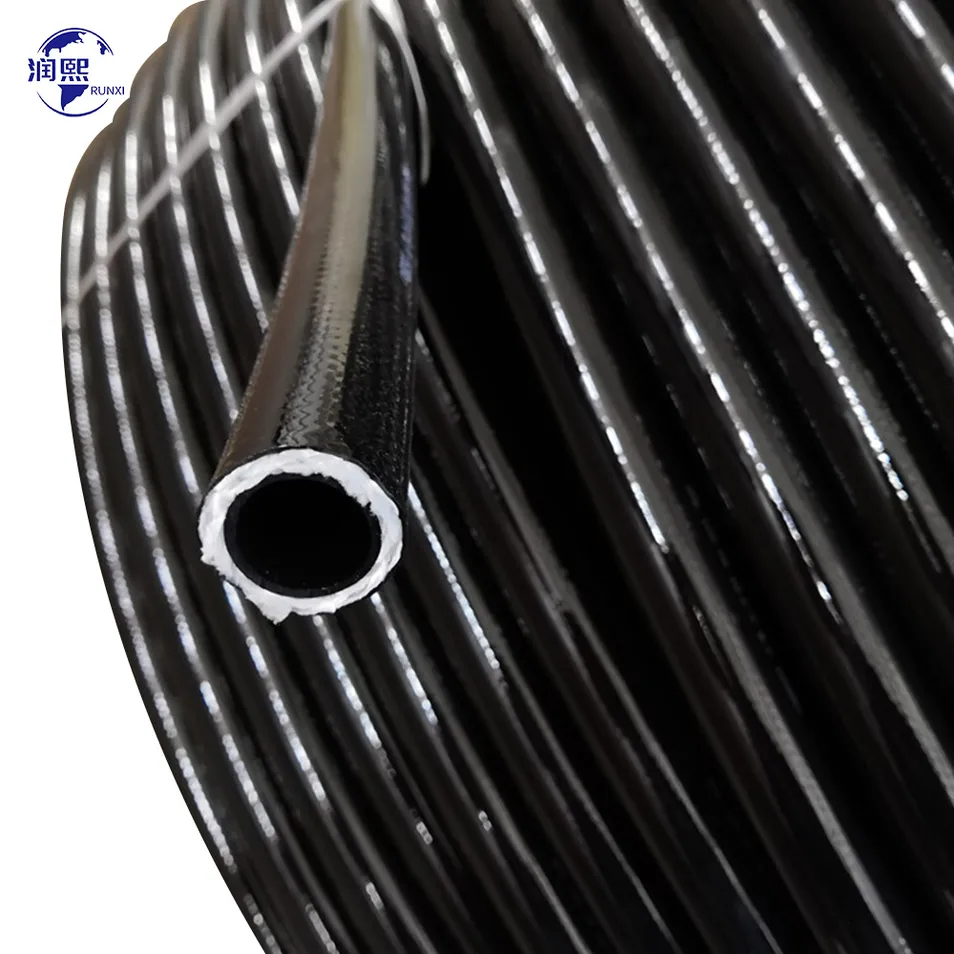

SAE 100R7 Details

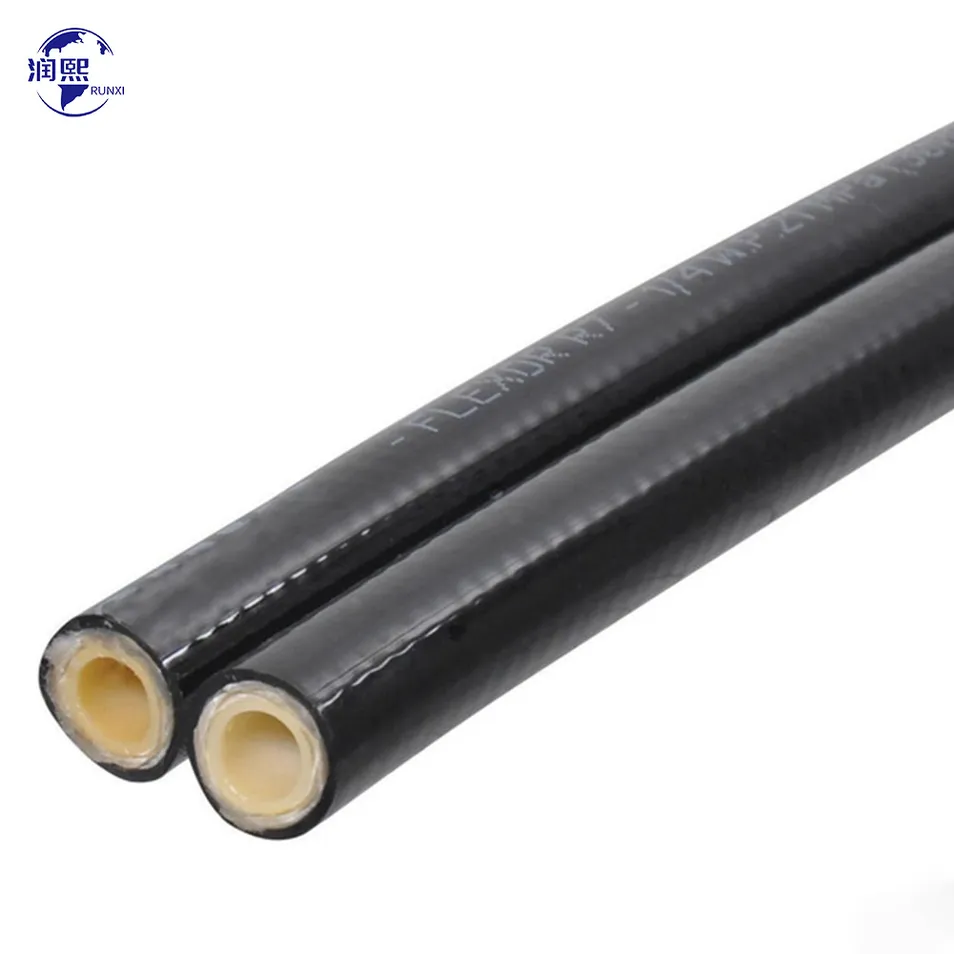

Hose Construction
Key Features & Construction

Construction: This hose consists of a thermoplastic inner tube, high-tensile synthetic fiber reinforcement, and a weather-resistant thermoplastic cover.

  • Excellent oil, heat, and aging resistance.
  • High pressure and outstanding pulse performance.
  • Soft tube body with minimal deformation under pressure.
  • Superior bending and fatigue resistance.
  • Available in continuous lengths up to 50 meters.

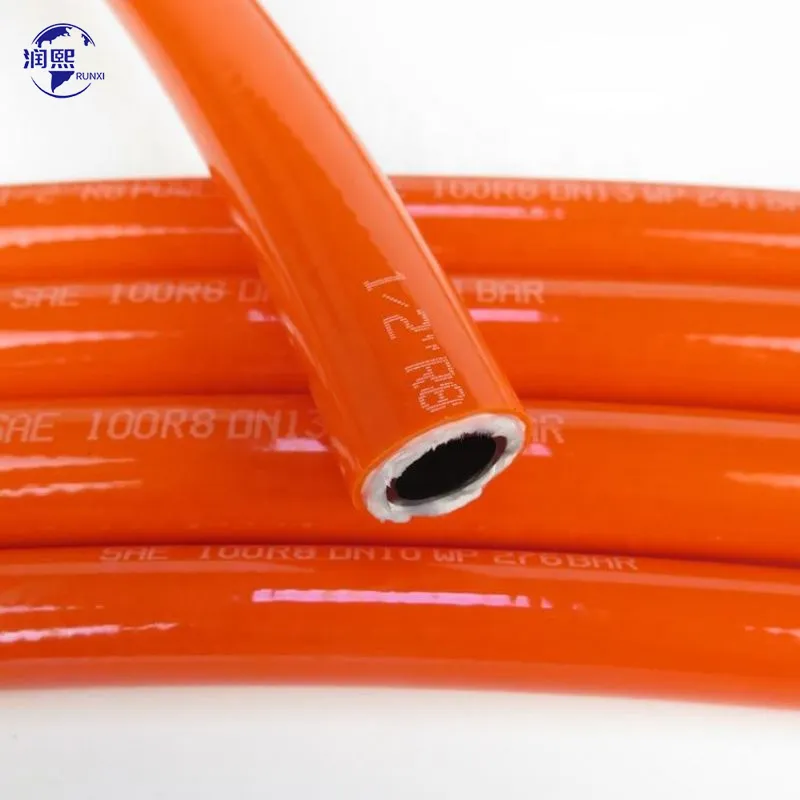

SAE 100R8 Hose

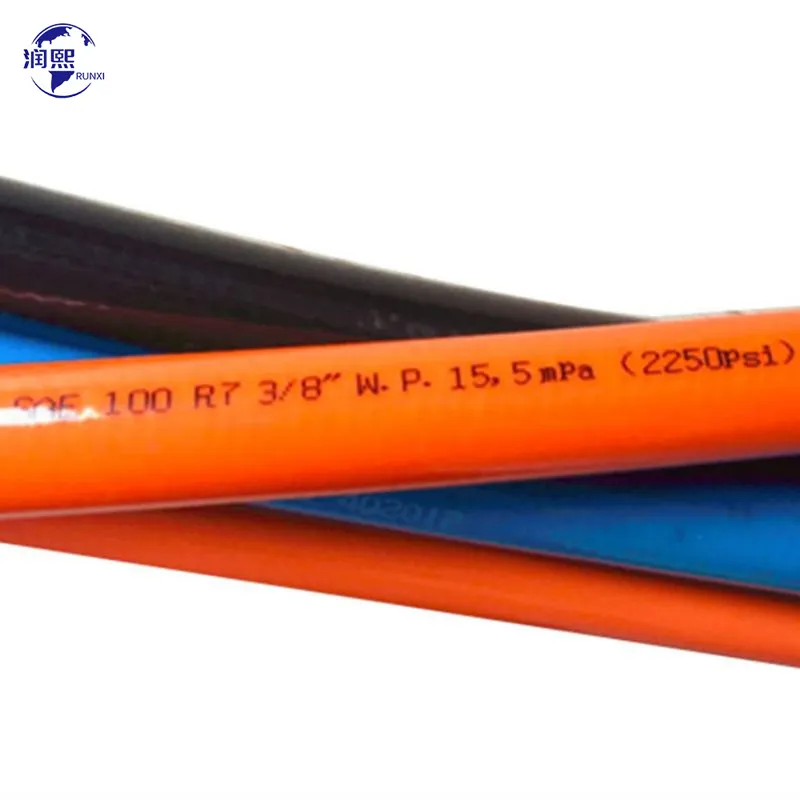

Hydraulic Hose Application

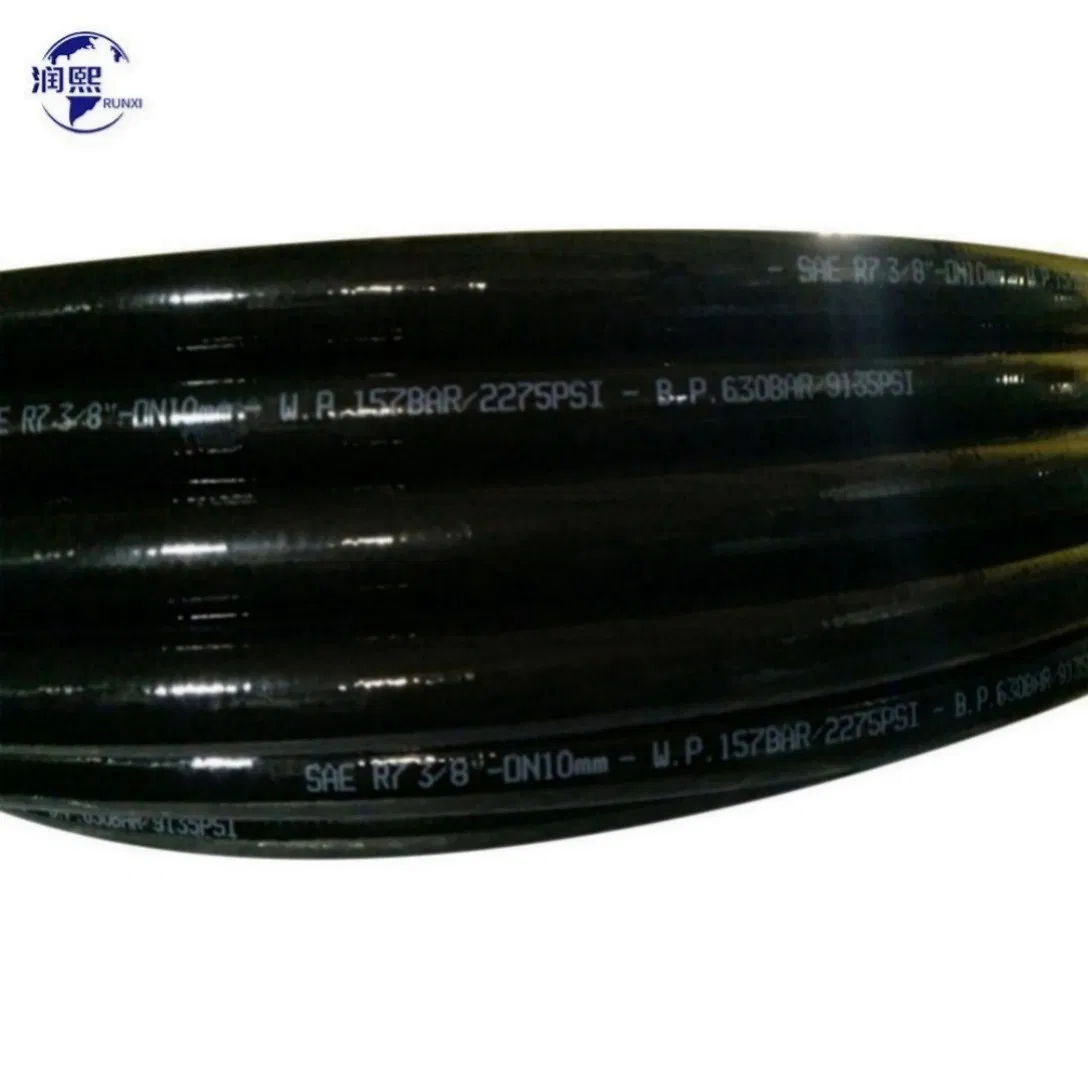

Technical Data - SAE 100R7
Size (Inch) I.D (mm) O.D Max (mm) W.P (Psi) P.P (Psi) B.P (Mpa)
3/164.6 - 5.411.43045609084
1/46.2 - 7.013.72780558077
3/89.3 - 10.318.42275456563
1/212.3 - 13.522.52030406056
125.0 - 26.436.71015203028
Technical Data - SAE 100R8
Size (Inch) I.D (mm) O.D Max (mm) W.P (Psi) P.P (Psi) B.P (Mpa)
3/164.6 - 5.414.6507510150140
1/46.2 - 7.016.8507010150140
1/212.3 - 13.524.63550710098
3/418.6 - 19.833.02275455062.8
Industry Applications
🚀
Aerospace: Pipeline systems for aircraft and spacecraft.
🏭
Petrochemical & Metallurgy: Transportation pipelines and equipment connection.
🚜
Agriculture & Construction: Agricultural brake systems, forklifts, and cranes.
⚡
Energy: Electrical equipment piping systems.

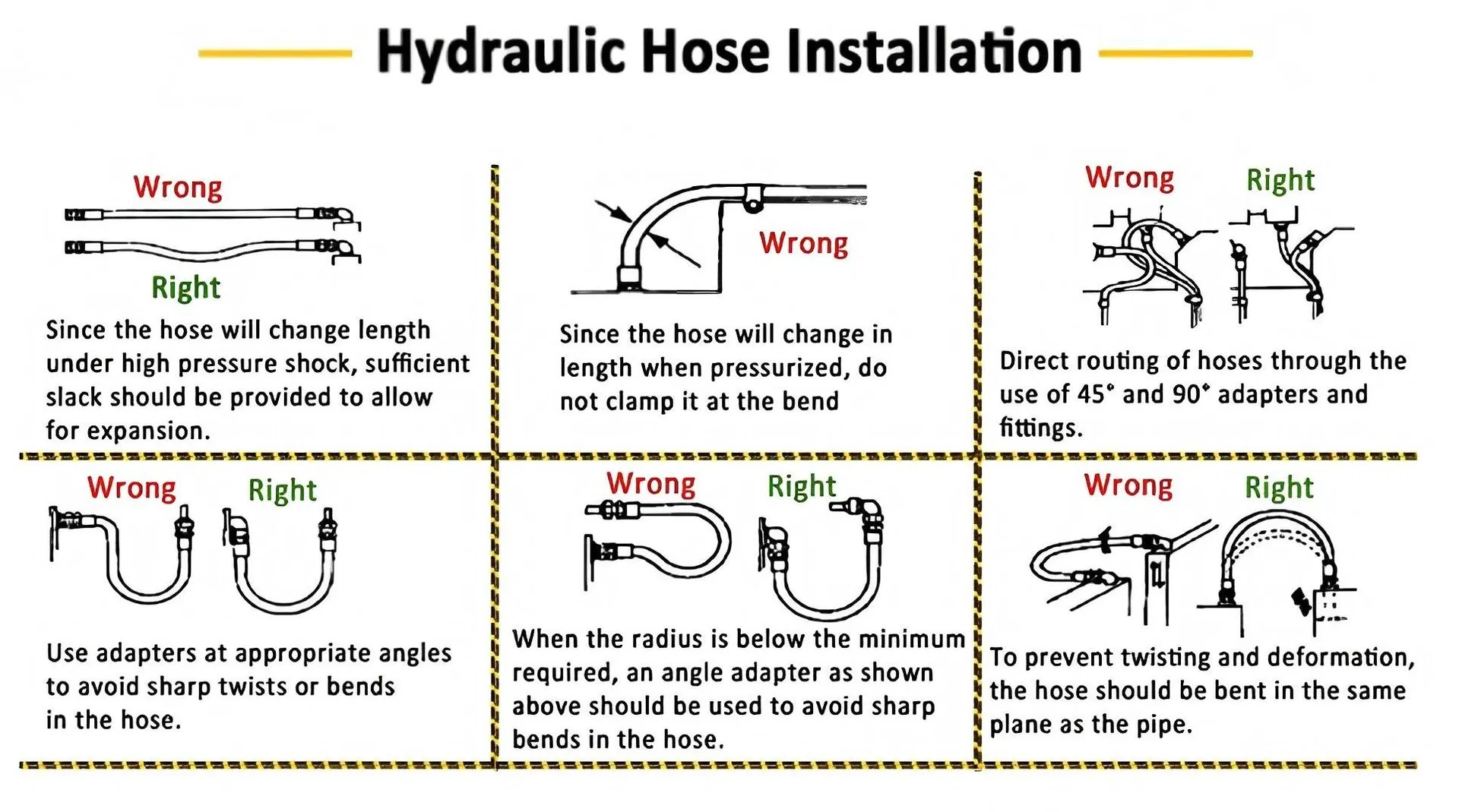

Manufacturing Process
Quality Control

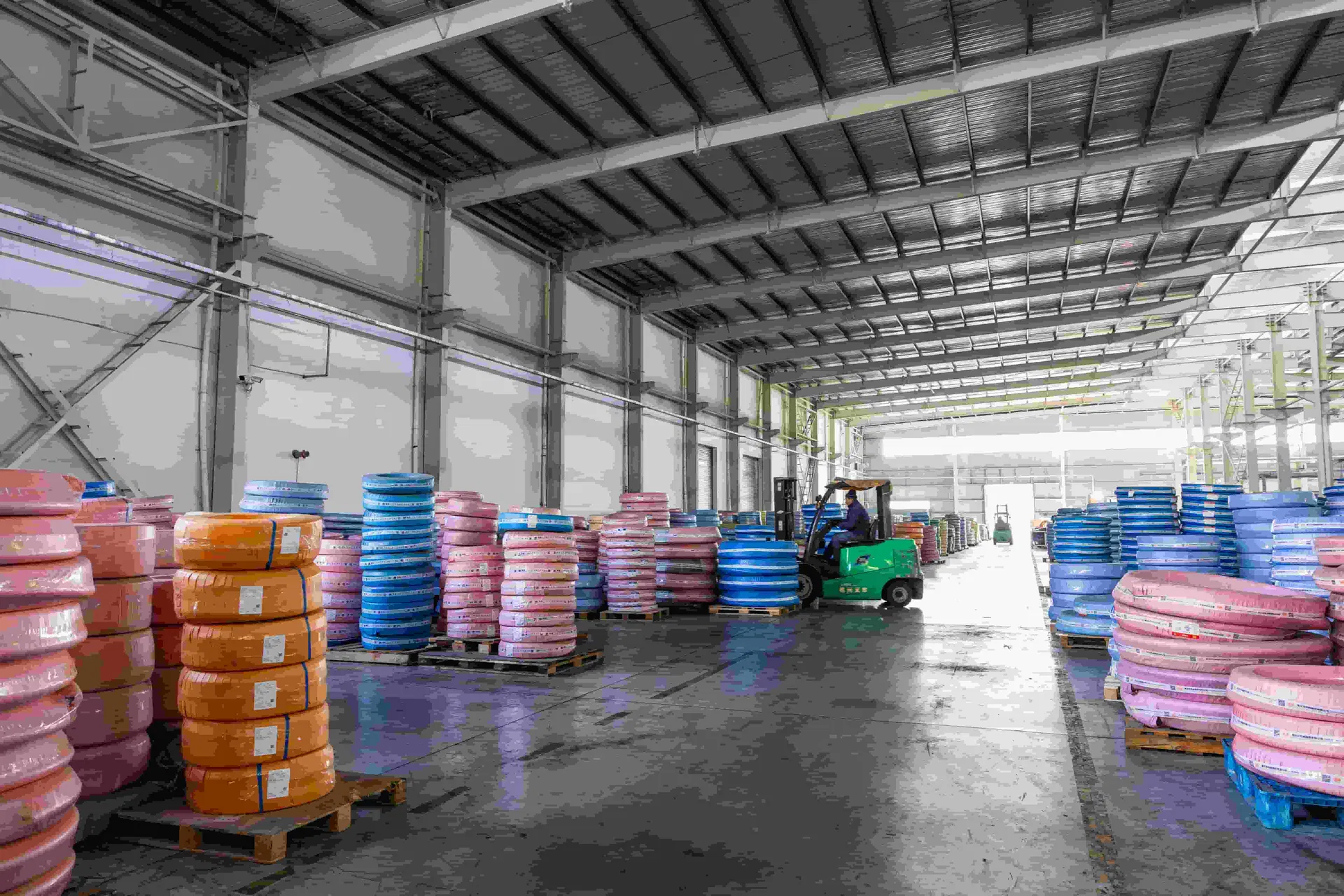

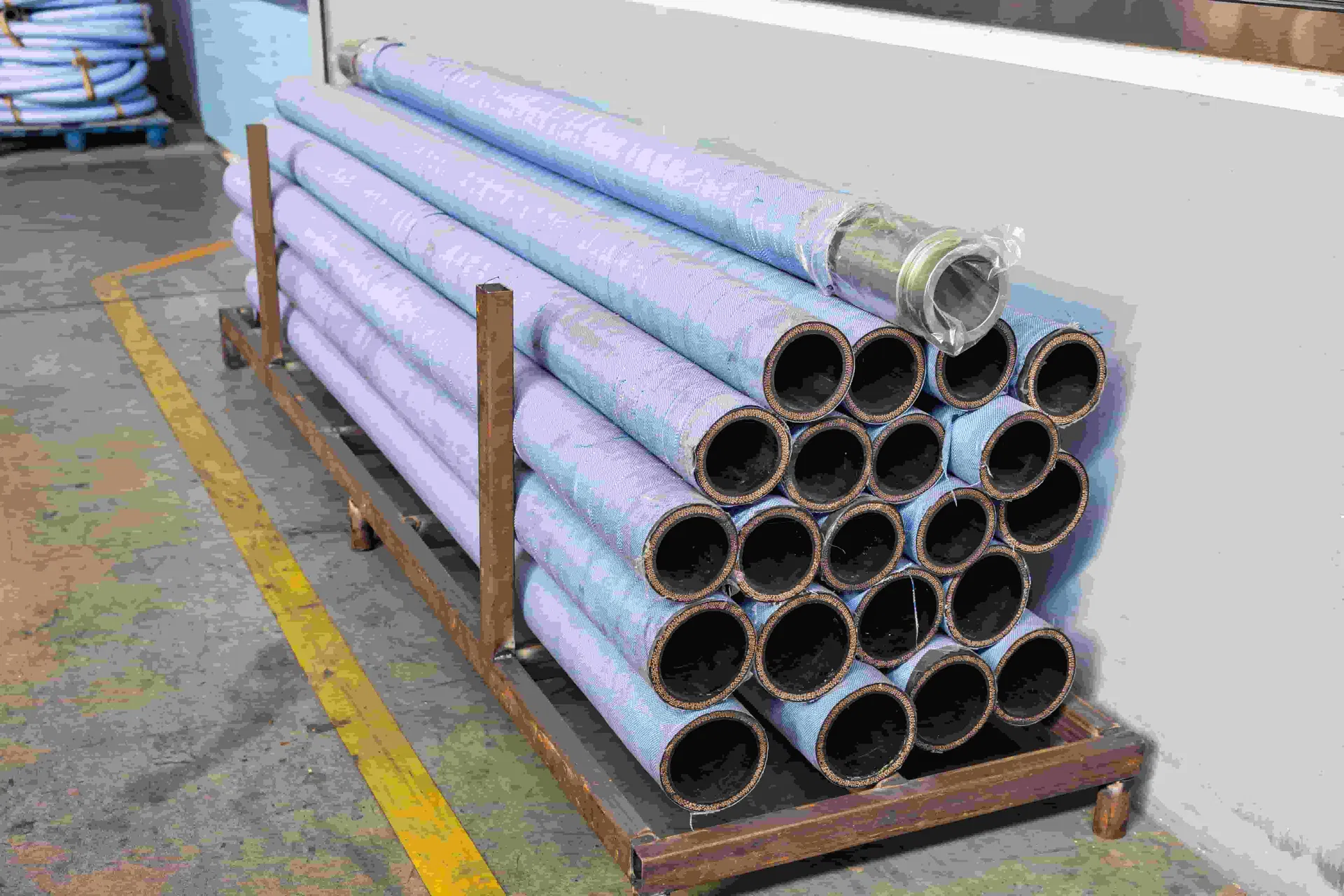

Production Showcase

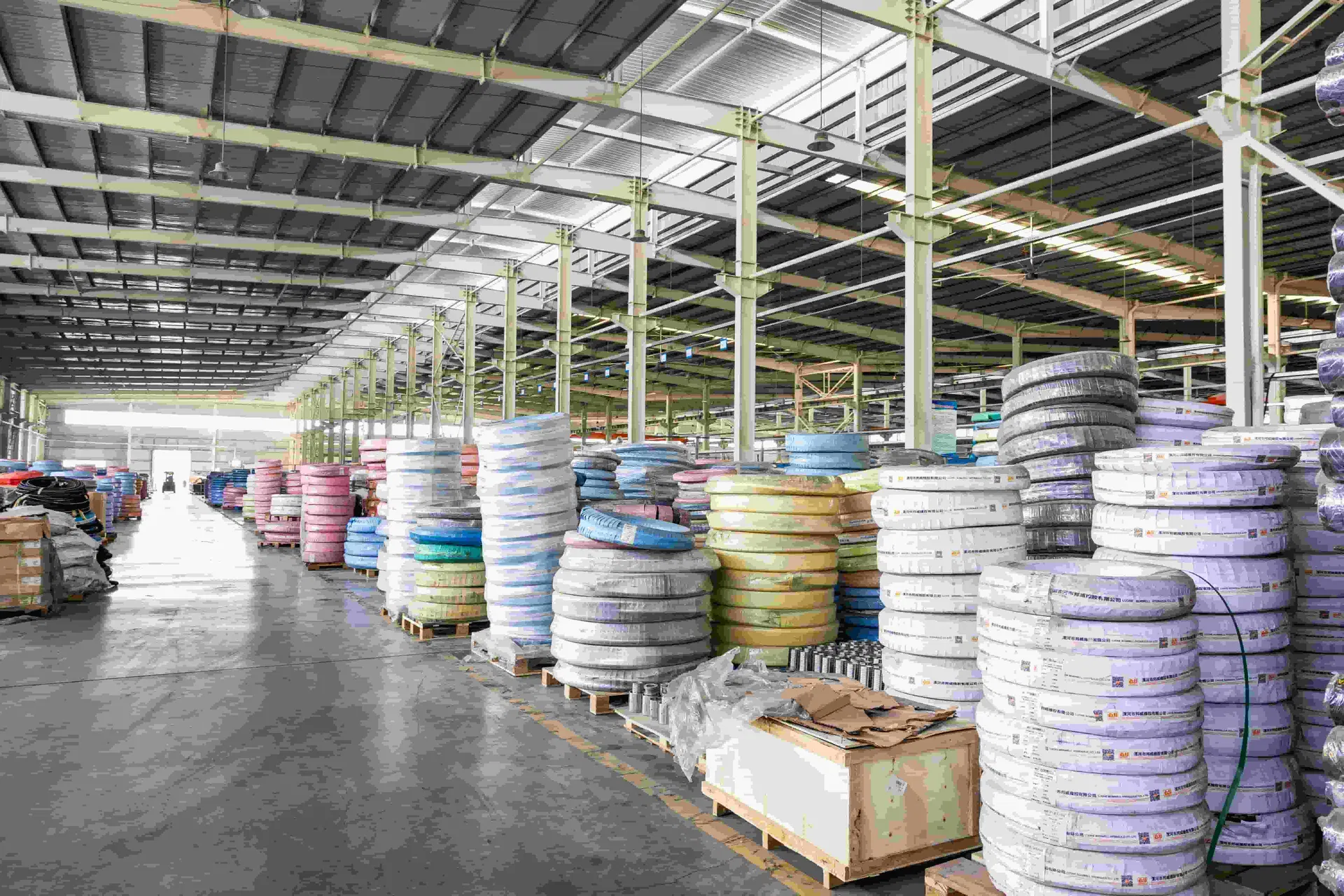

Hose Production 1
Hose Production 2
Hose Production 3
Hose Production 4
Hose Production 5
Hose Production 6
Frequently Asked Questions
What are your standard packing terms?
Generally, we pack our goods in neutral white wearable woven bags. Customized branded boxes are available upon authorization for registered patent holders.
What payment methods do you accept?
We typically accept T/T 30% as a deposit and 70% before delivery. We provide photos of products and packages before final payment.
What is the typical delivery timeframe?
Delivery generally takes 20 to 60 days after receiving the advance payment, depending on the items and order quantity.
What are the delivery terms?
We support various delivery terms including EXW, FOB, CFR, CIF, and DDU to suit customer needs.
Are the hoses resistant to high temperatures?
Yes, our thermoplastic hoses are designed to operate efficiently within a temperature range of -40ºC to +93ºC (standard) and up to +100ºC for specific models.
Do you offer customized OEM services?
Yes, we provide professional OEM and ODM services, including customized colors, sizes, and specific reinforcement materials.
