Car Brake System Parts & Accessories

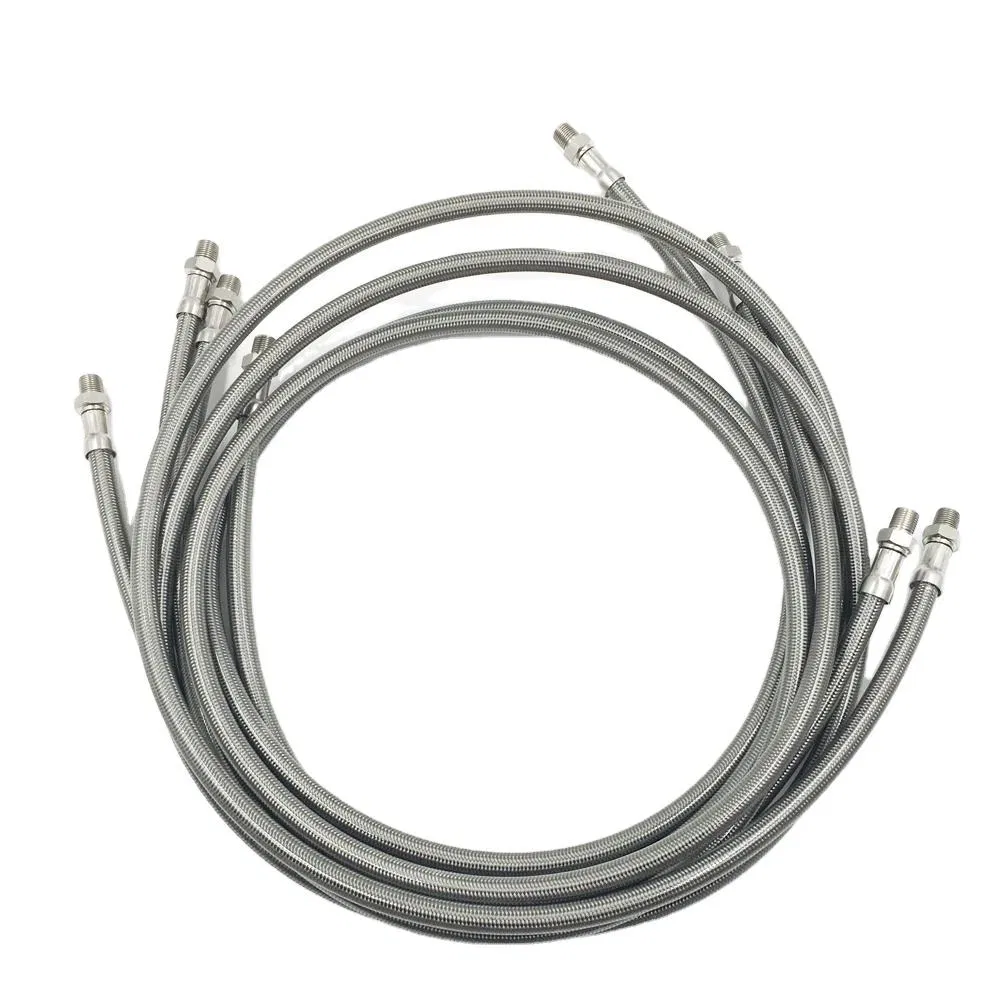

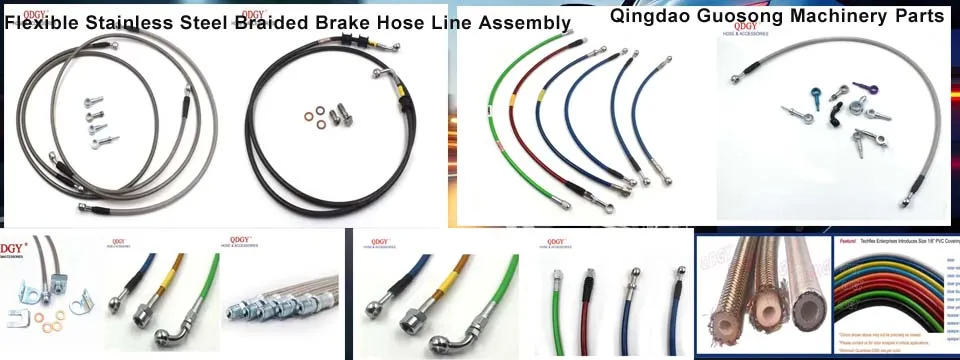

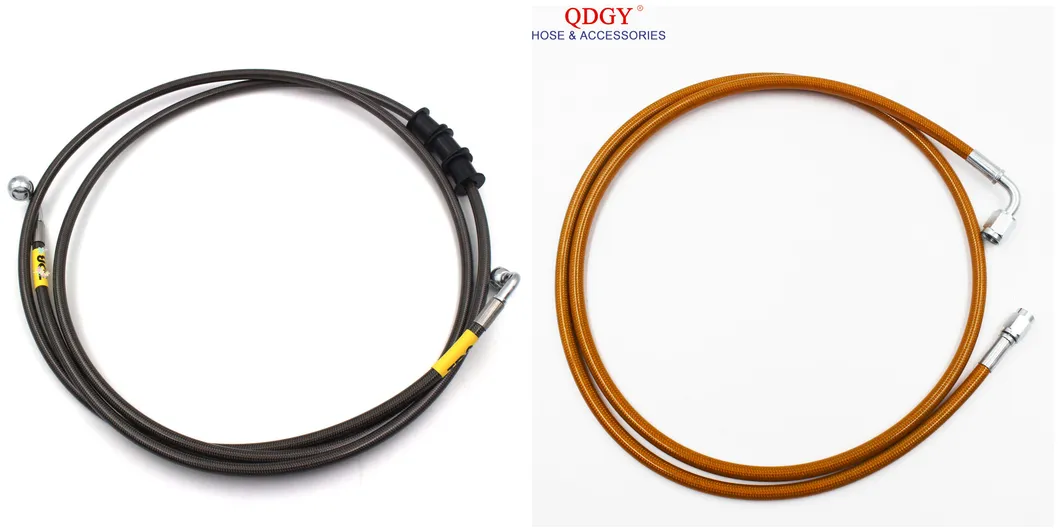

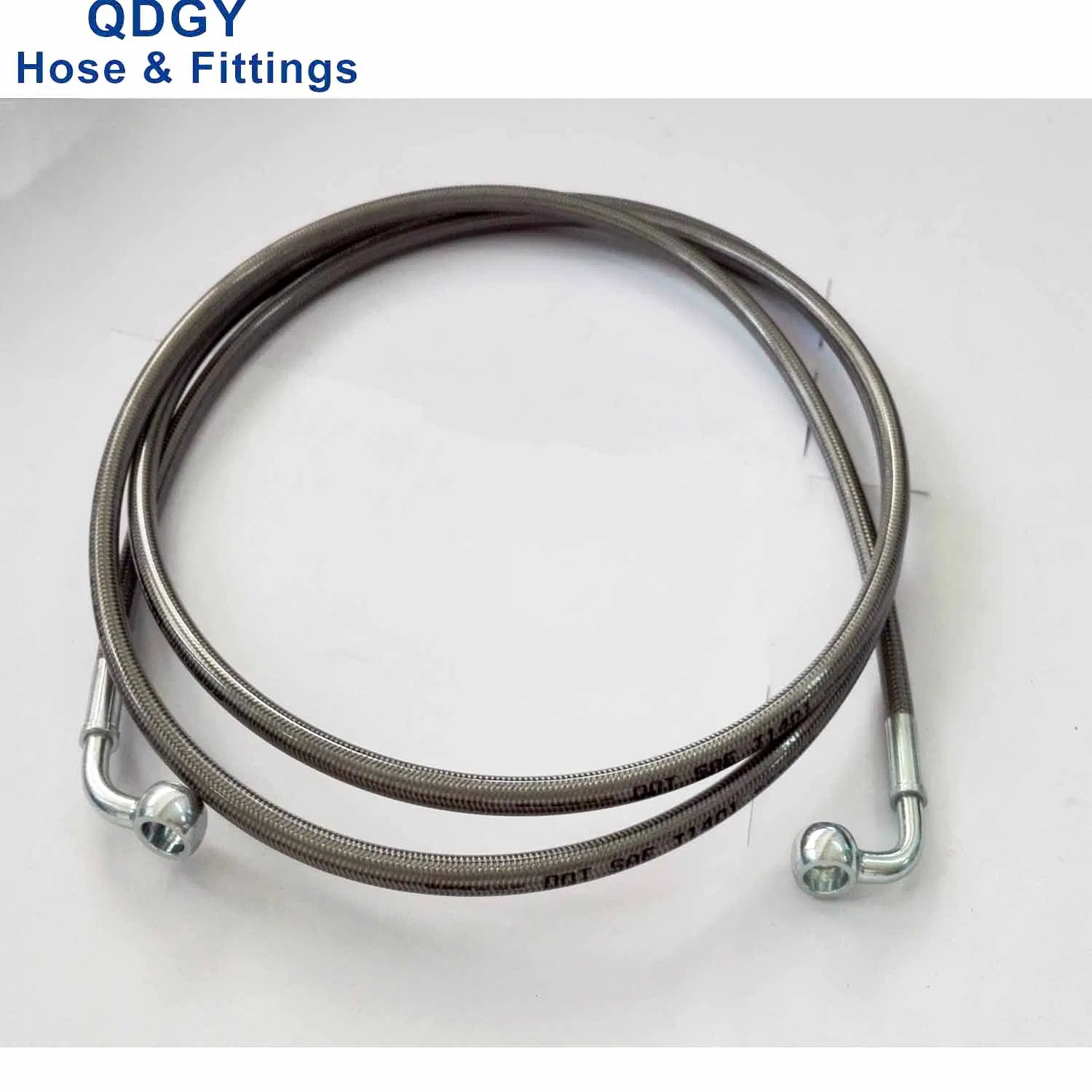

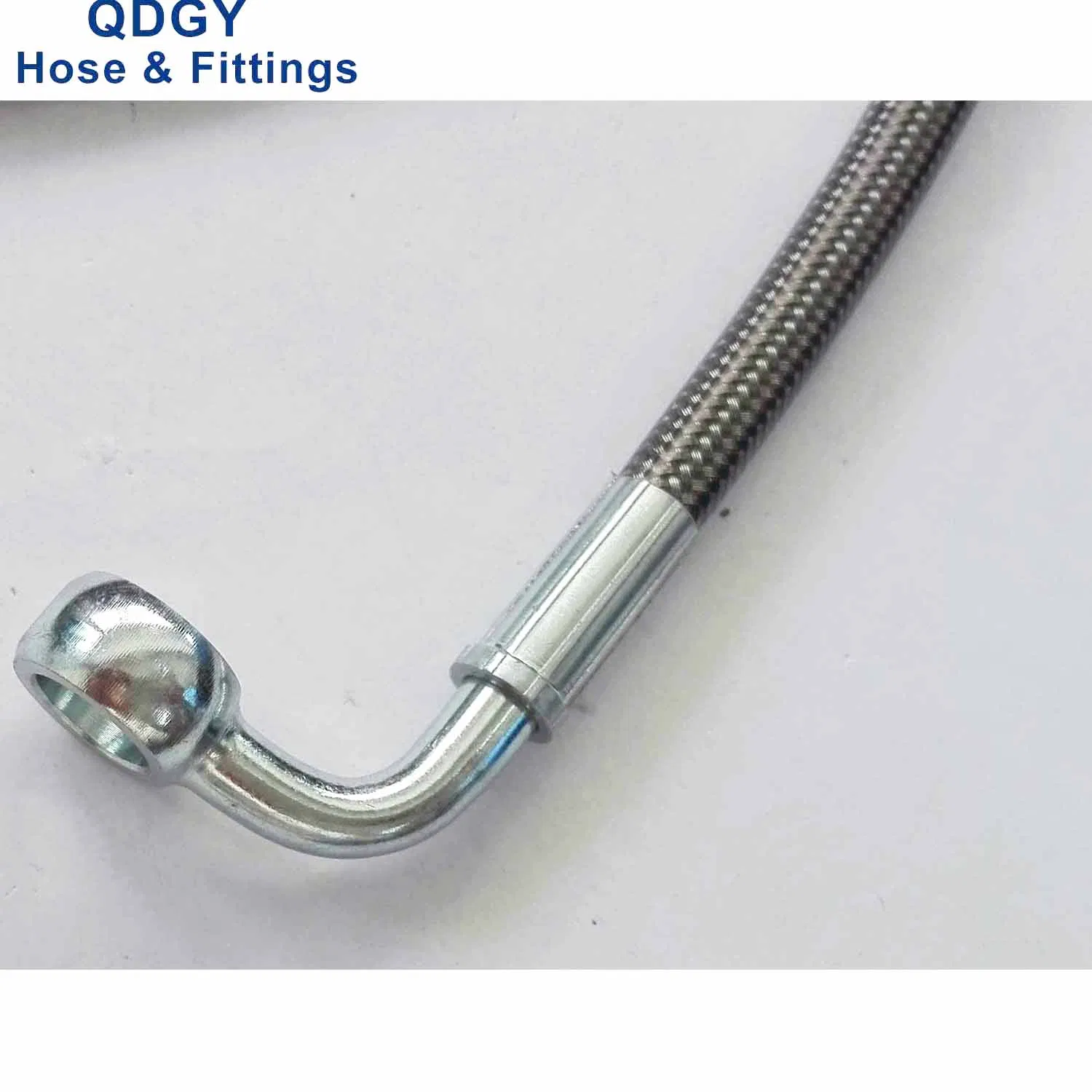

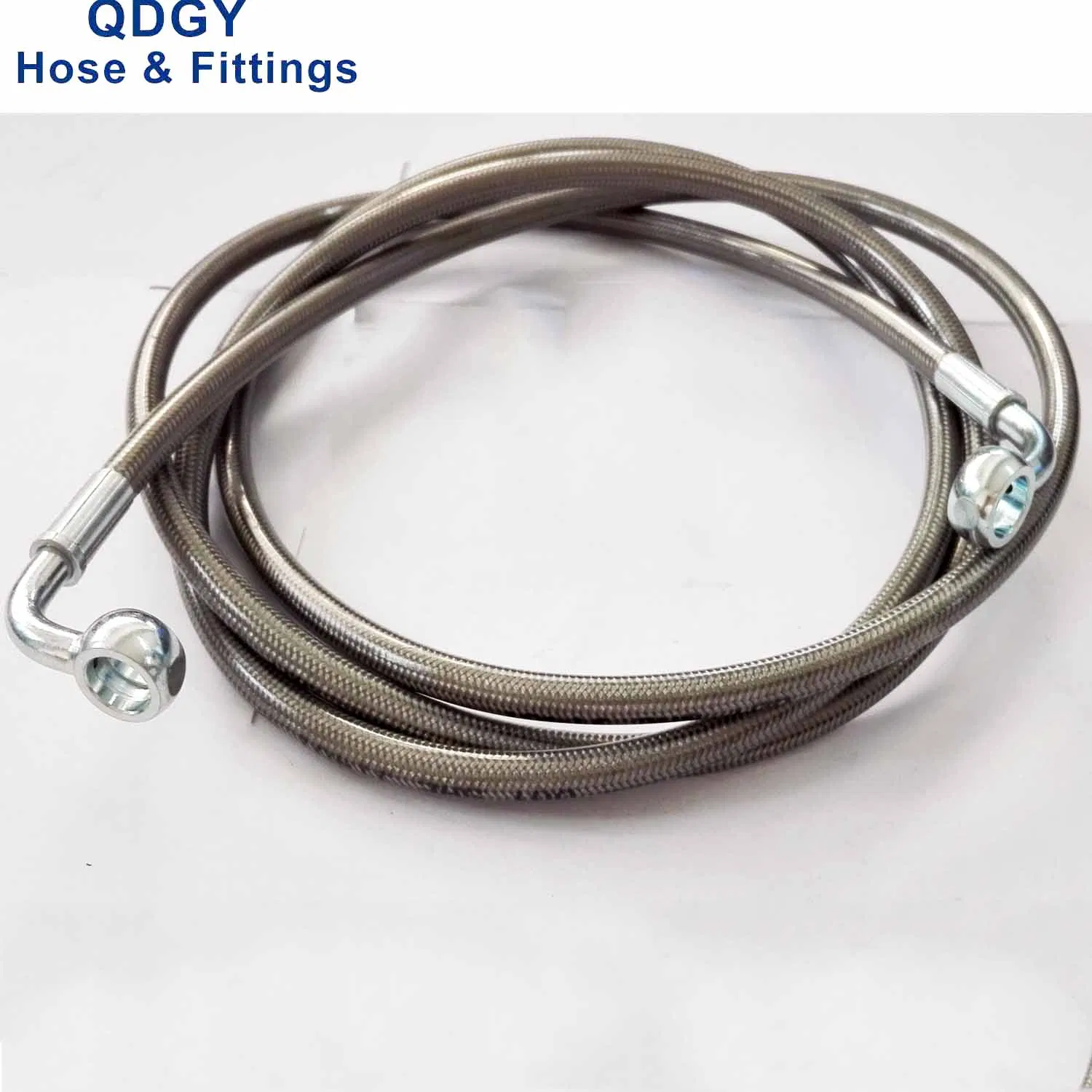

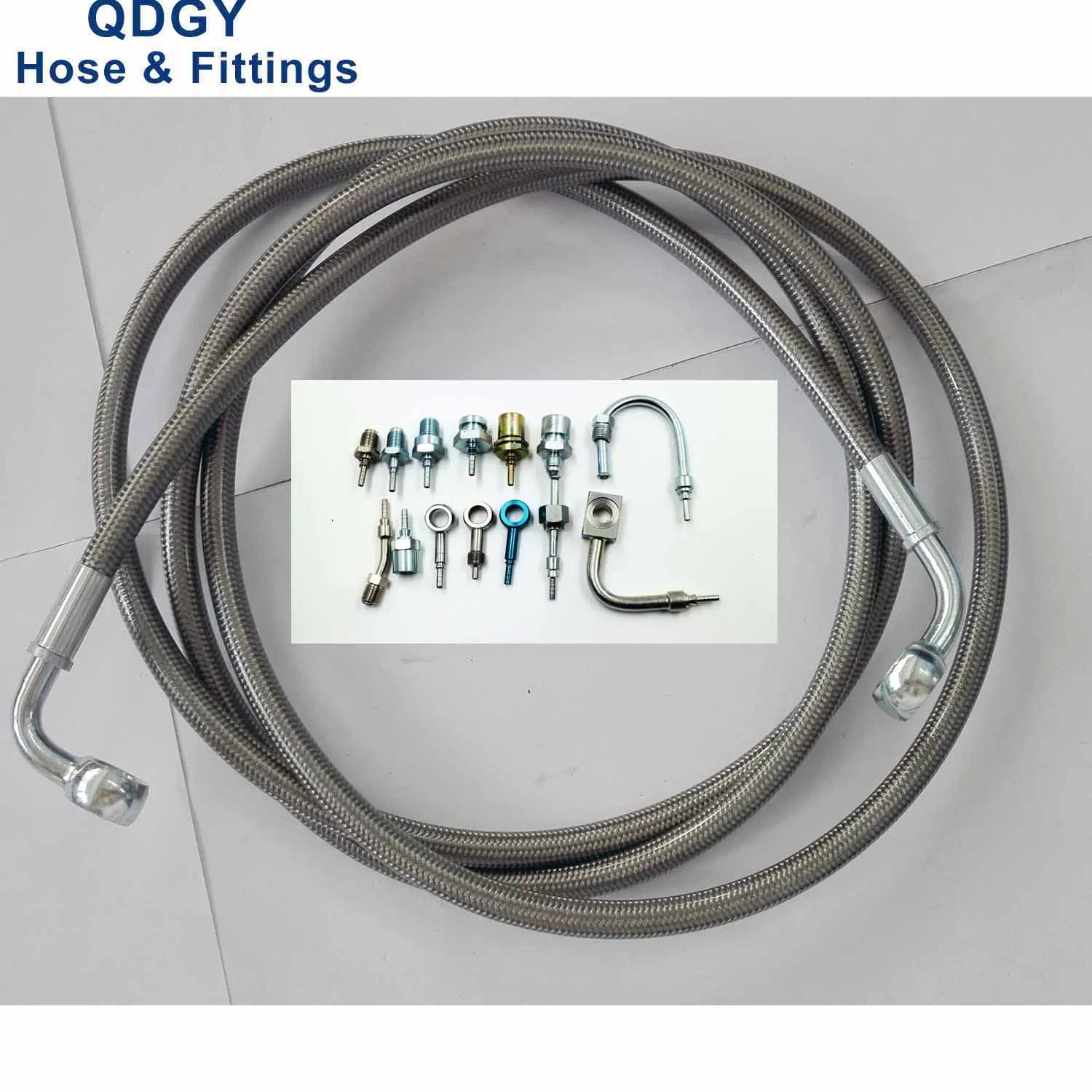

Hydraulic Stainless Steel Braided Exhaust Corrugated Flexible Fuel Water Tube Line Hose Connection Fitting Pipe.

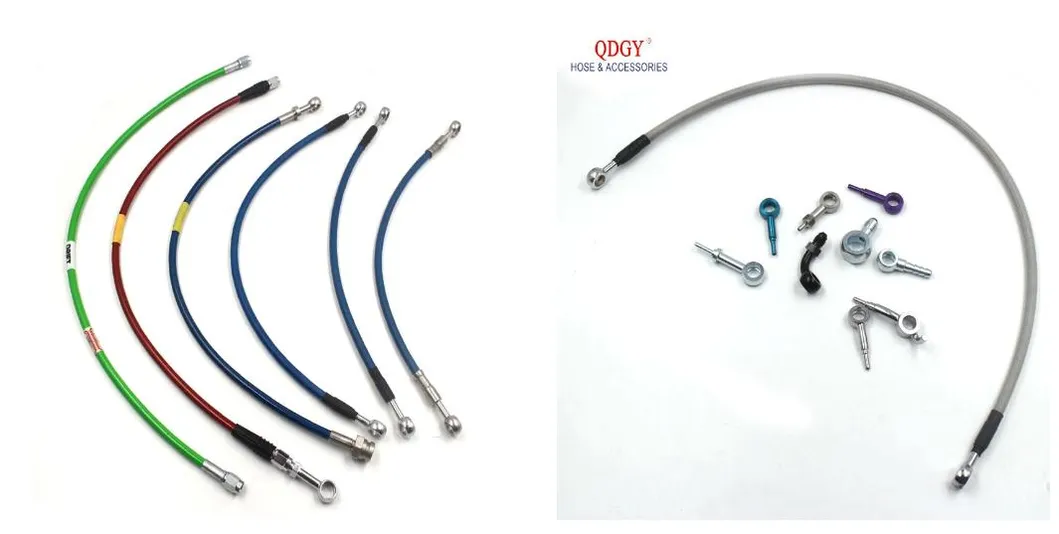

Our stainless steel braided brake lines are compatible with all brake fluids and are D.O.T. approved for street applications. Each brake hose assembly is tested to 3,000 PSI to ensure maximum safety. Available in multiple colors including black, silver, red, and blue.

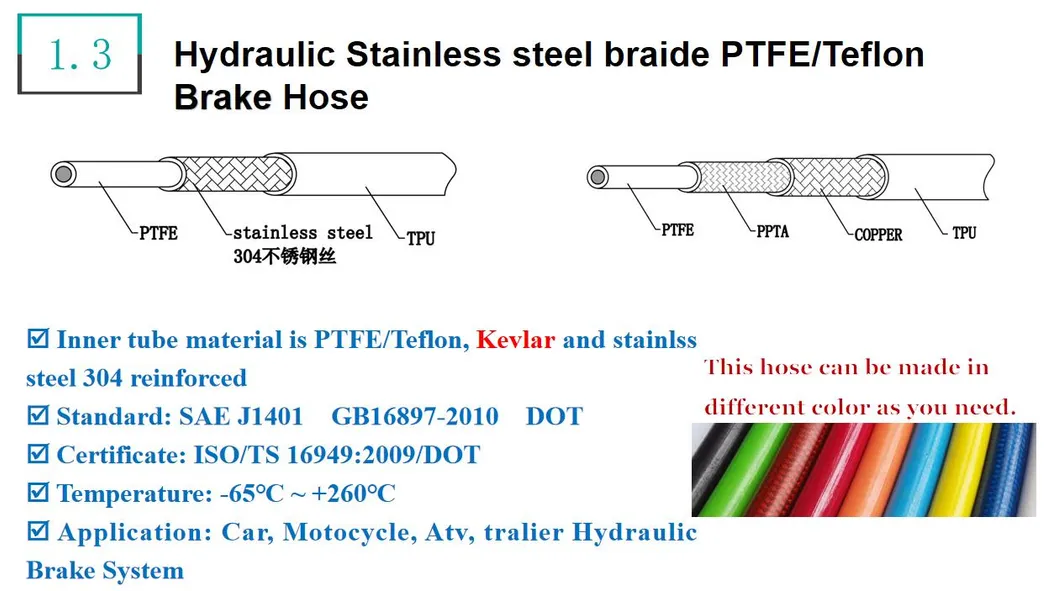

| Layer Component | Material Specification |
|---|---|
| Inner Layer | PTFE Teflon Stainless steel braided brake hose |
| Enhancement Layer | Stainless steel wire braid (AISI Steel 304 / 316) |
| Outer Layer | PVC / PU (Black, Red, Blue, Yellow, Purple, Clear, Gray, etc.) |
| Temperature Range | -65ºC to +260ºC |
| Performance | High/Low temperature resistance, acid & alkali resistance, anti-friction, non-aging |
| Inner Diameter | Outer Diameter | Outer Layer | Braid Material | Burst Pressure |
|---|---|---|---|---|
| 1/8" (3.2mm) | 0.275" (7.5mm) | PVC | 304 Stainless Steel | 12,000 PSI |
| 3/16" (4.8mm) | 0.374" (9.5mm) | PVC | 304 Stainless Steel | 12,000 PSI |
| 1/8" (3.2mm) | 0.255" (6.5mm) | No covering | 304 Stainless Steel | 12,000 PSI |
| 3/16" (4.8mm) | 0.3" (7.6mm) | No covering | 304 Stainless Steel | 12,000 PSI |
Suitable for Automotive, Bicycle, Motorcycle, Racing, Brake Lines, Clutch Lines, Fuel Systems, Turbo oil feed Hose, and Power Steering.
