The flexible metal hose is designed for wide application in systems involving water, steam, hot oil, and gas. Its pressure-resistant and flexible structure makes it ideal for conducting liquids and absorbing vibrations or thermal expansions within an installation.
For more severe environmental conditions, these hoses can be strengthened with single or double braiding to increase resistance to pressure. Spring reinforcement or strip wounds are also available to extend service life.
| DN (mm) | ID (mm) | OD (mm) | Pitch (mm) | Wall Thickness (mm) | Weight (KG/M) |
|---|---|---|---|---|---|
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |

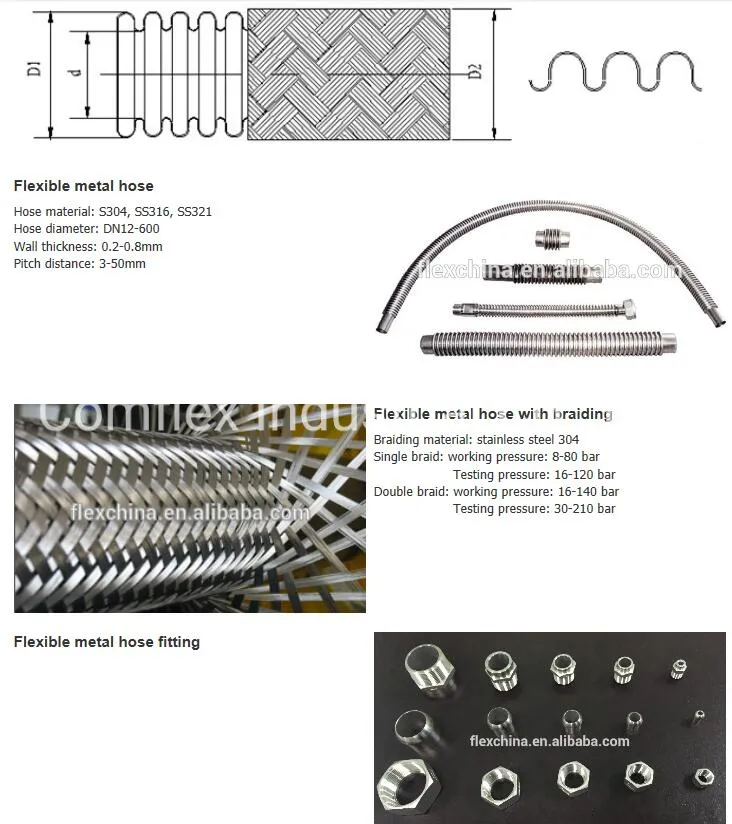

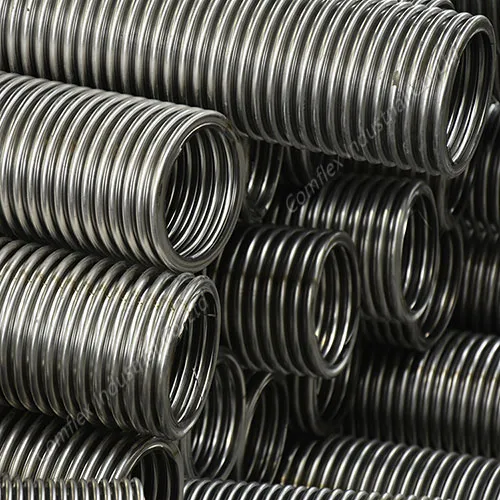

Inner Core: Corrugated Stainless Steel (304, 321, 316L). Tubes are formed into parallel corrugations. Helical options are available upon request.

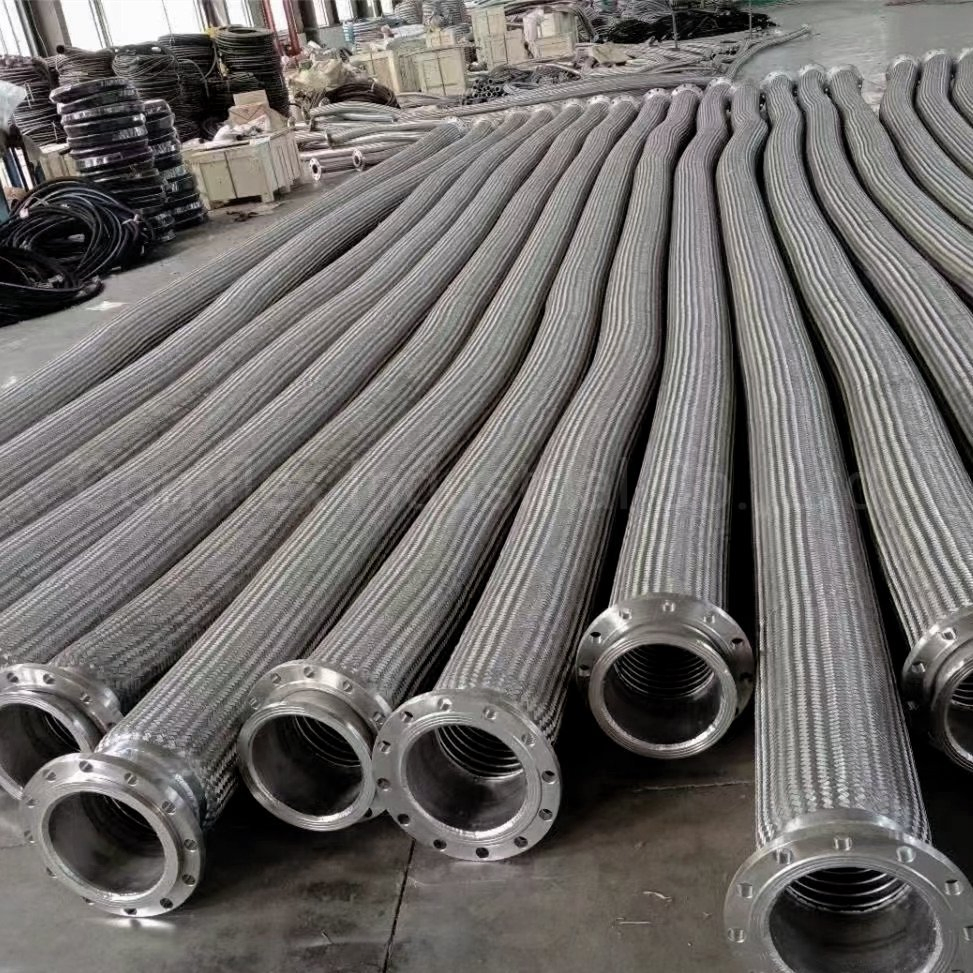

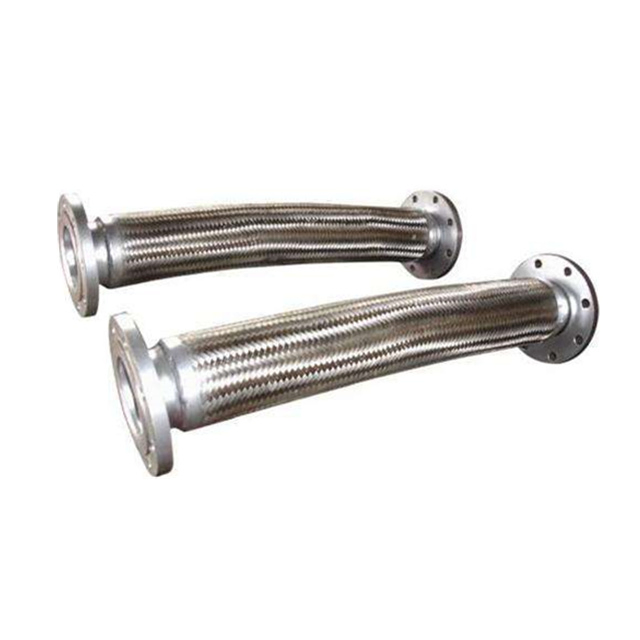

Outer Core: Braided Stainless Steel Layers (304). Available with no layers, single, or double braiding.
