The flexible metal hose can be used widely in systems like water, steam, hot oil, and gas with their resistance to pressure and flexible structure. They are utilized for conducting liquids, compensating the problems originating from installation, and absorbing vibrations and expansions.
| DN (mm) | ID (mm) | OD (mm) | Pitch (mm) | Wall Thickness (mm) | Weight (KG/M) |
|---|---|---|---|---|---|
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |

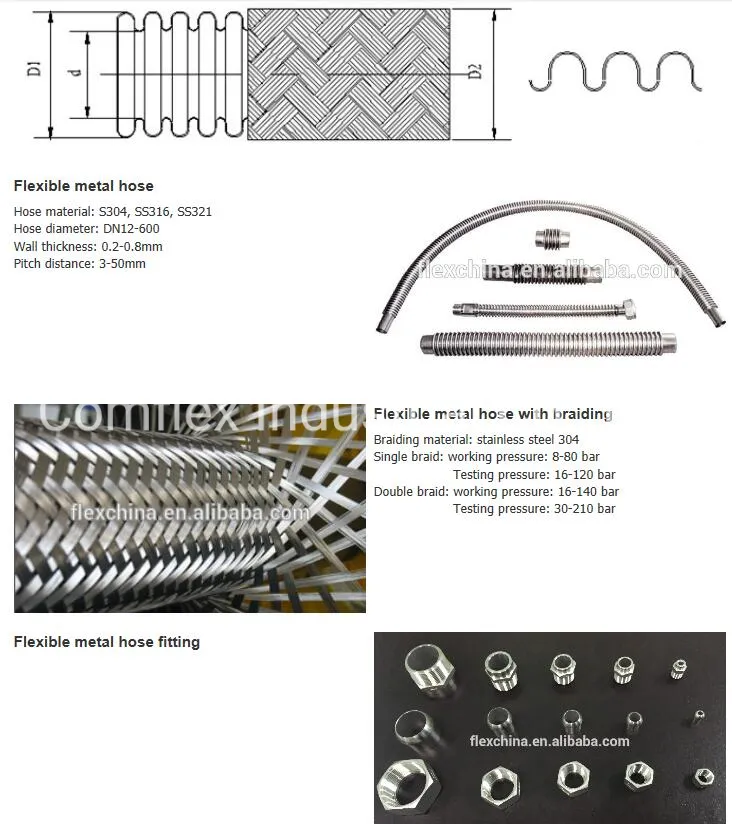

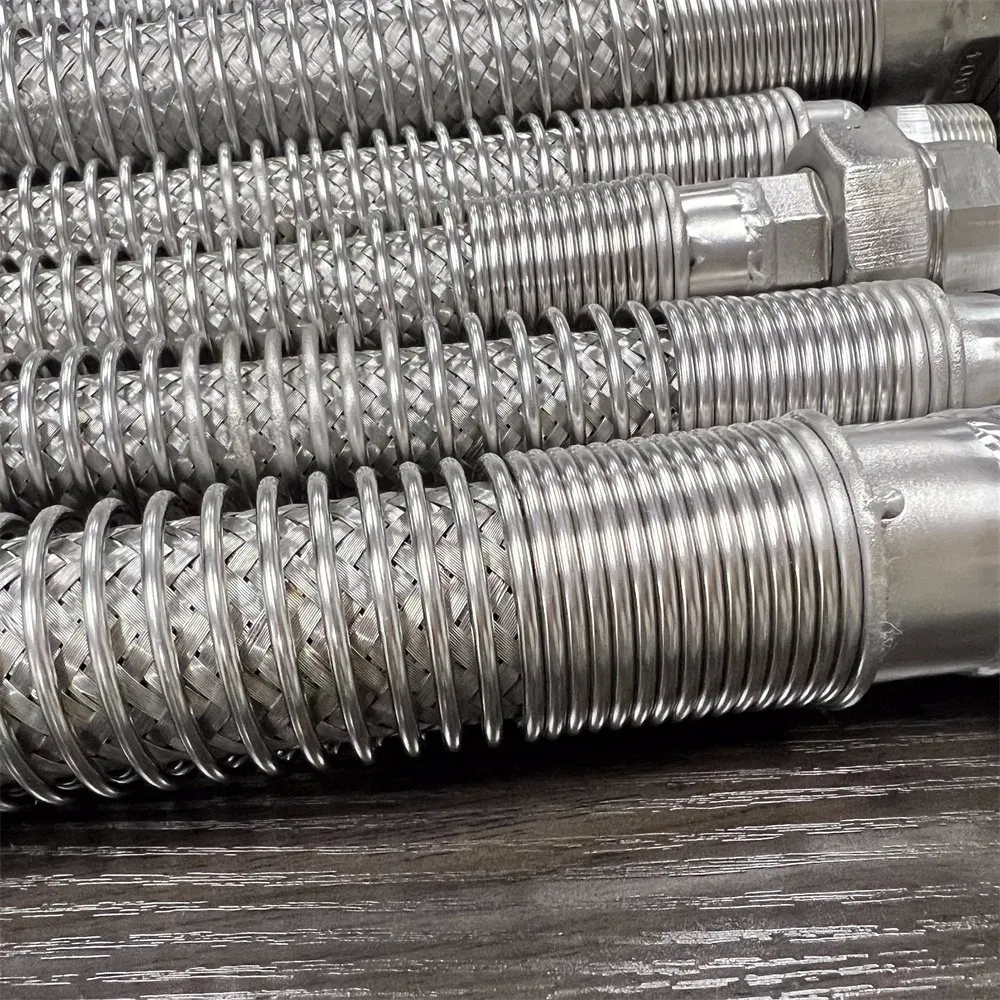

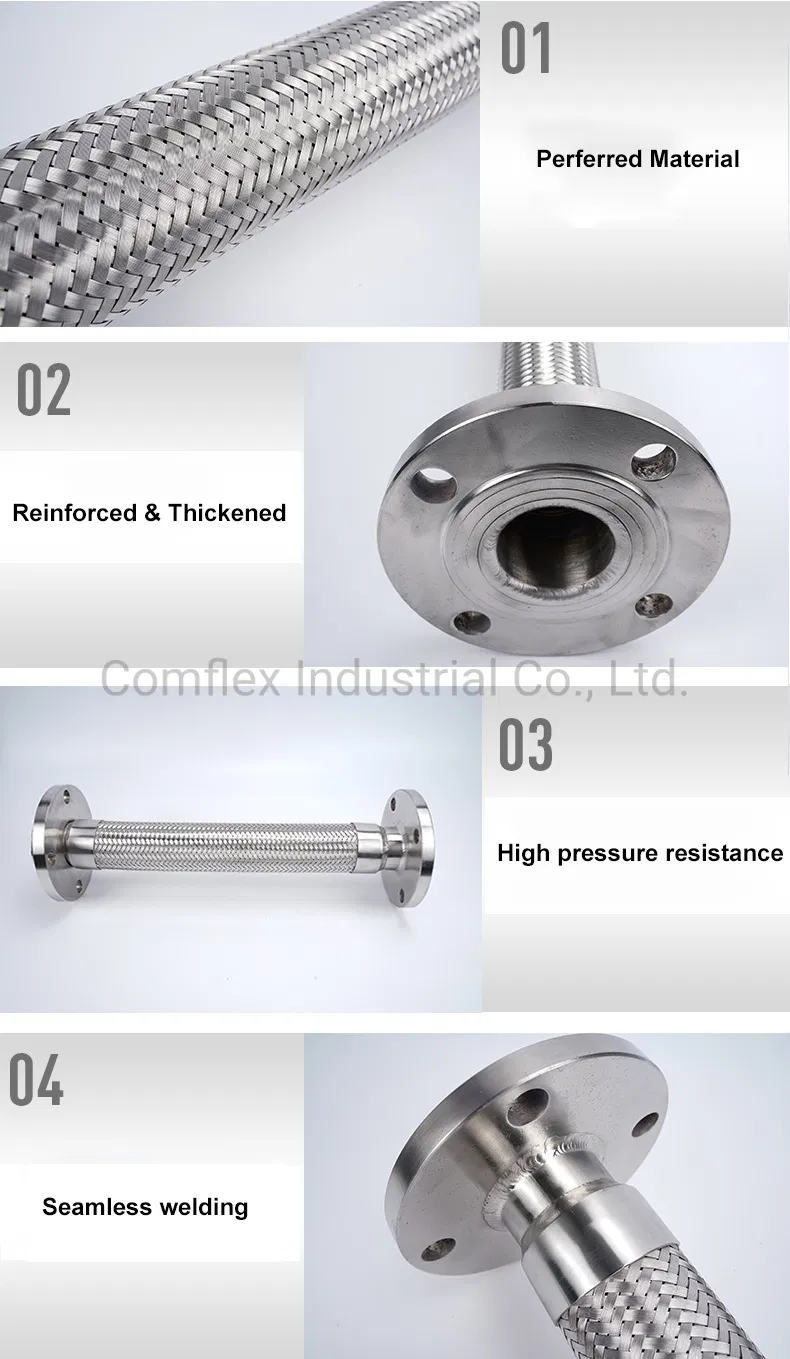

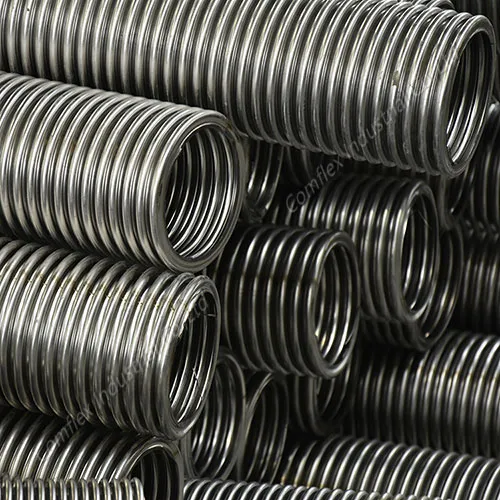

Inner Core: Corrugated Stainless Steel (304, 321, 316L). Stainless steel tubing formed into corrugations parallel to one another.
Outer Core: Braided Stainless Steel Layers (304). Available with no layers, single or double braided.
Benefits: Temperature ratings from Cryogenic to 1500° F. Meets or exceeds ISO 10380 standards.

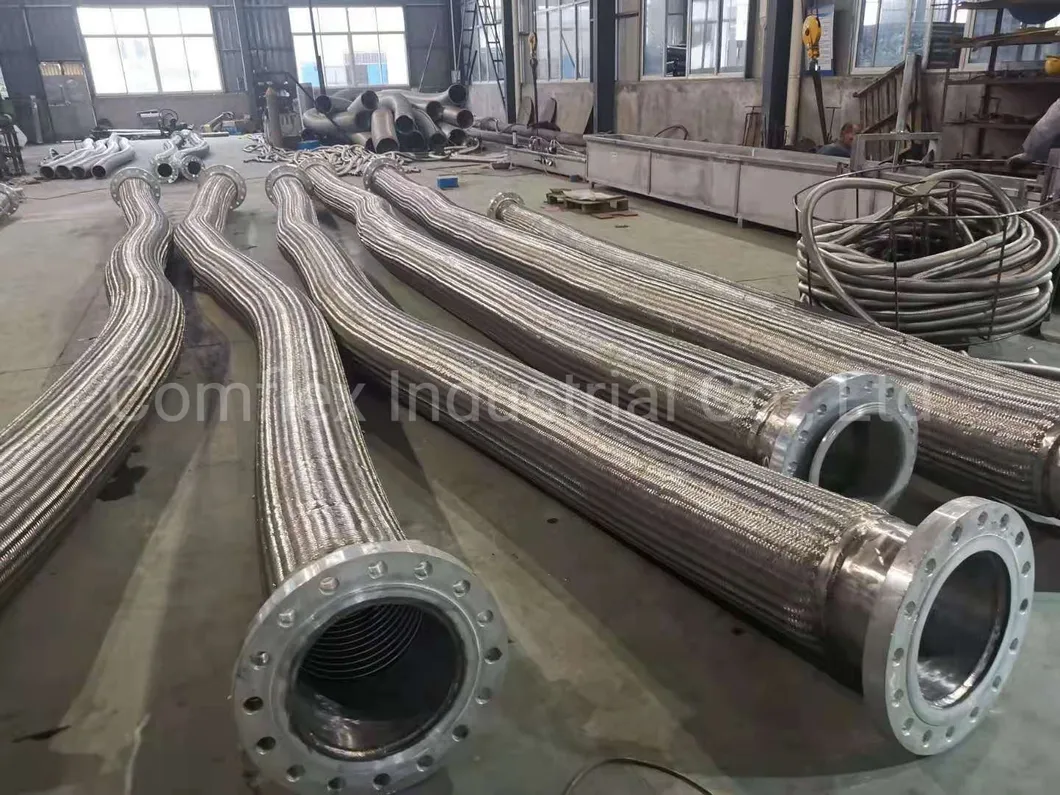

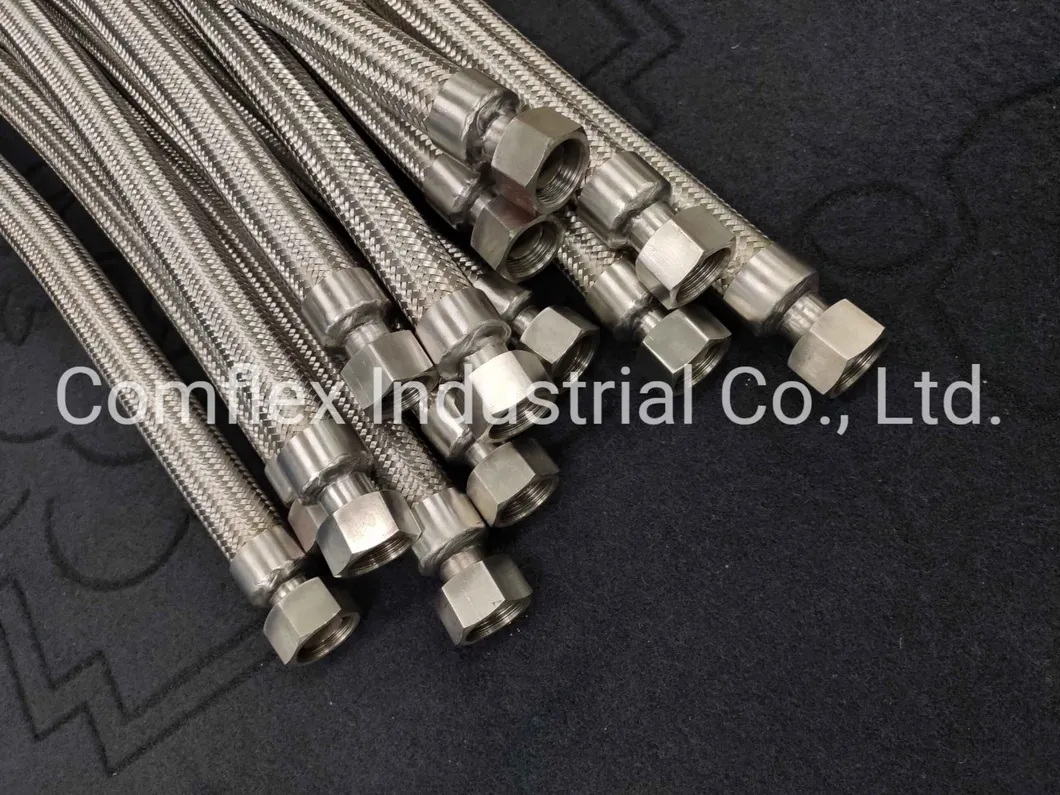

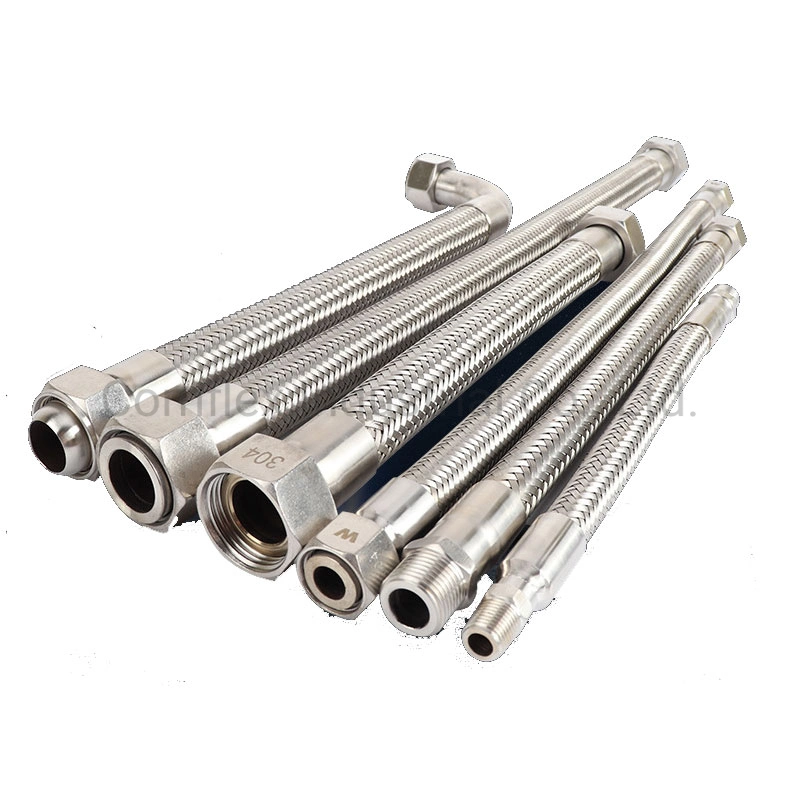

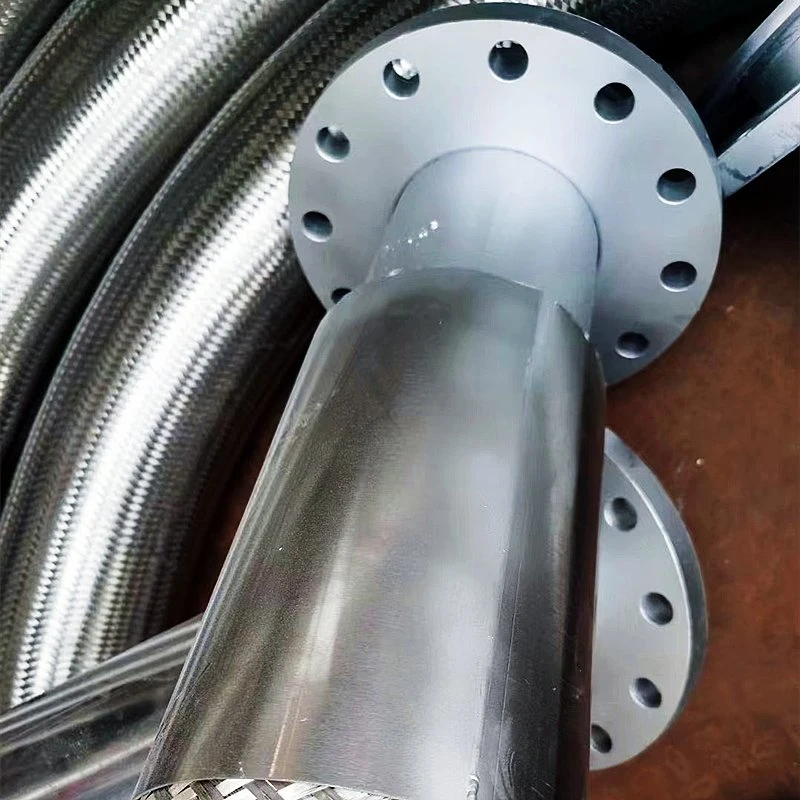

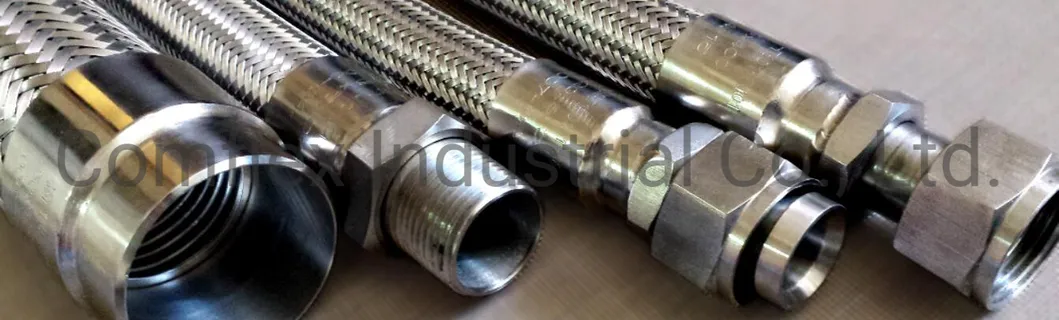

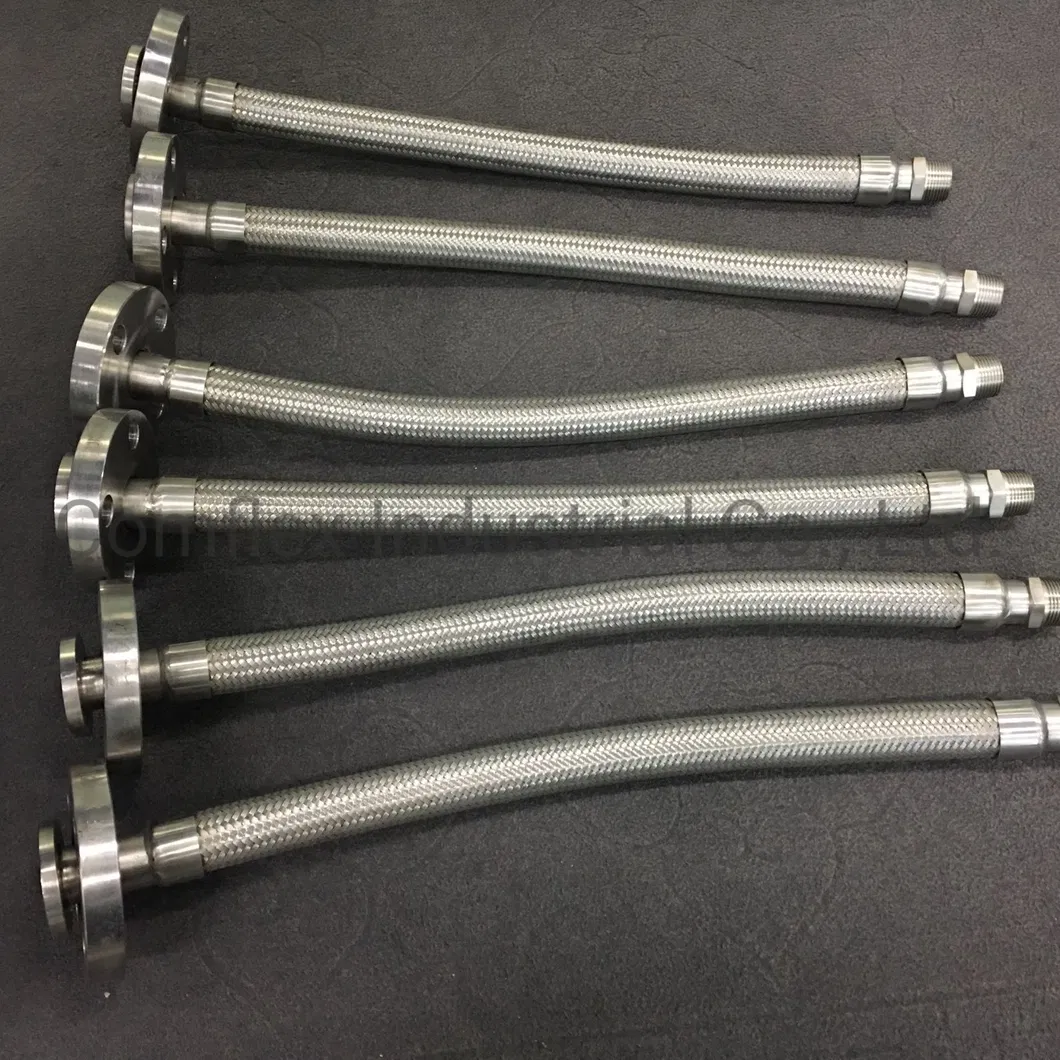

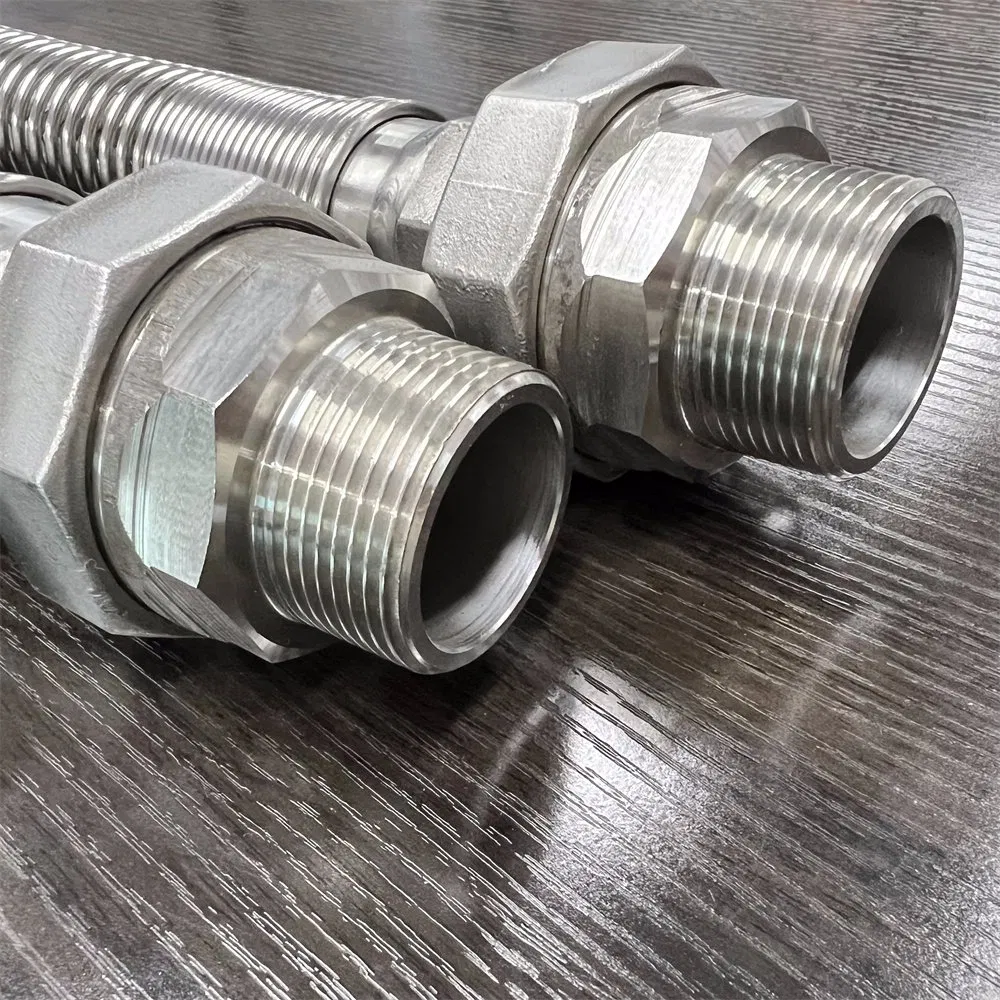

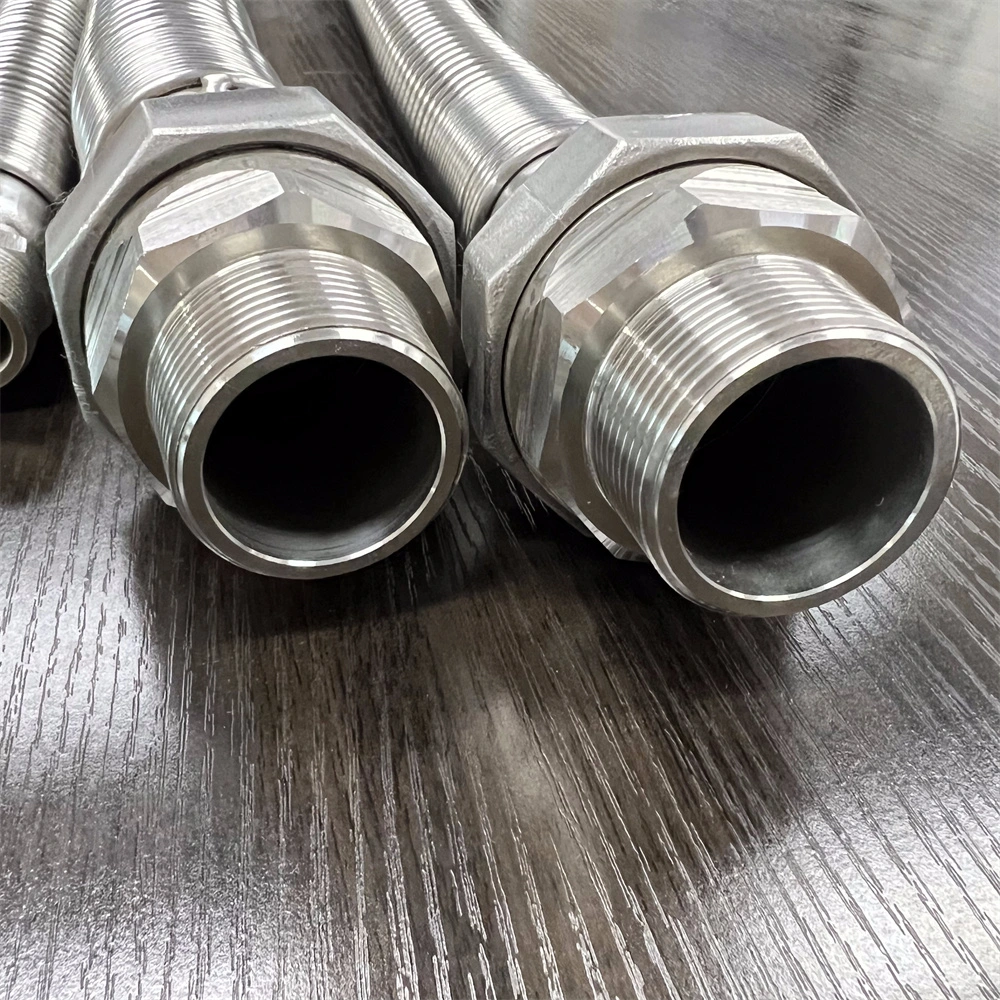

We provide big-size braided flexible hoses with flanges and special customized metal hoses with various fittings including BSPT Taper Male, NPT Fittings, and DIN/ANSI/JIS Flange connections.

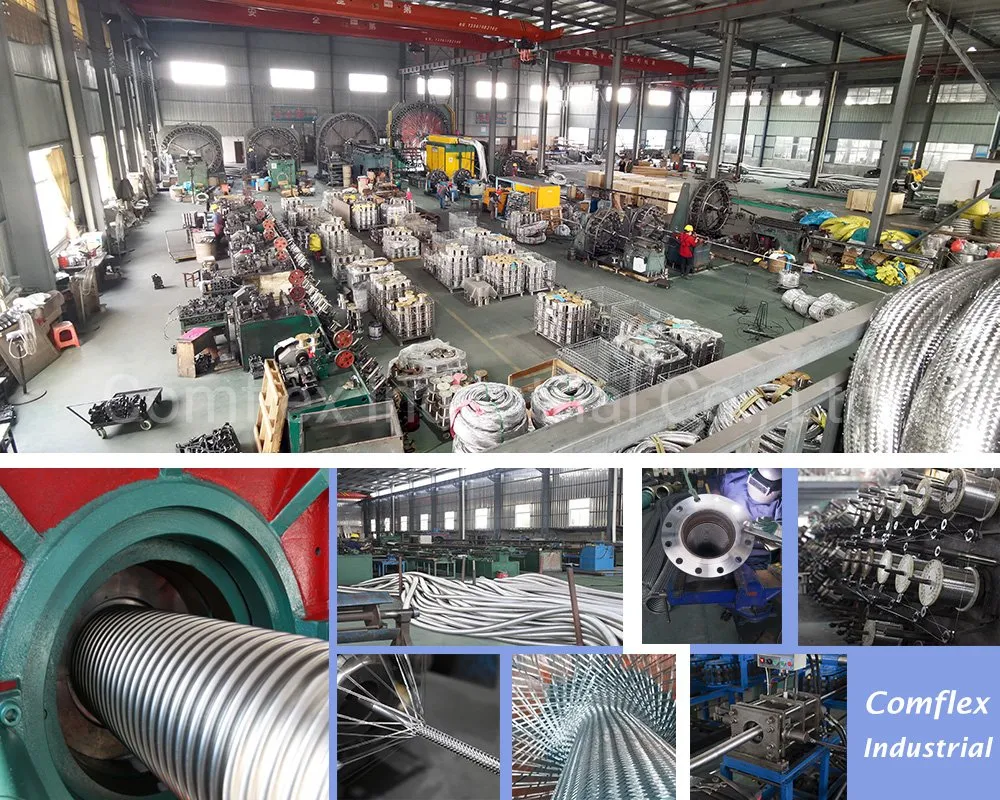

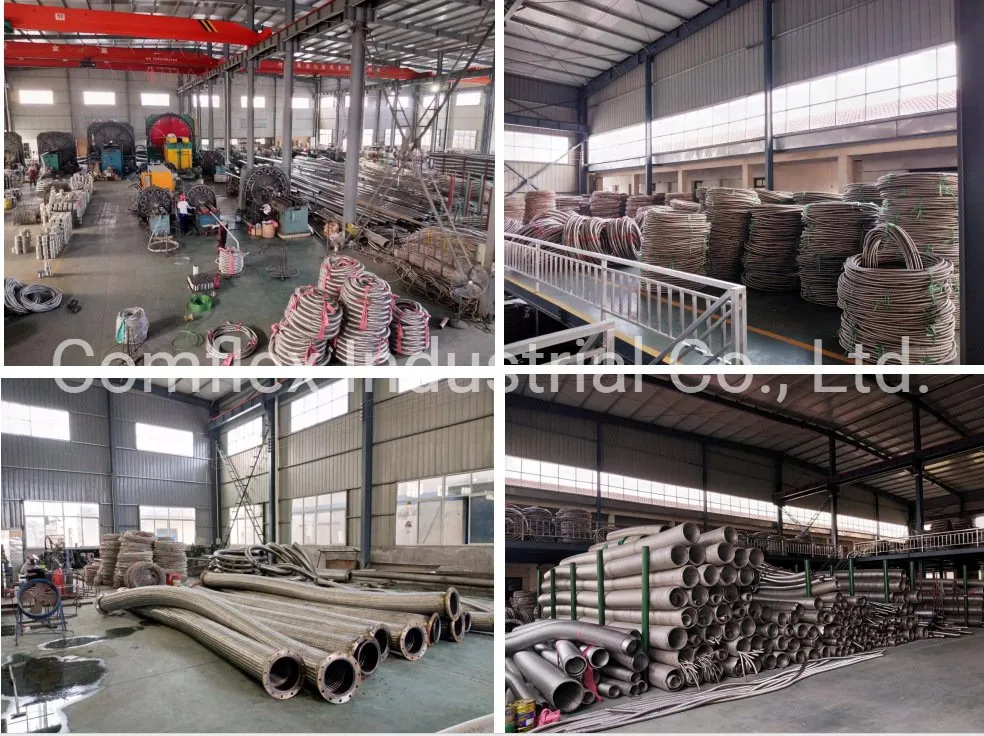

Professional manufacturer of all types of metal flexible metal hoses and machinery, such as corrugated metal hoses, square lock and interlock hose/conduits with more than 25 years of experience. Hoses are widely used for gas, water, and wire protection circuits.

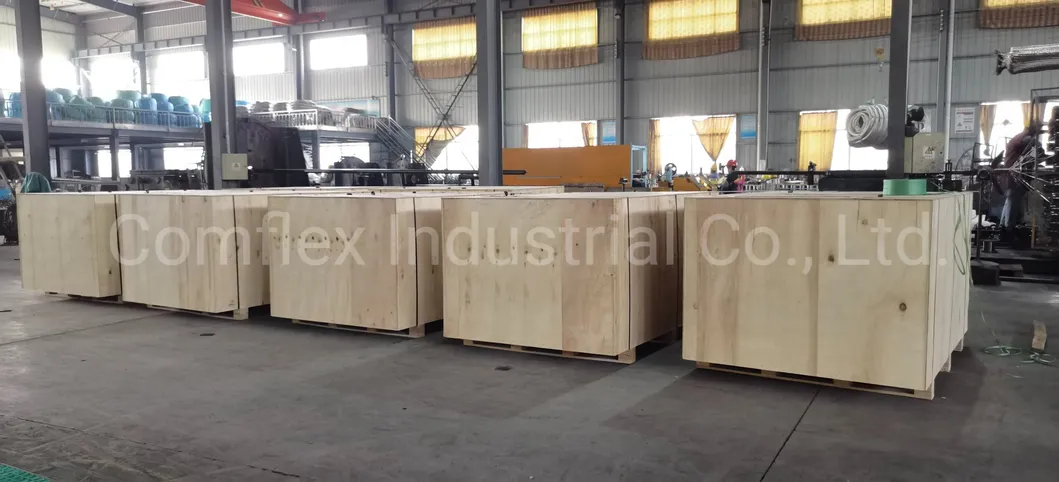

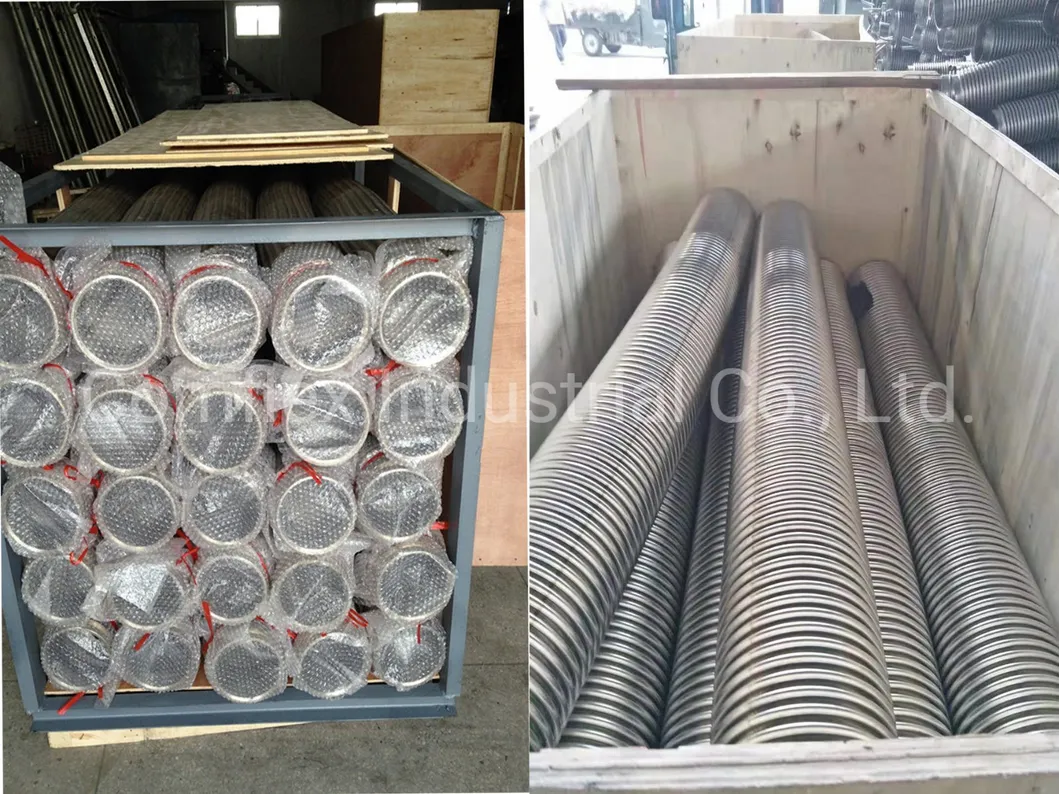

Strong steel frame and firm plywood boxes are utilized for sea or air transportation to ensure product safety.
