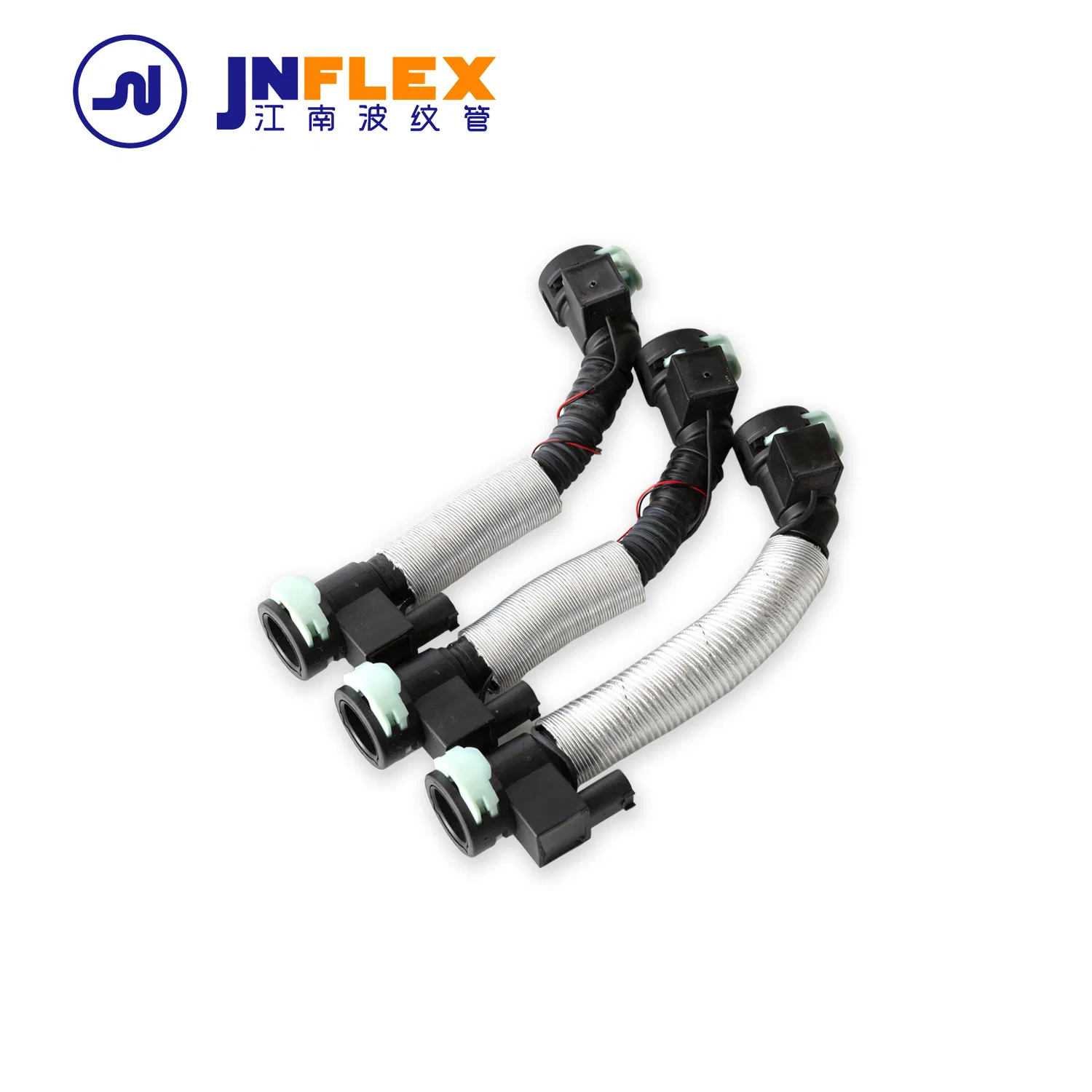

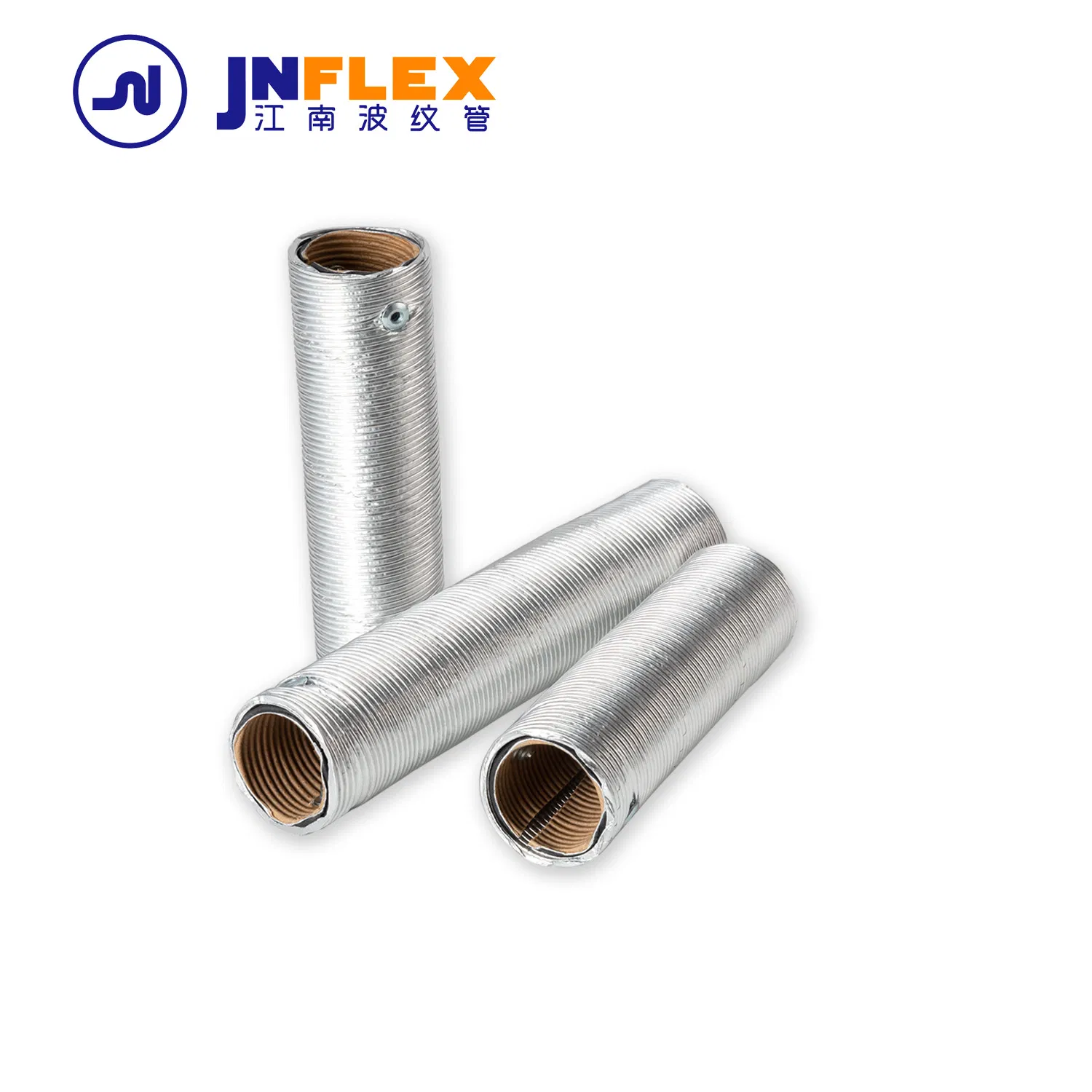

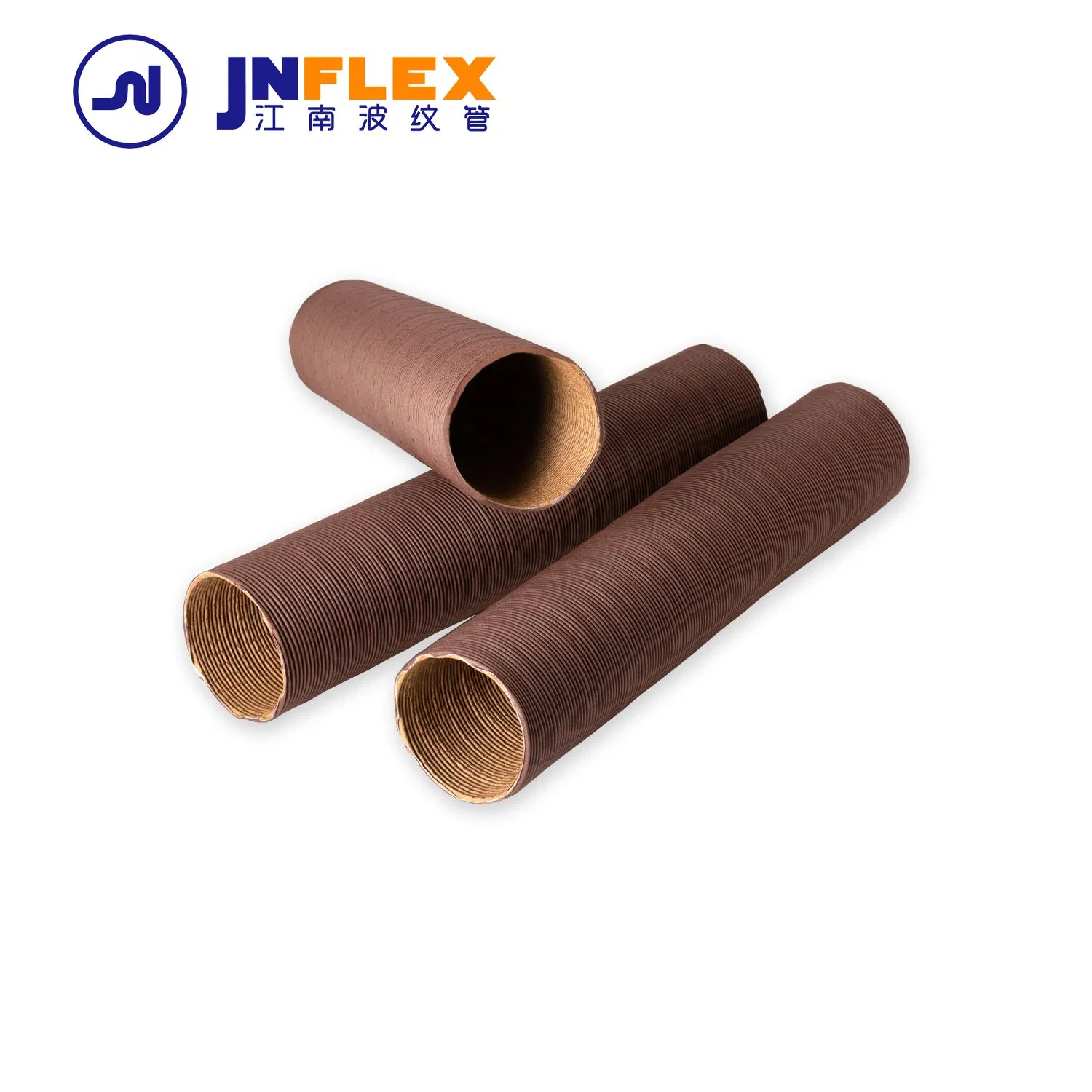

Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
1 / 5
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve

Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
5.5mm-100mm
Type
Exhaust Pipe
Material
Aluminum + Glass Fiber
Certification
ISO9001, TS16949
Main Market
Middle East
Discharge Standard
Euro V
Colour
Silver
Noise Source
Engine/Mechanical Noise
Product Parameters
Heat Protector Heater Hose Return Hose From Heater Core to Pipe Silver Aluminum with Fiberglass Thermal Sleeve
Material AG AGA AAG AGG KPA AGAGA
Length 30mm~3m 30mm~6m 30mm~6m 30mm~6m 30mm~6m 30mm~6m
Layer Structure Aluminum+Glass fiber Alu+Fiber+Alu Alu+Alu+Fiber Alu+Fiber+Fiber PET+Kraft+Alu Multi-layer Comp
Heat Resistance 200ºC~250ºC 200ºC~250ºC 200ºC~250ºC 200ºC~250ºC 100ºC~150ºC 200ºC~250ºC
Diameter φ5.5~φ12mm φ5.5~φ100mm φ10~φ100mm φ10~φ100mm φ20~φ100mm φ10~φ100mm
Product Description

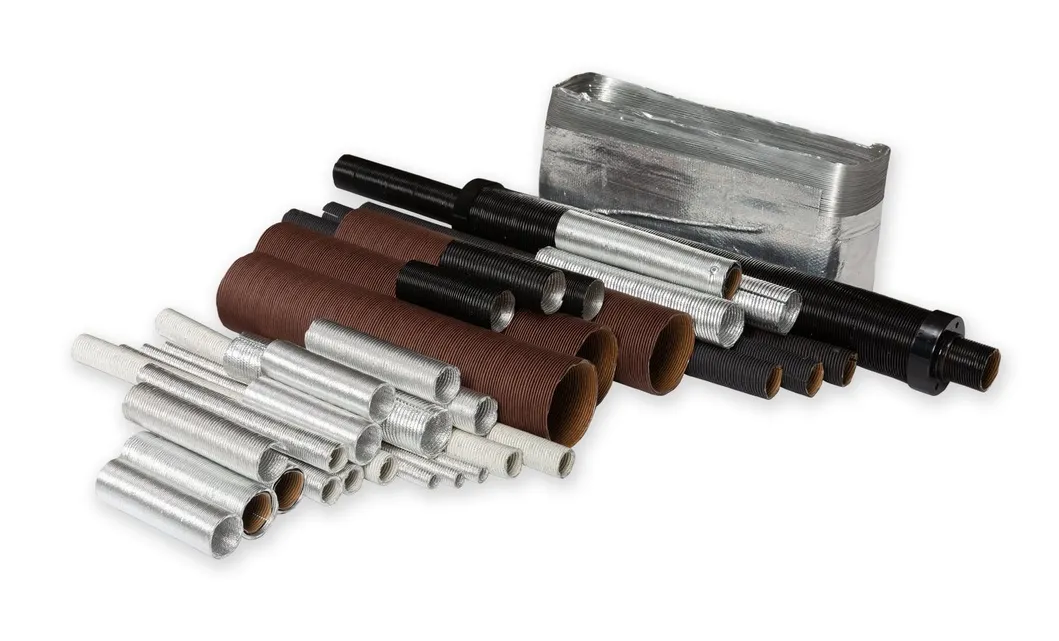

Aluminum Foil Glass Fibre Heat Shield Tube

Aluminum Foil Glass Fibre Heat Shield Tube is a reflective corrugated tube designed to provide thermal protection for components in radiant heat environments. Its multi-ply construction of aluminum laminated fiberglass coupled with an aluminum foil exterior allows for excellent insulation for components requiring stable temperatures.

It is ideally used on fuel and hydraulic lines, control cables, and any other critical components in close proximity to engine and exhaust systems.

Detailed Photos

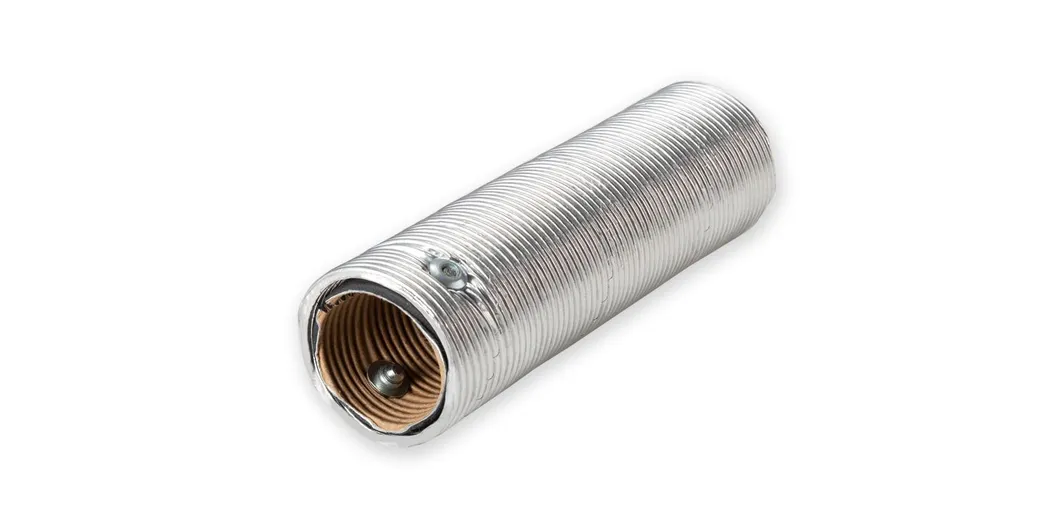

Detail 1

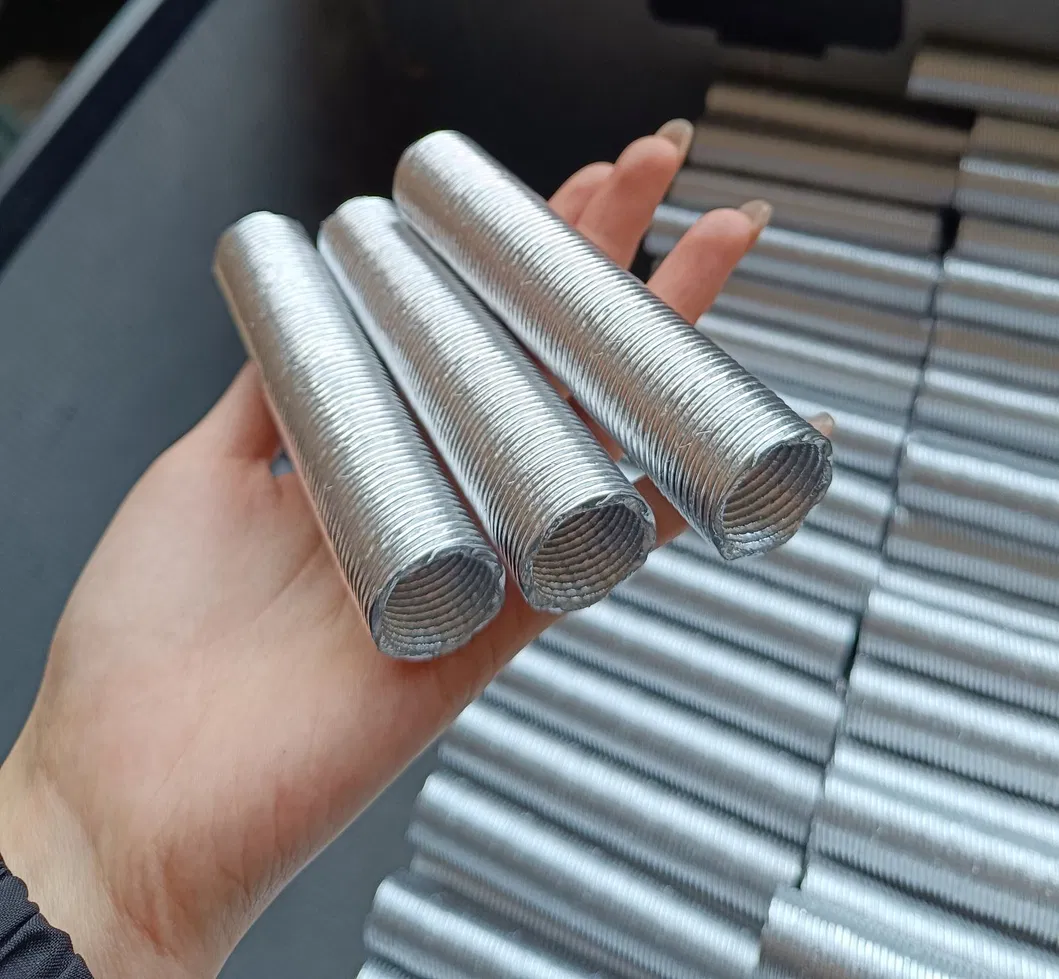

Detail 2

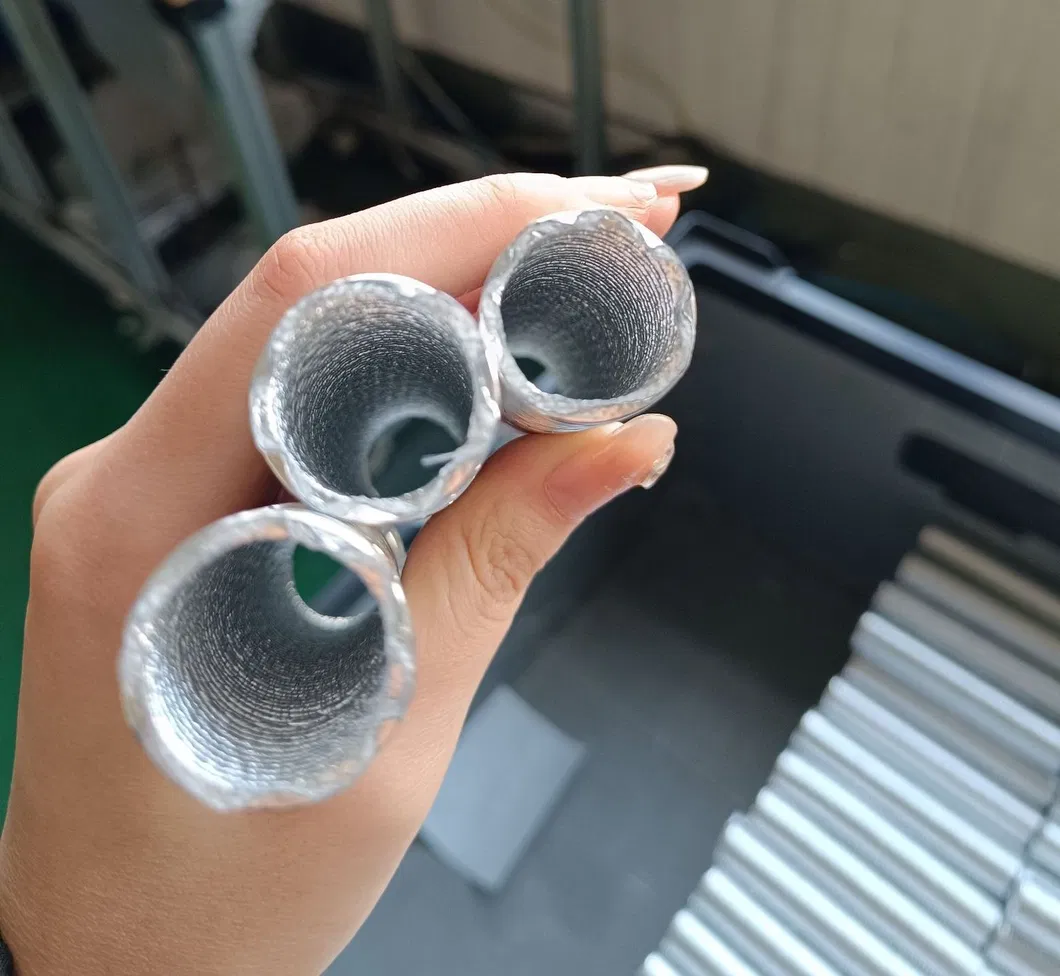

Detail 3

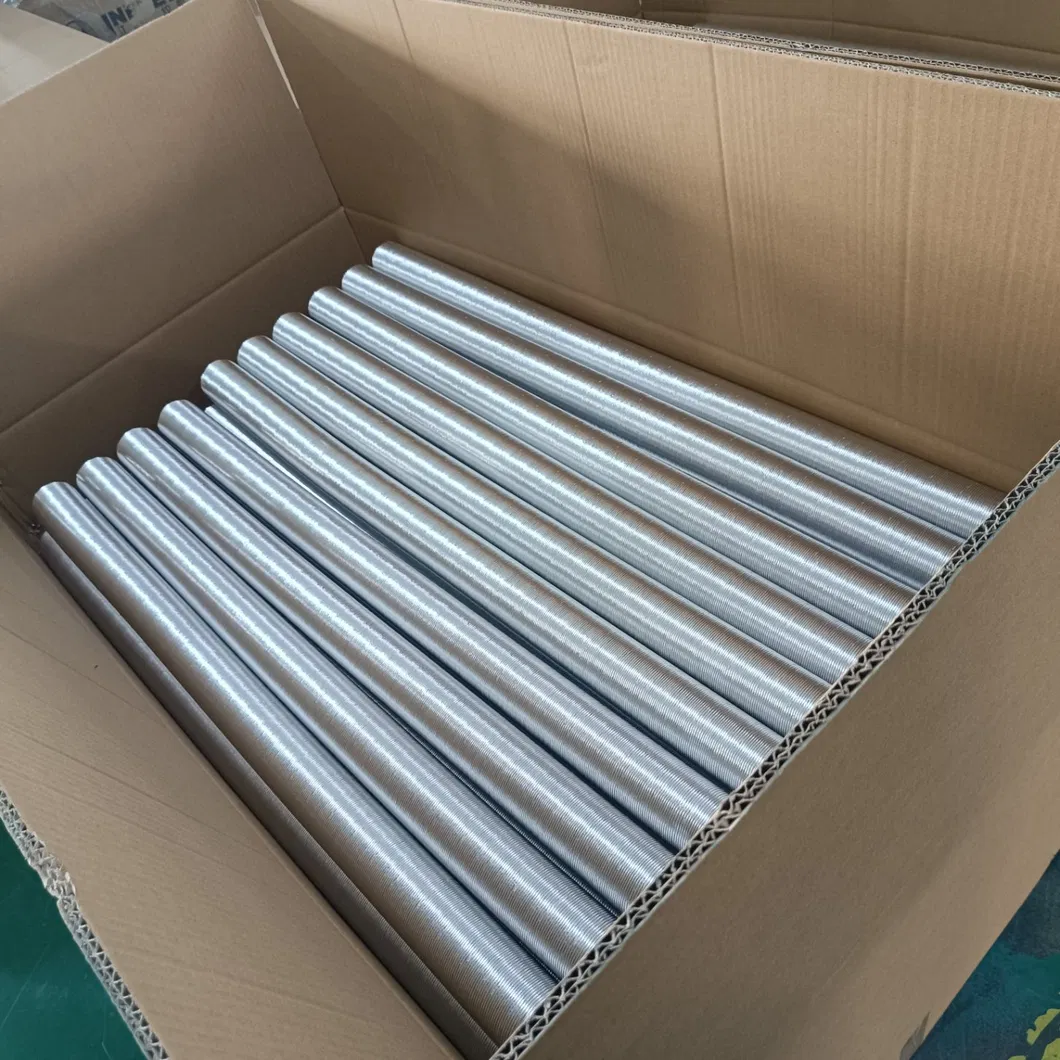

Detail 4

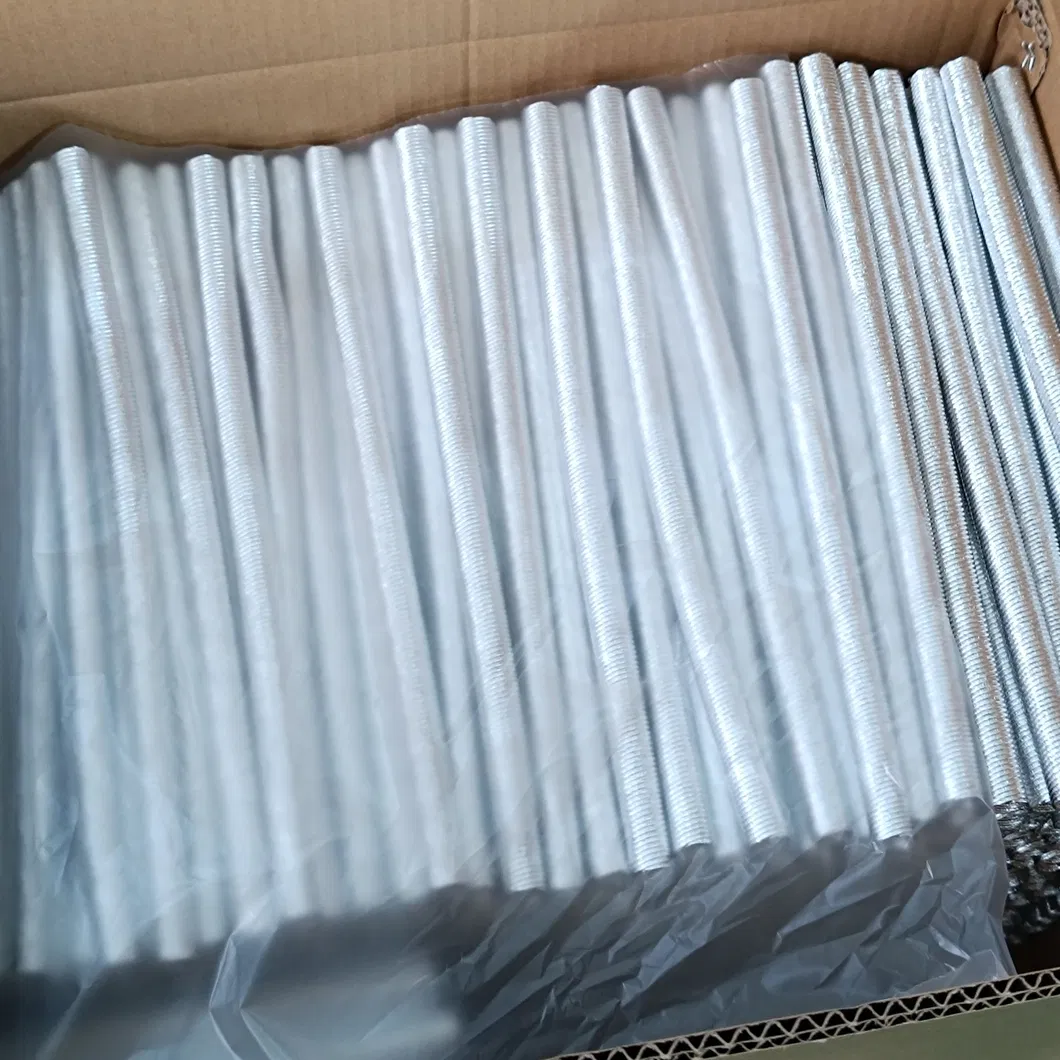

Detail 5

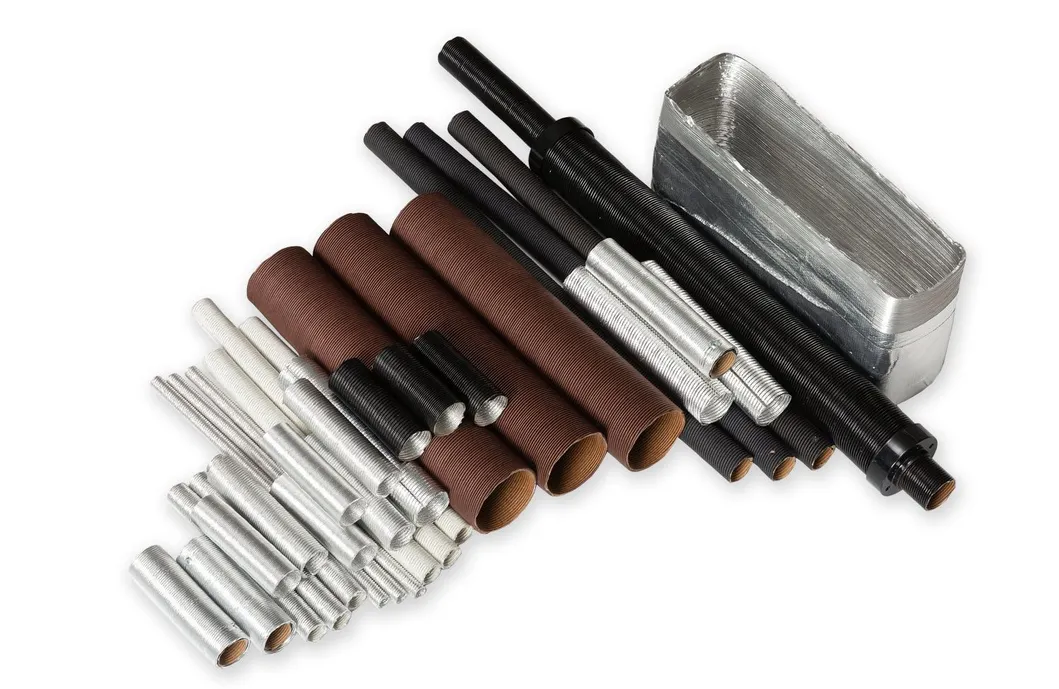

Detail 6
Key Features:
  • Light weight & hand bendable for easy installation.
  • Self-supporting construction keeps bends in place.
  • Resists metal fatigue, weathering, and corrosive chemicals.
  • Excellent flexibility and high pressure resistance.
Application Areas

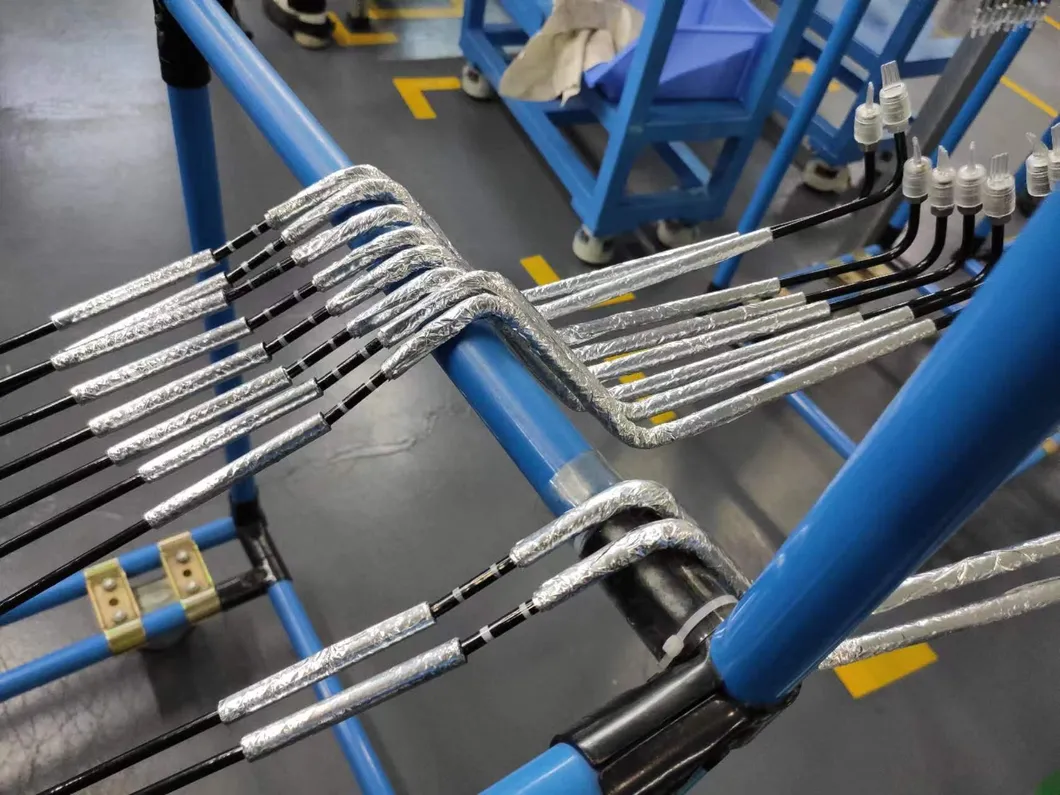

Application 1

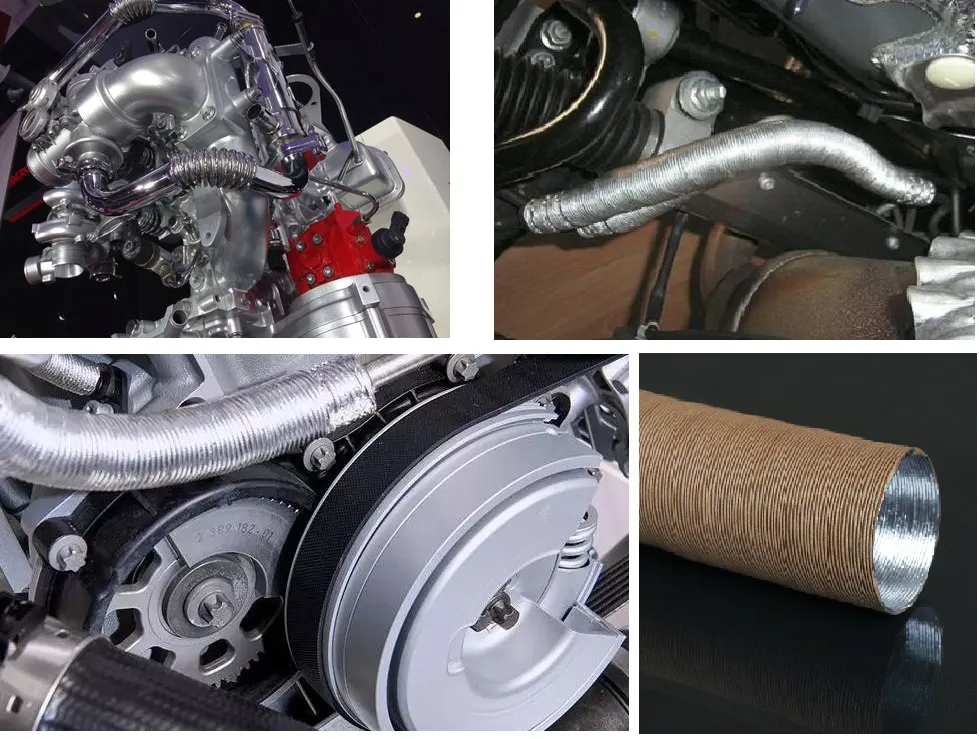

Application 2

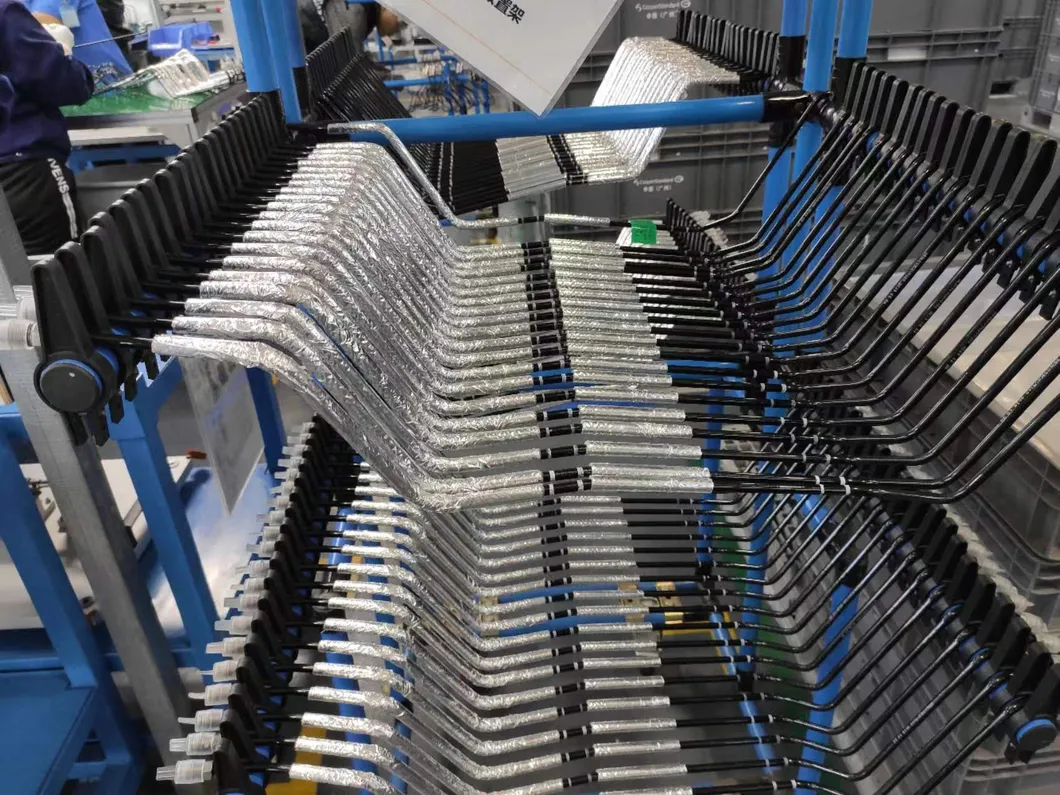

Application 3
Air-Conditioning Specialist ducts for noise reduction and fresh air supply to passenger compartments.
Engine Bay Component cooling and protection for wiring harnesses and hydraulic lines.
Motorsport Brake cooling and driver cooling in high-performance racing applications.
Company Profile

Our company specializes in providing flexible connection and protection solutions for various industries including construction, automotive, high-speed rail, and steel metallurgy. Established since 1995, we maintain a 20,000-square-meter facility dedicated to high-quality manufacturing.

With ISO 9001 and IATF 16949 certifications, we prioritize customer satisfaction and product excellence, exporting to Europe, Southeast Asia, Australia, and other global regions.

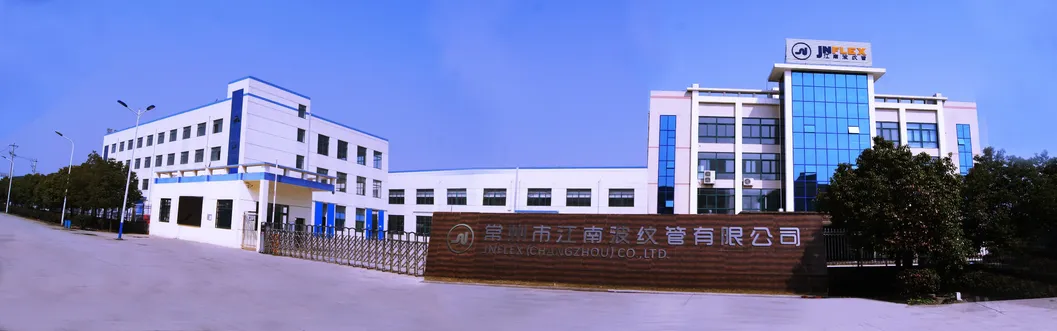

Factory

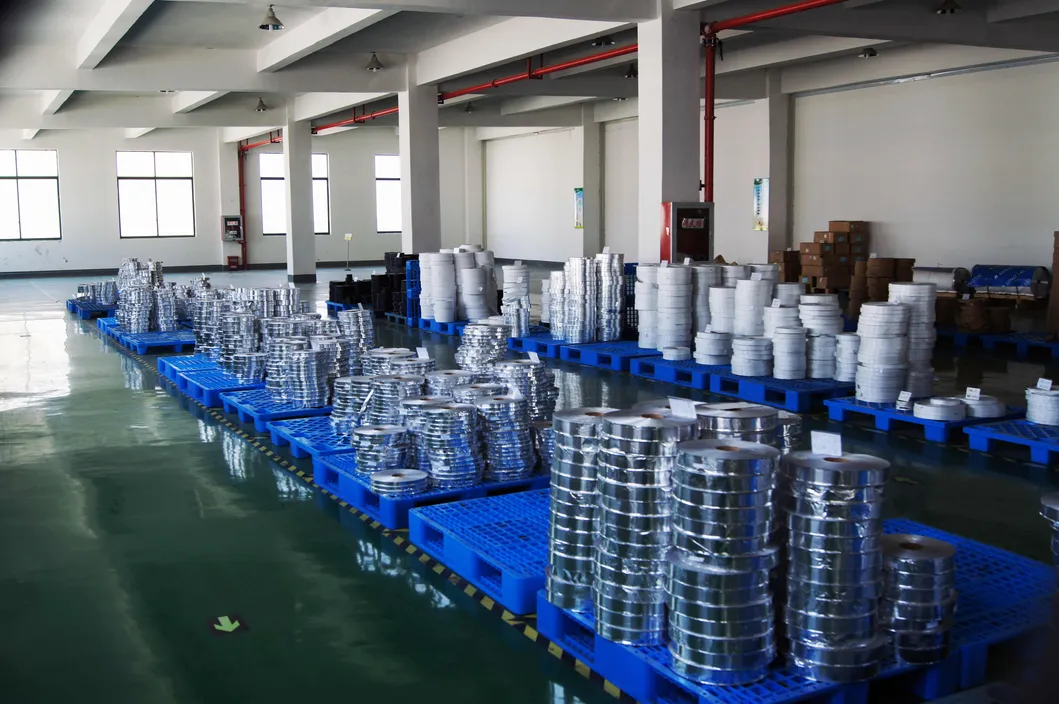

Workshop
Packing & Certifications
Packing 1
Certs
FAQ
Is there an insulator with an inner diameter of 33-35mm?
Yes, we can manufacture insulated pipes with diameters ranging from 35mm to 40mm to meet your specific requirements.
What is the maximum heat resistance of this insulator?
The insulated pipe provides excellent thermal protection, with the insulation effect capable of handling temperatures between 350ºC and 400ºC.
What is the maximum thickness of the glass fiber used?
Our common thickness is 0.14mm, but we can provide a maximum thickness of up to 0.25mm for heavy-duty applications.
Can you provide custom shapes based on drawings?
Absolutely. Our production process is highly flexible, allowing us to manufacture components in almost any shape as per your technical drawings.
What are the typical lead times for orders?
Sample production typically takes 20-30 days. For bulk manufacturing, the normal period is 35-50 days, depending on order size and complexity.
Is this product resistant to engine oil and fluids?
Yes, our testing includes placing the tube in engine oil for 300 hours without any signs of delamination, ensuring long-term durability in engine compartments.
