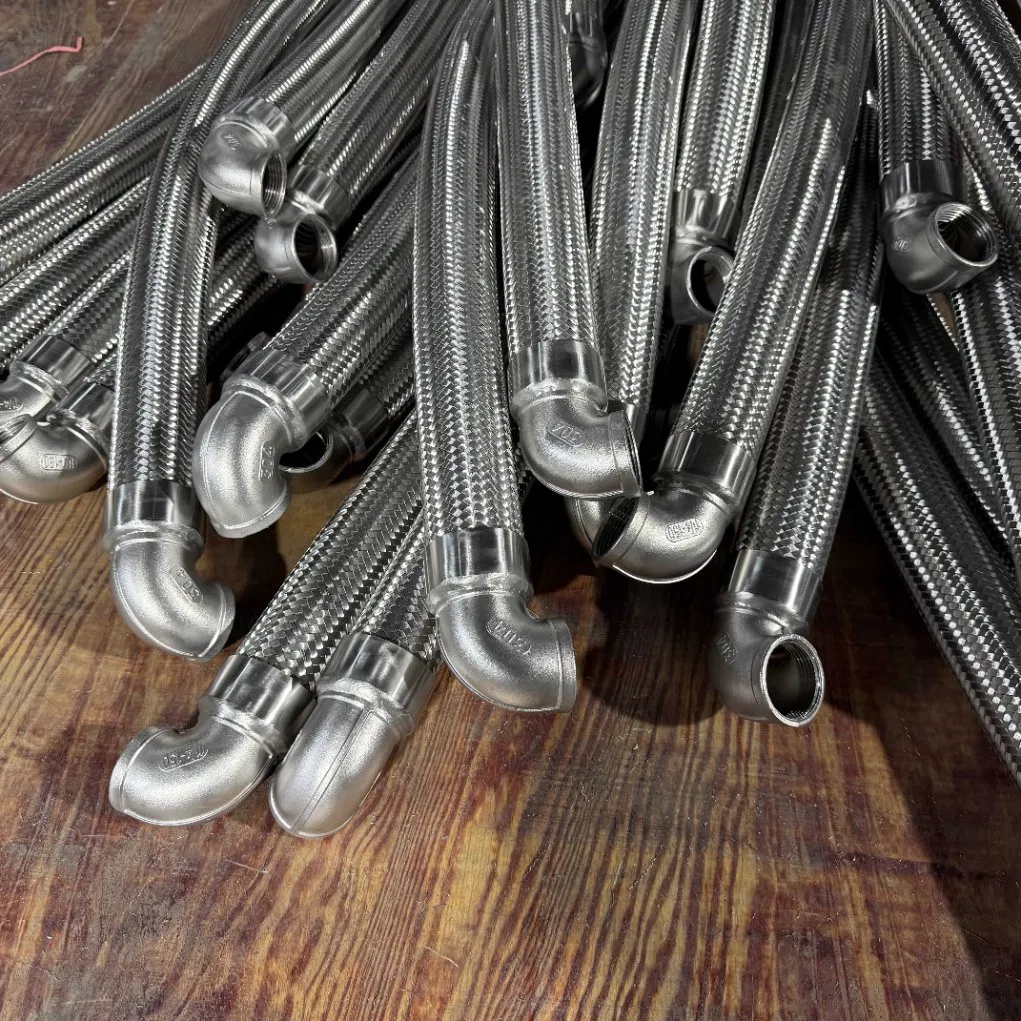

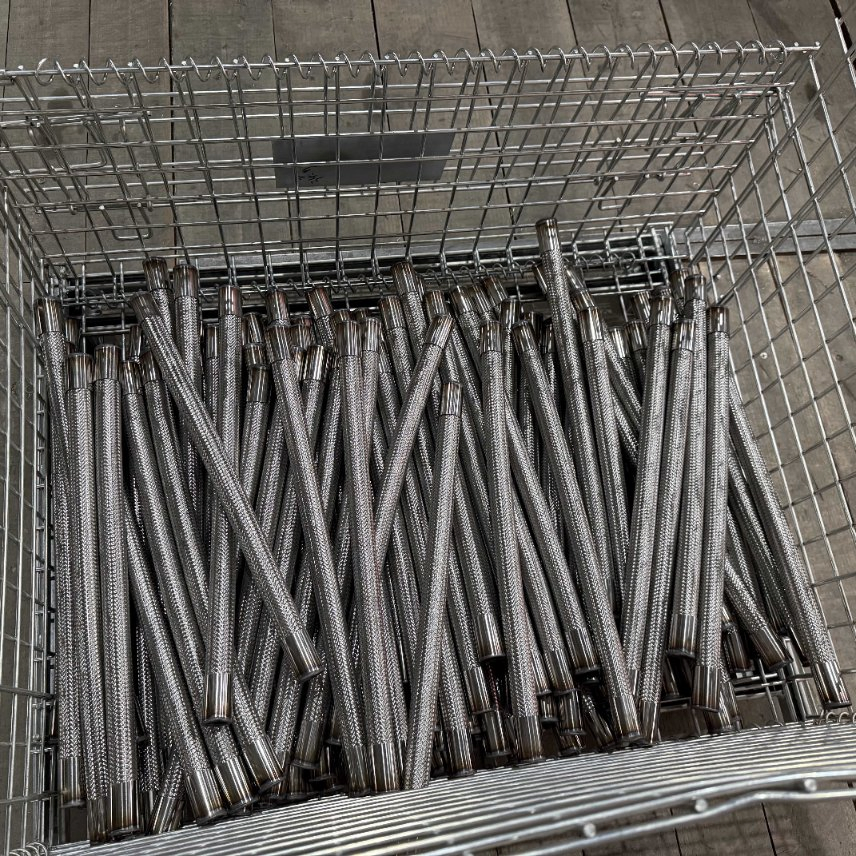

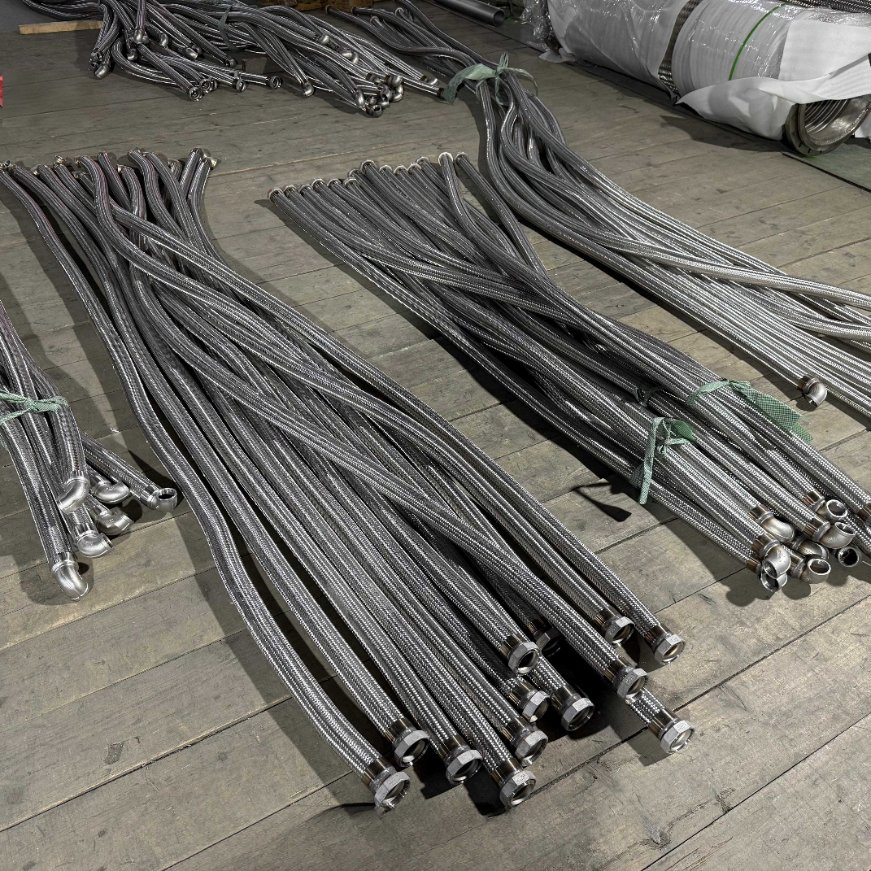

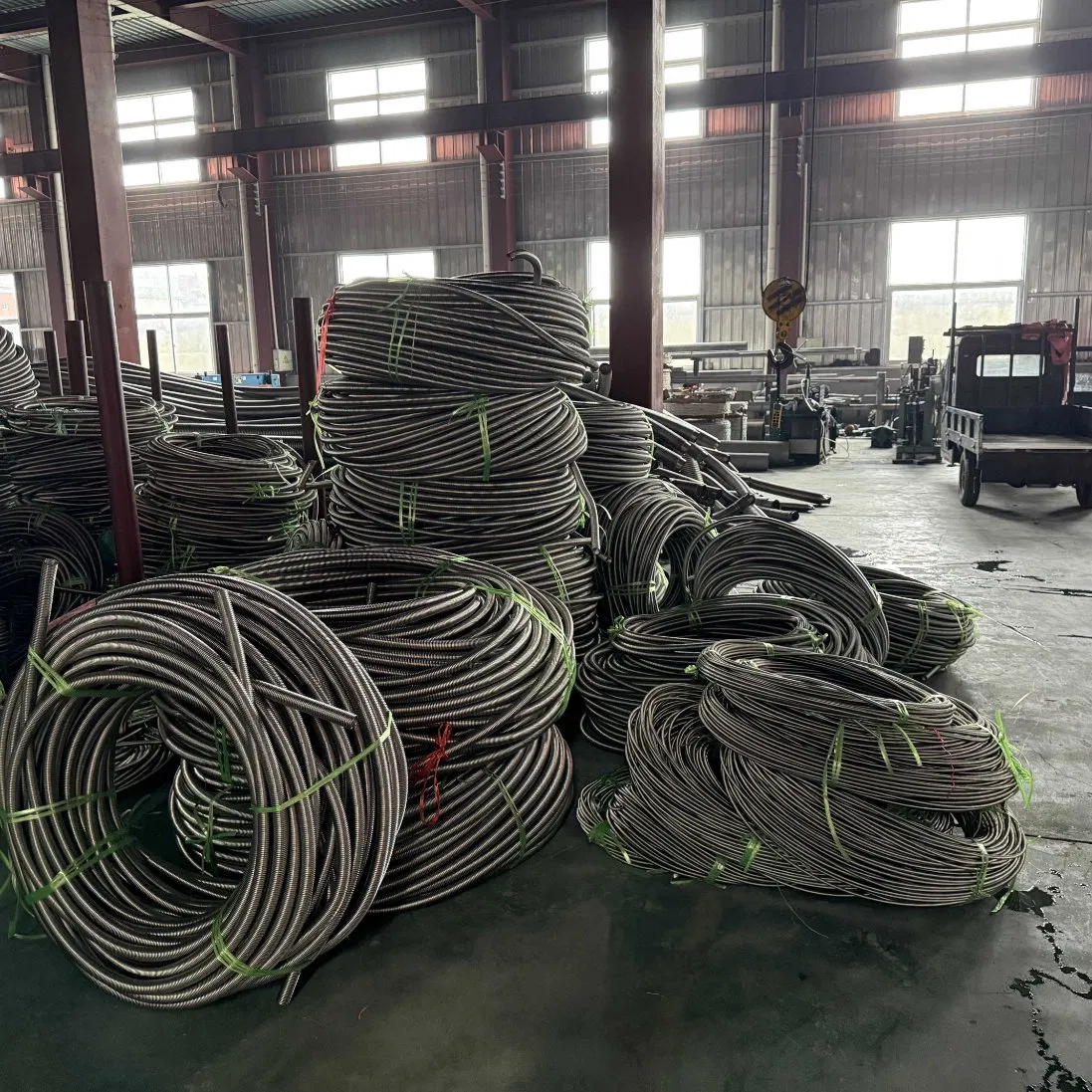

SS304 Stainless Steel Corrugated Flexible Metal Hose with Wire Braided for Industrial Pipeline

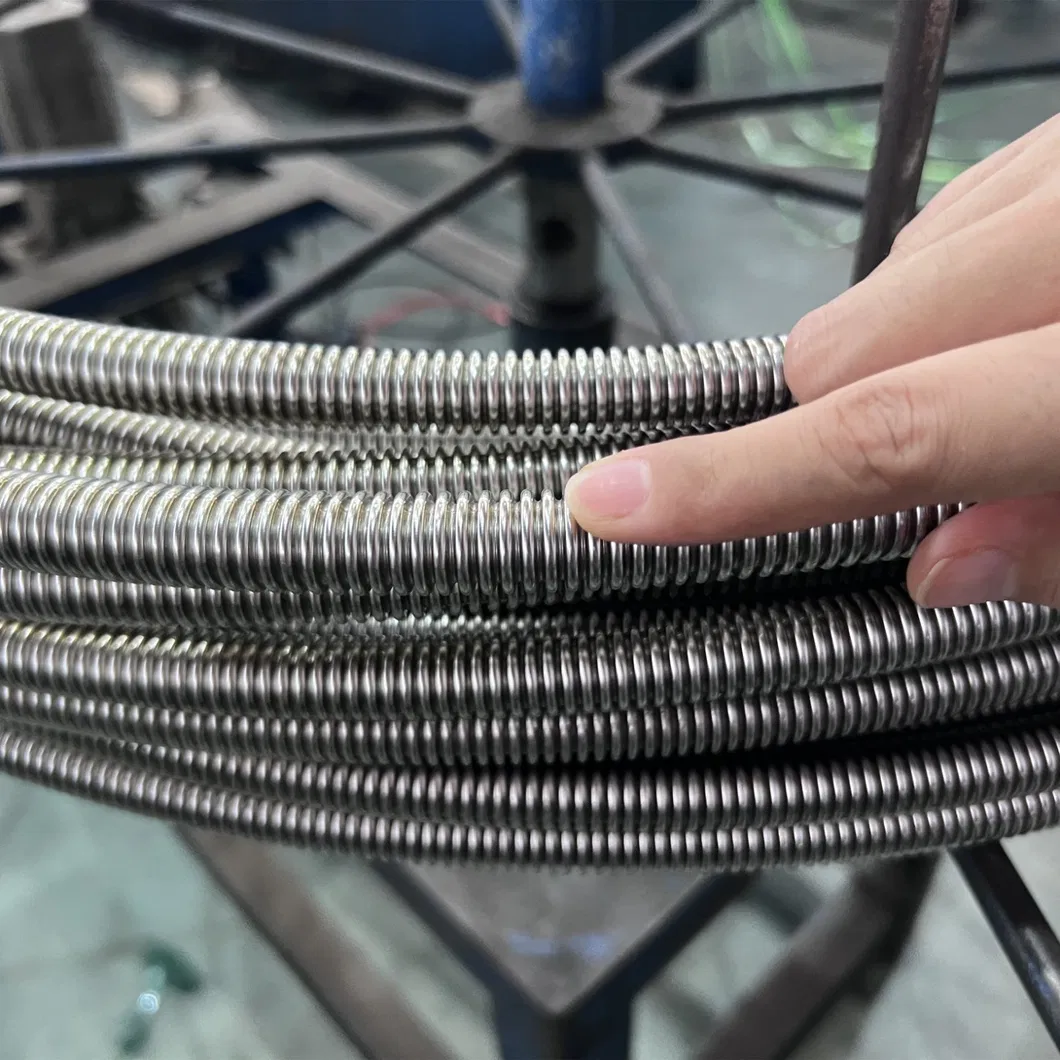

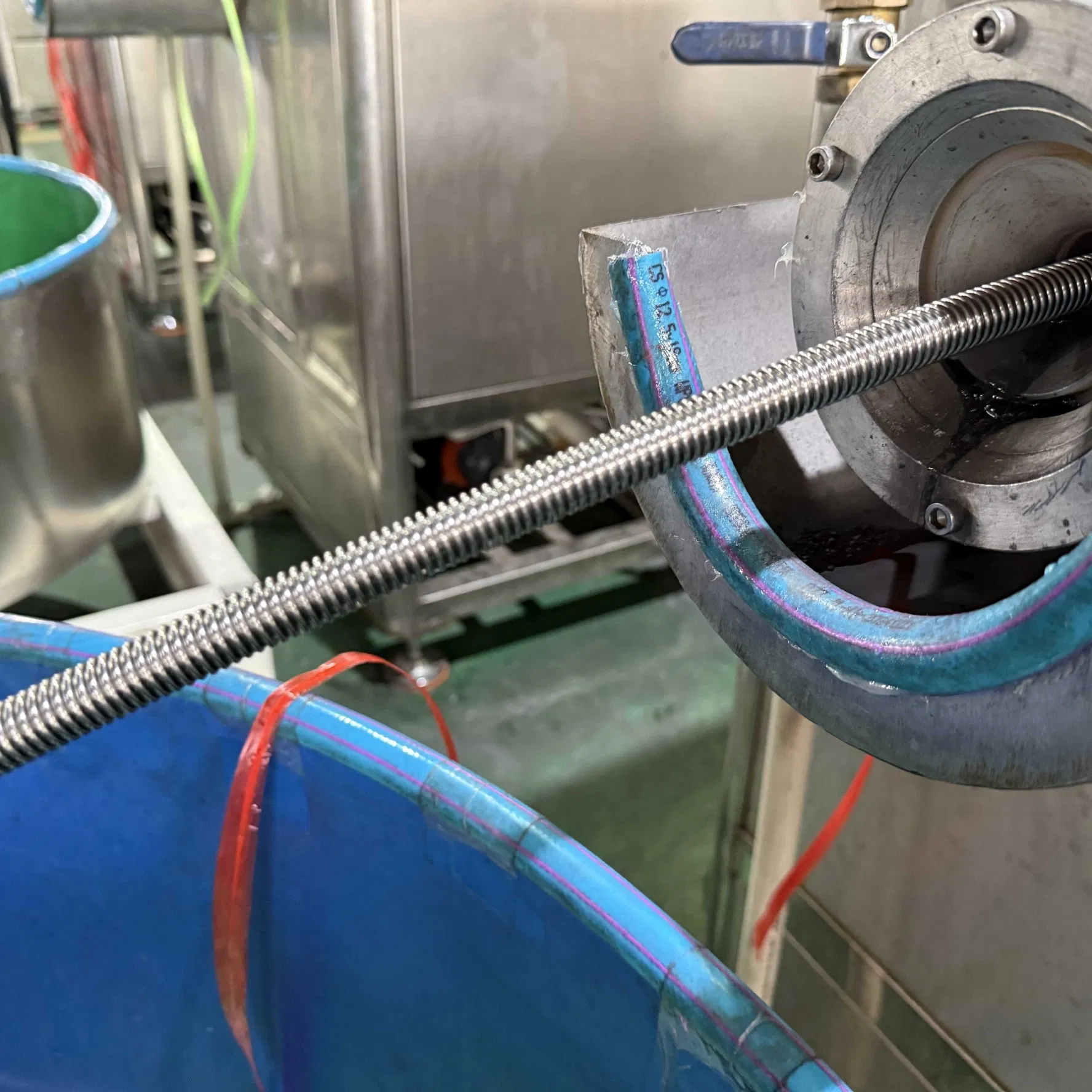

Flexible metal hoses are engineered for versatility in systems handling water, steam, hot oil, and gas. Their corrugated structure provides exceptional resistance to pressure while maintaining high flexibility.

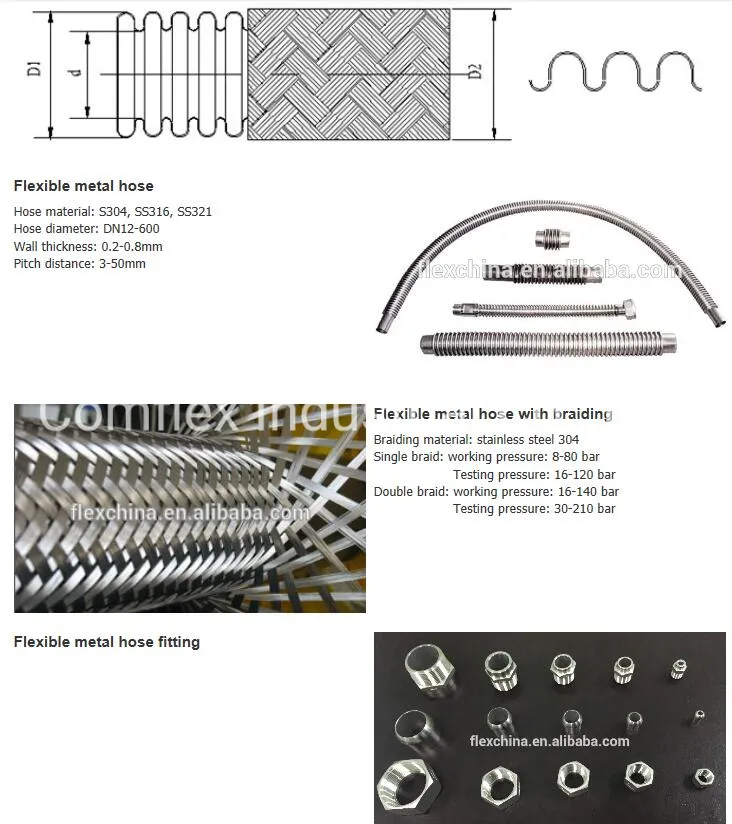

For demanding environments, these hoses can be reinforced with single or double stainless steel wire braiding to enhance pressure tolerance and protect against external conditions.
| DN (mm) | ID (mm) | OD (mm) | Pitch (mm) | Wall (mm) | Weight (KG/M) |
|---|---|---|---|---|---|
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |

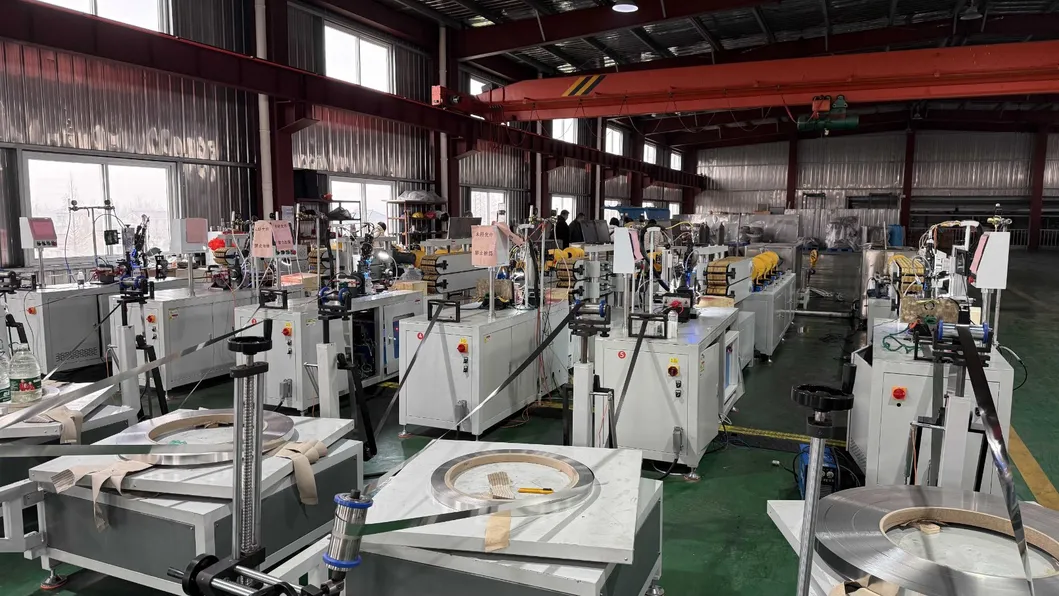

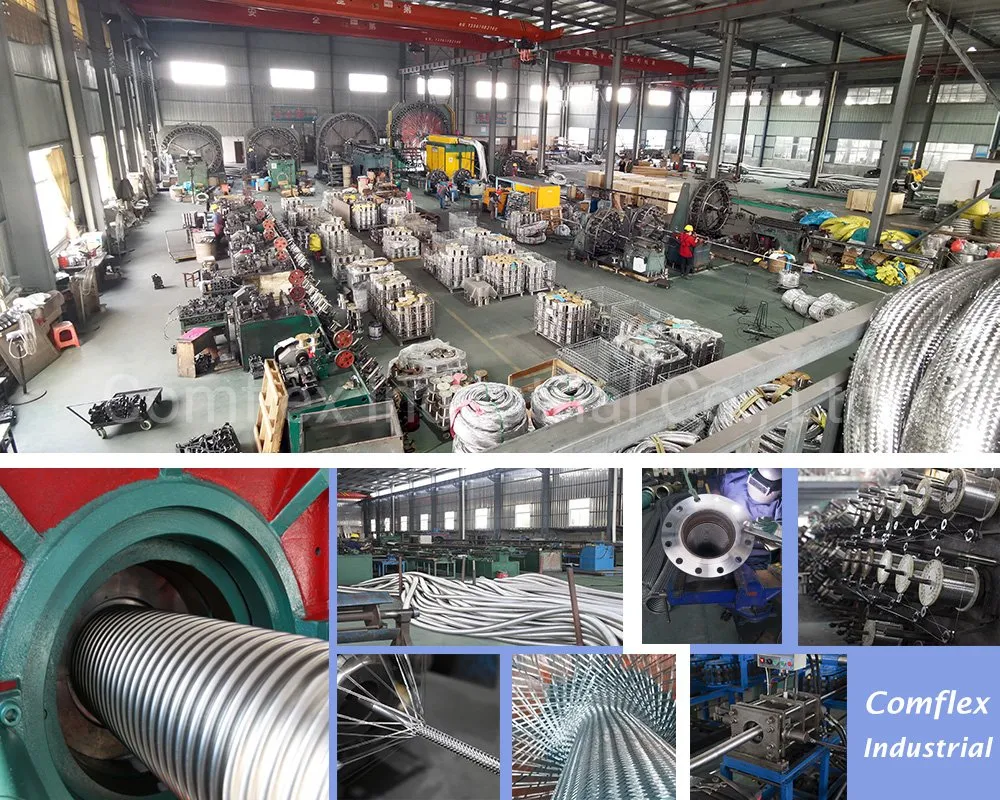

With over 25 years of experience, our manufacturing processes cover a wide range of flexible metal solutions including corrugated hoses, square lock, and interlock conduits. These products are vital for gas transport, water systems, and wire protection circuits.

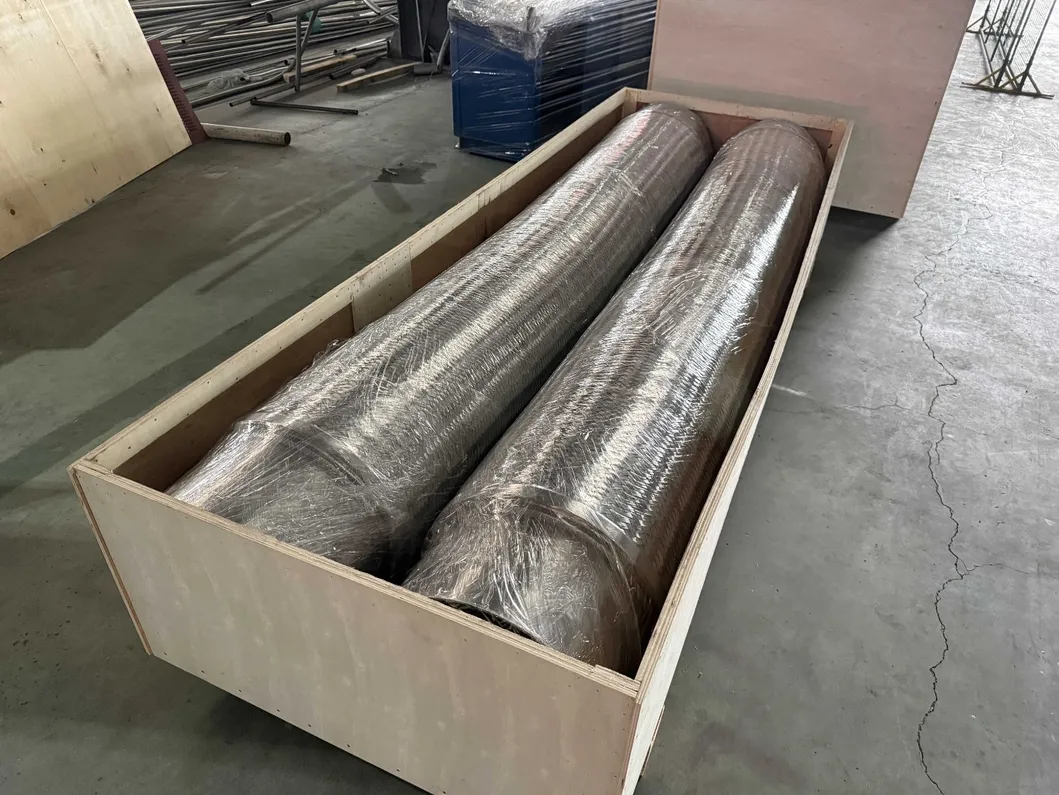

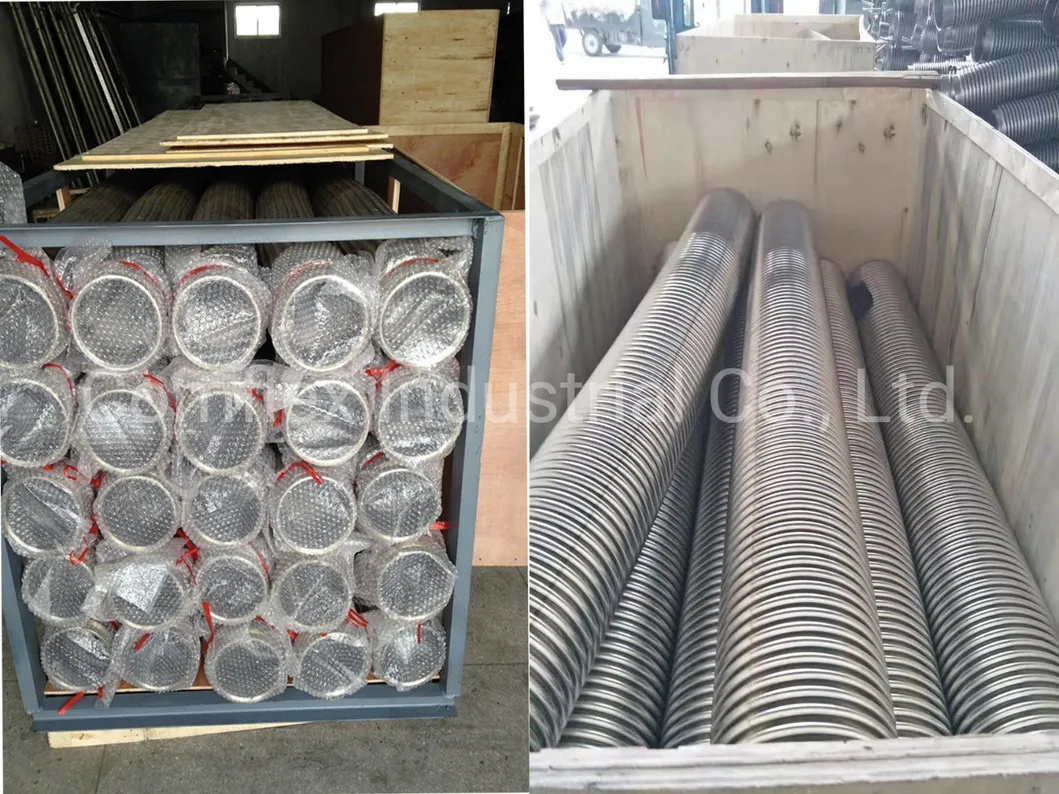

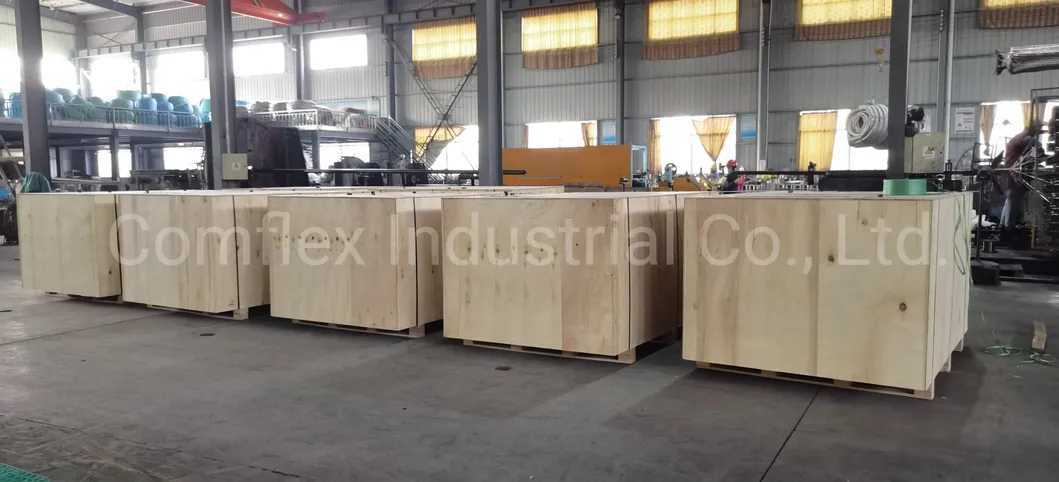

Products are secured using strong steel frames and firm plywood boxes to ensure safe transit via sea or air. We support multiple shipping methods including Air Express (FedEx, UPS, DHL), Sea Freight, and Land Transport.
