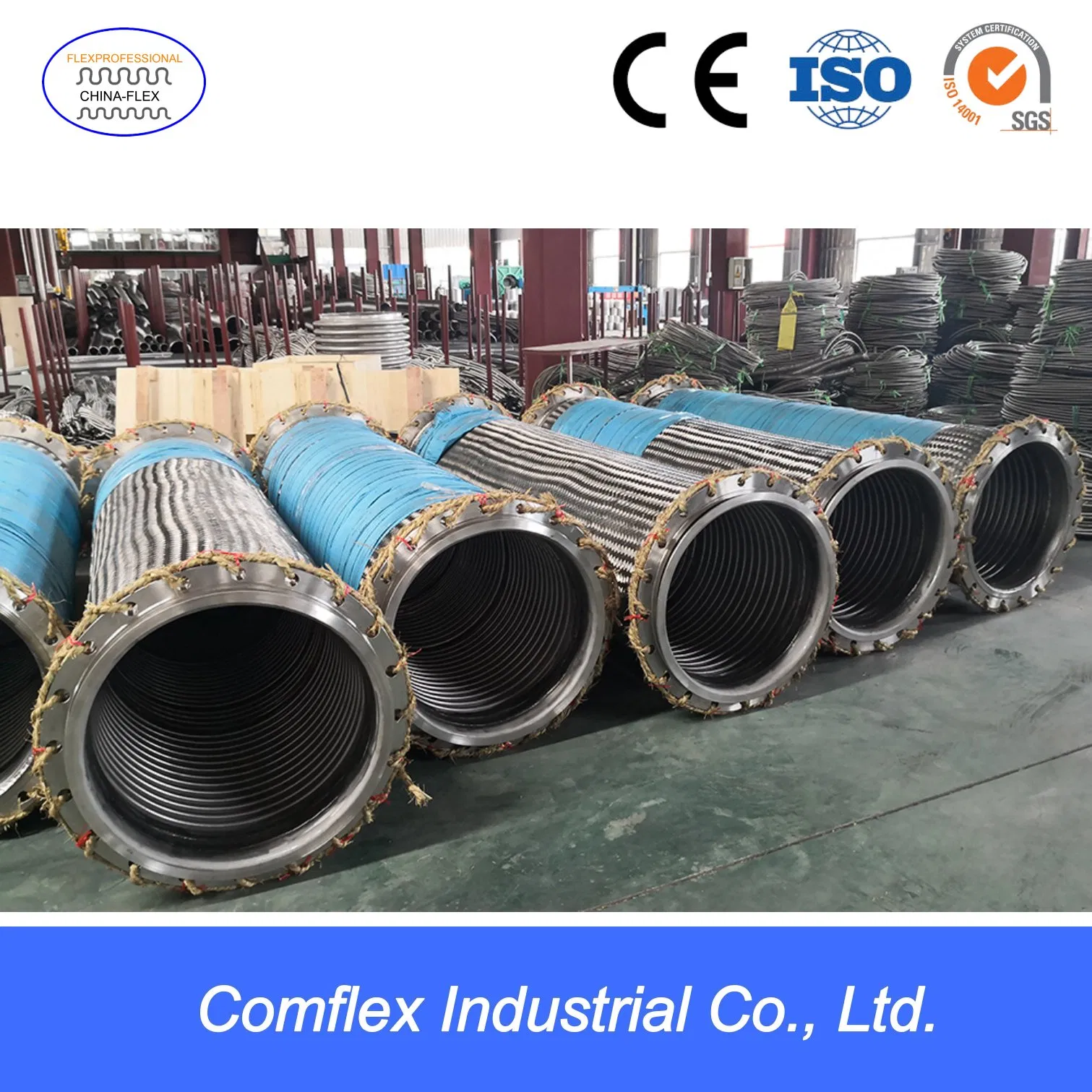

The flexible metal hose can be used widely in systems like water, steam, hot oil, and gas with their resistance to pressure and flexible structure.
They are utilized for conducting liquids, compensating the problems originating from installation, and absorbing vibrations and expansions. Flexible metal hoses may be strengthened by double braiding in order to increase their resistance to pressure and environmental conditions. It is also possible to reinforce them by springs with different wire thicknesses or by strip wounds to lengthen their service life for more severe environmental conditions.

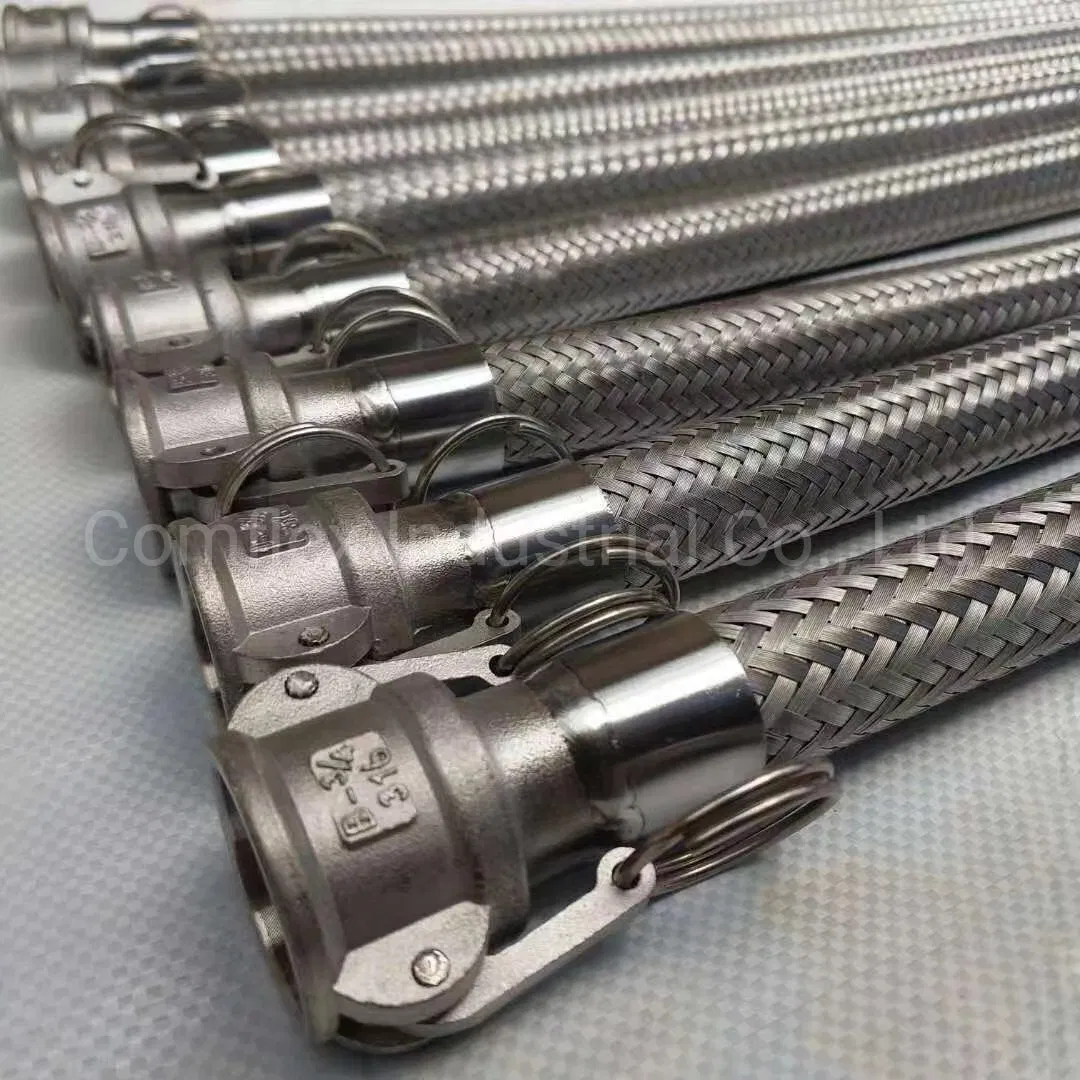

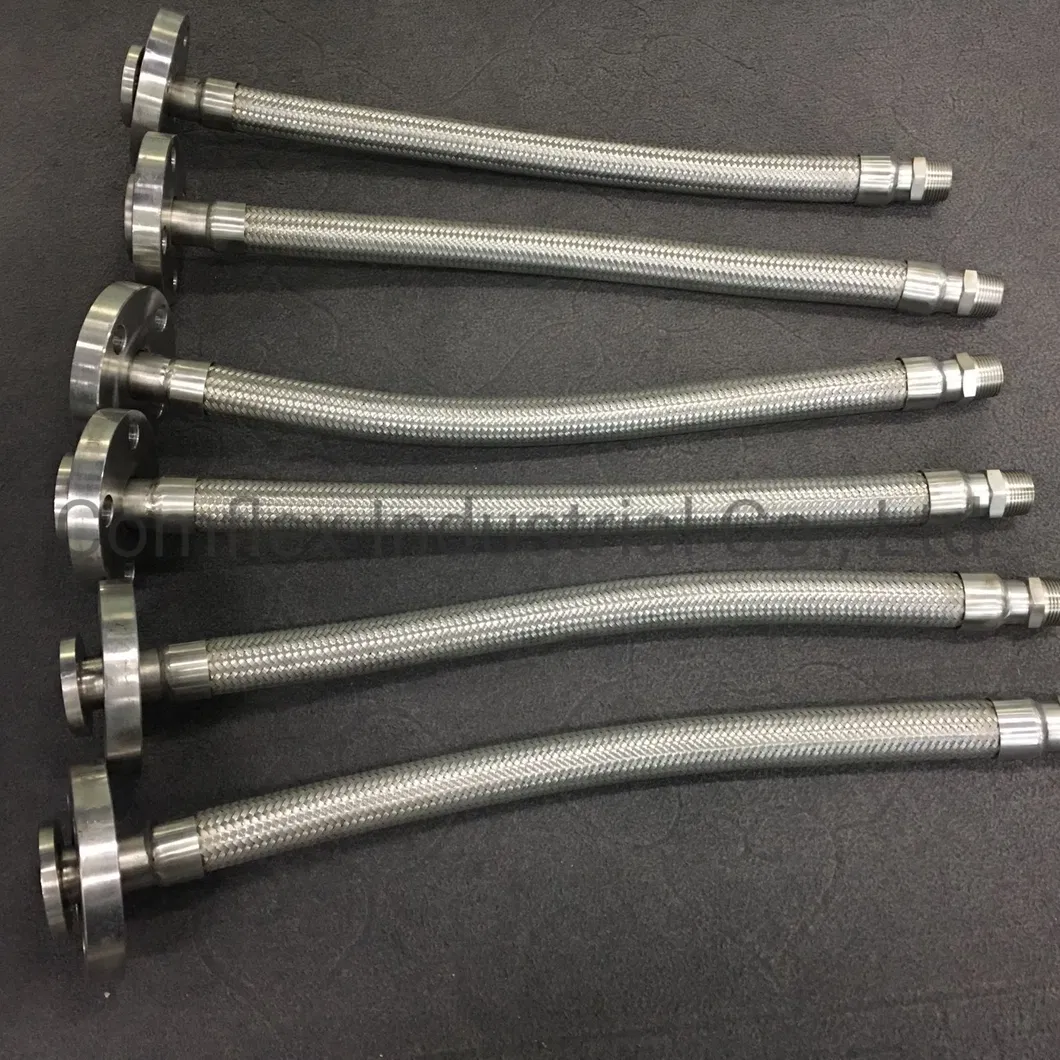

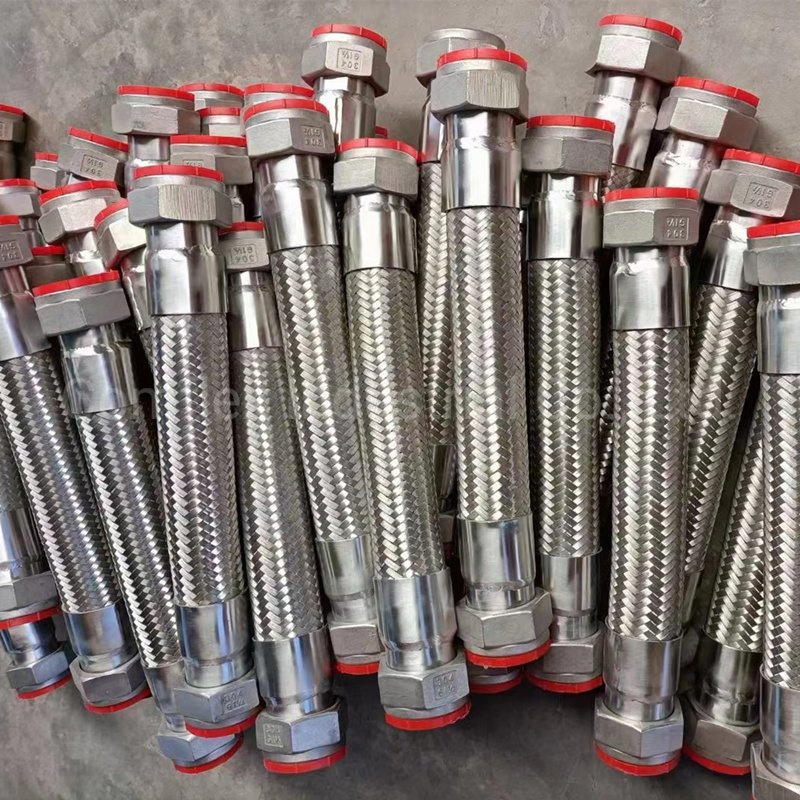

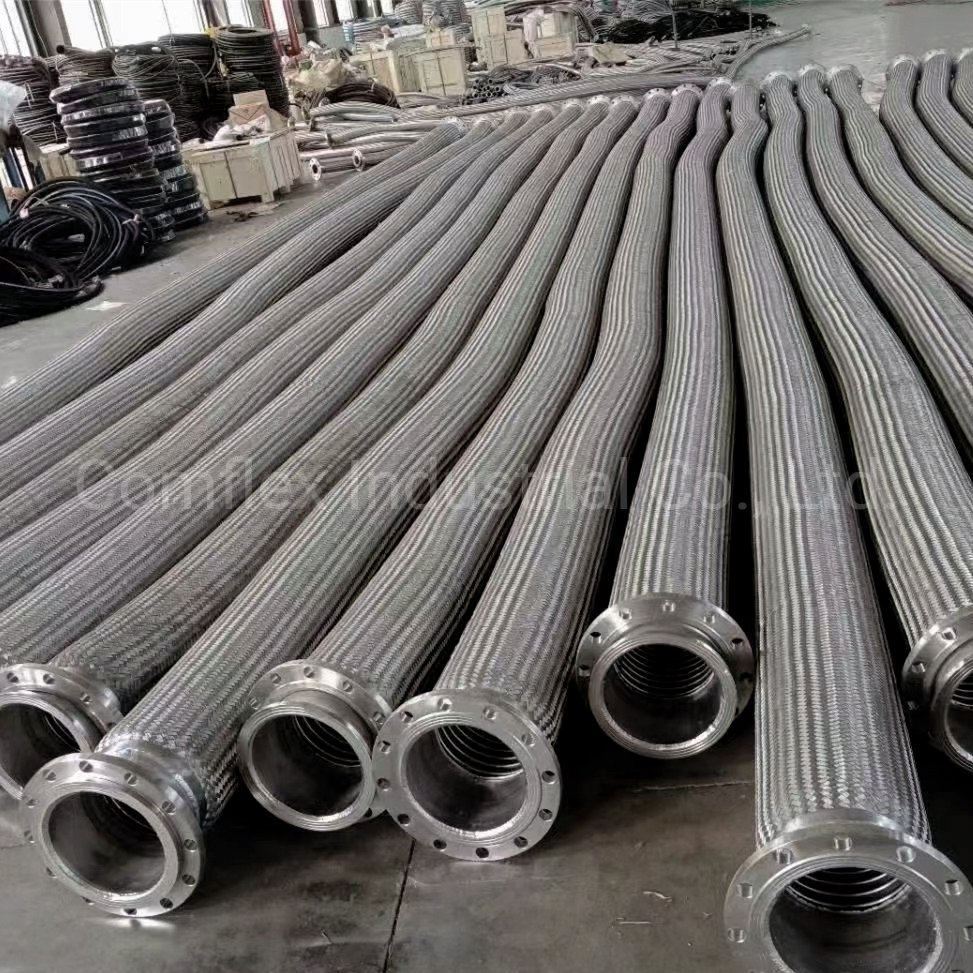

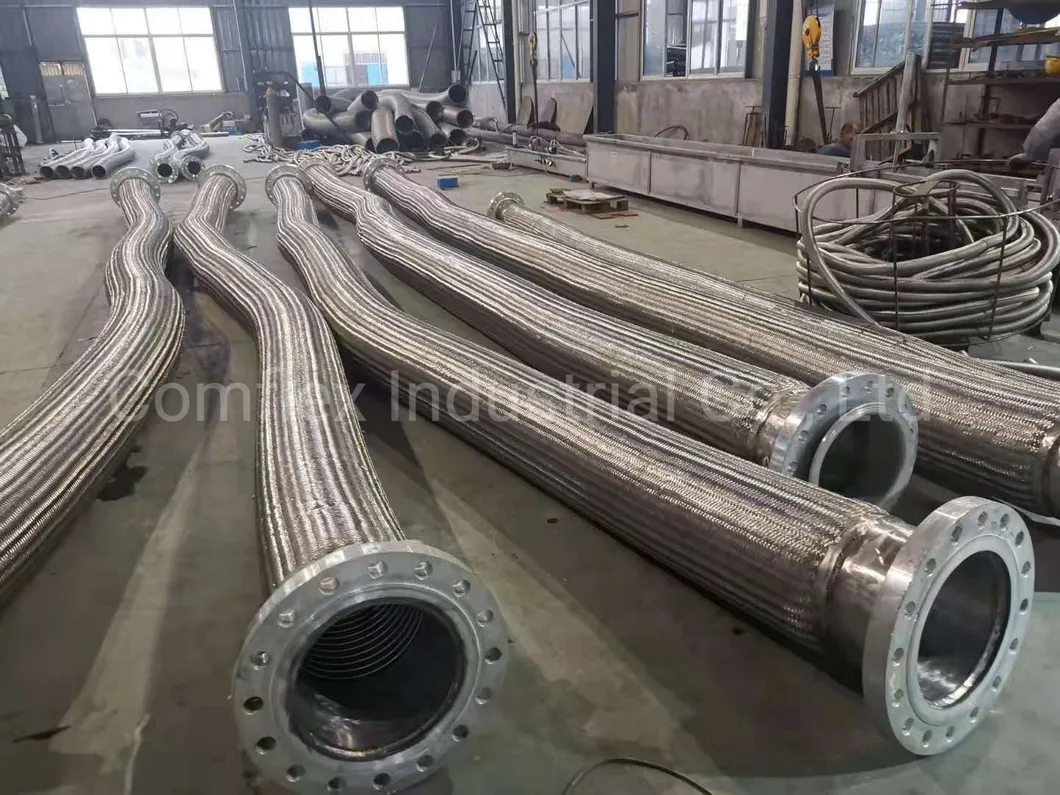

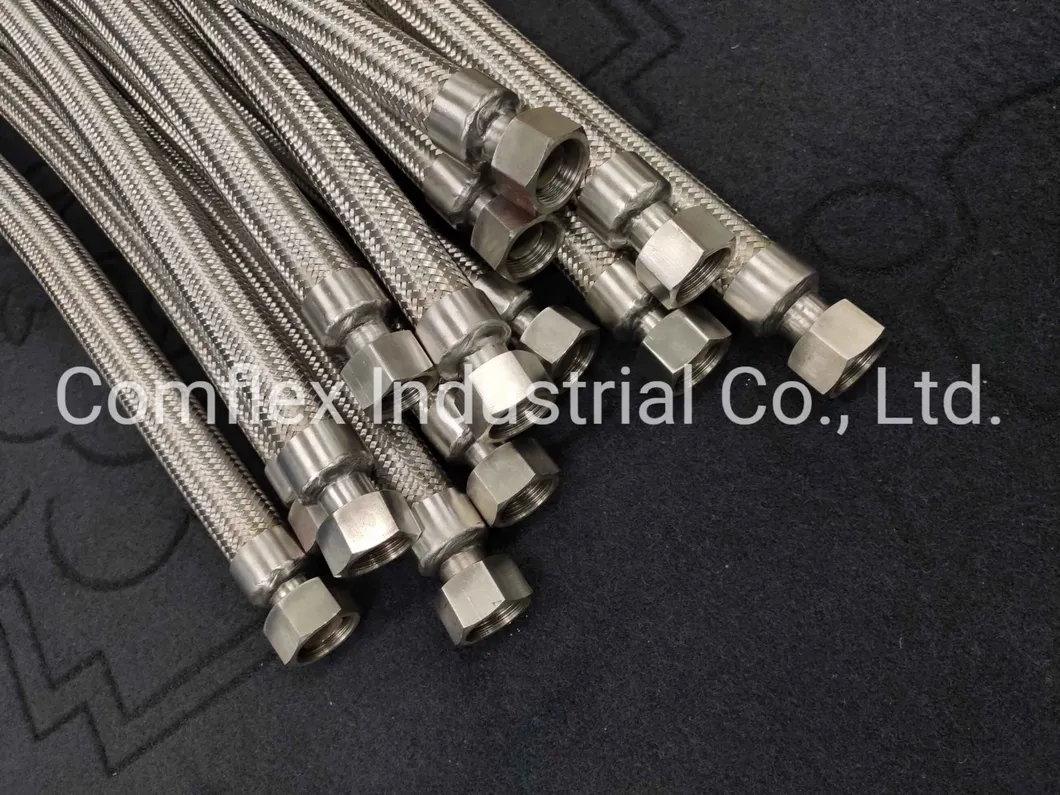

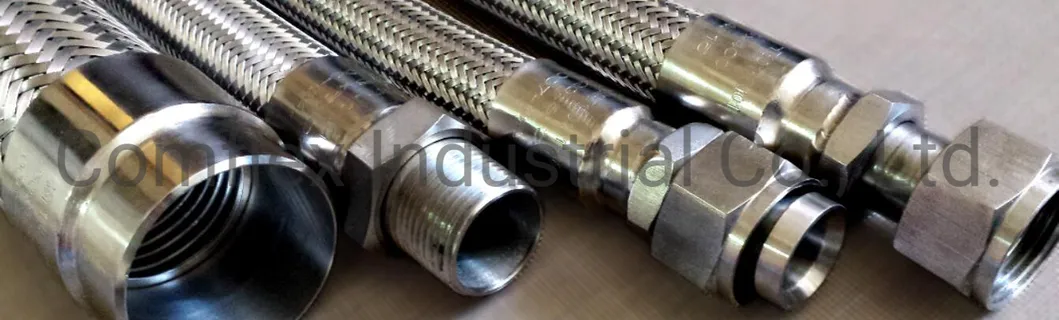

BSPT Taper Male, BSP Cone Female with swivel nut, BSP Flat face Female with Swivel nut, DIN2828 Camlock couplings, NPT Fittings, Flange connections (DIN2500, ANSI B 16.5, JIS B2210-84).
| DN (mm) | ID (mm) | OD (mm) | Pitch Distance (mm) | Wall Thickness (mm) | Theoretical Weight (KG/M) |
|---|---|---|---|---|---|
| 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
| 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
| 300 | 298 | 355 | 33.5 | 1 | 17.5 |
| 400 | 397.6 | 460 | 40 | 1.2 | 25 |

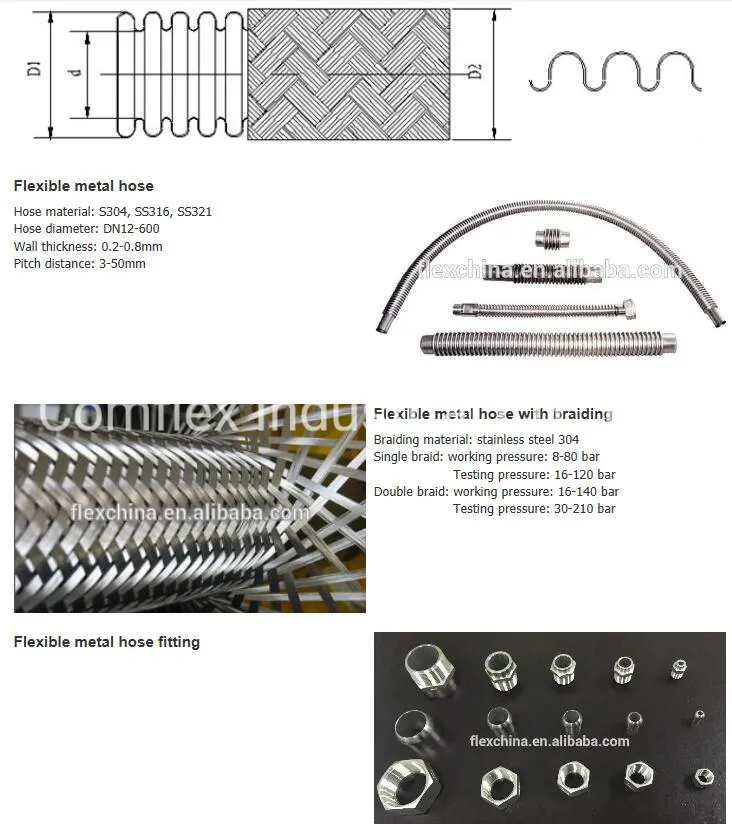

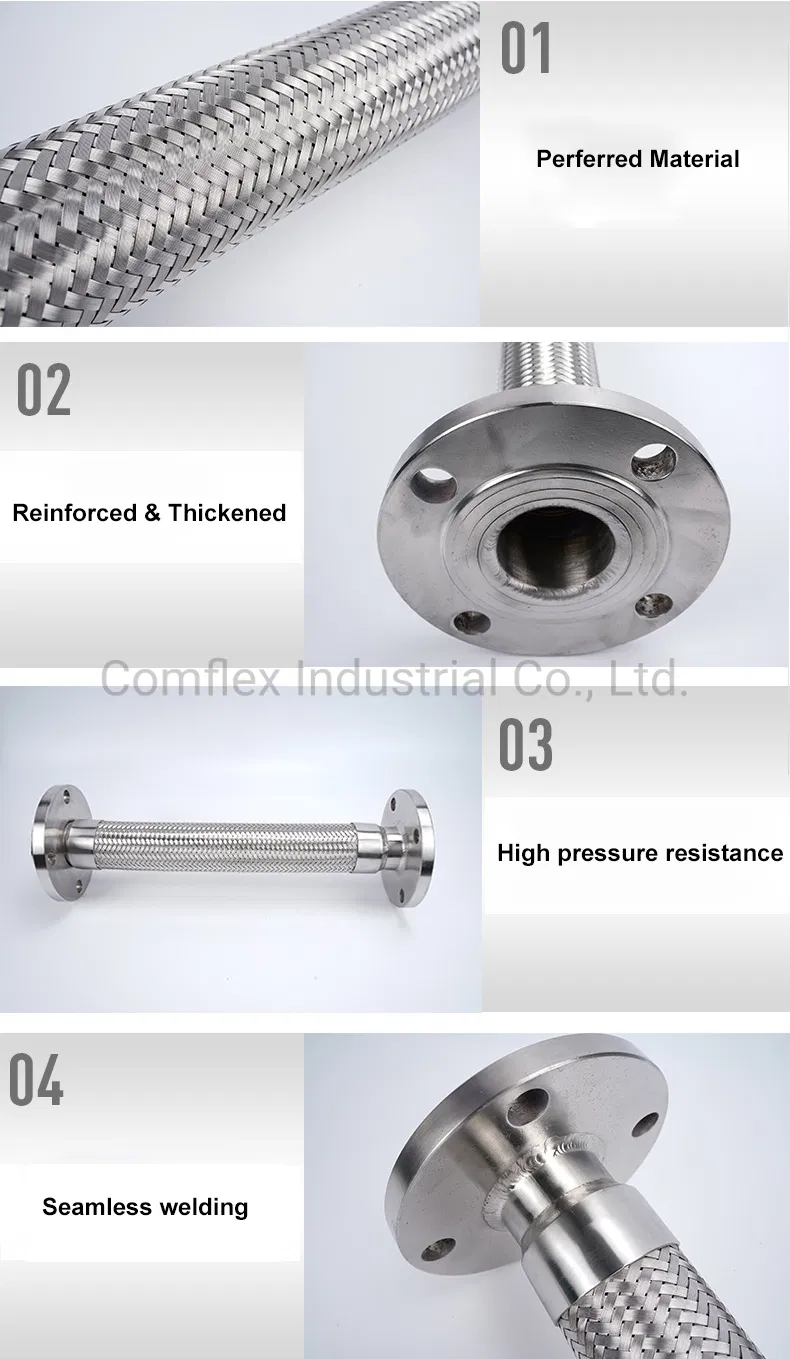

Construction of Flexible Metal Hose:

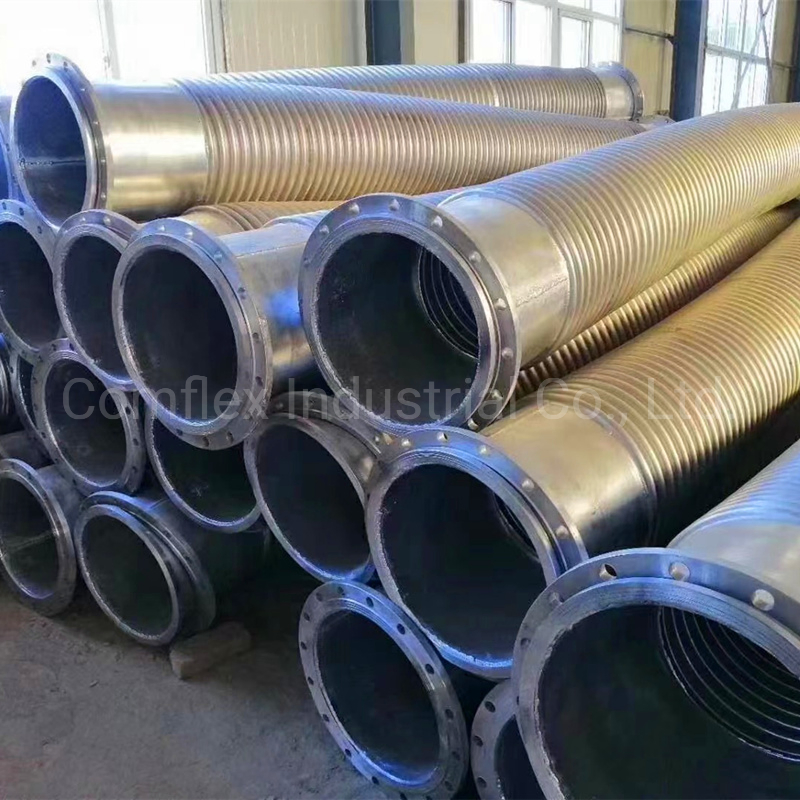

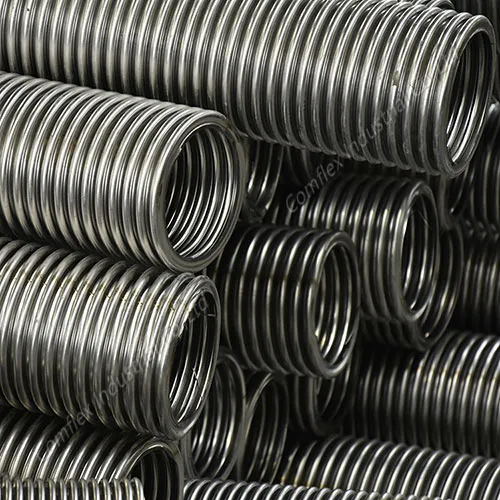

Inner Core: Corrugated Stainless Steel (304, 321, 316L). Parallel corrugations; helical options available.
Outer Core: Braided Stainless Steel Layers (304). Available with no layers, single, or double braided.
Benefits: Full vacuum tolerance, temperature ratings from Cryogenic to 1500° F, meets ISO 10380 standards.

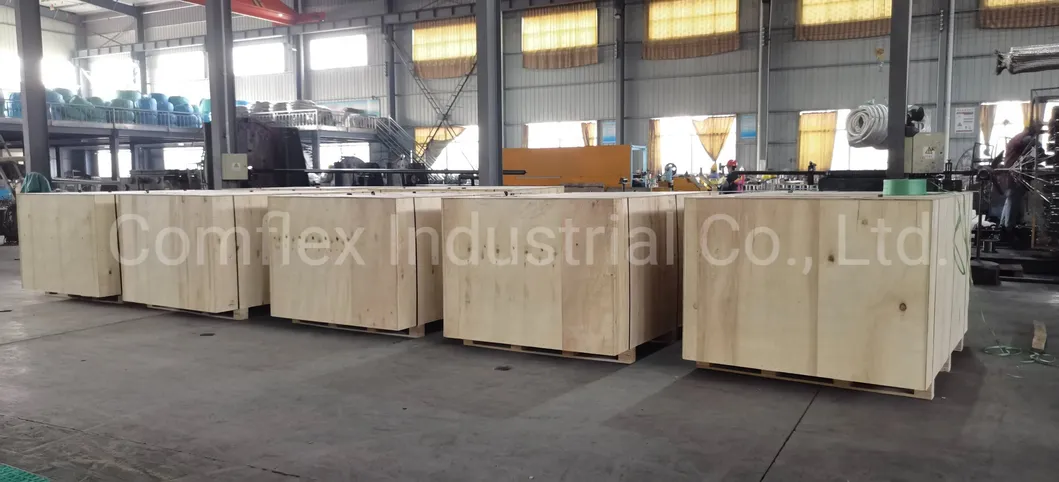

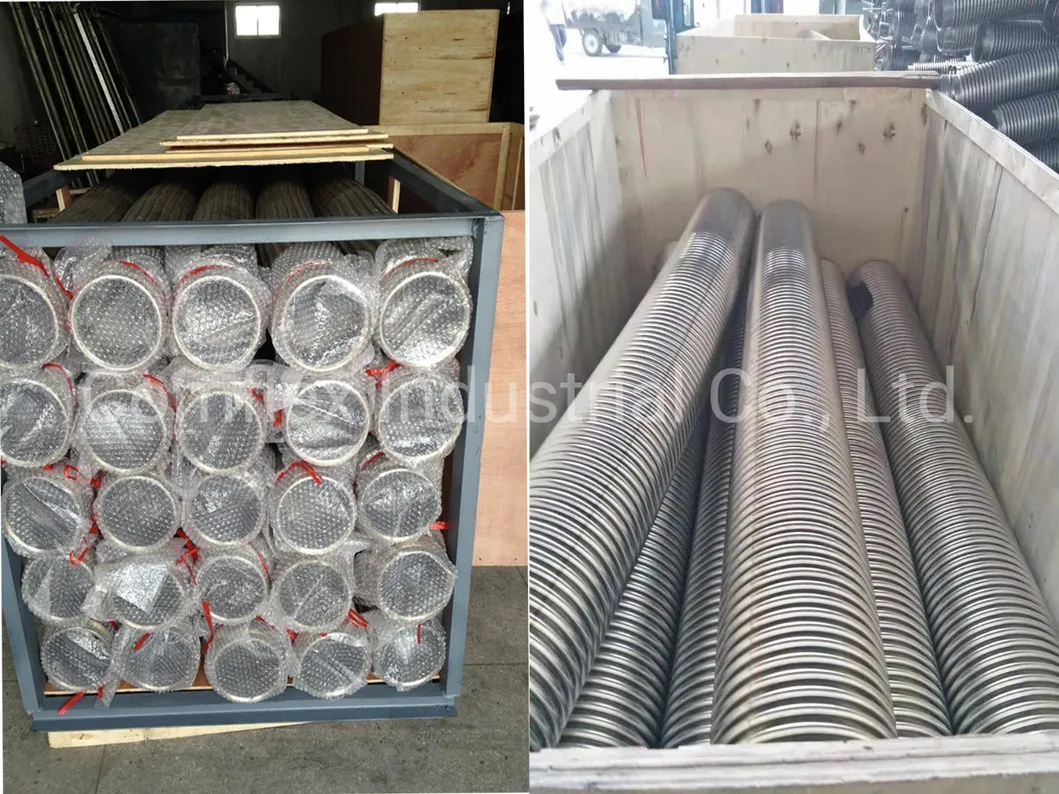

Packaging: Strong steel frame and firm plywood box for sea or air transportation.
