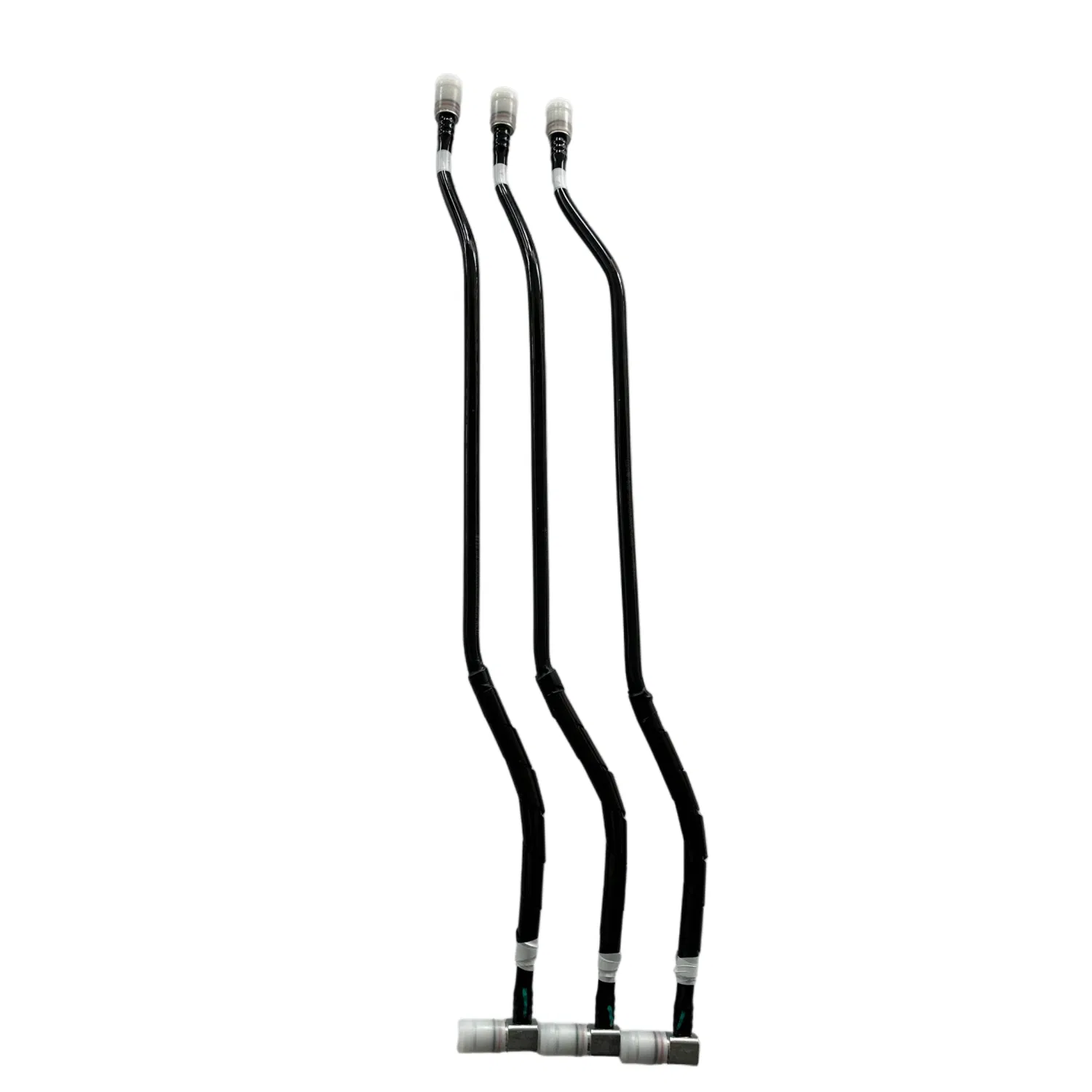

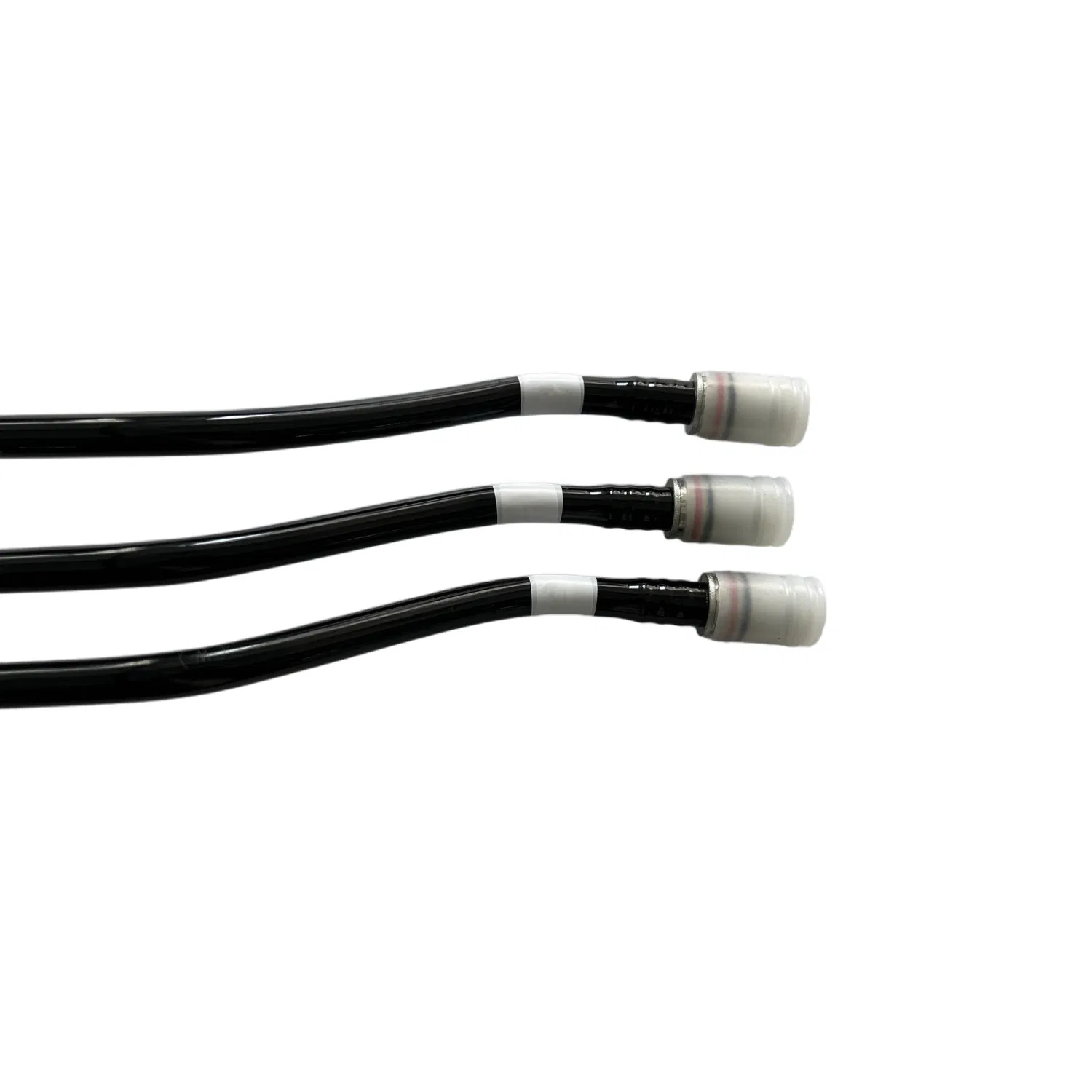

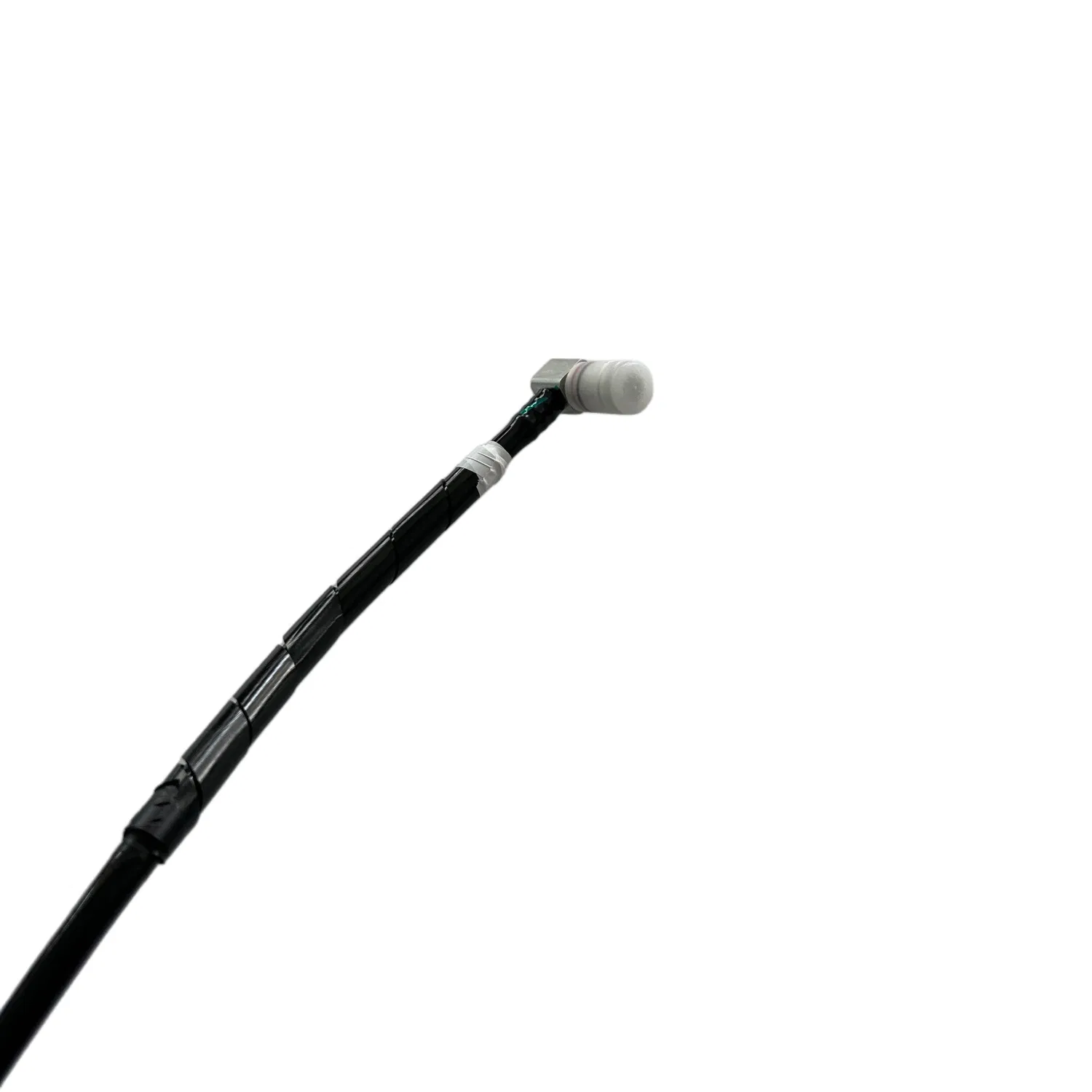

FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
1 / 5
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications
FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications

FDA-Approved Heat Resistant Nylon Pipe for Automotive Applications

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
nylon pipe/ line /tube
Body Material
Aluminium
Component
Fuel Filler Tube
Certification
ISO9001
Material
PA12/PA11
Oil Resistance
Excellent
Chemical Resistance
Excellent
Temperature Resistance
-40℃ to 125℃
Specification
10mmx1mm
HS Code
83079000

Material & Technical Innovation

1. Material Characteristics: Multilayer nylon tubes are engineered from high-performance materials like PA66 and PA12, offering lightweight benefits, high temperature tolerance, chemical corrosion resistance, and superior impact durability.

Nylon 66: High-strength resin suitable for automotive, aviation, and high-speed rail applications requiring extreme durability.

Nylon 12: Features low density and excellent low-temperature toughness, ideal for new energy vehicle fluid systems and submarine cables.

2. Advanced Application: Primarily utilized in complex industrial scenarios such as new energy vehicle thermal management, battery packaging pipelines, and cooling systems.

3. Production Technology: Multi-layer structure design combines different materials (nylon with rubber or metal layers) to optimize the balance between lightweight construction and high-pressure resistance.

Technical Parameters

Parameter Description / Value Parameter Description / Value
Product Name Multilayer Reinforced Nylon Pipe (PA12/PA6/PA66) Working Pressure 0.5Mpa - 20Mpa
Structure 3-Layer: Nylon Inner + Fiber Reinforcement + Nylon Outer Blasting Pressure ≥ 2 times working pressure
Inner Diameter (ID) 4mm / 6mm / 8mm / 10mm (Customizable) Operating Temp -40ºC ~ +120ºC (Instant +150ºC)
Outer Diameter (OD) 8mm / 12mm / 16mm / 20mm Bending Radius ≤ 4x OD (Dynamic) / ≤ 2x OD (Static)
Wall Thickness 1.5mm - 3.5mm Medium Resistance Oil, Mineral Oil, Ethanol, Weak Acid/Alkali

Product Gallery

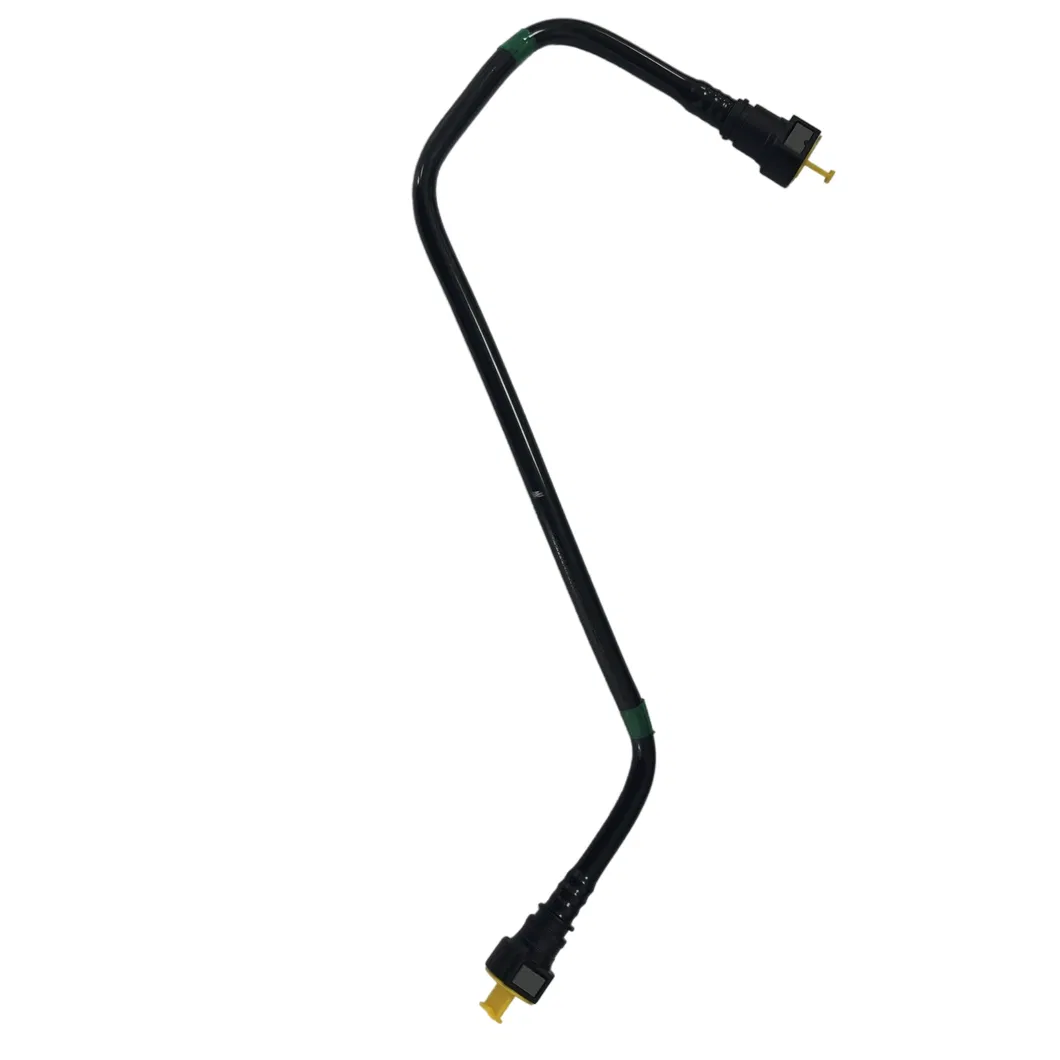

Heat Resistant Nylon Pipe
Automotive Tubing
Nylon Pipe Detail
Reinforced Pipe

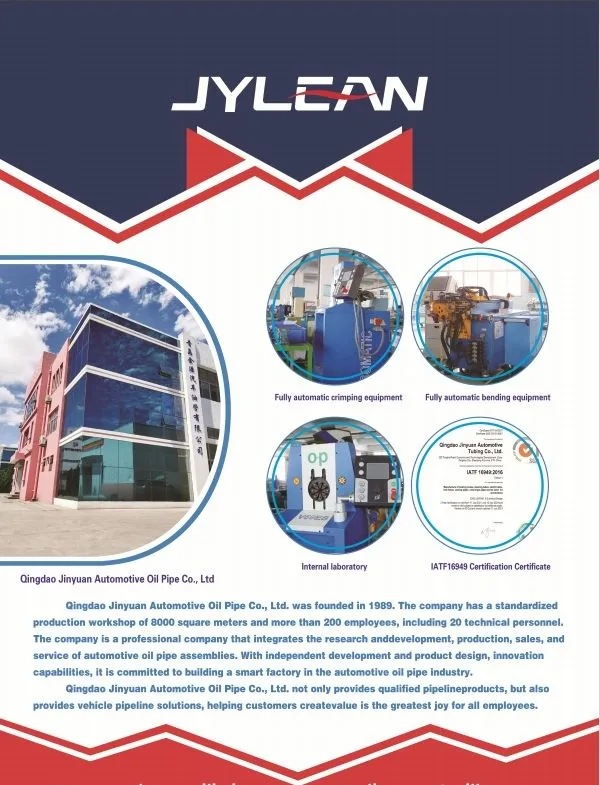

Technical Layout

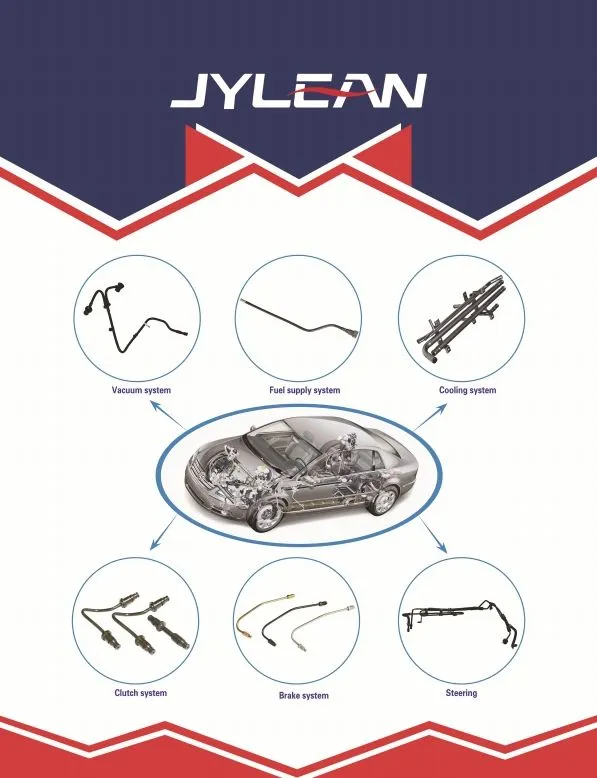

Fluid Systems

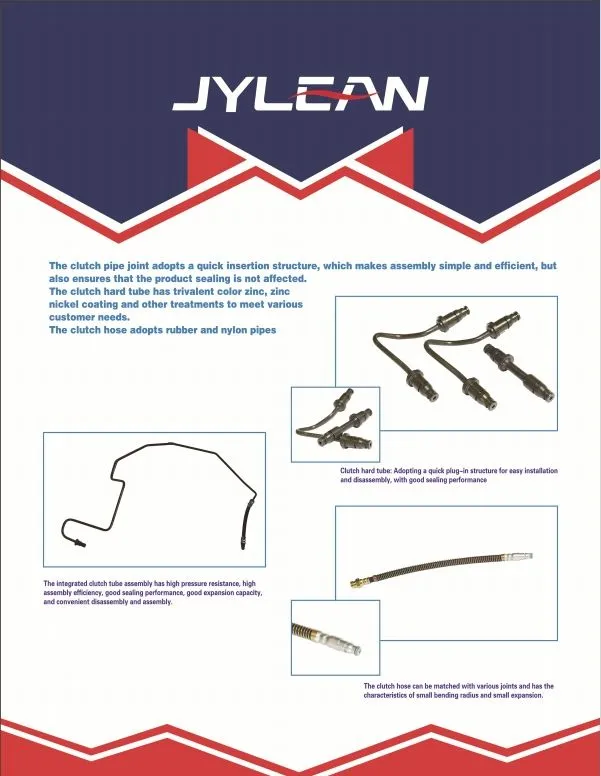

Automotive Application
Nylon Tubing Assembly

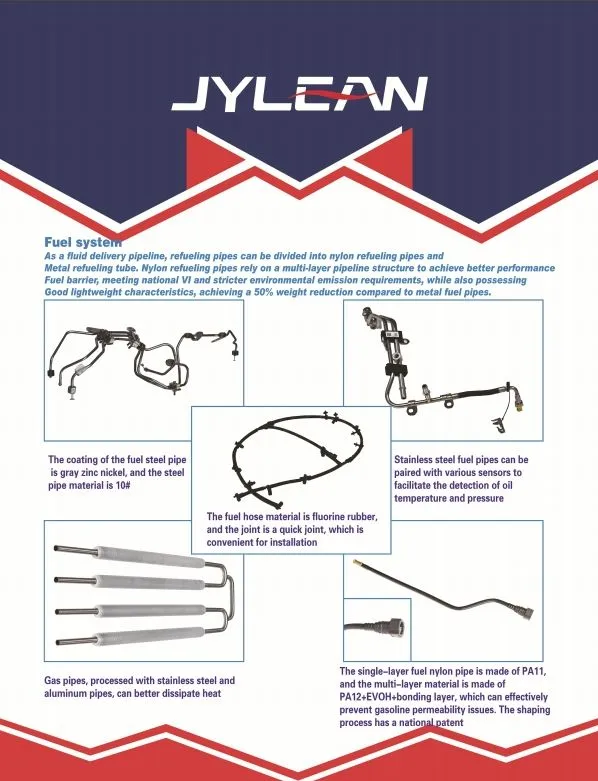

Multi-layer Pipe

Frequently Asked Questions

What materials are used for these pipes?
We primarily use high-performance PA12, PA6, and PA66 nylon materials, which provide excellent heat and chemical resistance.
Can you manufacture pipes based on custom samples?
Yes, we have the capability to produce products exactly according to your physical samples or technical drawings.
What is the typical lead time for an order?
Generally, the delivery time is approximately 45 days, depending on the specific items and quantity ordered.
Do you perform quality inspections before shipping?
Absolutely. We conduct 100% visual inspections and performance testing on all goods before they are dispatched.
What temperature range can the nylon pipes withstand?
Our pipes are designed for operating temperatures between -40ºC and +120ºC, with an instantaneous tolerance up to +150ºC.
