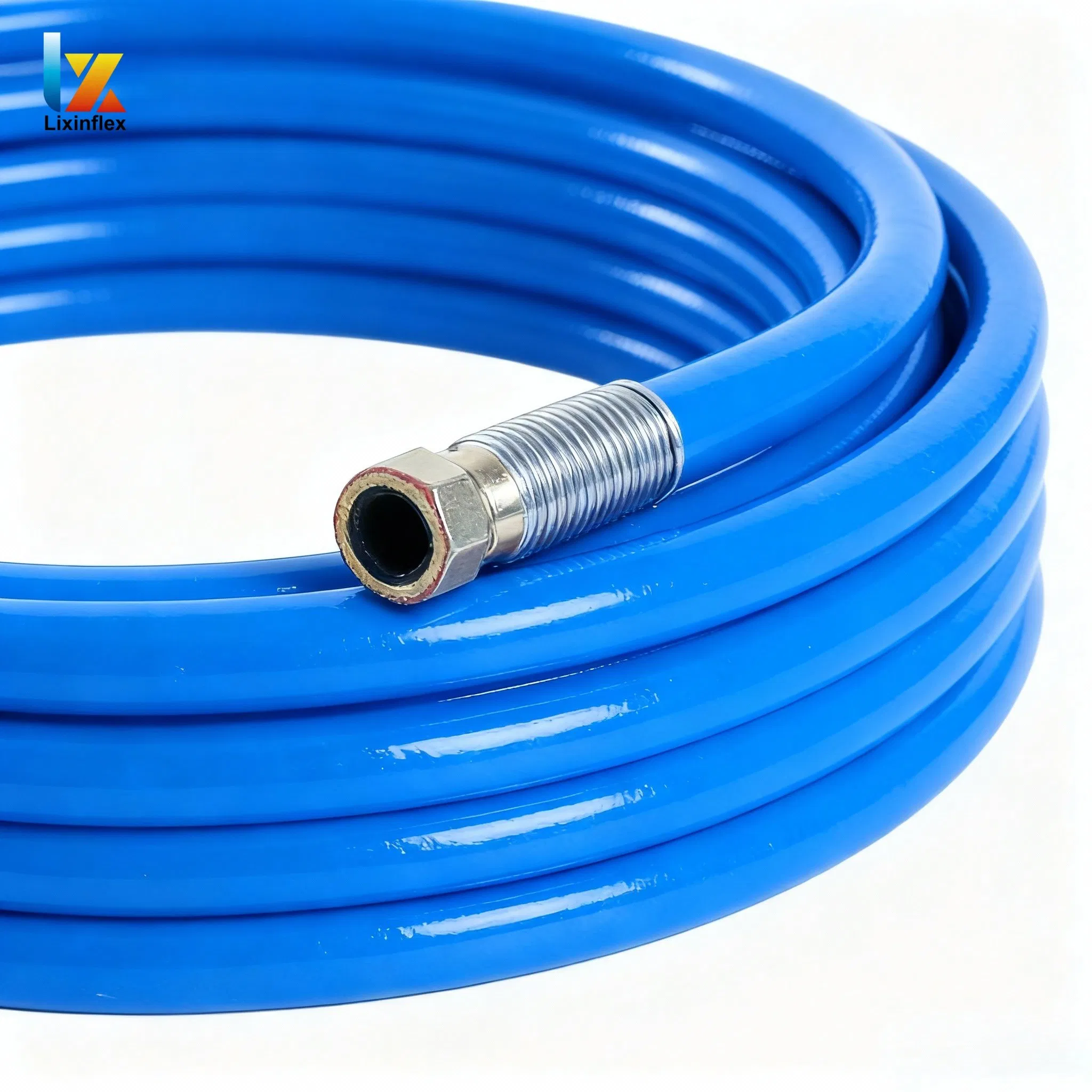

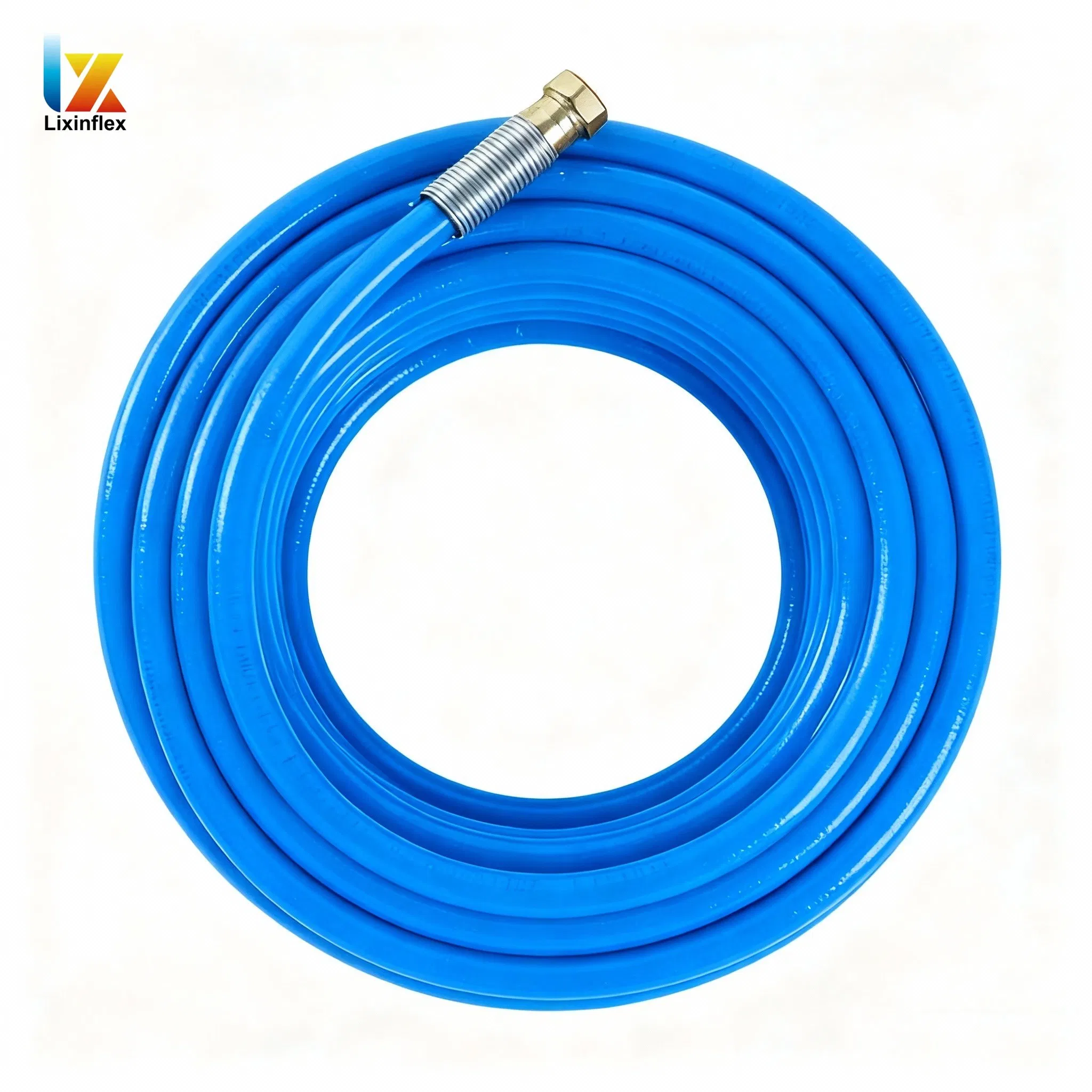

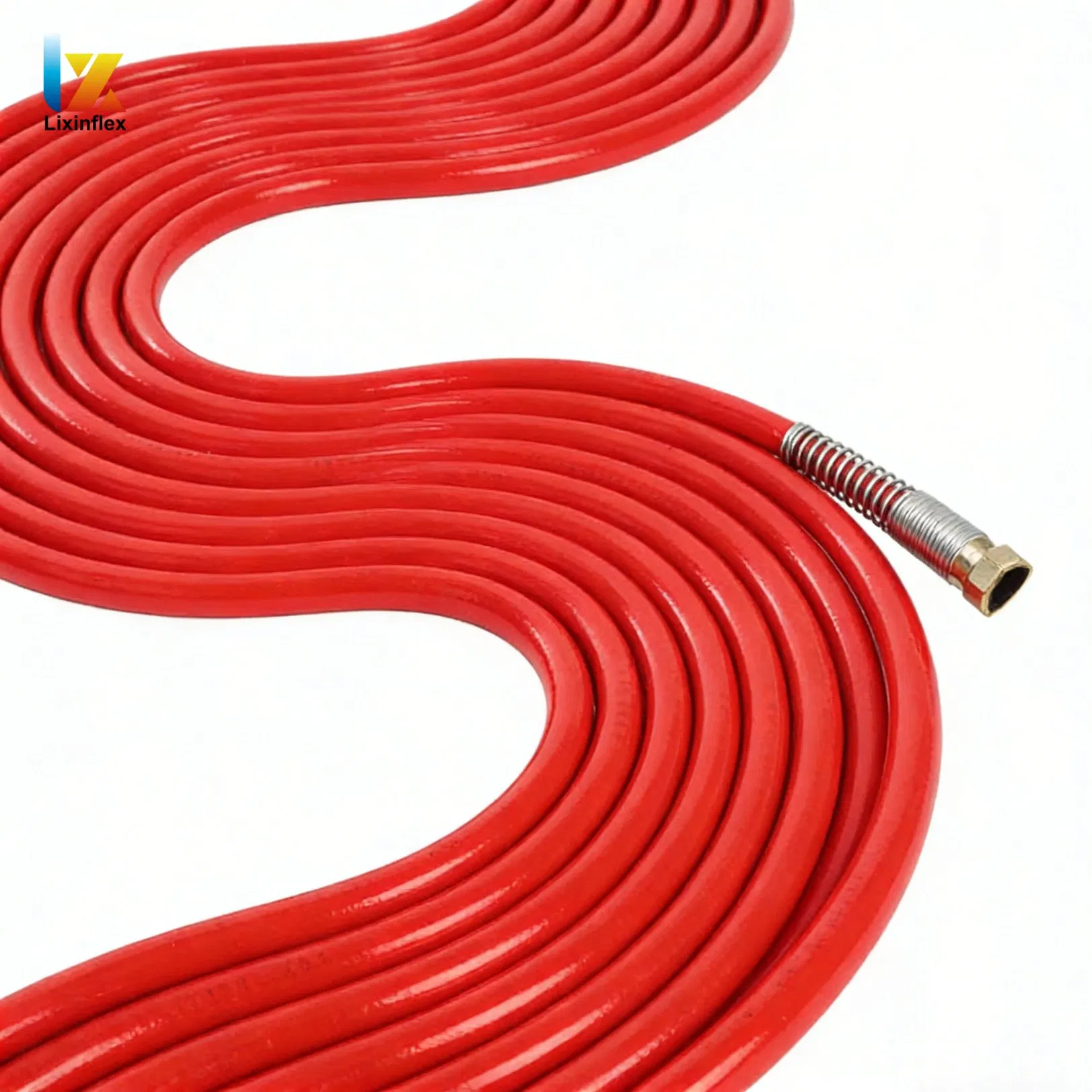

High Performance LPG /CNG Rubber Hoses Compressed Natural Gas Hose

Overview

Color

Transport Package

Woven Bag

Specification

ID6-ID15

HS Code

4009110000

Production Capacity

6,000,000m/Year

Package Size

50.00cm * 50.00cm * 20.00cm

Gross Weight

20.000kg

Product Description

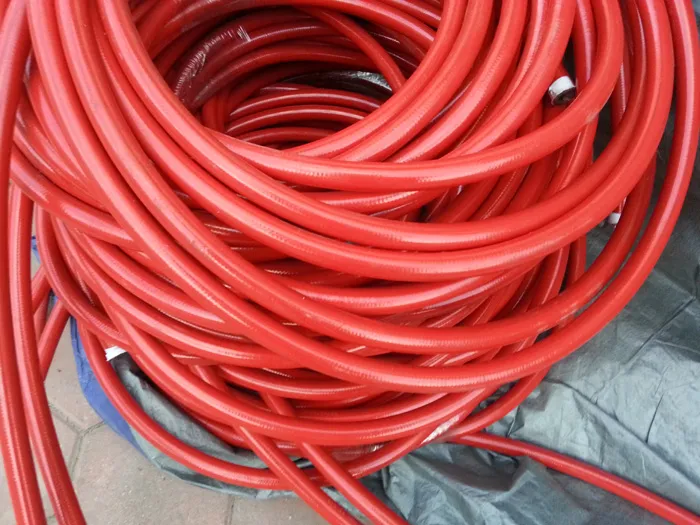

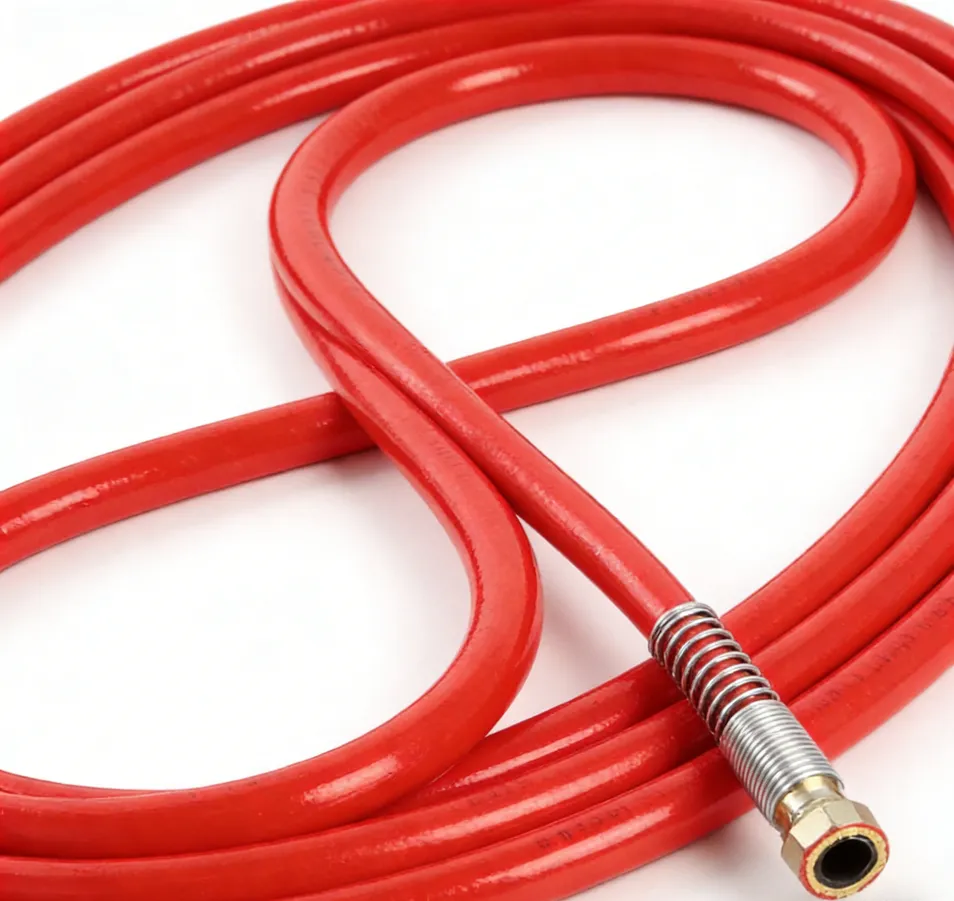

Natural Gas Hose (CNG High-Pressure)

Application: Used for loading and unloading compressed natural gas (CNG), filling and unloading columns, and high-pressure skids for CNG transportation.
Applicable Medium: Compressed Natural Gas (CNG)
Connection Method: NPT external thread (convertible depending on usage)
Operating Pressure: ≤ 34.5 MPa (5000 PSI)
Destructive Test Pressure: 138 MPa
Length: Customized according to requirements

Specifications

Part No.	Nominal Inner Diameter		Max Outer Diameter		Max Working Pressure		Min Variable Radius
Part No.	inch	mm	inch	mm	wpsi	Mpa	inch	mm
3CNG-4	1/4	6	0.5	13	3600	24.8	2	51
3CNG-6	3/8	10	0.75	20	3600	24.8	10 1/2	64
5CNG-4	1/4	6	0.6	16	5000	34.5	2	51
5CNG-6	3/8	10	0.75	20	5000	34.5	3	76
5CNG-8	1/2	13	0.9	23	5000	34.5	4	102
5CNG-12	3/4	19	1.15	28	5000	34.5	35 1/2	191
5CNG-16	1	25	1.6	40	5000	34.5	10	254

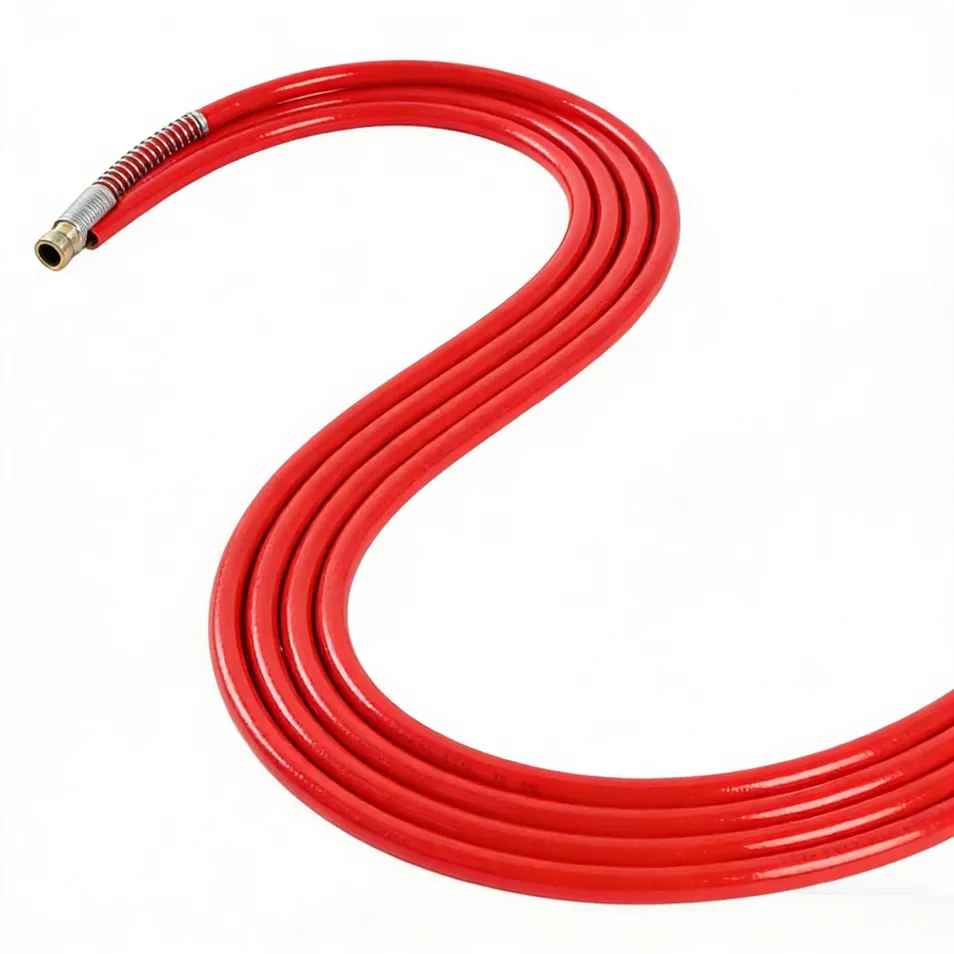

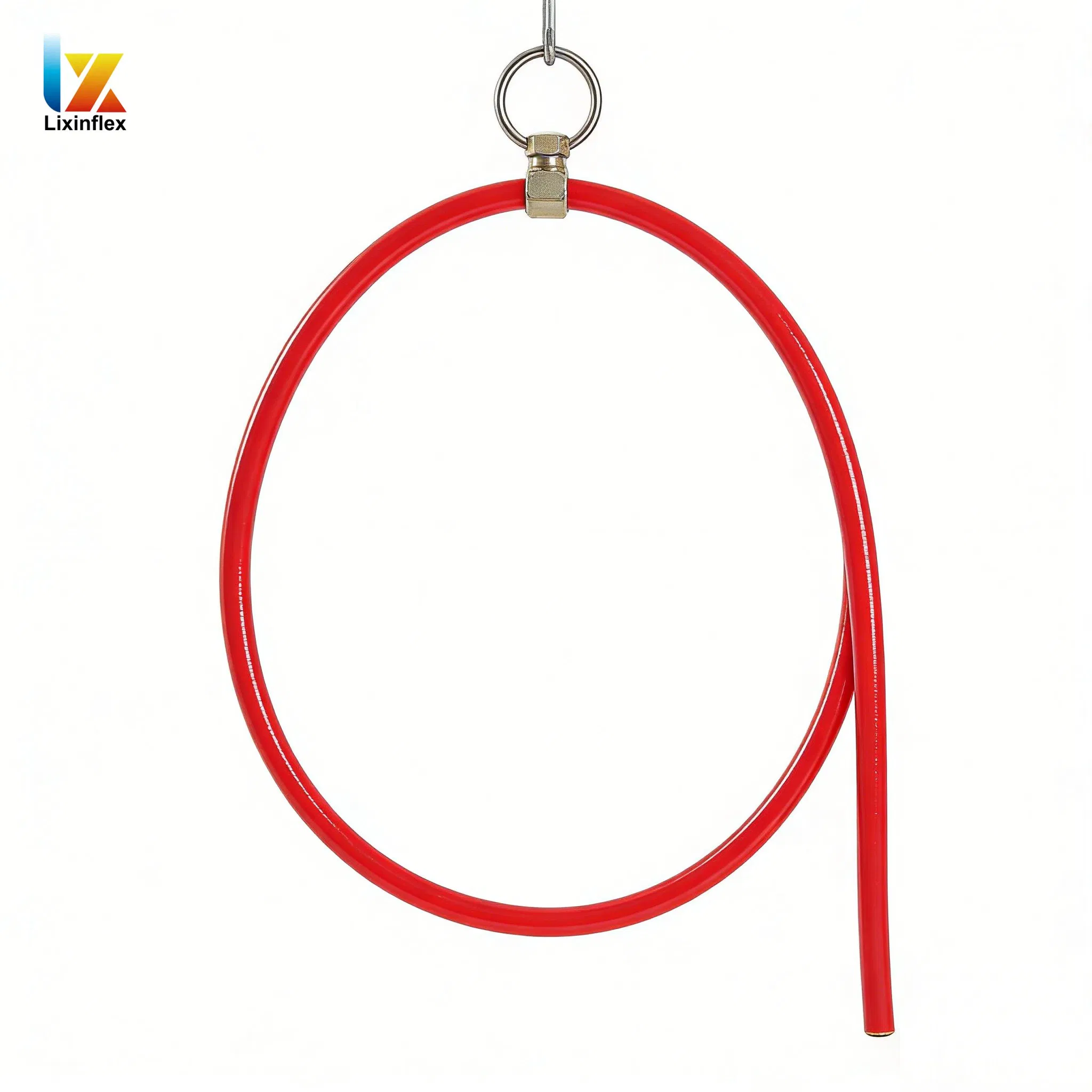

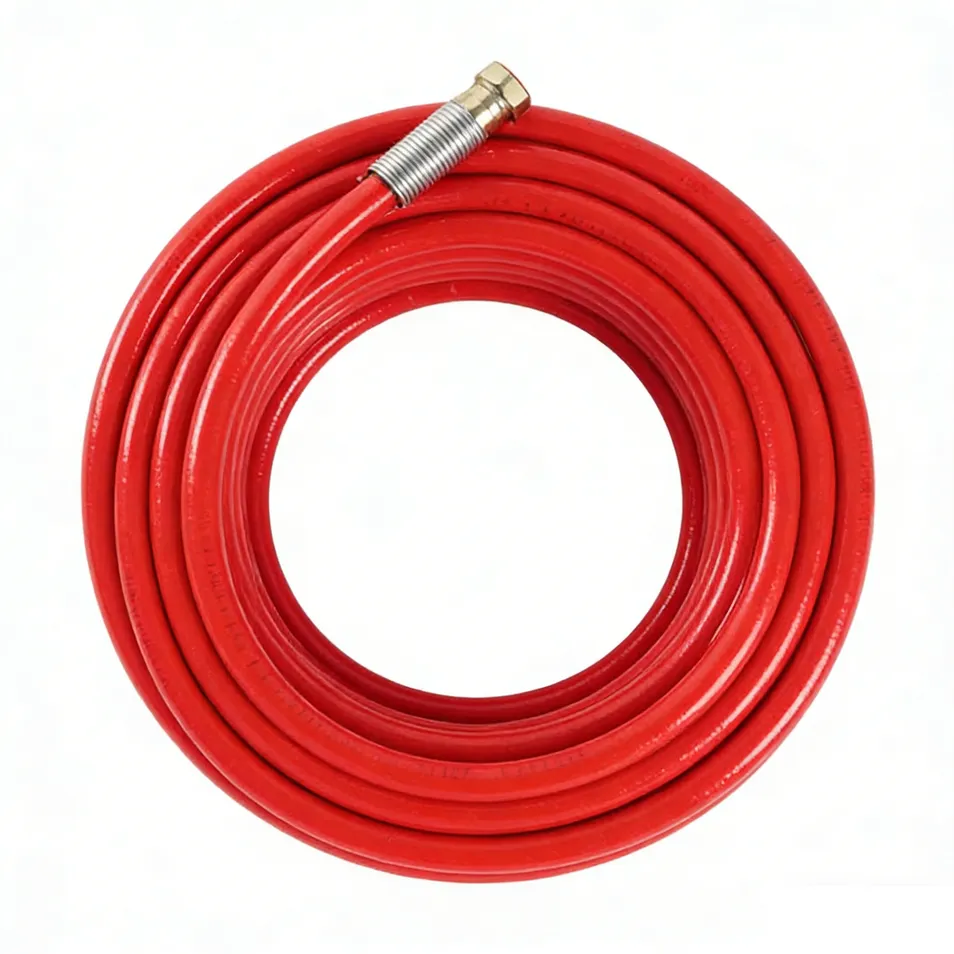

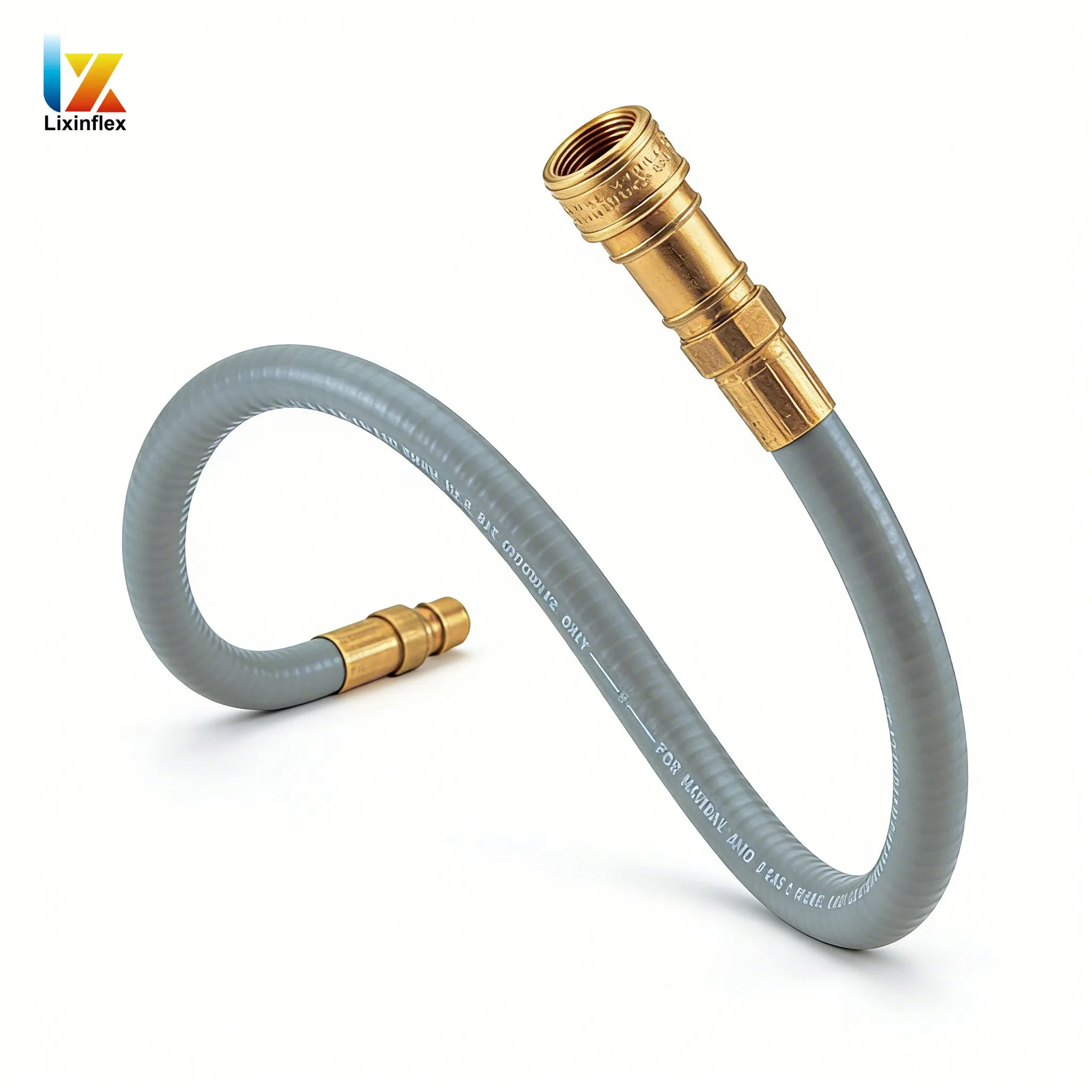

Product Showcase

Core Applications

SPRAY GUN USAGE: Consistent fluid delivery for superior finishes in painting and spraying.
AIR BRAKE SYSTEMS: Compliant with SAE J1402 standards for robust air transfer in vehicles.
GENERAL CONSTRUCTION: Handles high-pressure air and fluids for pneumatic tools.
INDUSTRIAL APPLICATIONS: Heavy-duty performance across various industrial sectors.
HOME IMPROVEMENT: Supports air compressors and high-pressure DIY projects.

FAQ

What is the primary application of this hose?

The hose is designed specifically for loading and unloading compressed natural gas (CNG), filling columns, and high-pressure skid systems.

What is the maximum working pressure?

The hose supports an operating pressure of up to 34.5 MPa (5000 PSI), with a destructive test pressure of 138 MPa.

Can the length be customized for specific requirements?

Yes, we provide customized lengths based on specific customer requirements and application needs.

What connection types are available?

Standard connection is NPT external thread, which can be converted based on the actual usage scenario.

What are the typical lead times for production?

Samples are generally ready within 7 working days, while normal production orders typically take 25-30 days.

What standards do the brake hoses comply with?

Our air brake hoses are fully compliant with SAE J1402 standards, ensuring safety and durability.
