Oil & Gas SS304/316 Braided Corrugated Hose - High-Pressure Flexible Metal Hose

1 / 5

Oil & Gas SS304/316 Braided Corrugated Hose - High-Pressure Flexible Metal Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

2 inch

Diameter

8mm~600mm

Length

200 feet

Material

Steel

Lead Time

25 Days

Pressure

up to 40MPa

Braid Material

SS304, 316L

Layer of Braids

Single or Double

Temperature

- 60 ° C~ +180° C

Fitting

Bsp, NPT, BSPT Taper Male

Connection Type

Welding

Hose Material

SS304/316/316L

Standard

ASTM, DIN, JIS

Thickness

0.3-1.2mm

Production Capacity

26 Million Meters/Year

Product Overview

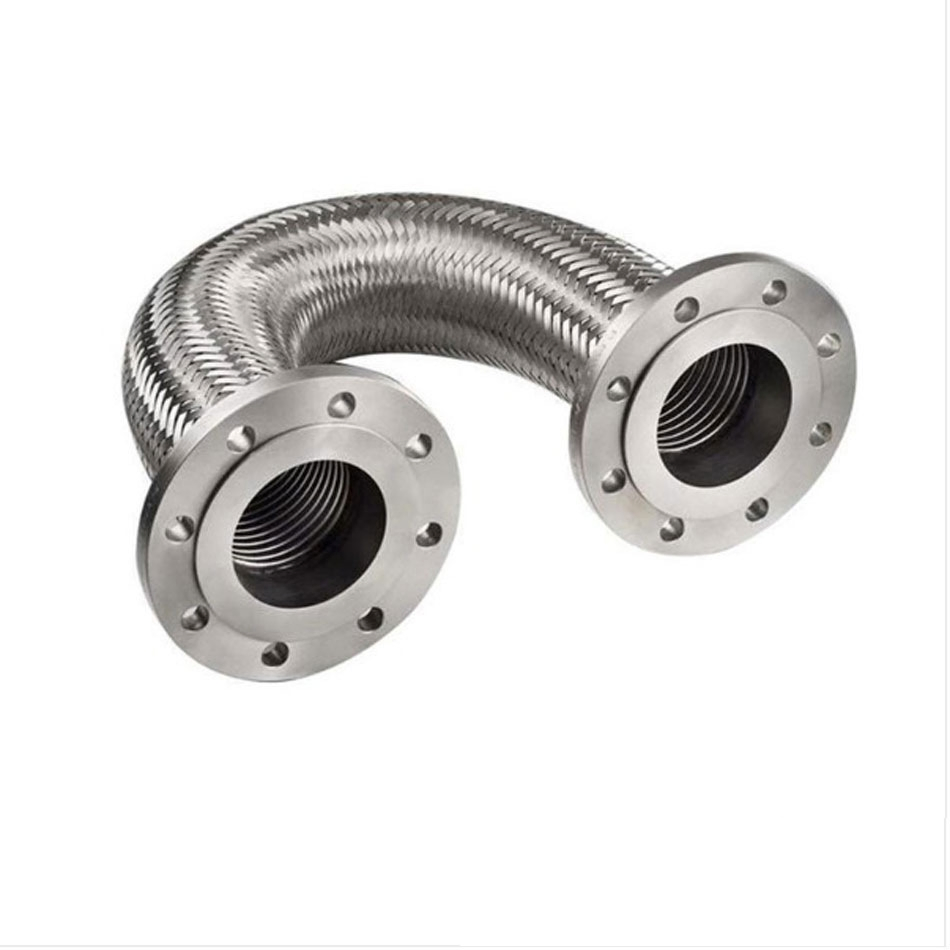

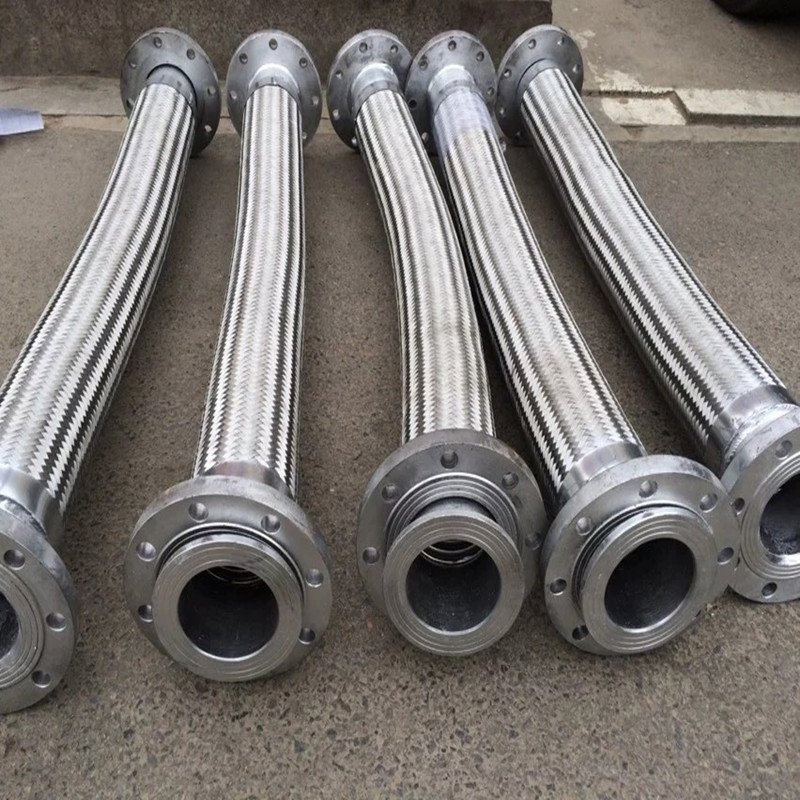

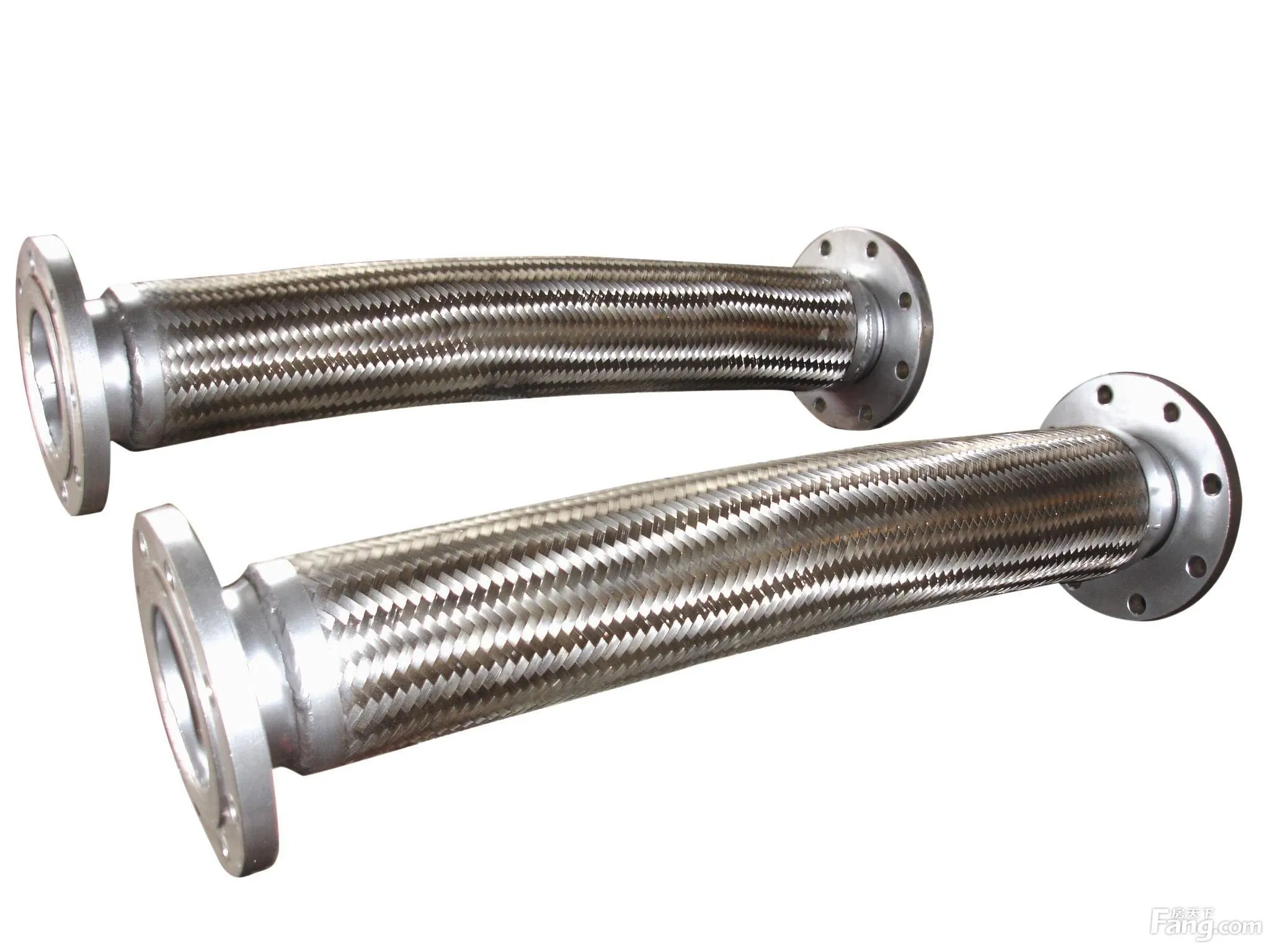

Industrial Metal Hose 316L Stainless Steel Flexible Hose with SS304 Flange for Corrosive Media Applications. This top-tier choice for industrial fluid transfer features robust SS304/316 construction, multi-layer braiding, and precision-engineered connections. Designed to tackle vibration, thermal expansion, and misalignment in chemical, oil & gas, and power sectors.

Specifications

Item	Details
Material	Hose: SS304, SS316, SS321 \| Braid: SS304 \| Fittings: Galvanized Steel/SS304 Flange
Size Range	3/4" to 12" (Custom Length: 0.5m - 20m)
Pressure Rating	Working: 10-25 Bar \| Burst: ≥30 Bar
Temperature Range	-60℃ to 600℃
Standards	GB/T 14525, ASME B31.3

Technical Specifications Data

I.D. (mm/In.)	O.D. Hose (mm)	Static MBR (mm)	Dynamic MBR (mm)	Pressure (Mpa) 1 Layer	Weight (kg/m)
20 (3/4")	28	100	180	5.0	0.60
25 (1")	34	120	280	4.0	0.85
50 (2")	63	220	550	2.5	1.75
80 (3")	100	350	800	2.0	3.12
150 (6")	178	600	1500	1.5	6.60
300 (12")	360	1200	3000	1.0	31.40

Connection Types & Applications

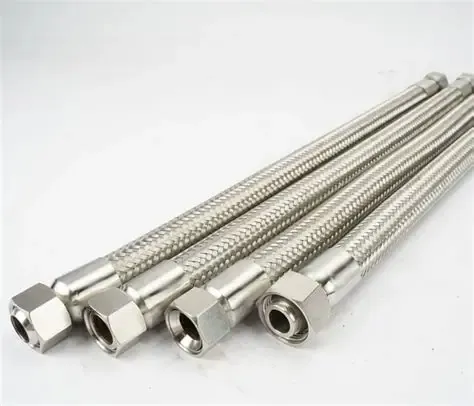

BSPT Taper Male & BSP Cone Female: Standard threaded fittings for secure piping.

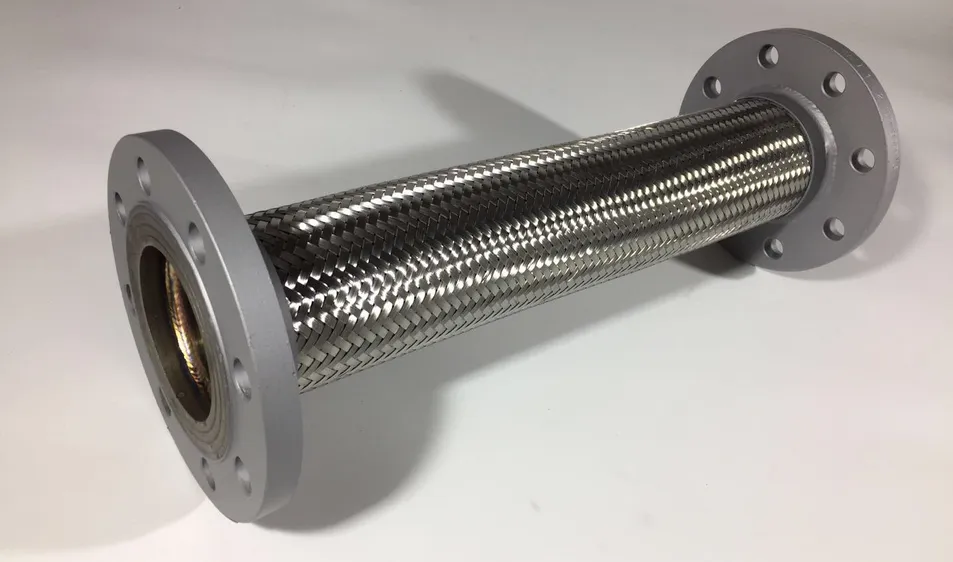

Flange Connections: Compatible with DIN2500, ANSI B 16.5, JIS B2210-84.

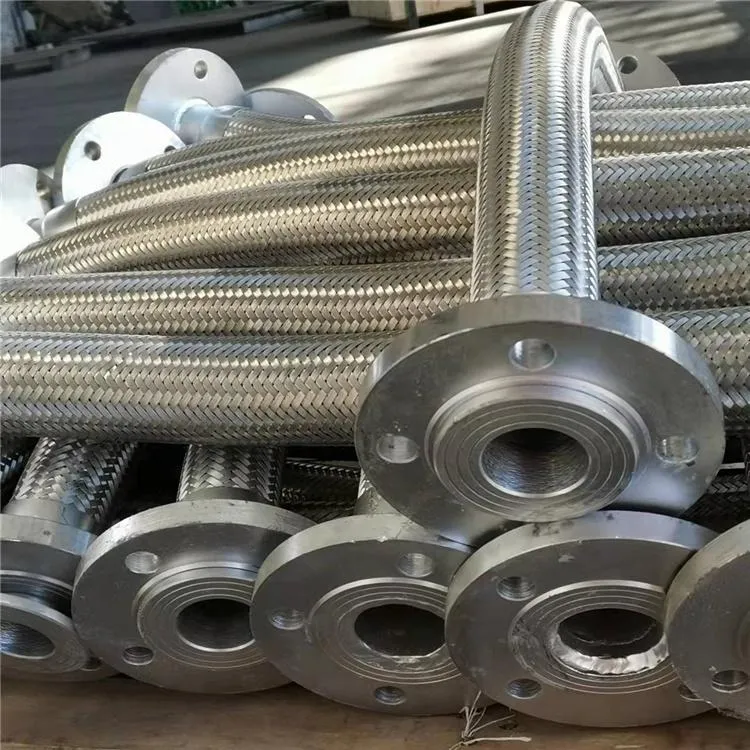

Oil & Gas: Wellhead connections, offshore platform piping, and LNG transfer.
Chemical Sector: Perfect for acid/alkali transfer and corrosive media processing.
Food & Pharma: Sanitary fluid transfer with high-purity requirements.

Key Advantages

Corrosion Resistance: SS316L core resists harsh chemicals and saltwater.
Pressure Endurance: Double-layer braiding handles high-pressure environments.
Superior Flexibility: Low bending radius accommodating axial and radial movements.

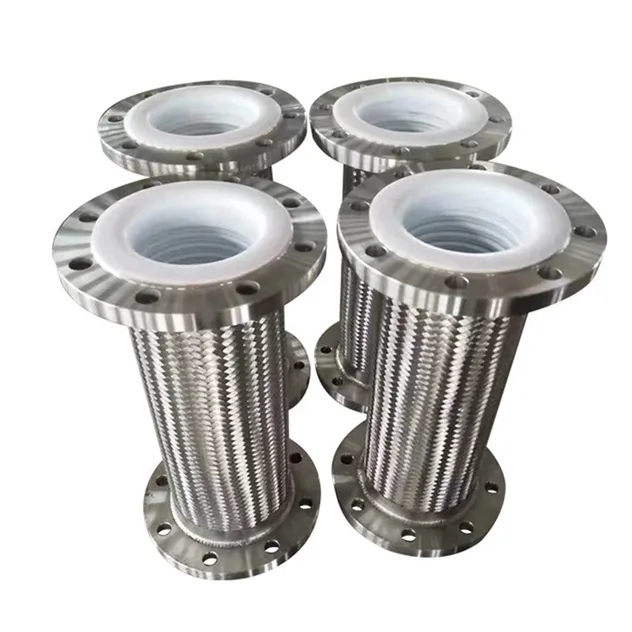

Leak-Free: Precision-welded flanges with PTFE seals ensure zero leakage.

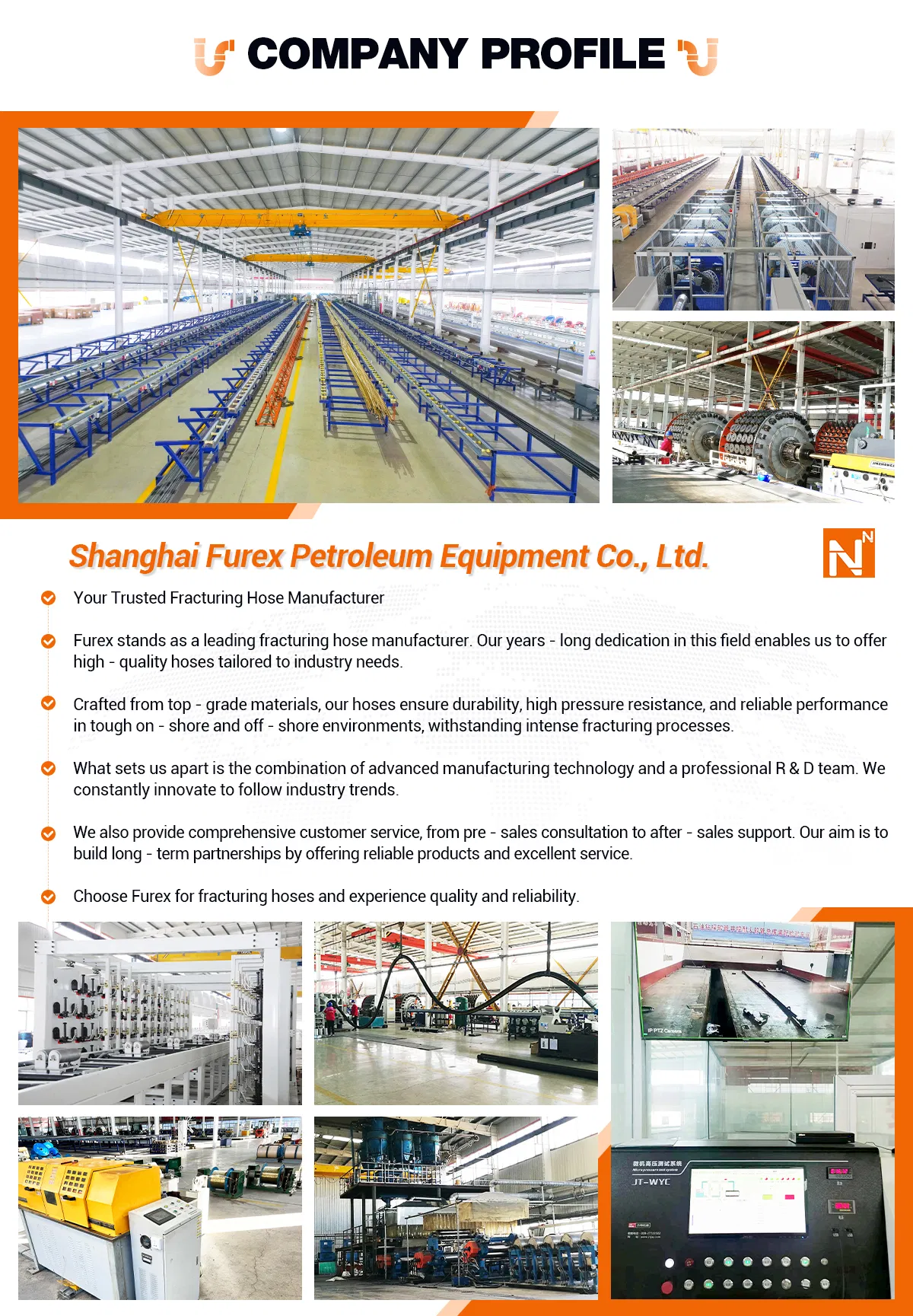

Production & Quality

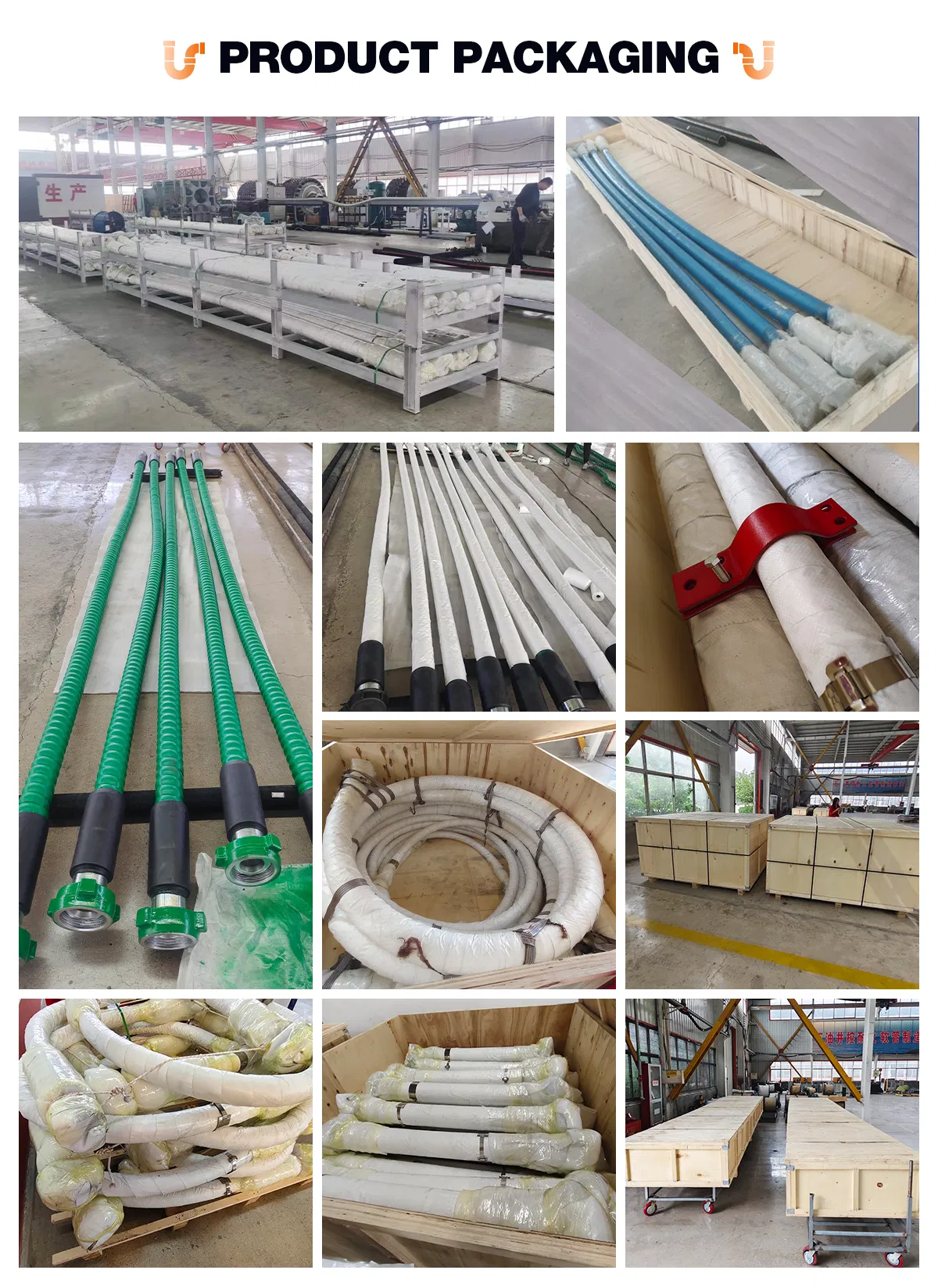

Packaging & Shipping

Frequently Asked Questions

What materials are used for the inner core of the hose?

The inner core is constructed from parallel corrugated stainless steel, available in SS304, SS321, and SS316L depending on your specific corrosion resistance and temperature needs.

What is the temperature range these hoses can handle?

Our stainless steel flexible hoses are designed to operate in extreme conditions ranging from -60℃ to as high as 600℃.

Are different braiding options available?

Yes, we offer non-braided, single-braided, and double-braided configurations using SS304 stainless steel to meet varying pressure requirements.

What flange standards are your hoses compatible with?

Our flange connections are engineered to be compatible with major international standards including DIN2500, ANSI B 16.5, and JIS B2210-84.

In which industries are these metal hoses typically used?

They are widely used in Oil & Gas, Chemical processing, Solar and Water Heating, Construction, Food & Pharma, and Power Generation industries.

What is the typical lead time for an order?

The standard lead time is approximately 25 days, supported by a high production capacity of 26 million meters per year.
