🔹 Basic Information
Working Temp.
-65℃ to 260℃
Feature
Non-Stick, Non-Toxic
Color
White, Black, Transparent
💡 Product Features

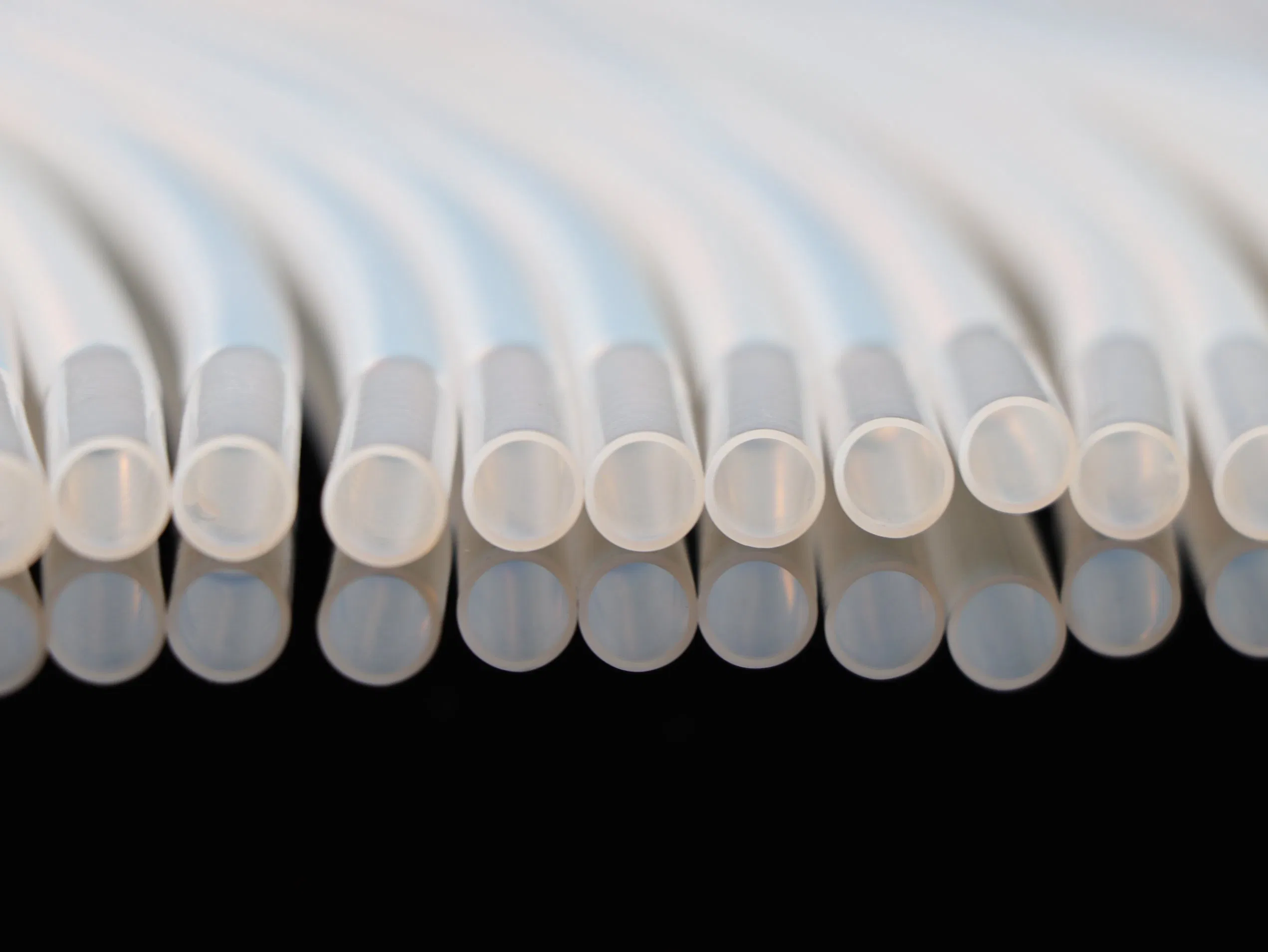

Chemical Resistant PTFE Plastic Tube Hose for Industrial Applications
- ✔ Low chemical activity & resistance to all chemicals
- ✔ Strong weather and corrosion resistance
- ✔ Low surface friction & strong viscous resistance
- ✔ Excellent electrical insulation properties
- ✔ Heat resistance (+260ºC) & Cold resistance (-65ºC)
- ✔ High pressure and low pressure performance
📊 Technical Specifications
| Specification (DN/NB) |
Inner Diameter (mm) |
Outer Diameter (mm) |
Min Bend Radius (mm) |
Working Pressure (bar) |
Unit Weight (kg/m) |
| DN6 (1/4") | 6.5-6.8 | 10.4 | 19 | 82 | 0.112 |
| DN8 (5/16") | 7.8-8.1 | 12.1 | 20 | 75 | 0.144 |
| DN10 (3/8") | 9.1-9.3 | 14.2 | 22 | 60 | 0.158 |
| DN15 (1/2") | 13.1-13.3 | 18.8 | 28 | 48 | 0.223 |
| DN20 (3/4") | 19.3-19.8 | 26.0 | 40 | 30 | 0.456 |
| DN25 (1") | 25.0-25.4 | 30.4 | 56 | 28 | 0.511 |
| DN50 (2") | 53.5-54.5 | 66.9 | 80 | 15 | 1.725 |
* Complies with SAE 100R14 standard. Custom-specific products are available upon detailed discussion.

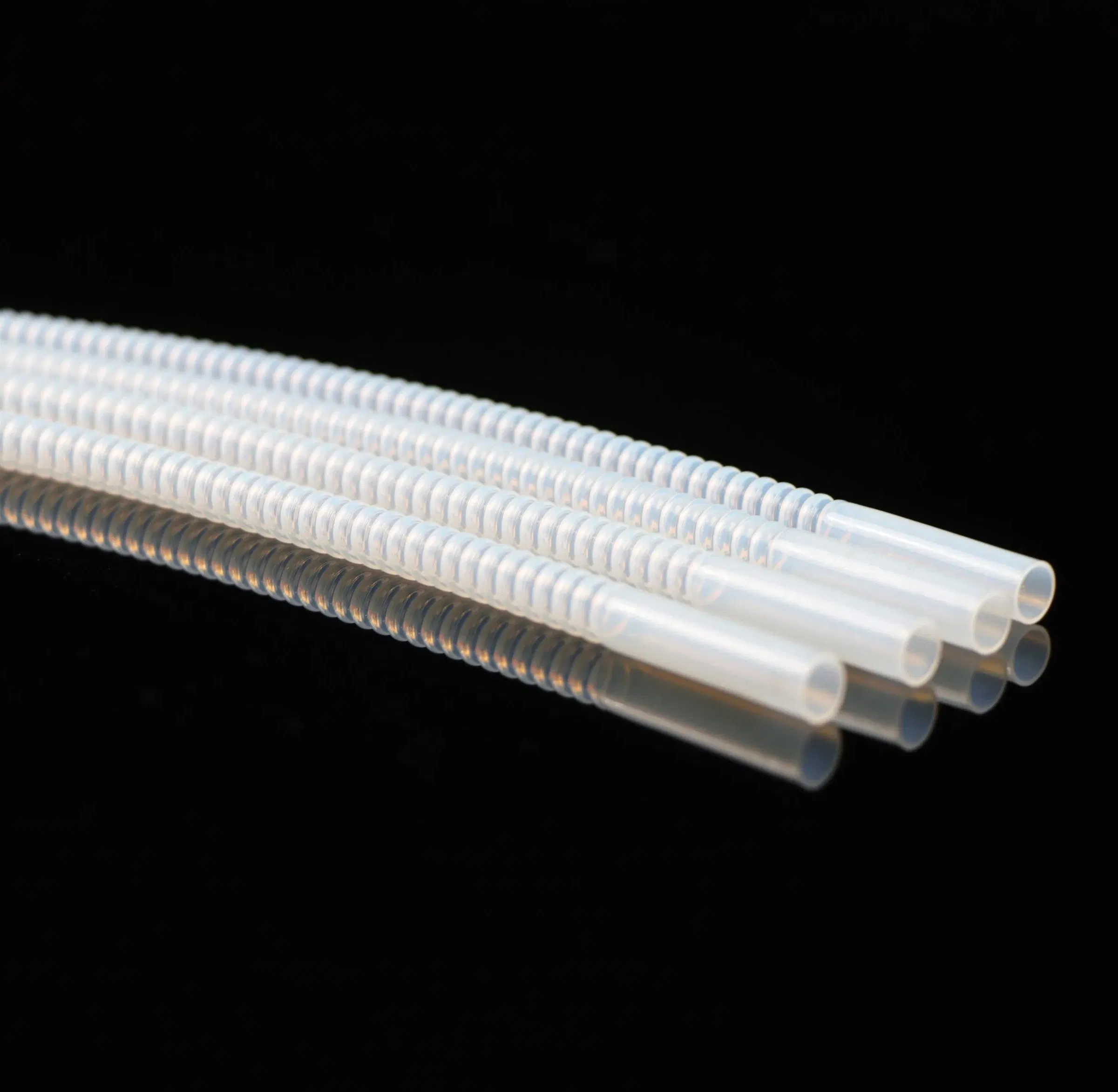

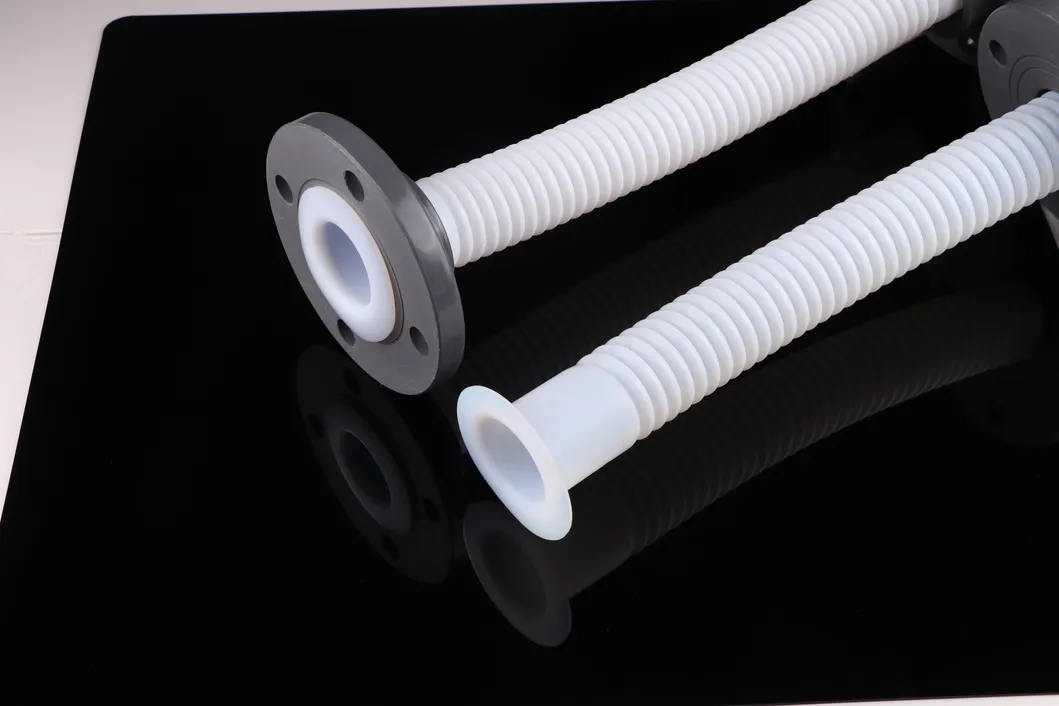

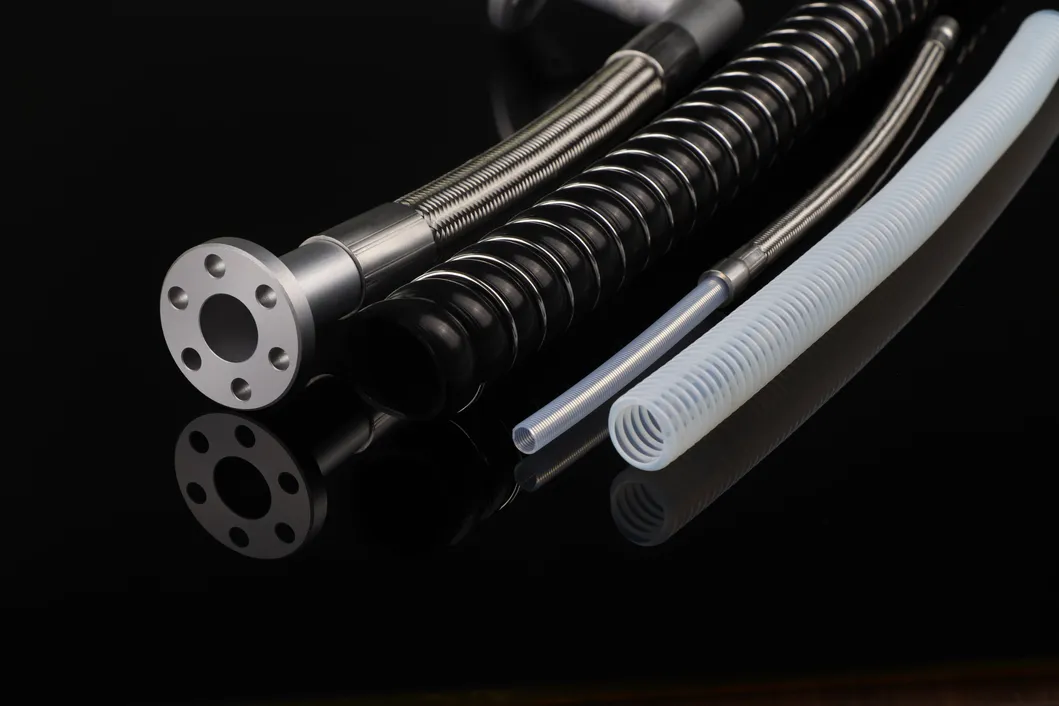

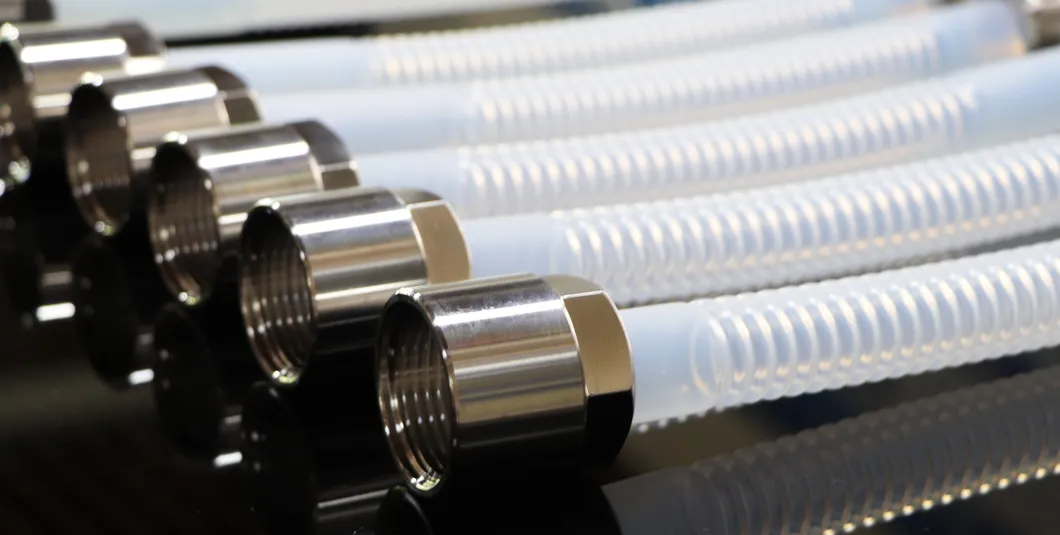

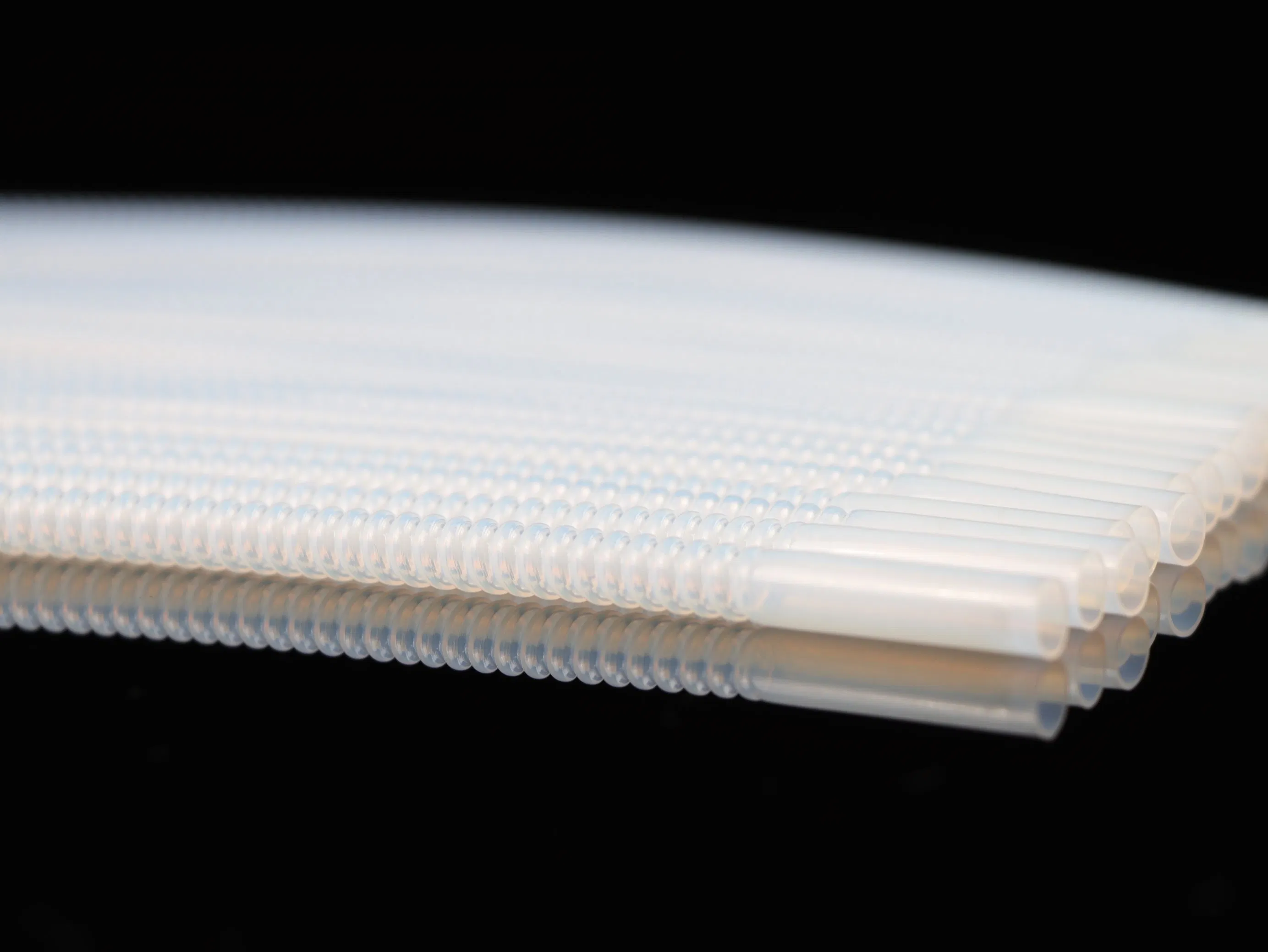

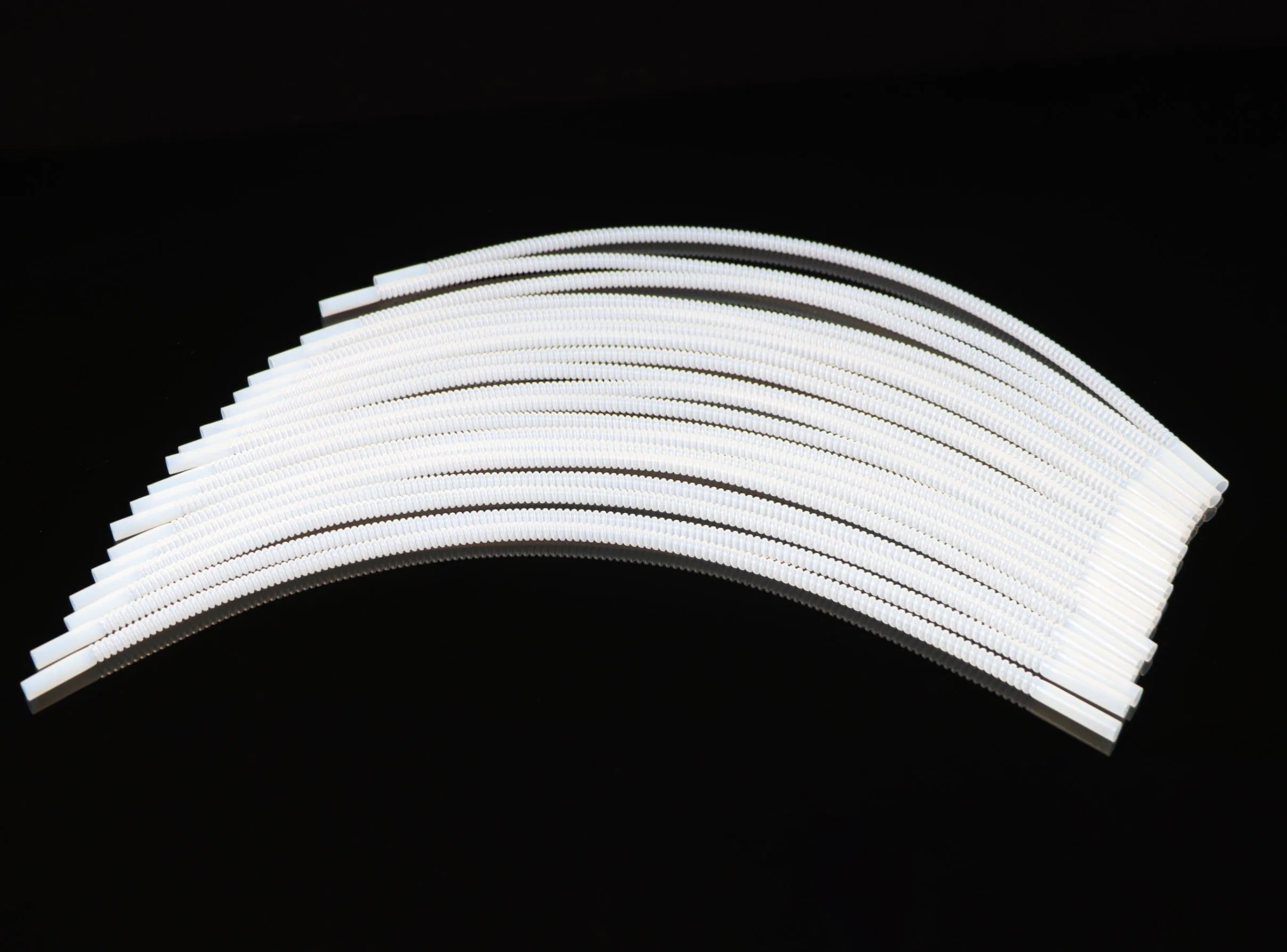

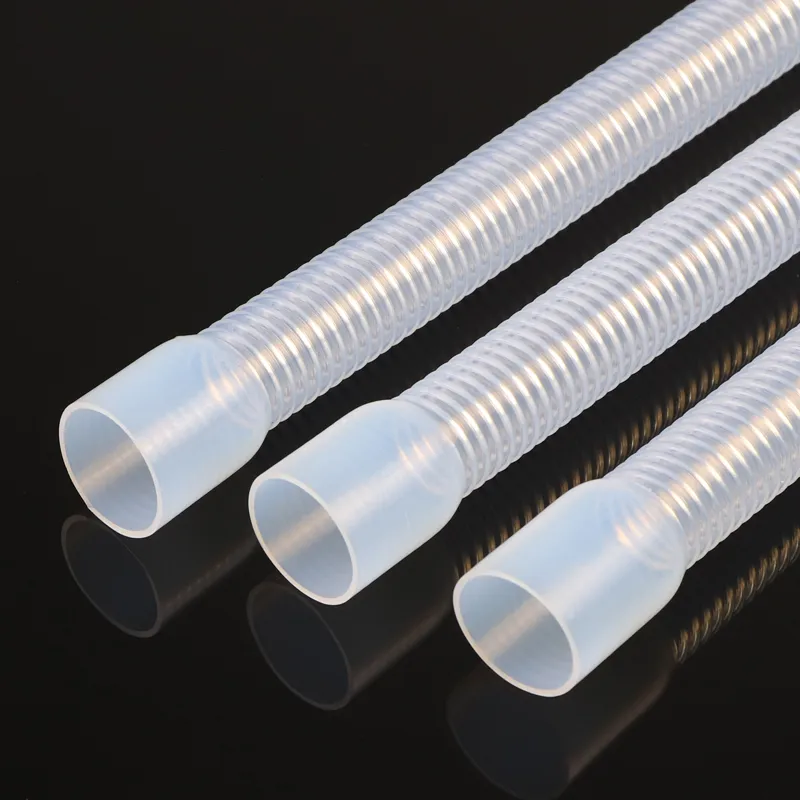

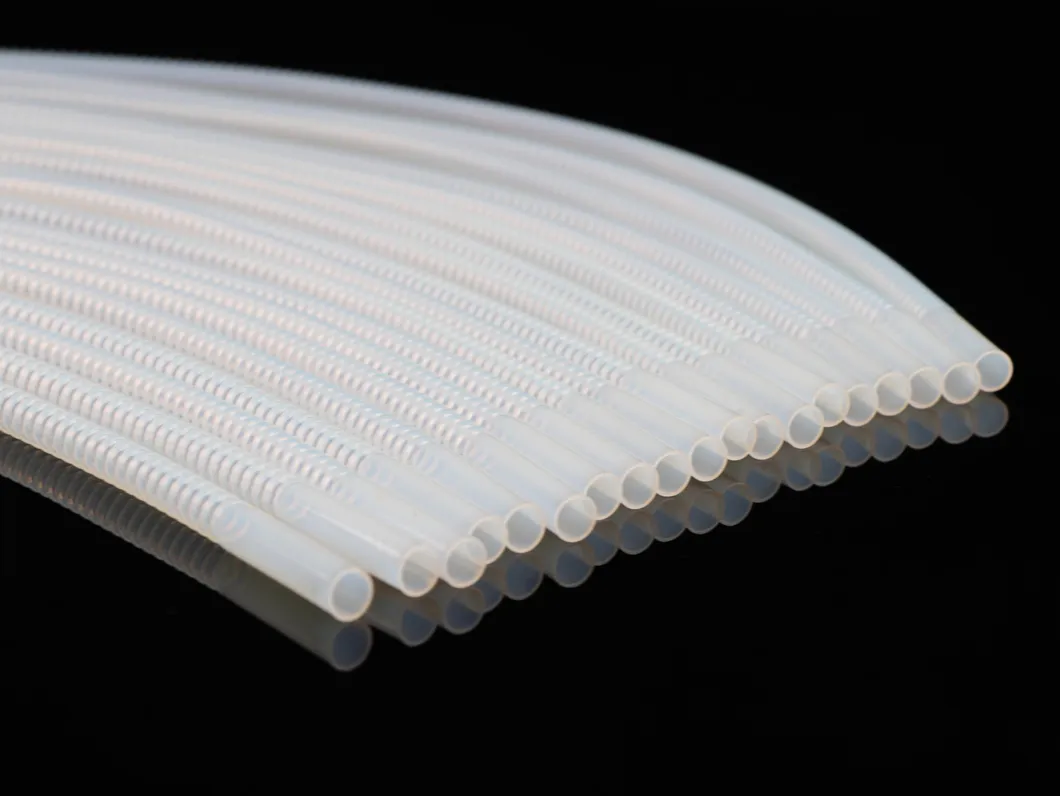

📸 Detailed Photos
🏢 Industry Applications
Our PTFE products are widely utilized in critical sectors including:
- Aerospace & Transportation Technology
- Electronics, Components & Insulators
- Chemical & Pharmaceutical Manufacturing
- Food Processing & Medical Equipment
- Environmental Sciences & Air Sampling
- Fluid Transfer & Water Processing Systems
📦 Packaging & Shipping
Package Size
80.00cm * 20.00cm * 8.00cm
Packing Types
Roll, Reel, Carton, Pallet, Wooden Case
❓ Frequently Asked Questions
1. Are you a factory or a trading company?

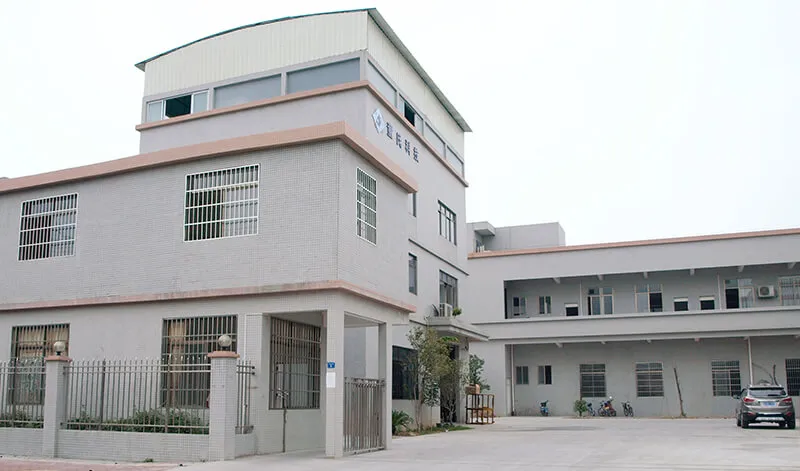

We are a professional manufacturer with 12 years of production experience and 5 years of exporting experience in the PTFE industry.
2. What are your main product lines?
Our leading products include PTFE tubes, hydraulic hoses, PTFE braided hoses, and PTFE corrugated tubing, along with various types of matched fittings.
3. What size specifications do you offer?
We offer capillary tubes (ID 0.3mm-6mm), inner tubes (ID 2mm-100mm), and braided hoses (1/8" to 2"). Custom specifications are available based on your requirements.
4. What materials are used for the outer reinforcement layers?
Outer layers can be stainless steel 304 or 316 wire braided, Nylon or cotton coated, Silicone jacketed, or PVC/PU covered.
5. Do your products hold quality certifications?
Yes, we have passed numerous factory and product tests including ISO9001. We can provide samples for your independent testing upon request.
6. What is the temperature range for these PTFE hoses?
Our PTFE hoses are designed to withstand extreme conditions, ranging from -65ºC to +260ºC (-85°F to +500°F).
