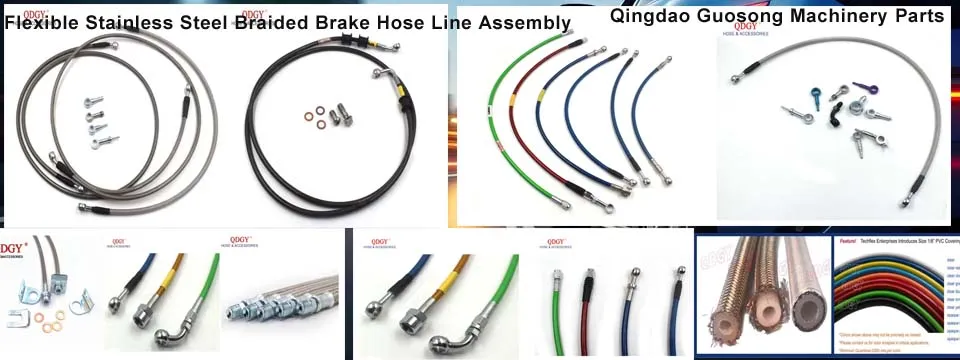

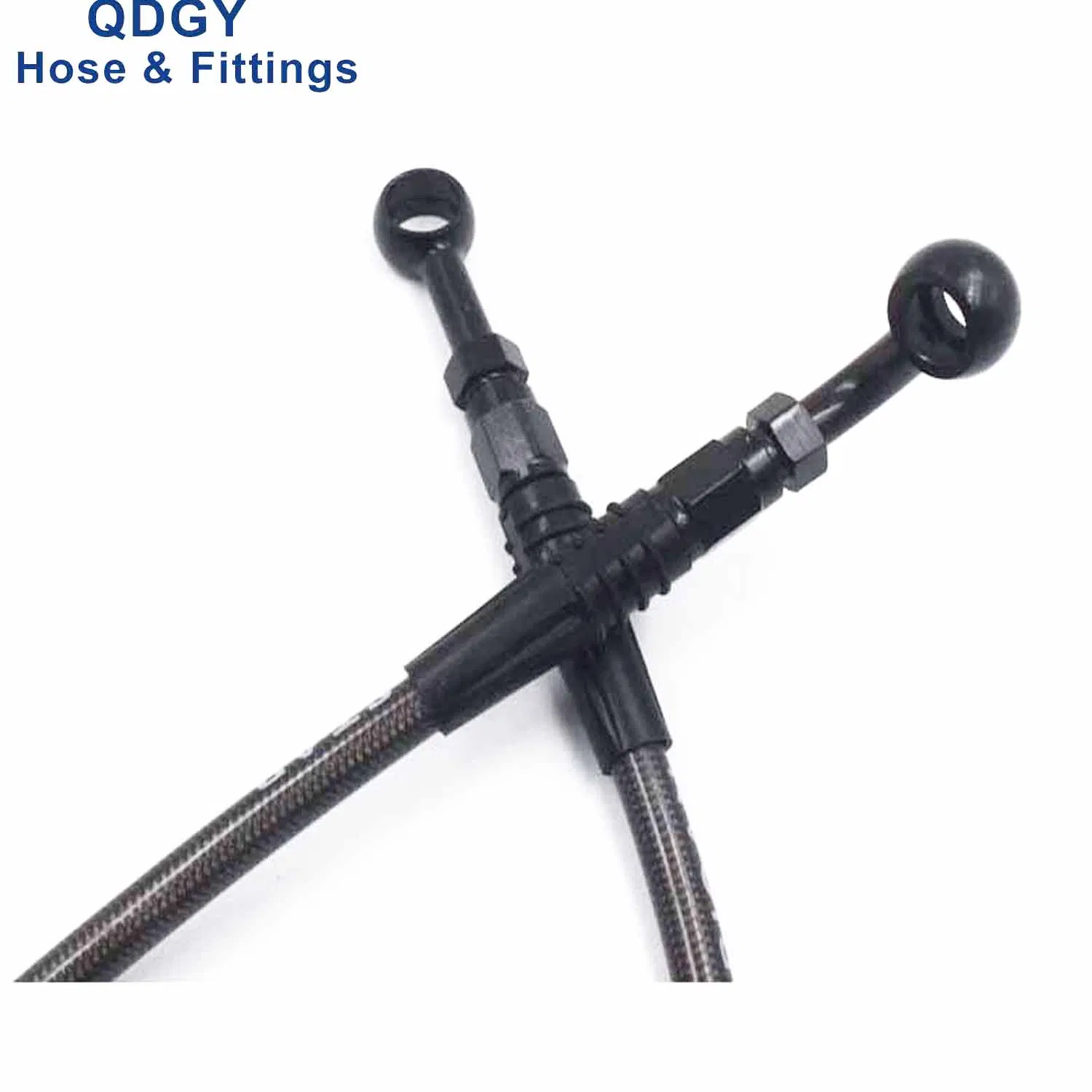

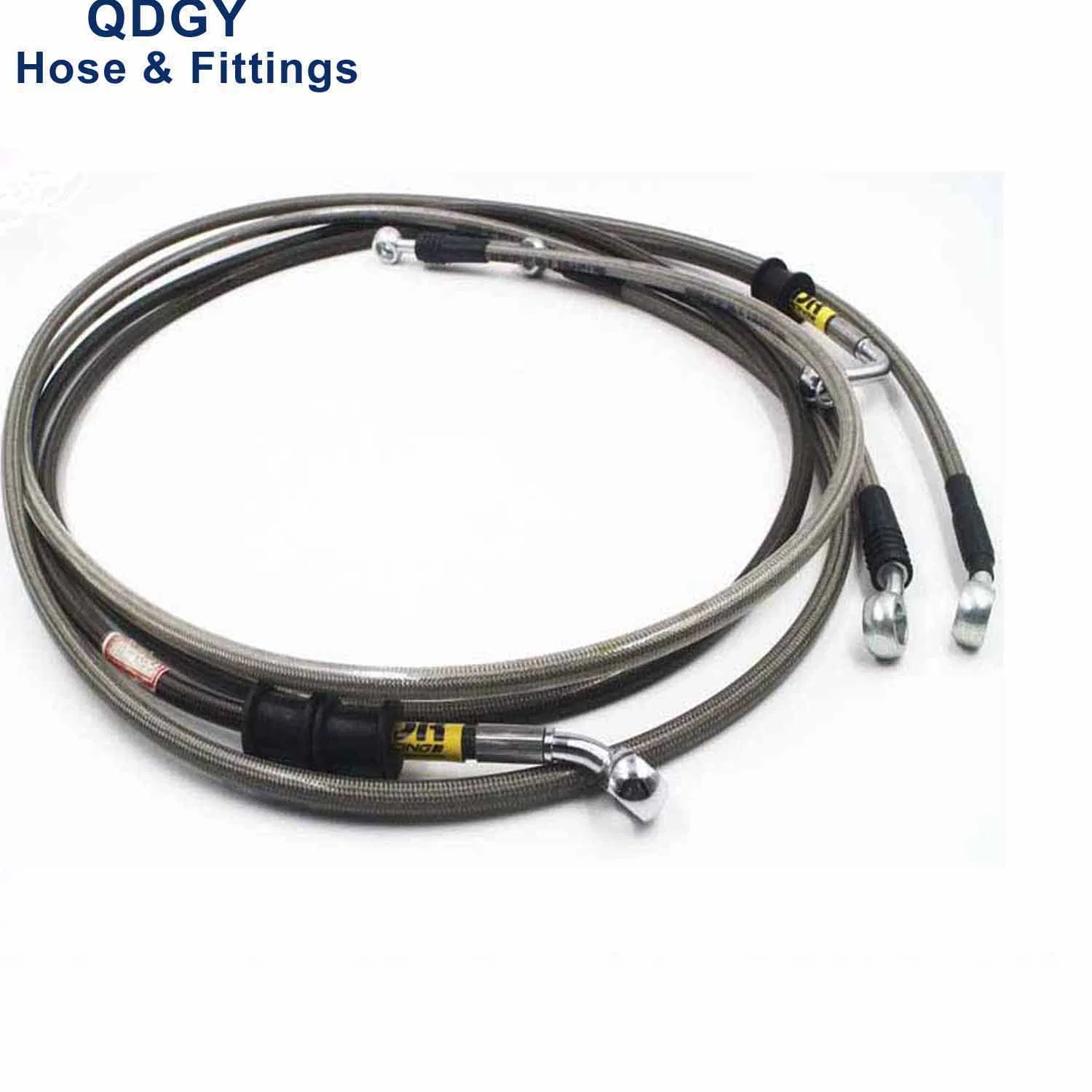

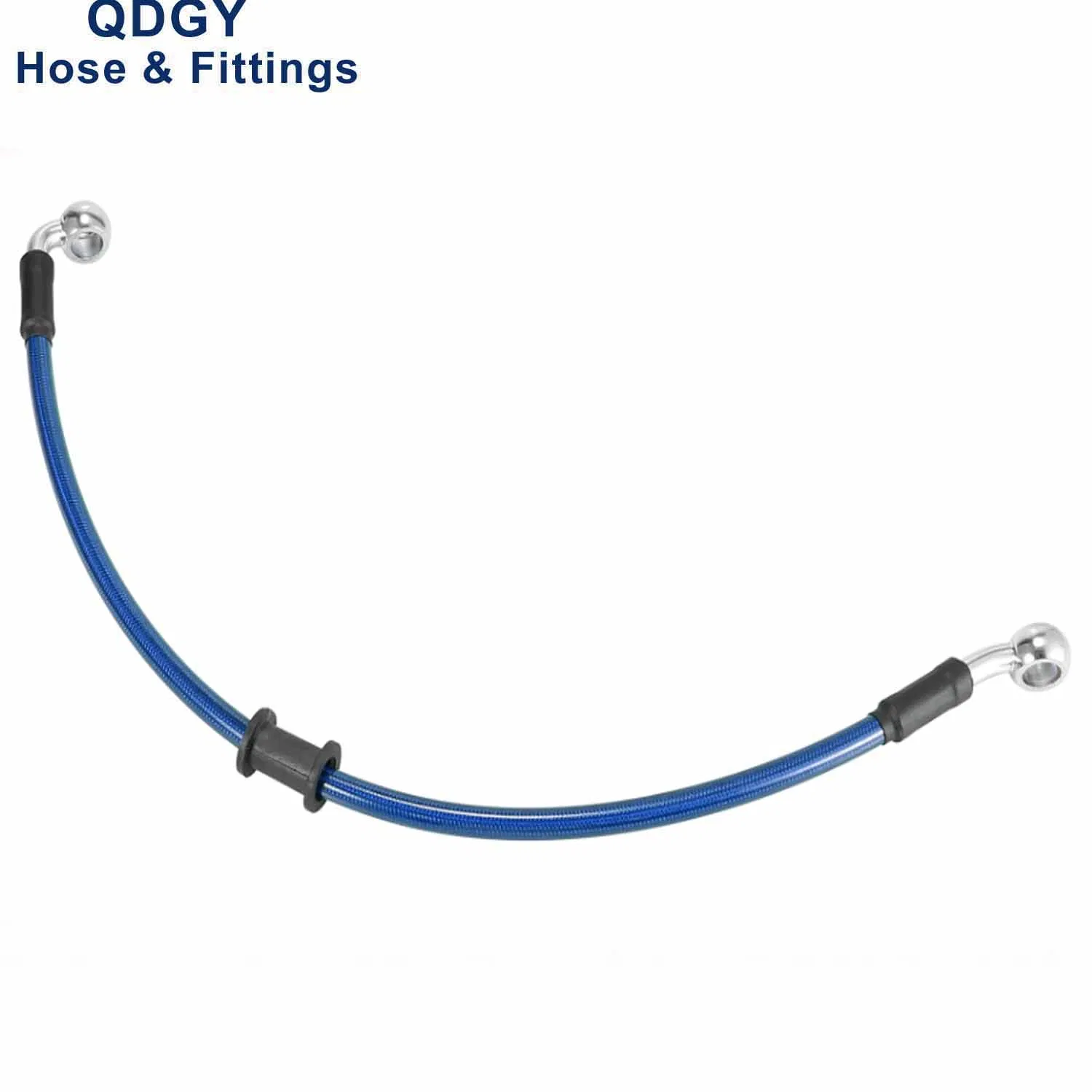

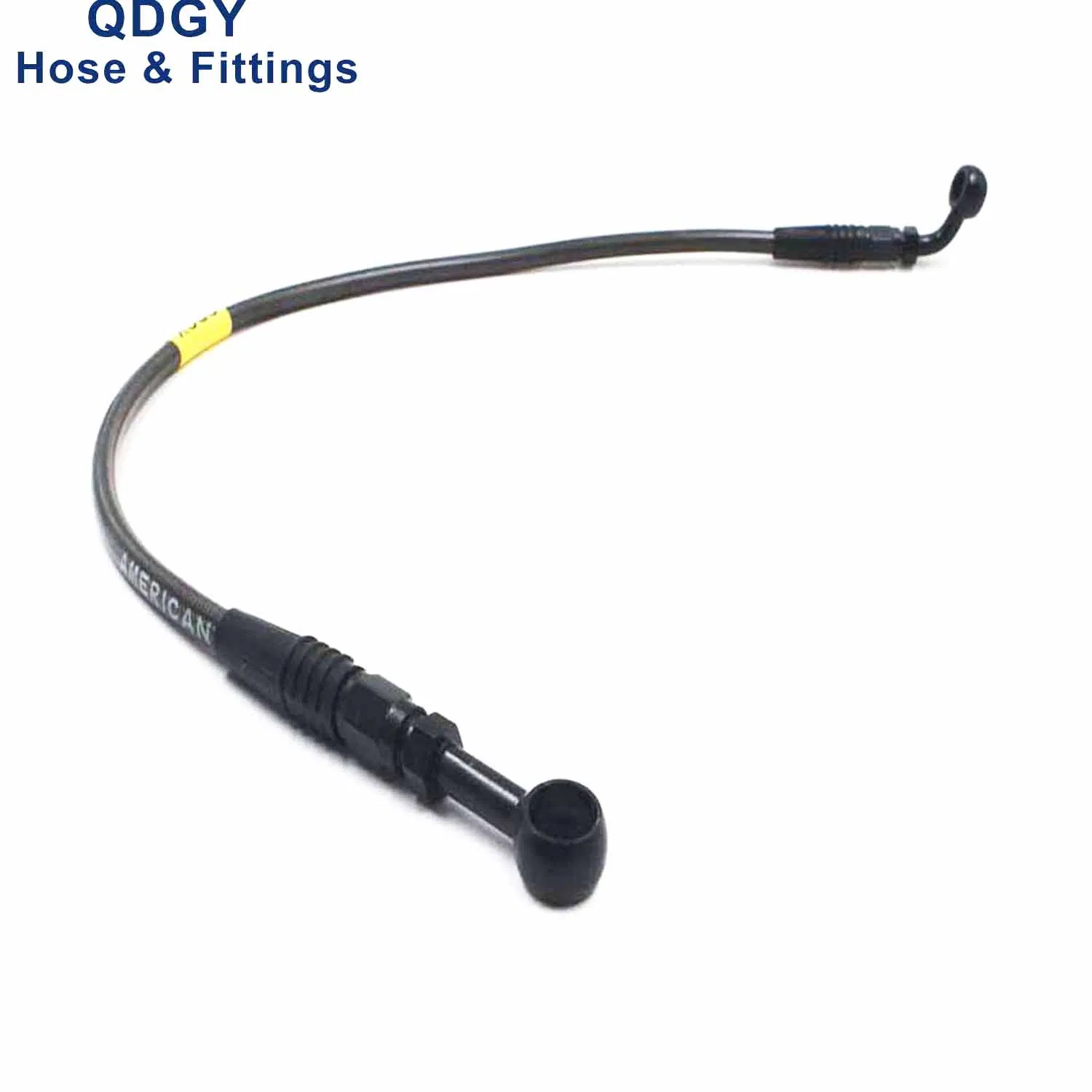

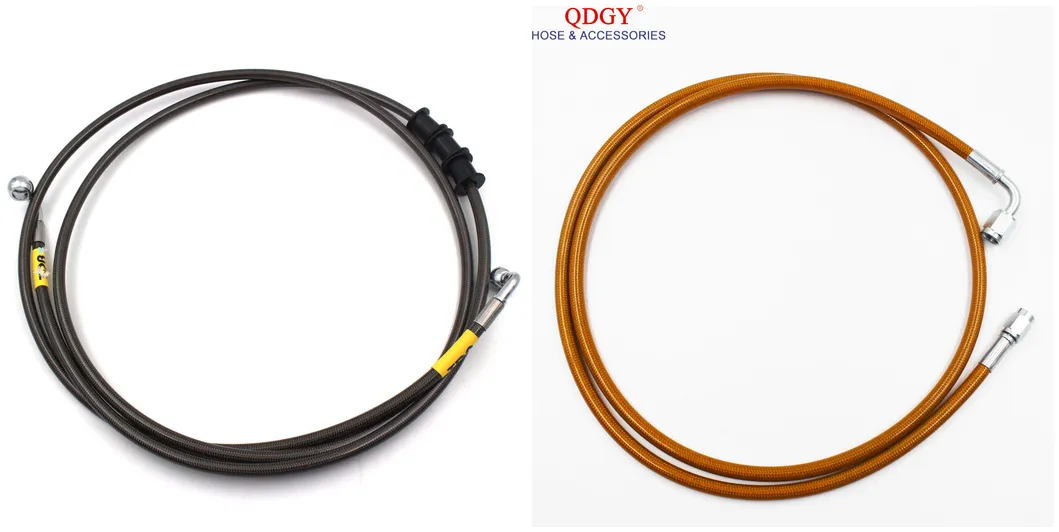

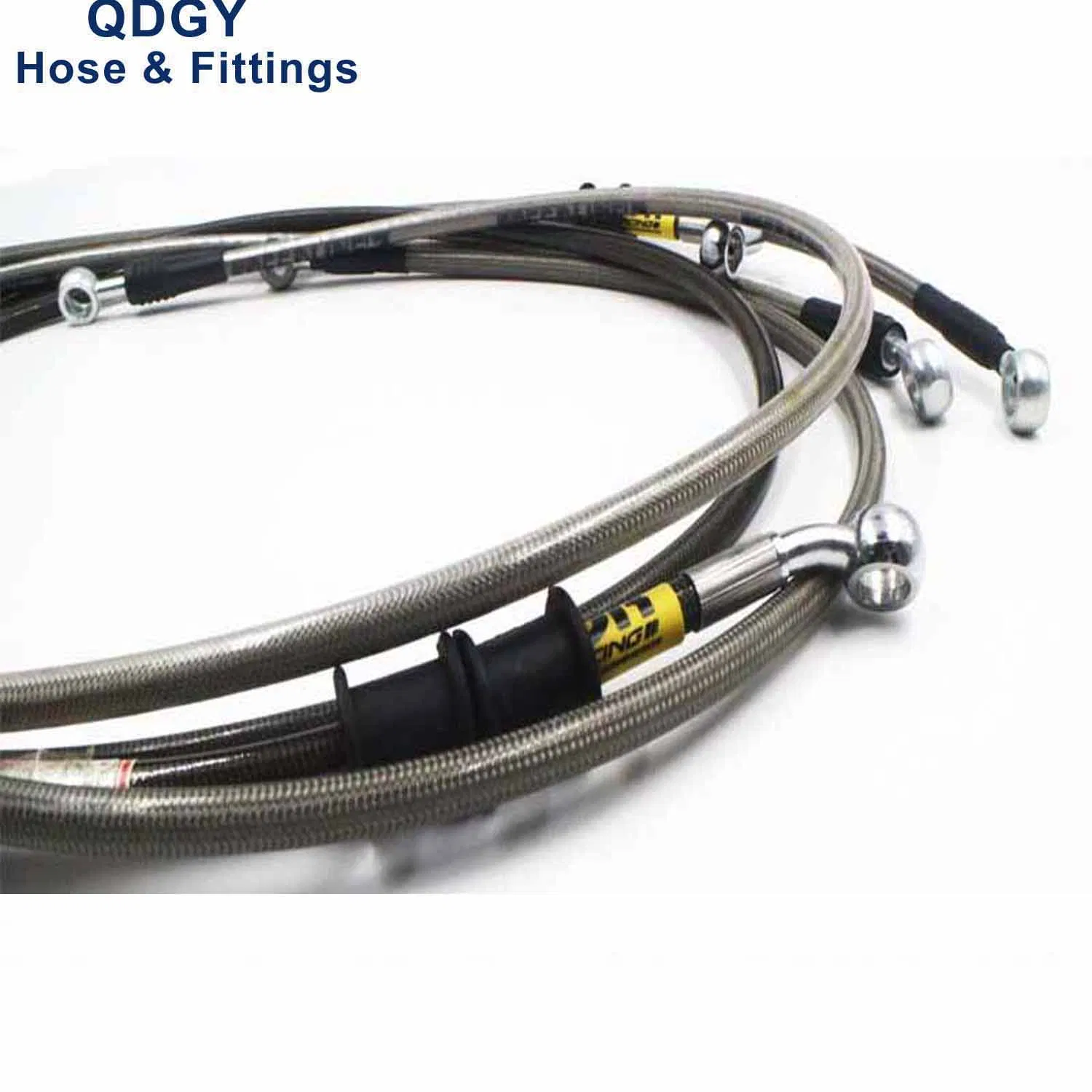

Universal Scooter AN3 ATV Moto Motorcycle Brake Hose - Dirt Bike Braided Steel Hydraulic Reinforce Brake Line Clutch Oil Tube Pipe.

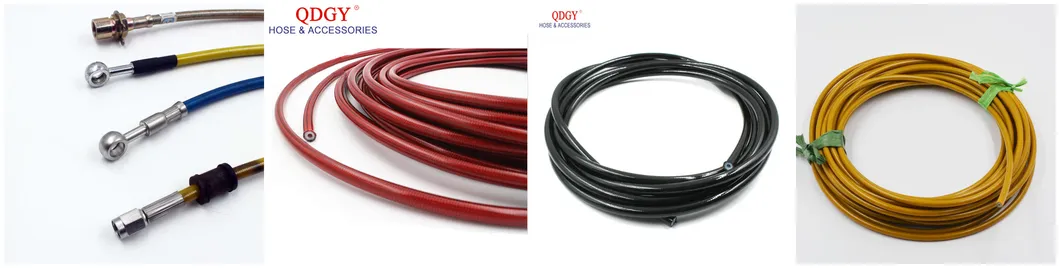

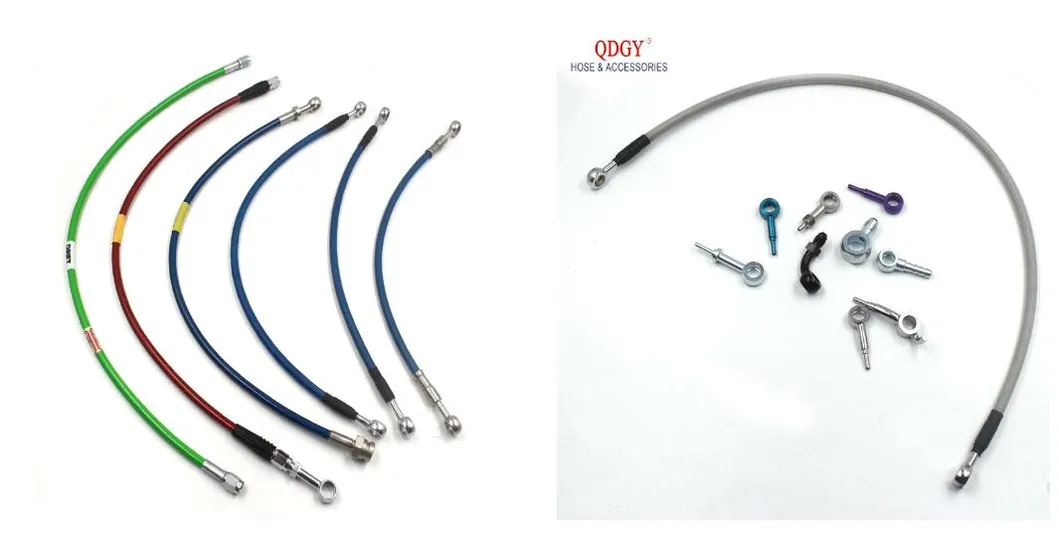

Our stainless steel braided brake lines are compatible with all brake fluids and are D.O.T. approved for street applications. Each brake hose assembly is tested to 3,000 PSI to ensure maximum safety. Available colors include black, silver, red, or blue.

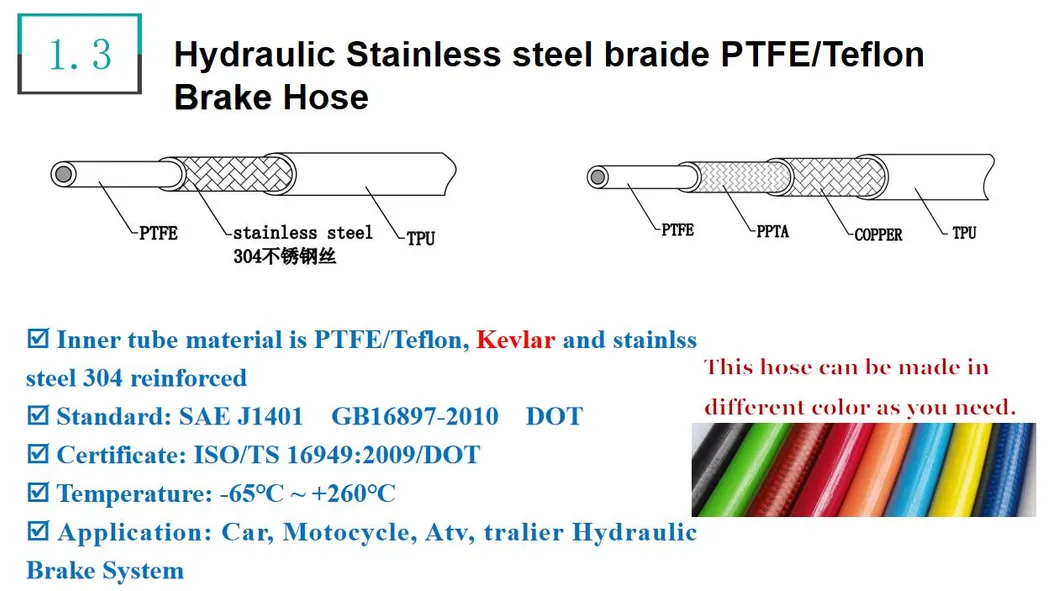

| Layer Component | Material Specification |
|---|---|
| Inner Layer | PTFE Teflon Stainless steel braided brake hose Line Assembly |
| Enhancement Layer | Stainless steel wire braid (AISI Steel 304, 316) |
| Outer Layer | PVC, PU (Black, Red, Blue, Yellow, Purple, Clear, Gray, Orange, etc.) |
| Temperature Range | −65ºC ~ +260ºC |
| Performance | High/low temperature resistance, acid/alkali resistance, anti-friction, non-aging |
| Inch | Spec (MM) | I.D (MM) | O.D (MM) | Burst Pressure (PSI) |
|---|---|---|---|---|
| 1/8 | 3.2 × 6.5 | 3.30±0.20 | 6.50±0.30 | 12000 |
| 1/8 | 3.2 × 7.5 | 3.30±0.20 | 7.50±0.30 | 12000 |
| 3/16 | 4.8 × 8.0 | 4.80±0.20 | 8.00±0.30 | 12000 |
| 3/16 | 4.8 × 9.0 | 4.80±0.20 | 9.00±0.50 | 12000 |
