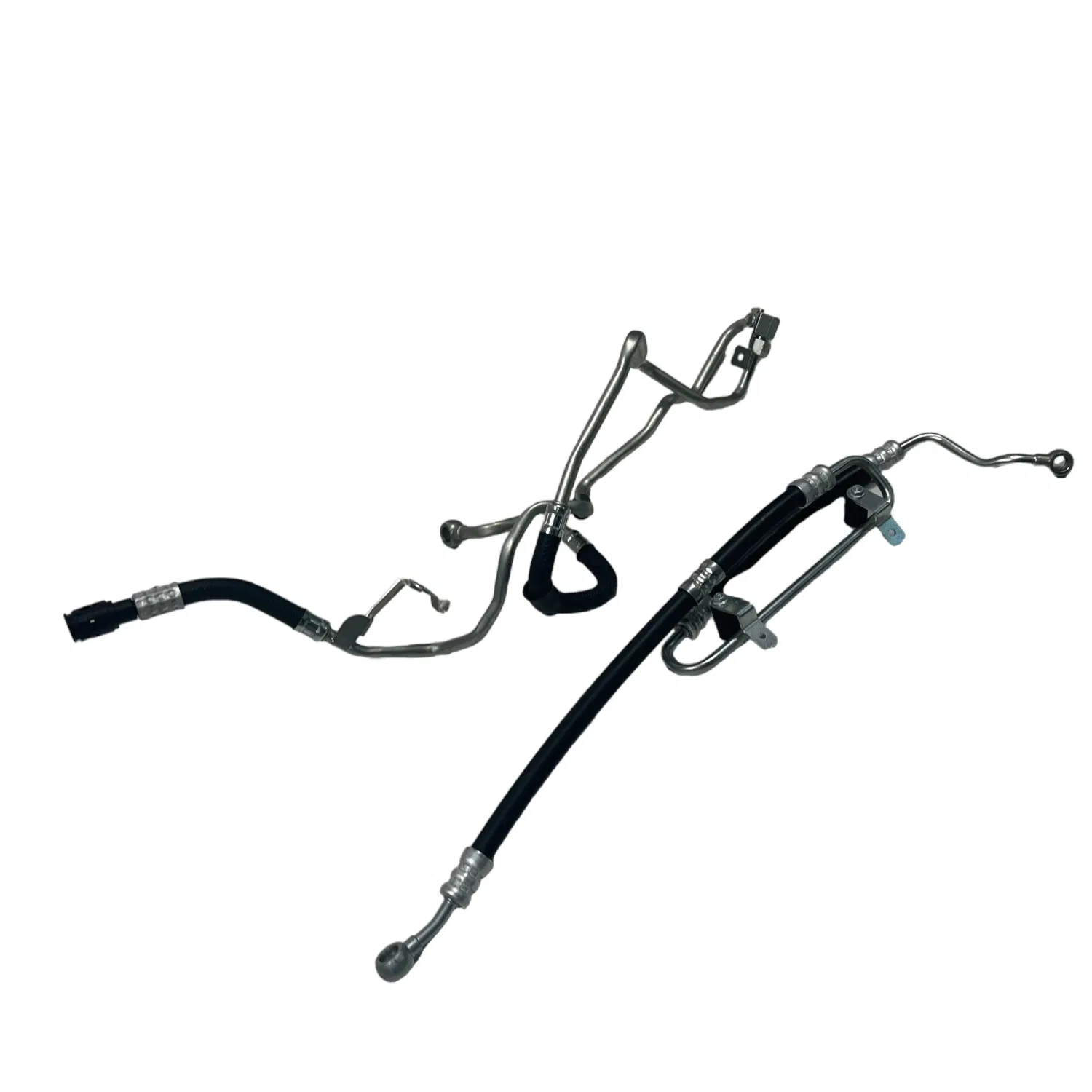

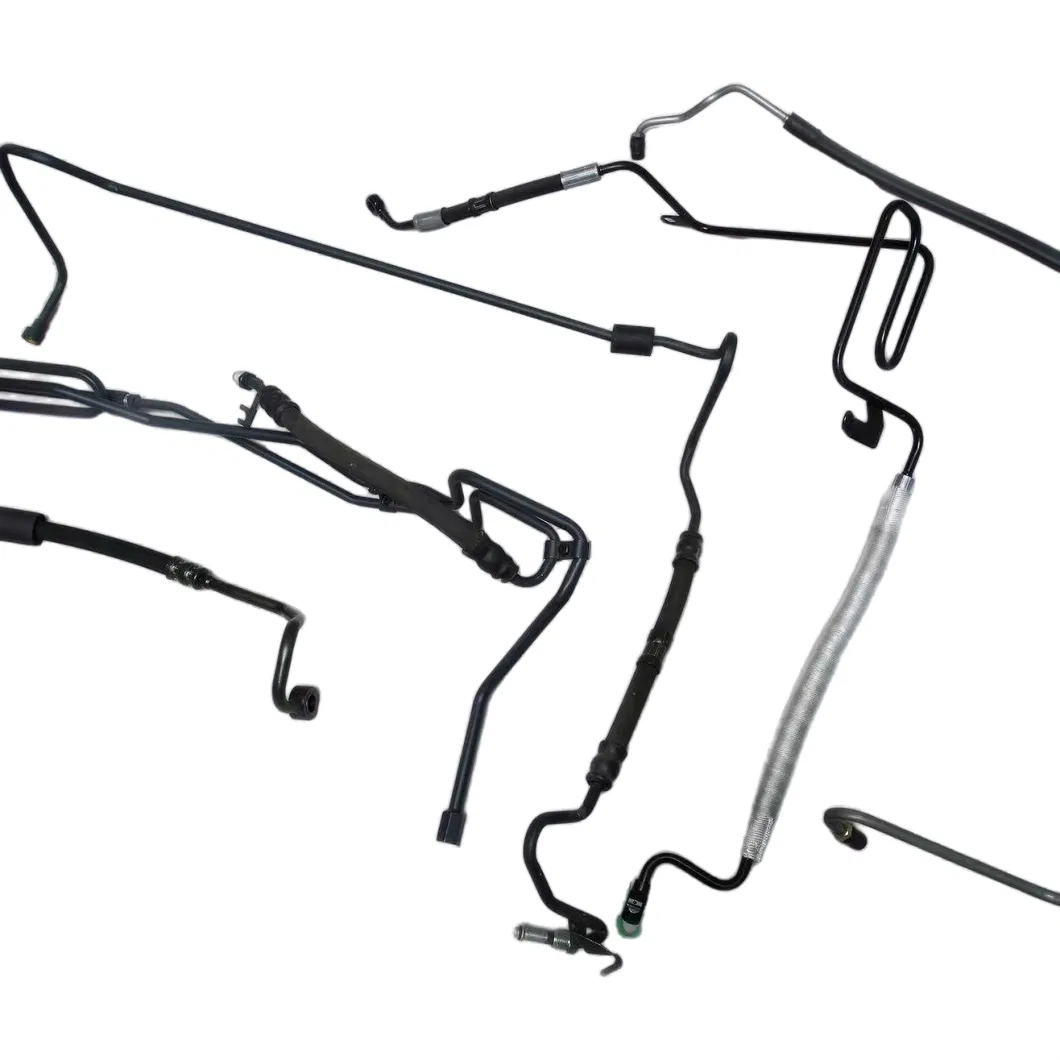

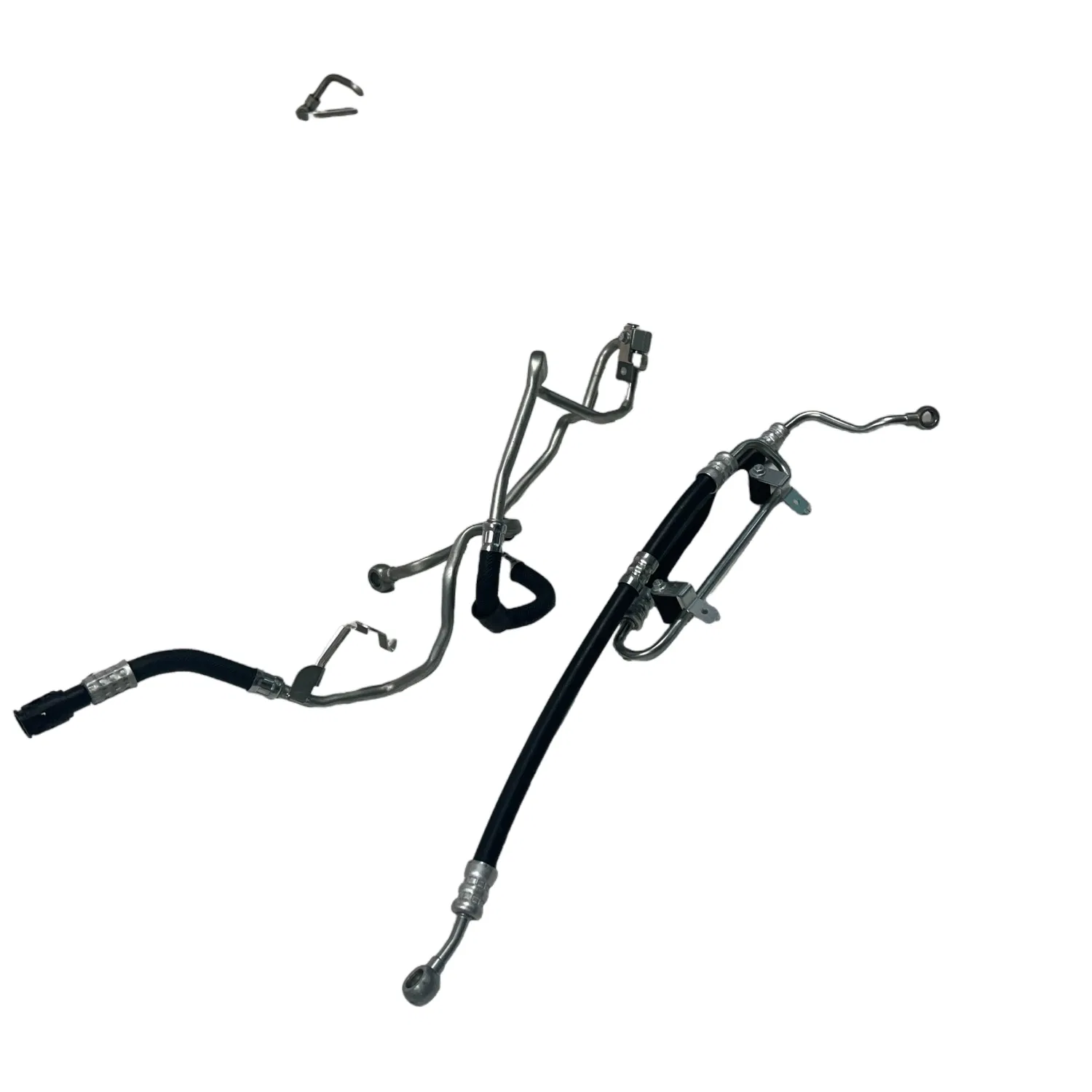

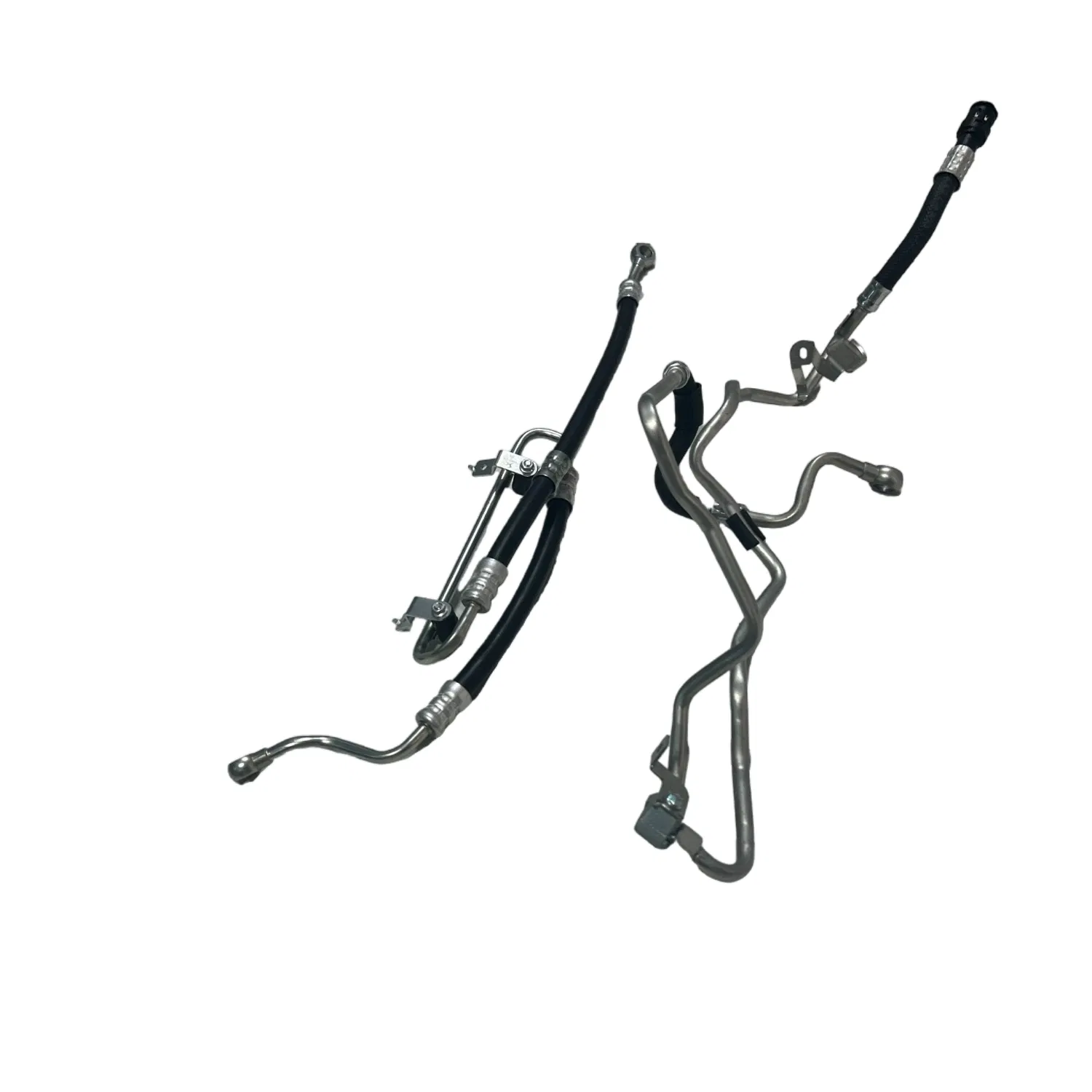

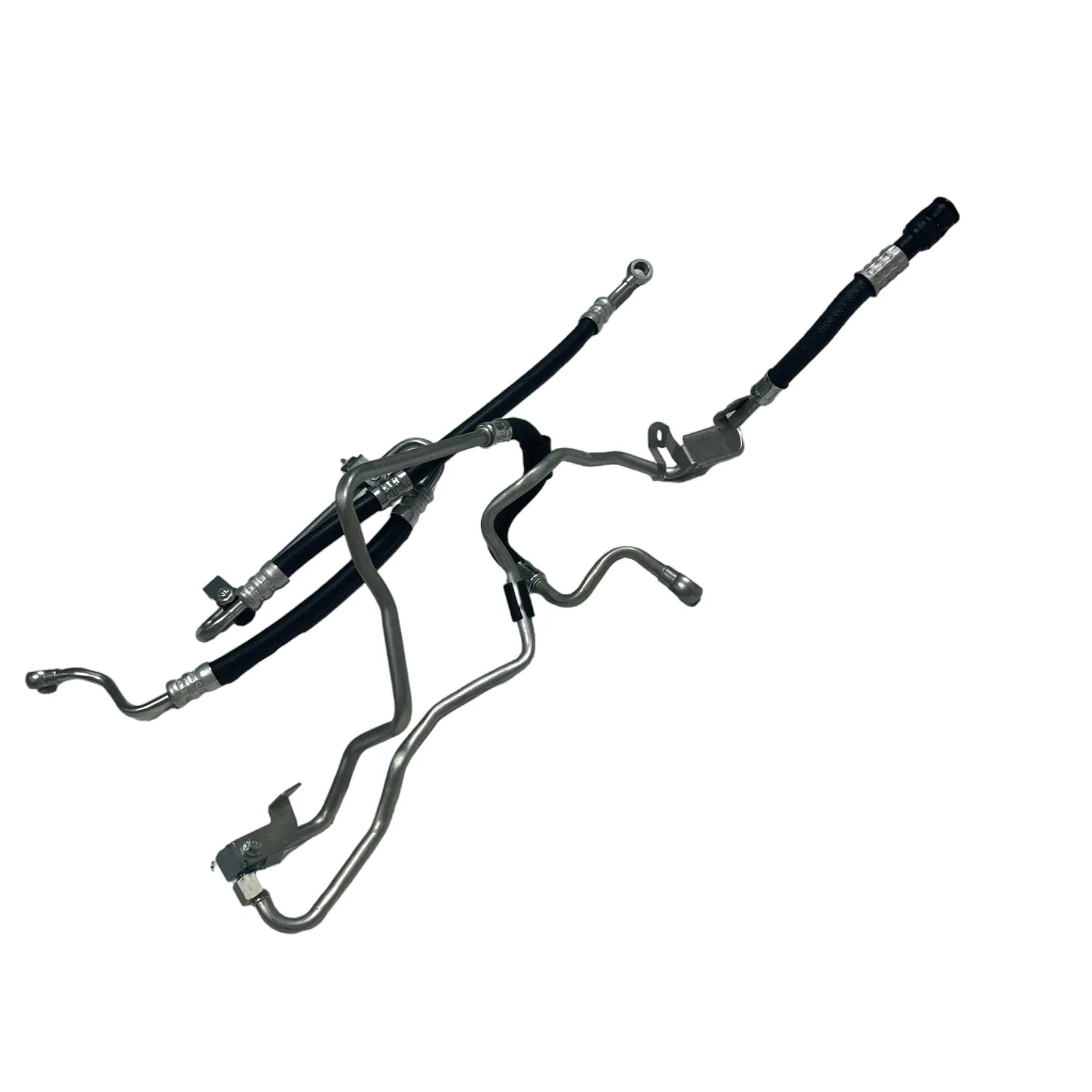

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Constructed with multiple layers:
- Synthetic rubber or thermoplastic inner tube resistant to hydraulic fluid degradation.
- Reinforcement layers (braided steel wire, textile mesh, or spiral-wound fibers) for pressure containment.
- Weather-resistant outer cover (EPDM or CR rubber) to protect against abrasion, ozone, and environmental damage.
Two primary types:
1. High-Pressure Supply Hoses - Connect the pump to the steering gear.
2. Low-Pressure Return Hoses - Direct excess fluid back to the reservoir.
| Parameter Name | Description/Value | Remark | Parameter Name | Description/Value |
|---|---|---|---|---|
| Material structure | Inner: NBR/HNBR; Reinforcement: Fiber/Wire; Cover: Polyurethane | High temp/pressure resistance | Length | 300 mm ~ 1500 mm (customizable) |
| Inside diameter (ID) | 8 mm, 10 mm, 12 mm | Select by vehicle type | Bending radius | 50 mm ~ 100 mm |
| Outside diameter (OD) | 14 mm, 16 mm, 18 mm | Tolerance ± 0.5mm | Joint type | SAE 45°, DIN 24°, JIS metric |
| Working pressure | 10 MPa ~ 20 MPa | Peak up to 30MPa | Compatible fluid | ATF, PSF (Dexron/ISO 7308) |
| Burst pressure | ≥60 MPa | Safety factor ≥3x | Certification | ISO 11425, SAE J188 |

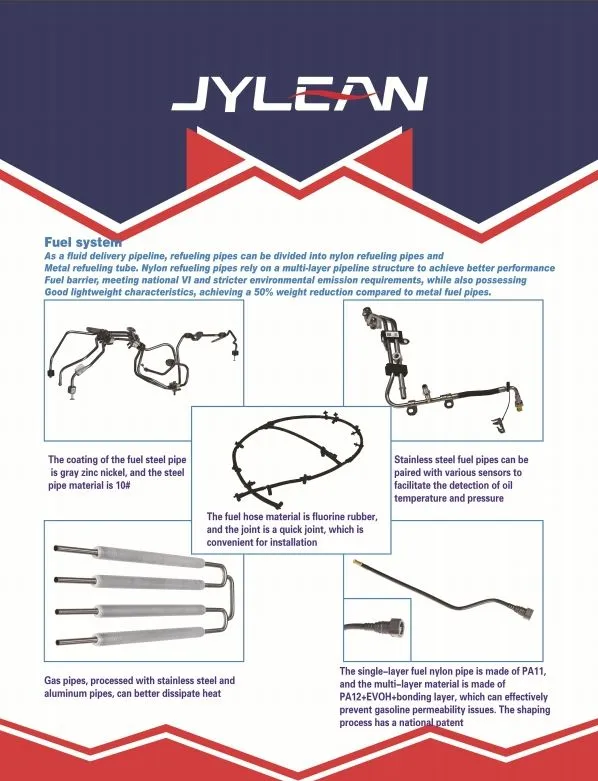

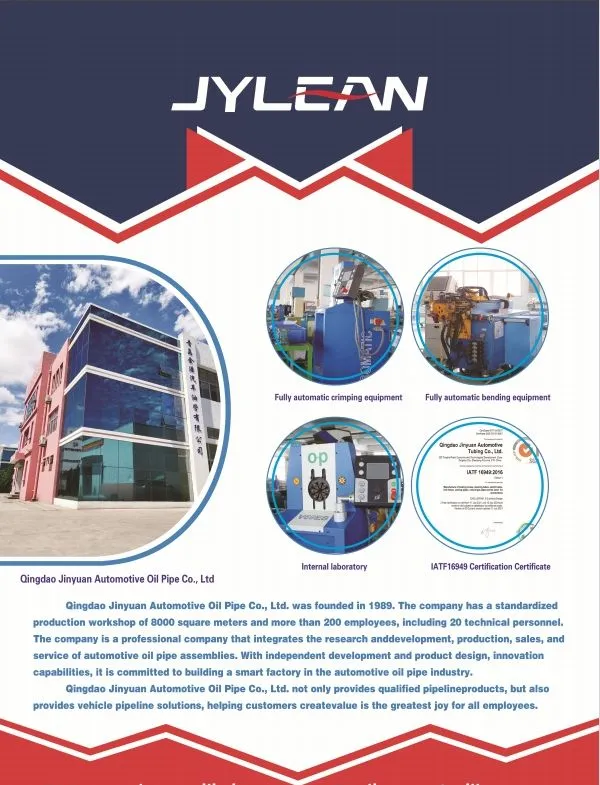

Professional manufacturing integrating automotive pipe assembly research, development, and production. Products include brake pipes, clutch pipes, power steering pipe assemblies, oil cooler pipe assemblies, and fuel pipe systems. We provide comprehensive automotive pipeline systems for electric vehicles, motorcycles, and commercial trucks, meeting strict international safety standards.
