| Package Size | Gross Weight | Quantity (Meters) | Lead Time |
|---|---|---|---|
| 51.00cm * 51.00cm * 22.00cm | 19.000kg | 1 - 1000 Meters | 40 Days |
| 1001 - 5000 Meters | 30 Days | ||
| 5001 - 10000 Meters | 25 Days | ||
| > 10000 Meters | To be negotiated |

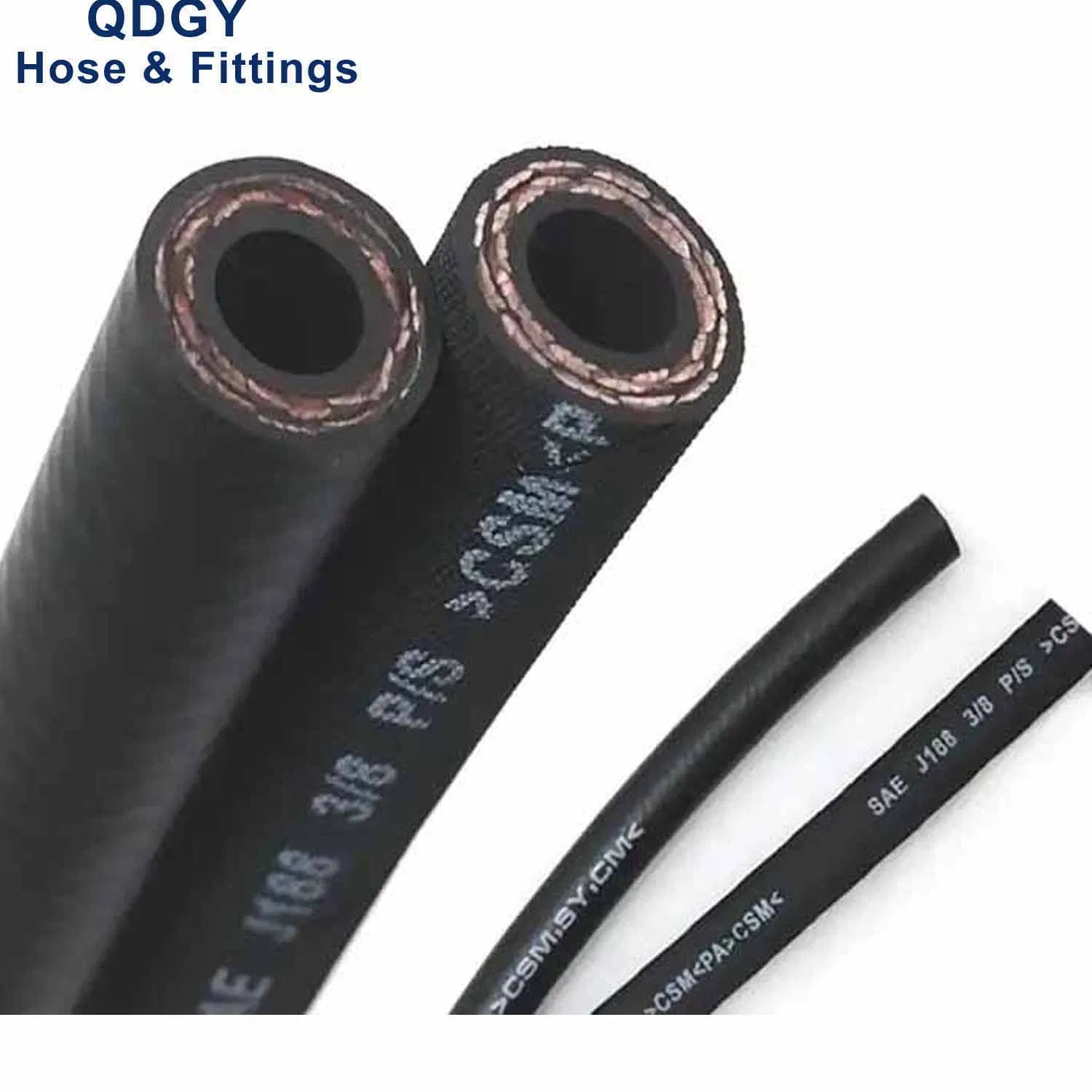

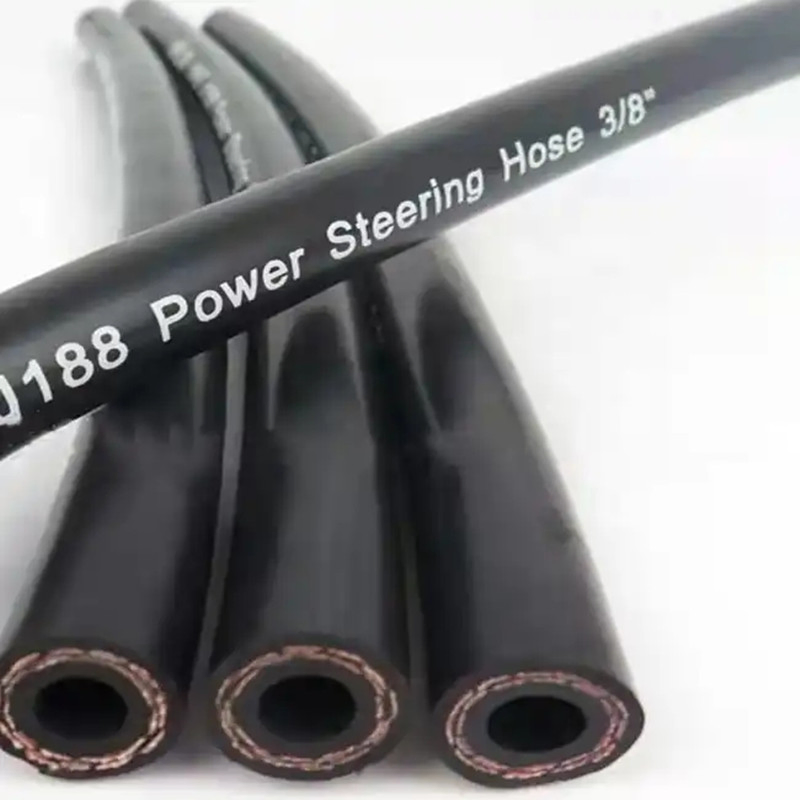

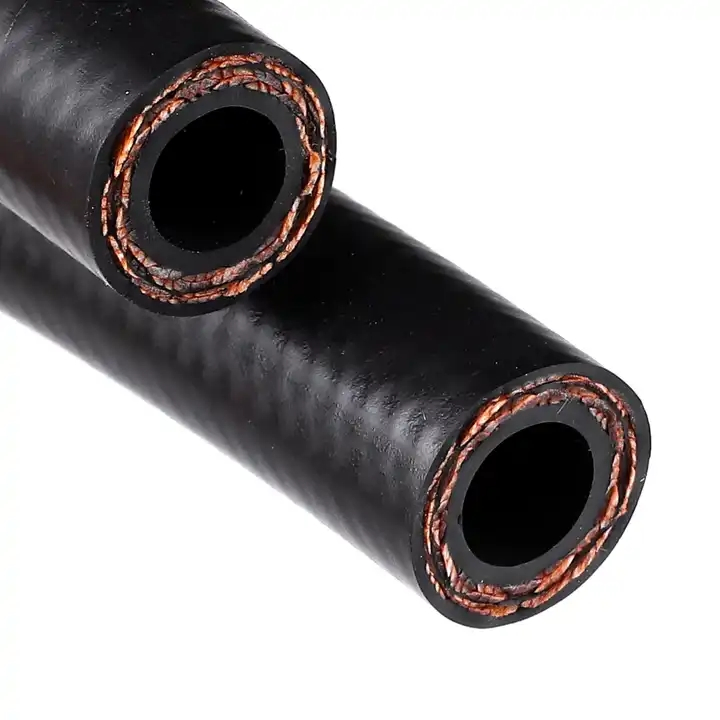

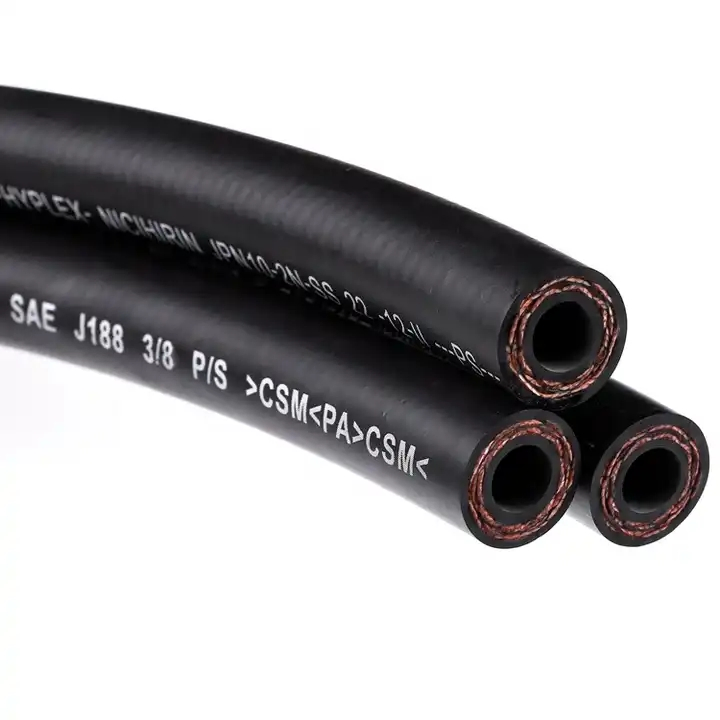

High Pressure Quality SAE J188 SAE J189 Hydraulic Automotive Power Steering Rubber Oil Pipe

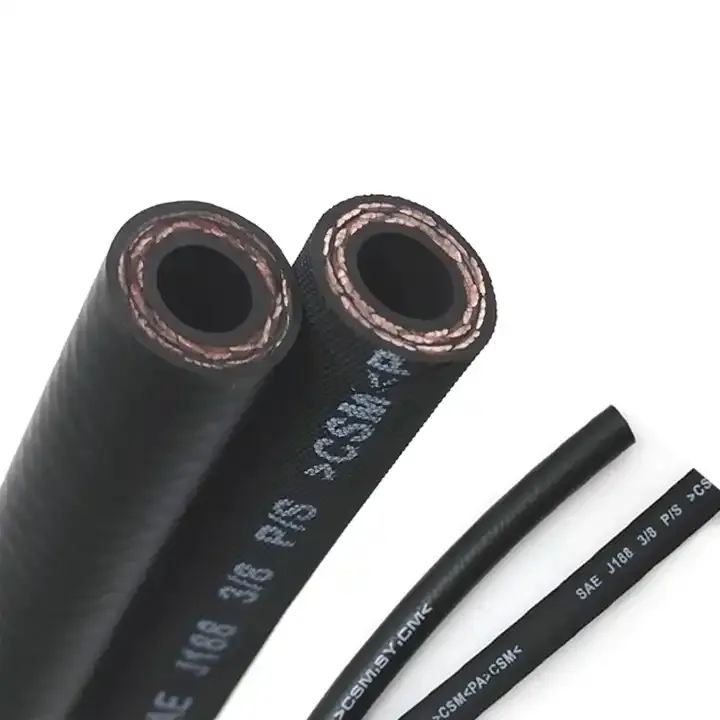

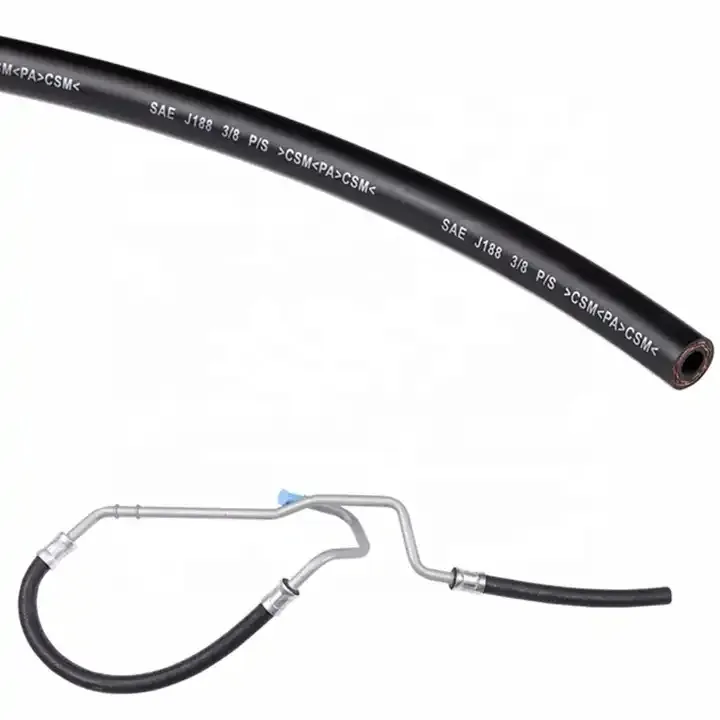

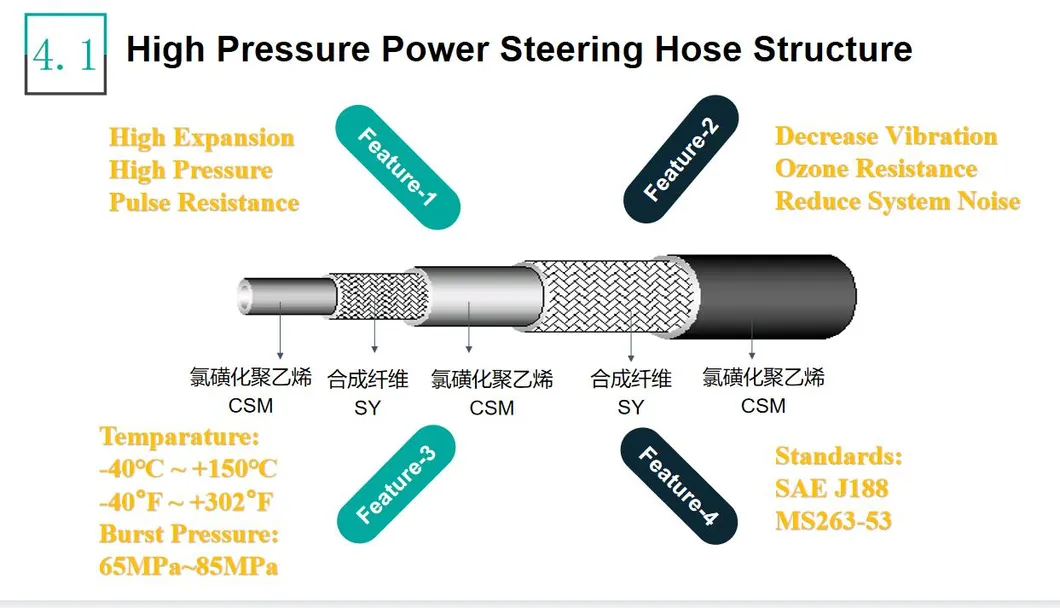

This black high-pressure power steering hose features a wrapped cover and 2 layers of braided reinforcement. It offers low volume expansion, low noise transmission, and high flexibility. Designed for both OEM and Aftermarket automotive sectors, it is ideal for the high-pressure side of power steering systems.
| Temperature Range | -40ºC ~ +150ºC |
| Inside/Outside Rubber | CSM |
| Reinforcement | PA |

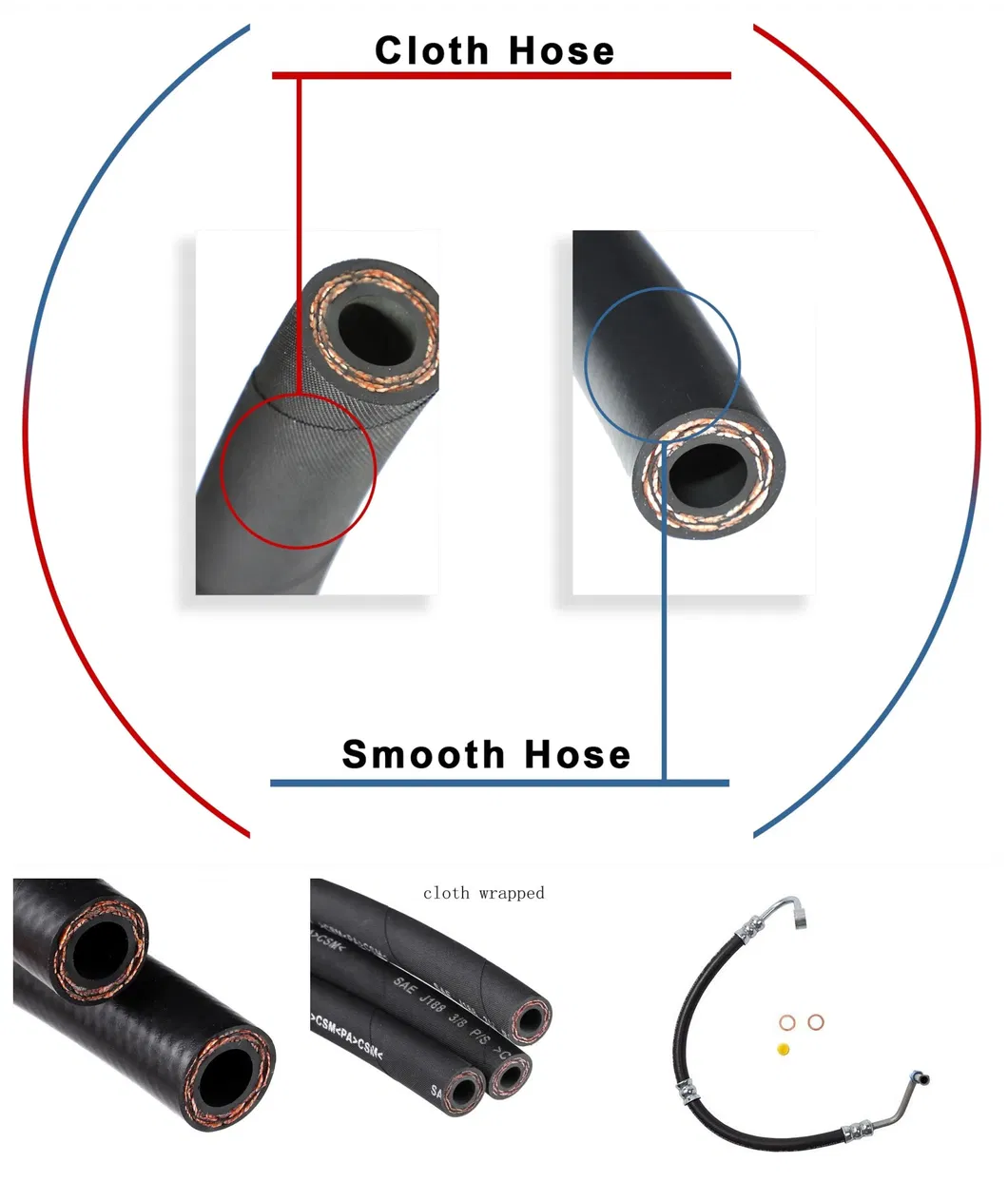

| Surface Type | Rubber or Cloth |
| SN. | Specification | I.D (MM) | O.D (MM) | Burst Pressure (Mpa) | Burst Pressure (psi) |
|---|---|---|---|---|---|
| 1/4" | 6.3x14.5 | 6.3±0.2 | 14.5±0.3 | 65~85 | 9400~12300 |
| 5/16" | 8.0x18.0 | 8.0±0.2 | 18.0±0.4 | 65~85 | 9400~12300 |
| 3/8" | 9.5x18.5 | 9.5±0.3 | 18.5±0.4 | 65~85 | 9400~12300 |
| 1/2" | 13.0x23.0 | 13.0±0.5 | 23.0±0.5 | 65~85 | 9400~12300 |
The high-pressure power steering hose is specifically engineered to handle oils, solvents, and lubricants. The CSM cover excels in resisting heat and ozone, while the steel/PA reinforcement ensures maximum working pressures up to 2500 psi.
