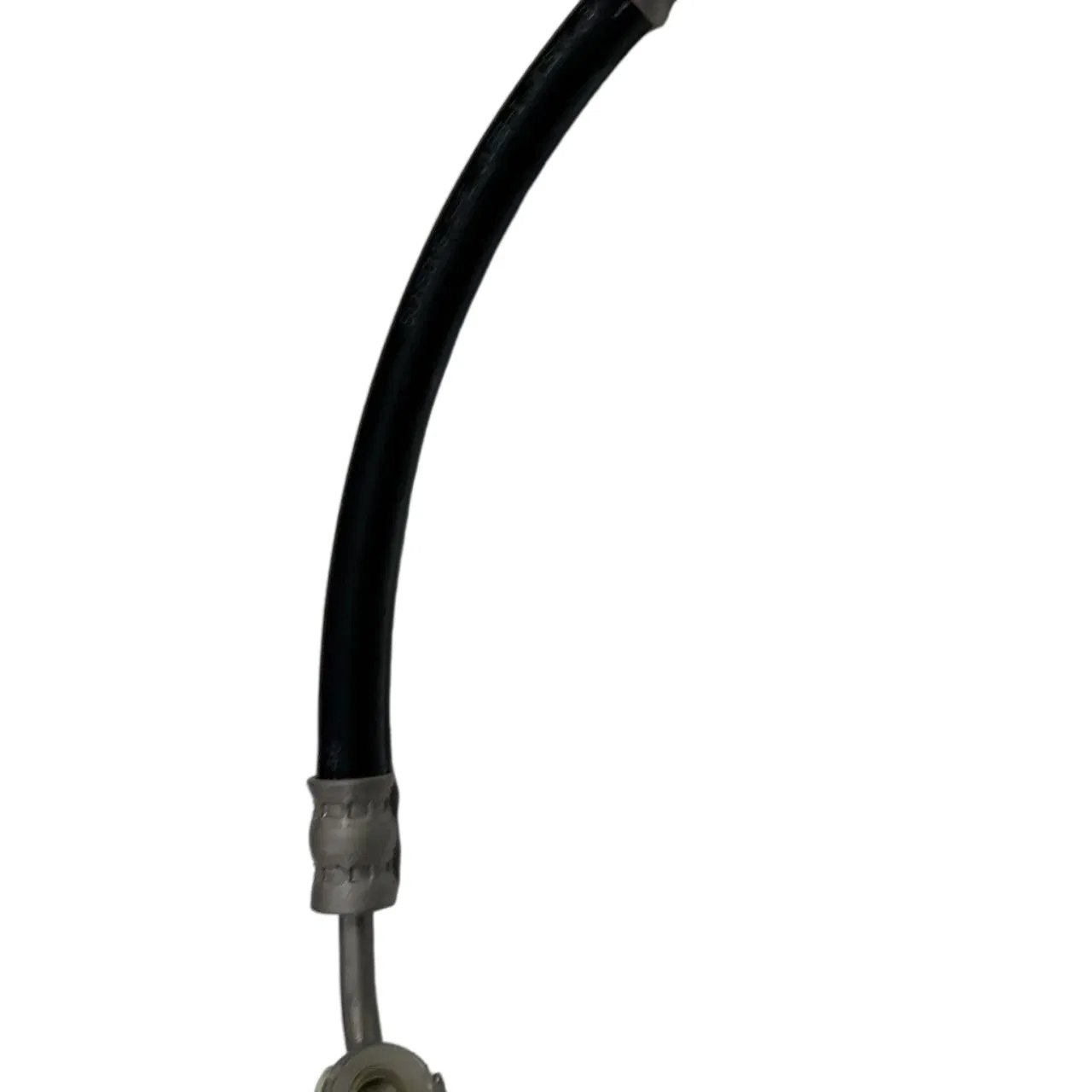

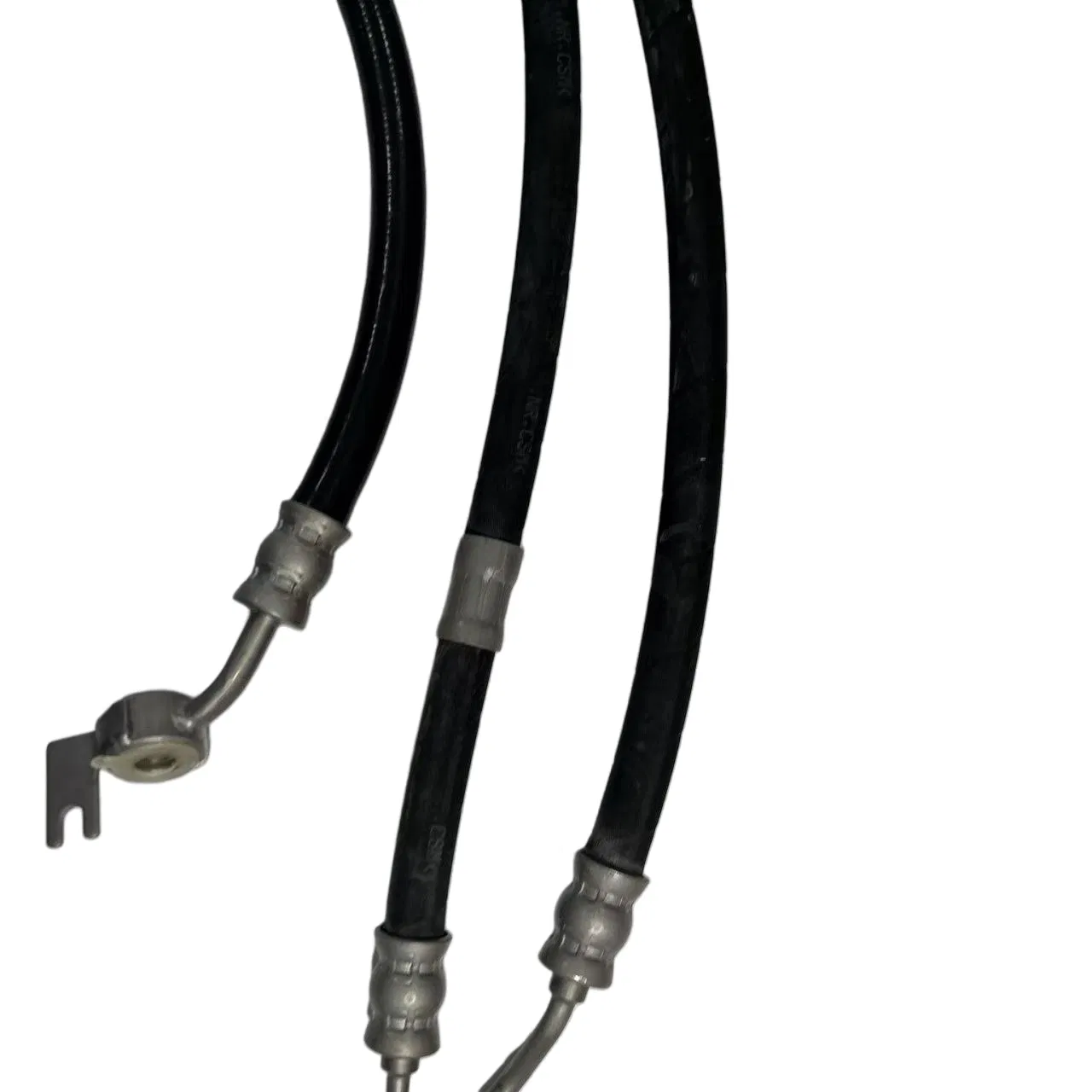

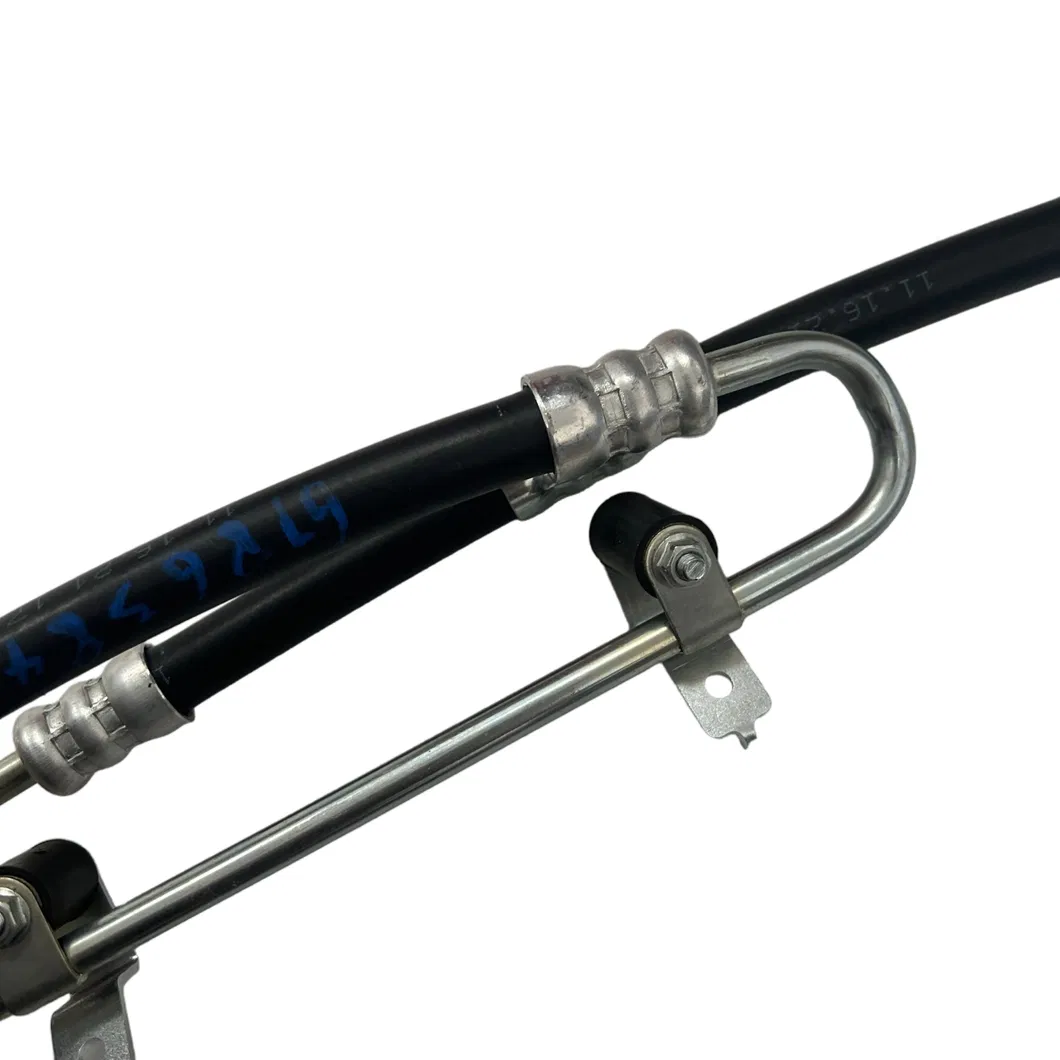

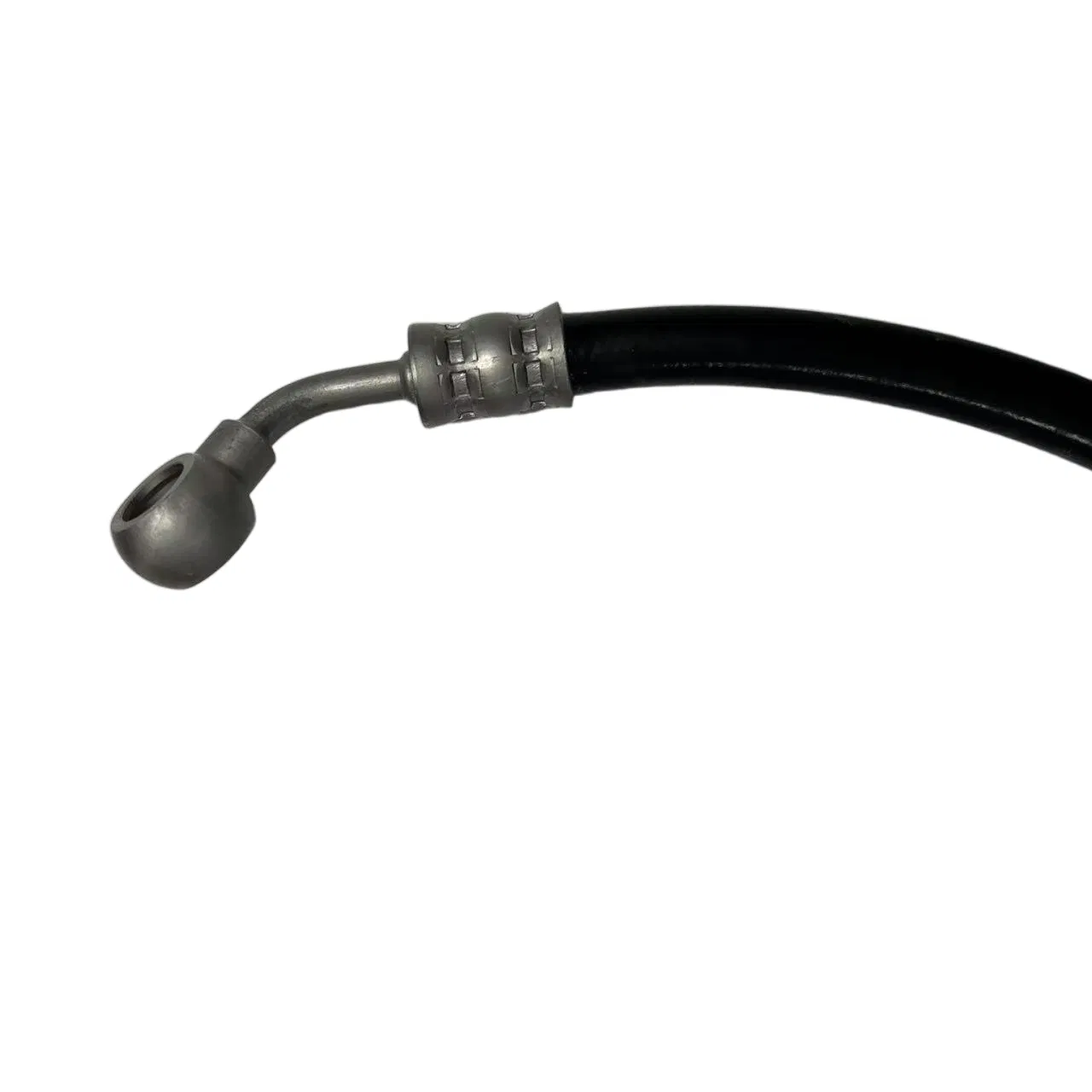

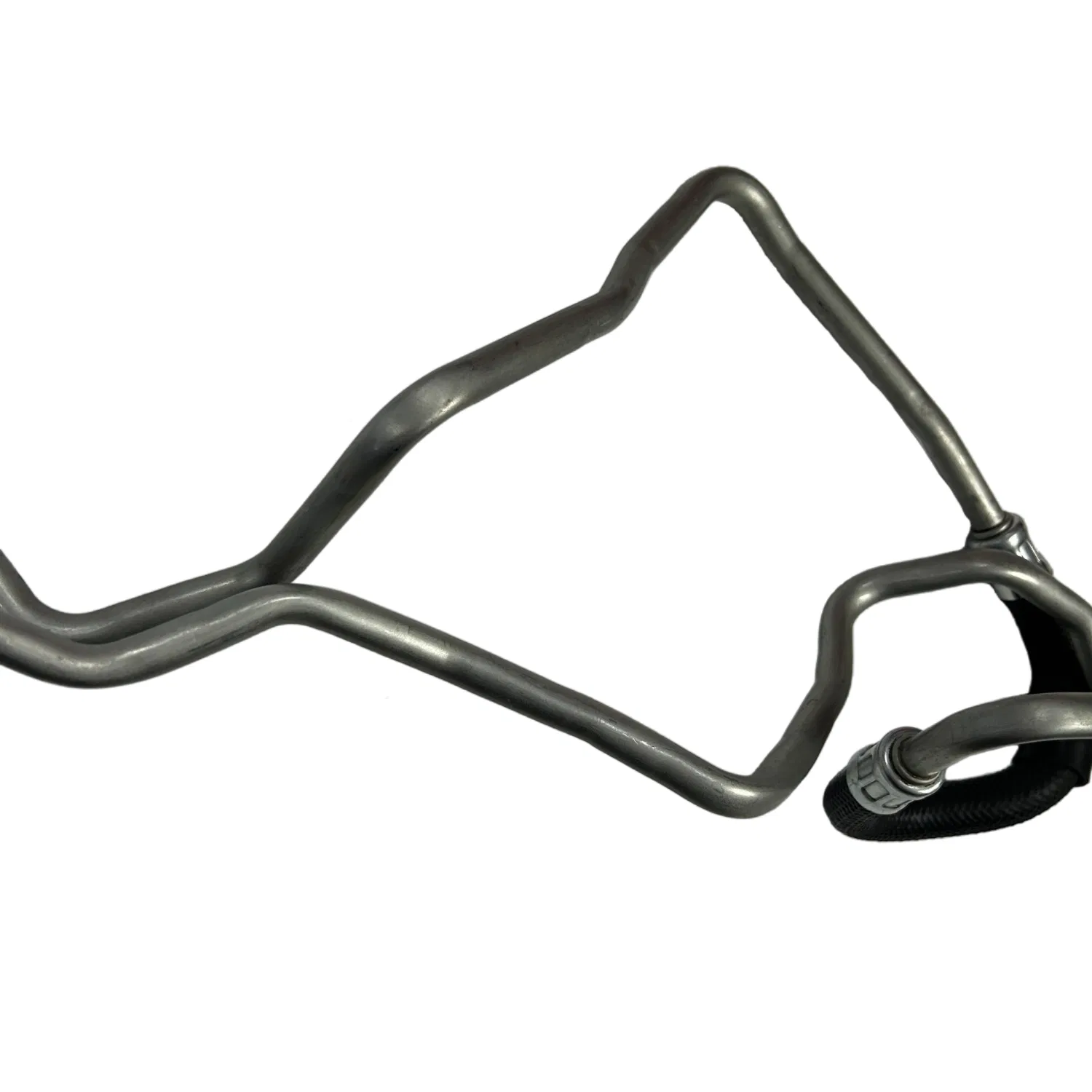

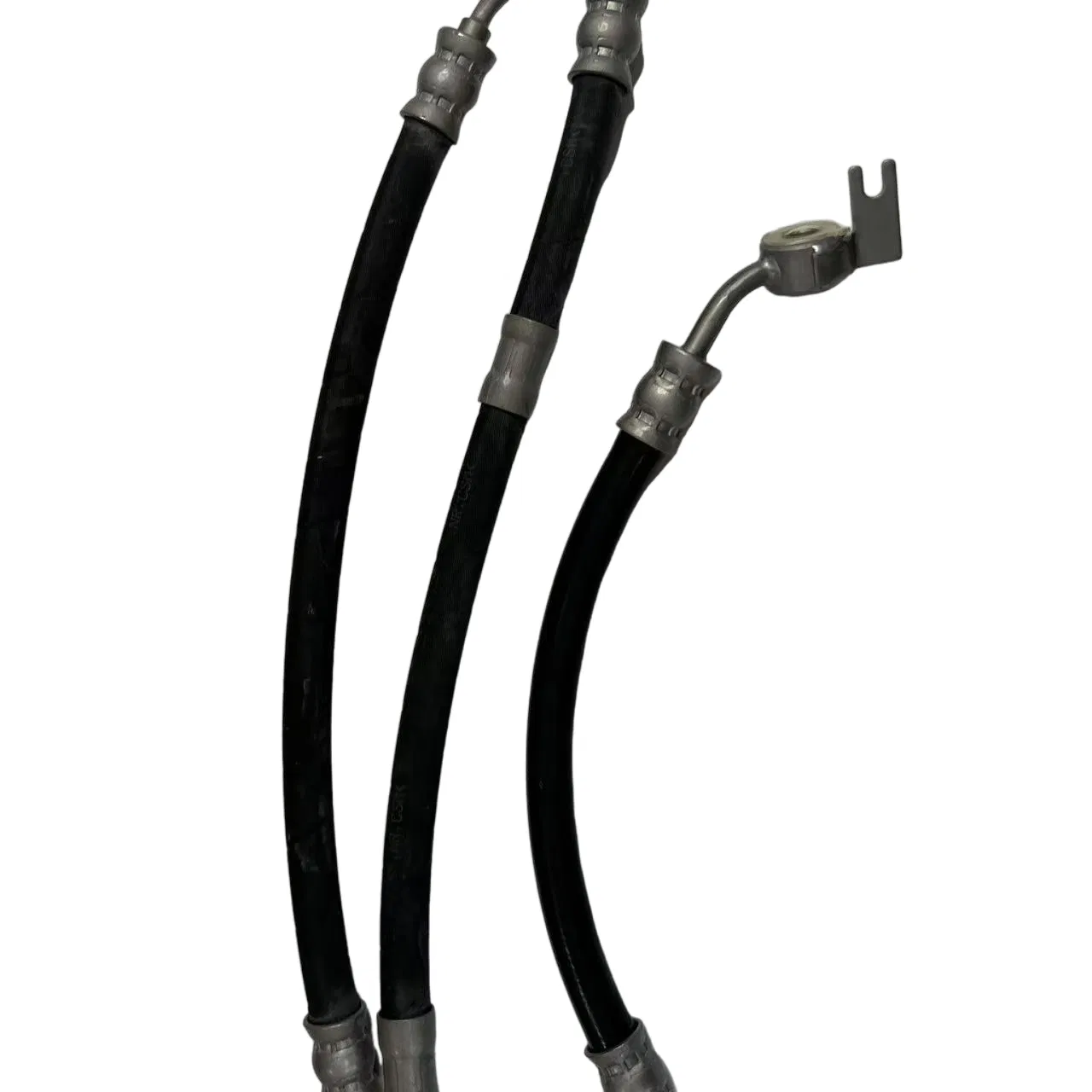

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures and extreme temperature fluctuations.
Constructed with multiple layers, these hoses feature a synthetic rubber or thermoplastic inner tube resistant to hydraulic fluid degradation, reinforcement layers (braided steel wire or textile mesh) for pressure containment, and a weather-resistant outer cover to protect against abrasion and ozone damage.
| Parameter Name | Description / Value | Remark |
|---|---|---|
| Material Structure | Inner: NBR/HNBR; Reinforcement: High strength fiber/wire; Cover: Polyurethane | High temp & corrosion resistance |
| Inside Diameter (ID) | 8 mm, 10 mm, 12 mm | Select by vehicle type |
| Working Pressure | 10 MPa ~ 20 MPa | Peak pressure up to 30MPa |
| Burst Pressure | ≥60 MPa | Safety factor ≥3x |
| Temperature Range | -40°C ~ +120°C | Short tolerance 135°C |
| Compatible Fluid | ATF, PSF | Meets Dexron / ISO 7308 |
| Life Cycle | ≥5 million pulse tests | Simulates 10 years of service |

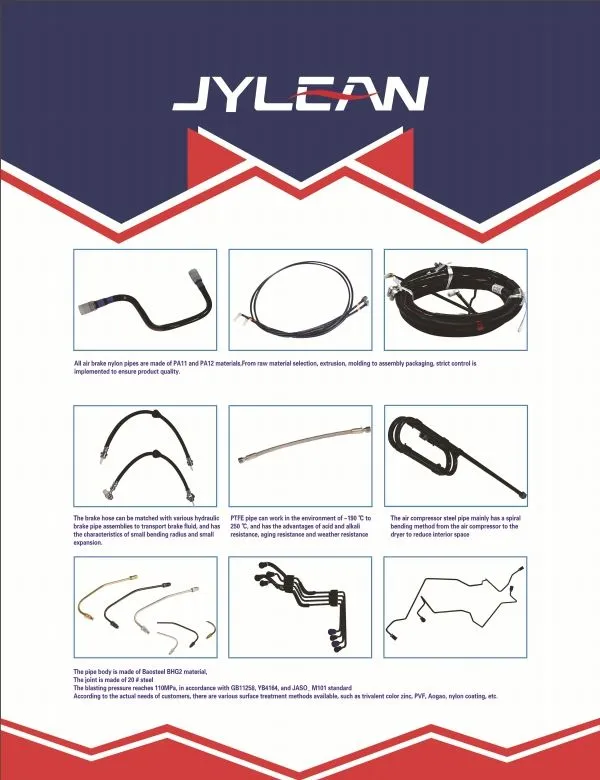

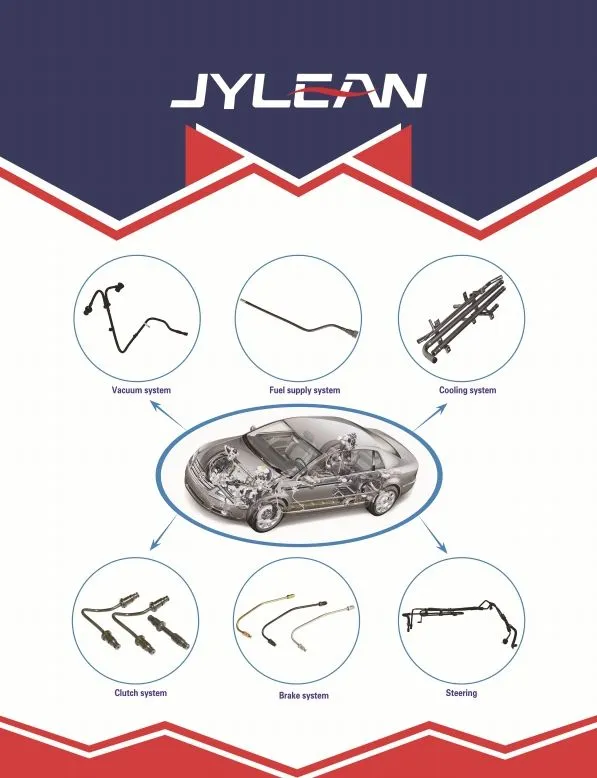

Our production pipelines cover a comprehensive range of automotive systems, ensuring high performance across various vehicle types including electric vehicles, motorcycles, light trucks, and heavy trucks:
