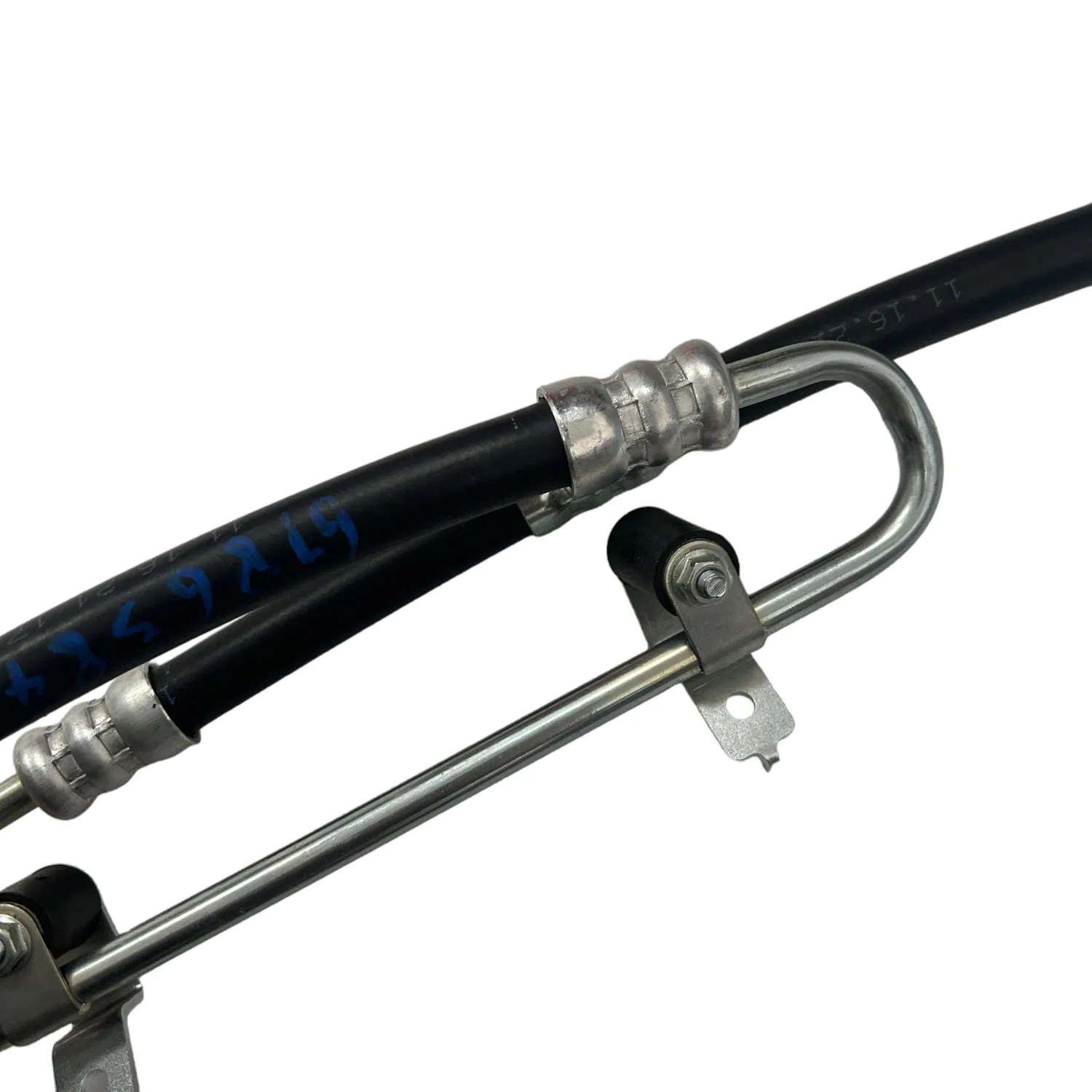

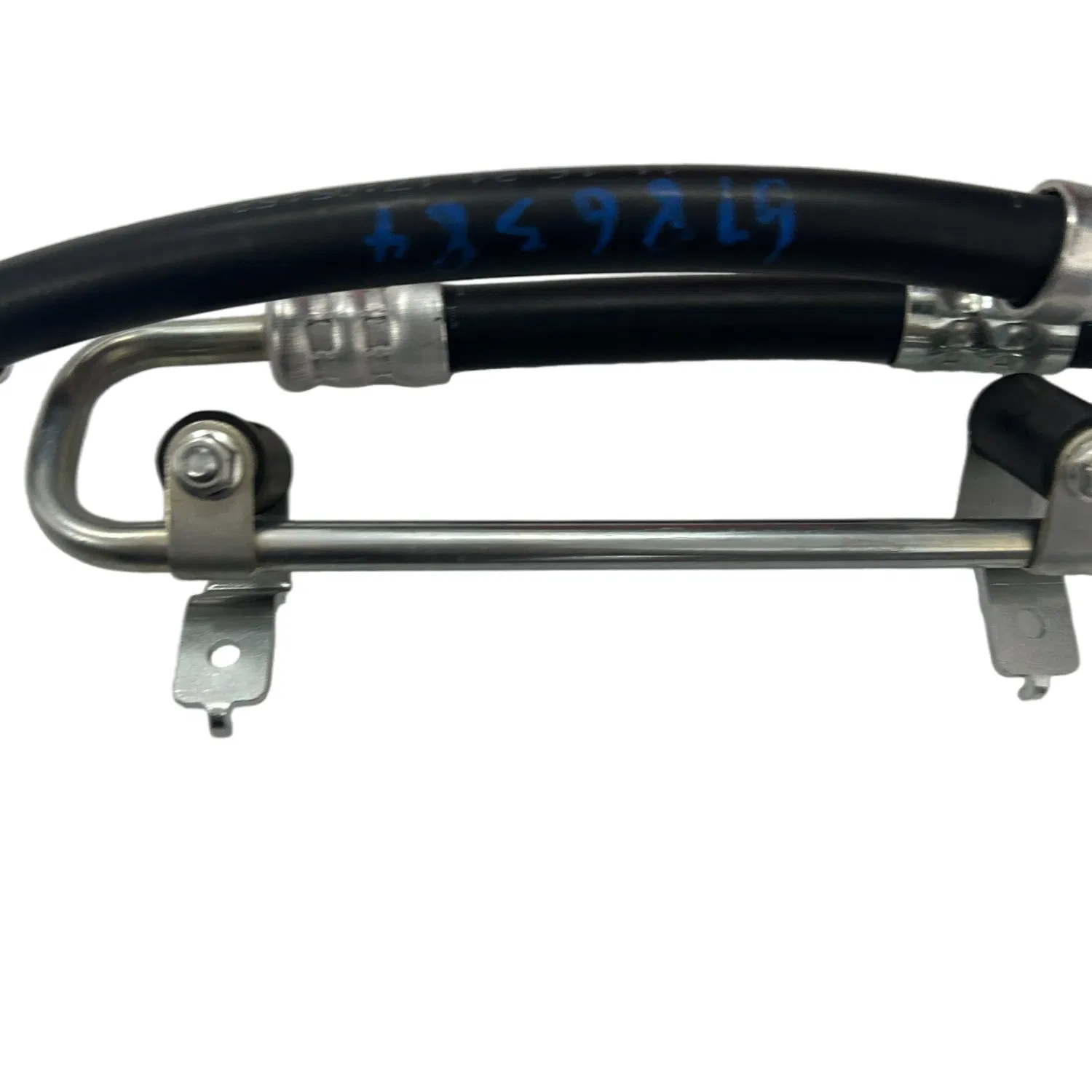

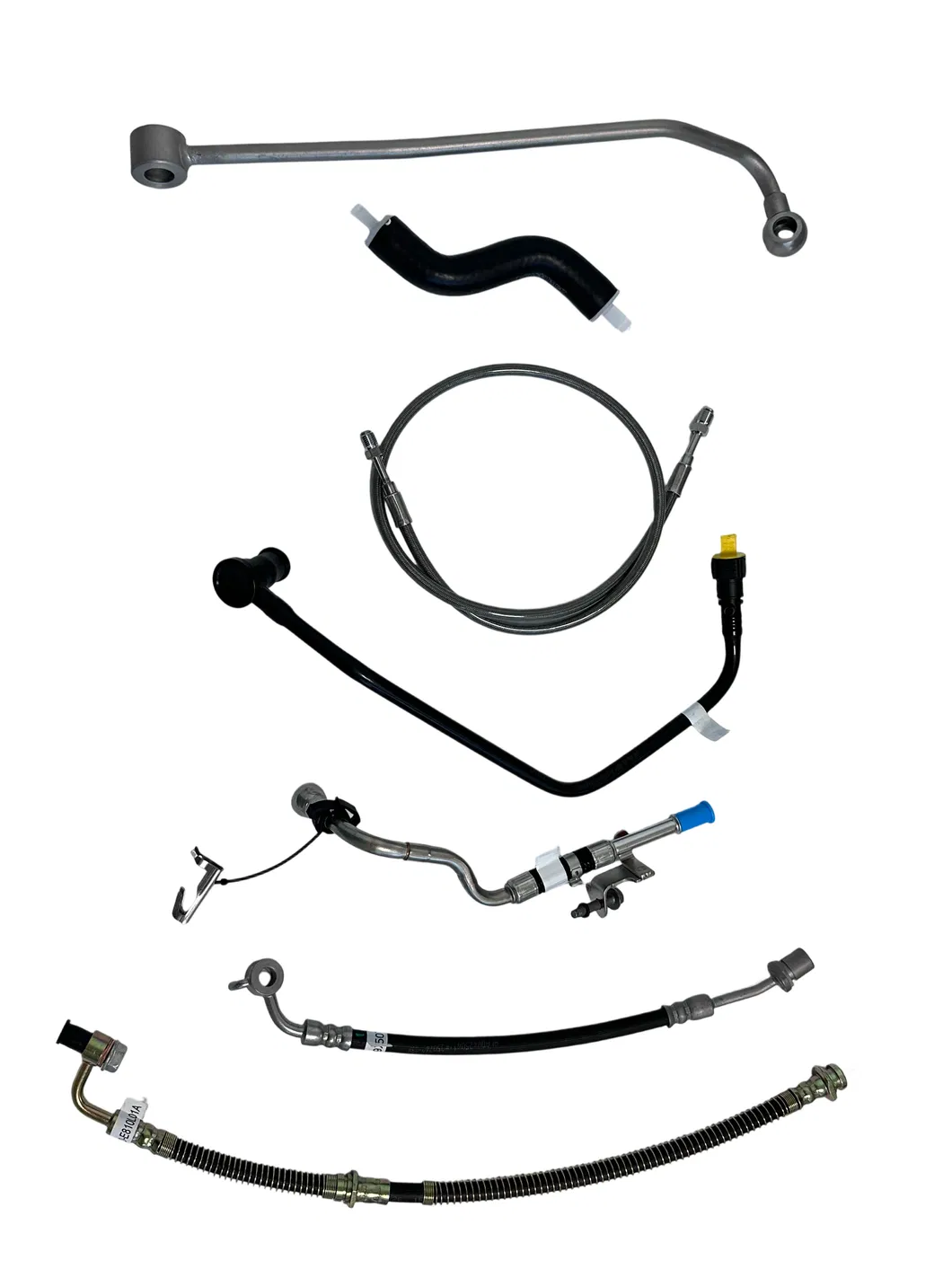

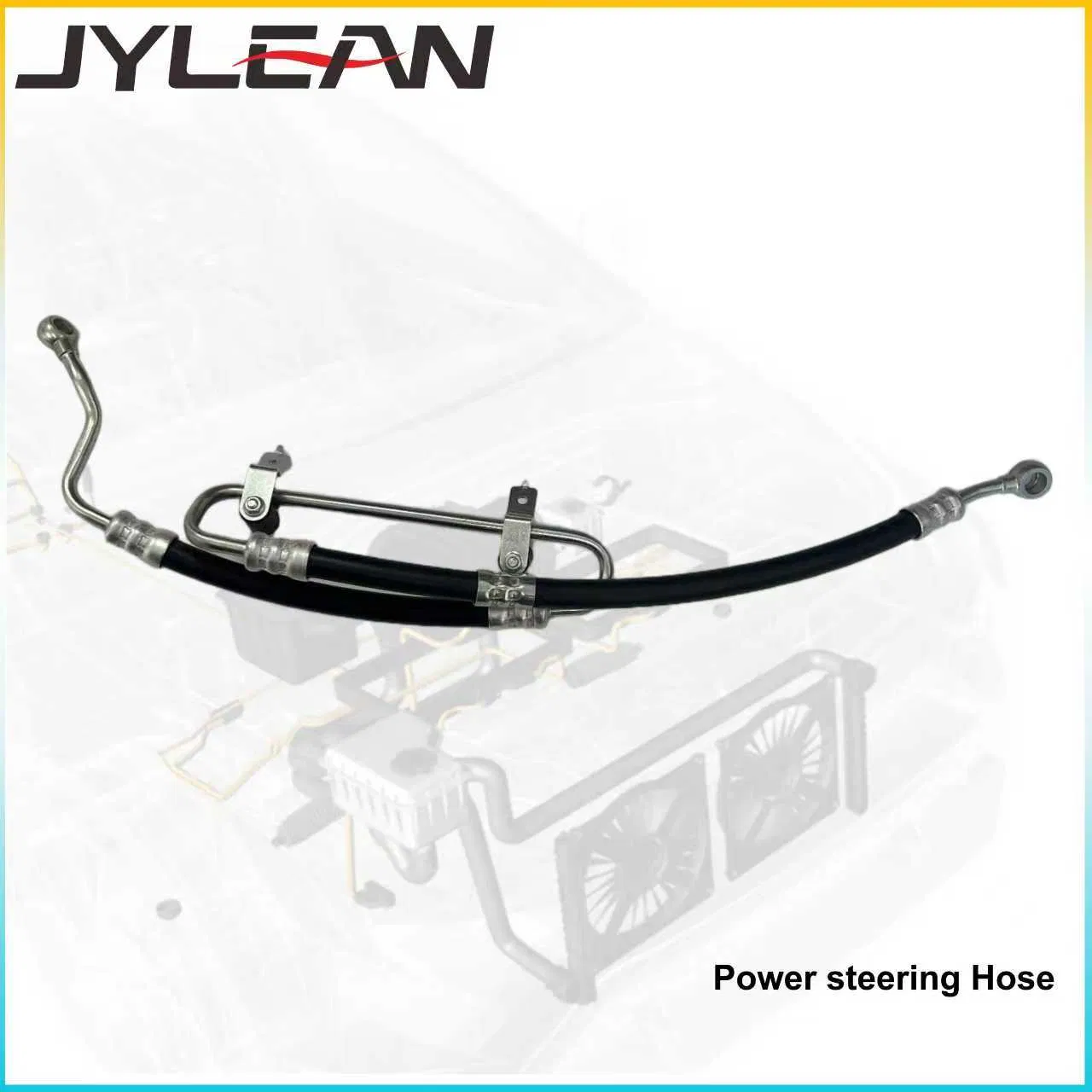

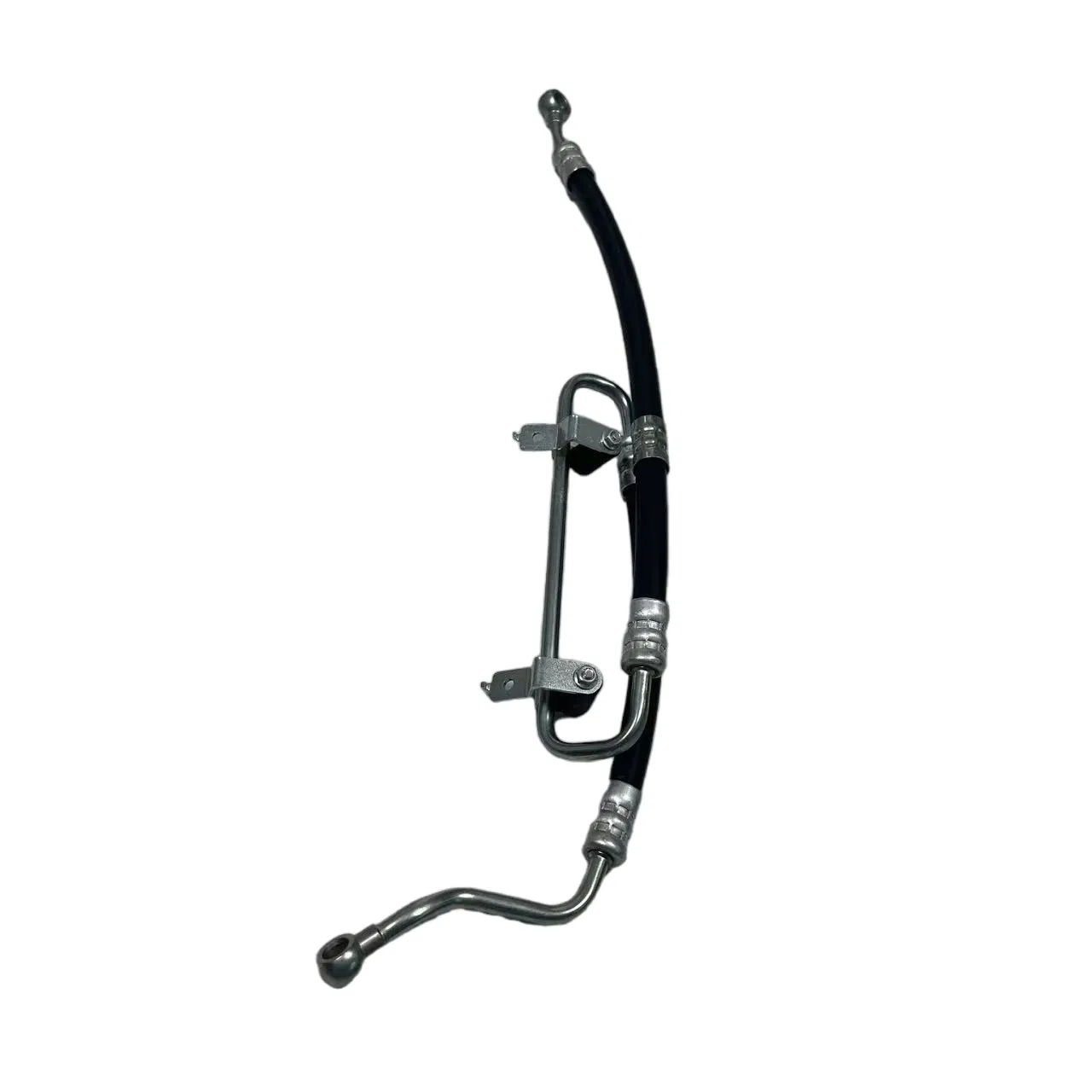

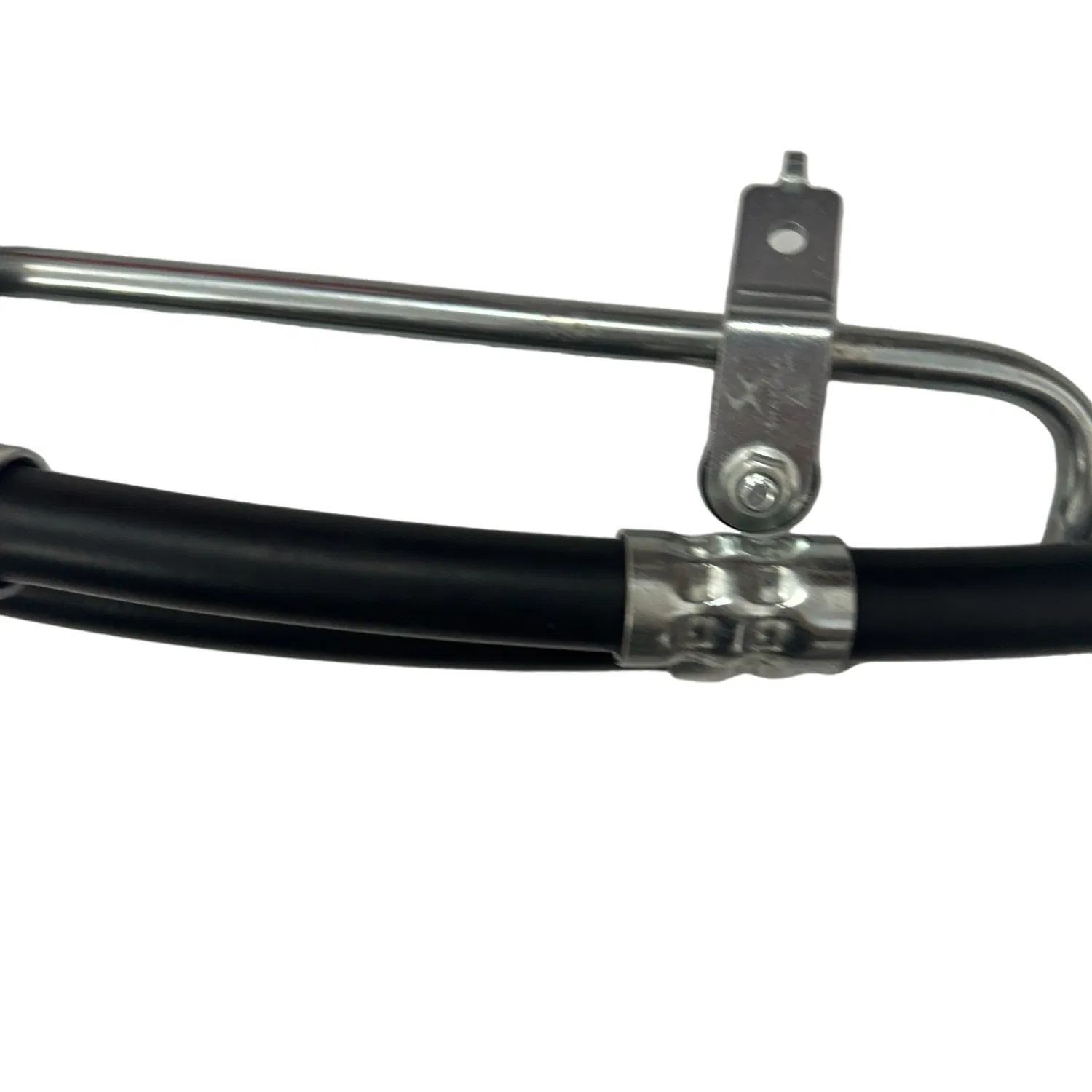

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Constructed with multiple layers:
- Synthetic rubber or thermoplastic inner tube resistant to hydraulic fluid degradation.
- Reinforcement layers (braided steel wire, textile mesh, or spiral-wound fibers) for pressure containment.
- Weather-resistant outer cover (EPDM or CR rubber) to protect against abrasion and environmental damage.
| Parameter Name | Value / Description | Parameter Name | Value / Description |
| Inside Diameter | 8 mm, 10 mm, 12 mm | Length | 300 mm ~ 1500 mm |
| Working Pressure | 10 MPa ~ 20 MPa | Burst Pressure | ≥60 MPa |
| Temperature Range | -40°C ~ +120°C | Compatible Fluid | ATF, PSF |
| Certification | ISO 11425, SAE J188 | Life Cycle | ≥5 million pulse tests |
