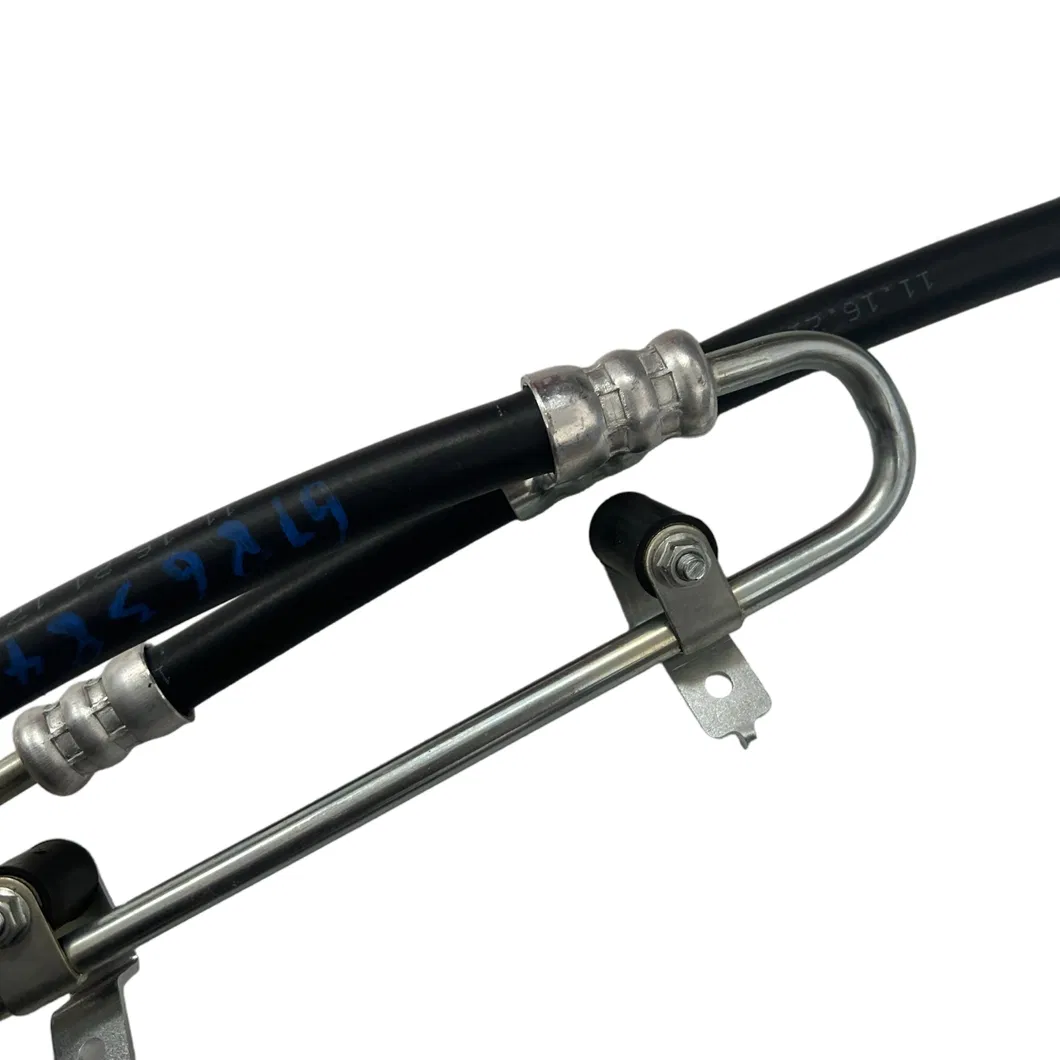

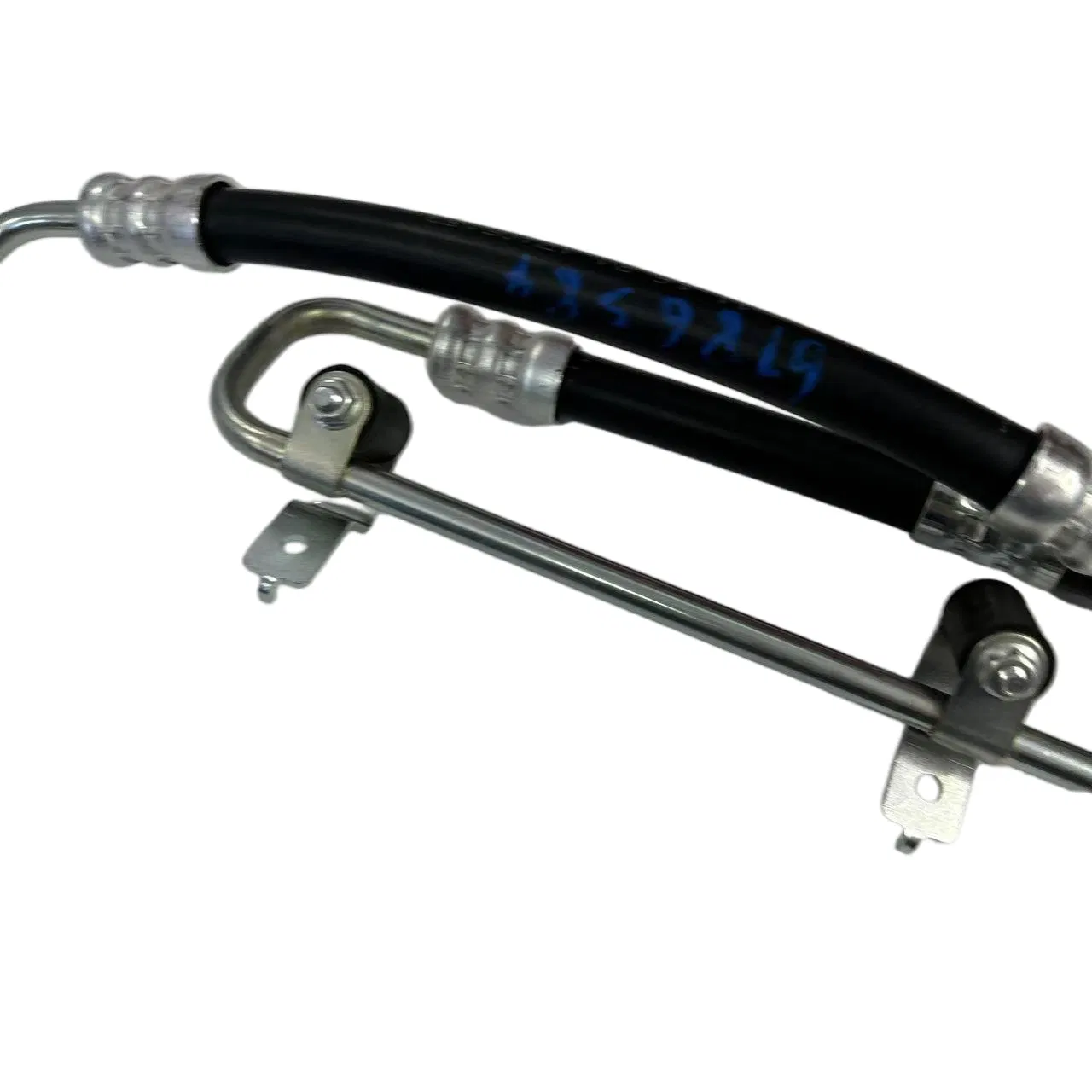

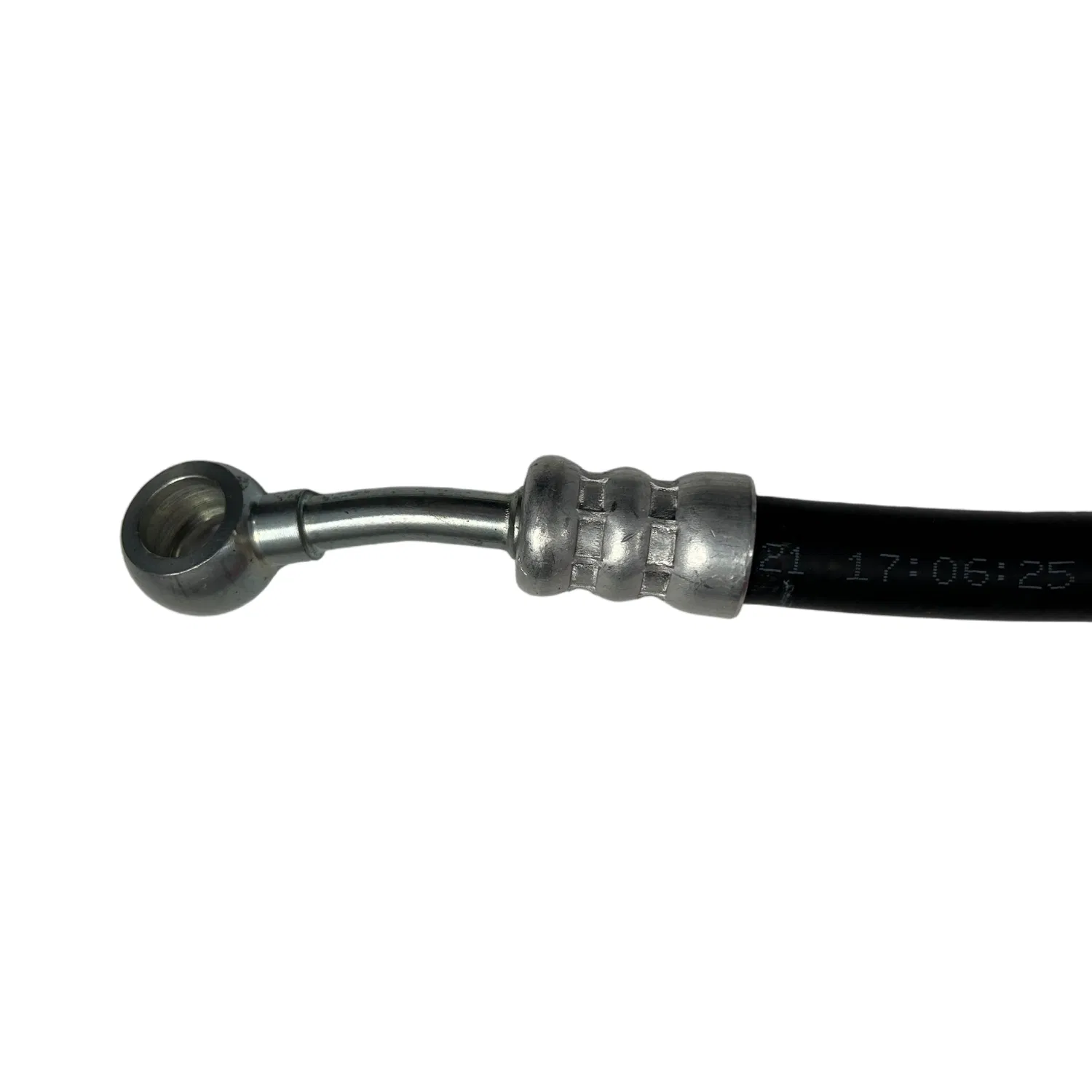

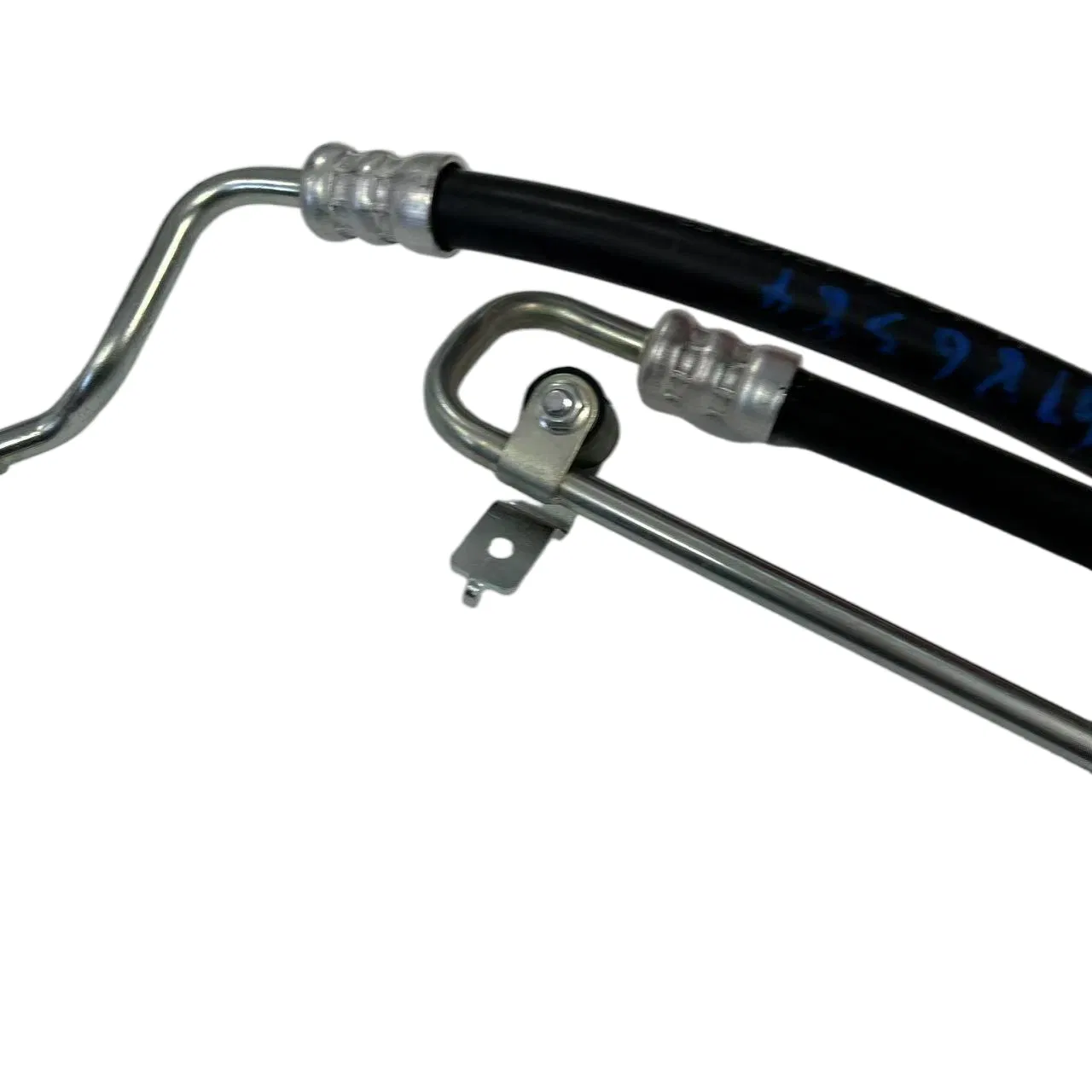

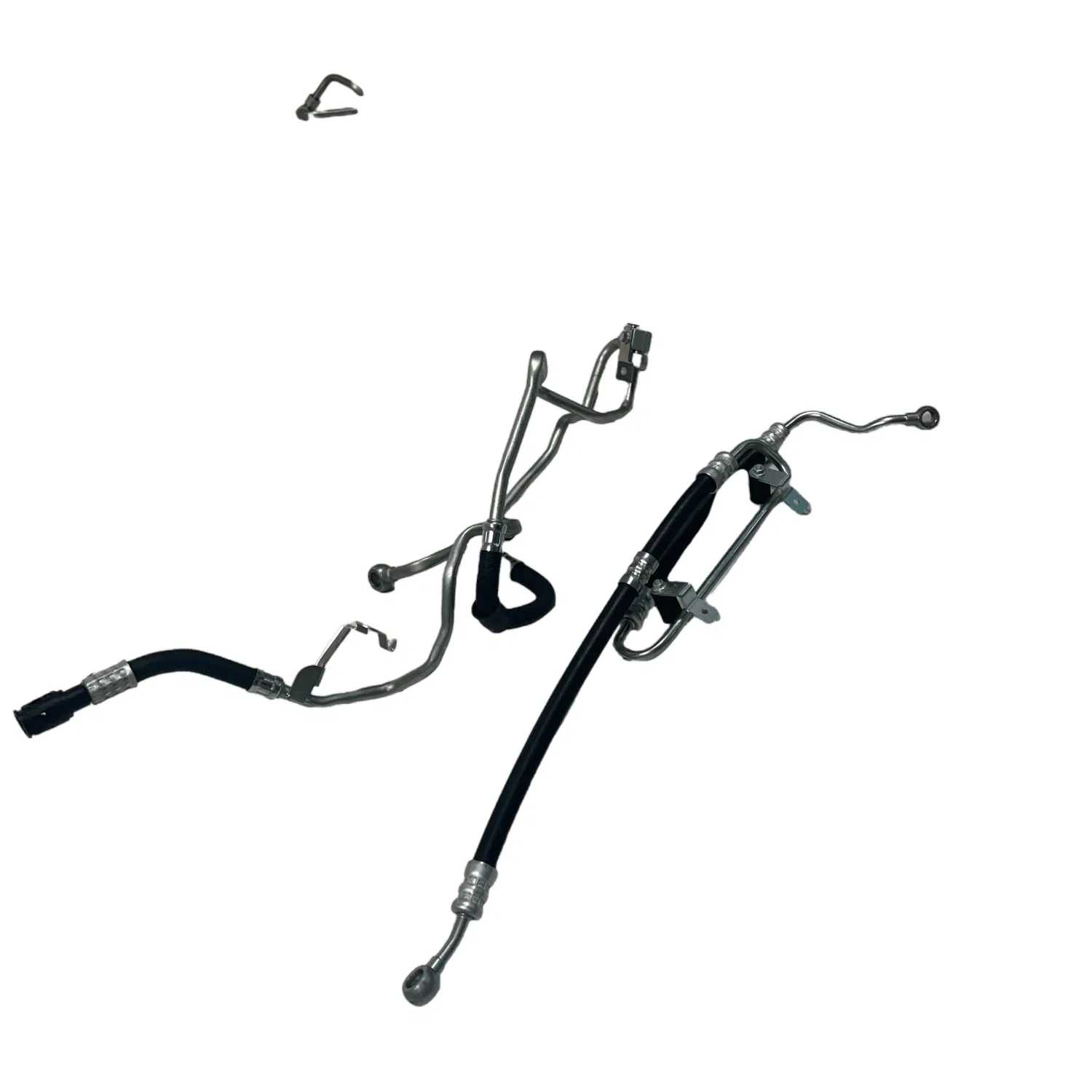

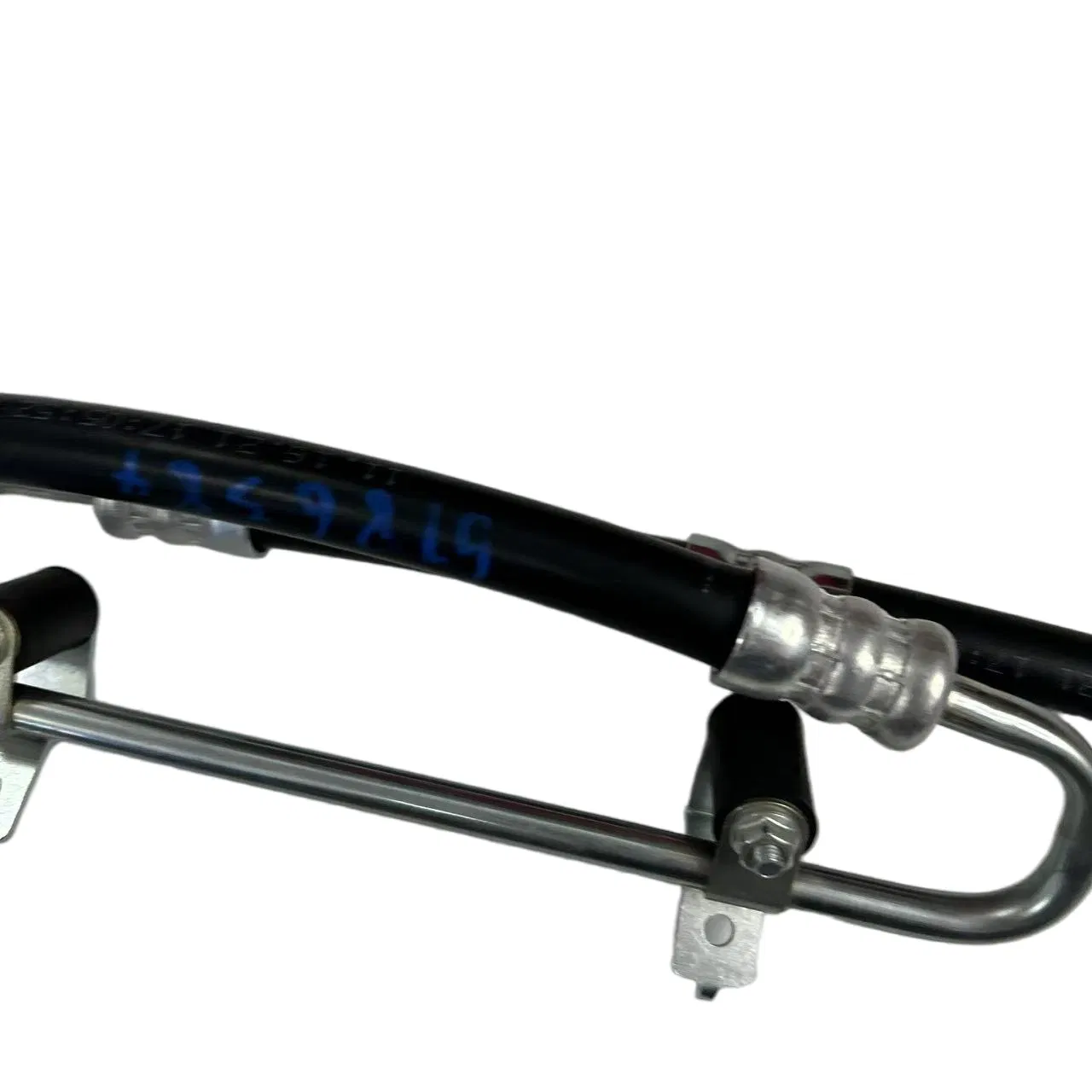

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Proper maintenance is essential - deteriorated hoses can lead to fluid leaks, pump cavitation, or complete steering failure. OEM specifications mandate strict compliance with SAE J188 and ISO 11425 standards for safety and performance.
| Parameter Name | Description / Value | Parameter Name | Description / Value |
| Material Structure | Inner: Oil resistant rubber; Reinforcement: High strength fiber/wire; Cover: Wear-resistant rubber | Length | 300 mm ~ 1500 mm (Customizable) |
| Inside Diameter (ID) | 8 mm, 10 mm, 12 mm | Min Bending Radius | 50 mm ~ 100 mm |
| Working Pressure | 10 MPa ~ 20 MPa | Compatible Fluid | ATF, PSF (Dexron or ISO 7308) |
| Burst Pressure | ≥60 MPa | Burst Safety Factor | ≥3 times working pressure |
| Joint Type | SAE 45°, DIN 24°, JIS Metric | Life Cycle | ≥5 million pulse tests |
