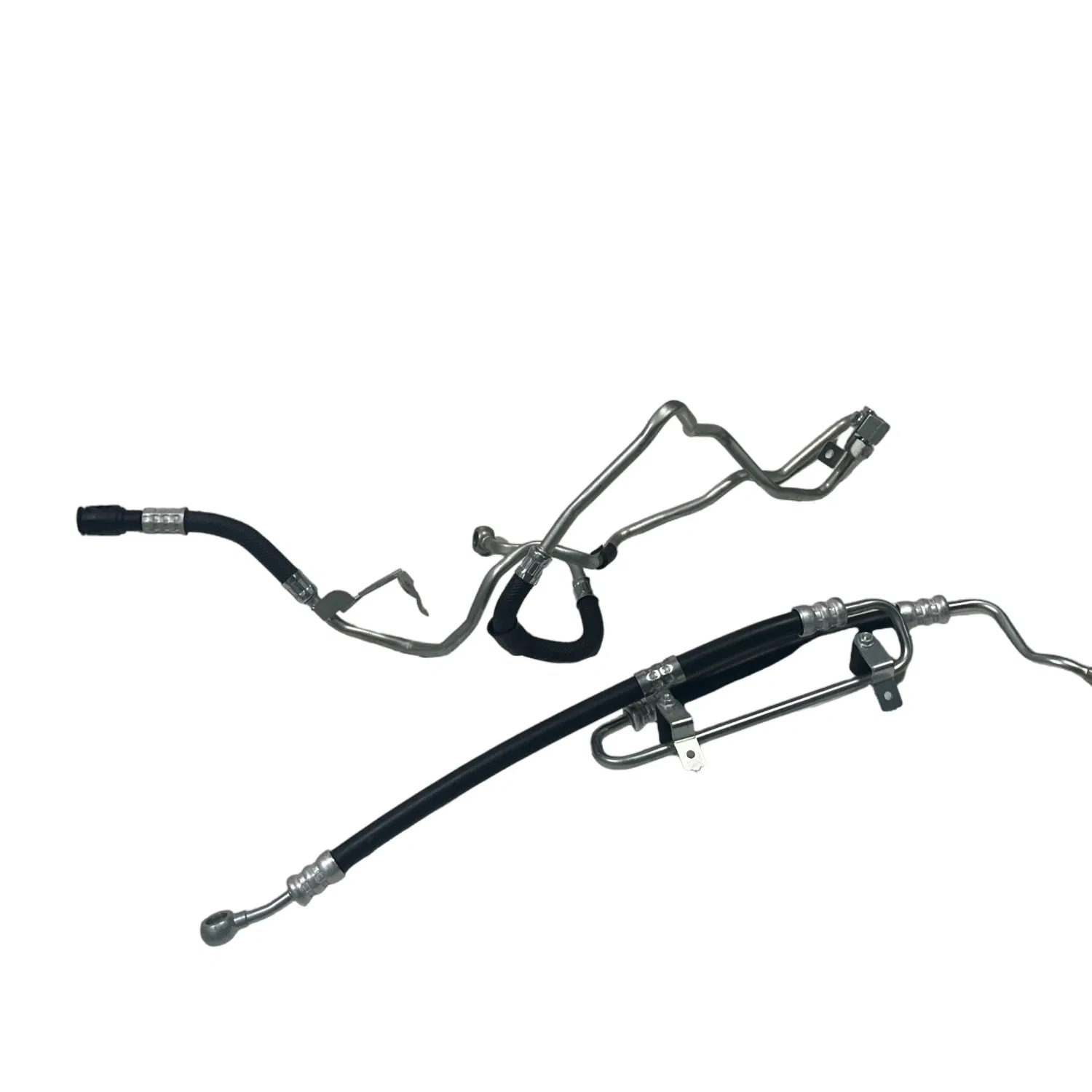

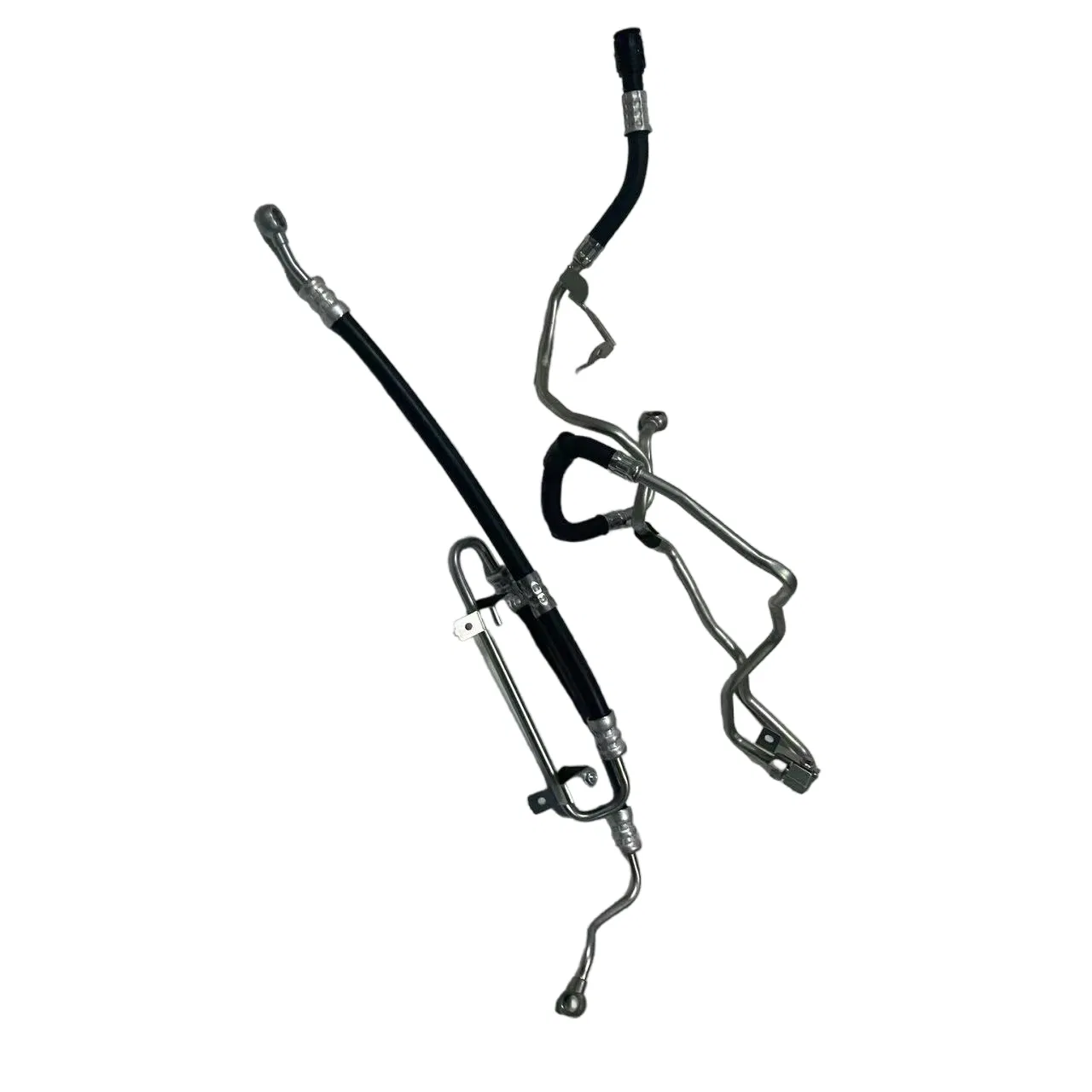

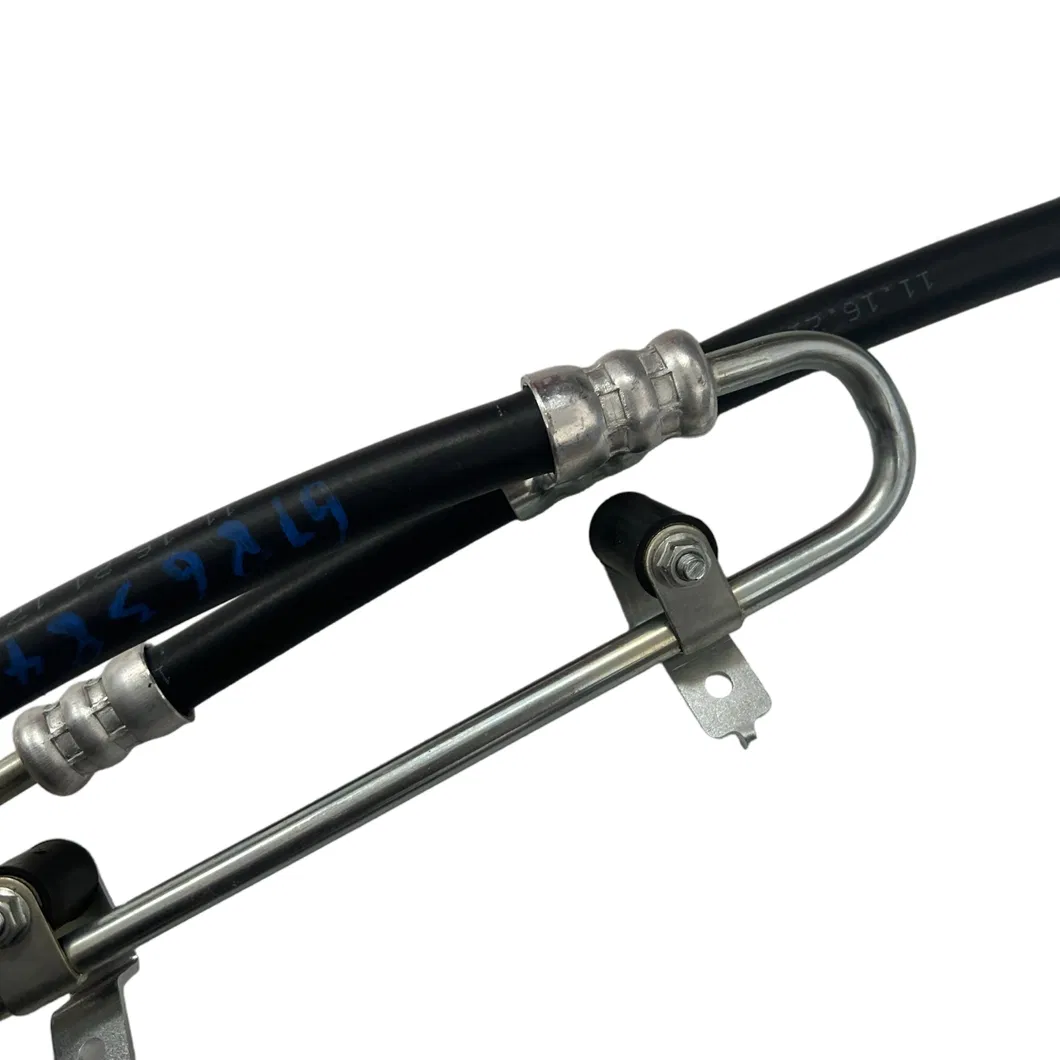

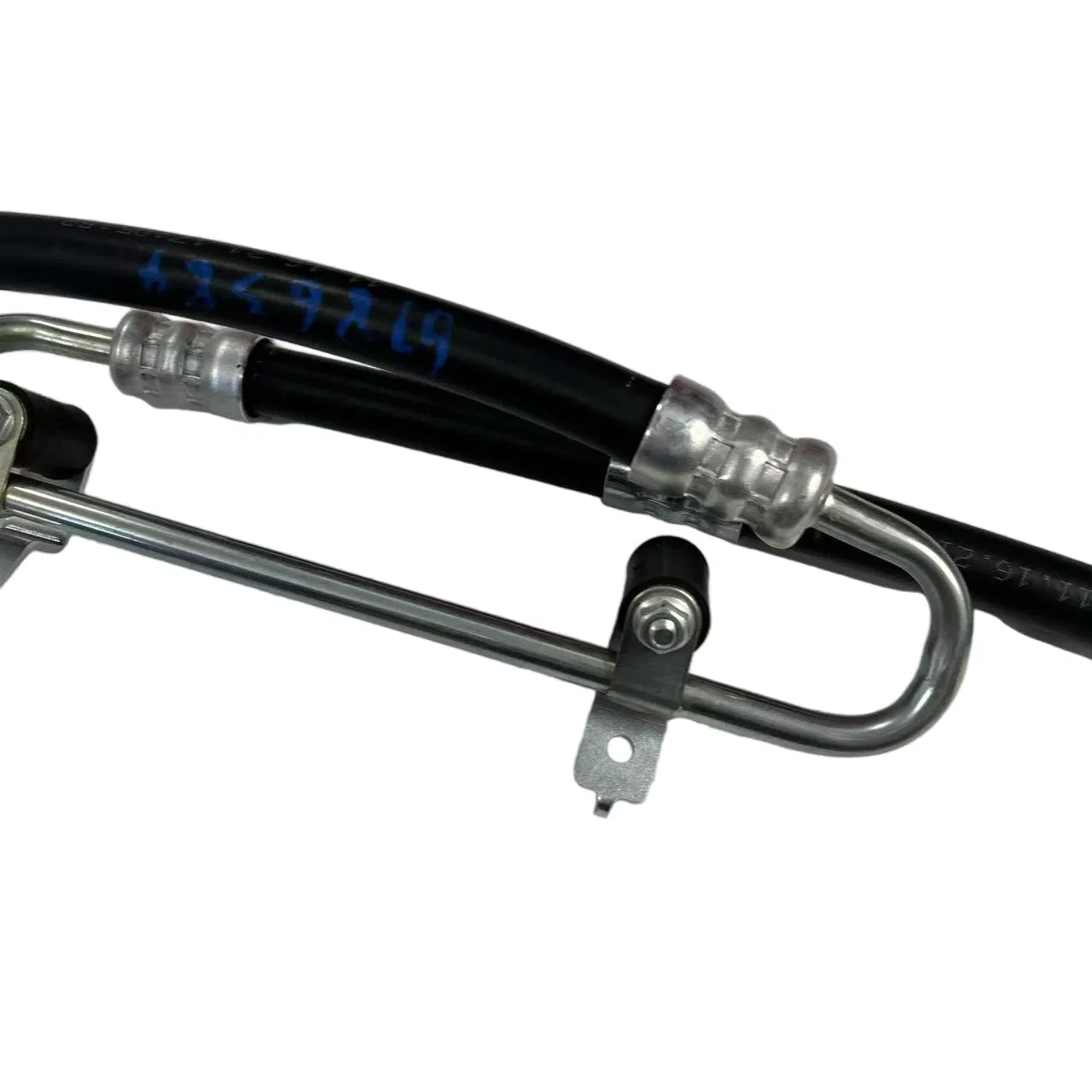

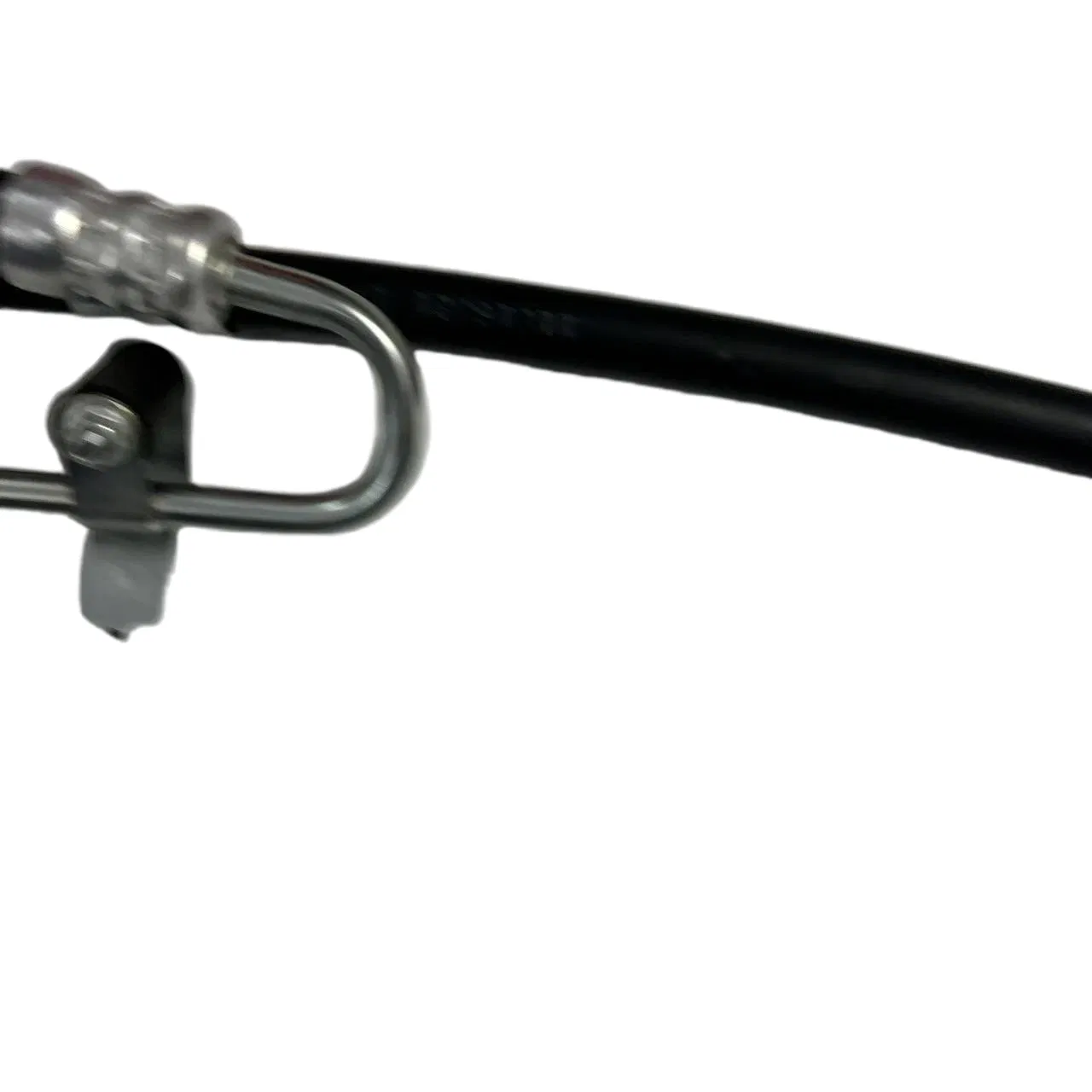

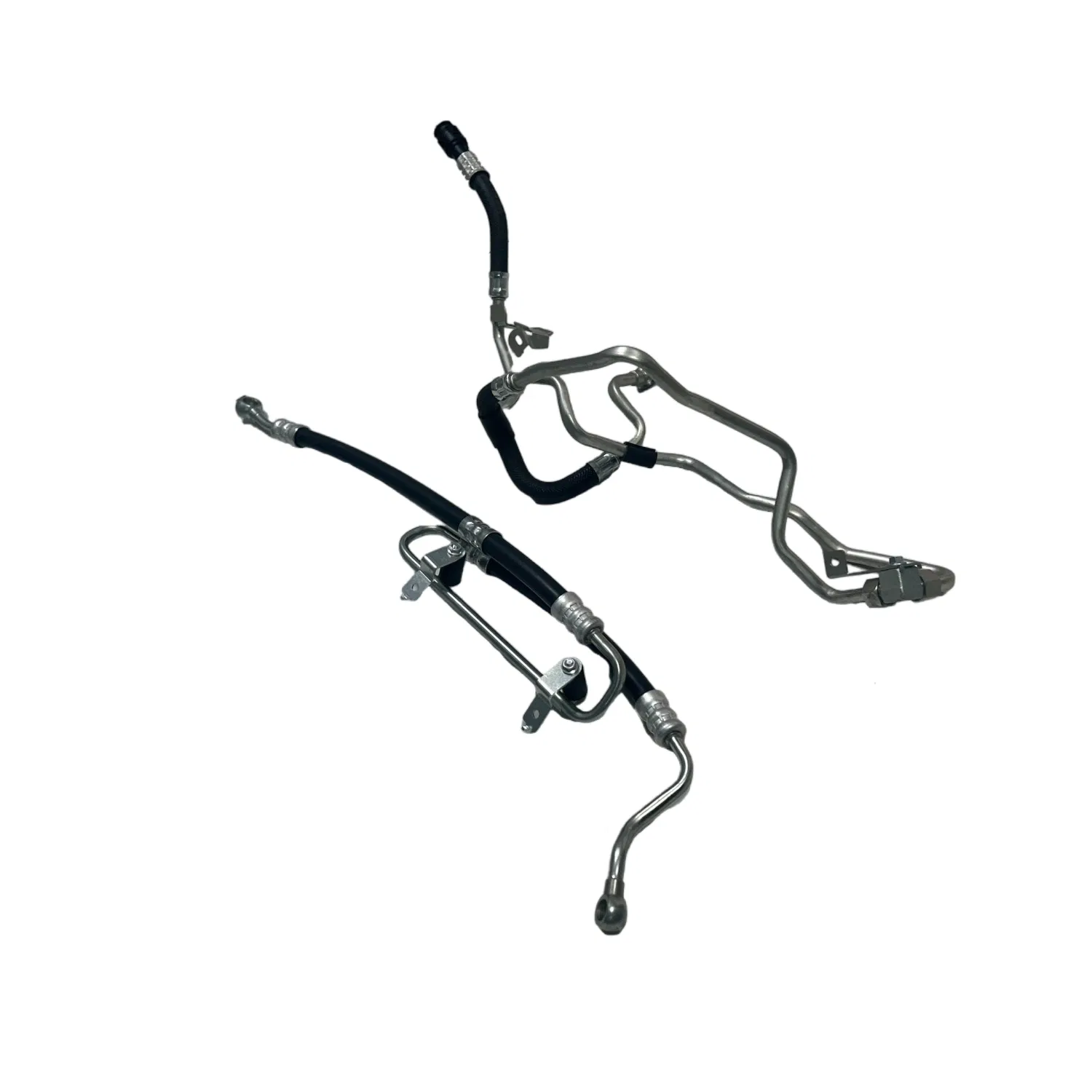

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Primary Types:
1. High-Pressure Supply Hoses: Connect the pump to the steering gear, handling peak system pressures.
2. Low-Pressure Return Hoses: Direct excess fluid back to the reservoir under minimal pressure.
| Parameter Name | Description/Value | Parameter Name | Description/Value |
| Material structure | Inner: NBR/HNBR; Reinforcement: Fiber/Wire; Cover: Wear-resistant rubber | Length | 300 mm ~ 1500 mm (customizable) |
| Inside diameter (ID) | 8 mm, 10 mm, 12 mm | Min. Bending Radius | 50 mm ~ 100 mm |
| Outside diameter (OD) | 14 mm, 16 mm, 18 mm | Joint type | SAE 45°, DIN 24°, JIS metric thread |
| Working pressure | 10 MPa ~ 20 MPa | Compatible fluid | ATF (Automatic transmission oil), PSF |
| Burst pressure | ≥60 MPa | Certification | ISO 11425, SAE J188, OEM Specs |
| Temperature range | -40°C ~ +120°C | Life cycle | ≥5 million pulse tests |
