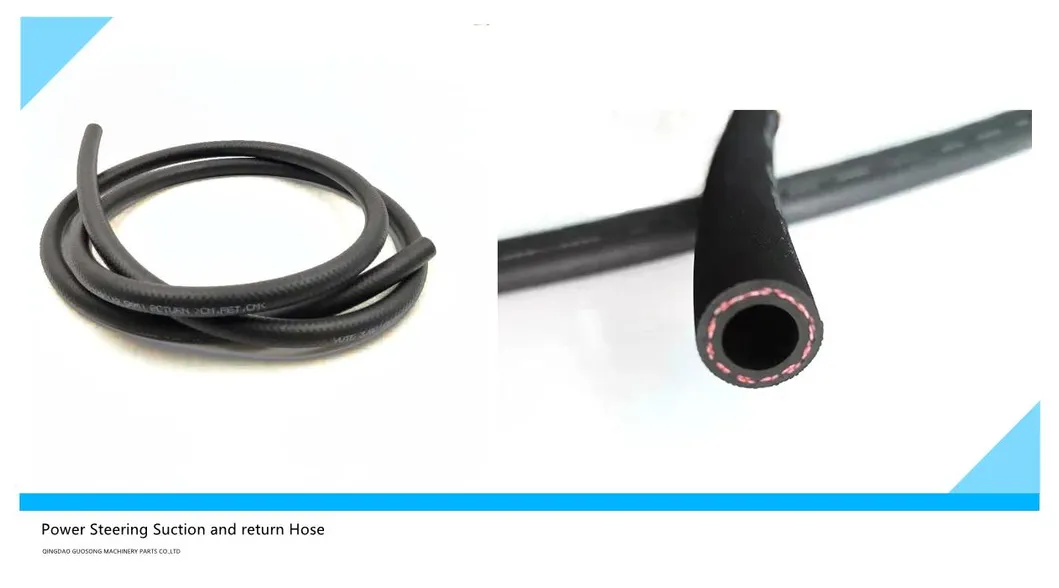

Power steering hoses operate in pairs: high pressure and low pressure. One transfers power steering liquid from the pump to the mechanism, while the other returns liquid back to the pump. This dual-hose system ensures smooth steering operation.

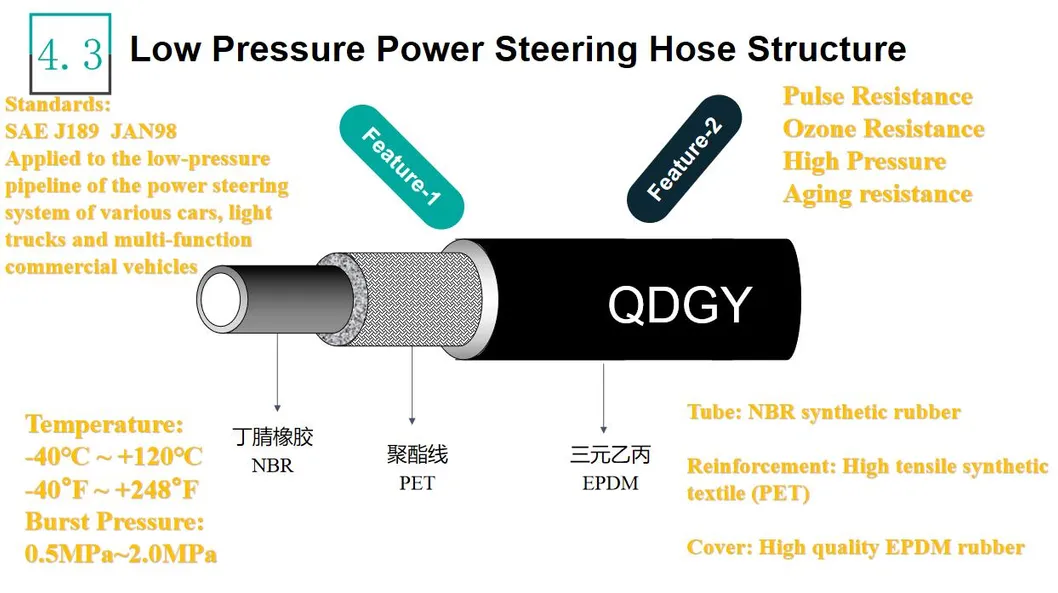

| Parameter | Value |
|---|---|
| Temperature | -40ºC ~ +135ºC |
| Inside Rubber | NBR/CSM |
| Reinforcement | PA/PET |
| Outside Rubber | CSM |

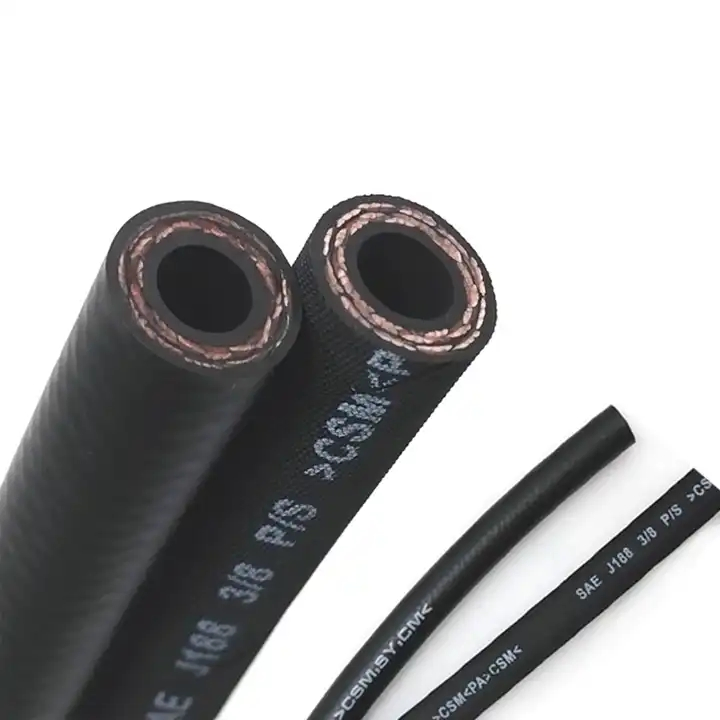

| Standard | SAE J189 / JAN98 |
| Specification | I.D (mm) | O.D (mm) | Burst Pressure (Mpa) |
|---|---|---|---|
| 9.5x17.0 | 9.5±0.2 | 17.0±0.3 | 0.5~2.0 |
| 13.0x22.0 | 13.0±0.2 | 22.0±0.4 | 0.5~2.0 |
| 16.0x24.0 | 16.0±0.4 | 24.0±0.5 | 0.5~2.0 |

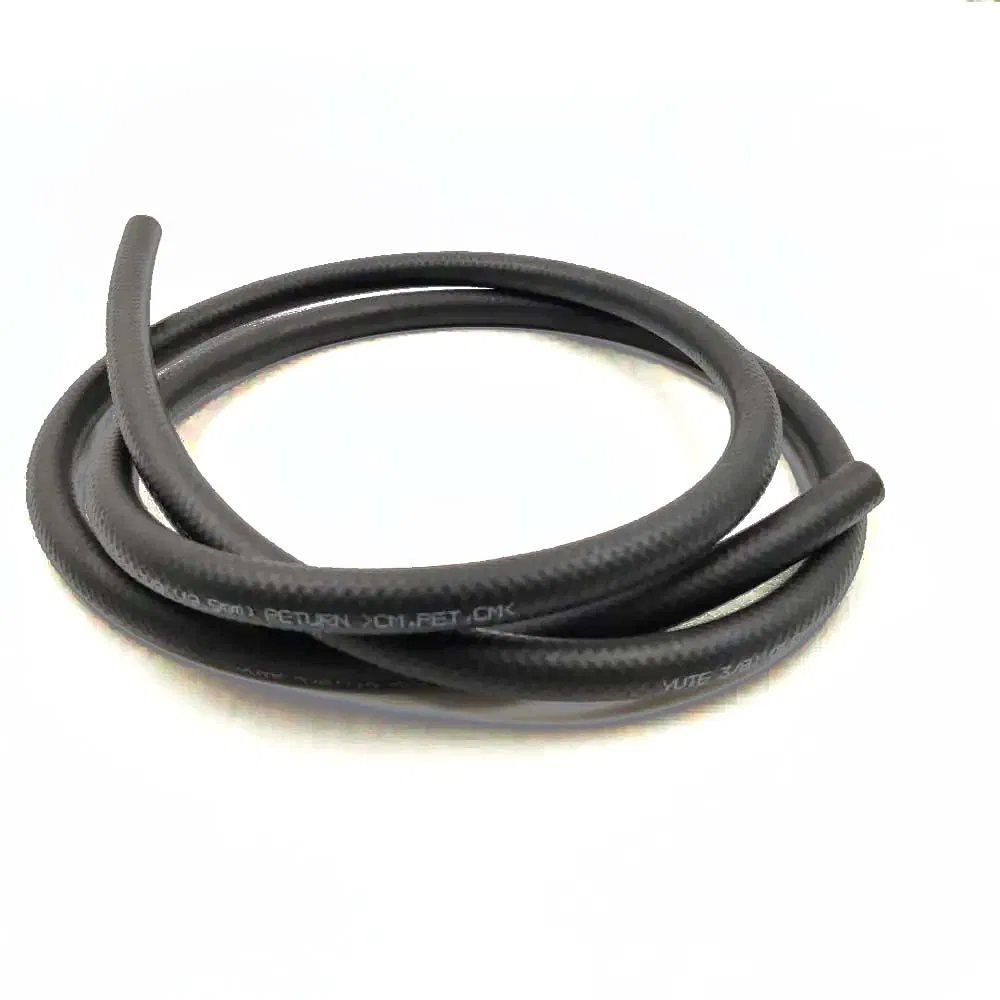

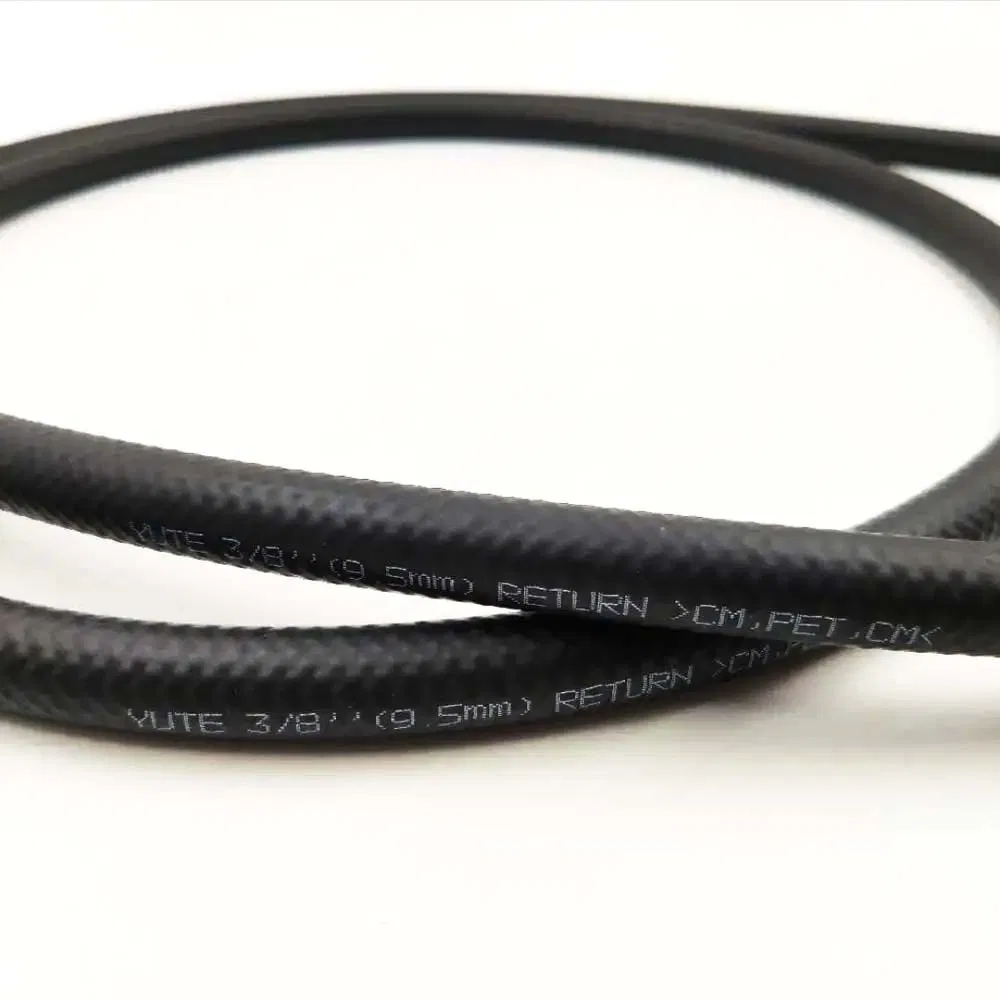

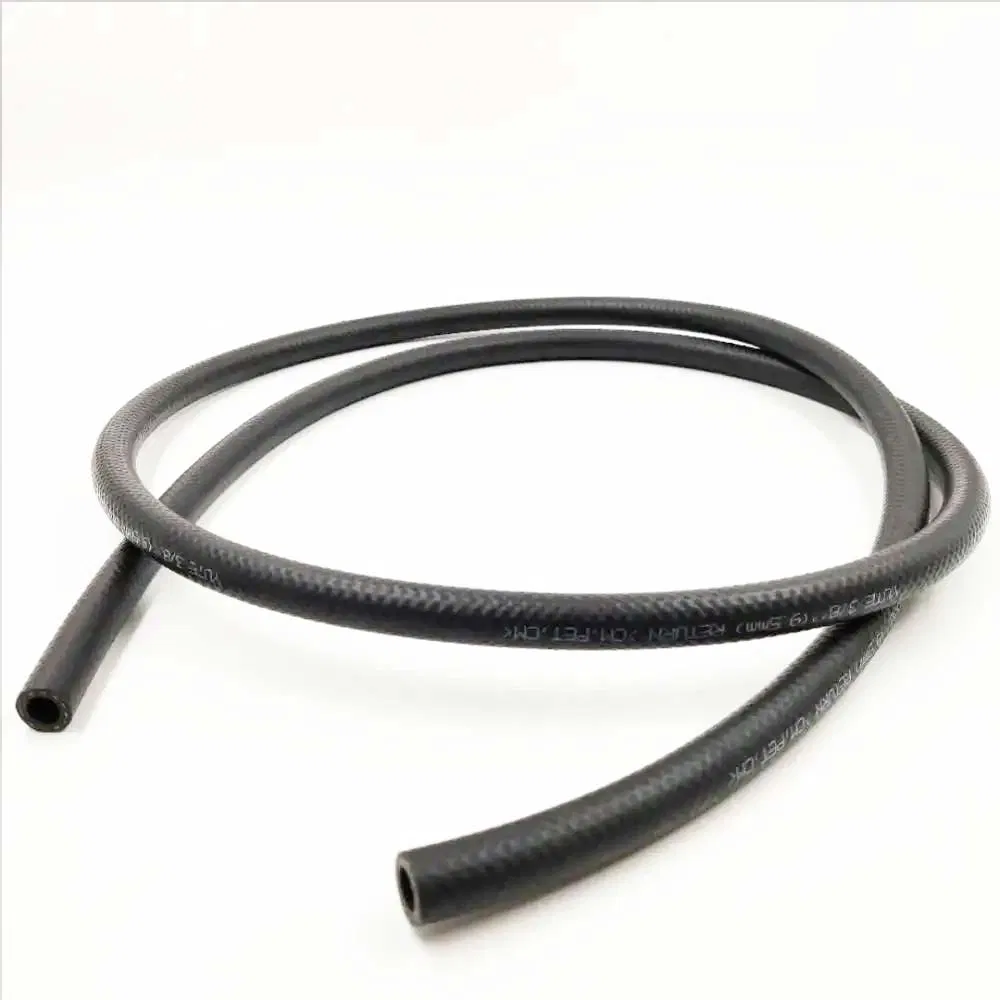

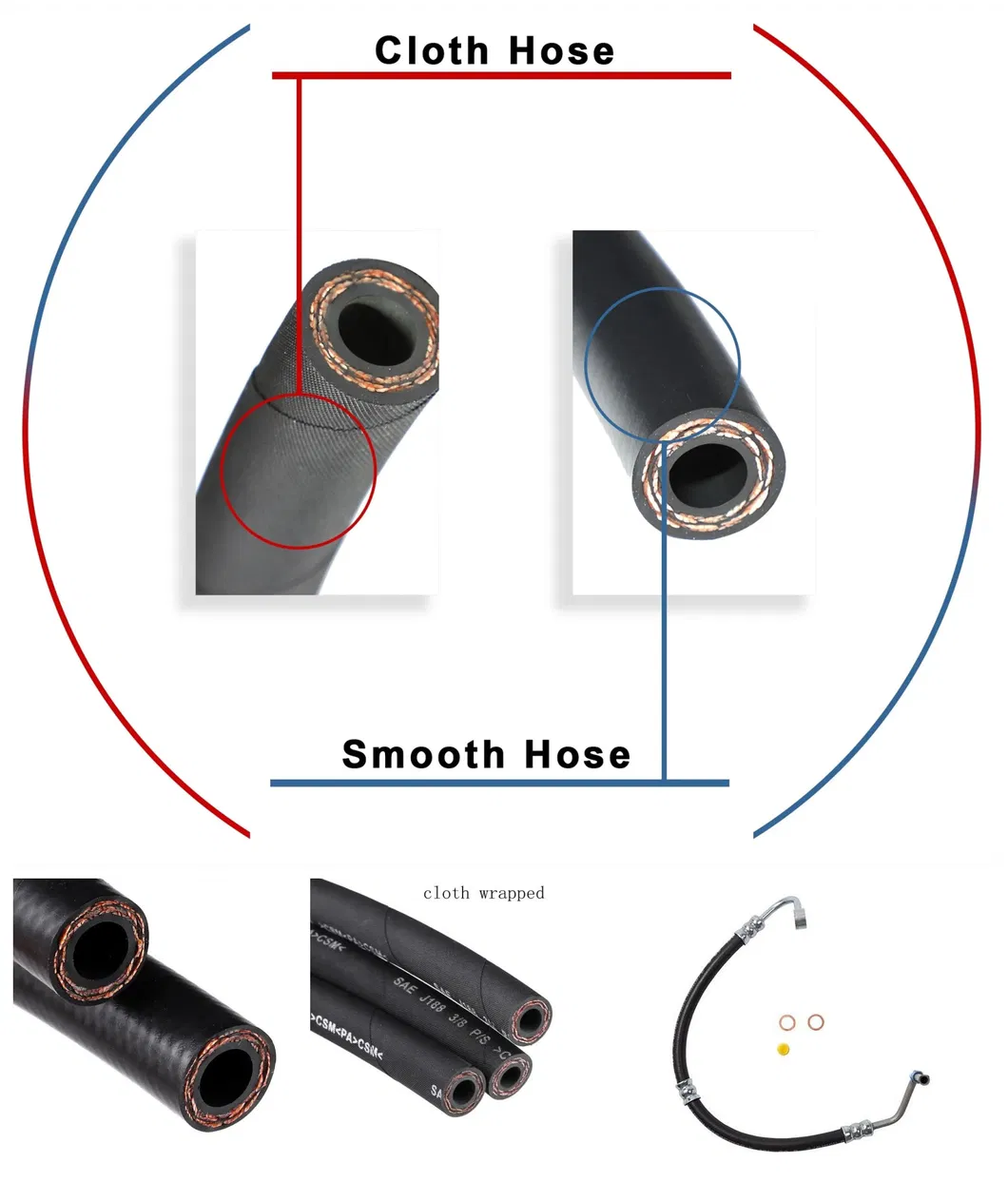

Available Surfaces: Cloth Surface and Smooth Surface.

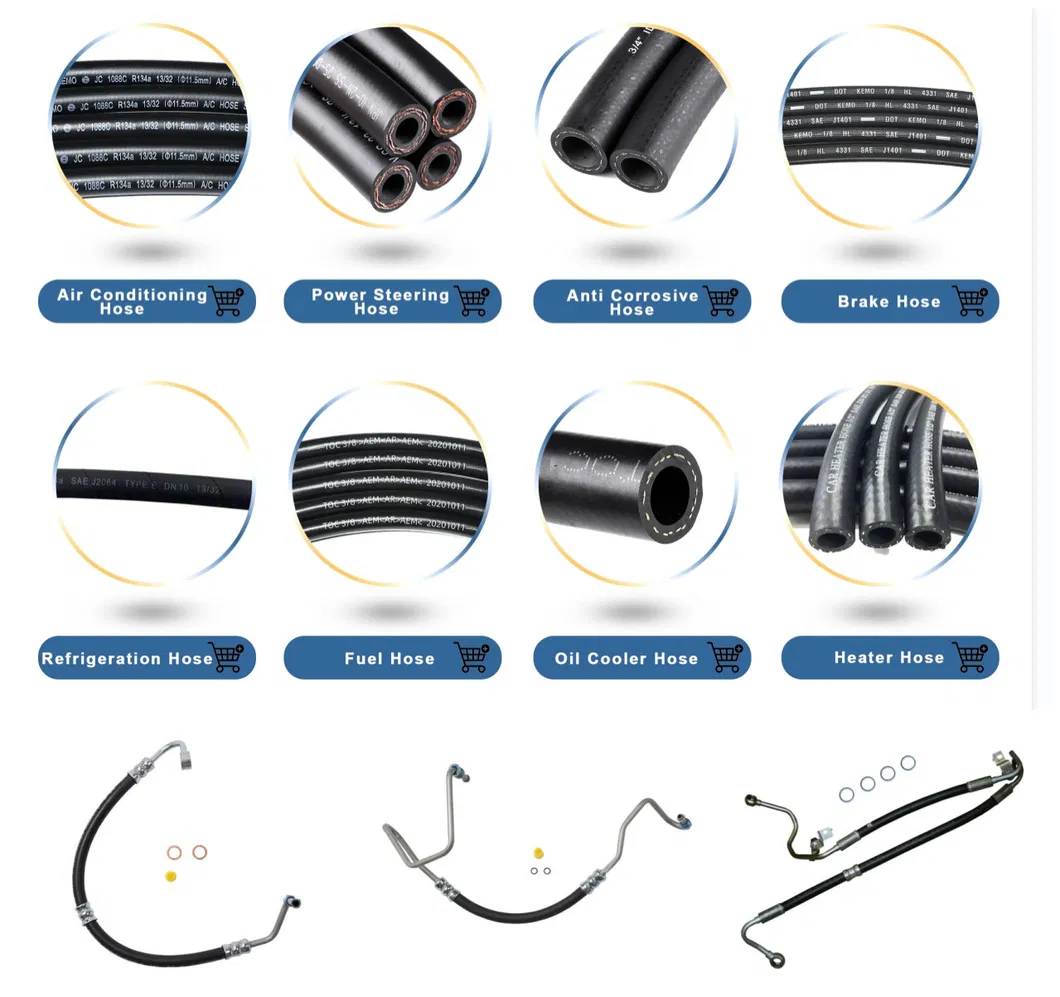

We provide a comprehensive range of automotive hoses:

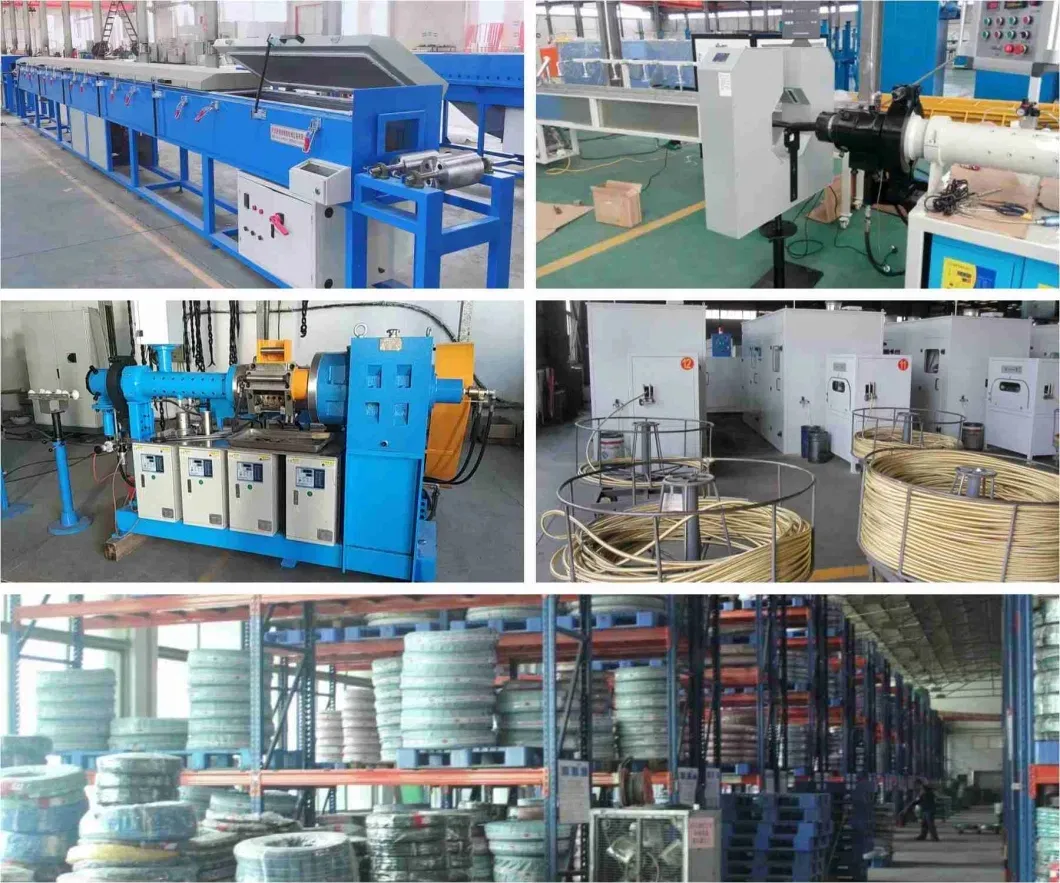

Founded in 1998, the company has expanded to become a leading manufacturer in China. With over 300 staff and facilities occupying 6,000 square meters, we specialize in high-quality automotive hose production.
Our products are manufactured with superior materials to meet the rigorous requirements of the Automobile and Motorcycle Industry, serving both OEM and aftermarket sectors. Currently, 90% of our production is exported to over 56 countries across Europe, the USA, and Southeast Asia.
