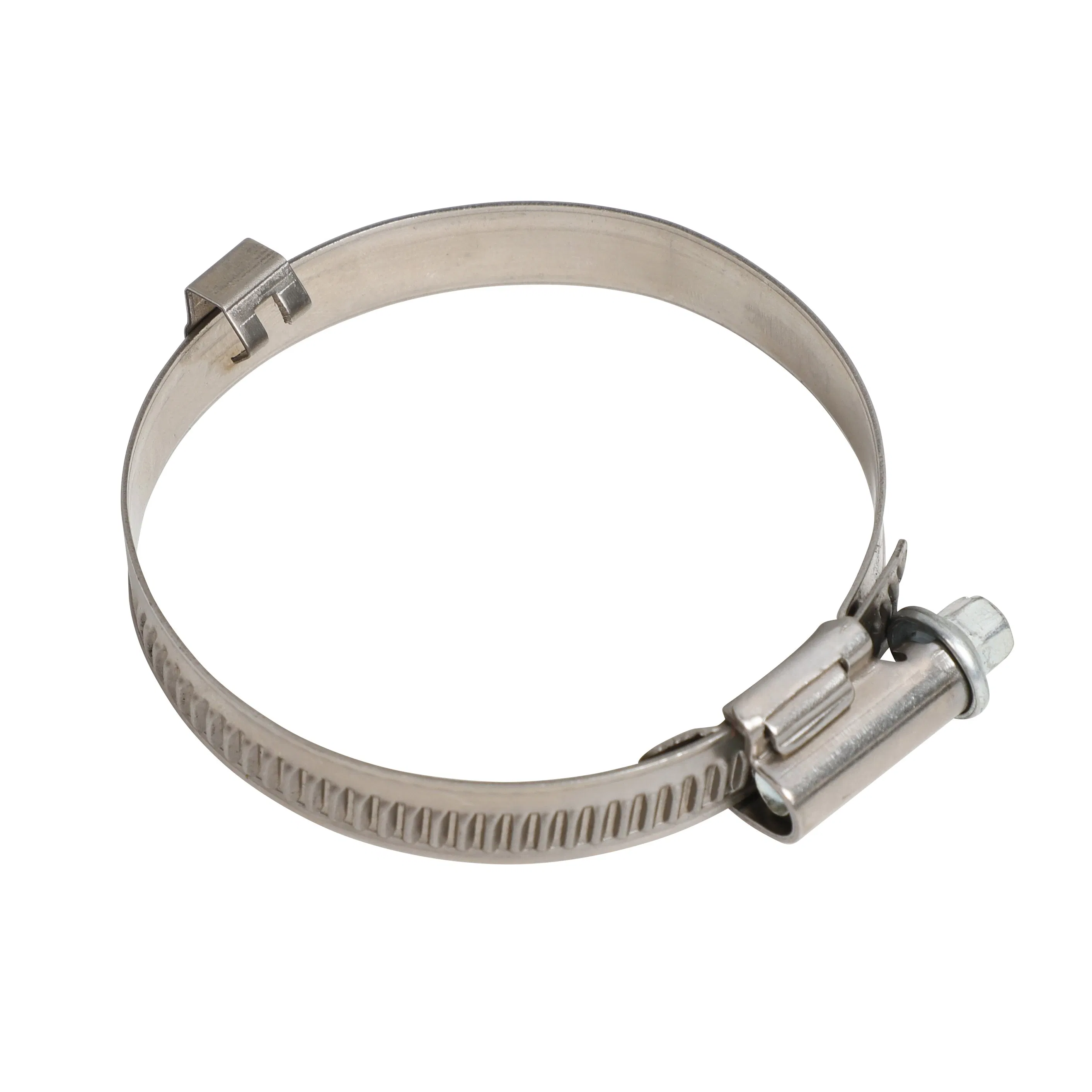

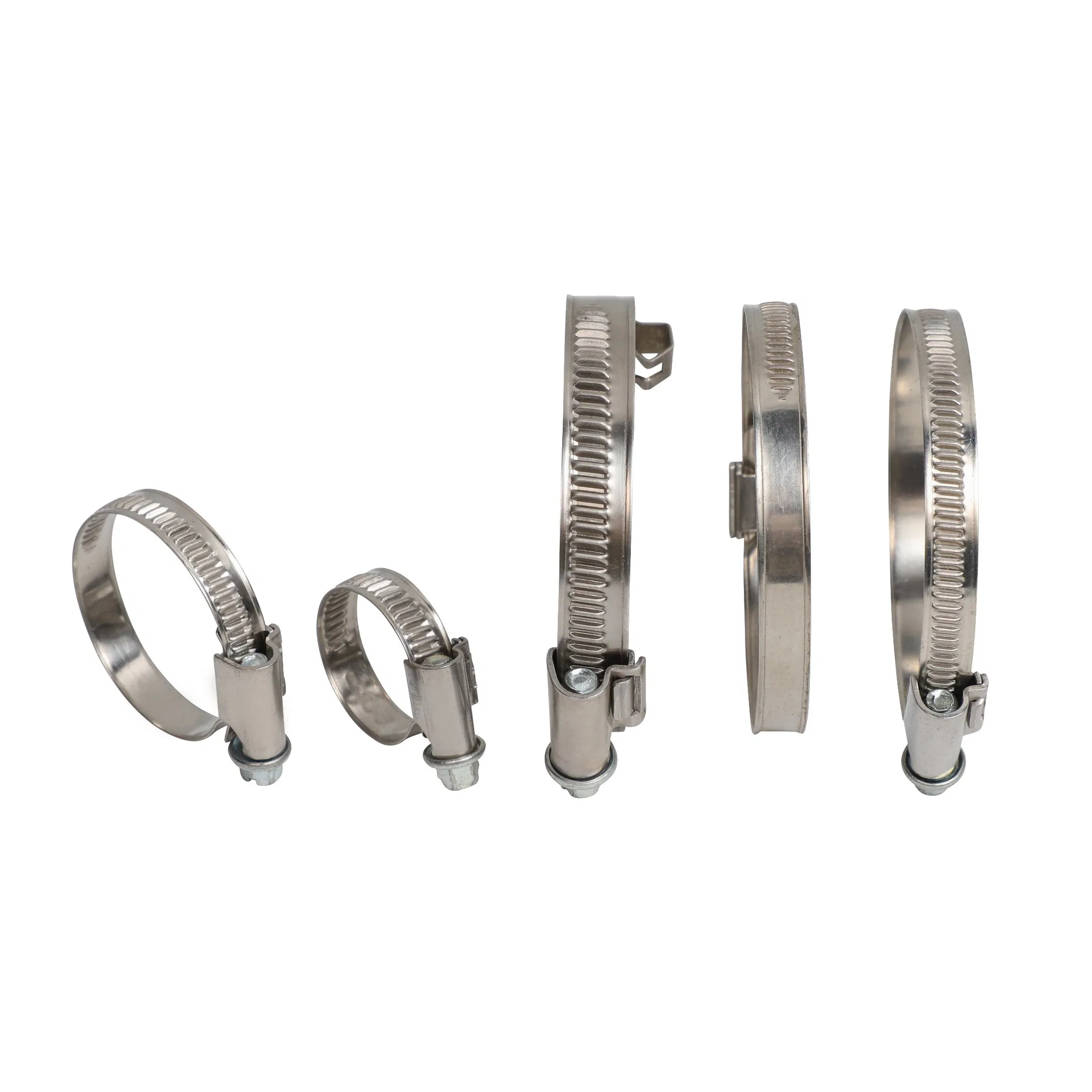

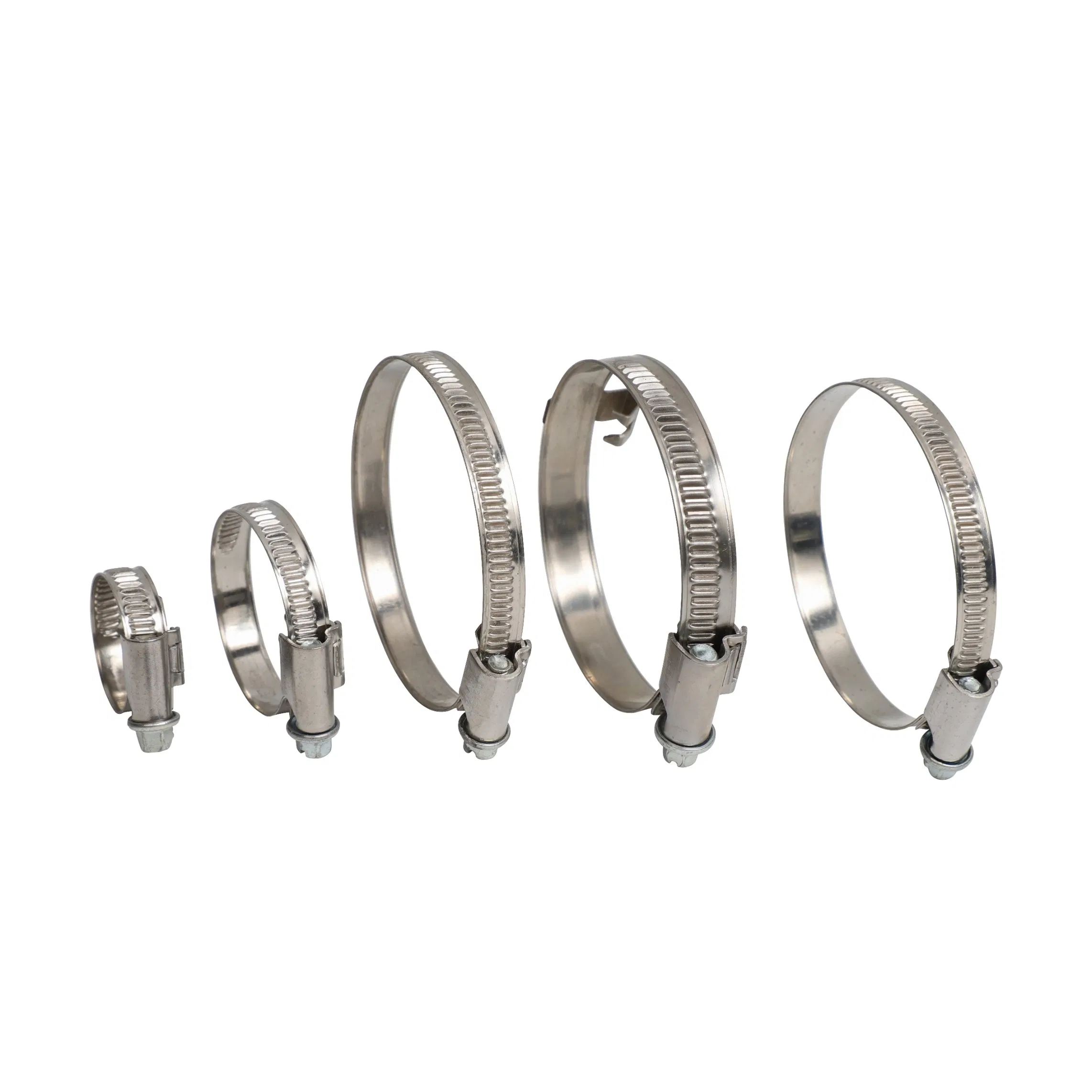

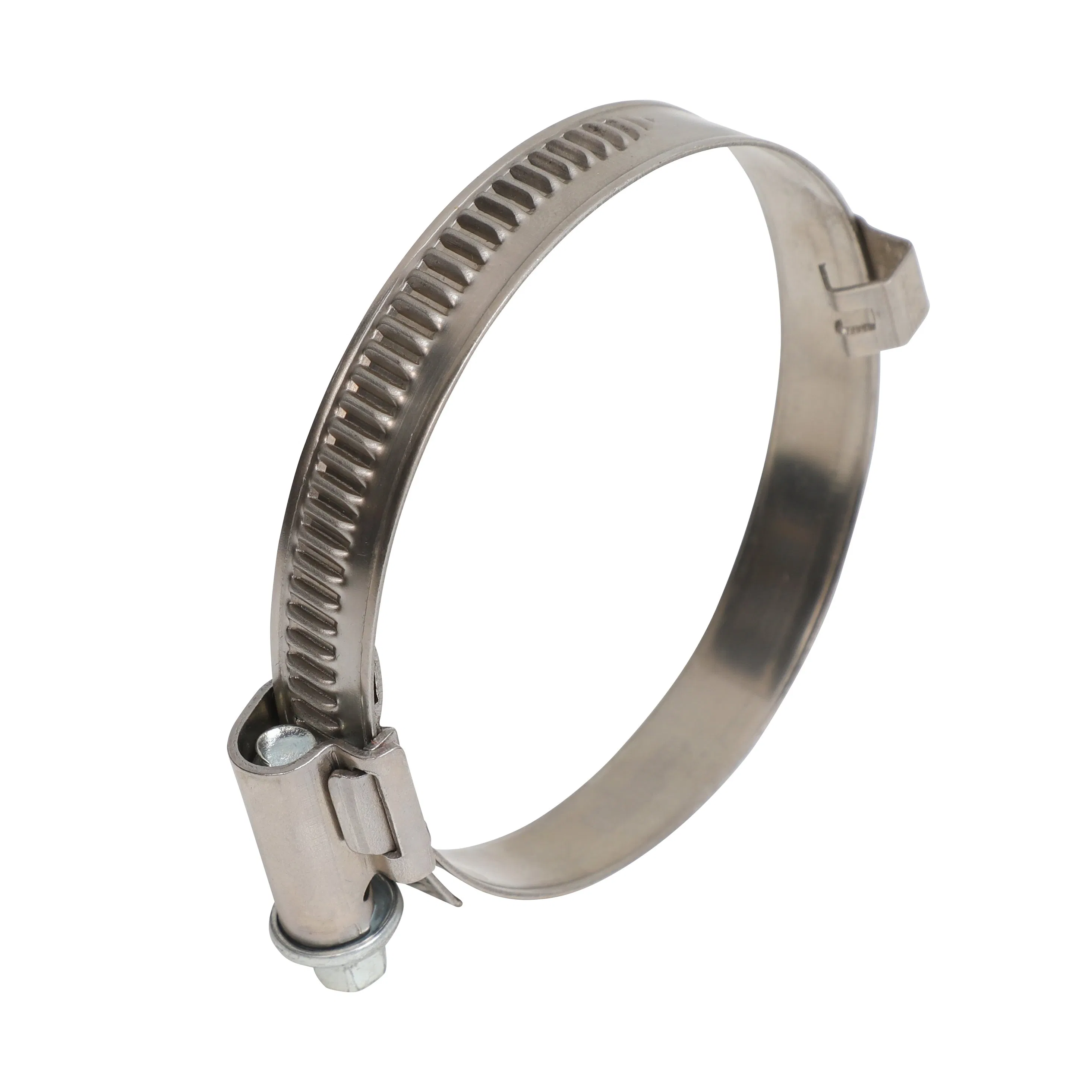

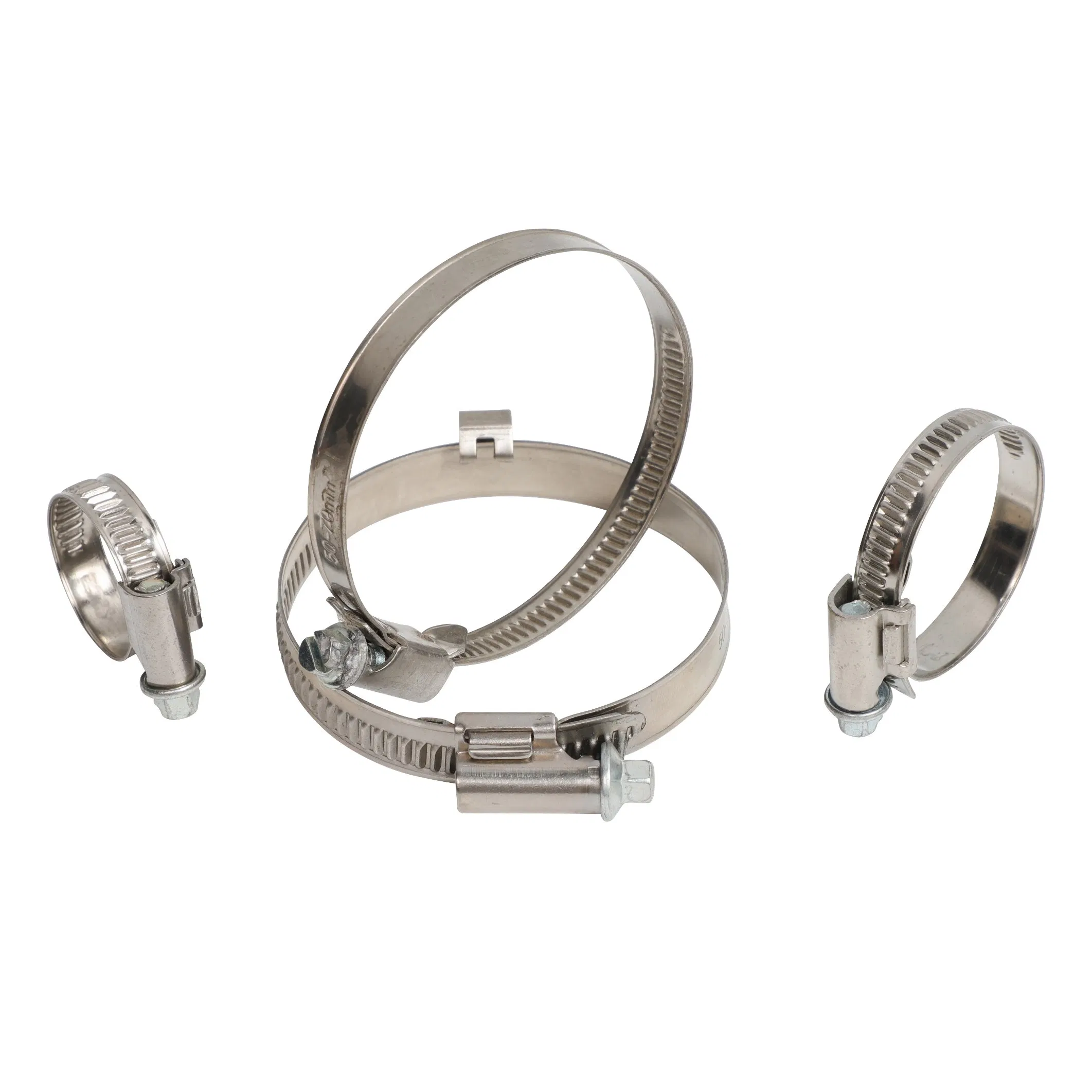

DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
1 / 5
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive
DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive

DIN 3017 Embossed Non-Perforated Torro Worm Gear & Worm Drive Hose Clamp with Asymmetric Housing, German Type, 12 mm Bandwidth, 316 Stainless Steel, Automotive

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
WNA B12 D90-110 W5
Product Type
Non-Perforated Torro Worm Gear Hose Clamps
Band Width
12 mm (0.47")
Clamping Range
90 mm - 110 mm (3.54"-4.33")
Band Thickness
0.6 mm (0.024")
Packaging
Plastic Bag in Box, Box on Pallet
Product Description

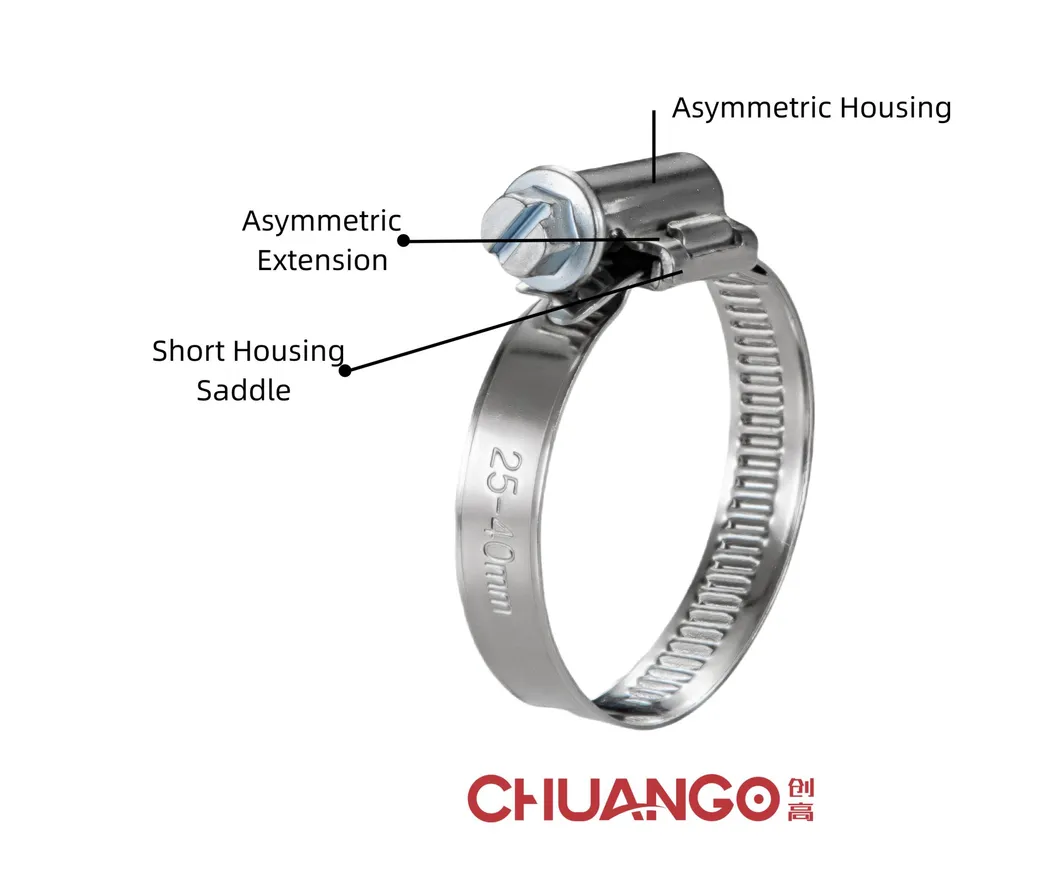

Torro Worm Gear Hose Clamp

Torro Worm gear hose clamps are especially suited to applications with high mechanical loads. The improved asymmetric housing ensures an even distribution of forces and safe assembly. The asymmetric extension prevents the housing from tilting over when the clamp is tightened.

  • Safe Guidance: The screw support facilitates ease of assembly due to the safe guidance of the emerging band end.
  • Even Pressure: The short housing saddle provides even contact pressure.
  • Hose Protection: The smooth inside of the band offers optimal hose protection.
  • Customization: Material, clamping range and logo can be stamped on the band.

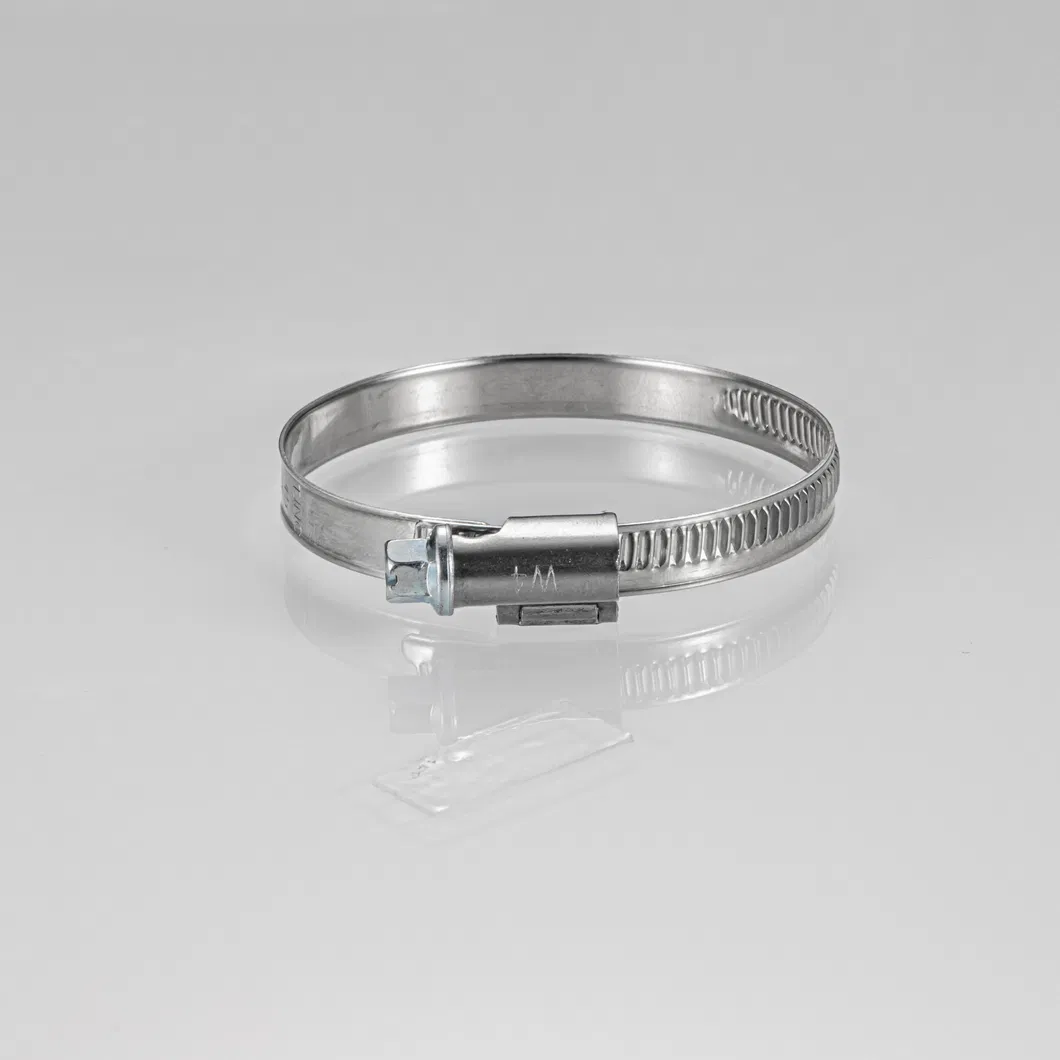

Hose Clamp Detail 1

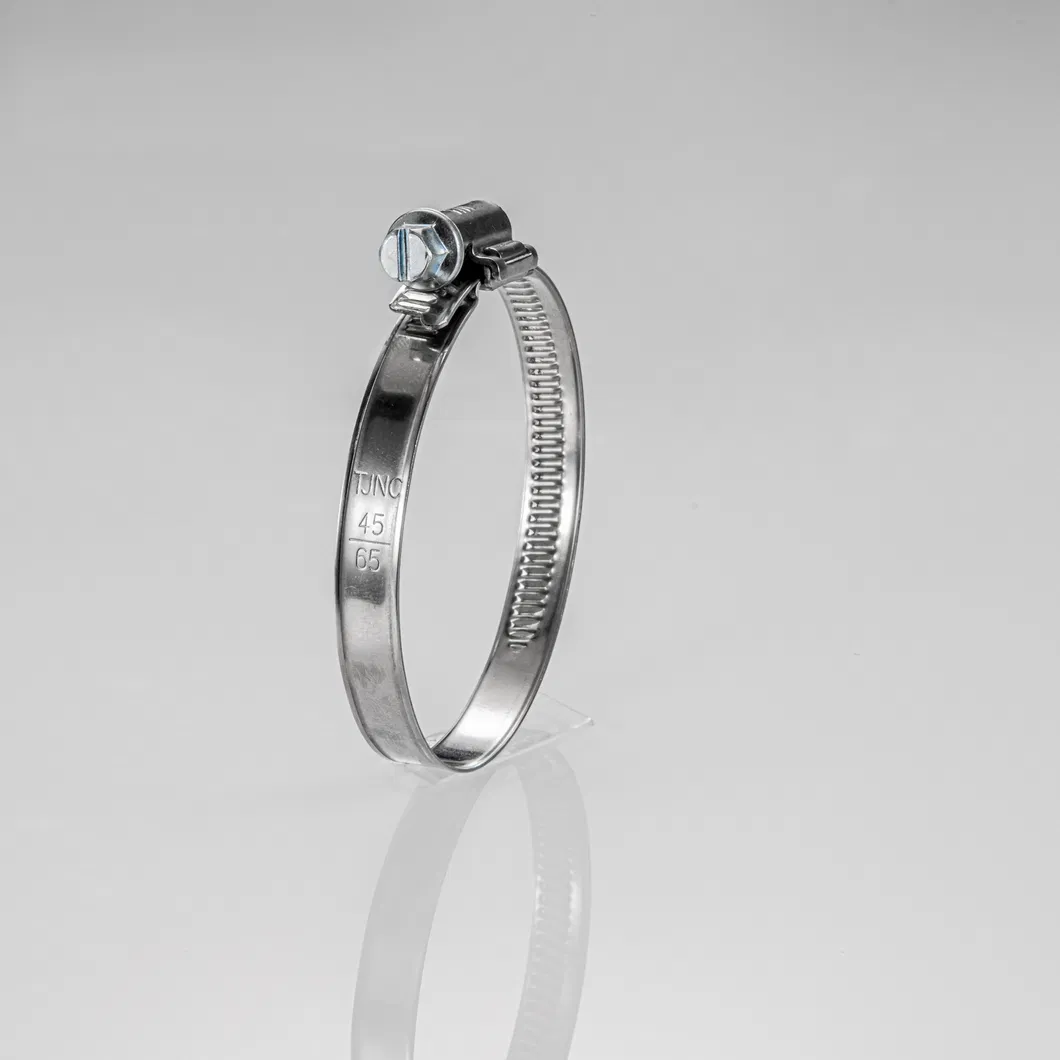

Hose Clamp Detail 2

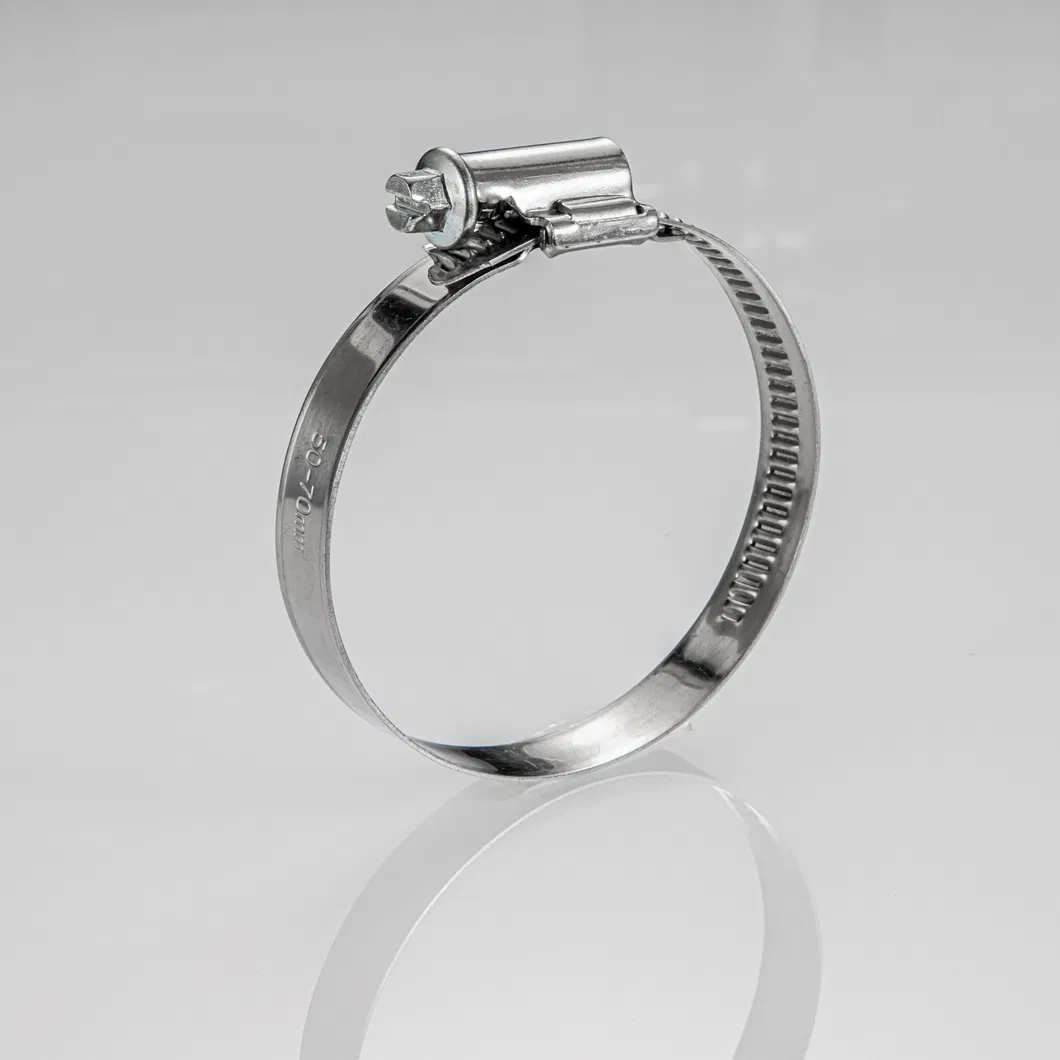

Hose Clamp Detail 3
Material Specifications
Material Code Corrosion Resistance Description
W1NormalScrew, Housing and Band are all zinc plated.
W2AverageScrew is zinc plated. Housing and Band are 201/304 stainless.
W4HighScrew, Housing and Band are all 201/304 stainless steel.
W5MaximumScrew, Housing and Band are all 316 stainless steel.
Performance Data
Material 9 mm Bandwidth 12 mm Bandwidth
Free Torque Breaking Torque Free Torque Breaking Torque
W1≤ 0.6 Nm≥ 4.5 Nm≤ 0.8 Nm≥ 5.0 Nm
W2/W4/W5≤ 0.6 Nm≥ 6.0 Nm≤ 0.8 Nm≥ 7.0 Nm
Primary Applications
  • Automotive systems: Securing coolant, fuel, and air hoses in vehicles.
  • Marine equipment: Ideal for salt-water environments with 316 stainless steel.
  • Industrial machinery: Used in hydraulic and pneumatic equipment under vibration.
  • Agricultural: Suitable for irrigation and fuel lines in harsh outdoor conditions.
  • Home appliances & HVAC: Washing machines, dryers, and ventilation hoses.
  • Food & Pharma: Non-perforated band reduces contamination risk and hose wear.
Application Overview
Manufacturing Excellence

Specializing in various clamp types including Worm Drive, CV Boot, Ear Clamps, and T-Bolt Clamps. With advanced production lines and strict quality control, we provide reliable solutions for global sealing systems.

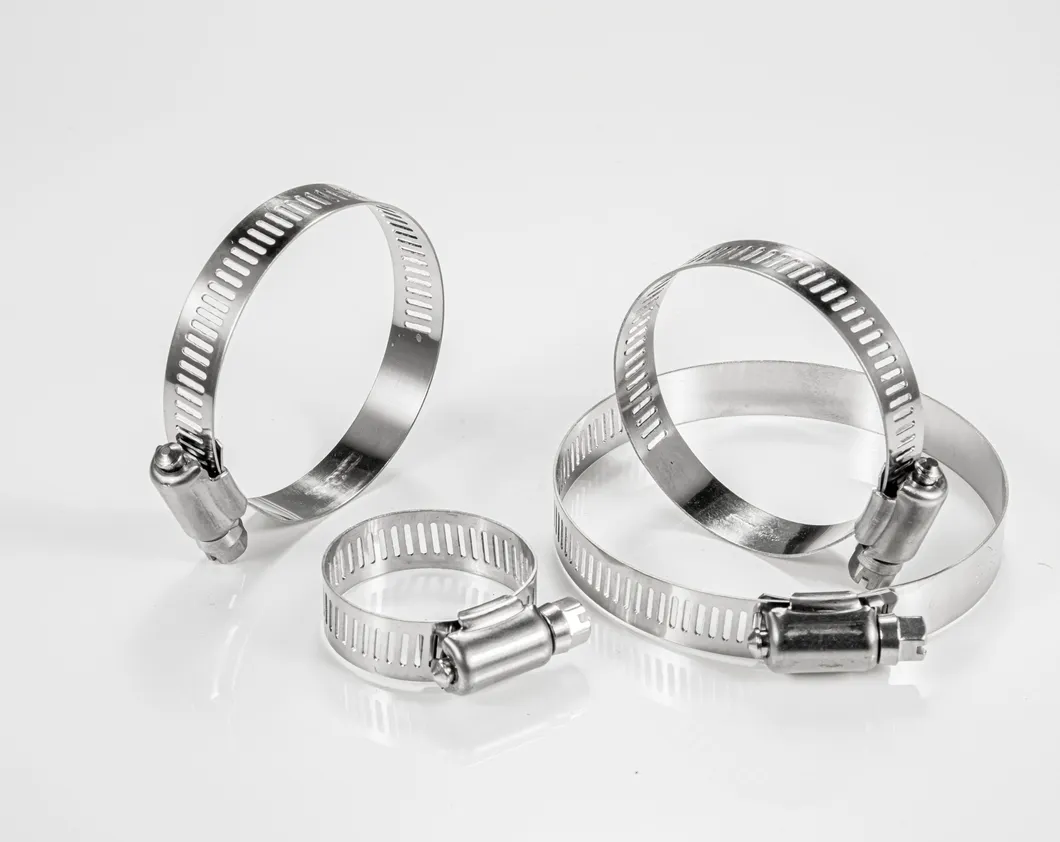

Production Line 1
Production Line 2

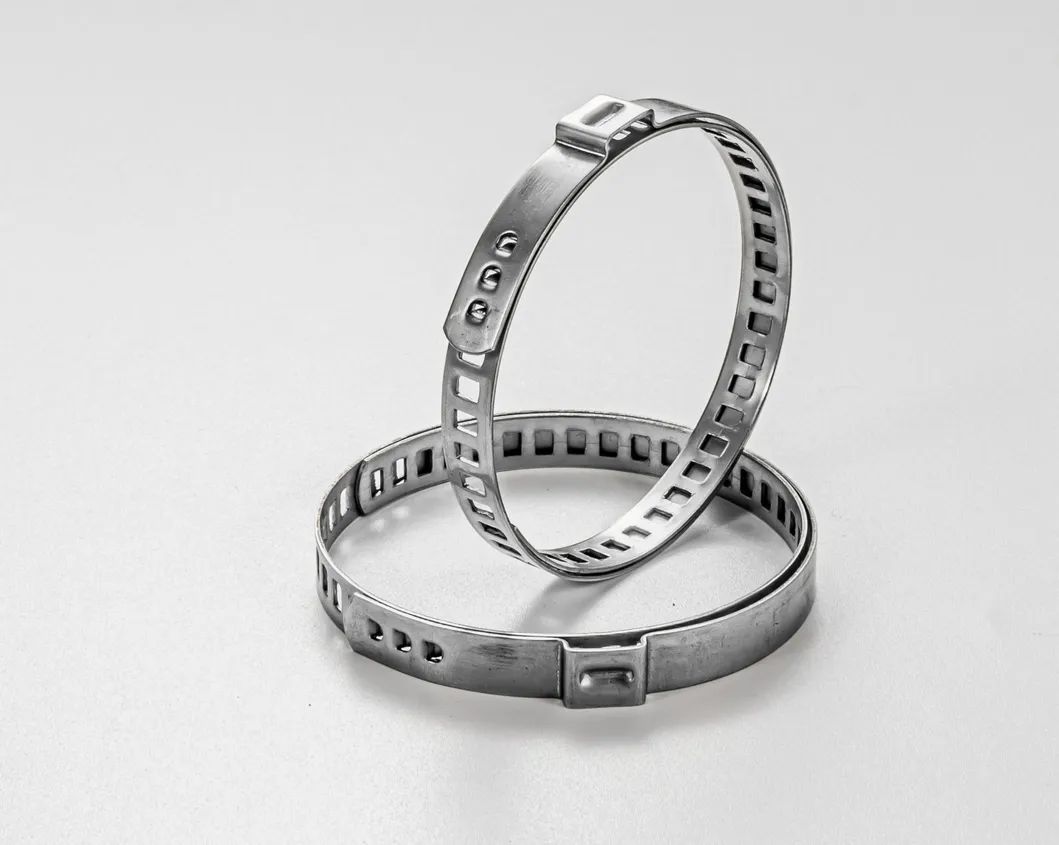

Production Line 3

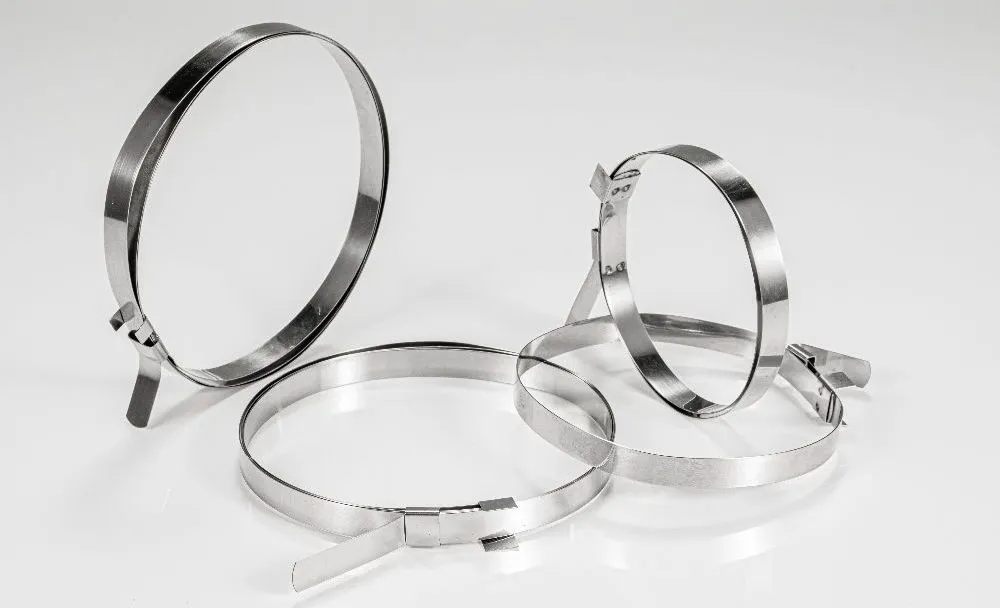

Testing 1
Testing 2

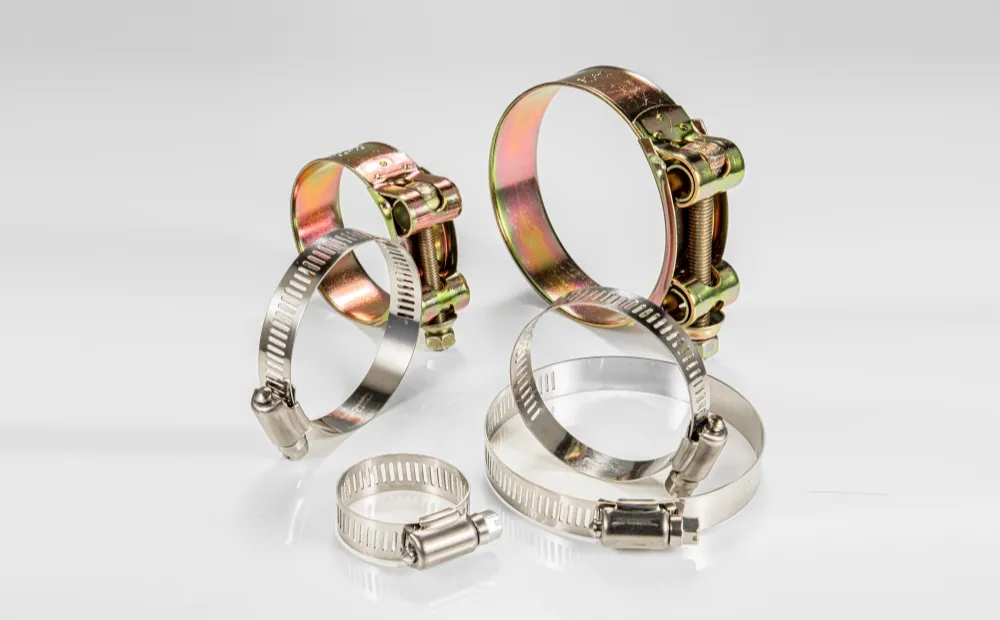

Testing 3
Why Partner With Us
  • Factory Direct manufacturing for competitive pricing.
  • Strict Quality Control: Every piece inspected before shipment.
  • OEM & ODM Support: Custom sizes, materials, and packaging.
  • Large Capacity: Monthly output over 1,000,000 pieces.
  • Automatic assembly and testing equipment for precision.
Warehouse 1

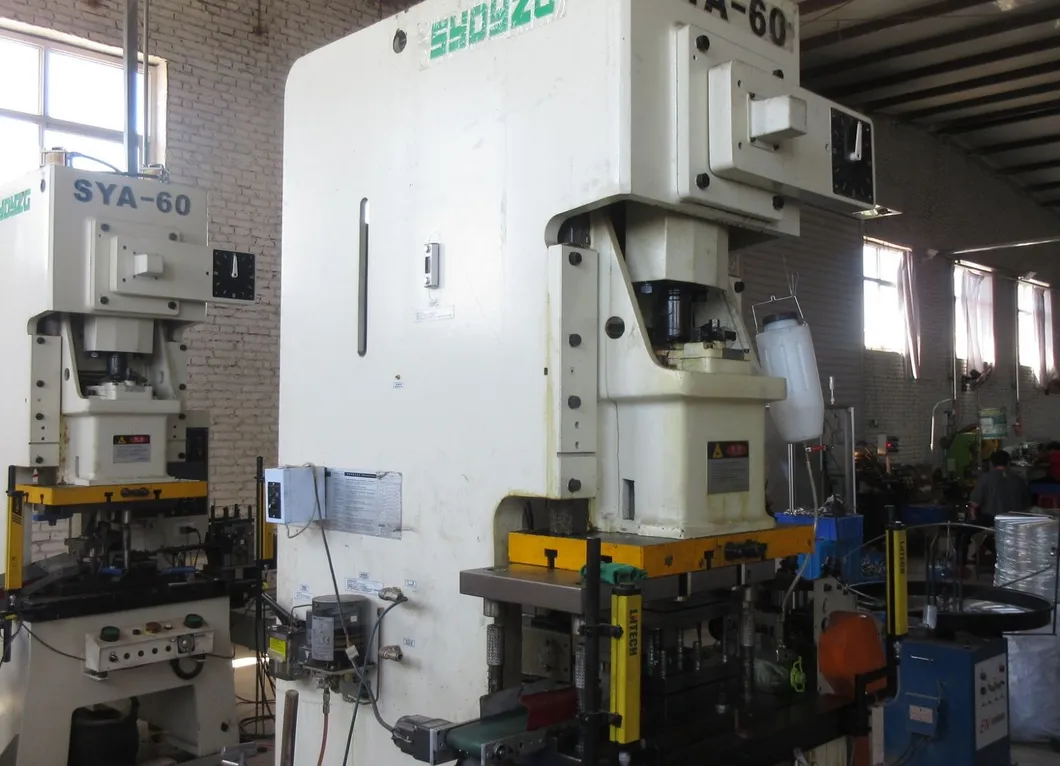

Warehouse 2

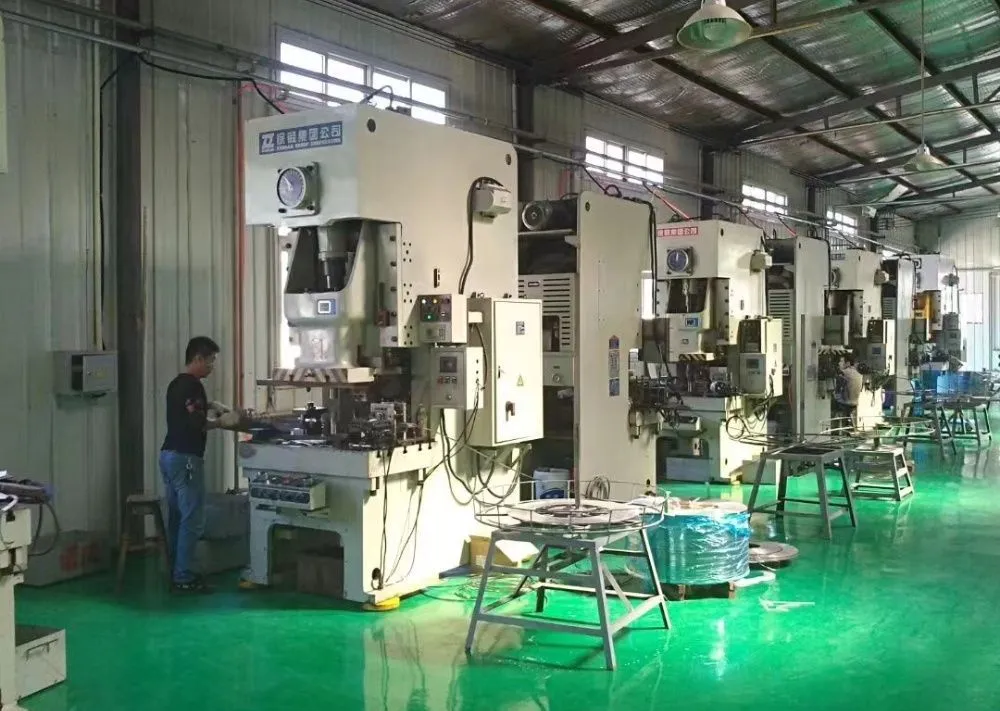

Warehouse 3
Frequently Asked Questions
1. What makes "Non-Perforated" clamps better for hoses? The non-perforated band features a smooth underside which prevents the hose from being cut or sheared during tightening, ensuring a longer lifespan for the connection.
2. How does the asymmetric housing improve safety? The asymmetric design provides an even distribution of forces and prevents the housing from tilting or shifting when high torque is applied, ensuring a secure seal.
3. Which material should I choose for marine applications? For marine or salt-water environments, we recommend the W5 (316 Stainless Steel) material code as it provides maximum corrosion resistance.
4. Can I customize the clamps with my own branding? Yes, we support OEM/ODM services. We can stamp your logo, specific materials, or custom clamping ranges directly onto the band.
5. What is the difference between W2 and W4 materials? W2 uses a zinc-plated screw with a stainless steel band and housing. W4 features 100% stainless steel for the screw, housing, and band, offering higher corrosion resistance.
6. What is the typical lead time for large orders? With a monthly capacity of over 1 million pieces and automated production lines, we ensure fast delivery and stable supply for large-scale industrial and OEM projects.
