| Diameter Range | |
|---|---|
| mm | inch |
| 10-20 | 0.39-0.79 |
| 10-22 | 0.39-0.87 |
| 11-25 | 0.43-0.98 |
| 14-27 | 0.55-1.06 |
| 17-32 | 0.67-1.26 |
| 19-38 | 0.75-1.50 |
| 21-44 | 0.83-1.73 |
| 27-51 | 1.06-2.01 |
| 33-57 | 1.30-2.24 |
| 39-64 | 1.54-2.52 |
| 46-70 | 1.81-2.76 |
| 52-76 | 2.05-2.99 |
| 59-82 | 2.32-3.23 |
| 65-89 | 2.56-3.50 |
| 72-95 | 2.83-3.74 |
| 78-101 | 3.07-3.98 |
| 84-108 | 3.31-4.25 |
| 91-114 | 3.58-4.49 |
| 105-127 | 4.13-5.00 |
| 118-140 | 4.65-5.51 |
| 130-152 | 5.12-5.98 |
| 143-165 | 5.63-6.50 |
| 155-178 | 6.10-7.01 |
| Material Options | ||
|---|---|---|
| Code | Resistance | Specification |
| W1 | Normal | Zinc plated Screw, Housing and Band. |
| W2 | Average | Zinc plated Screw; 201/304 SS Housing and Band. |
| W4 | High | 201/304 SS Screw, Housing and Band. |
| W5 | Maximum | 316 Stainless Steel components. |
| Suggested Installation Torque | ||
|---|---|---|
| Material Code | Free Torque | Breaking Torque |
| W1 | ≤ 0.8 Nm | ≥ 5 Nm |
| W2/W4/W5 | ≤ 0.6 Nm | ≥ 8 Nm |

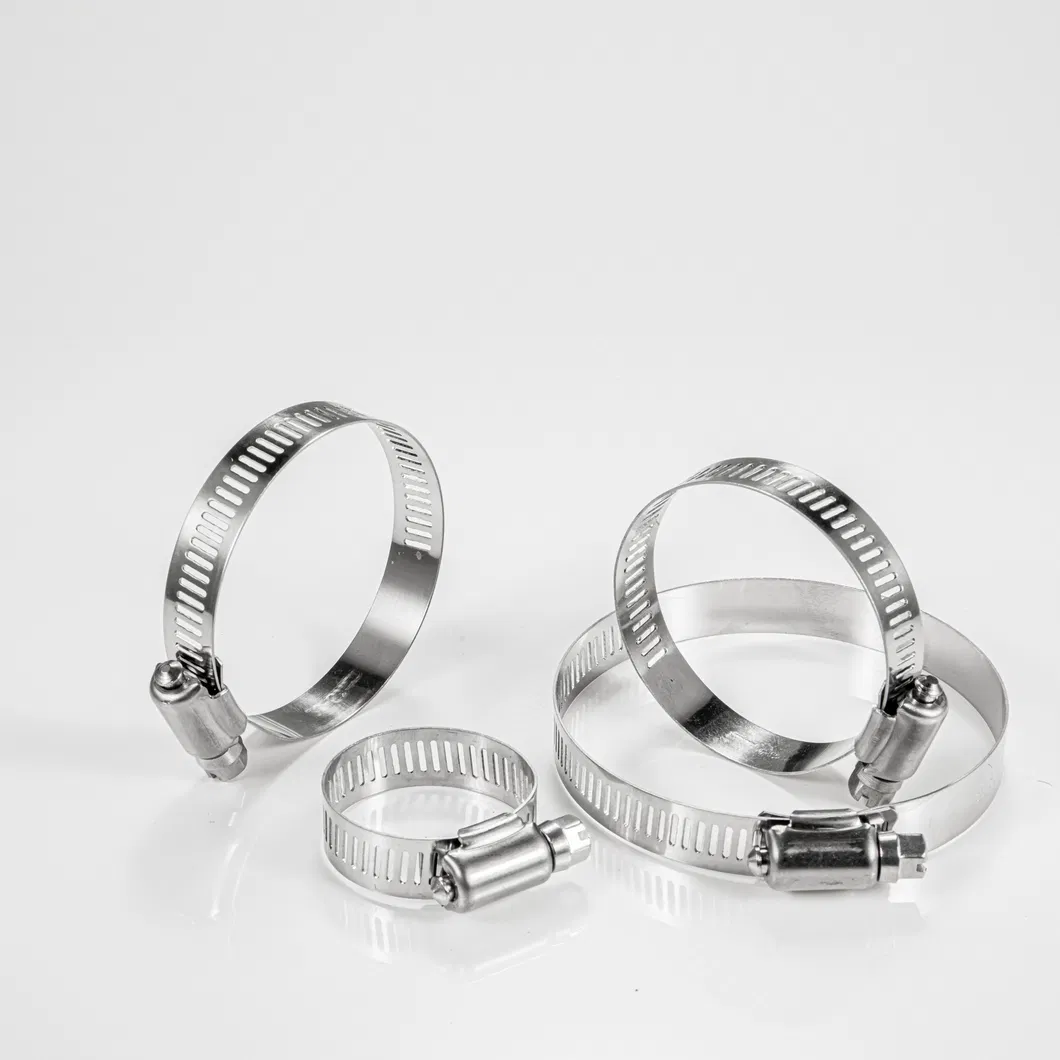

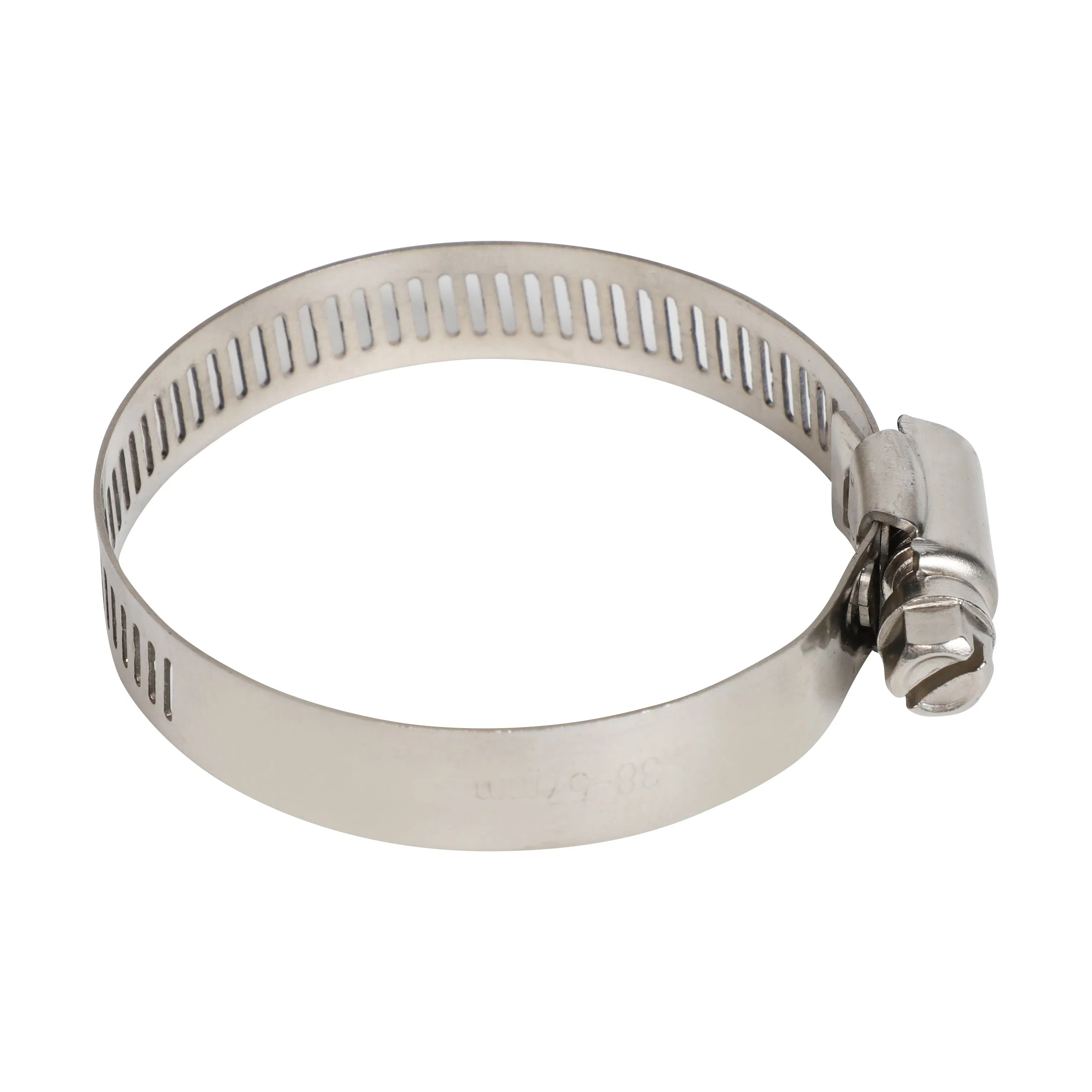

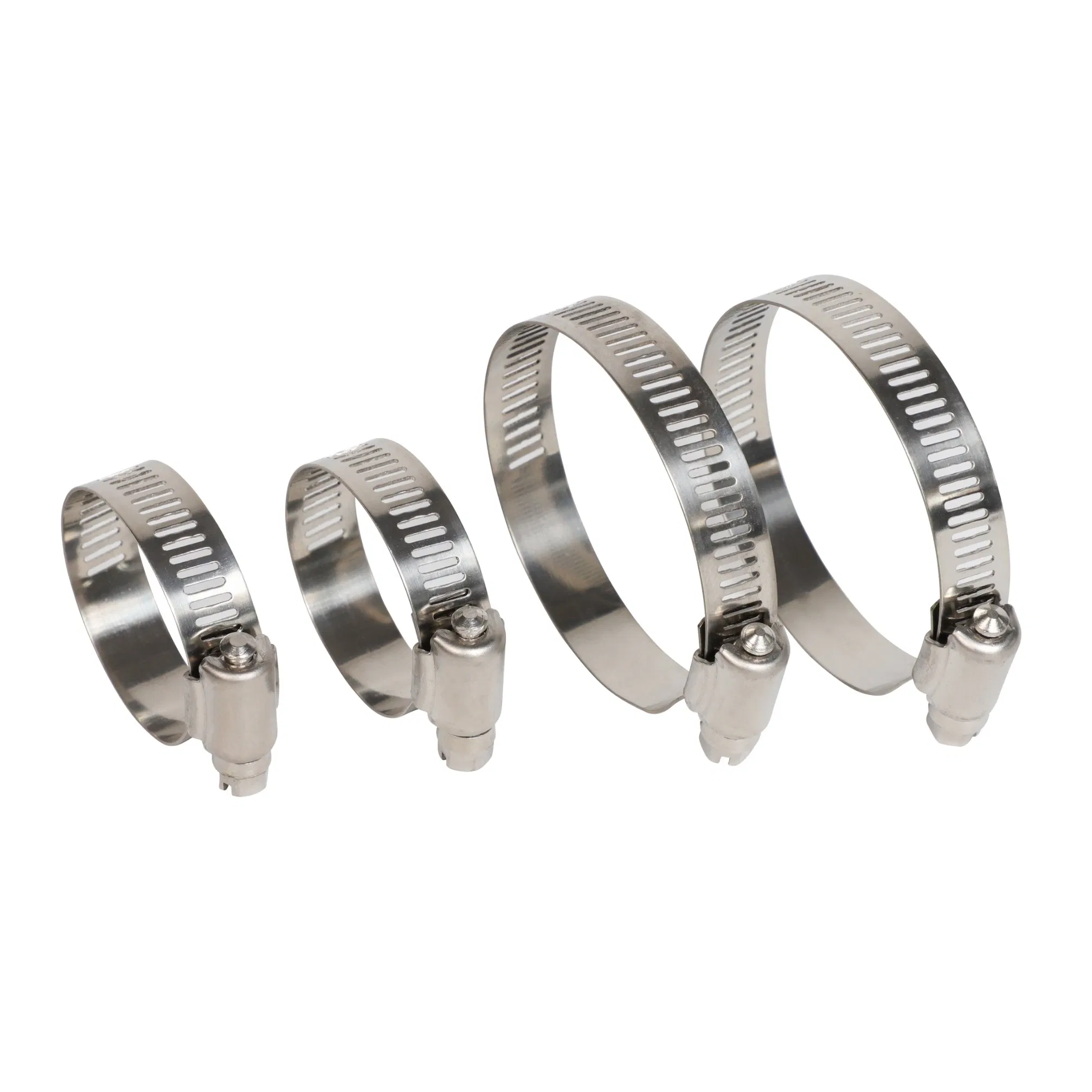

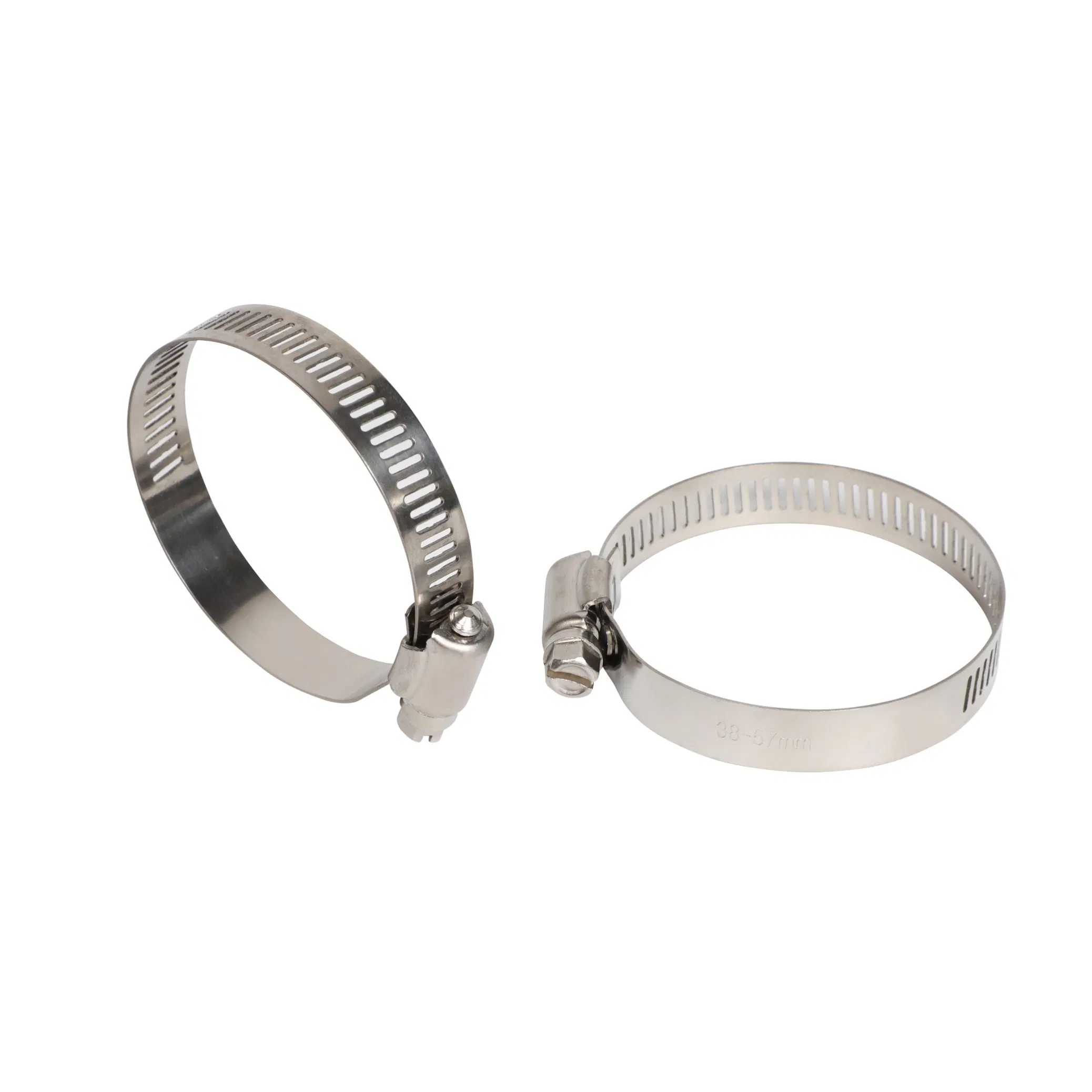

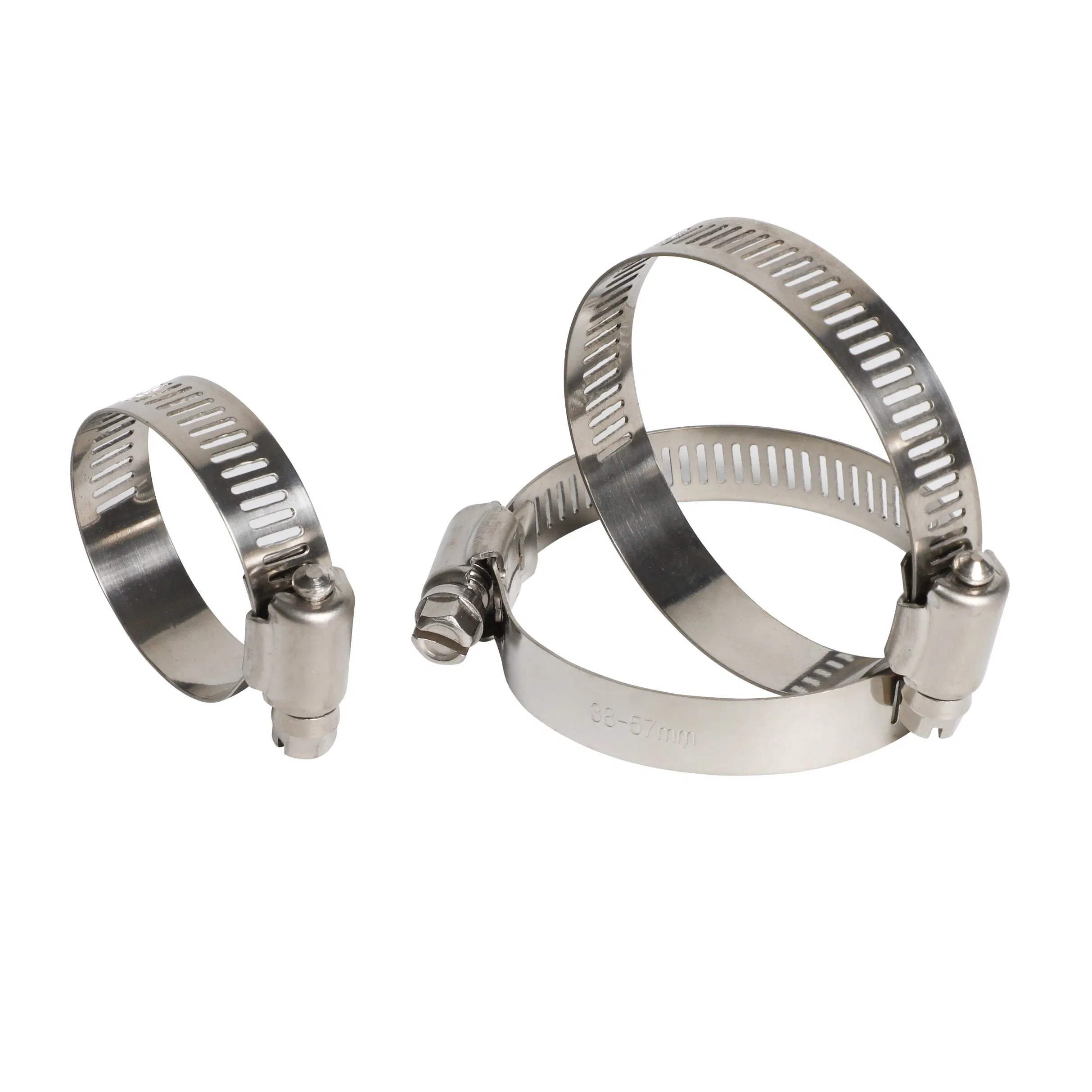

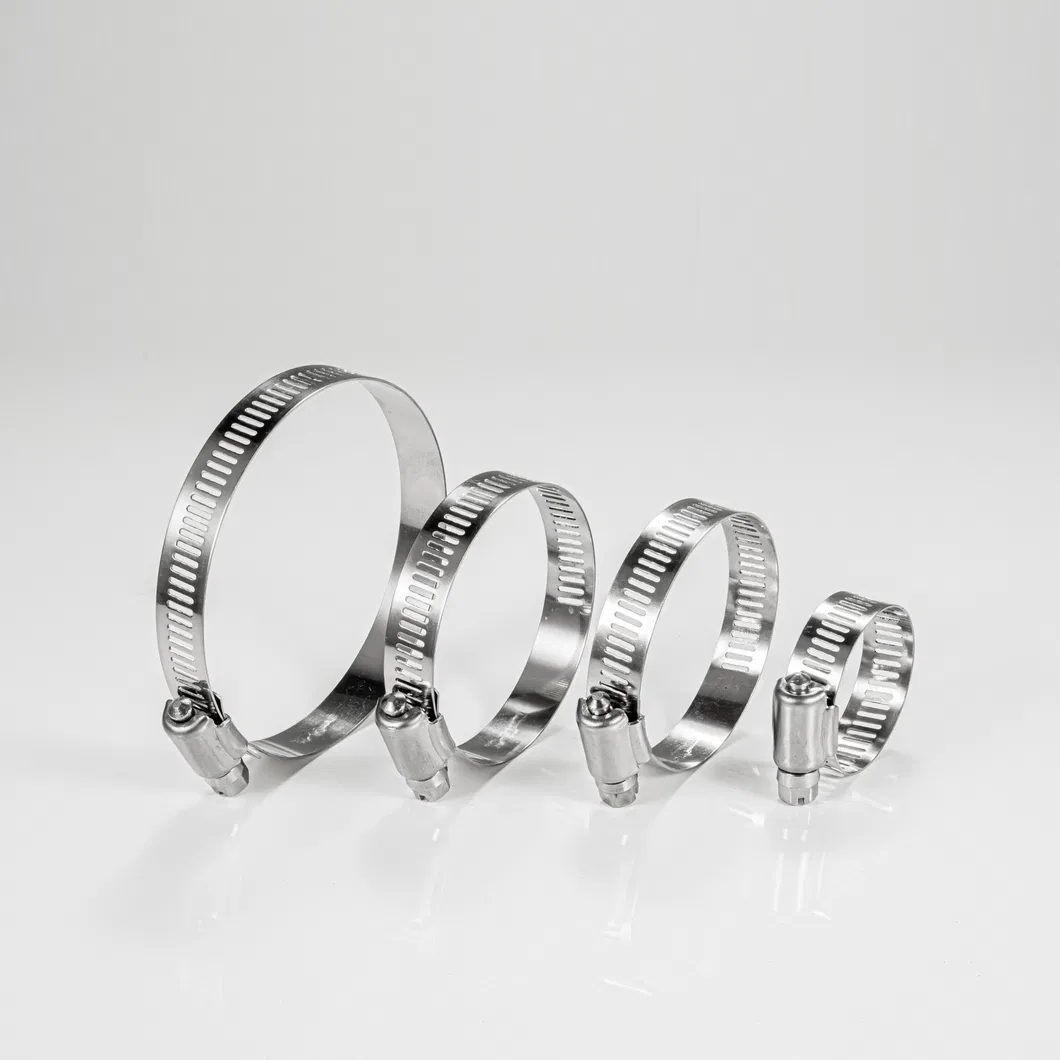

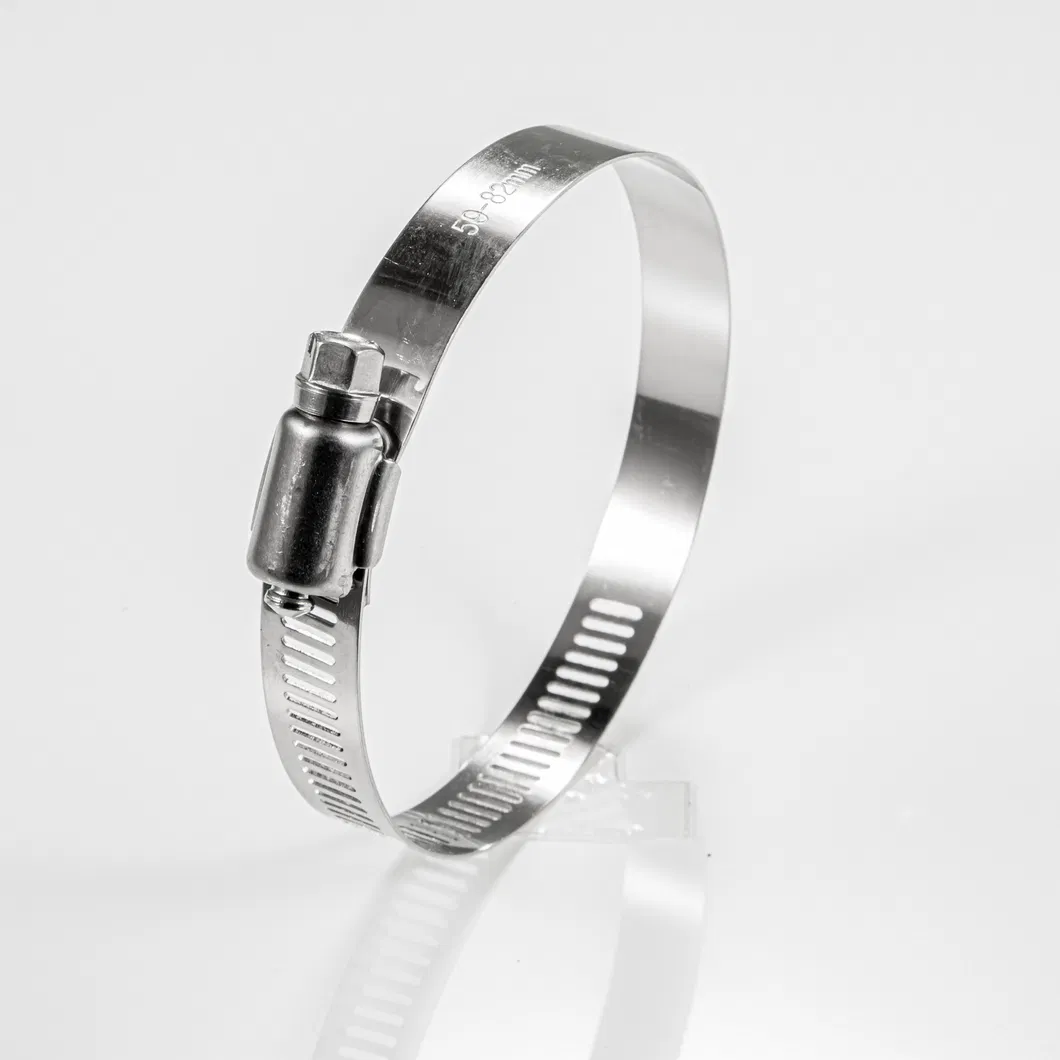

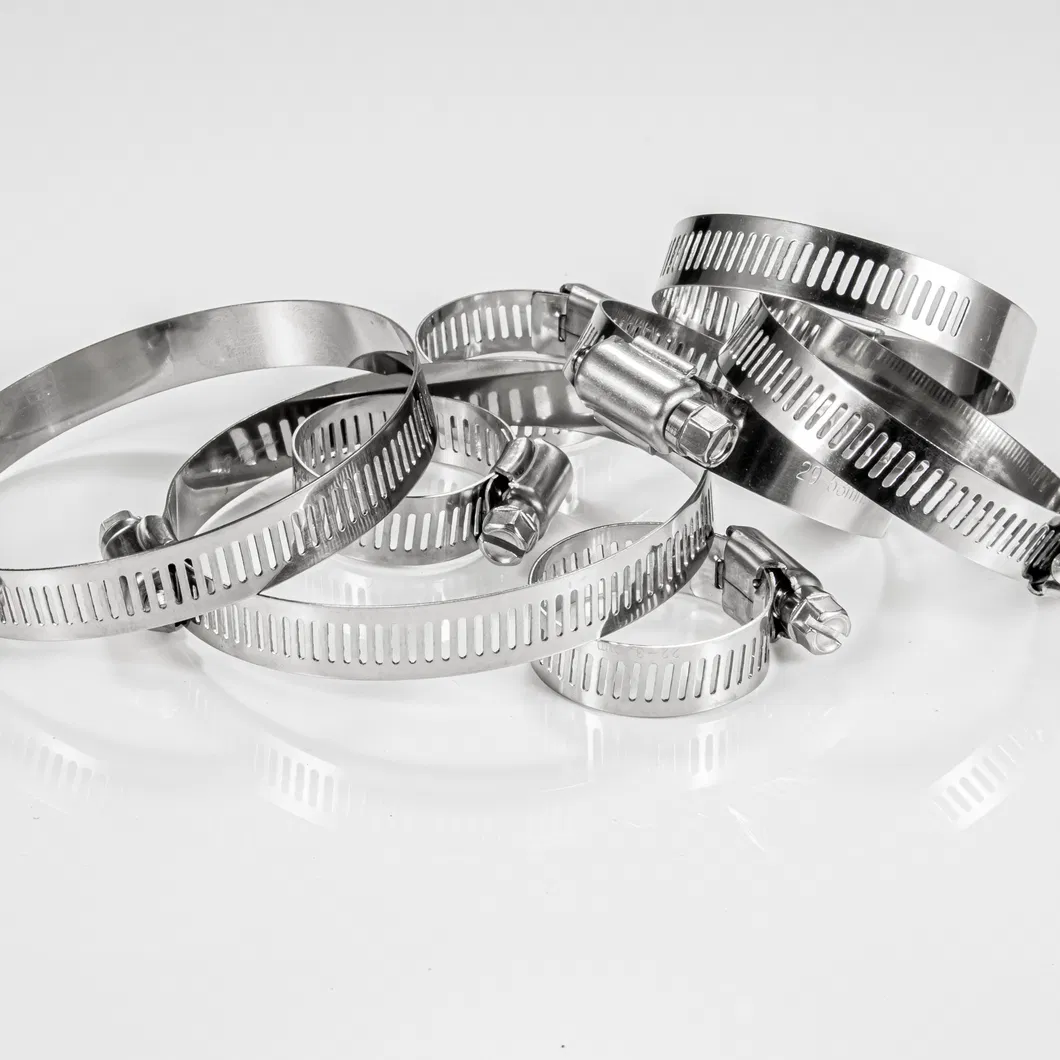

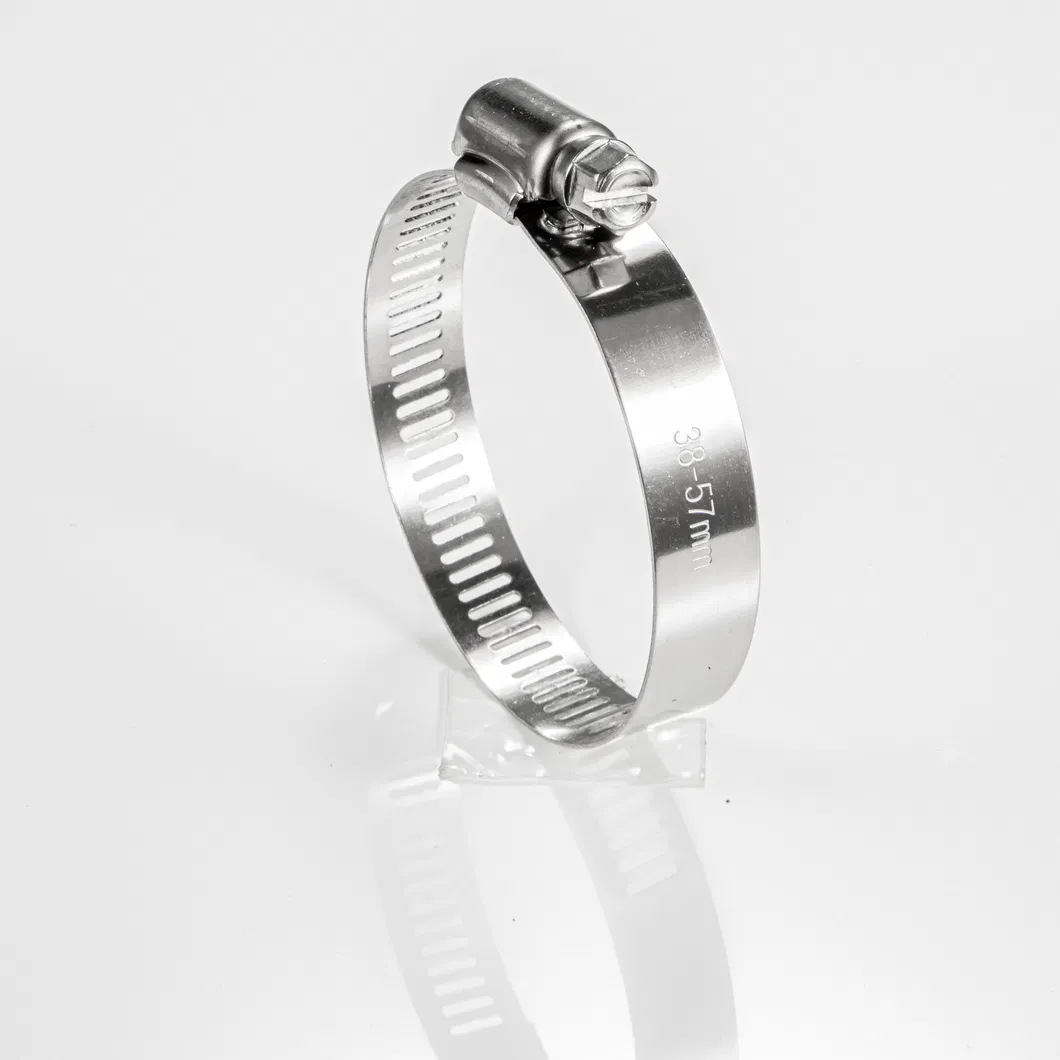

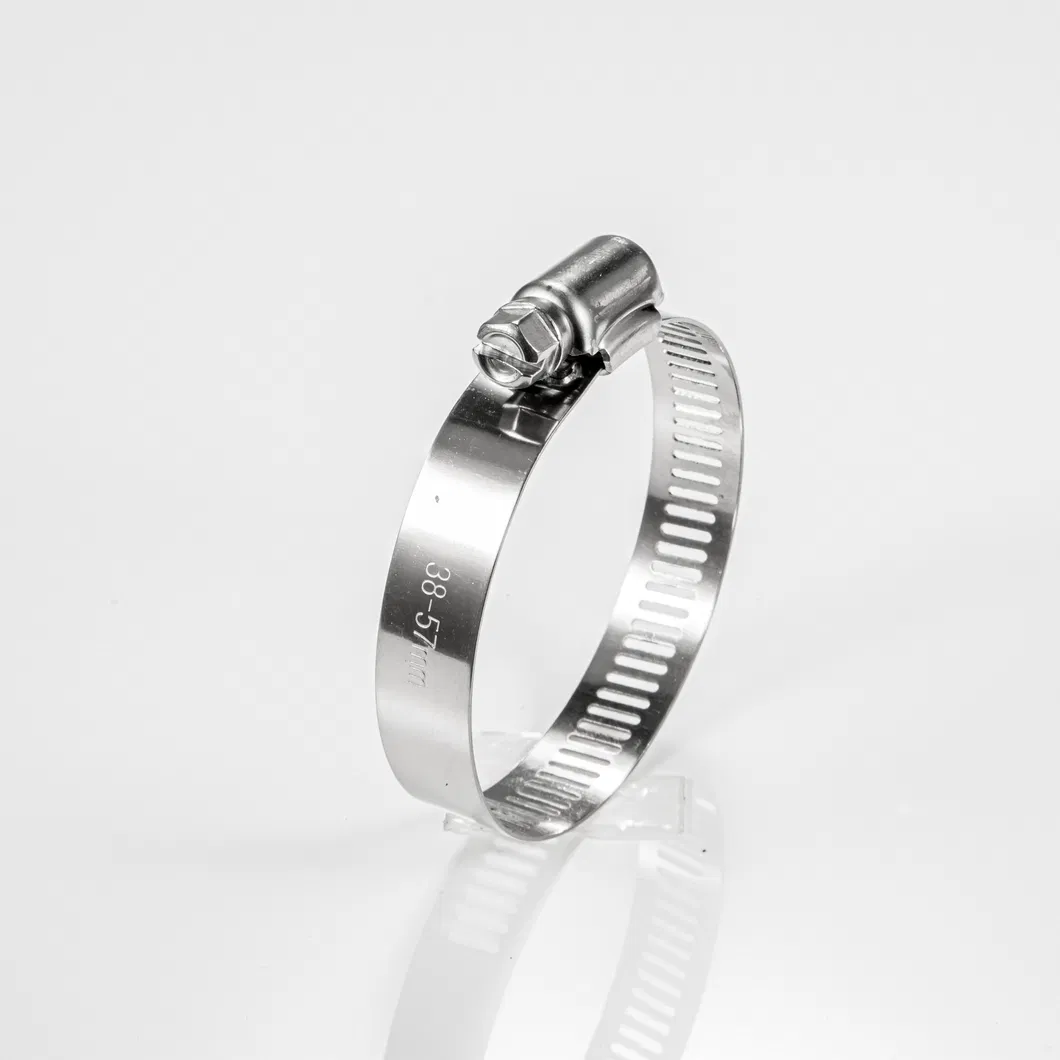

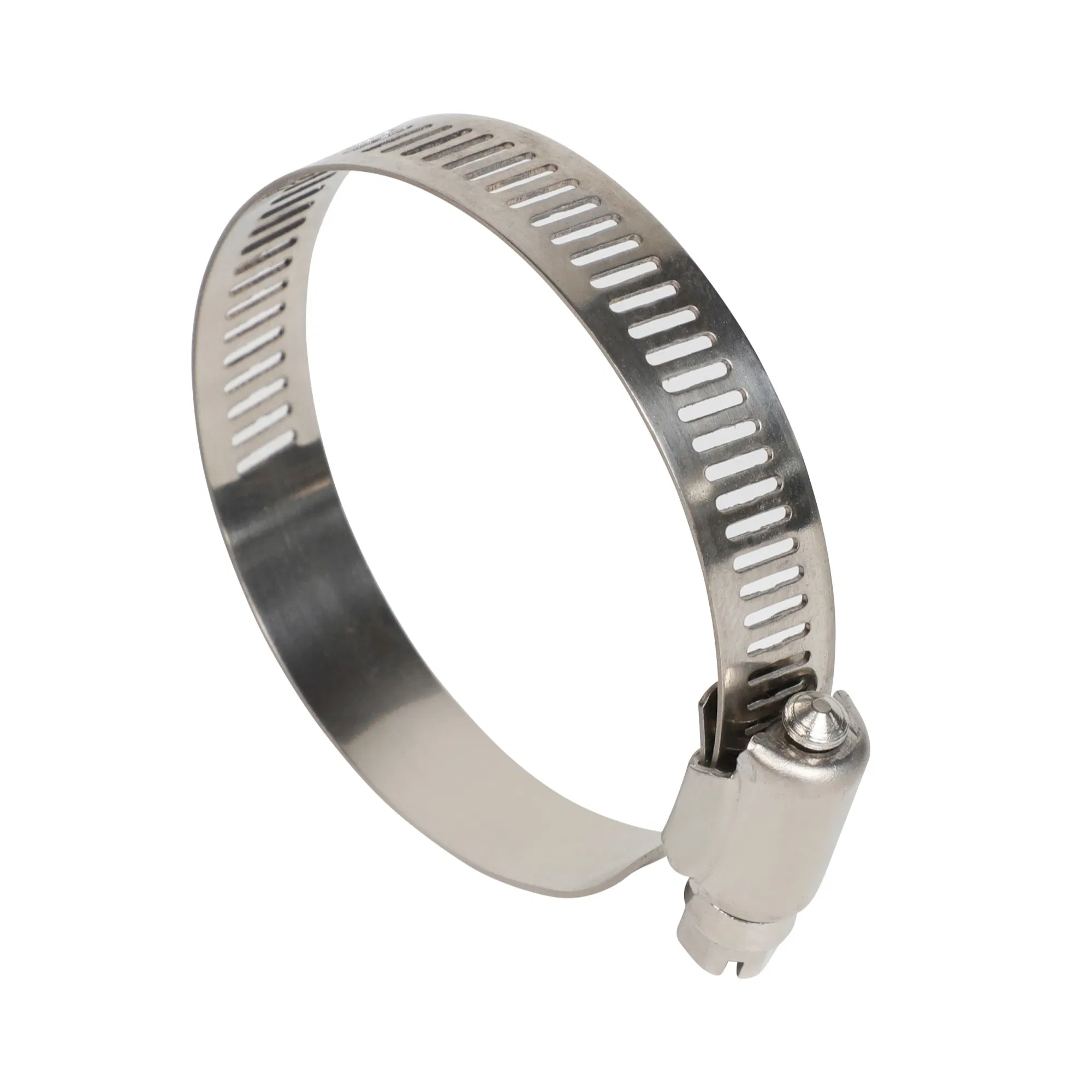

A1: American type hose clamps feature a perforated band design where the screw threads engage with clean punched rectangular slots, providing a secure and adjustable connection.
A2: For marine and saltwater environments, W5 (316 Stainless Steel) is recommended as it offers the maximum corrosion resistance.
A3: Yes, these worm drive clamps are widely used for securing fuel, oil, and air lines in automotive and industrial machinery due to their stable torque performance.
A4: Free torque is the force required to turn the screw without a load, while Breaking torque is the maximum force the clamp can withstand before the band or housing fails.
A5: Yes, as a direct factory, we can stamp custom logos, material codes, and clamping ranges on the band, and provide sizes not listed in the standard table.

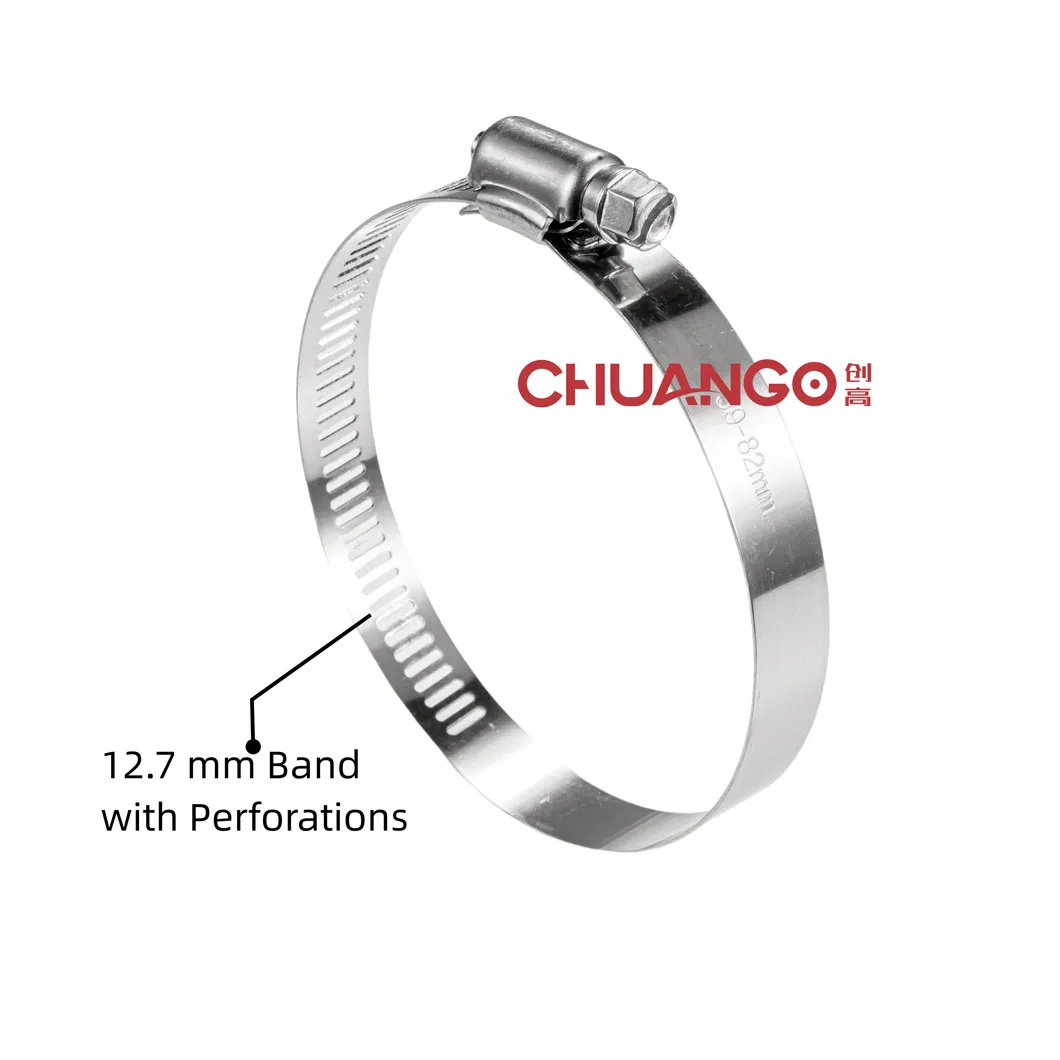

A6: The standard bandwidth for this series is 12.7 mm (1/2"), which provides a balanced clamping force for a wide variety of applications.
