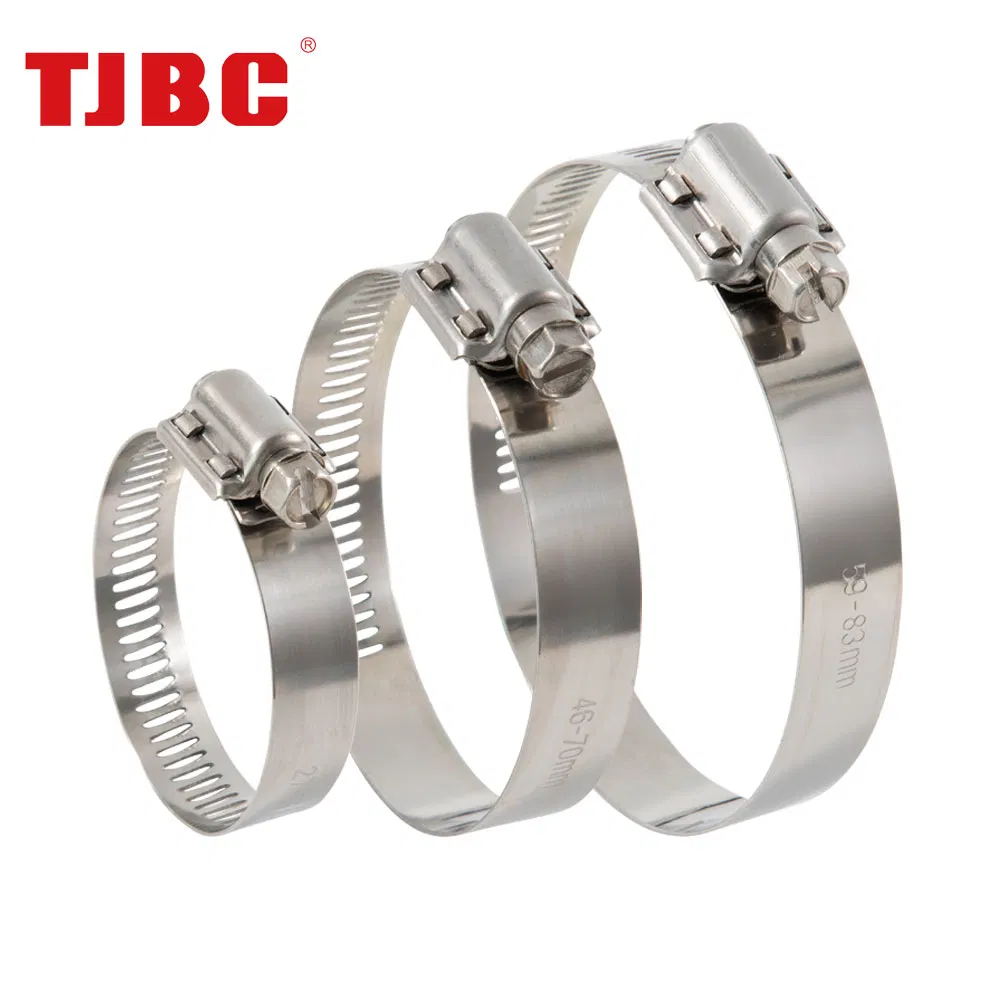

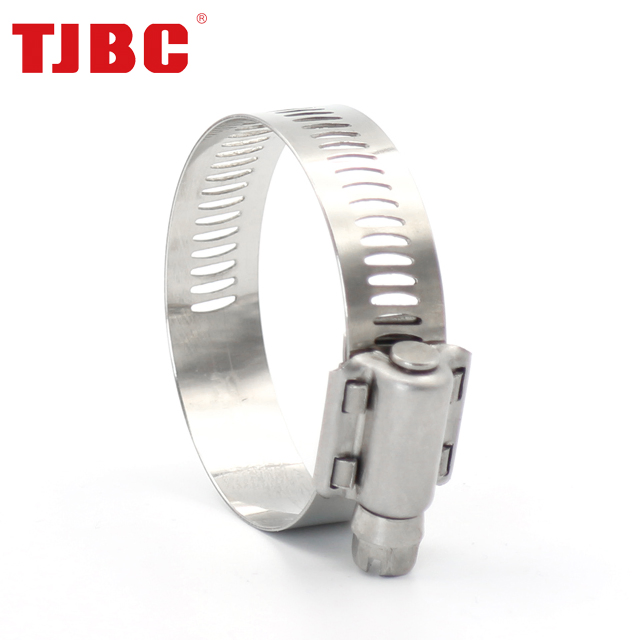

Heavy duty 2-pcs housing perforated hose clamps (MS05 & MS06 series). Engineered for high-performance automotive and industrial applications.
| SAE no | Size Range | 12.5mm Bandwidth (MS05) | 14.2mm Bandwidth (MS06) | |||
|---|---|---|---|---|---|---|
| mm | inch | W2 | W4 | W1 | W4 | |
| 6 | 11-20 | 0.44"-0.78" | MS05B6 | MS05D6 | - | - |
| 8 | 13-23 | 0.5"-0.91" | MS05B8 | MS05D8 | - | - |
| 10 | 14-27 | 0.56"-1.06" | MS05B10 | MS05D10 | - | MS06D10 |
| 12 | 18-32 | 0.69"-1.25" | MS05B12 | MS05D12 | - | MS06D12 |
| 16 | 21-38 | 0.81"-1.5" | MS05B16 | MS05D16 | MS06A16 | MS06D16 |
| 20 | 21-44 | 0.81"-1.75" | MS05B20 | MS05D20 | MS06A20 | MS06D20 |
| 32 | 40-64 | 1.56"-2.5" | MS05B32 | MS05D32 | MS06A32 | MS06D32 |
| Material Code | Band | Housing | Screw | Suggested Install Torque |
|---|---|---|---|---|
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | MS05: 5.3Nm MS06: 7.5Nm MS08: 11Nm |
| W2 | AISI 301SS | AISI 301SS | Zinc plated steel | |
| W4 | AISI 304SS | AISI 304SS | AISI 304SS |
A1: Our clamps are available in three material grades: W1 (all zinc plated steel), W2 (Stainless steel band/housing with zinc plated screw), and W4 (all AISI 304 stainless steel).
A2: The main difference is the bandwidth. MS05 features a 12.5mm bandwidth, while the MS06 series uses a wider 14.2mm bandwidth for heavier duty requirements.
A3: For MS05 series, the suggested torque is 5.3Nm. For MS06, it is 7.5Nm. Always ensure correct torque to avoid damage to the hose.
A4: Yes, our products are manufactured under strict quality standards and hold certifications including ISO, TUV, BSCI, and IATF.

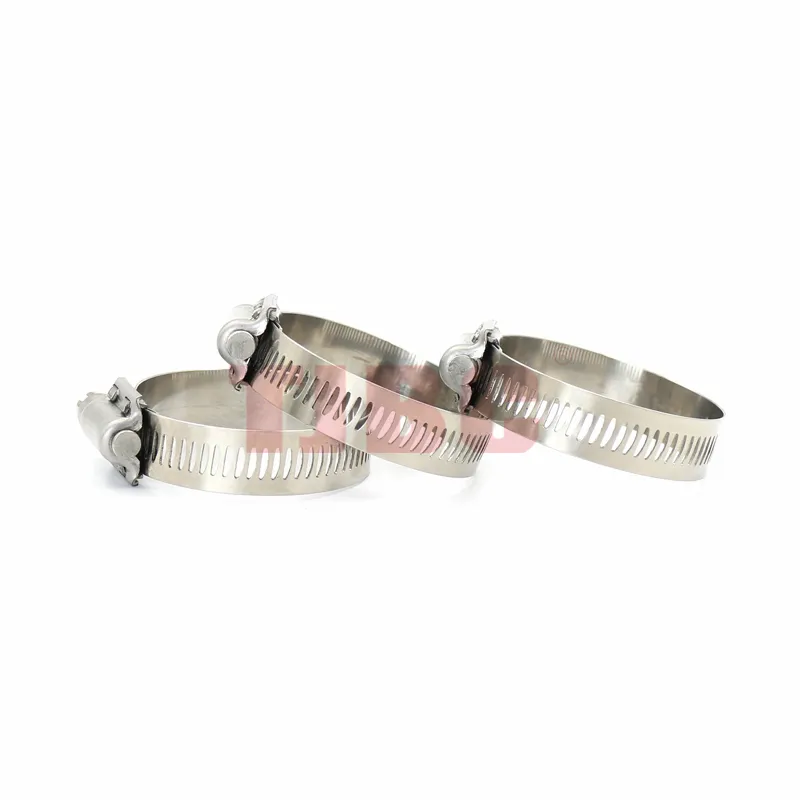

A5: These are heavy-duty perforated worm drive clamps specifically designed for automotive and industrial applications requiring secure, vibration-resistant connections.
A6: The MS05B8 model covers a clamping range of 13mm to 23mm (0.5" to 0.91").
