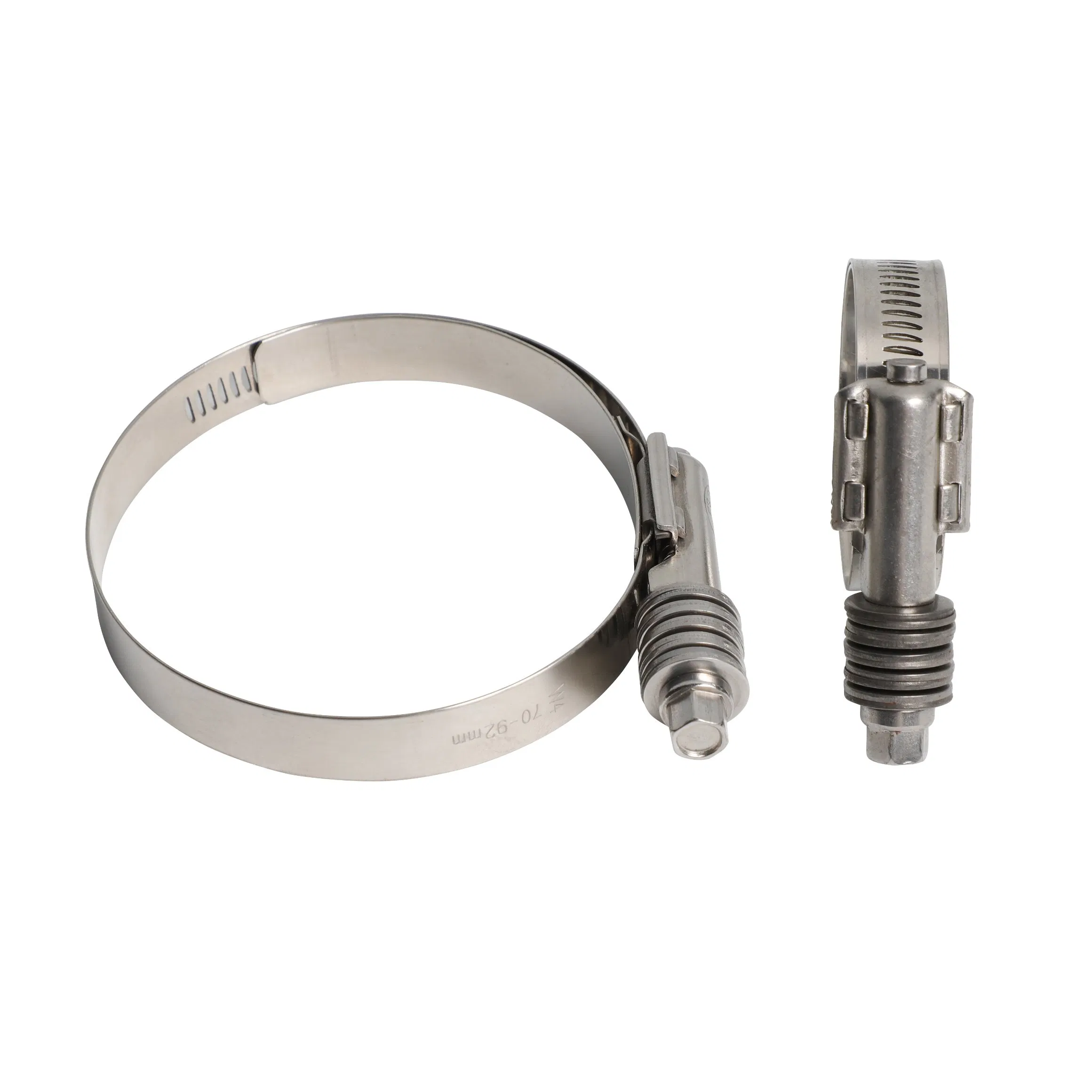

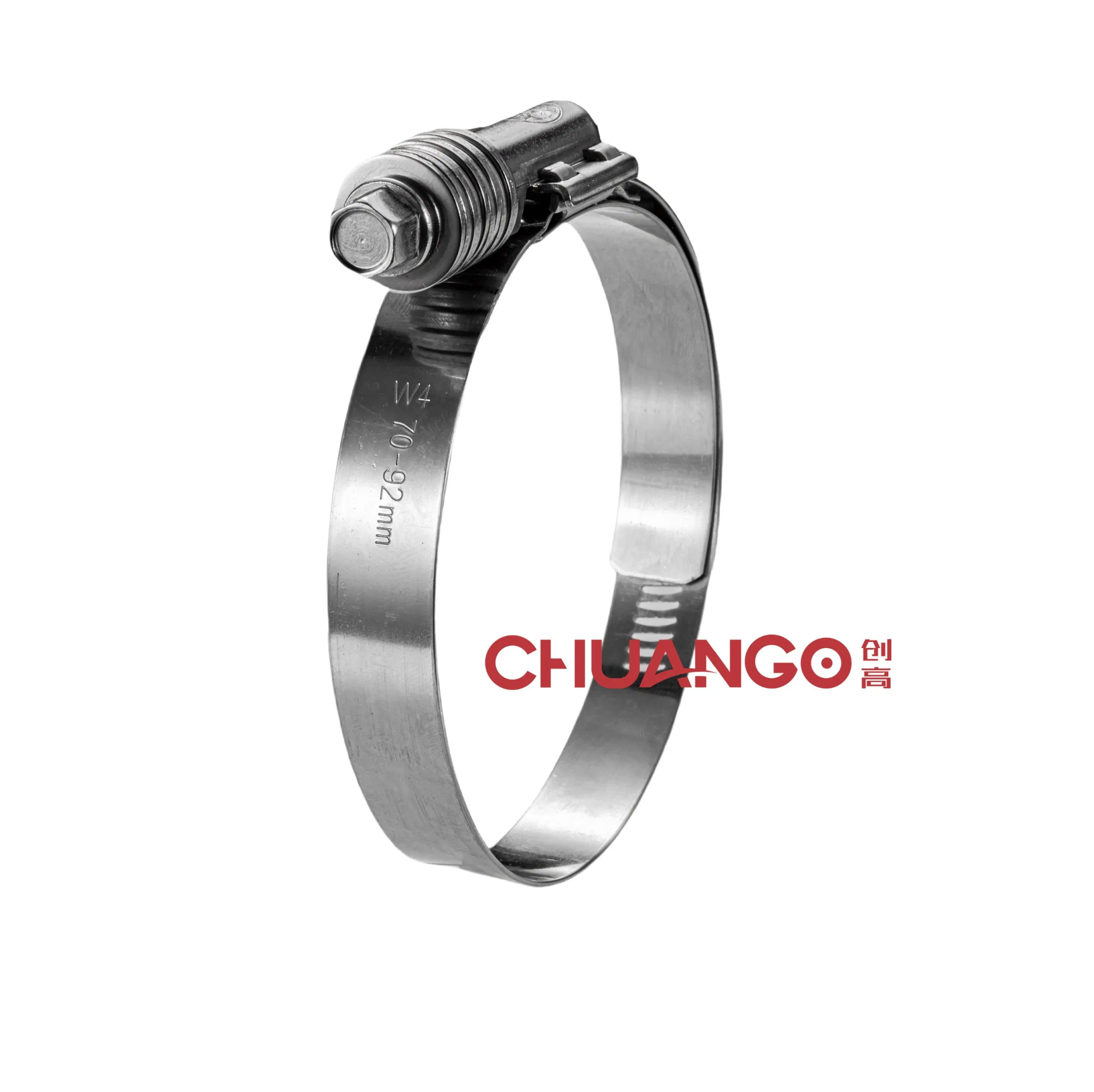

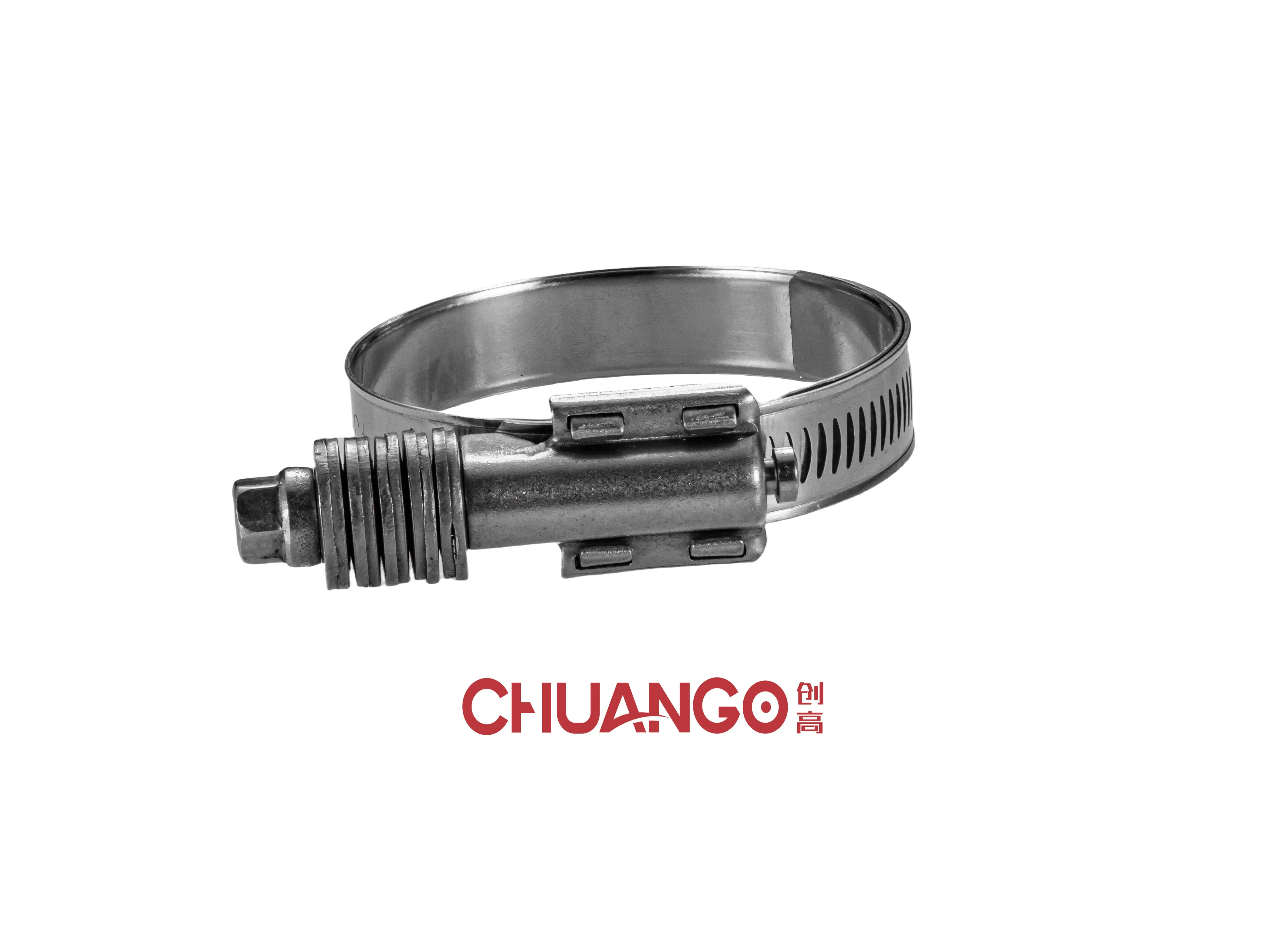

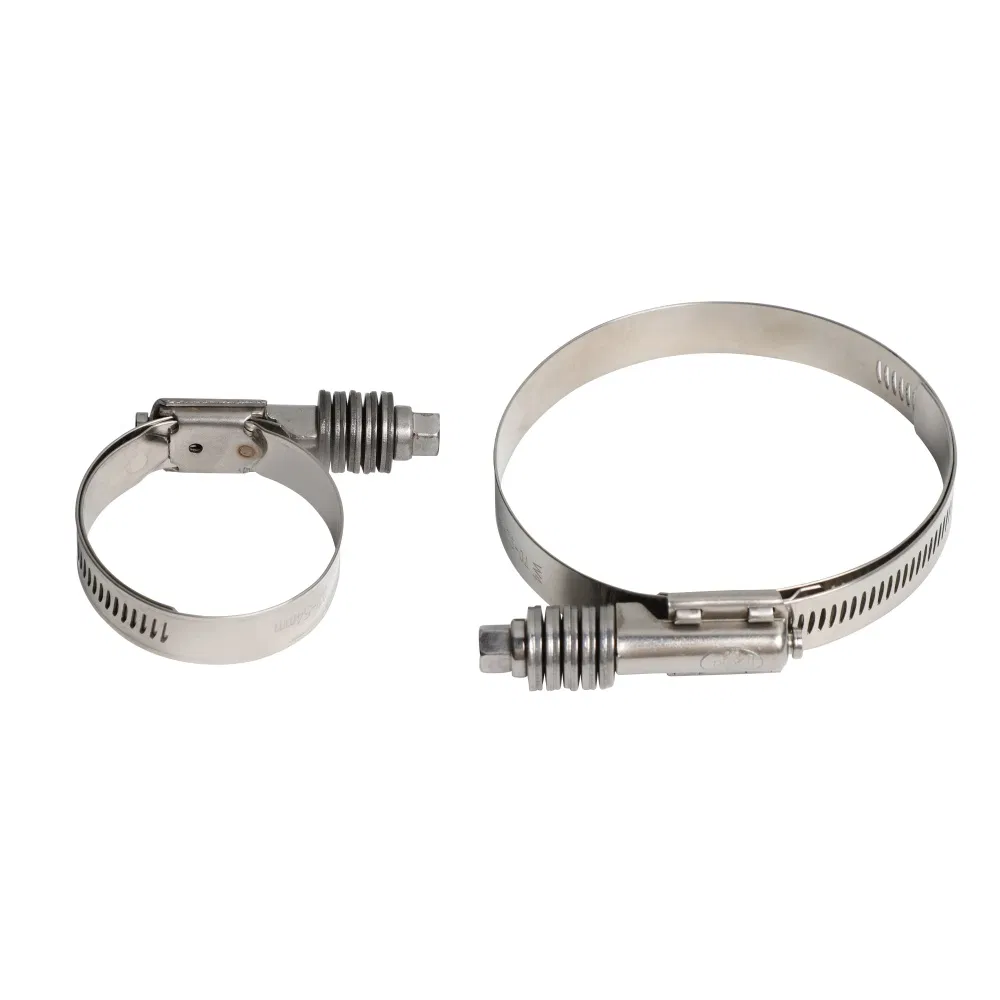

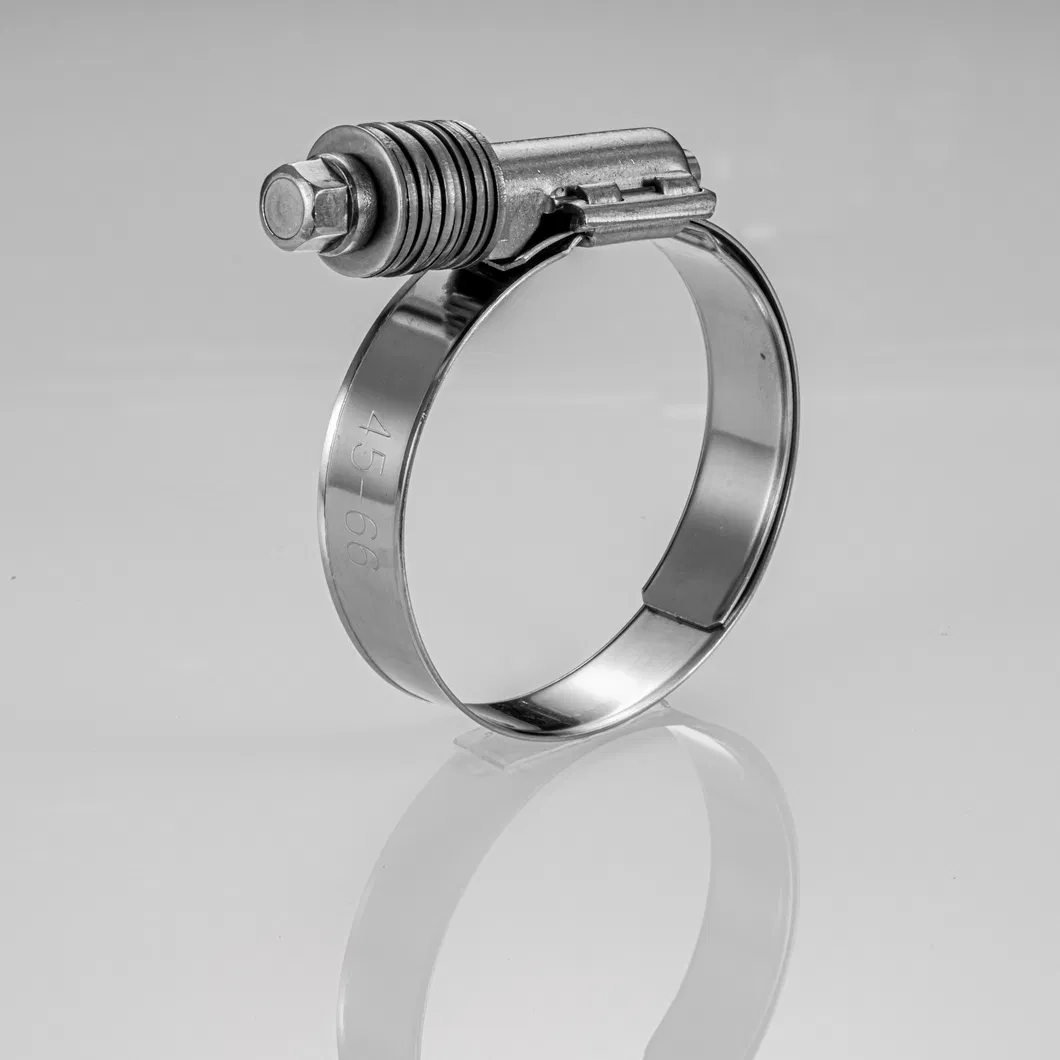

Constant Torque Perforated Worm Drive Hose Clamps (WPC)

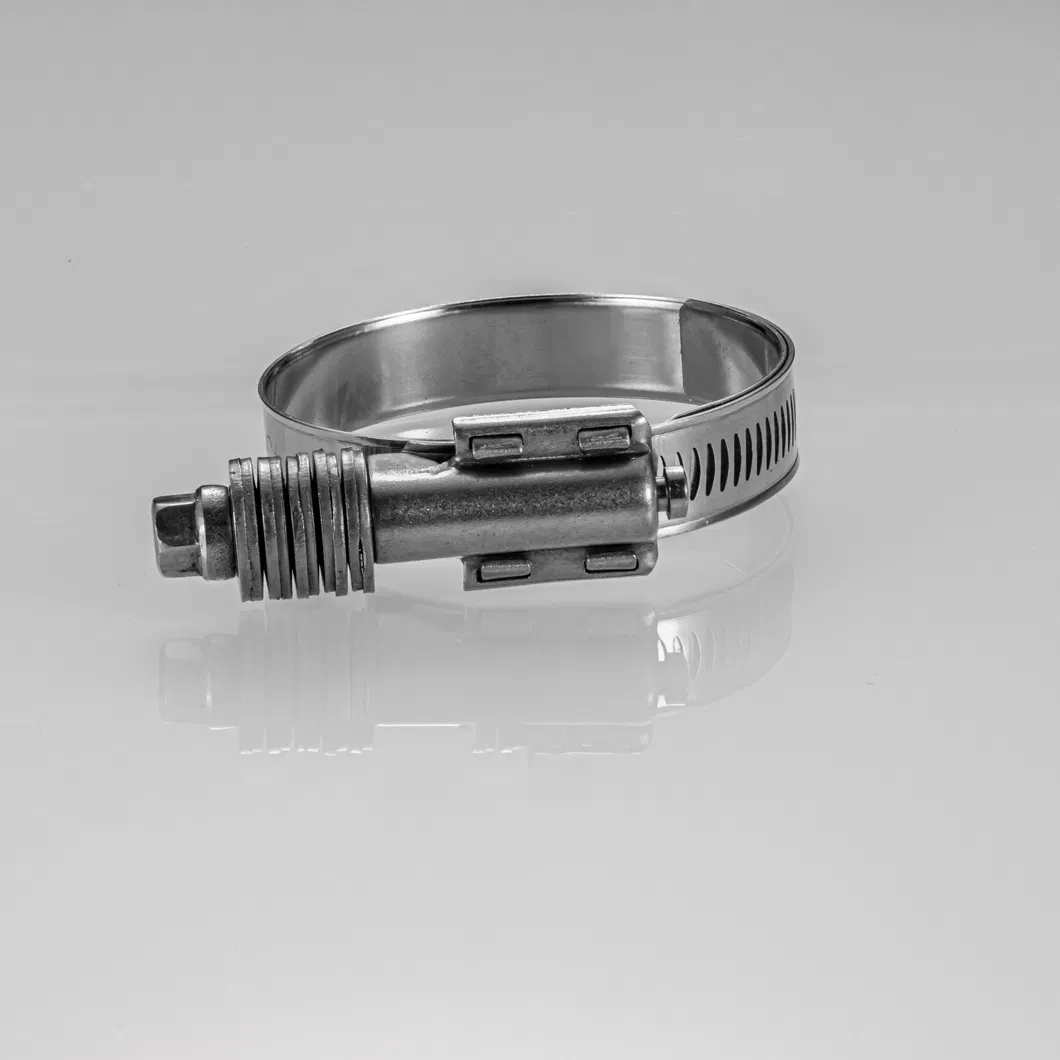

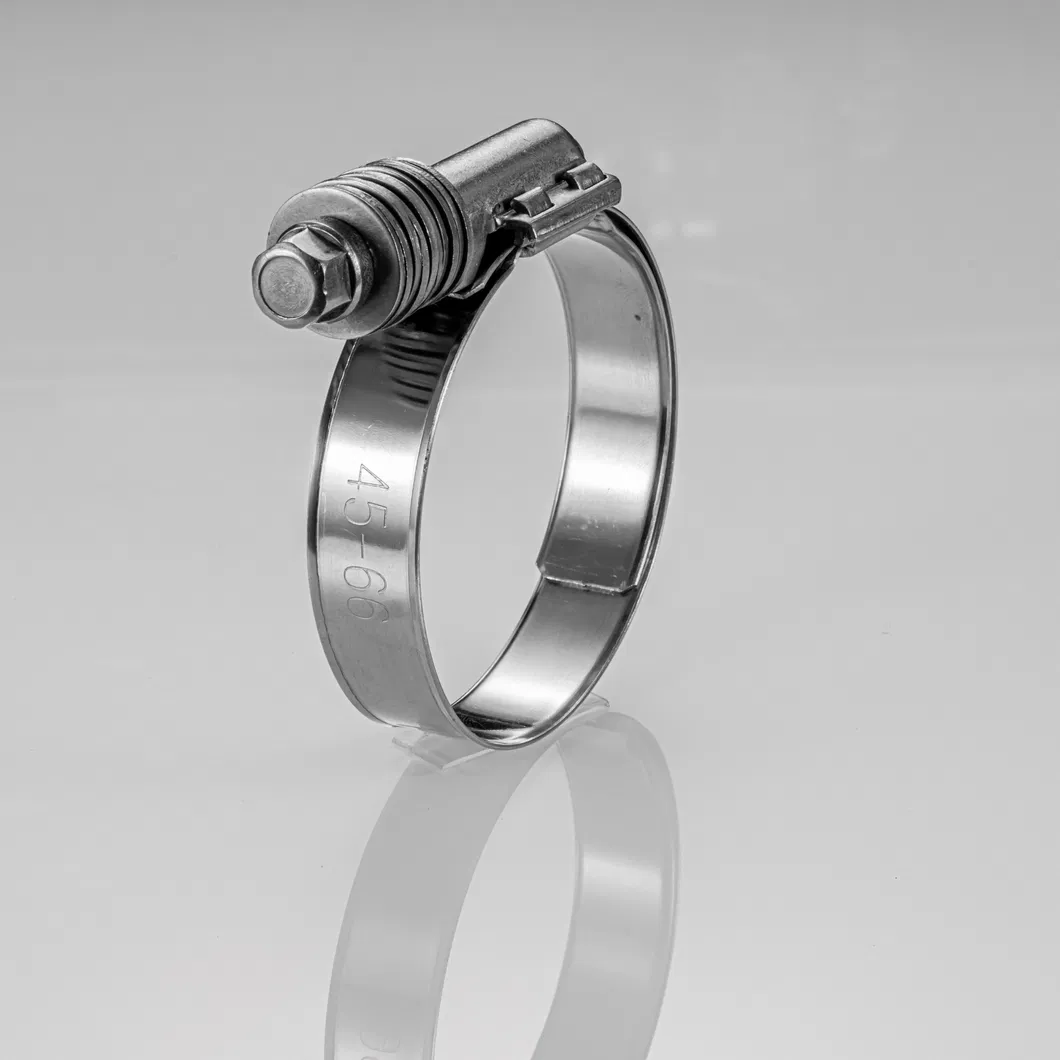

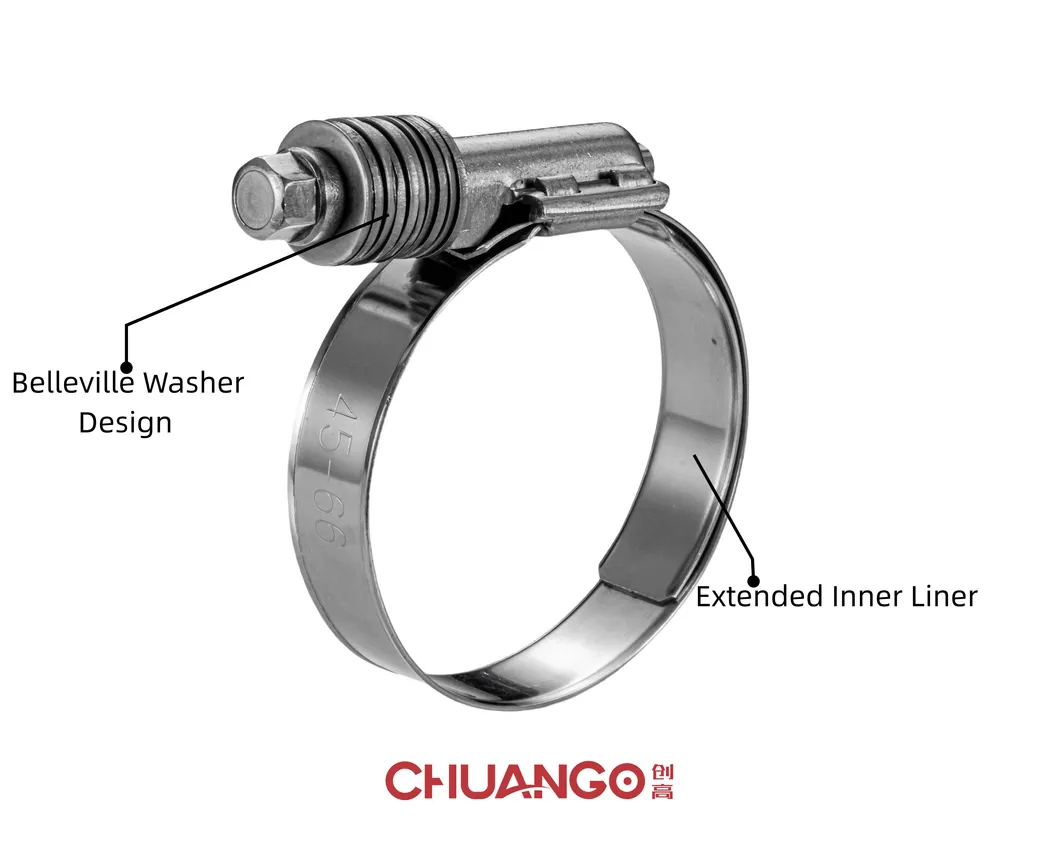

The American-type Constant-Torque hose clamp is a heavy-duty stainless steel worm drive hose clamp engineered with a Belleville washer design and an extended inner liner.
The washer design functions as a constant tension spring, allowing for automatic increases or decreases of the clamp diameter in response to variations in operational or environmental temperatures. The extended inner liner is specifically designed to protect all types of hoses from surface damage.
| Range (mm) | Range (inch) | Range (mm) | Range (inch) |
|---|---|---|---|
| 25-45 | 0.98-1.77 | 121-143 | 4.76-5.63 |
| 32-54 | 1.26-2.13 | 134-156 | 5.28-6.14 |
| 45-67 | 1.77-2.64 | 146-168 | 5.75-6.61 |
| 57-79 | 2.24-3.11 | 159-181 | 6.26-7.13 |
| 70-92 | 2.76-3.62 | 172-194 | 6.77-7.64 |
| 83-105 | 3.27-4.13 | 184-206 | 7.24-8.11 |
| 95-117 | 3.74-4.61 | 197-219 | 7.76-8.62 |
| 108-130 | 4.25-5.12 | 210-232 | 8.27-9.13 |
| Material Code | Corrosion Resistance | Composition |
|---|---|---|
| W2 | Average | Zinc Plated Screw; 200/300 Stainless Spring Washer, Housing and Band |
| W4 | High | All 200/300 Series Stainless Steel |

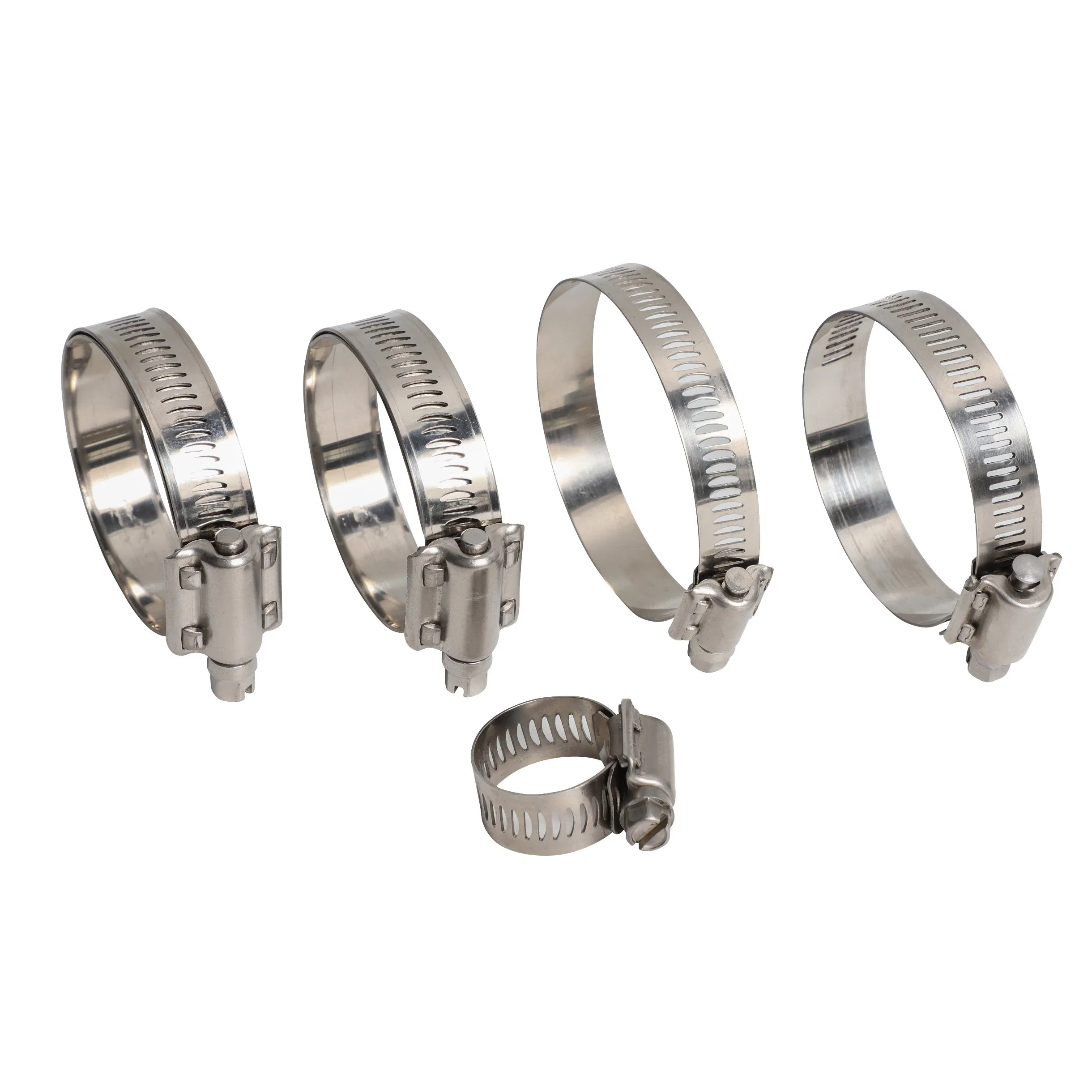

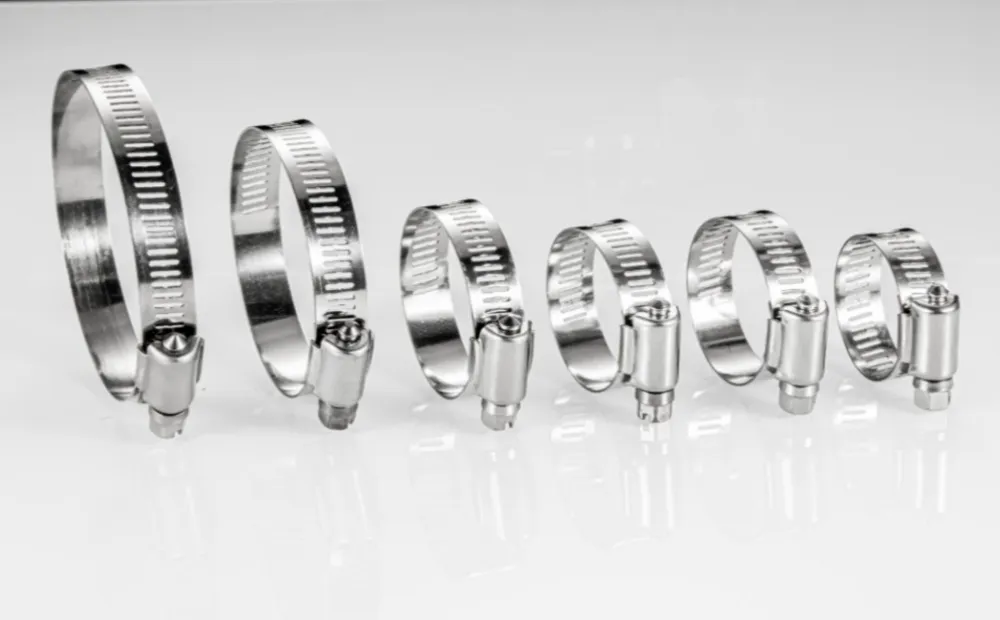

Worm Drive Hose Clamps: Exceptional clamping force and adjustability for automotive and industrial settings.

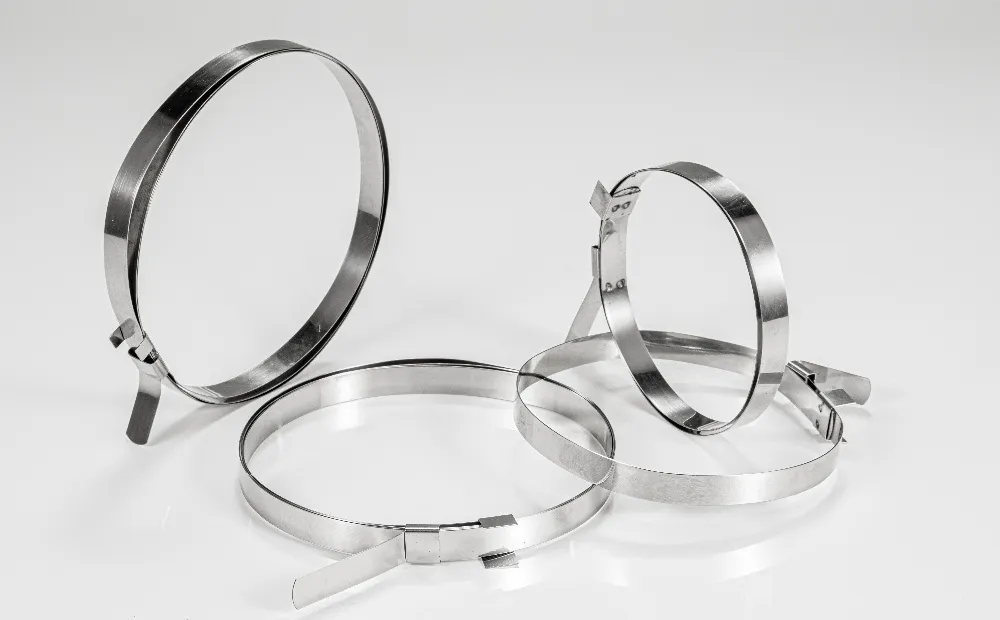

Heavy-duty Band Clamps: Designed for high-pressure environments and large diameter pipes.
Ear Clamps: Permanent, tamper-proof connections with single or double ear designs.
One-piece Clamps: Seamless design for consistent pressure distribution.
CV Boot Clamps: Specifically for automotive CV boots to prevent grease leakage.
No-hub Couplings: Flexible, leak-proof connections for plumbing and drainage systems.
