Heavy Duty Automatic Electric Gantry Type Oil Tank Welding Machine Production Line

Customization: Available
Type: Gantry
Control Mode: CNC

Product Description

Basic Information
Model NO.QTW-3500
Machine TypeWelding Robot / Gantry Type
VoltageAC380V
ConditionNew
Warranty1 Year
ColorCustomized
Core ComponentsPLC, Bearing, Gearbox, Motor, Gear
EfficiencyHigh Automatic Speed / Time Saving
Production Capacity50 Sets Per Week
OriginShandong, China
Product Description
The Heavy Duty Automatic Electric Gantry Type Oil Tank Welding Machine is an advanced production line solution developed for circumferential seams of irregular shaped tanks. By integrating sophisticated computer control, PLC technology, and frequency conversion, this system allows for the completion of complex welding operations in a single cycle.
Specialized in welding round and fish-belly shaped tanks for special vehicle industries.
Flexible profiling technology for automatic seam tracking and adjustment.
Advanced micro-electronics ensure easy operation and convenient control.
Utilizes submerged arc welding for superior seam quality and high structural strength.
Stable welding gate with movable holding devices to guarantee workpiece stability.
Technical Parameters
Maximum Diameter4000mm (Customizable)
Minimum Diameter1500mm
Gantry Gauge4600mm
Rail Length18000mm (Customizable)
Welding Speed200-800mm/min
Welding Wire Diameter1.2-1.6mm
Gantry DriveAC Frequency Converter, Double Sides Drive
Flux ReclaimerPneumatic Automatic
Power SupplyAC 380V 50HZ 3-Phase 4-Wire
Main Machine Power31KVA

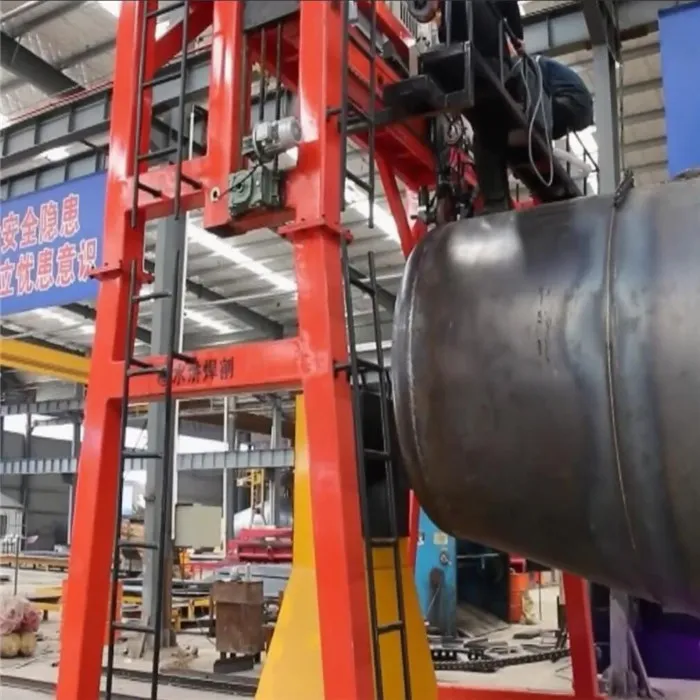

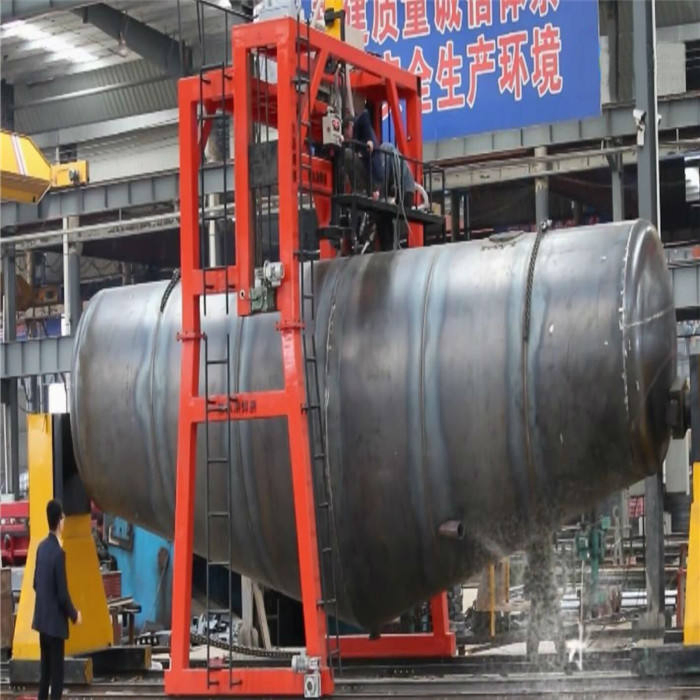

Product Gallery

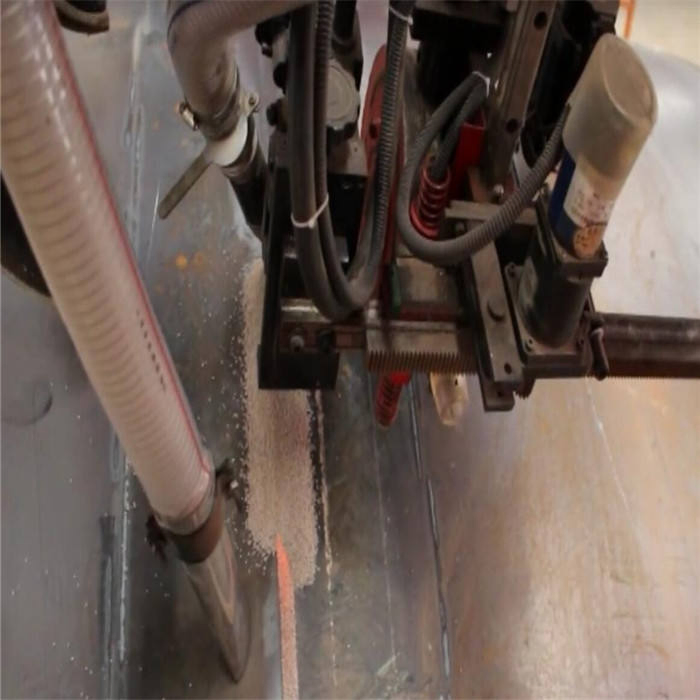

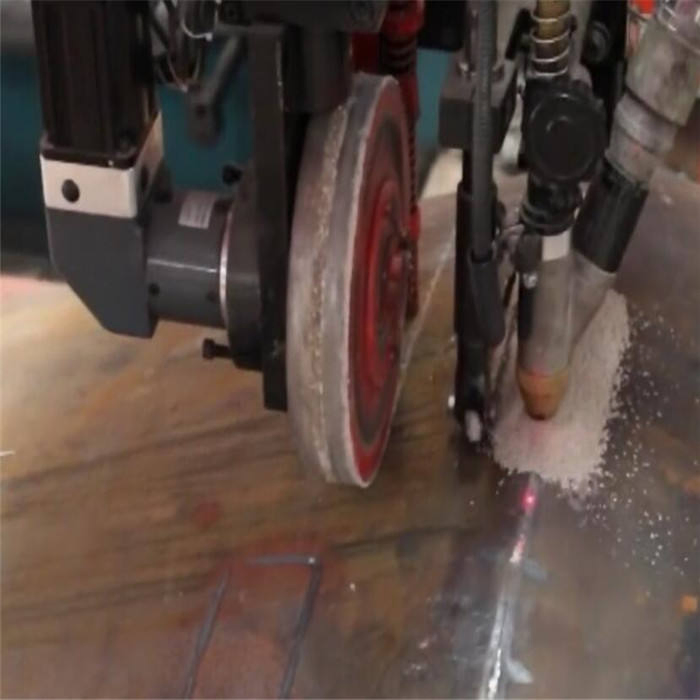

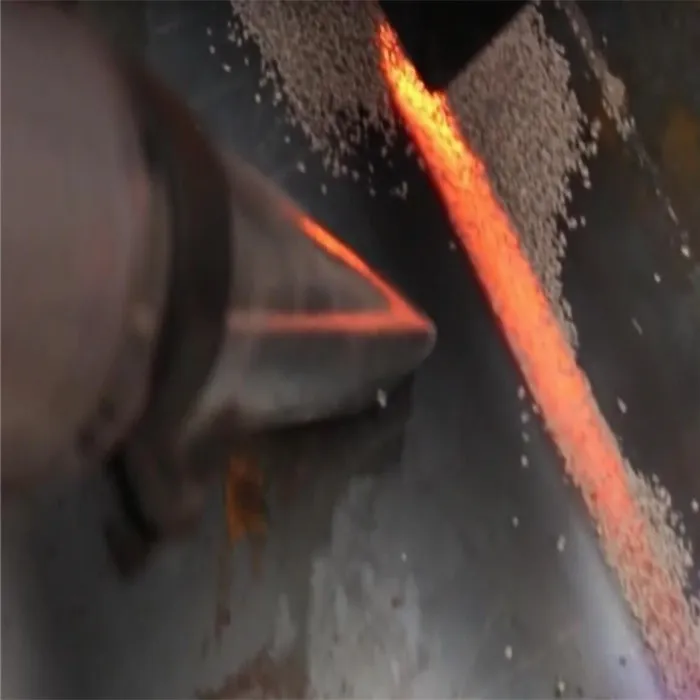

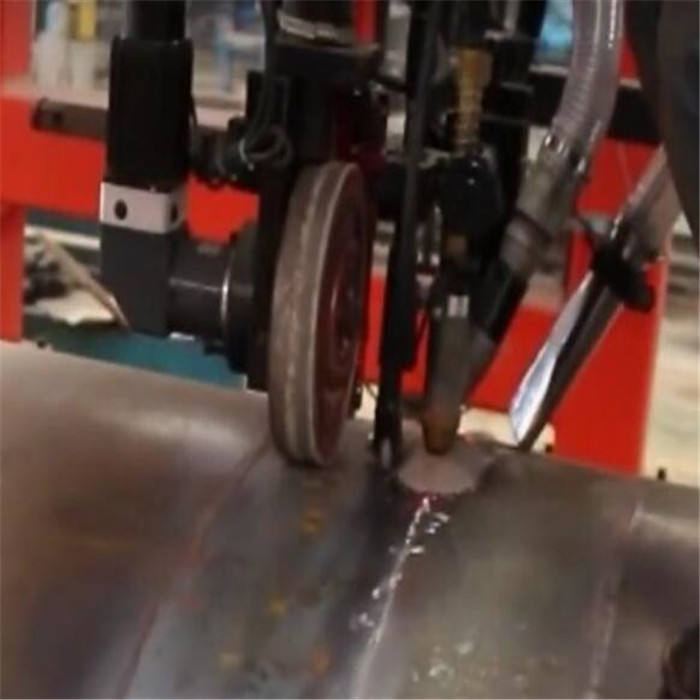

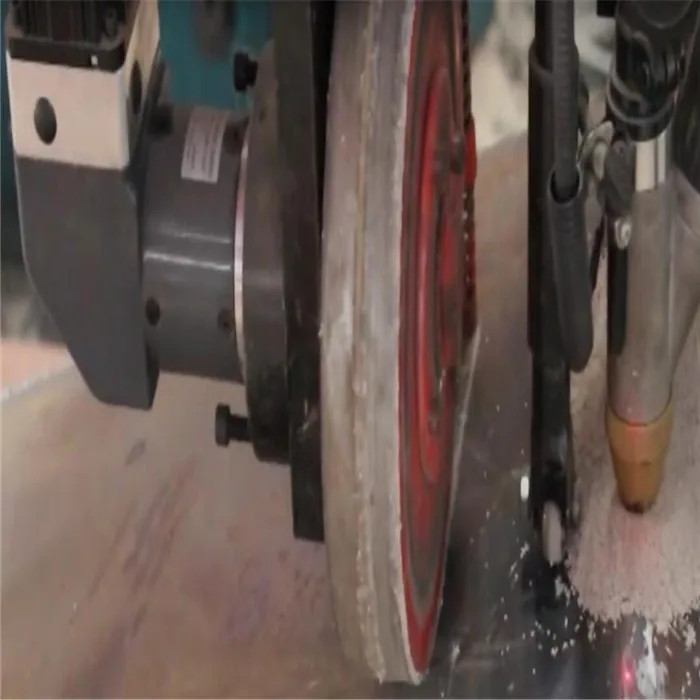

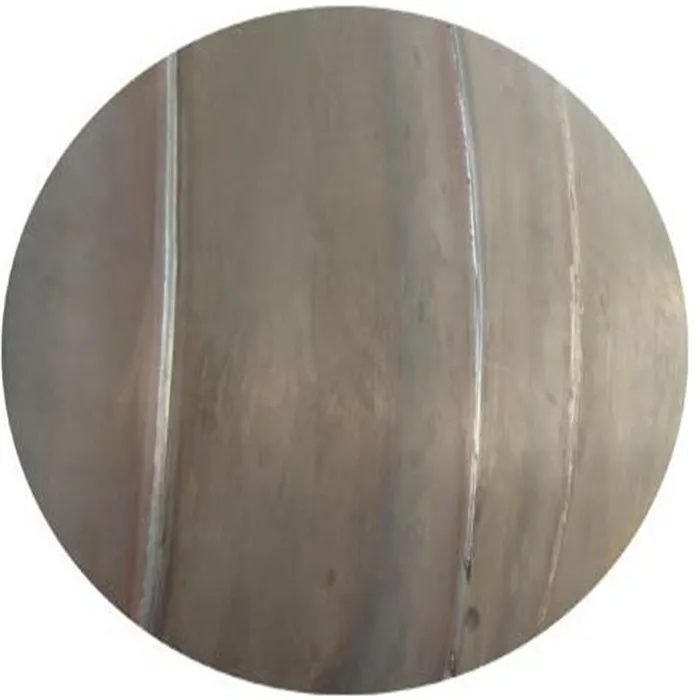

Welding Performance View:
Packaging & Shipping
Our machines are packaged using a multi-layer protection system: first layer waterproof plastic film, second layer shock-absorbing foam, and third layer heavy-duty steel craft casing to ensure safe transit.
Frequently Asked Questions
Q1: Are you a professional manufacturer of welding equipment? A: Yes, we are a professional manufacturer specializing in various types of welding and cutting machines, including gantry and trailer production lines.
Q2: How do you ensure the machine is not damaged during shipping? A: We use a triple-layer packaging method: waterproof plastic film, protective foam to prevent shaking, and a robust steel craft case for the final exterior.
Q3: What kind of quality guarantee do you provide? A: Our equipment is ISO tested. We offer a one-year warranty, during which free replacement parts can be provided if needed.
Q4: How complex is the installation and operation of the machine? A: The main machine is pre-installed before dispatch. You only need to assemble minor parts via our video guides. Engineer site-visits and factory training are also available.
Q5: What is the response time for technical support? A: We provide 7x24h service support. If a problem occurs, we aim to offer a solution within 24 hours to minimize your downtime.
Q6: What details should I provide to place an order? A: Please provide your welding material type, dimensions, and thickness. This allows us to offer the best plan and quotation tailored to your requirements.
