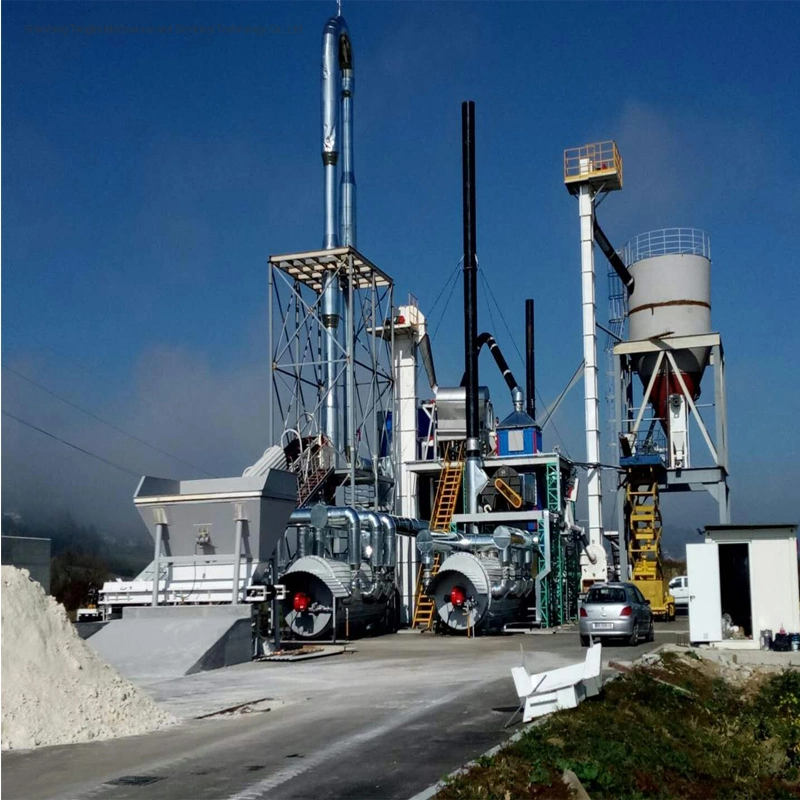

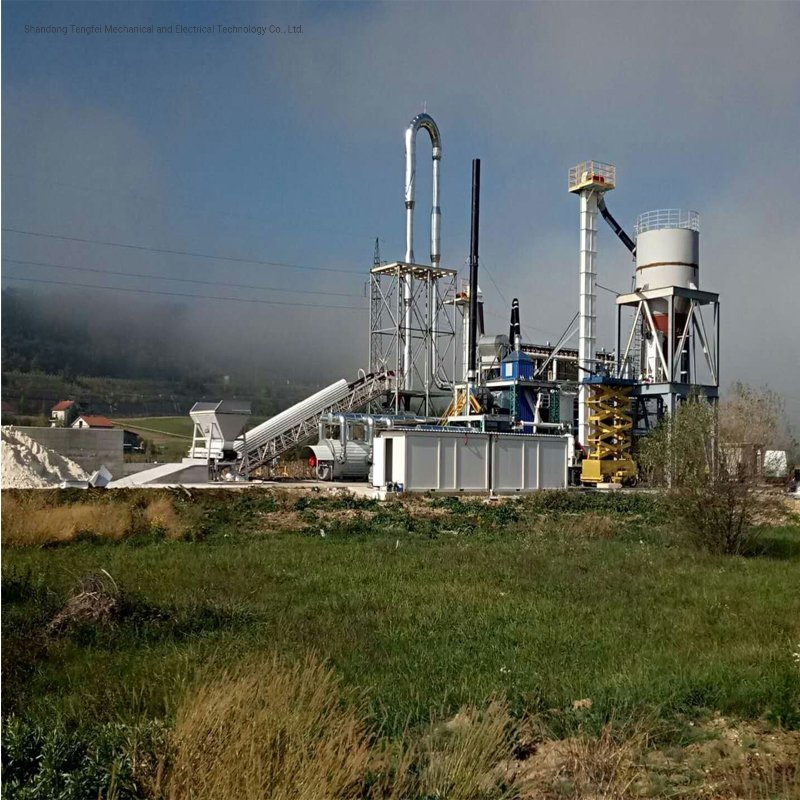

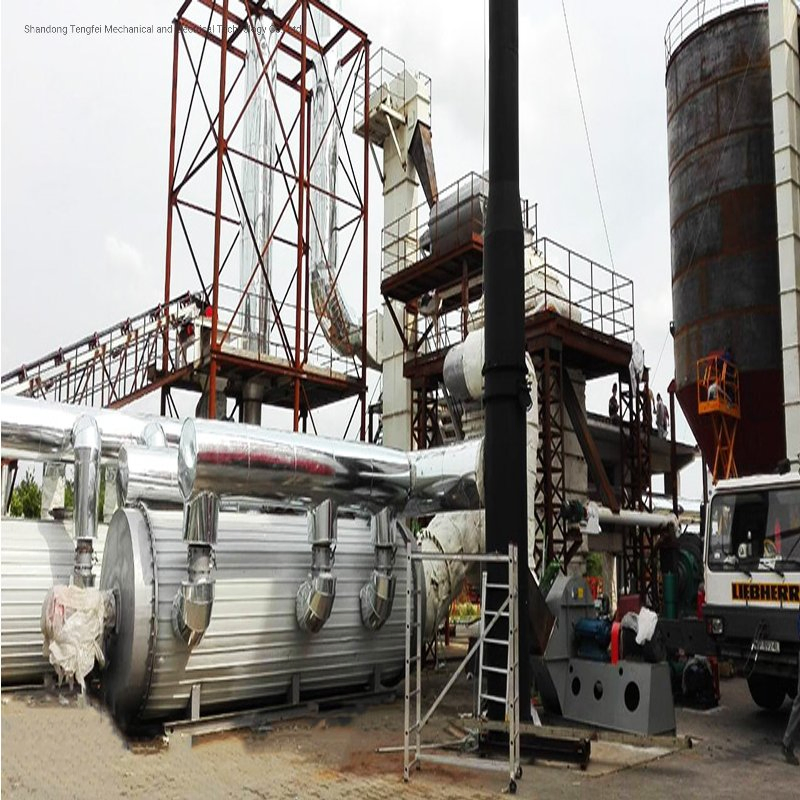

200ton Per Day Gypsum Powder Production Line

1 / 5

200ton Per Day Gypsum Powder Production Line

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Info

Model NO.

TF20220831

Certification

ISO 9001, CE

Control Type

CNC / PLC Siemens Control

Crushing Degree

Fine Grinding Machine

Automatic Grade

High Automatic

Raw Material

Gypsum Rock

Capacity

100ton/Day--1000ton/Day

Fuel

Coal, Gas, Oil

Labour Required

5-7

Warranty

3 Years for Core Components

Company Profile

We are an integrated science and technology joint-stock enterprise, specializing in the design, manufacture, installation, and commissioning of gypsum board, gypsum powder, and gypsum block machines. Currently, we have the capability to design production lines with annual capacities ranging from 2 Million M2 to 50 Million M2 for gypsum boards, and 30,000 tons to 500,000 tons for gypsum powder production (including phosphogypsum, FGD, and fluorine gypsum).

Product Description

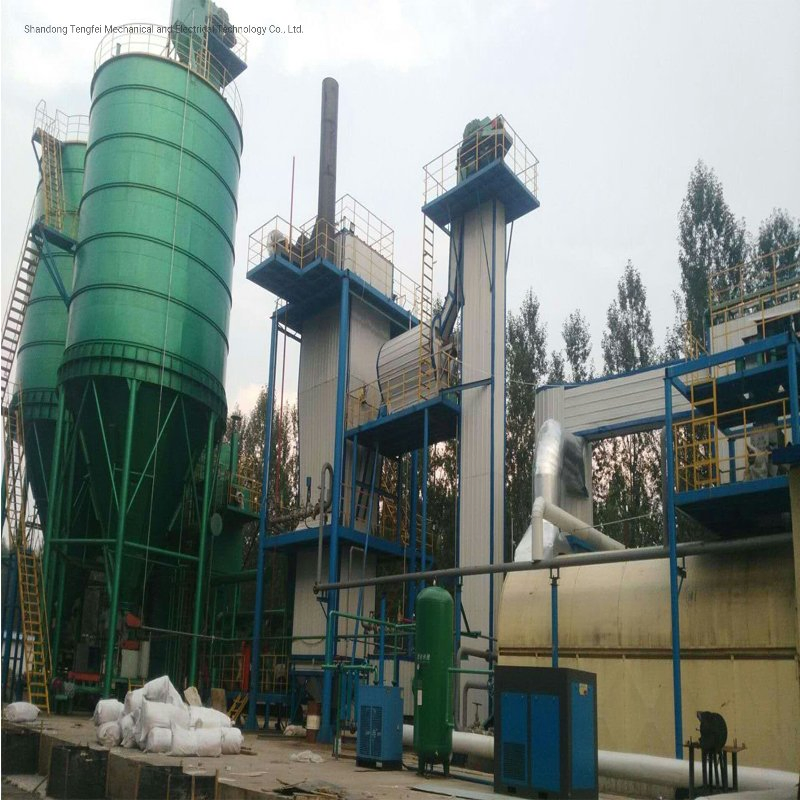

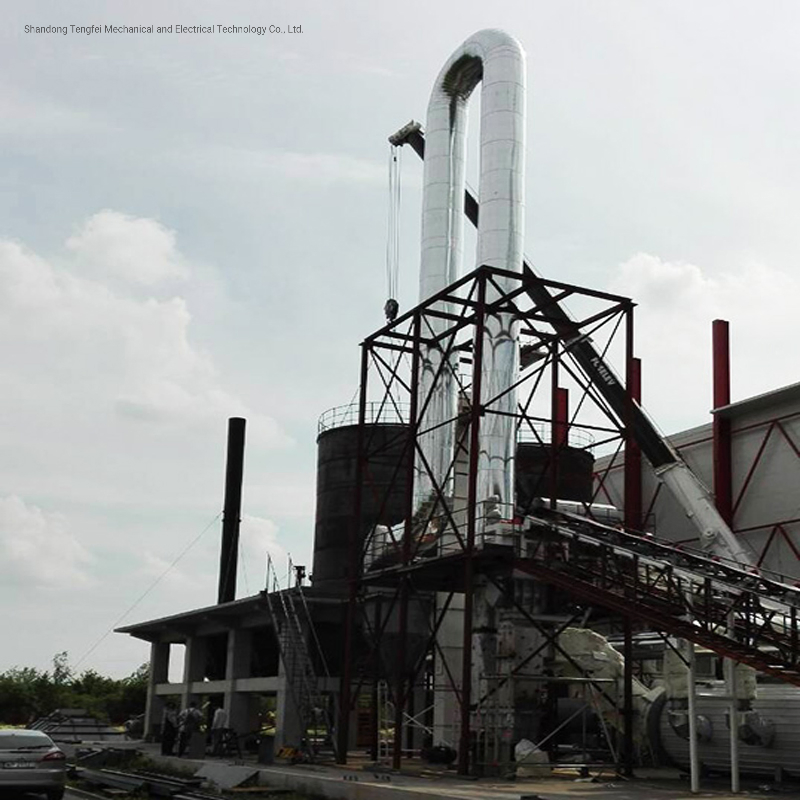

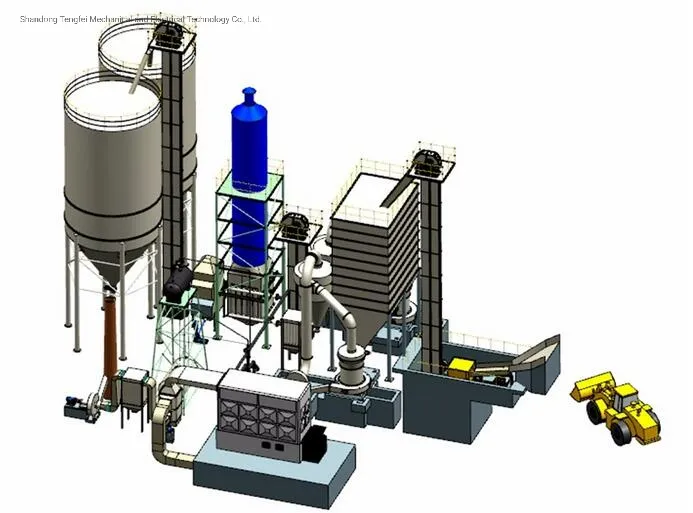

The main process of the gypsum powder machine includes crushing, grinding, calcining, energy supply, and packing systems. Our equipment is competitively priced and highly suitable for developing countries. The capacity ranges from 30,000 to 600,000 tons per year. Advantages include low energy consumption, high automation, small installation footprint, and easy operation.

Product Parameters

Capacity Per Year	Capacity Per Hour	Gypsum Rock Consumption	Calcinor Dimension
20,000 tons	2.7 tons	24,000 tons	4.5 x 1.0 x 1.2 m
30,000 tons	4.2 tons	36,000 tons	4.5 x 1.2 x 1.4 m
50,000 tons	6.9 tons	60,000 tons	4.5 x 1.4 x 1.6 m
100,000 tons	13.88 tons	120,000 tons	4.5 x 2.0 x 2.2 m
200,000 tons	27.77 tons	240,000 tons	4.5 x 2.4 x 2.6 m

Fineness: ≥100 mesh
Flexural Strength: ≥1.8Mpa; Antipressure: ≥3.0Mpa
Main Contents (Hemihydrate): ≥80% (Adjustable)
Initial Setting Time: 3-8min; Final Setting Time: 6~15min (Adjustable)
Consistency: 65%~75% (Adjustable)
