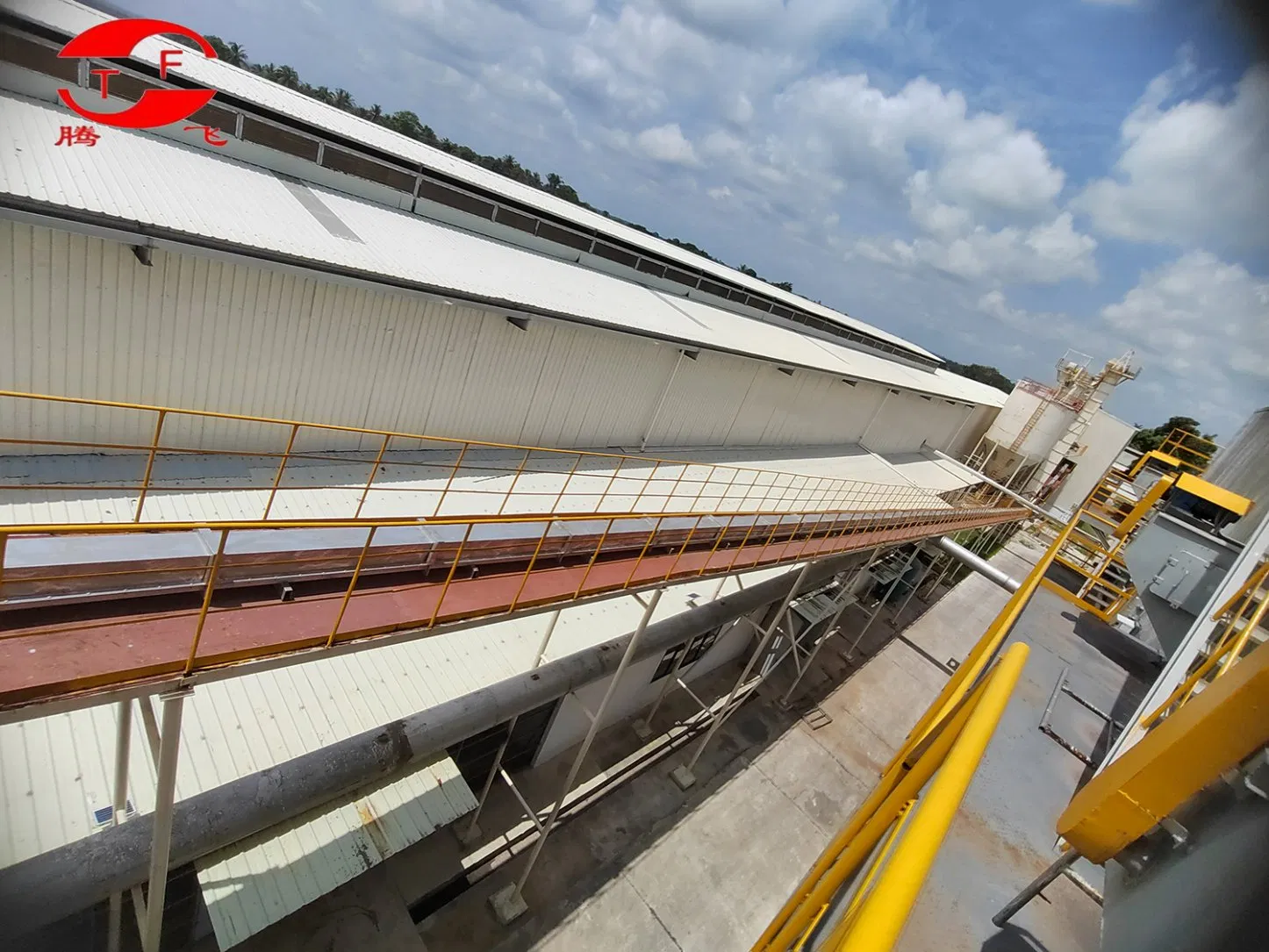

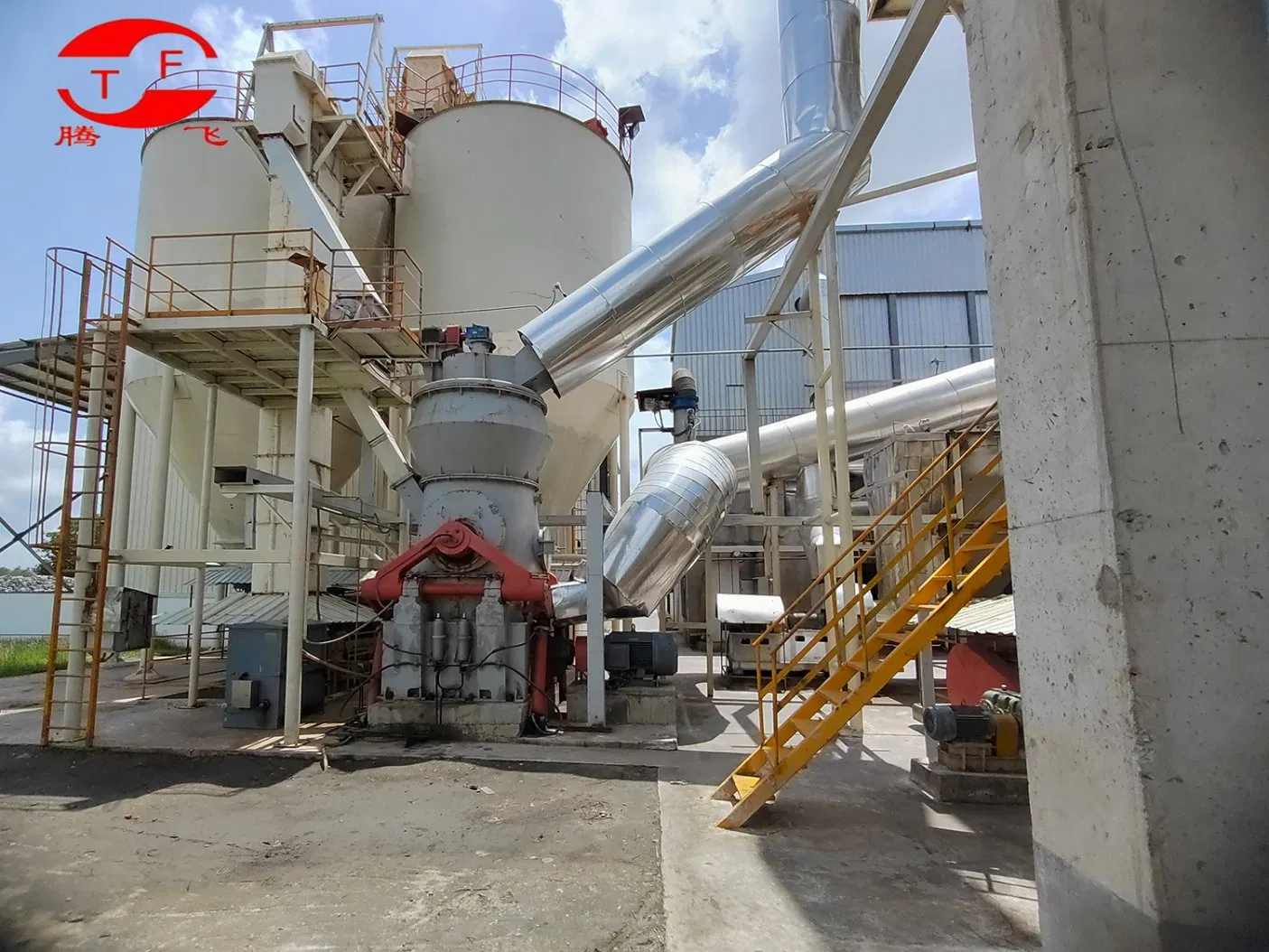

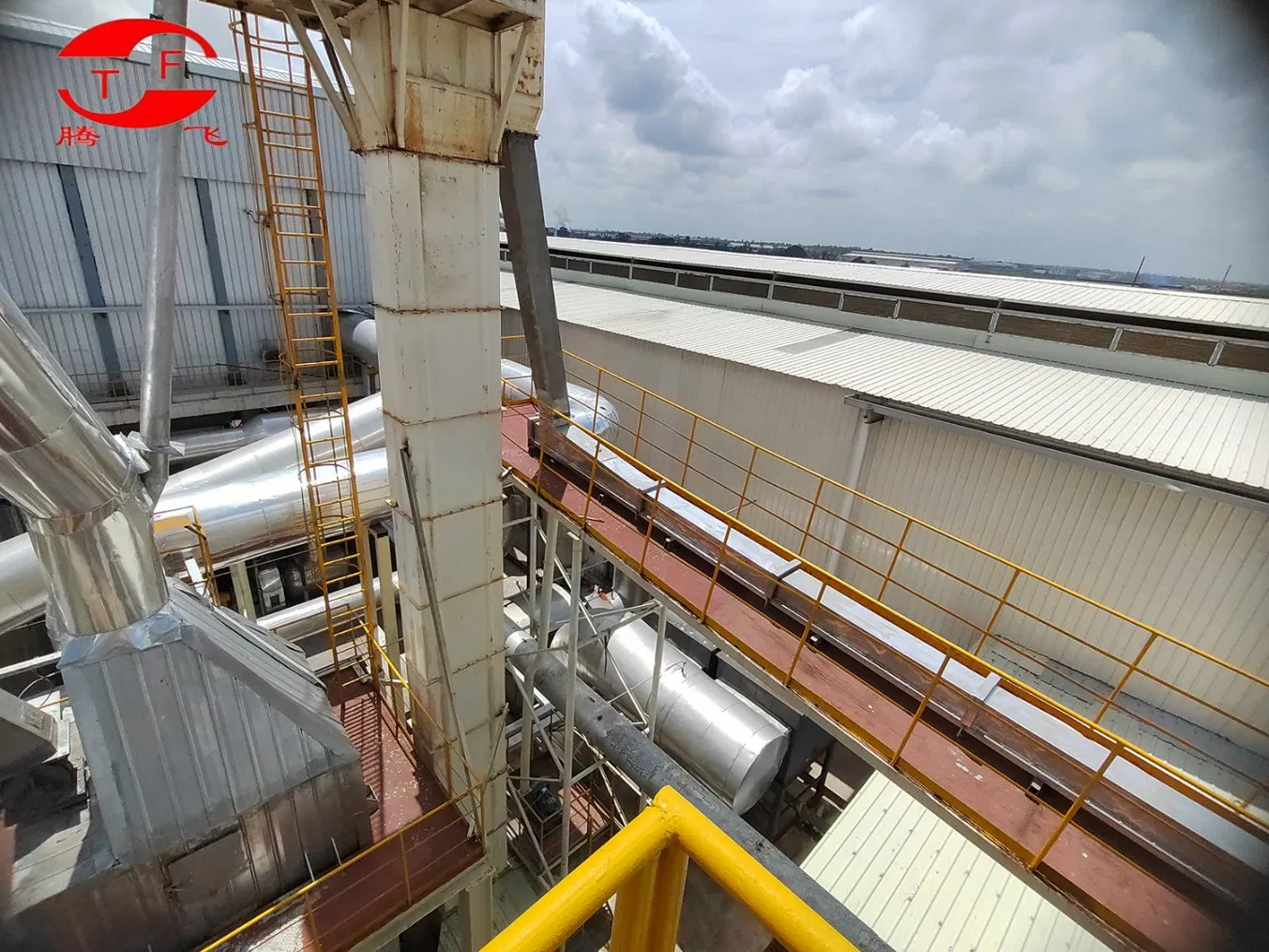

Gypsum Powder Production Line with Fully Automatic

1 / 5

Gypsum Powder Production Line with Fully Automatic

Customization:	Available
Certification:	ISO 9001:2008, ISO 9001:2000, CE
Control Type:	CNC

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TF20220825

Crushing Degree

Fine Grinding Machine

Automatic Grade

Automatic

Raw Material

Gypsum Rock

Land Area Required

30m X 18m

Labour Required

5-7

Fuel

Coal, Gas, Oil

Capacity

100ton/Day--1000ton/Day

Power Required

220kw

Warranty

3 years

Core Components

PLC, Gearbox, Motor, Pressure Vessel, Gear

Control System

PLC Siemens Control

Calcination System

Vertical Boiling Furnace

Delivery Time

2 months

HS Code

8474809090

Production Capacity

100set/Year

🏭 Profile

We are a integrated science and technology joint-stock enterprises, and we can design, manufacture, install, commission gypsum board and gypsum powder and gypsum block machine ourselves. At present, we have the ability to design and manufacture gypsum board production line with annual capacity from 2 Million M2 to 50 Million M2, gypsum block production line with annual capacity from 100,000 M2 to 1.5 Million M2, gypsum powder production line and phosphogypsum powder production line and FGD gypsum powder production line and fluorine gypsum powder production line with annual capacity from 30,000 tons to 500,000 tons, and we also can produce PVC laminated gypsum board equipment and gypsum board light frame equipment.

⚙️ Product Description

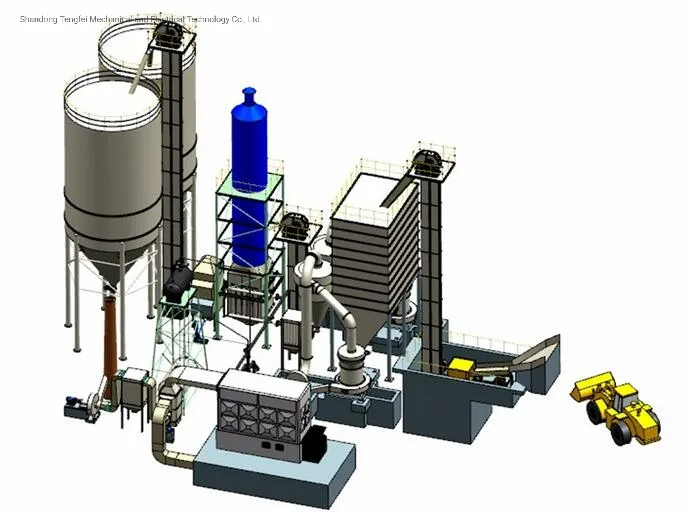

The main process of gypsum gypsum powder machine includes crushing system, grinding system, calcining system, energy supply system, packing system and etc. the gypsum powder machine price is competitive, and suitable for developing countries.

The capacity of the gypsum powder machine ranges from 30,000 tons per year to 600,000 tons per year. The manufacturer has been making this machine for past 20 years. The advantage of the gypsum powder machine includes low energy consumption, high automatic level, small installation space, and easy operation.

📊 Product Parameters

SPECIFICATIONS OF THE GYPSUM POWDER MACHINE EQUIPMENT
Capacity Per Year	Capacity Per Hour	Gypsum Rock Consumption/Year	Calcinor Dimension
20,000 tons	2.7 tons	24,000 tons	4.5 x 1.0 x 1.2 m
30,000 tons	4.2 tons	36,000 tons	4.5 x 1.2 x 1.4 m
50,000 tons	6.9 tons	60,000 tons	4.5 x 1.4 x 1.6 m
60,000 tons	8.3 tons	72,000 tons	4.5 x 1.6 x 1.8 m
100,000 tons	13.88 tons	120,000 tons	4.5 x 2.0 x 2.2 m
150,000 tons	20.83 tons	180,000 tons	4.5 x 2.2 x 2.4 m
200,000 tons	27.77 tons	240,000 tons	4.5 x 2.4 x 2.6 m

Fineness: ≥100 mesh
Flexural Strength: ≥1.8Mpa; Strength of Antipressure: ≥3.0Mpa
Main Contents: Hemihydrate: ≥80%; Gypsum <5%; Soluble Anhydrous <5%
Initial Setting Time: 3-8min; Final Setting Time: 6-15min
Consistency: 65%~75%

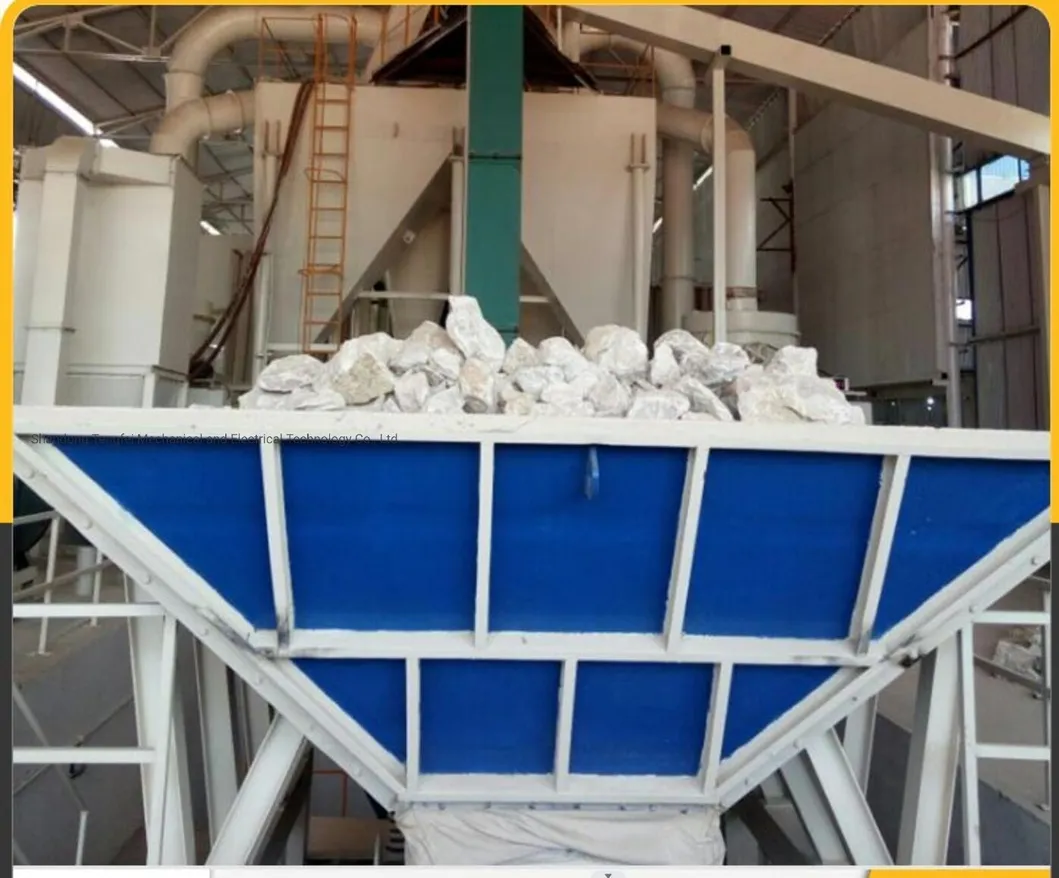

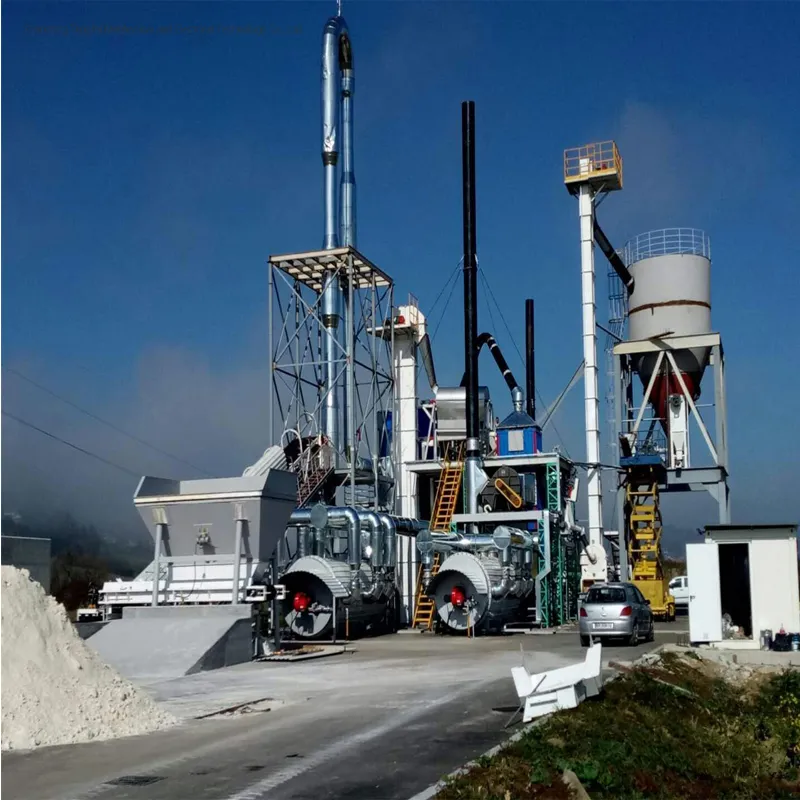

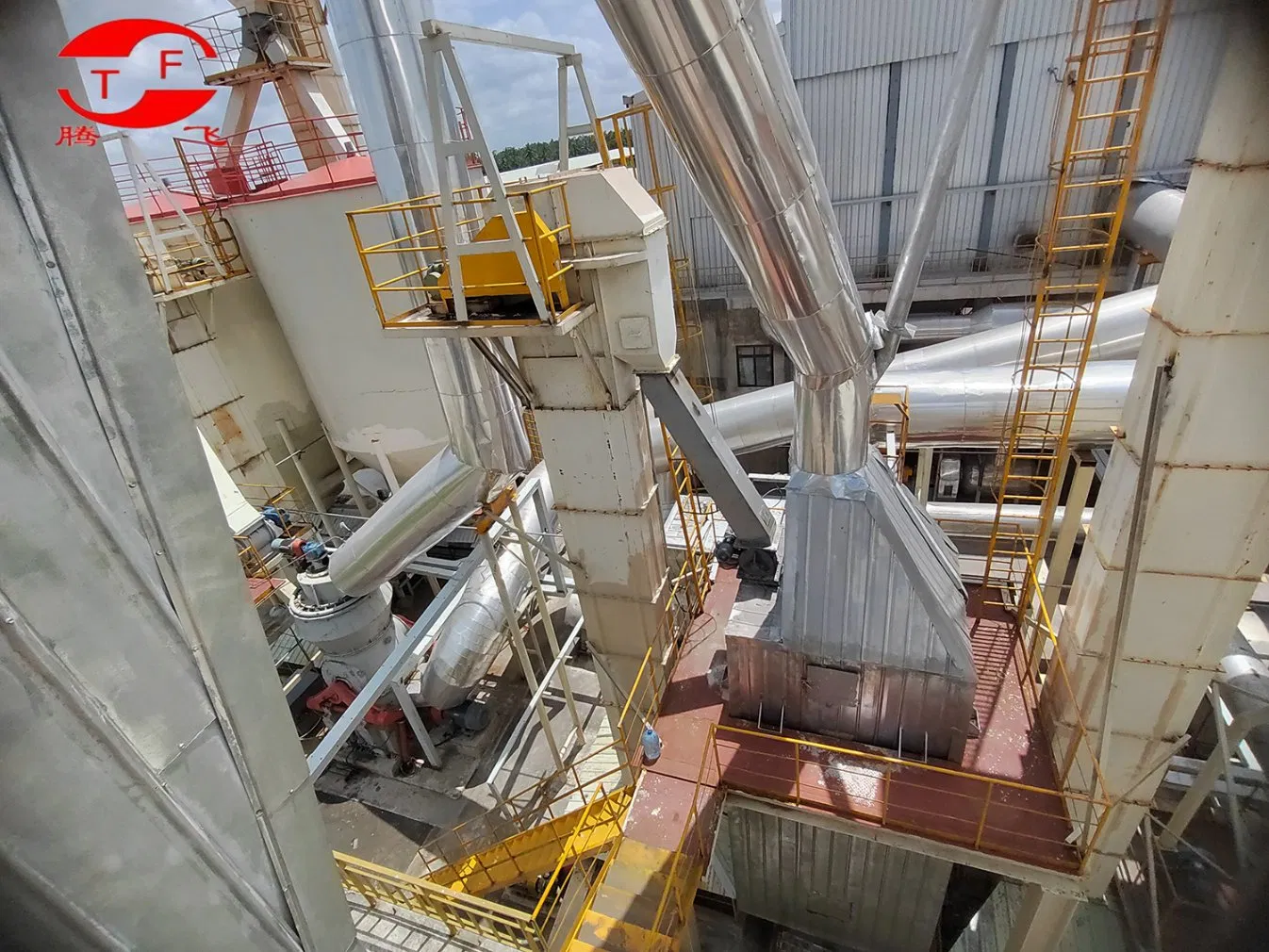

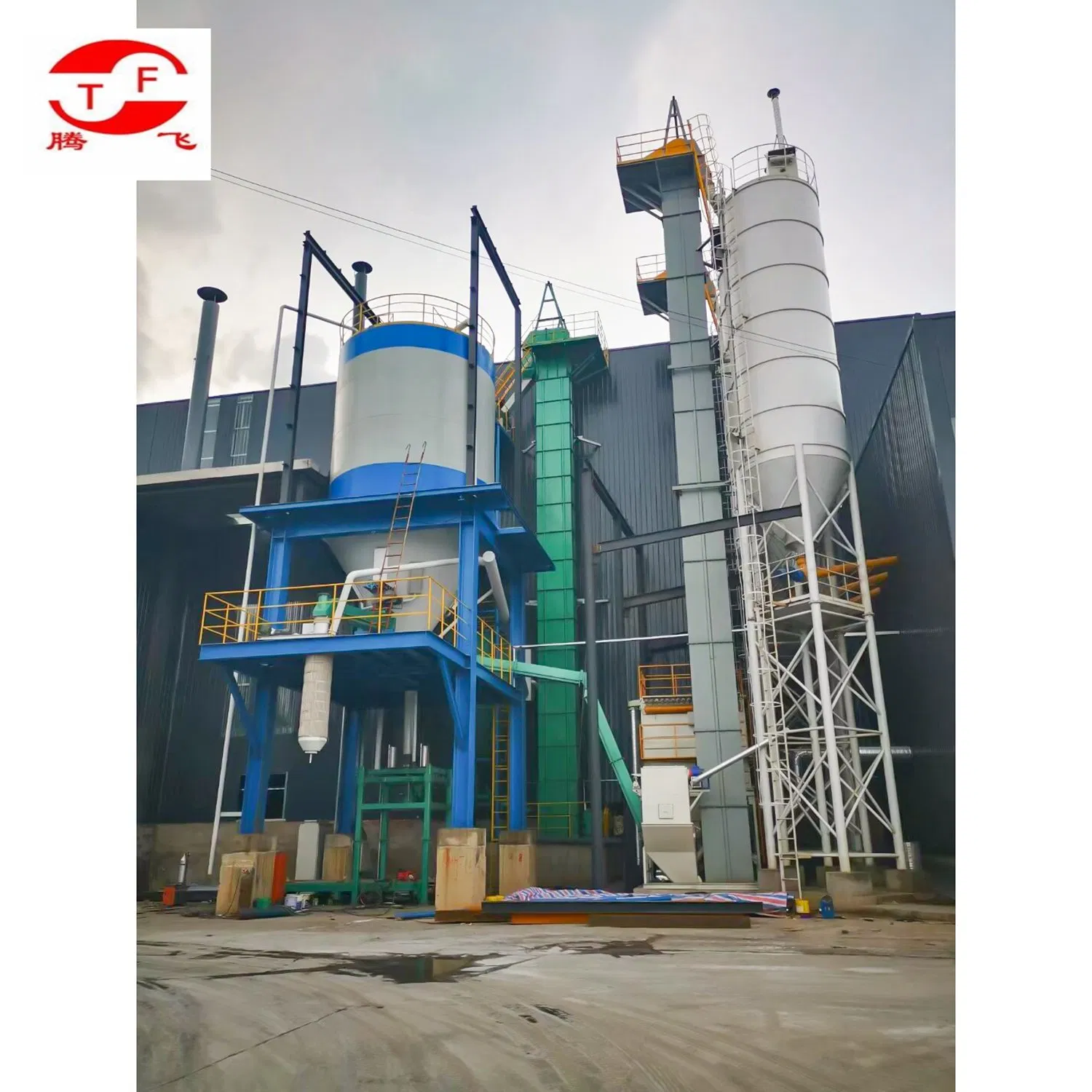

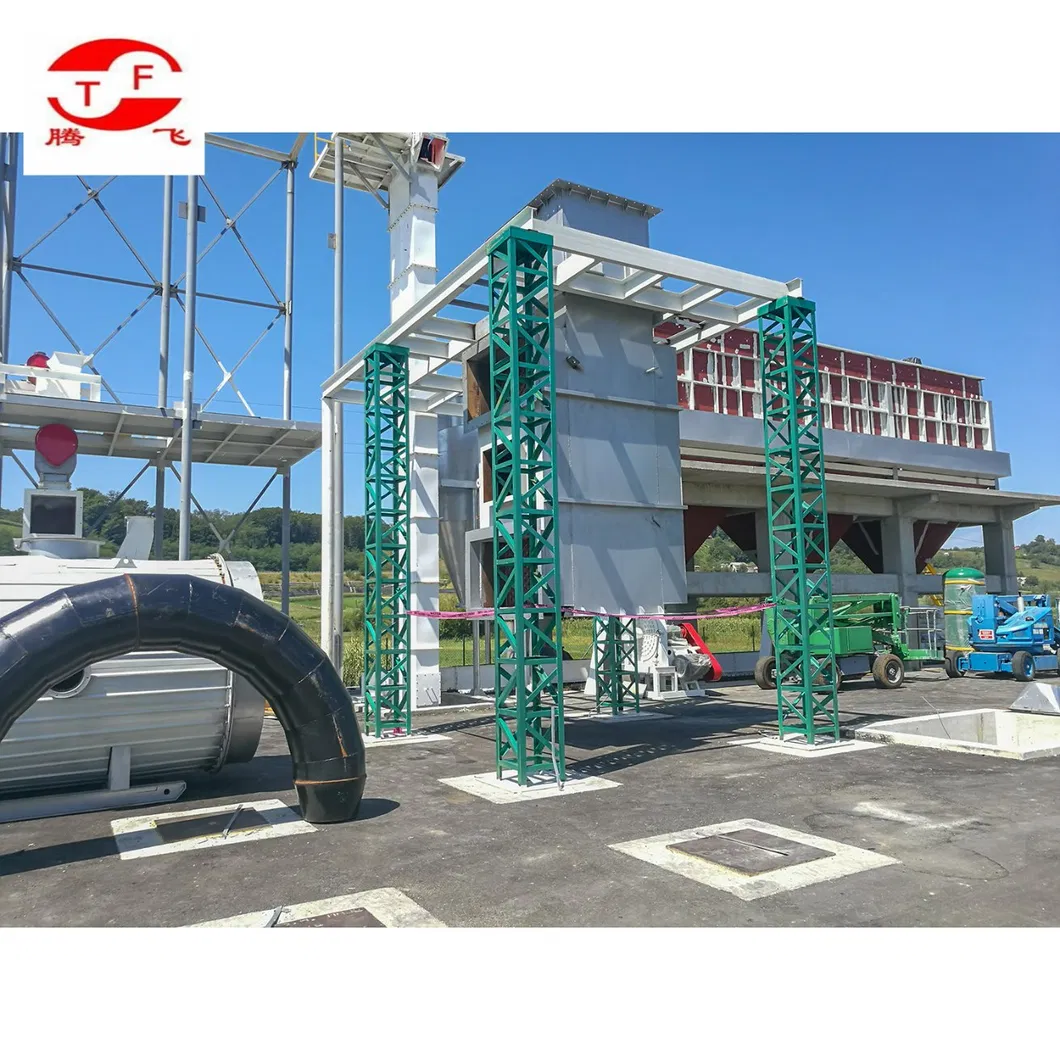

📸 Detailed Photos

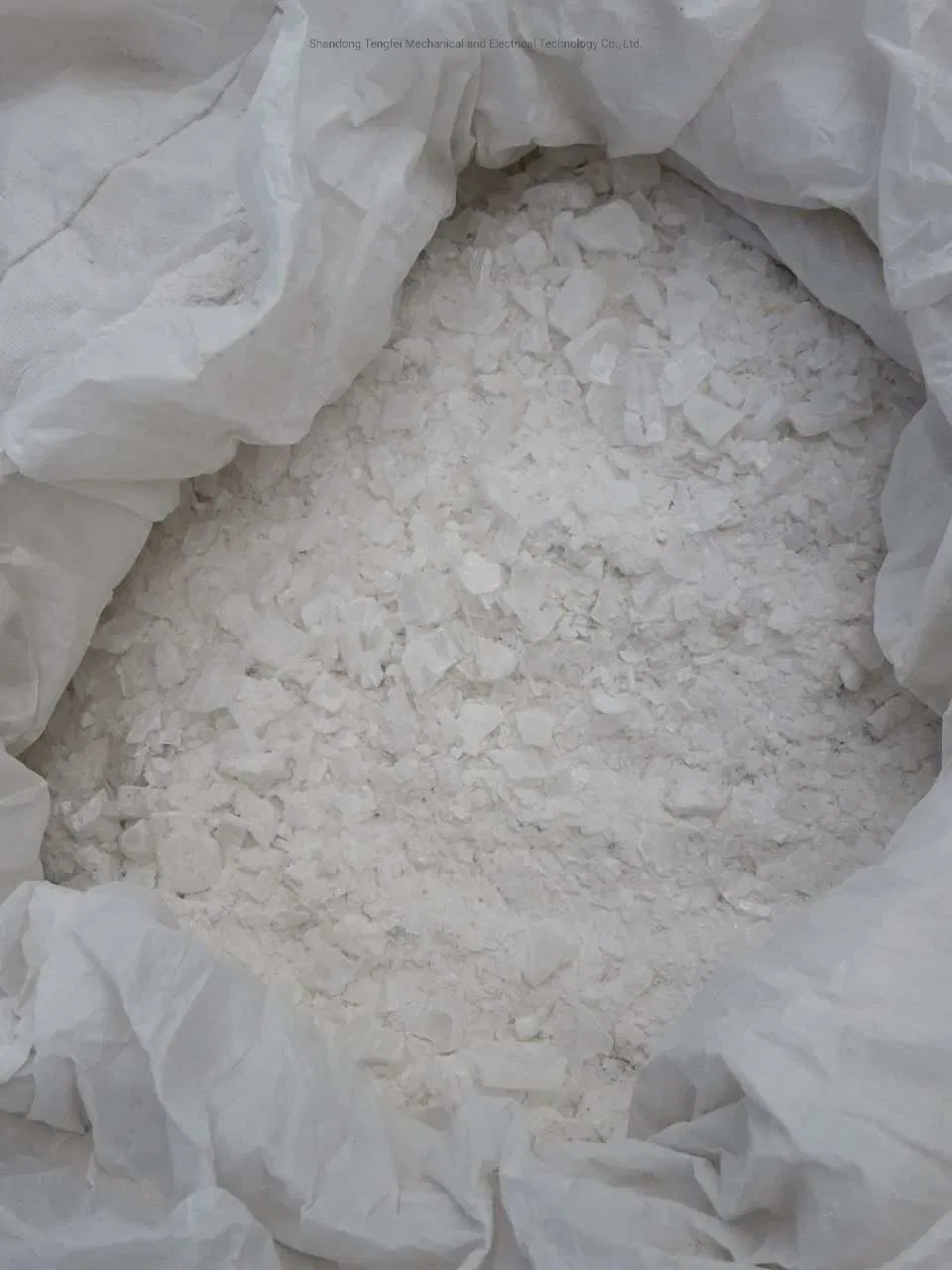

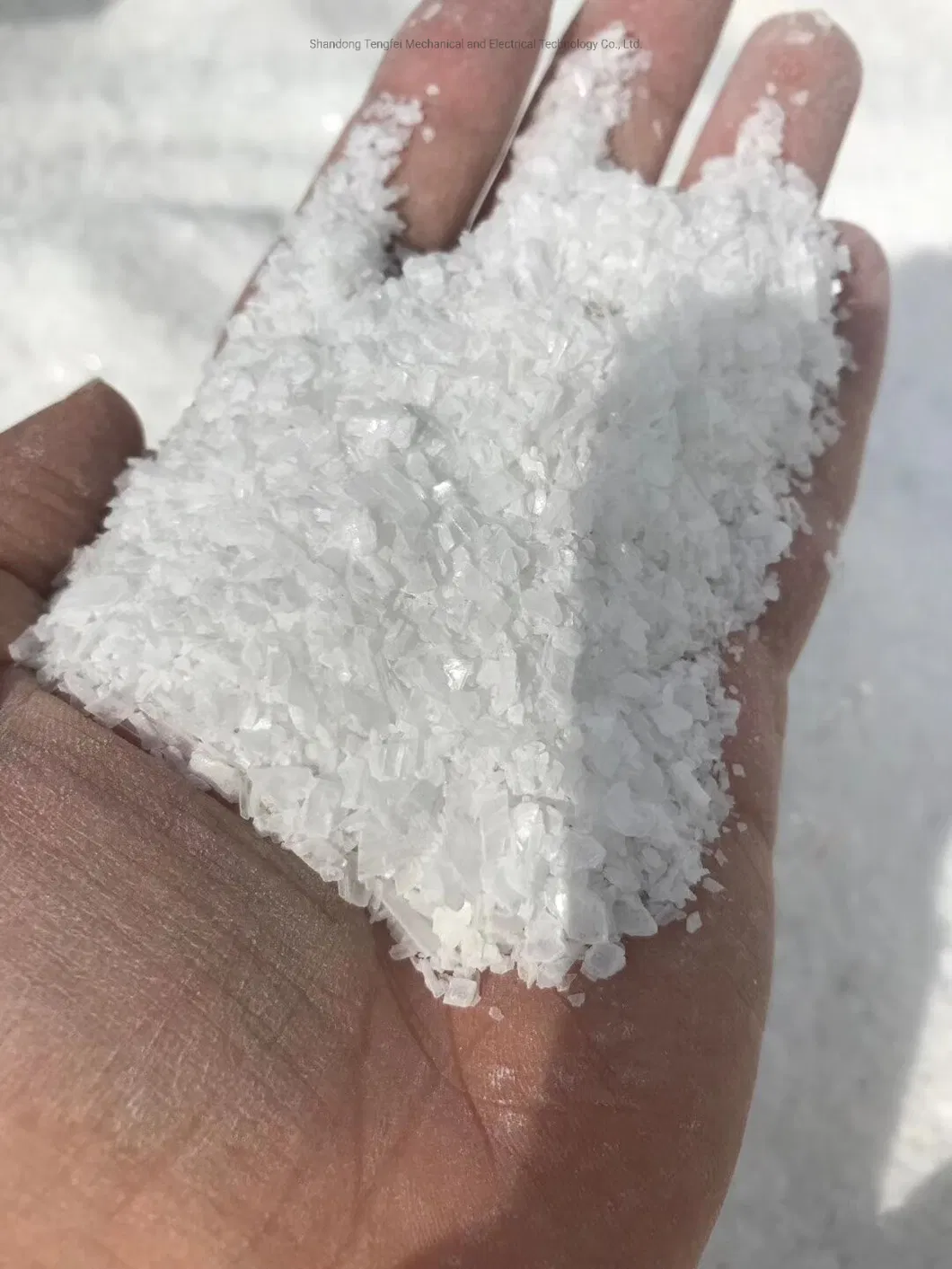

💎 Crystal Gypsum Stone 1mm-5mm

🤝 Factory Visits

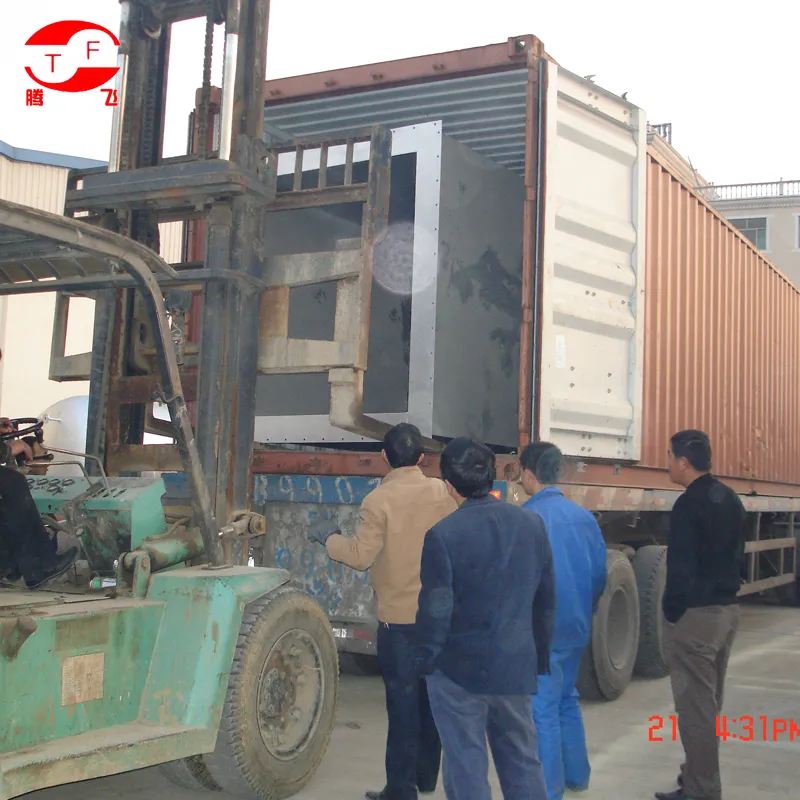

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: Are you a manufacturing factory? A1: Yes, we are a manufacturing factory with 30 years of experience.

Q2: What is the price of the equipment? A2: The price varies significantly depending on production capacity. Please confirm your required annual production capacity for a specific quotation.

Q3: How long is the warranty period? A3: We provide a 1-year warranty and offer lifetime maintenance services.

Q4: Do you provide installation and commissioning services? A4: We provide a one-stop service, covering everything from design and manufacturing to installation and commissioning.

Q5: What if I don't know how to build a gypsum factory? A5: We specialize in turnkey projects. With your investment and ideas, we can deliver a fully operational and profitable factory for you.
