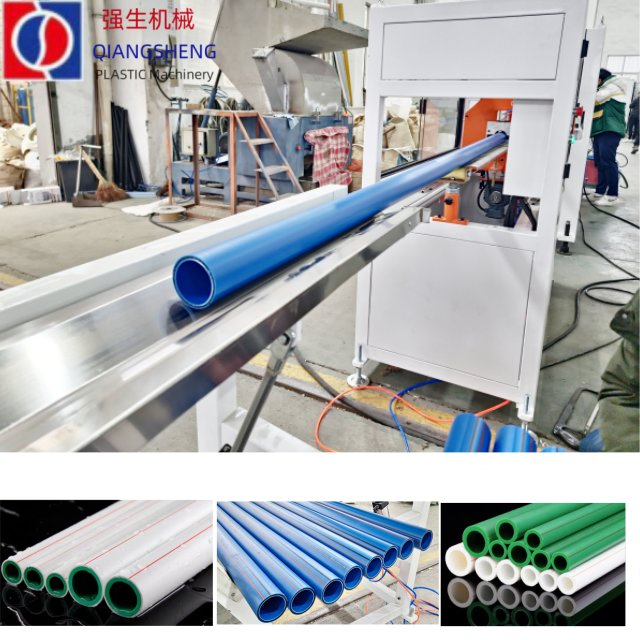

Single Screw Extruder PE HDPE LDPE Plastic Water Gas Oil Supply Pipe Tube PVC PPR Pipe Making Machine/ Extrusion Line

1 / 5

Single Screw Extruder PE HDPE LDPE Plastic Water Gas Oil Supply Pipe Tube PVC PPR Pipe Making Machine/ Extrusion Line

Customization:	Available
Warranty:	1 Year
Product Type:	PPR Pipe

Send Inquiry

Product Description

Basic Product Information

Model NO.	SJ	Screw No.	Single-screw
Automation	Automatic	Computerized	Computerized
Certification	CE, ISO9001:2008	Condition	New
Main Motor	Siemens Brand	Inverter	ABB Brand
Temp Control	Omron Brand	Max.Output	1000 Kg/H
Usage	Water/Gas Pipe	Pipe Diameter	20-1200mm
Screw Material	38crmoala	PLC Control	Siemens PLC+Touch Screen

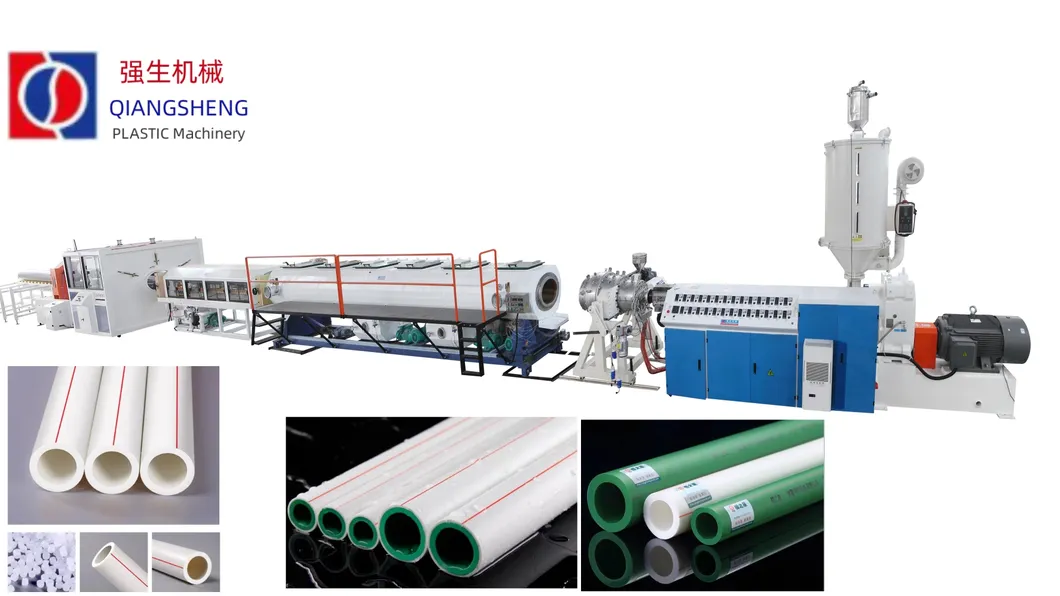

HDPE PE PPR PP PIPE EXTRUSION LINE

PPR pipe extrusion line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying, etc. purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. The line can be equipped with Comptroller thickening instrument or computer ink-jet printer to achieve high-grade tubing production.

Technical Parameters

Model	Pipe Range (mm)	Extruders	Max. Output (kg/h)	Total Power (kw)
HDPE/PPR-63	16-63	SJ65/30 SJ25/25	100	75
HDPE/PPR-110	50-110	SJ90/30 SJ25/25	180	130
HDPE/PPR-160	63-160	SJ90/30 SJ25/25	200	150
HDPE-250	110-250	SJ90/33 SJ25/25	320	185
HDPE-315	160-315	SJ100/30 SJ30/25	350	220
HDPE-450	250-450	SJ120/33 SJ30/25	500	300
HDPE-630	315-630	SJ150/30 SJ40/25	600	330
HDPE-800	400-800	SJ150/33 SJ40/25	800	400
HDPE-1200	600-1200	SJ150/33 SJ40/25	1000	550

Flow Chart of Production Line

Material → Heating Cooling Mixer → Material Feeding → Conical Twin Screw Extruder → Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank → Printer → Haul-off Unit → Cutter → Stacker

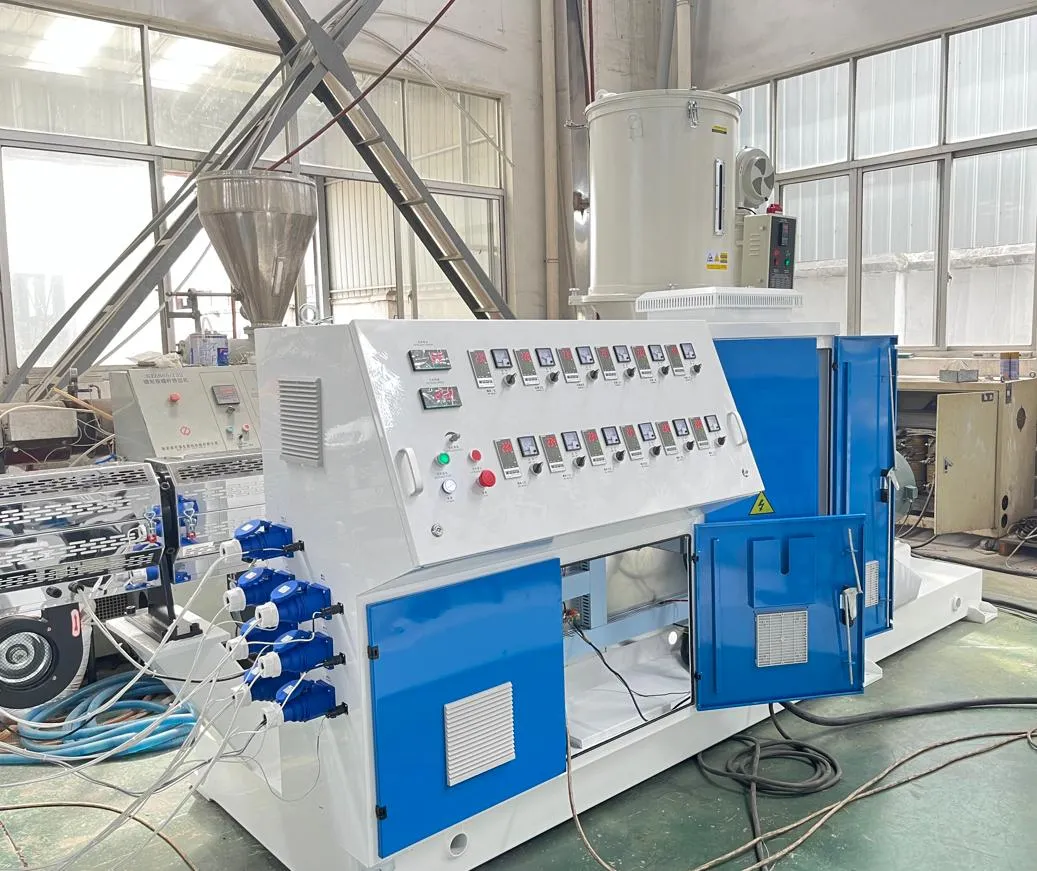

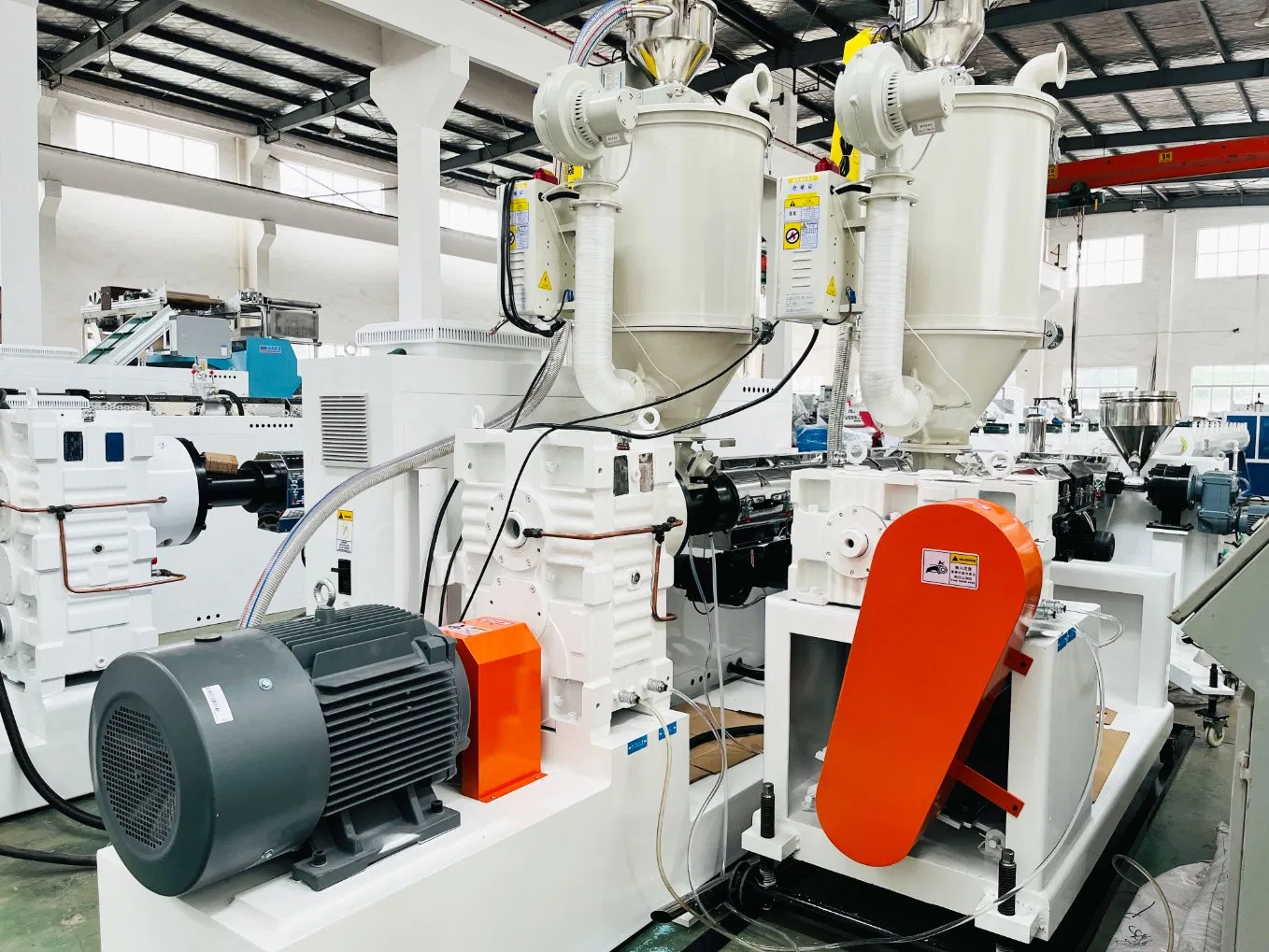

1. Single Screw Extruder

Cylinder and screw material: 38CrMoAlA with nitriding depth ≥ 0.6mm for superior wear resistance. Features asymmetric slotted barrel design and high-torque gearbox with OMRON temperature control and Siemens/ABB electrical components.

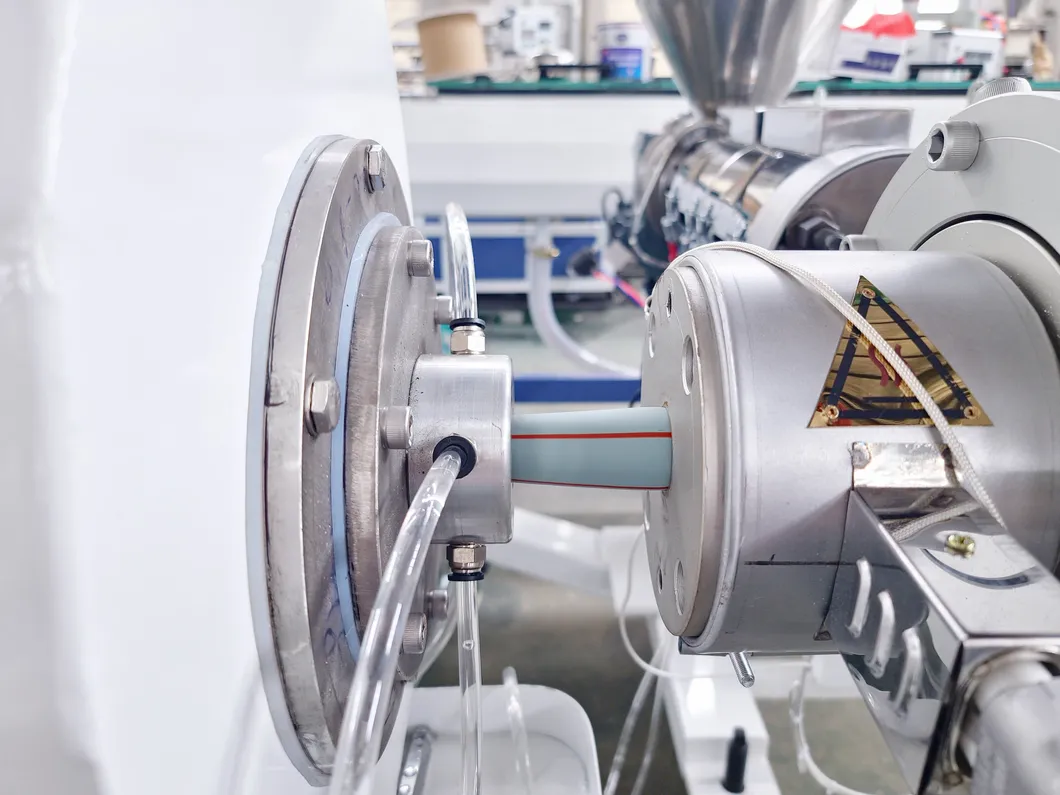

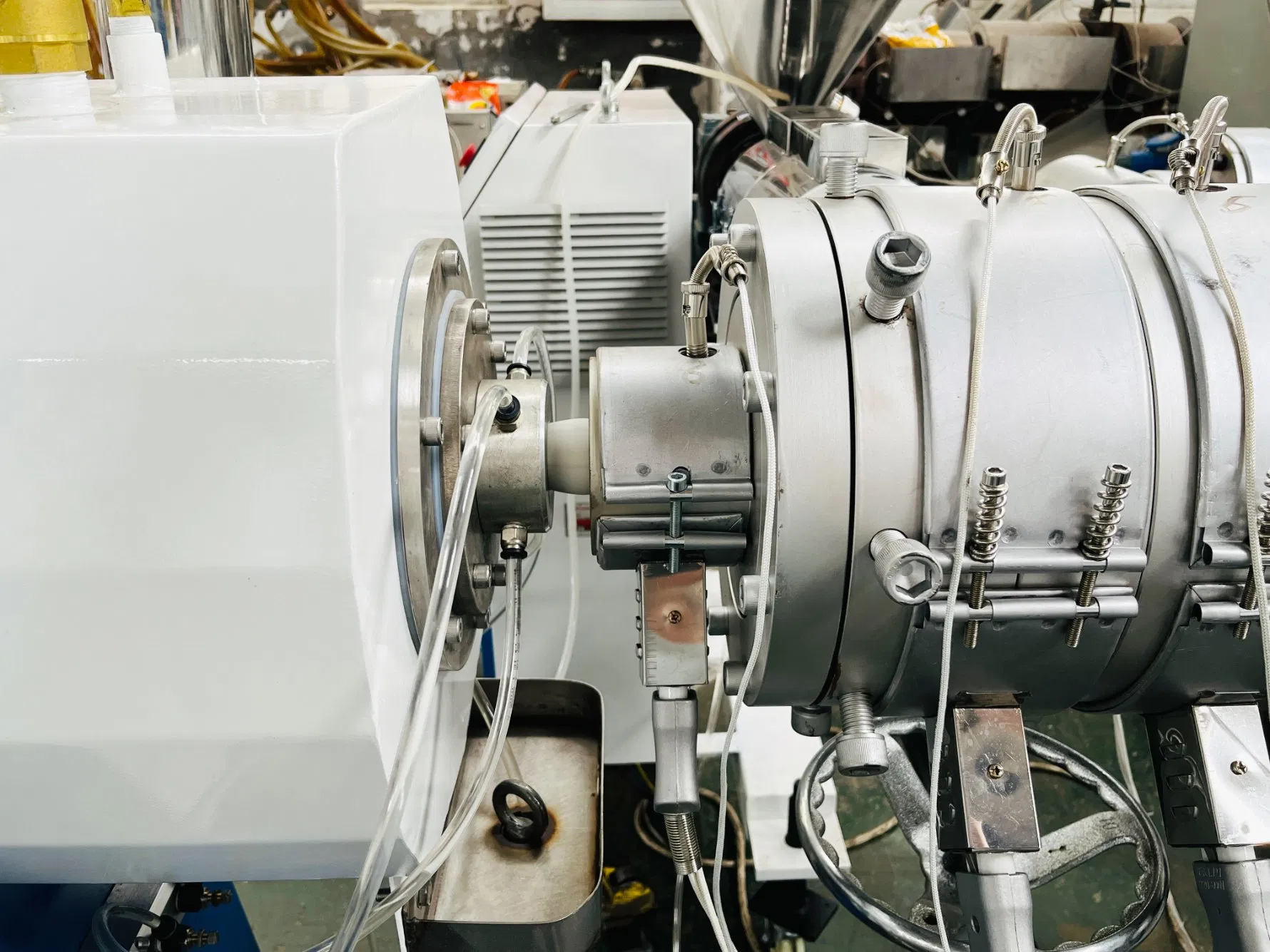

2. Extrusion Die Head

Applies spiral structure with mirror polishing to ensure smooth material flow. Provides stable pressure (19-20Mpa) for high-quality single or multi-layer pipe production.

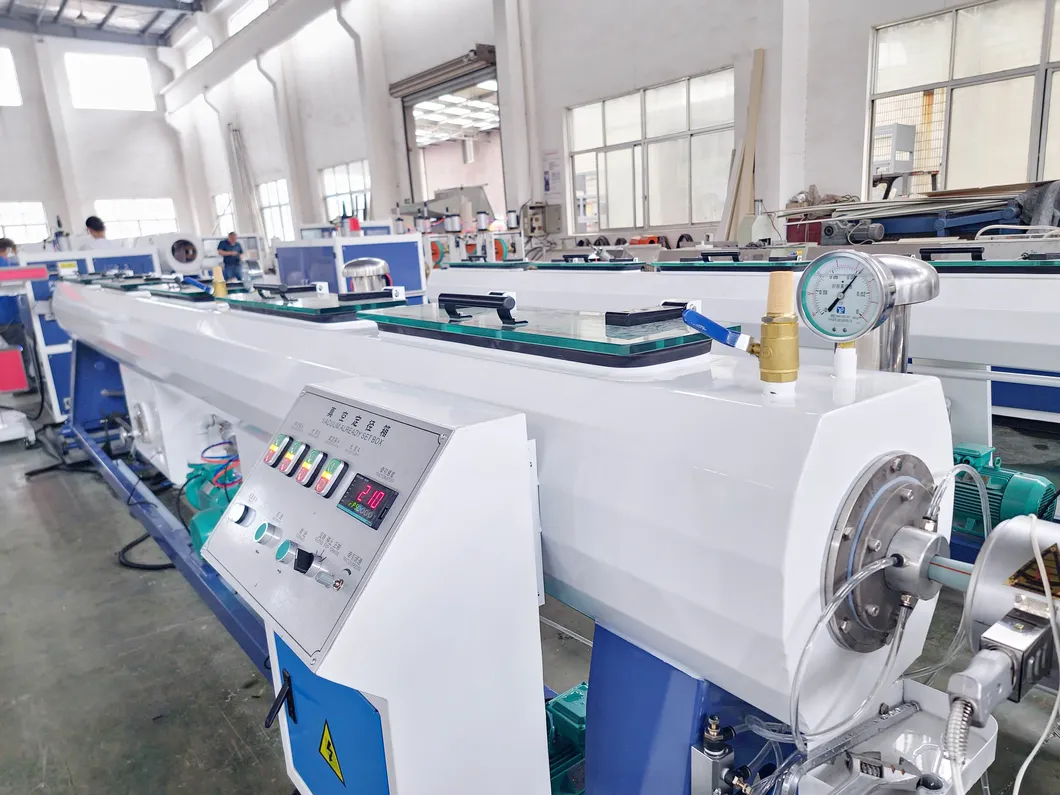

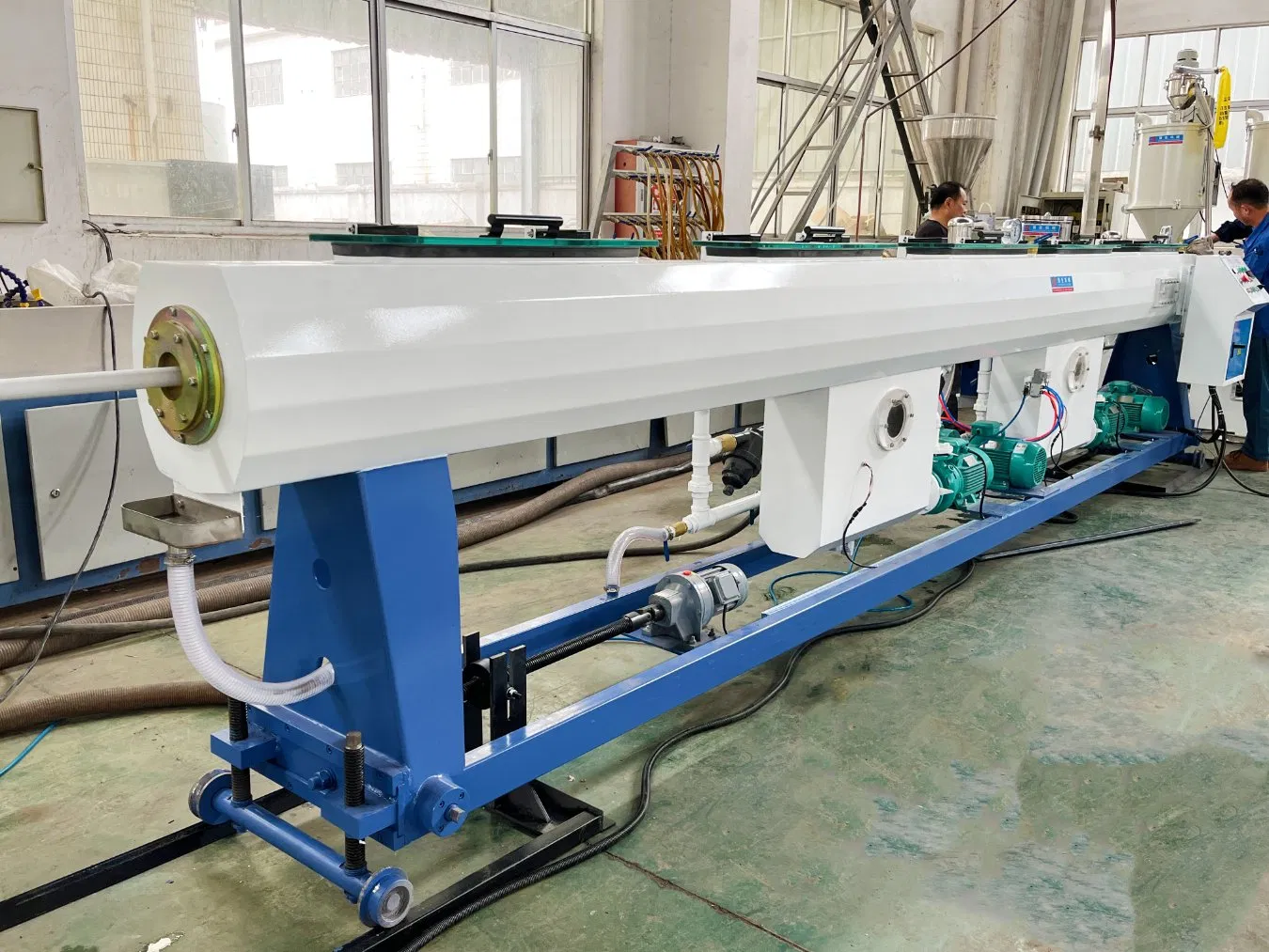

3. Vacuum Tank

Used for precise pipe shaping and cooling. Double-chamber structure ensures strong initial cooling and vacuum function for better forming results.

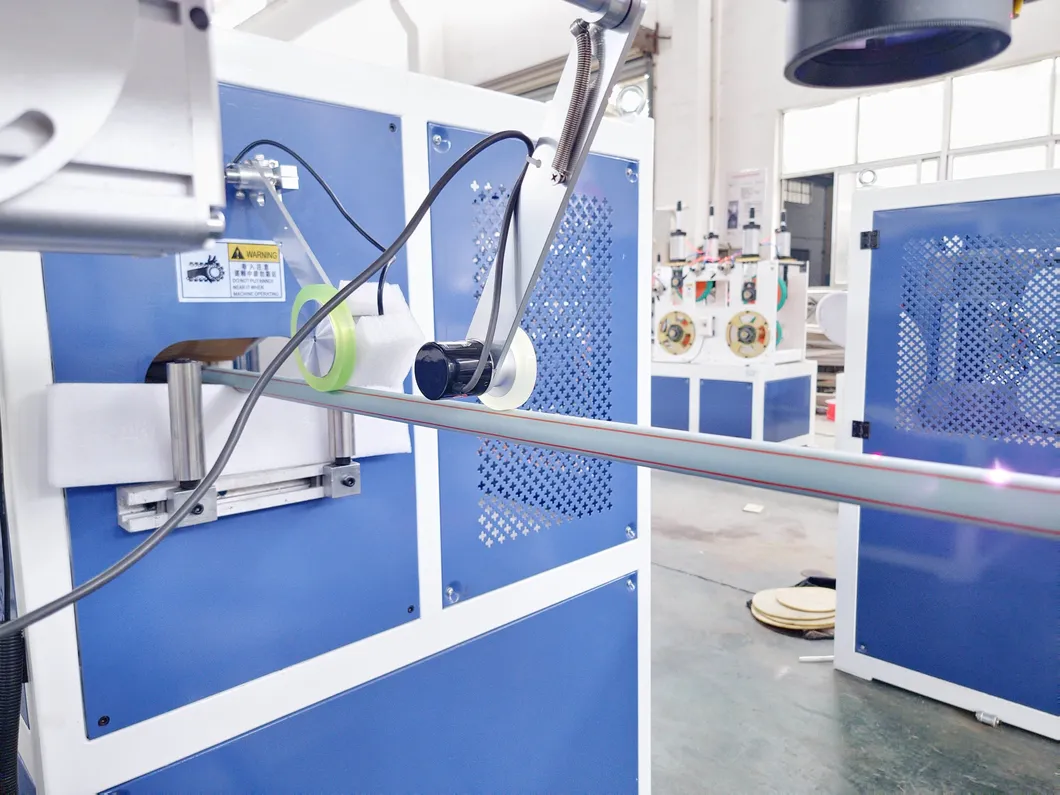

4. Haul-off Unit & Cutter

Provides stable traction force. Custom traction speeds and number of claws avoid pipe deformation. The PLC-controlled cutter ensures precise length settings with smooth cutting faces.

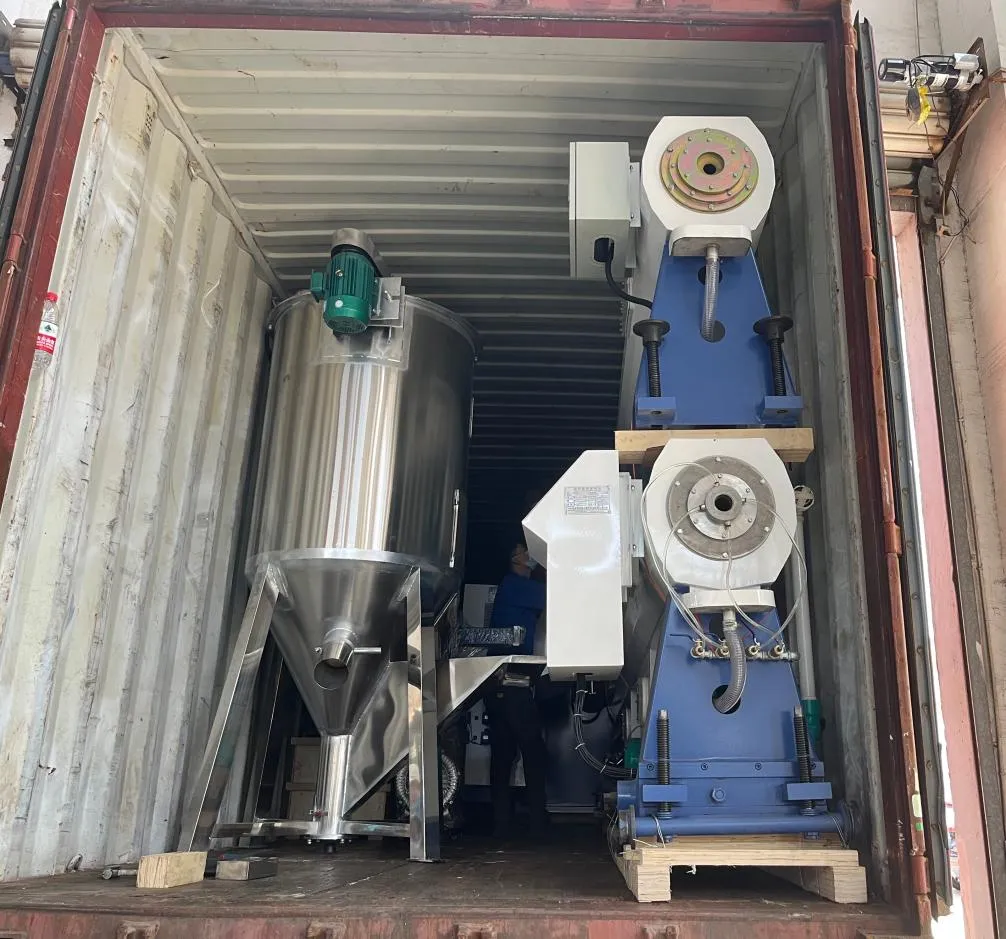

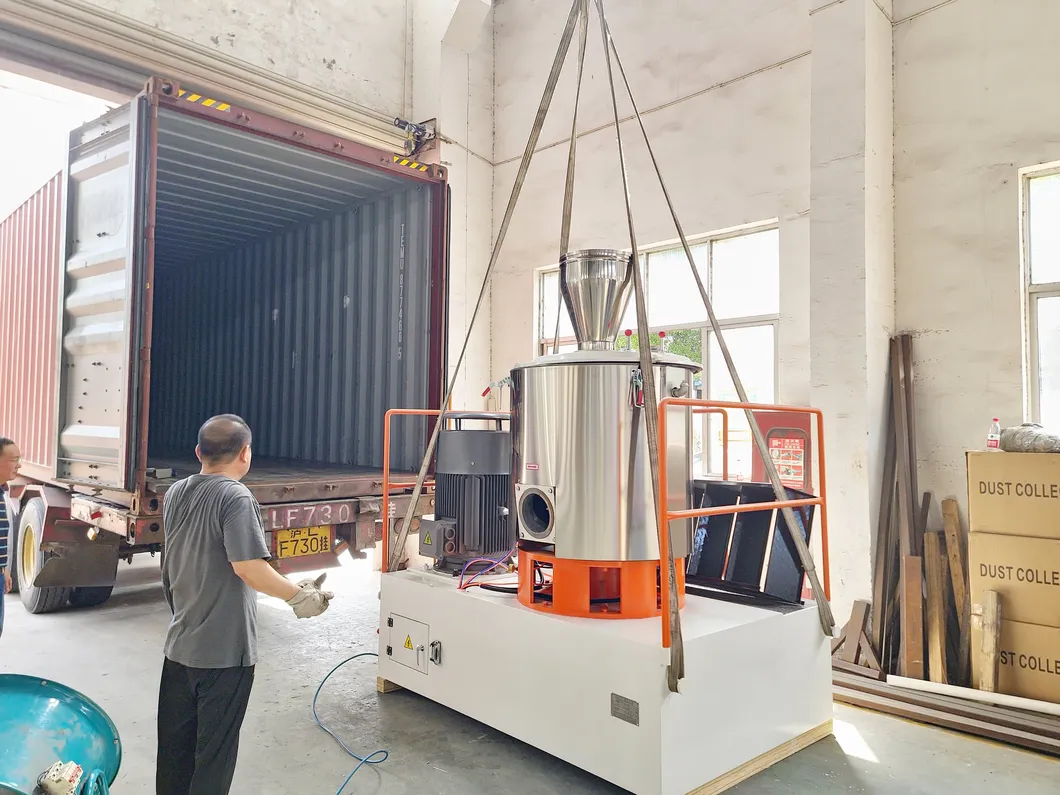

Packaging & Shipping

Frequently Asked Questions

Q1 What are the payment terms?

Always 30% down payment as deposit, with the 70% balance paid before shipping.

Q2 What payment methods do you accept?

We accept TT, L/C at sight, or Trade Assurance through Made in China.

Q3 Do you provide installation services?

Yes, for every set of machinery, we send a professional engineer to your factory to assist with installation and testing.

Q4 What certifications do the machines have?

Our machines carry CE, SGS, and ISO certificates. We can also assist in applying for other specific certificates if required.

Q5 What is the warranty and spare parts policy?

We provide a 1-year guarantee on high-quality machines and offer 1 year of wear-out spare parts for free. Our engineers are available via remote communication or on-site visits to resolve any technical issues.

Q6 What is the operational voltage?

The standard voltage is 380V 50Hz 3-phase, but we can customize this according to client requirements.
