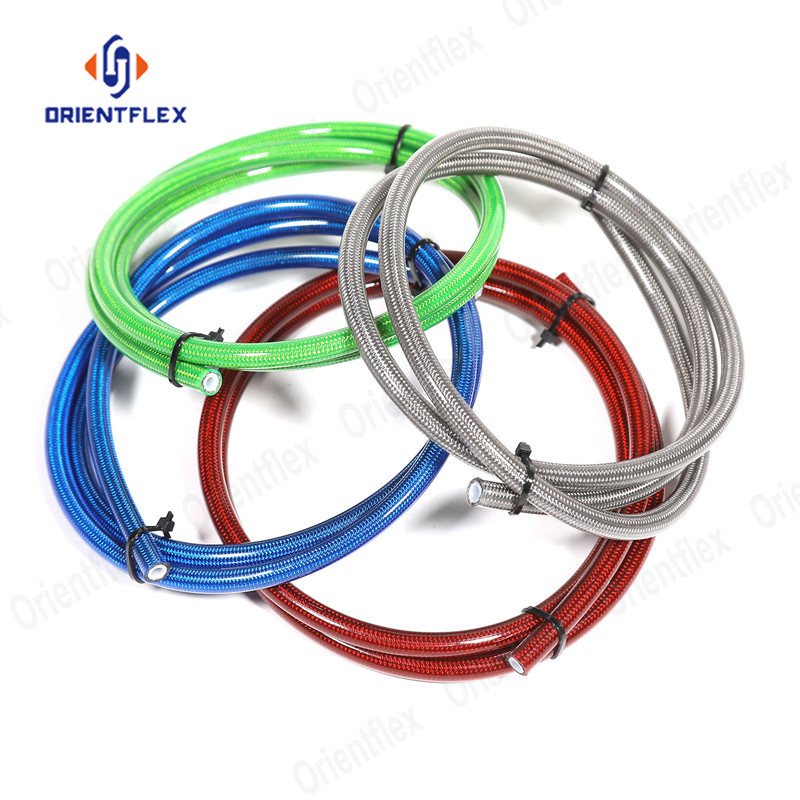

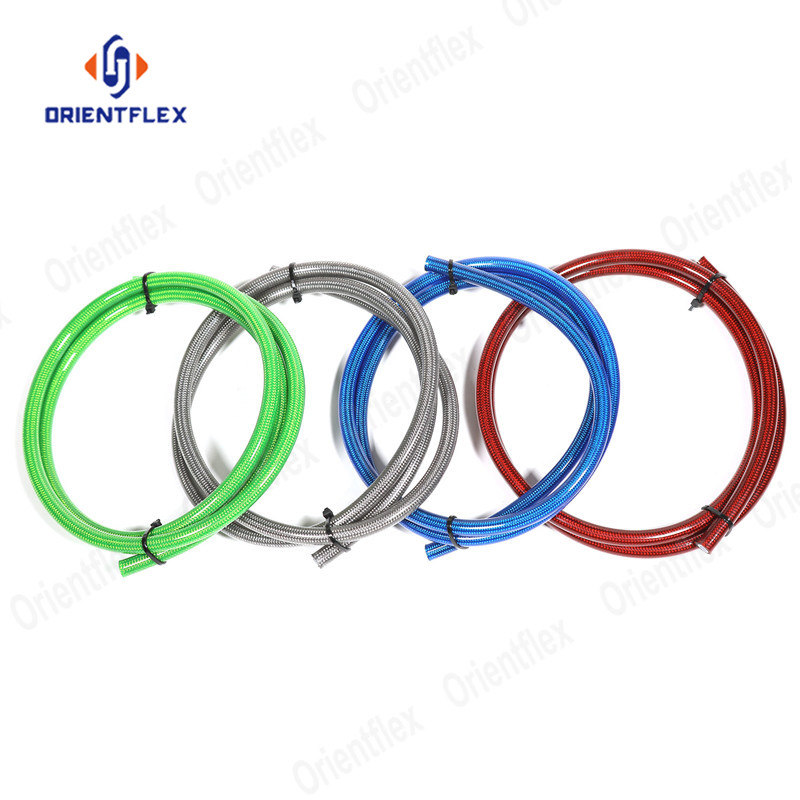

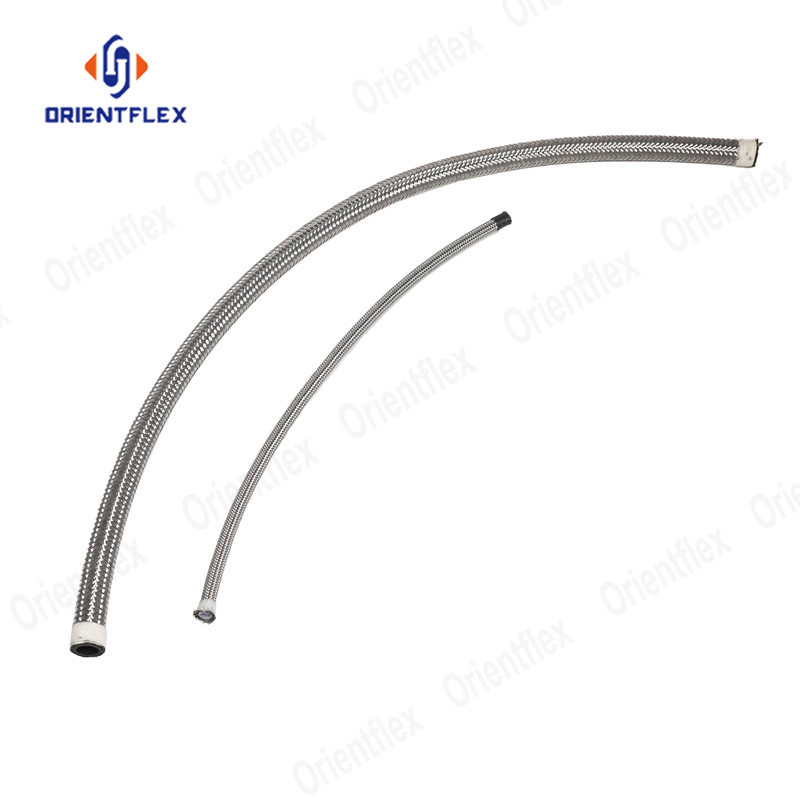

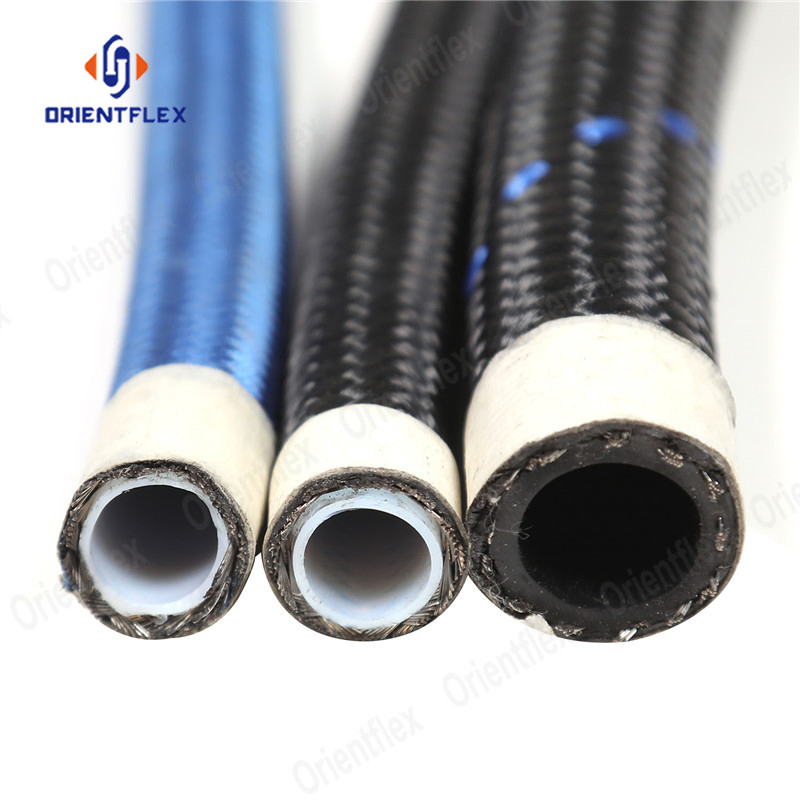

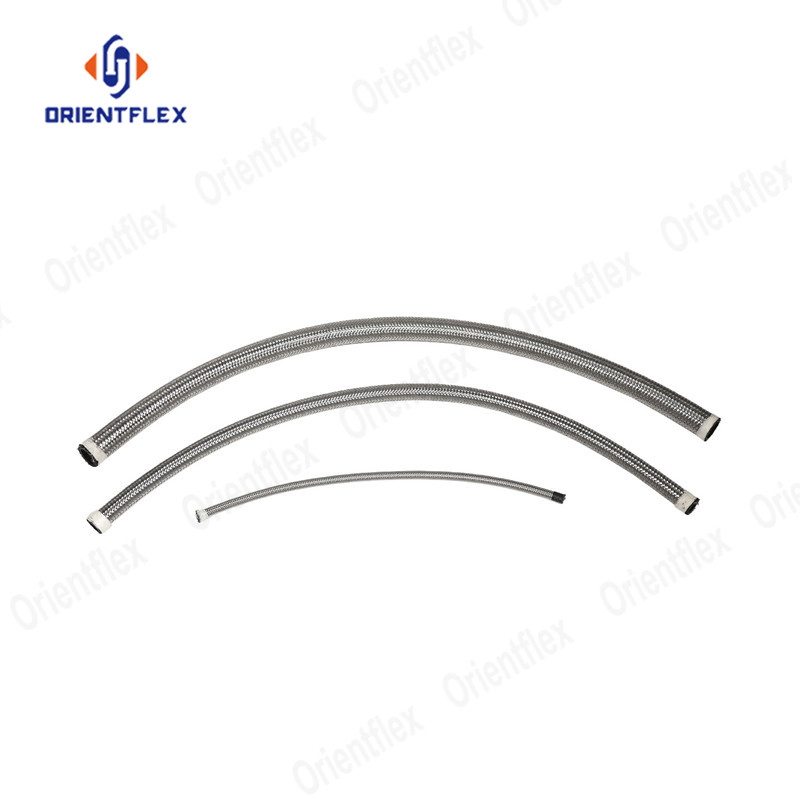

The oil cooler hose circulates oil between the oil cooler and engine. This essential auto hose helps prevent the engine from overheating. Failure of the hose may lead to oil leaks or a low oil warning light activation. The hose construction features a synthetic rubber inner tube with partial stainless steel reinforcement braiding.

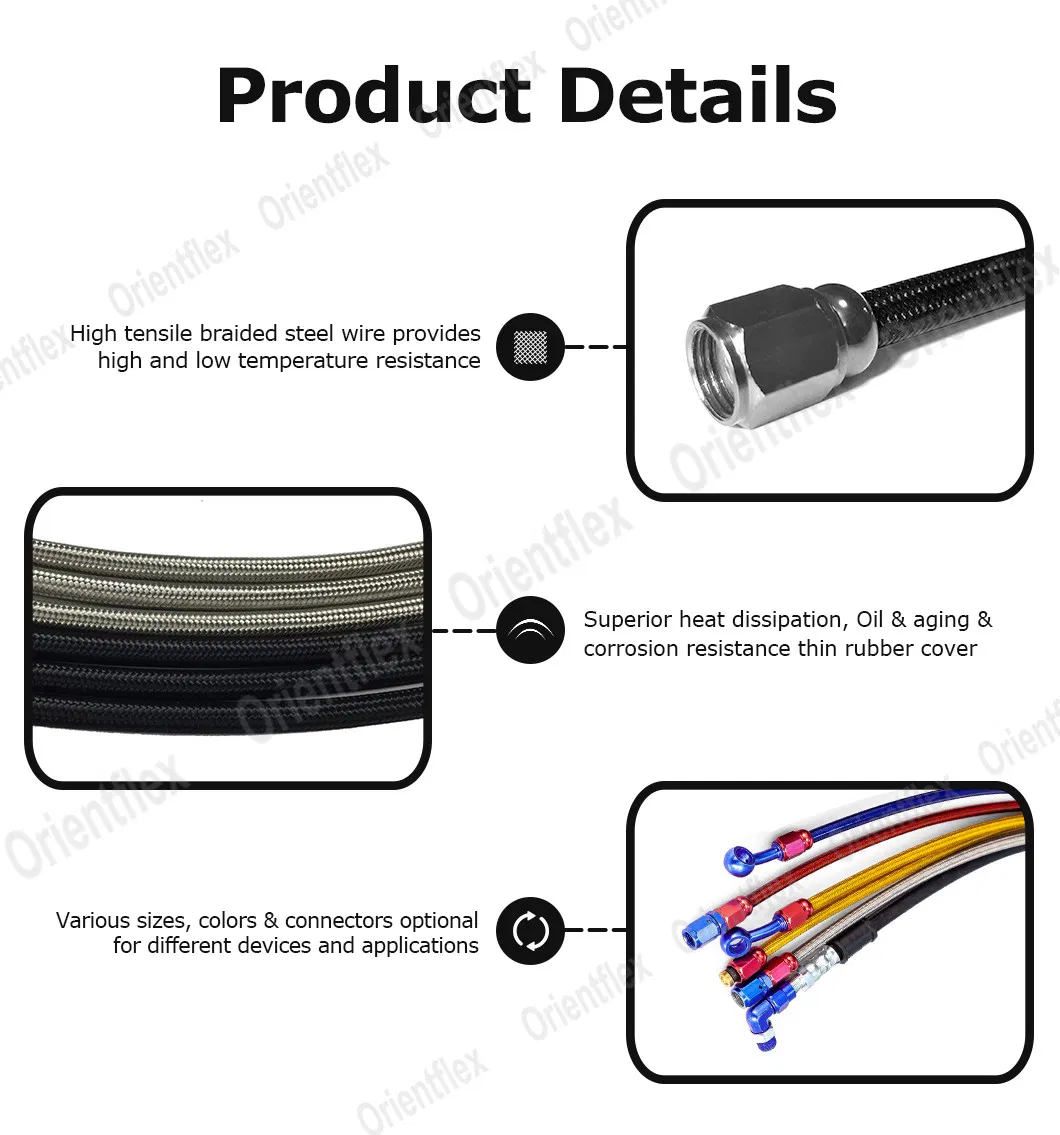

An external SS braid provides exceptional lightweight flexibility and durability. This rubber hose with stainless steel overbraid offers superior protection against abrasion, making it ideal for swaging or when using hose clips.

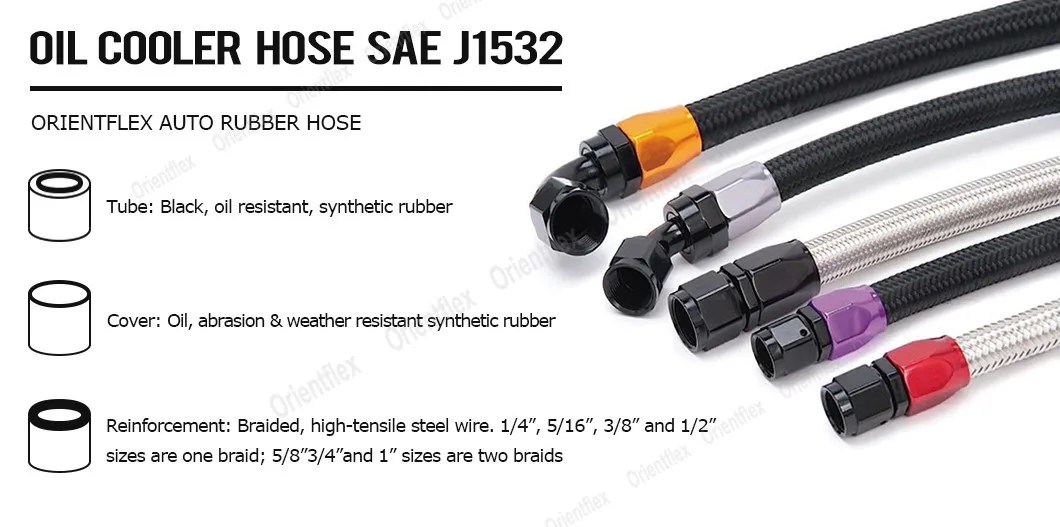

🛠️ Construction:

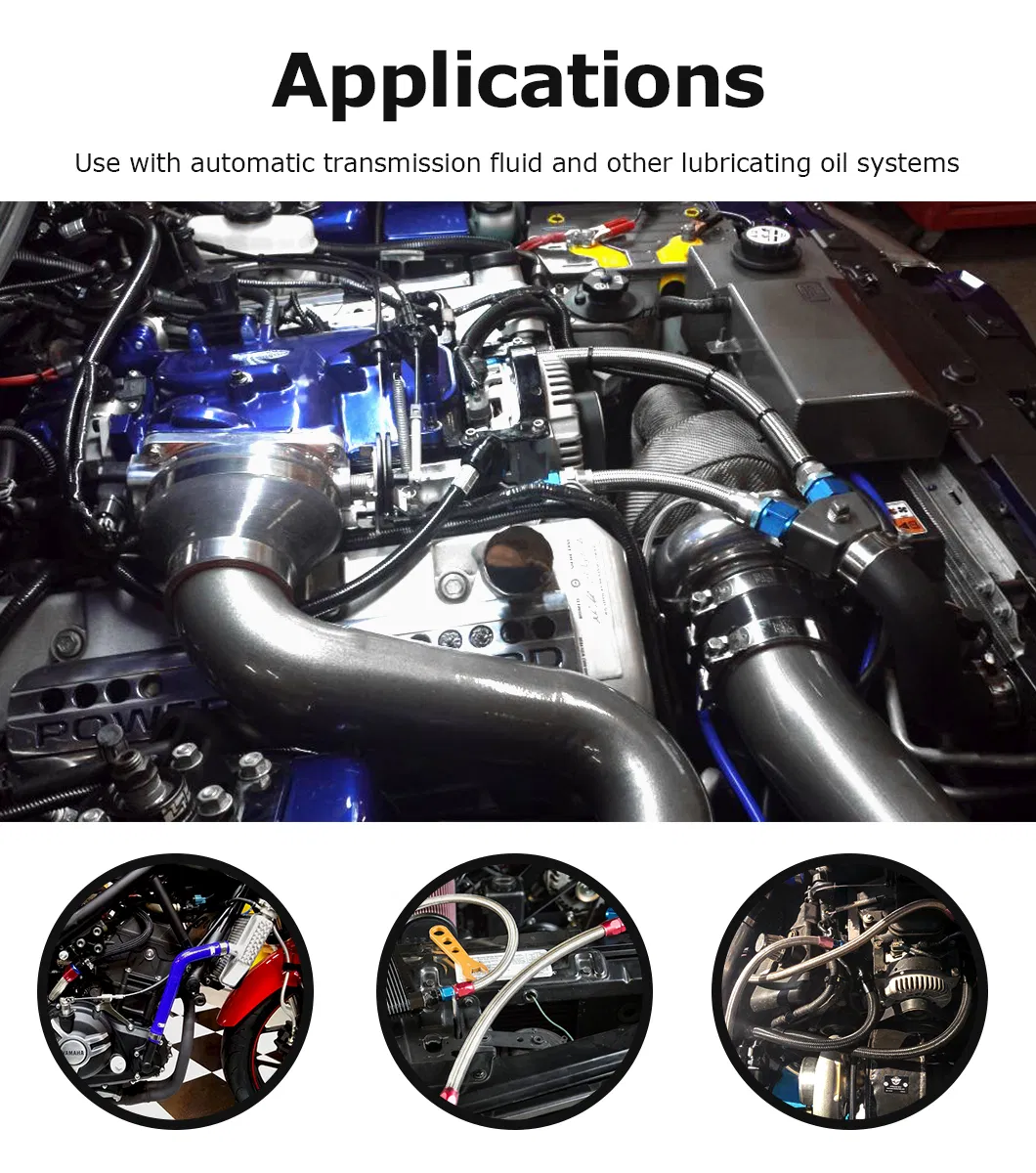

🚀 Application:
Specifically designed for use with automatic transmission fluid and other lubricating oil systems.
⭐ Characteristics:

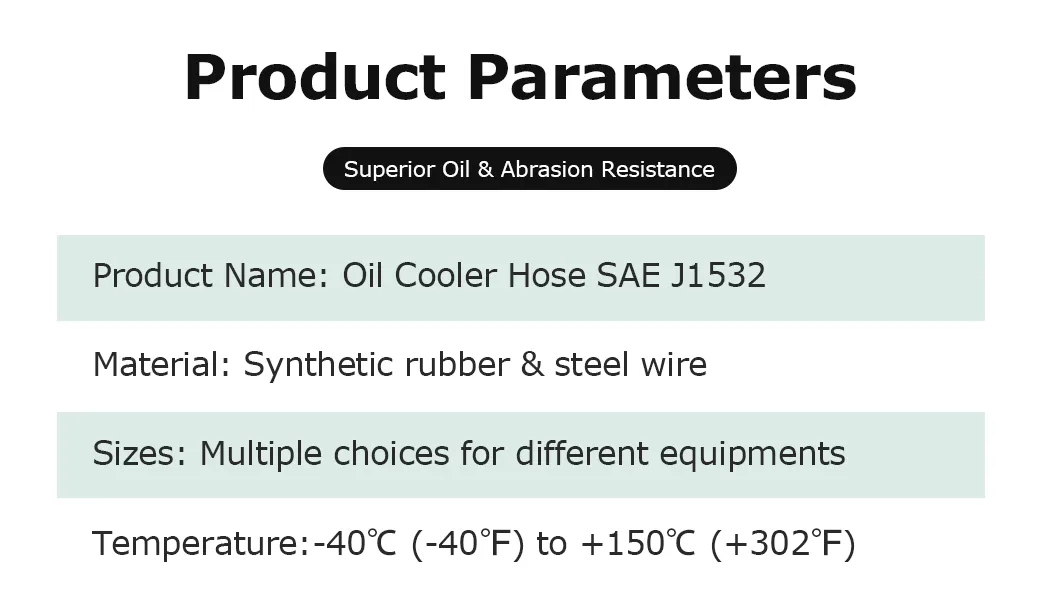

🌡️ Temperature Range: -104 ºF to + 302 ºF (-40ºC to + 150 ºC)
| Item Code | I.D (Internal Diameter) | O.D (Outer Diameter) | W.P (Working Pressure) | B.P (Burst Pressure) | |
|---|---|---|---|---|---|
| Inch | mm | mm | Mpa | Mpa | |
| An04 | 1/4 | 5.56 | 11.13 | 7 | 42 |
| An06 | 5/16 | 8.73 | 13.89 | 7 | 42 |
| An08 | 3/8 | 11.12 | 16.28 | 7 | 35 |
| An10 | 1/2 | 14.27 | 20.24 | 7 | 35 |
| An12 | 5/8 | 17.47 | 23.82 | 7 | 26.3 |
| An16 | 3/4 | 22.22 | 29.96 | 5.2 | 17.5 |
| An20 | 1 | 28.5 | 35.81 | 5.2 | 17.5 |
