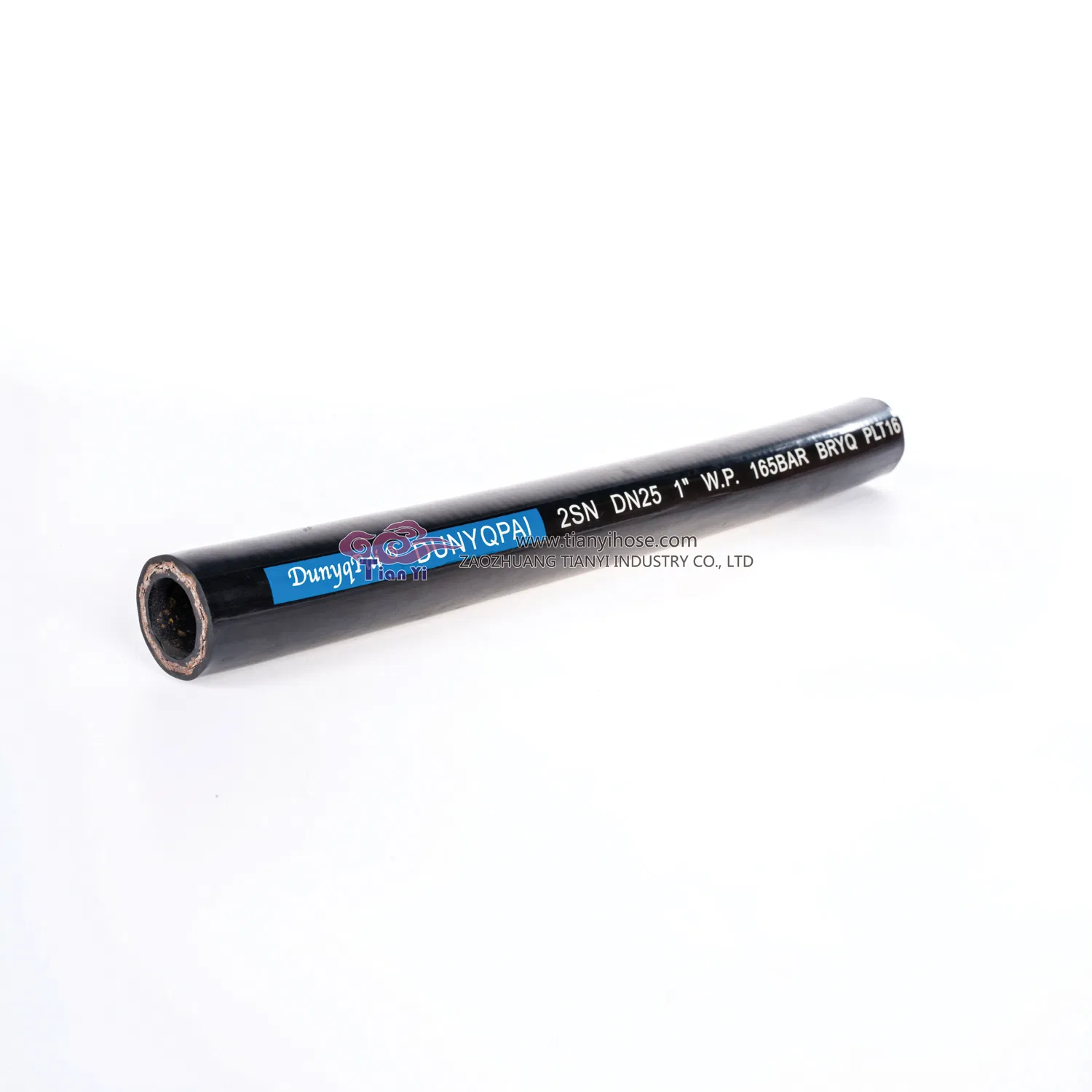

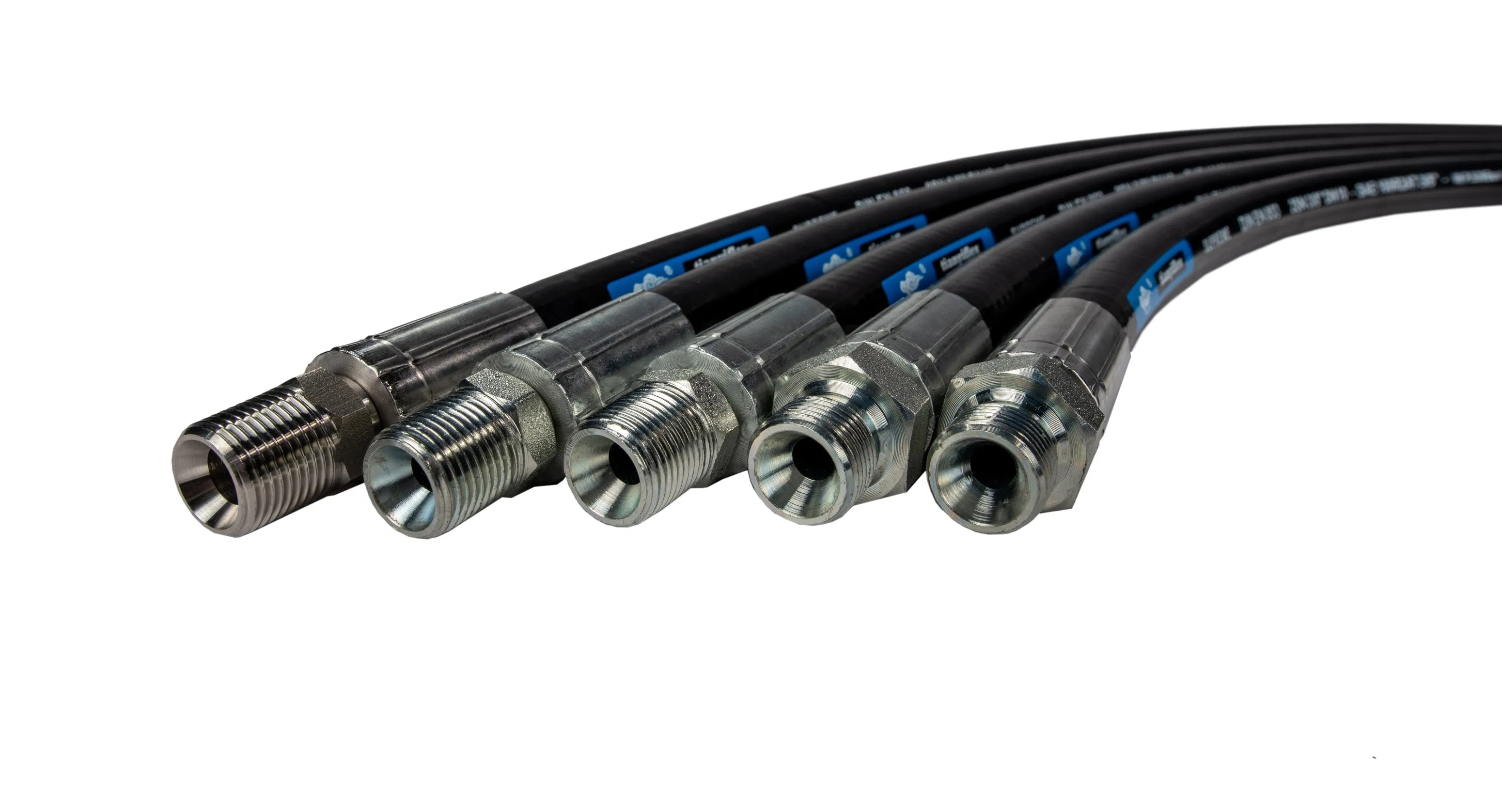

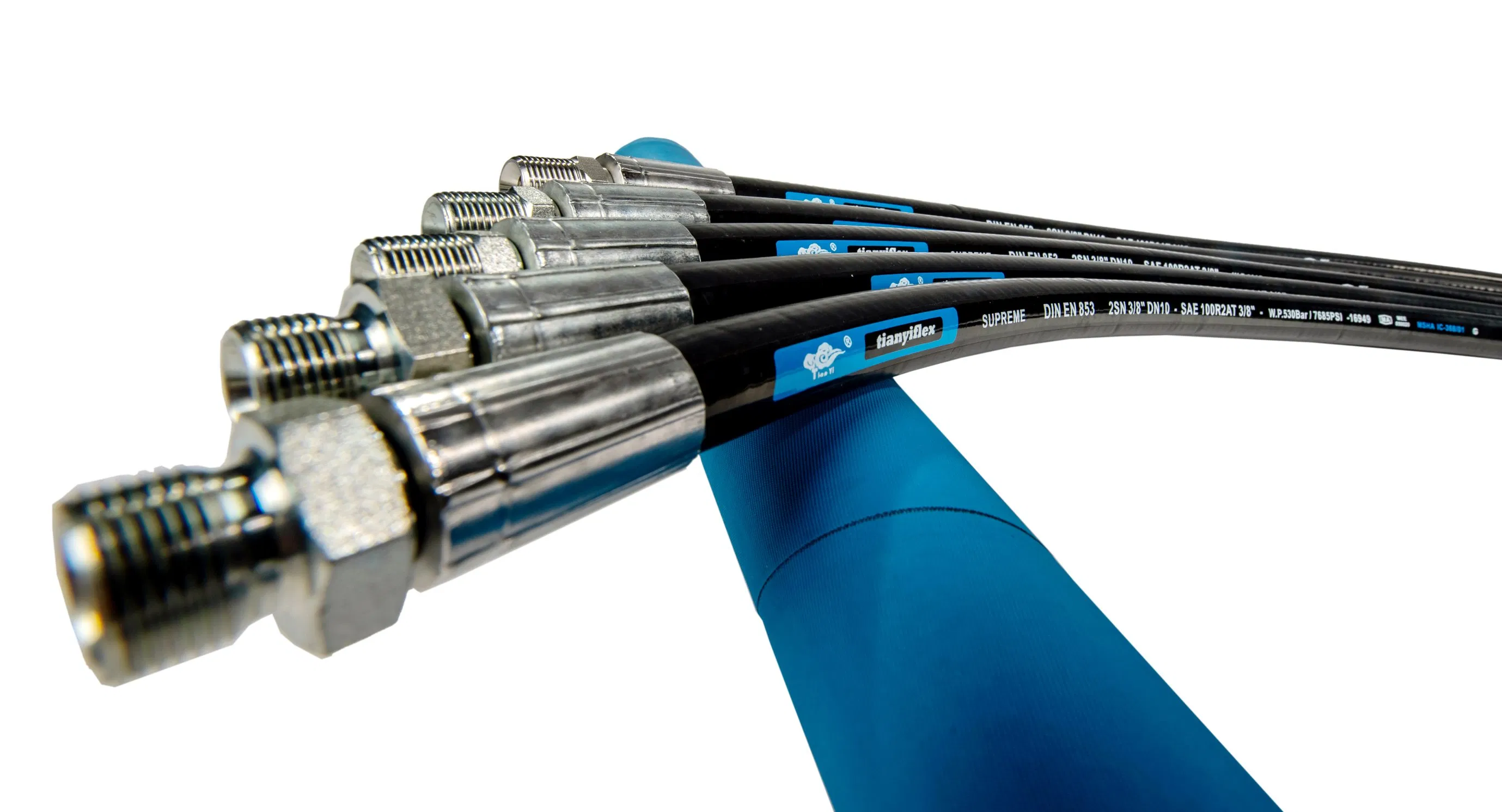

Wire Braid Hydraulic Oil Rubber Hose SAE 100r2at DIN En853 2sn En856 4sh 4sp Flexible High Pressure Hydraulic System Component Hydraulic Transmission Fluid

1 / 5

Wire Braid Hydraulic Oil Rubber Hose SAE 100r2at DIN En853 2sn En856 4sh 4sp Flexible High Pressure Hydraulic System Component Hydraulic Transmission Fluid

Customization:	Available
Material:	Natural Rubber
Capability:	Water Rubber Hose

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

SAE 100R2AT

Color

Black

Transport Package

Woven

Specification

1/4'-3'

Origin

China

HS Code

40092100

Production Capacity

10 Million Meter

📋 Product Description

SIZE			I.D.	W.D.	O.D.	W.P		P.P		B.P		Min B.R	W.T
mm	Inch	Dash	mm	mm	mm	bar	psi	bar	psi	bar	psi	mm	Kg/m
5	3/16	-3	5	11.1	13.1	615	8917	830	12035	1650	23925	90	0.31
6	1/4	-4	6.4	12.5	14.7	600	8700	800	11600	1600	23200	100	0.36
8	5/16	-5	8.1	14.2	16.2	480	6960	700	10150	1400	20300	115	0.40
10	3/8	-6	9.8	16.7	18.7	530	7685	660	9570	1320	19140	125	0.51
12	1/2	-8	12.8	19.8	21.8	340	4930	550	7975	1100	15950	180	0.60
16	5/8	-10	16	23	25	340	4930	500	7250	1000	14500	200	0.72
19	3/4	-12	19.2	27	29	340	4930	430	6235	850	12325	240	0.93
25	1	-16	25.2	34.7	37	165	2395	330	4785	650	9425	300	1.26
31	1-1/4	-20	32	44	47	125	1815	250	3625	500	7250	420	1.78
38	1-1/2	-24	38	50	53	90	1305	180	2610	360	5220	500	2.20
51	2	-32	51	63.5	66.5	80	1160	160	2320	320	4640	630	2.85

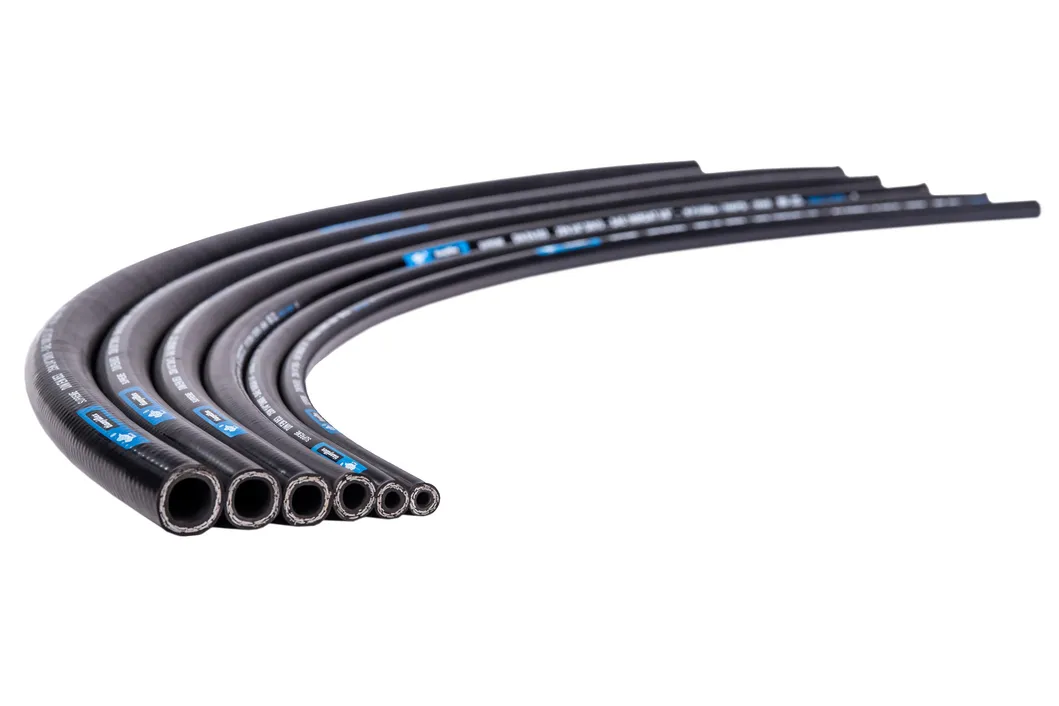

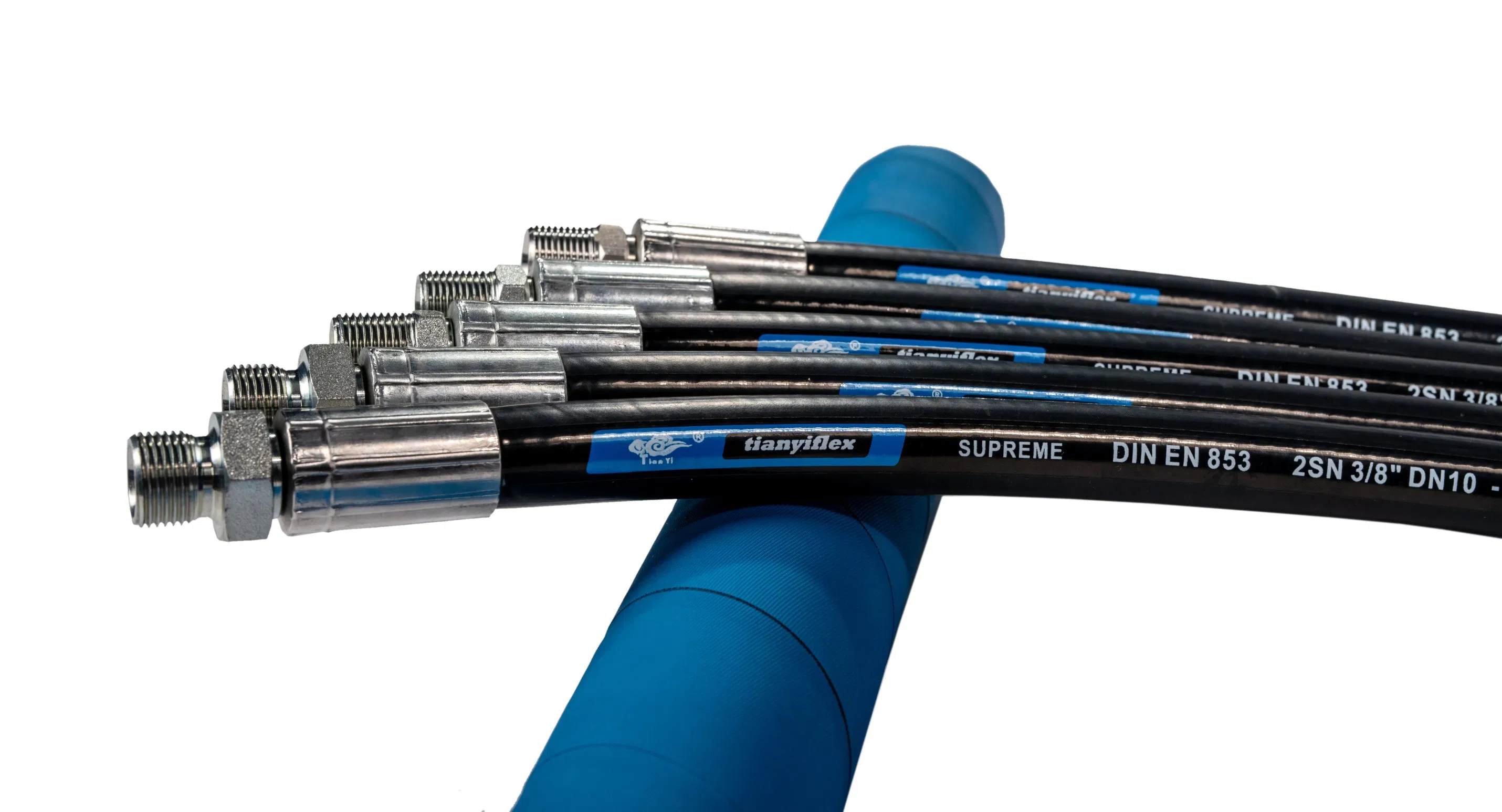

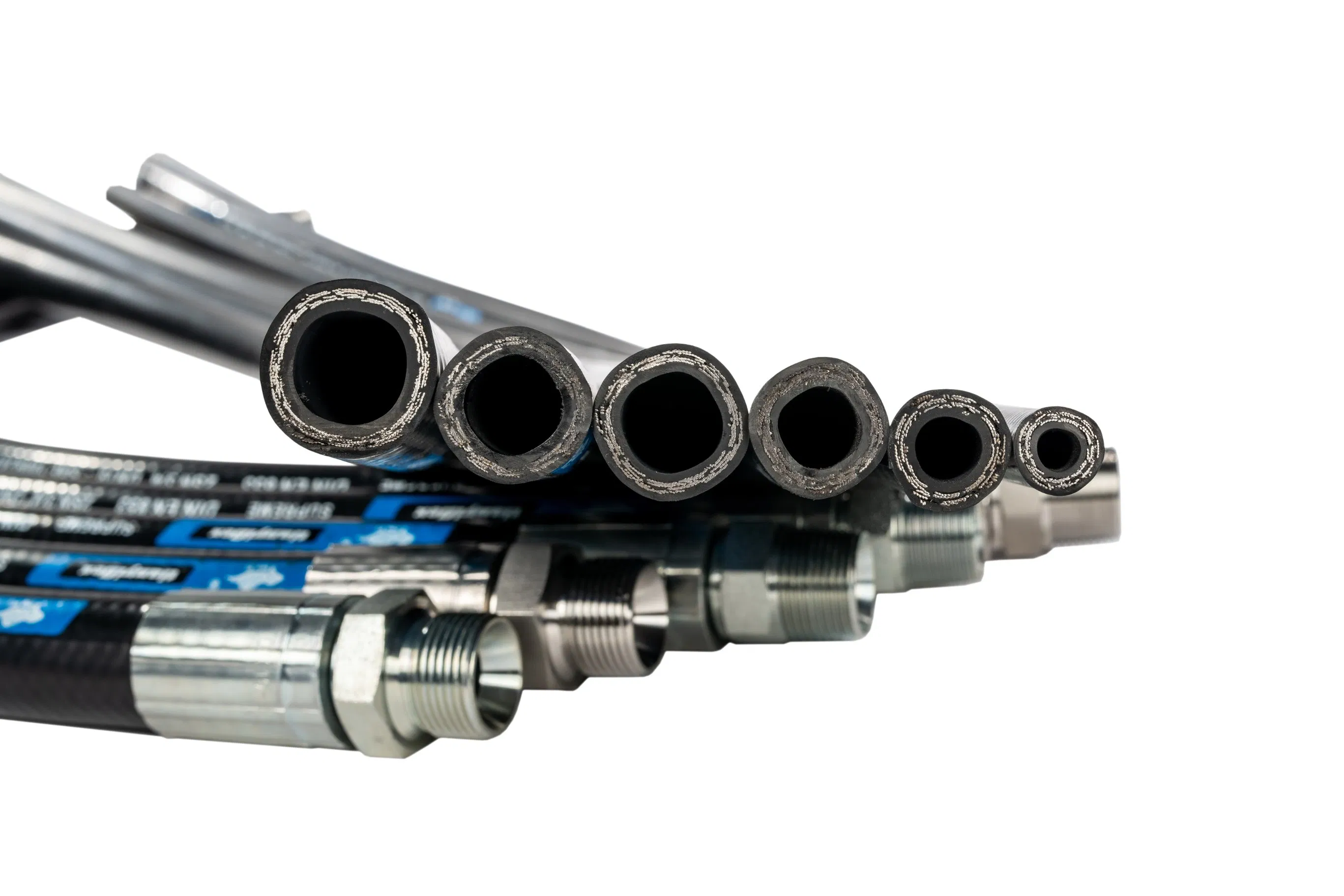

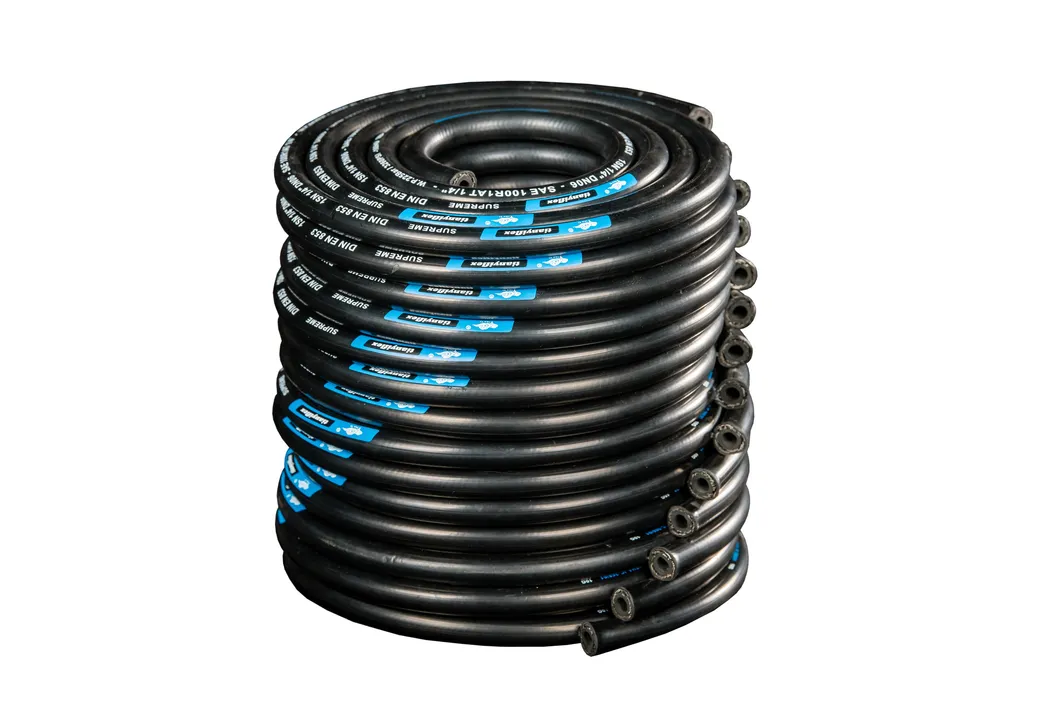

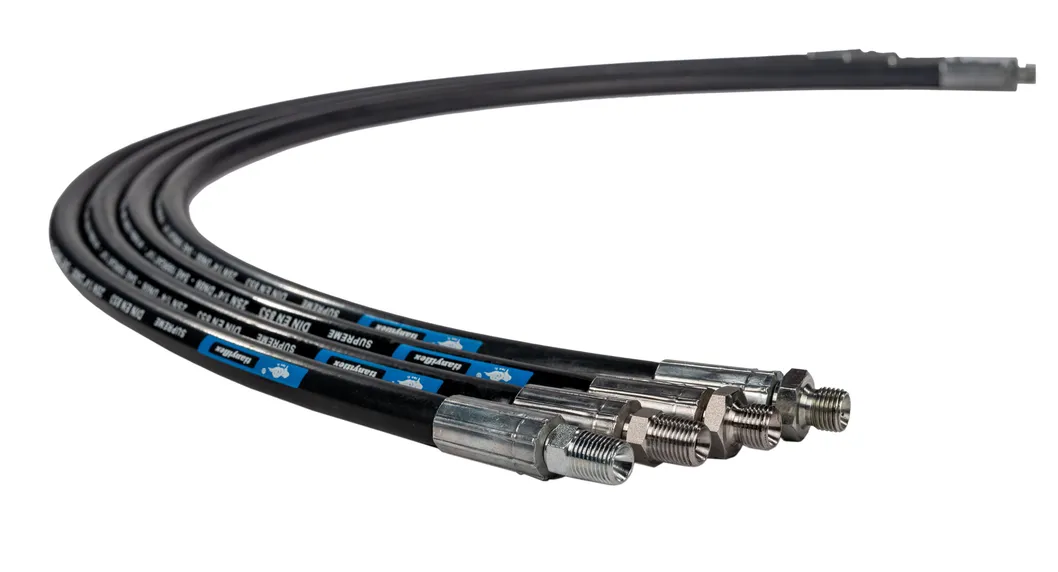

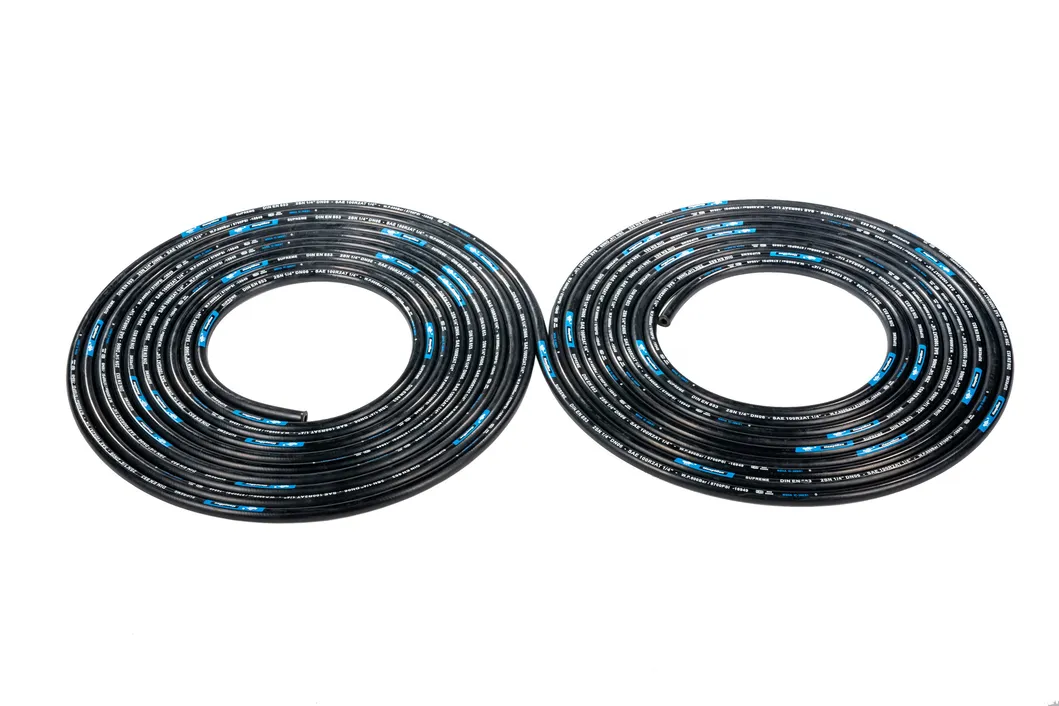

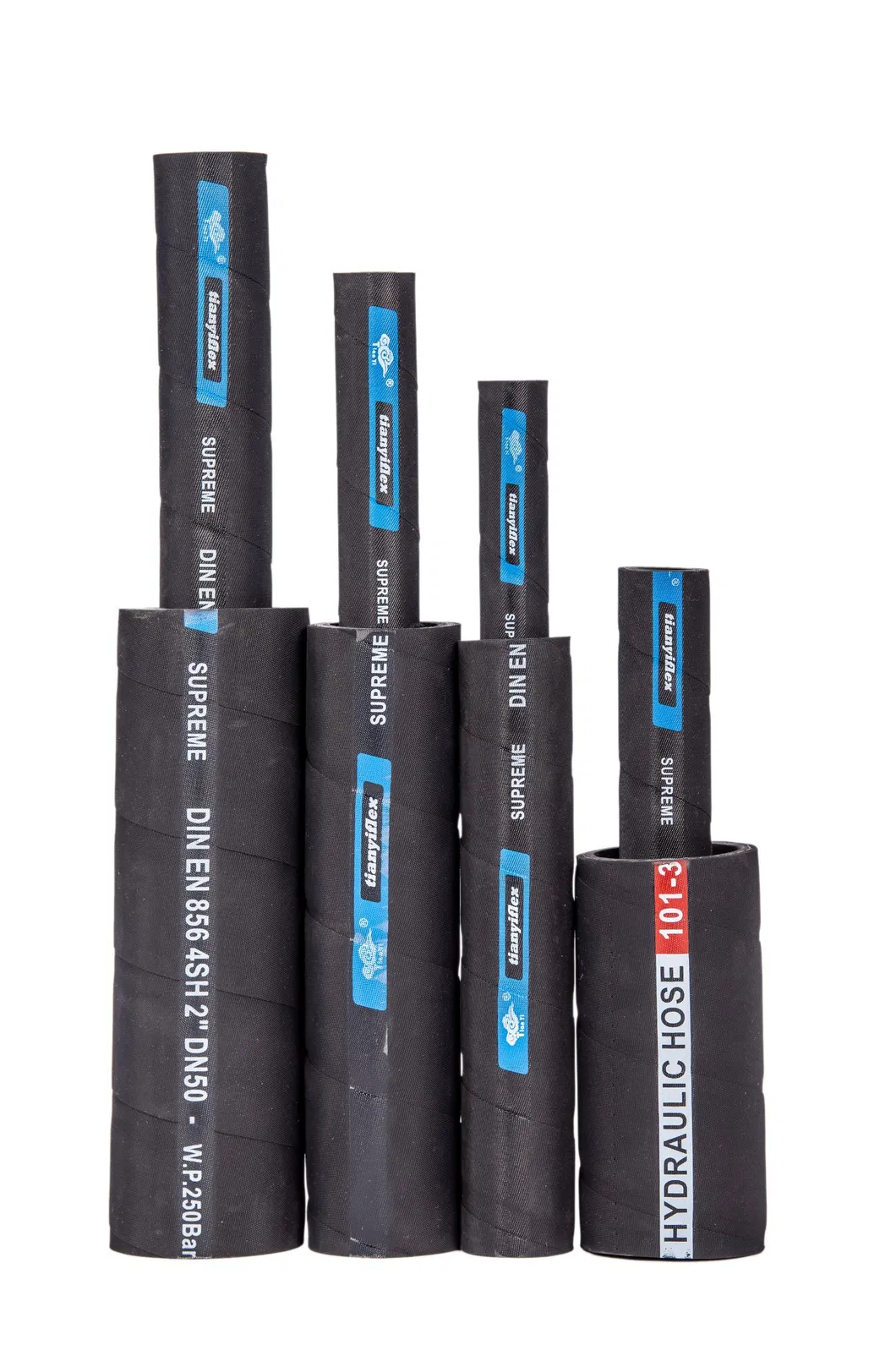

🖼️ Detailed Photos

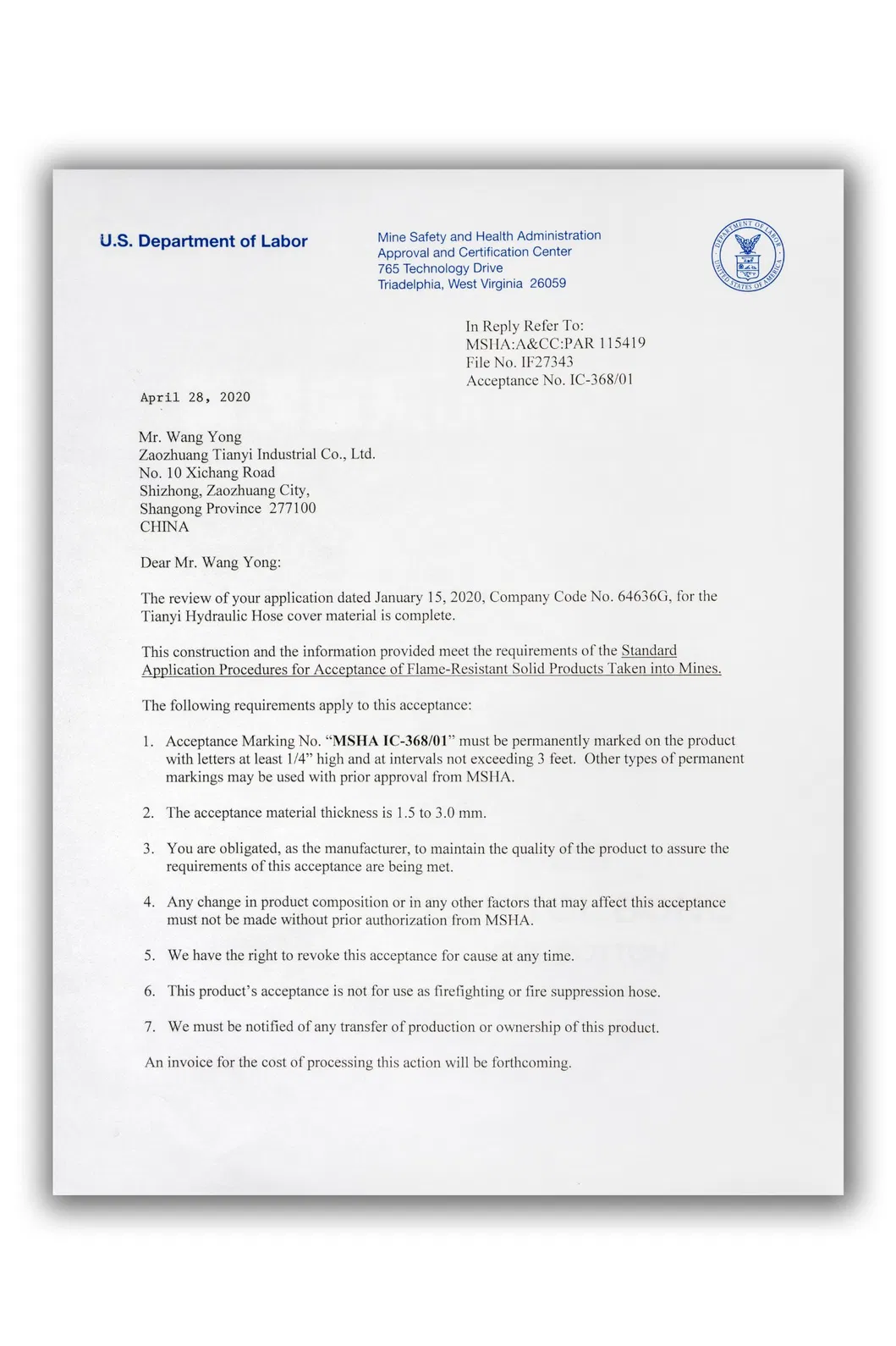

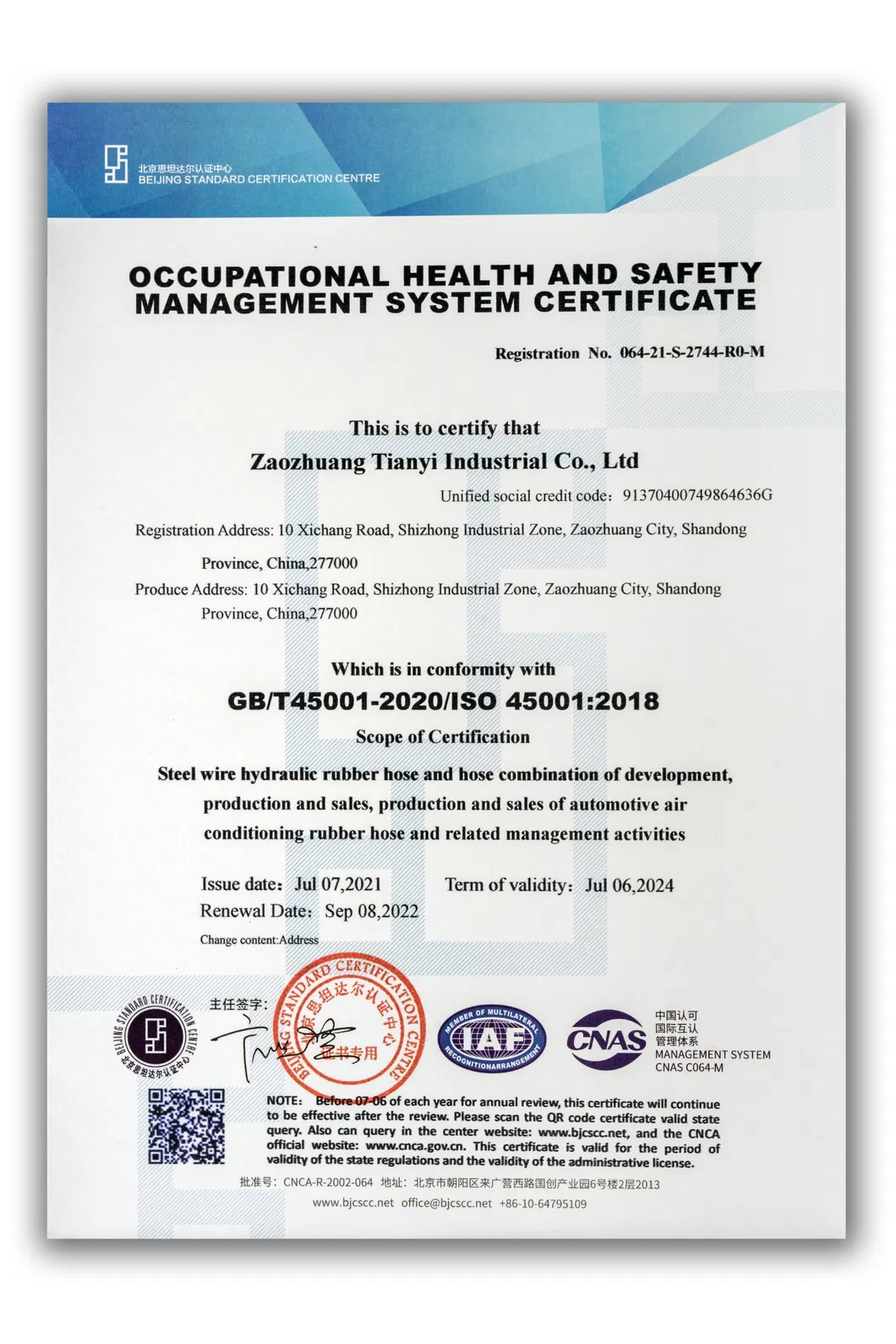

📜 Certifications

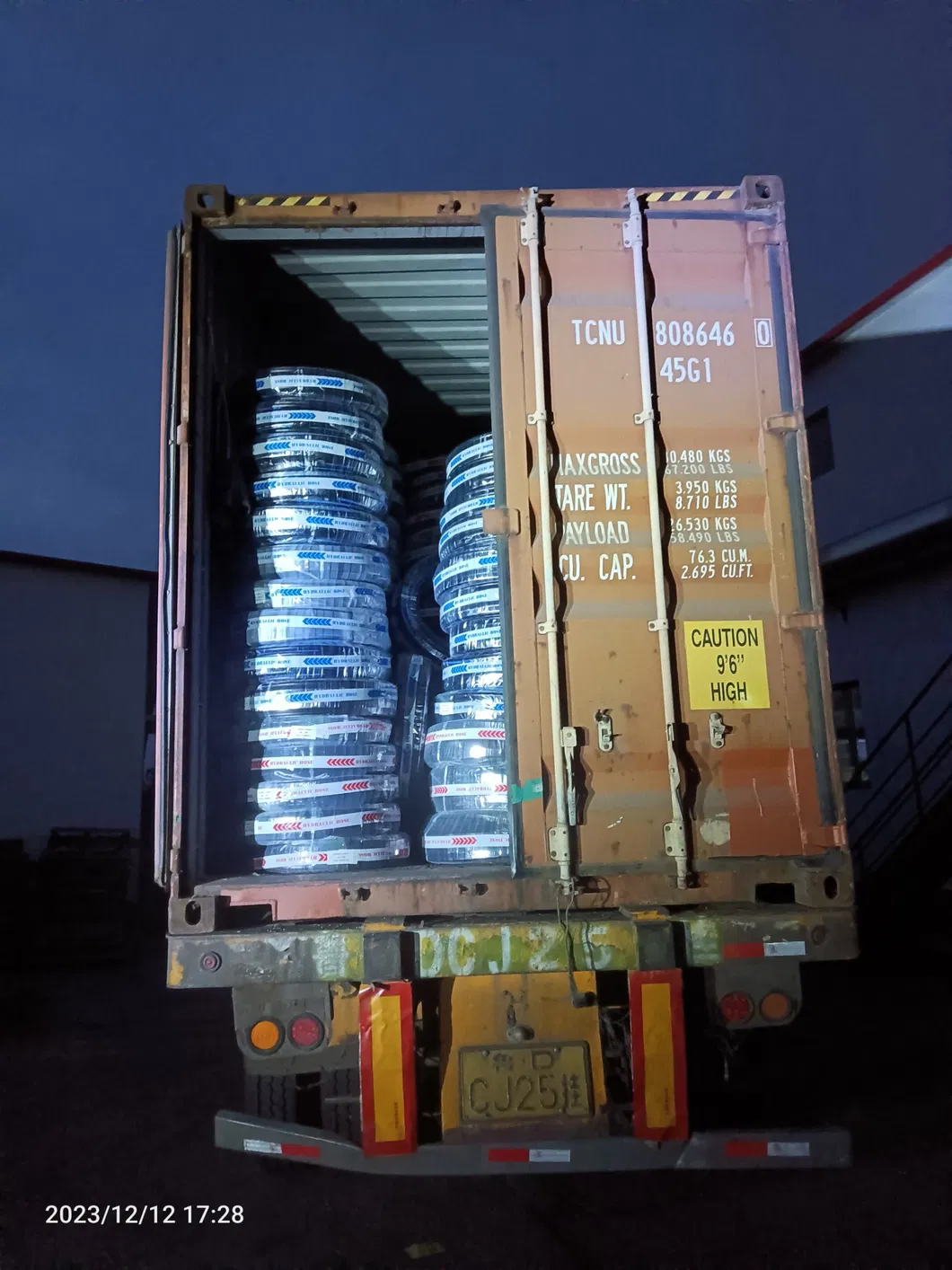

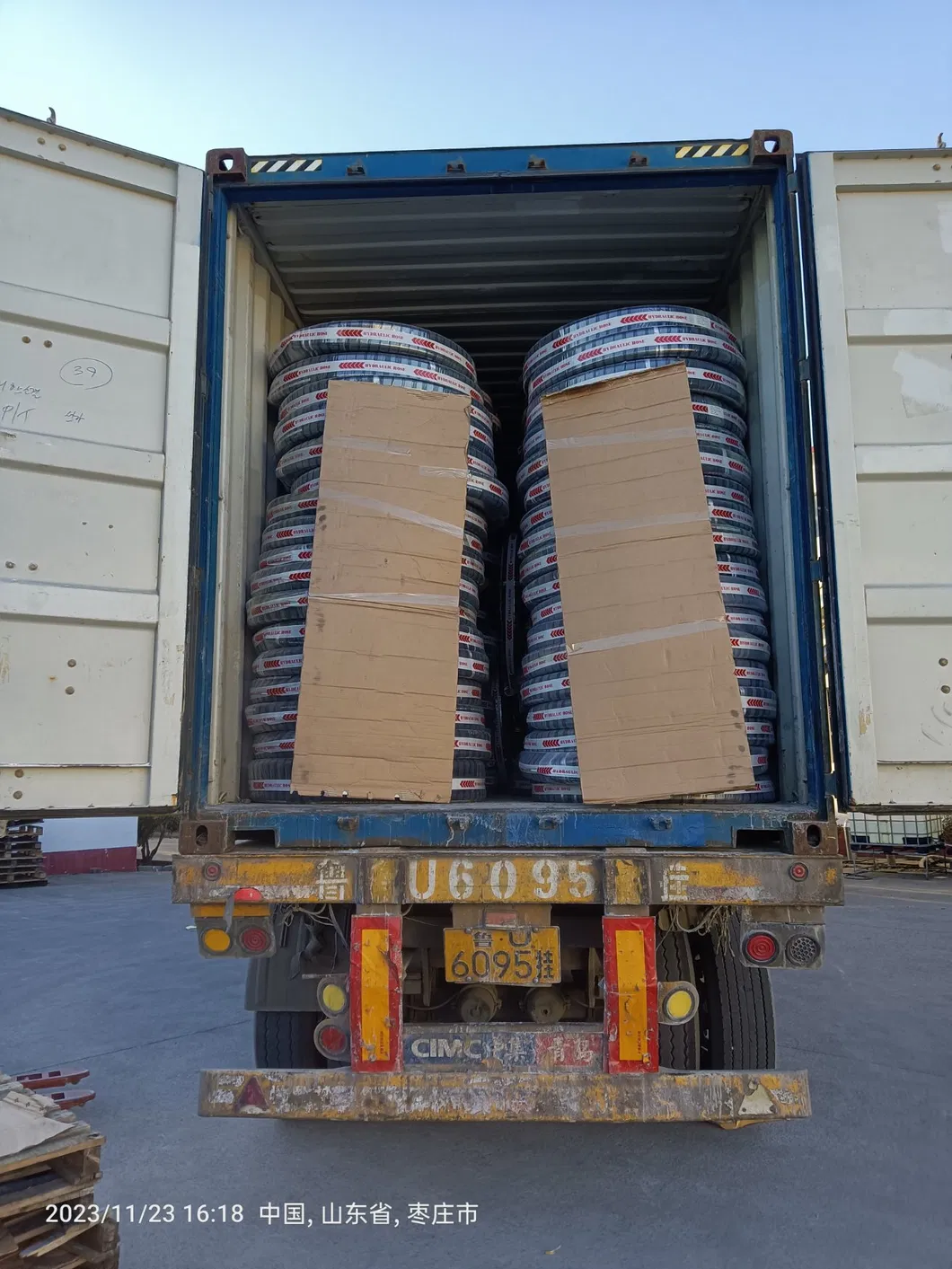

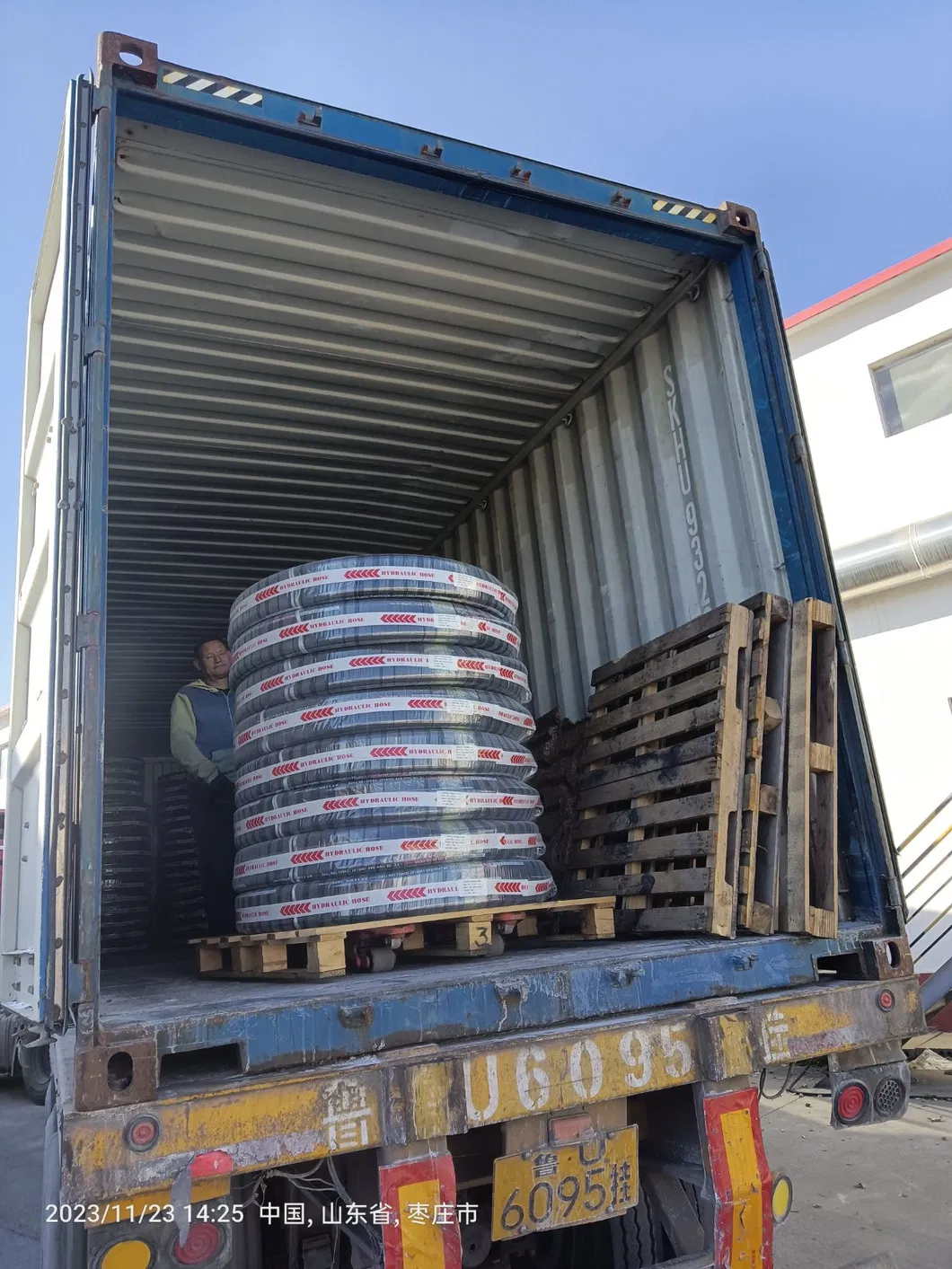

📦 Packaging & Shipping

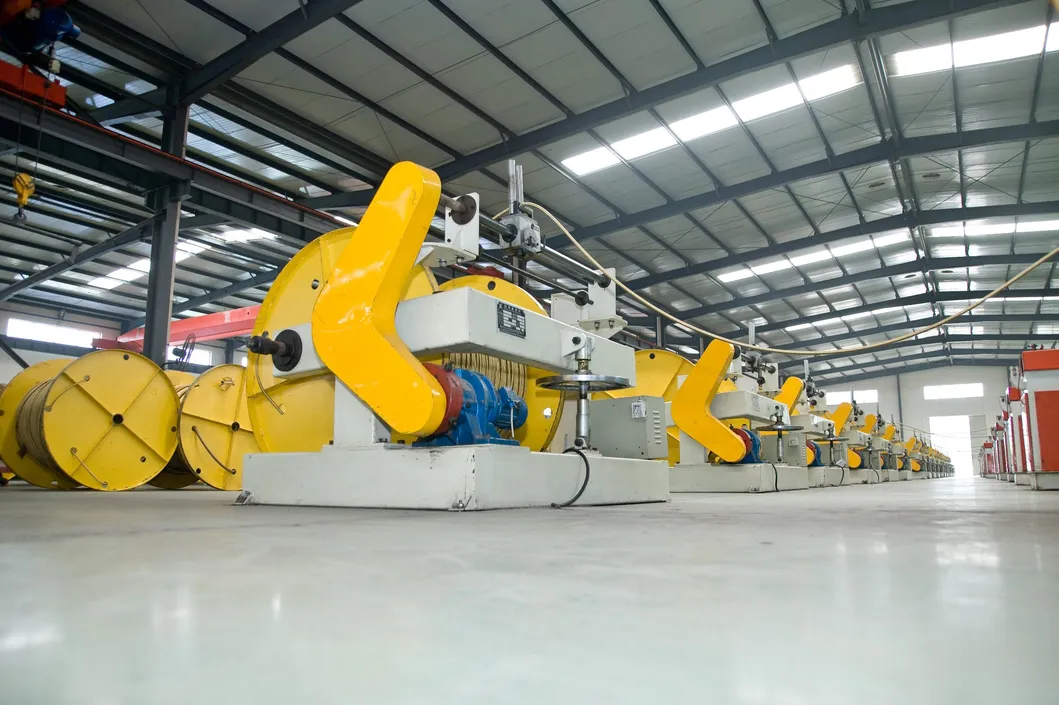

🏢 Company Profile

Founded in 2002, the enterprise covers an area of 30,000 square meters with a building area of 27,000 square meters. Currently, it maintains an annual output of 10 million meters of various hydraulic rubber hoses. The factory has been recognized for its quality credit and national safety standards, achieving several honorary titles for excellence in production.

Main products include: various hydraulic rubber hoses, high-pressure engineering machinery winding pipes, steel wire braided hoses, oil hoses, wear-resistant grouting hoses, and fiber knitting oil-resistant hoses. The product range covers diameters from 5 mm to 76 mm, with more than 1,400 total specifications, forming a large-scale and specialized production line.

Excellent product performance ensures durability, featuring super heat resistance (+220°C), cold tolerance (-55°C), and high resistance to pressure, oil, acid, alkali, and corrosion. All products have passed ISO9001 quality management system certification and occupational health and environmental system certifications. Products are widely utilized in petroleum, chemical industry, metallurgy, mining, shipping, and machinery manufacturing across more than 10 countries and regions including Russia, Turkey, Brazil, and South Africa.

🚀 Our Advantages

1

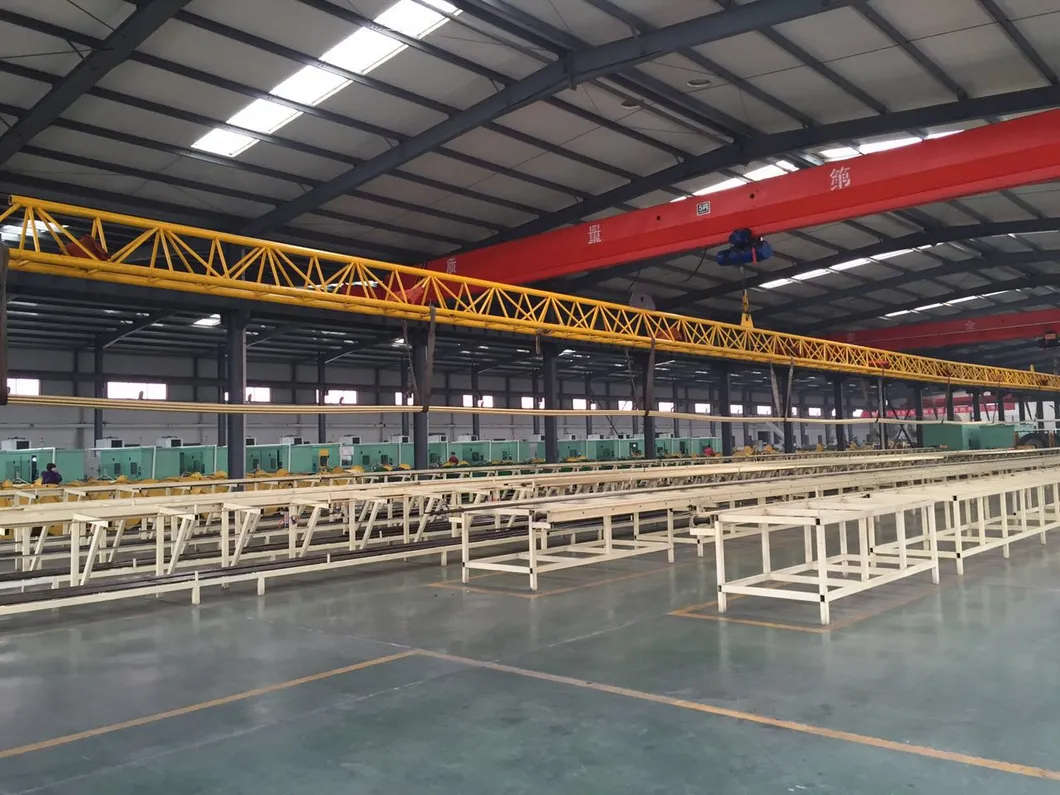

Advanced Production Equipment: Introduced high-end equipment and technical service teams from the US, South Korea, and Russia to optimize processes and technology upgrades.
2

Premium Raw Materials: We utilize high-quality carbon black and Bekaert steel wire, ensuring no inferior rubber is used in our manufacturing process.
3

Faster Delivery: With mass production workshops and extensive raw material stock, we guarantee efficient delivery timelines.

Frequently Asked Questions

What is the temperature range for the SAE 100R2AT hose?

The hose is designed to withstand extreme conditions, with a heat resistance of up to +220°C and cold tolerance down to -55°C.

What materials are used for the reinforcement layer?

We use high-tensile Bekaert steel wire for braiding to ensure superior high-pressure performance and durability.

Are your hydraulic hoses resistant to chemicals?

Yes, our hoses feature excellent resistance to oil, acids, alkalis, and various corrosive substances commonly found in industrial environments.

What industries typically use your products?

Our hoses are widely used in petroleum, chemical industries, metallurgy, mining, shipping, water and electricity, and general machinery manufacturing.

Does the product meet international quality standards?

Yes, all products are ISO9001 certified and meet occupational health and safety environmental system requirements.

What sizes are available for the hydraulic hoses?

We offer a wide range of specifications with diameters ranging from 5 mm up to 76 mm, covering over 1,400 different models.
