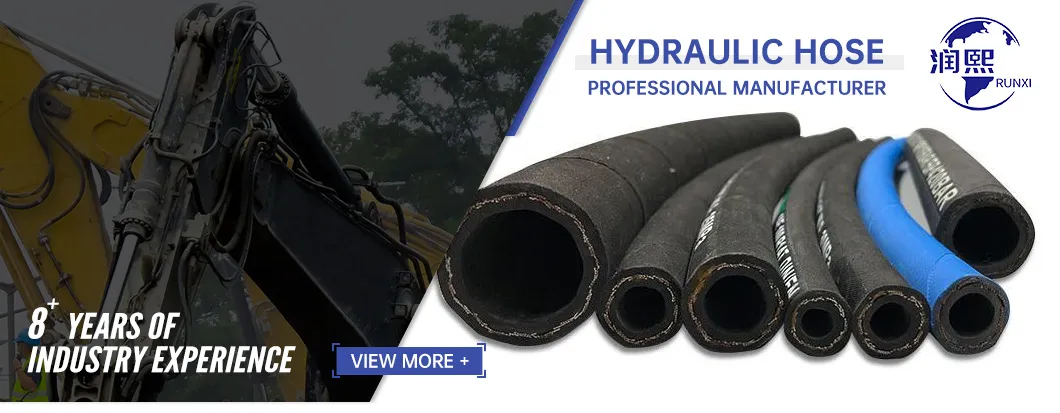

High pressure hose is made of internal rubber, middle rubber, 2, 4 or 6 layers of wire-wood, and external rubber.

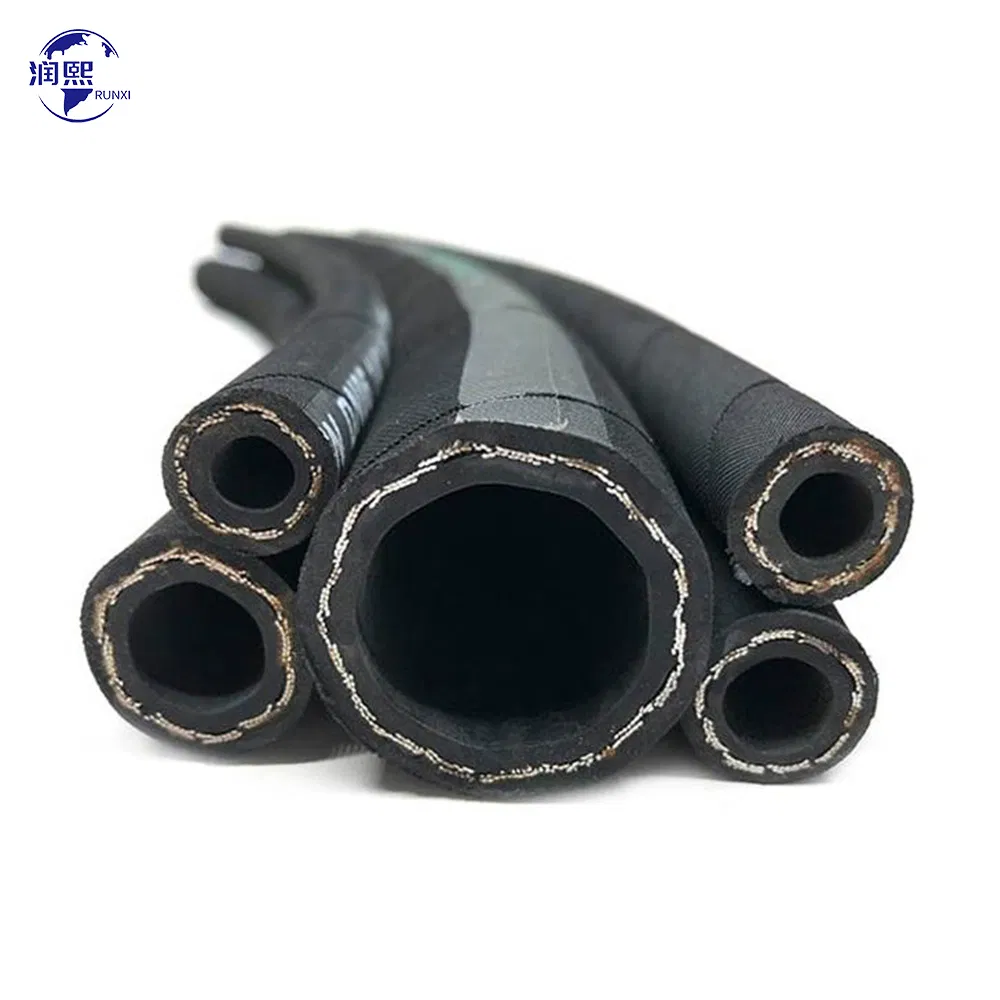

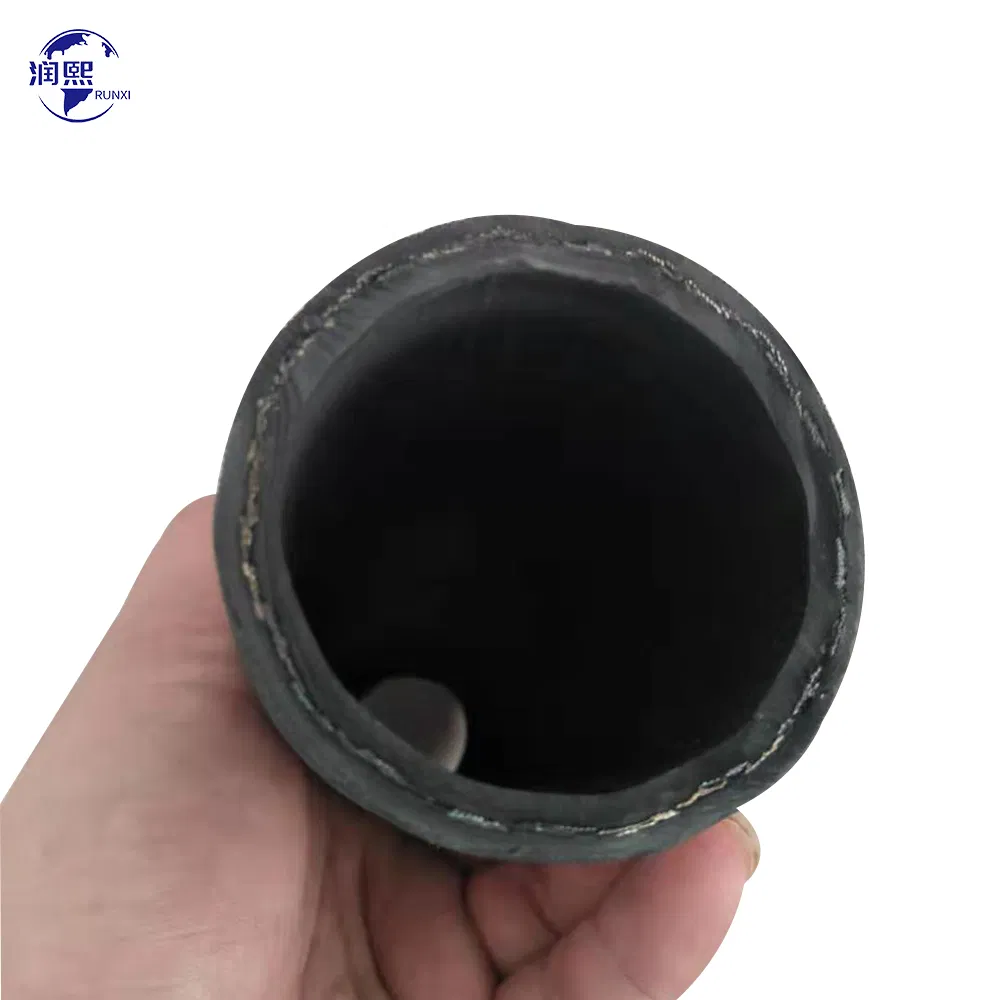

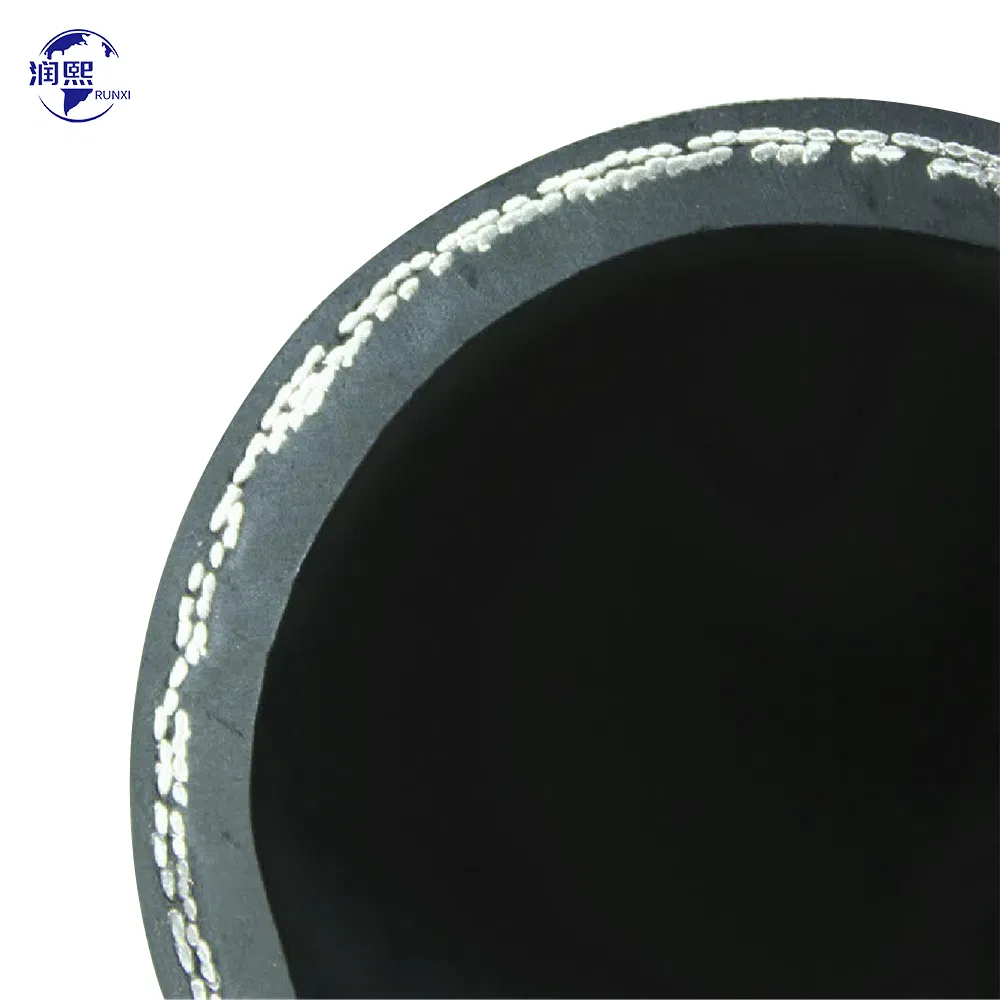

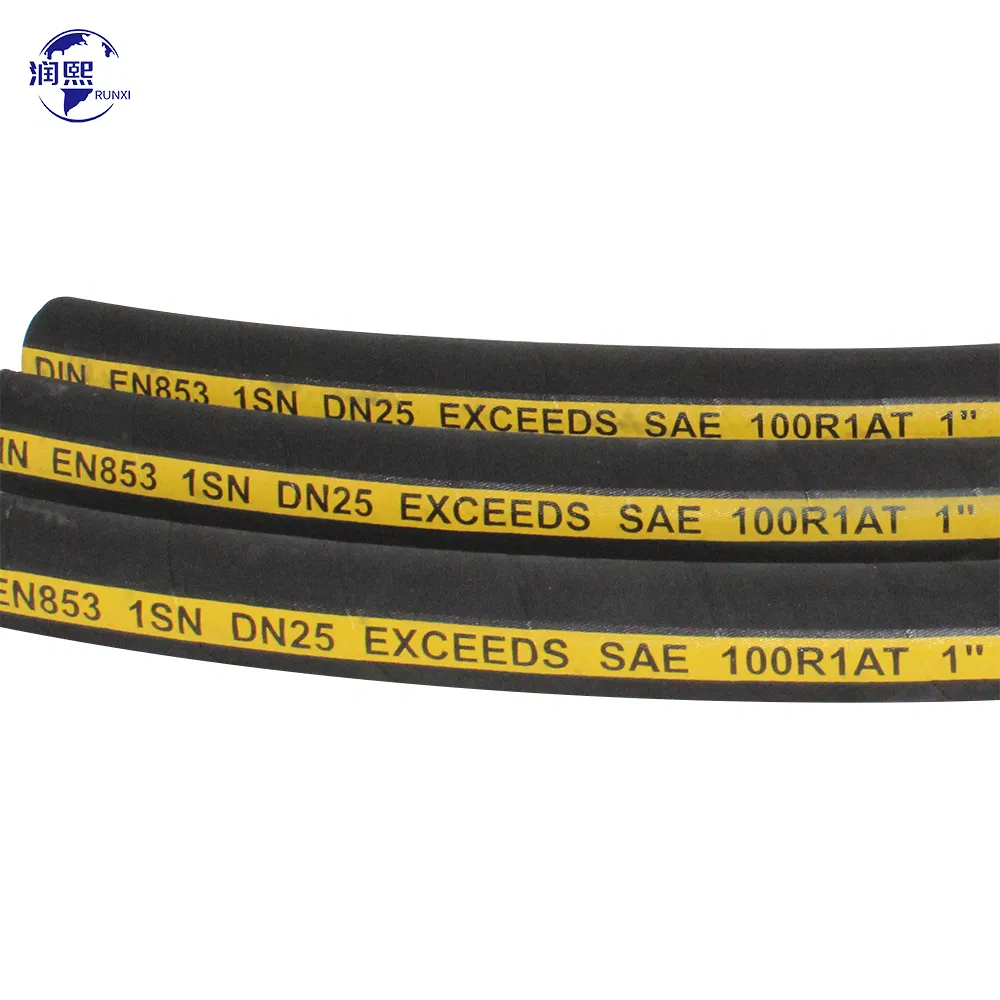

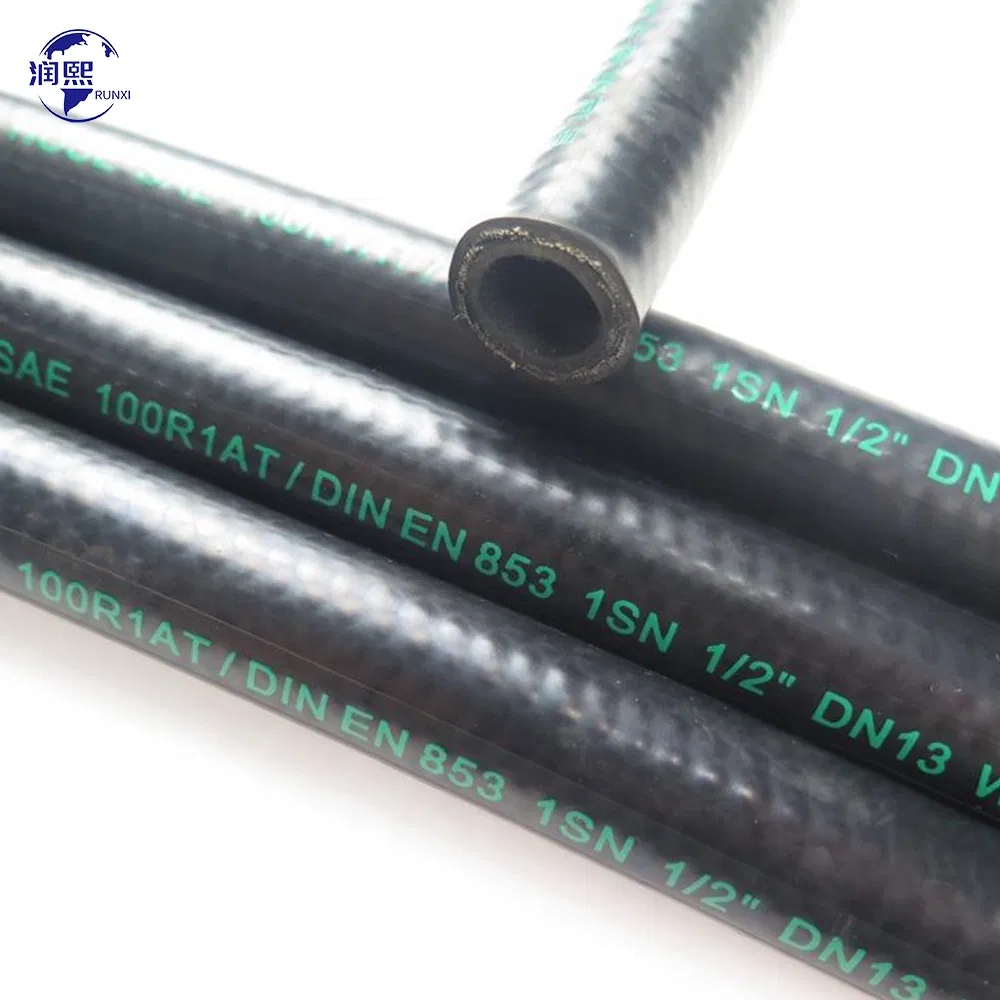

One Steel Wire Rubber Braided High Pressure Hydraulic Hose: This hose consists of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
1. The inner and outer rubber layers are made of synthetic rubber with excellent oil resistance.
2. The reinforcing layer is made of high-strength chemical fiber materials.
3. The temperature of transmission medium is -40 to +55 ºC.
Burst pressure: more than 4 times of the working pressure.

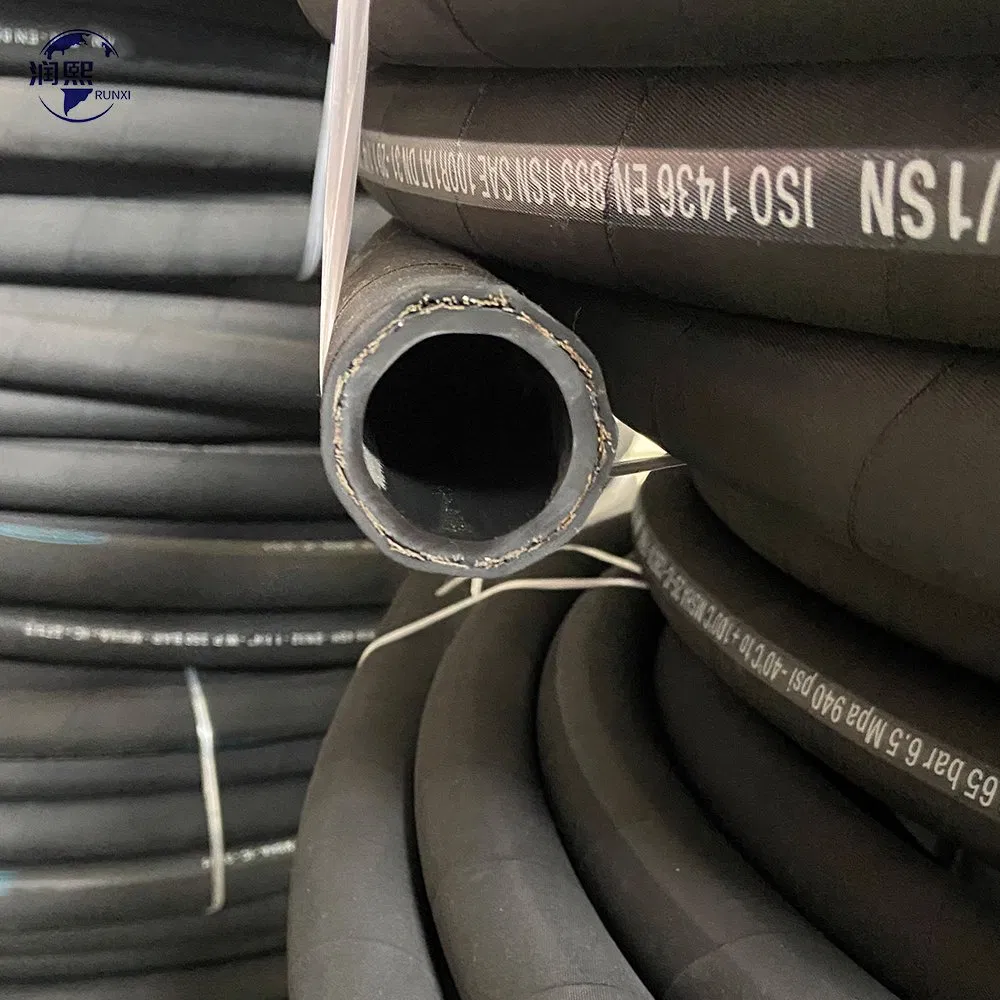

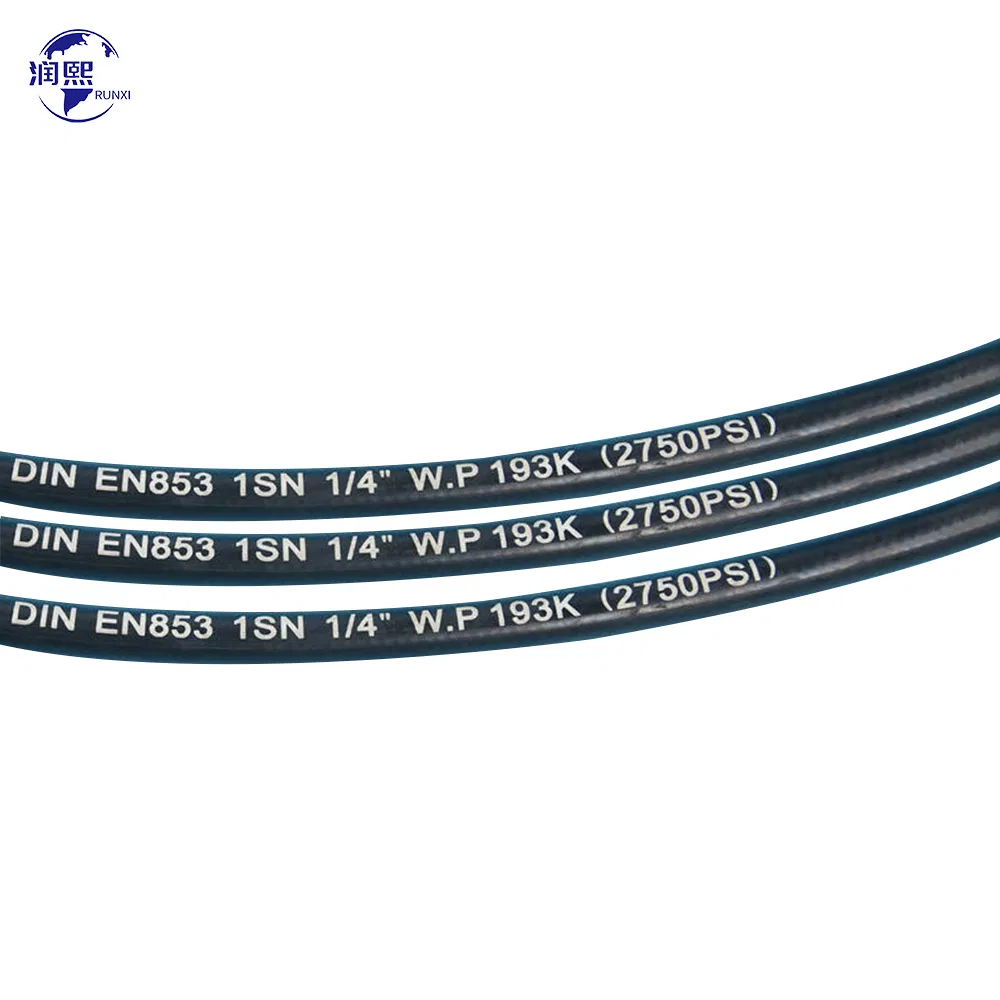

| SAE 100 R1 / EN853 1SN SIZE CHART | ||||||
|---|---|---|---|---|---|---|
| Part No. | SIZE (inch) | I.D (mm) | O.D (mm) | W.P (bar) | B.P (bar) | WEIGHT (g/m) |
| P04-1SN | 1/4″ | 6.4 | 13.4 | 225 | 900 | 225 |
| P05-1SN | 5/16″ | 8 | 15.2 | 215 | 860 | 260 |
| P06-1SN | 3/8″ | 9.5 | 17.3 | 180 | 720 | 340 |
| P08-1SN | 1/2″ | 12.7 | 20.3 | 160 | 640 | 415 |
| P10-1SN | 5/8″ | 16 | 23.7 | 130 | 520 | 475 |
| P12-1SN | 3/4″ | 19 | 28 | 105 | 420 | 590 |
| P16-1SN | 1″ | 25.4 | 36.2 | 87 | 348 | 875 |
| P20-1SN | 1 1/4″ | 31.8 | 43 | 62 | 248 | 1205 |
| P24-1SN | 1 1/2″ | 38.1 | 49.2 | 50 | 200 | 1405 |
| P32-1SN | 2″ | 50.8 | 62.6 | 40 | 160 | 1910 |
Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
Products are exported to more than 30 countries, including Russia, USA, UK, UAE, Korea, Vietnam, Iraq, Singapore, Indonesia, and Japan. We emphasize human resource development and professionally qualified staff to maintain high quality and competitive pricing.

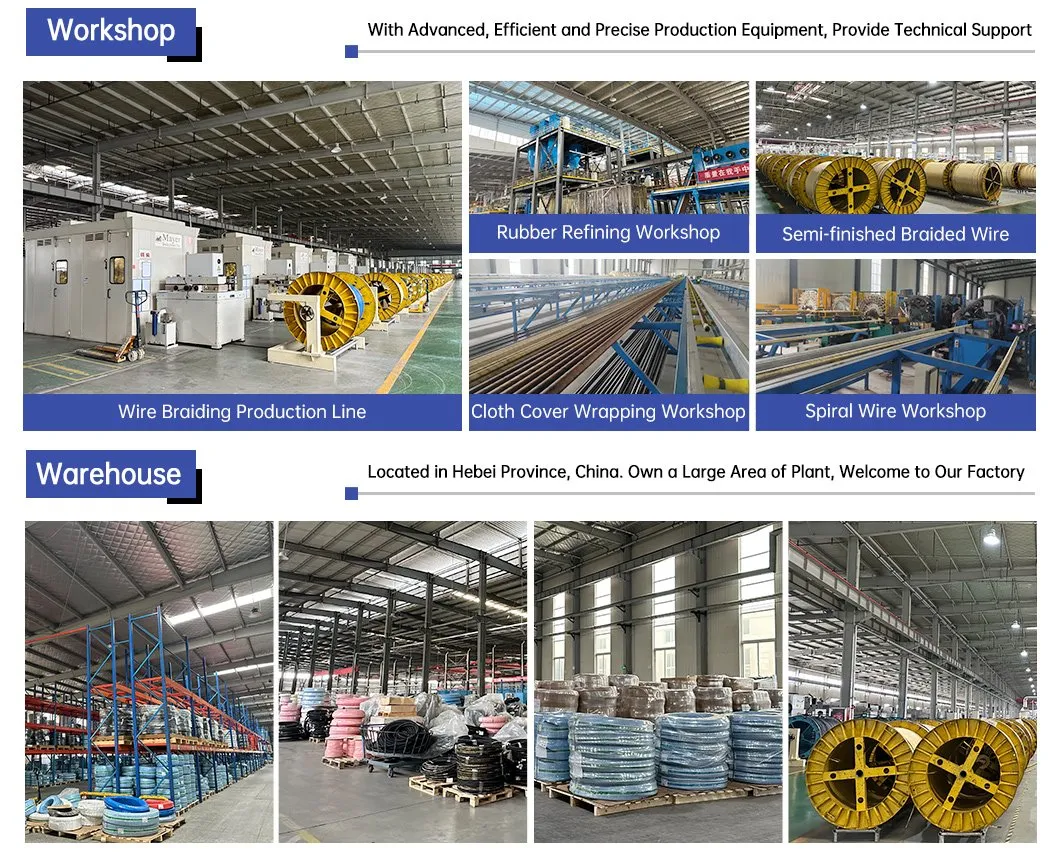

As a technology-based enterprise, the focus is on R&D and marketing of multiply rubber products. Expertise includes Telecom towers, High pressure hoses, Hydraulic hoses, SAE & DIN series, Drilling Rotary hoses, Hose Assemblies, and full Production Lines.
