| Inside Diameter | Outer Diameter | Working Pressure | Test Pressure | Safety Factor | MBR | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | MPa | psi | MPa | psi | (WP) | mm | kg |
| 50.8 | 2 | 112 | 4.41 | 103.5 | 15000 | 155.1 | 22500 | 2.25 | 1200 | 27.4 |
| 63.5 | 2.5 | 126 | 4.96 | 103.5 | 15000 | 155.1 | 22500 | 2.25 | 1400 | 33.6 |
| 76.2 | 3 | 141 | 5.55 | 103.5 | 15000 | 155.1 | 22500 | 2.25 | 1600 | 40.9 |
| 101.6 | 4 | 166 | 6.54 | 103.5 | 15000 | 155.1 | 22500 | 2.25 | 1800 | 54.3 |
| 50.8 | 2 | 115 | 4.53 | 137.9 | 20000 | 206.9 | 30000 | 2.25 | 1400 | 31.3 |

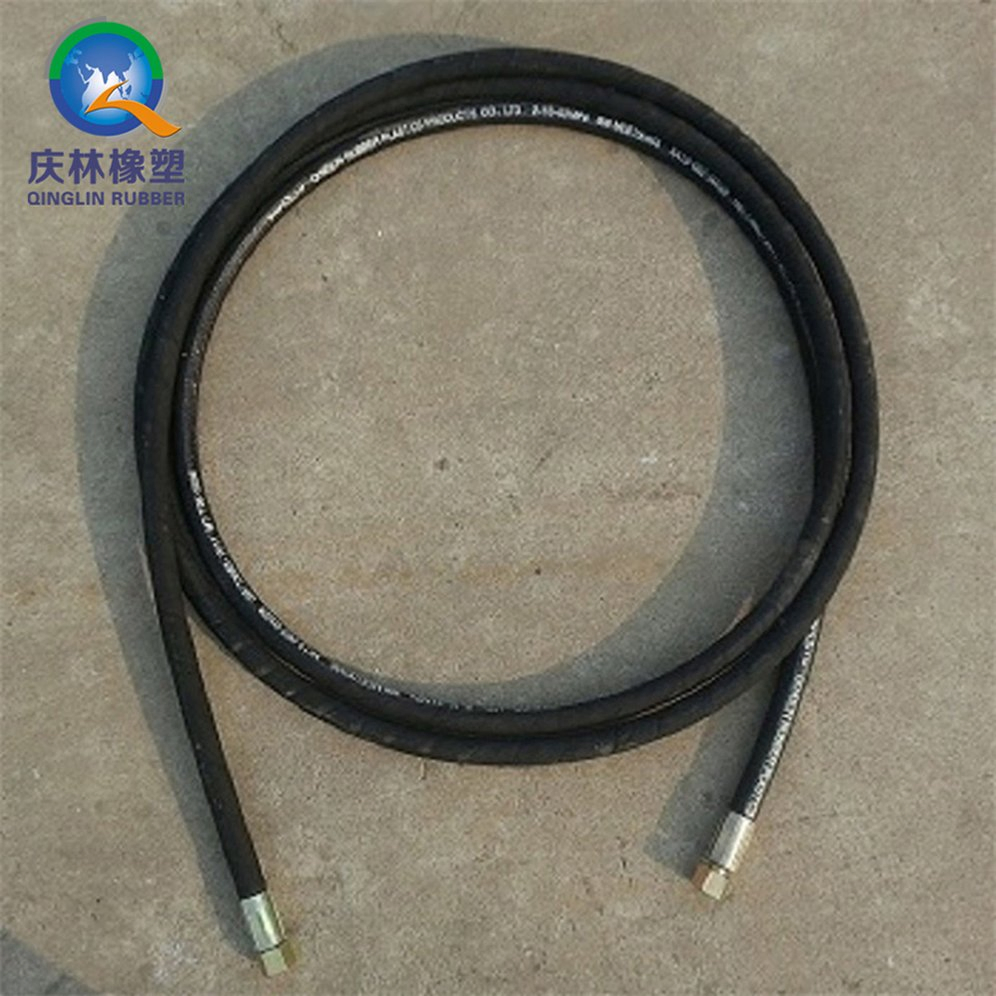

Inner layer material: Ultra-high molecular weight polyethylene / Special synthetic rubber
Diameter type: Full diameter
Working temperature: -29ºC ~ +121ºC
Hose characteristics: Wear resistance, acid resistance, oil-based/water-based mud, carbon dioxide and hydrogen sulfide.
Optional accessories: Safety pipe clamp, hose lifting device, stainless steel armor.

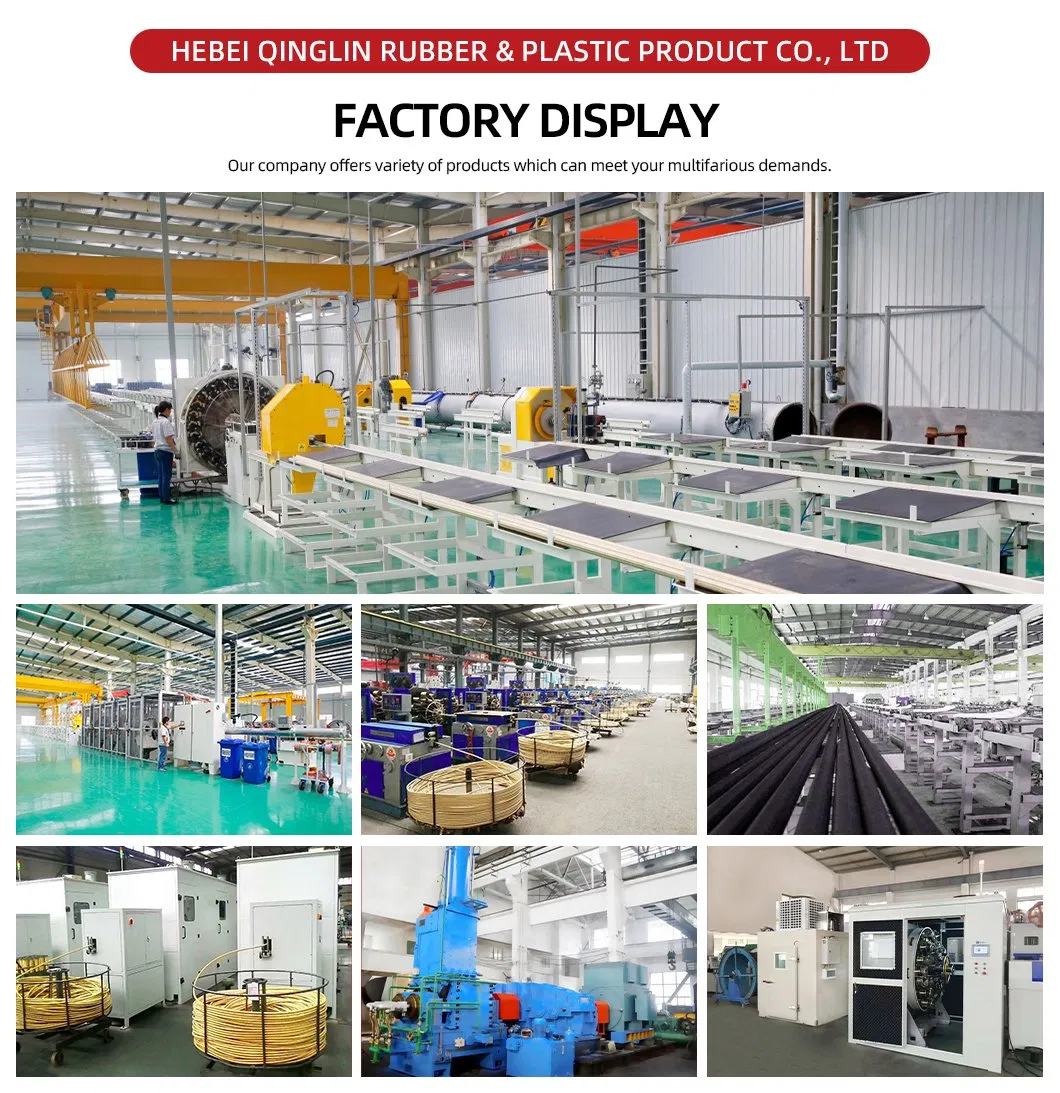

We are a high-tech manufacturer covering an area of 30,000 square meters with an 18,000 square meter production workshop. Our team includes senior engineers and skilled technicians dedicated to producing high-quality flexible hoses and hydraulic accessories.

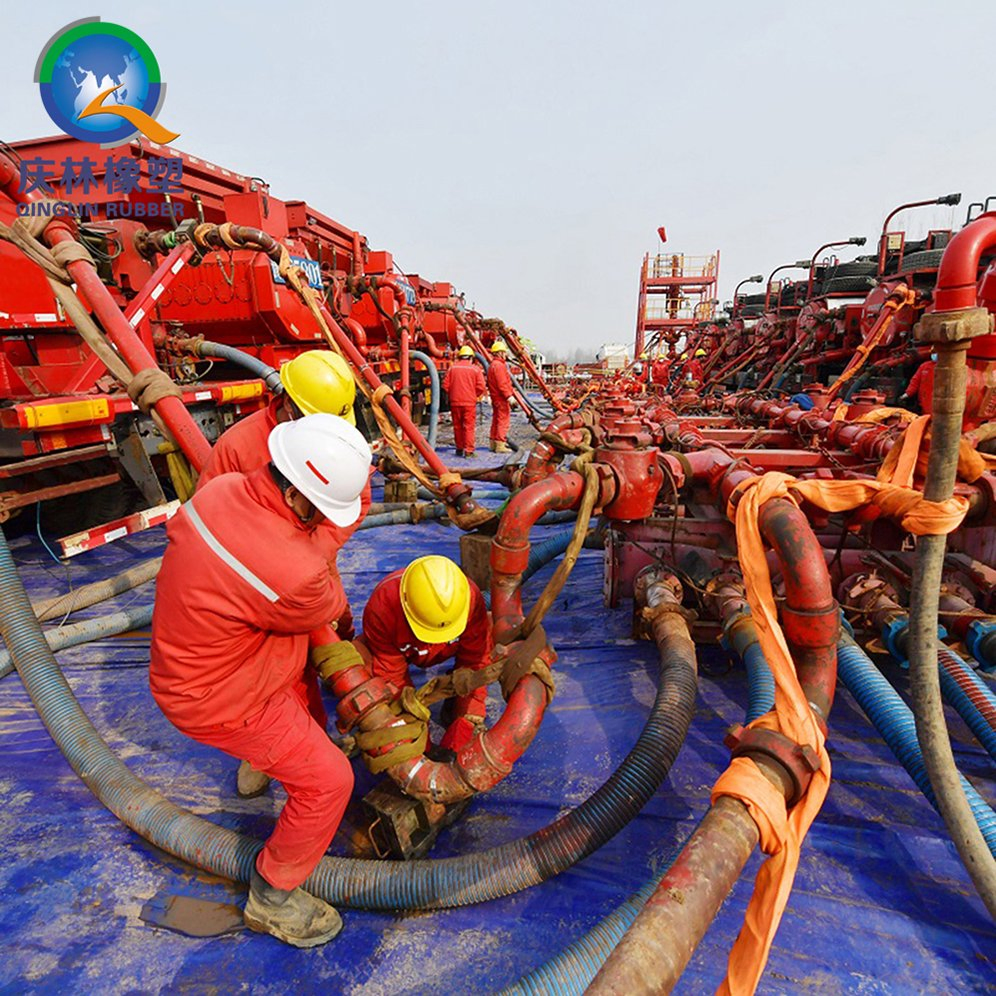

Products are widely used in oil fields, chemical plants, mining, aerospace, shipbuilding, construction, and power industries. We have passed ISO9001, ISO14001, OHSAS18001, API SPEC 16C, and API SPEC 7K certifications.
