Application: Suitable to convey water-based, petroleum-based, and biodegradable hydraulic oil.
Inner Tube: Black oil resistant synthetic rubber.
Reinforcement: Four plies of spiraled high tensile steel wire.
Outer Layer: Black oil and weather resistant synthetic rubber.
Standard: EN856-4SP; MSHA approved.
| SIZE (DASH) | SIZE (IN) | I.D. (mm) | W.D. (mm) | O.D. (mm) | Max.W.P (MPa) | P.P (MPa) | Min.B.P (MPa) | Min.B.R (mm) | W.T (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| -4 | 1/4 | 6.2 - 7.0 | 14.3 - 15.5 | 16.6 - 18.6 | 45 | 90 | 180 | 150 | 0.60 |
| -6 | 3/8 | 9.5 - 10.5 | 16.9 - 18.1 | 19.1 - 21.1 | 44.5 | 89 | 178 | 180 | 0.71 |
| -8 | 1/2 | 12.5 - 13.5 | 19.8 - 21.0 | 21.8 - 23.8 | 41.5 | 83 | 166 | 230 | 0.82 |
| -10 | 5/8 | 15.5 - 16.7 | 23.0 - 24.6 | 25.4 - 27.4 | 35 | 70 | 140 | 250 | 1.01 |
| -12 | 3/4 | 18.6 - 19.8 | 27.4 - 29.0 | 30.0 - 32.0 | 35 | 70 | 140 | 300 | 1.43 |
| -16 | 1 | 25.0 - 26.4 | 34.5 - 36.1 | 37.0 - 39.0 | 32 | 64 | 128 | 340 | 1.97 |
| -20 | 1 1/4 | 31.4 - 33.0 | 45.0 - 46.4 | 47.4 - 49.8 | 21 | 42 | 84 | 460 | 2.96 |
| -24 | 1 1/2 | 37.7 - 39.3 | 50.9 - 52.3 | 53.8 - 56.2 | 18.5 | 37 | 74 | 560 | 3.42 |
| -32 | 2 | 50.4 - 52.0 | 64.3 - 66.3 | 66.9 - 69.3 | 16.5 | 33 | 66 | 660 | 4.77 |
Note: The actual parameters are subject to the final atlas.

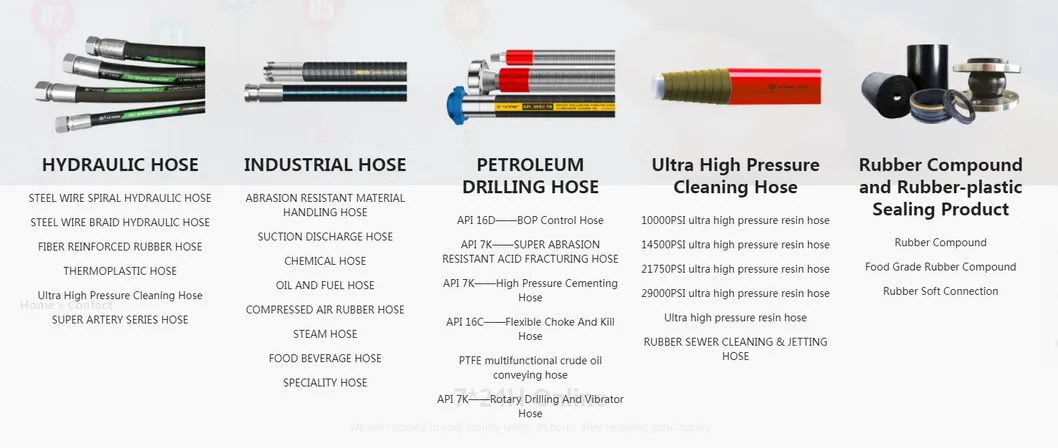

Established as an industry-recognized high-quality rubber hose manufacturer, the company devotes to the production, R&D, and sale of rubber compounds, rubber hoses, fluid connectors, and rubber-plastic seals. With a stable quality and good market reputation, it has been recognized among top-tier enterprises in the rubber industry for many consecutive years.

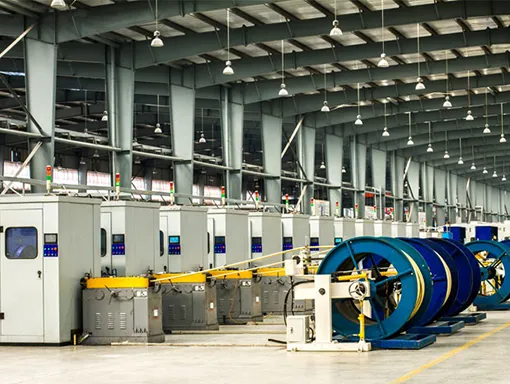

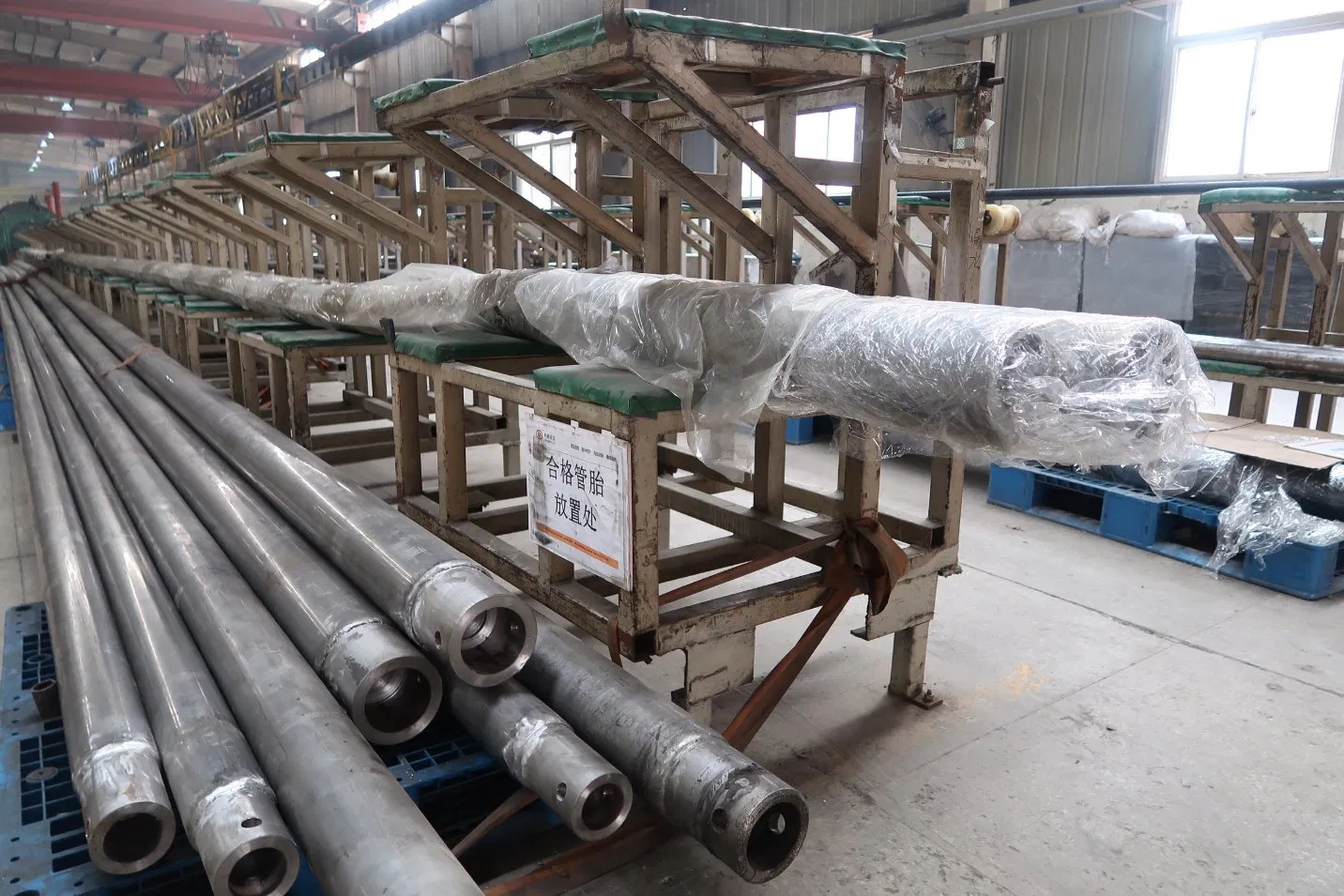

Equipped with 46 high-speed steel wire braiders, 12 steel wire spiral production lines, 8 industrial hose production lines, 200 CNC lathes, and 2 automatic rubber compound production lines. The annual production capacity for hydraulic and industrial hoses has reached 30 million meters, with 15,000 tons of rubber compounds produced annually.

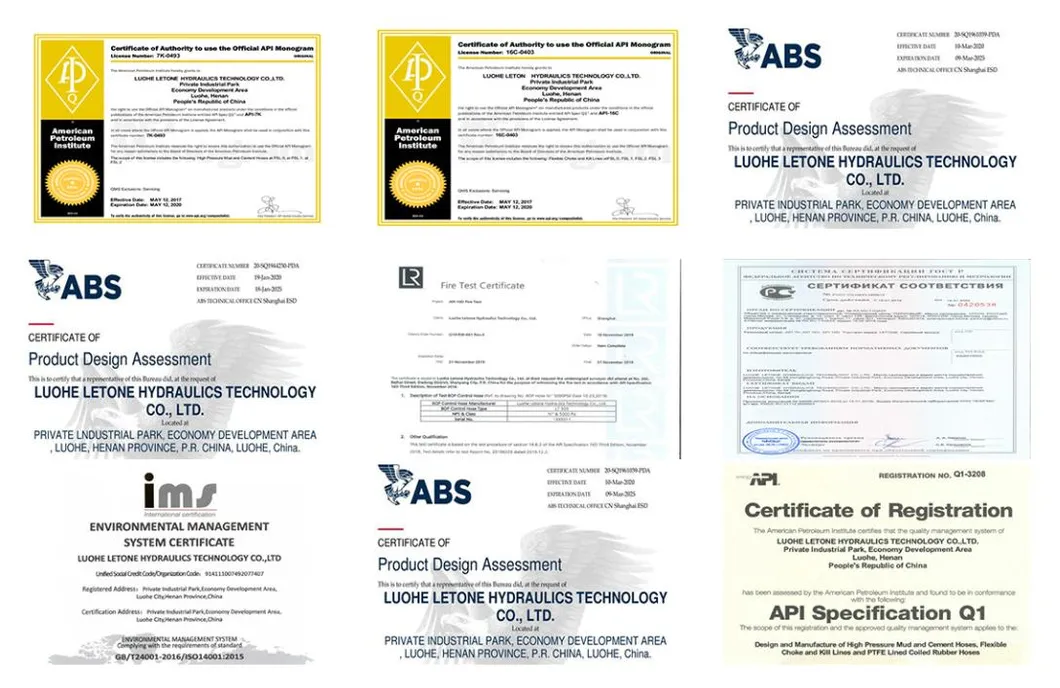

As an experienced professional hose manufacturer, we hold Safety Certificates for Mining Products, MSHA, API Type Approval (API 16C and API 7K), and ABS Type Approval. Our systems comply with ISO14001:2015, ISO9001:2015, API Q1, and IATF 16949:2016.
The Testing Center has obtained Laboratory Accreditation from CNAS, featuring over 20 specialized laboratories for impulse, burst, fire, and salt spray testing, ensuring authority and accuracy in all reports.

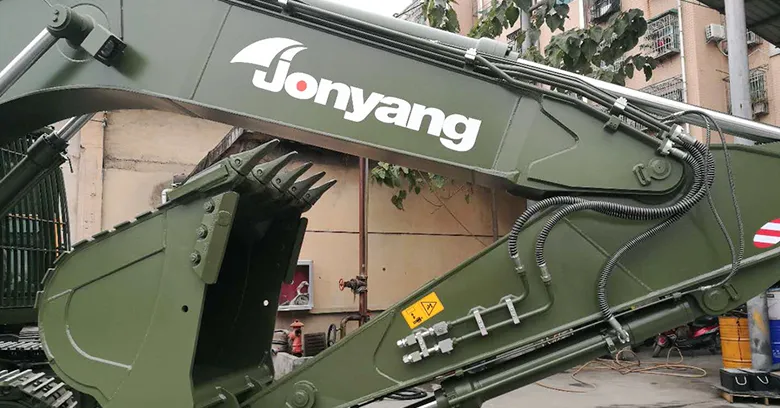

Our hoses are widely used in various construction machinery. Features include a long service life with high weather resistance, high pressure tolerance (25% higher than standard requirements), pulse resistance, and low bending radius. Perfect for heavy-duty excavators.
