2 Inch High Pressure Wire Spiral Flexible Rubber Oil Hydraulic Hose

📘 Basic Information

Model NO.

1/4" to 2"

Color

Black

Name

2 Inch High Pressure Wire Spiral Flexible Rubber Hose

Inner Tube

NBR Blend Rubber

Reinforcement

Steel Wire Braid or Spiral

Cover Rubber

Cr, NBR, EPDM, Nature Rubber Blend

Application

Mine Hydraulic Support and Equipment

Temp Range

-30 Deg to 121 Deg

Surface

Cloth or Smooth

MOQ

1 Roll

Certification

CE, ISO, SGS, Msha

HS Code

4009210000

⚙️ Product Description

2 Inch High Pressure Wire Spiral Flexible Rubber Oil Hydraulic Hose

Application: Suitable for hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water.
Tube: Oil synthetic rubber
Reinforcement: Wire braided or wire spiral
Cover: CPE blend cover rubber with Oil and weather resistant synthetic rubber
Temperature: -40°C to 100°C (wire braid) / -40°C to 120°C (wire spiral)

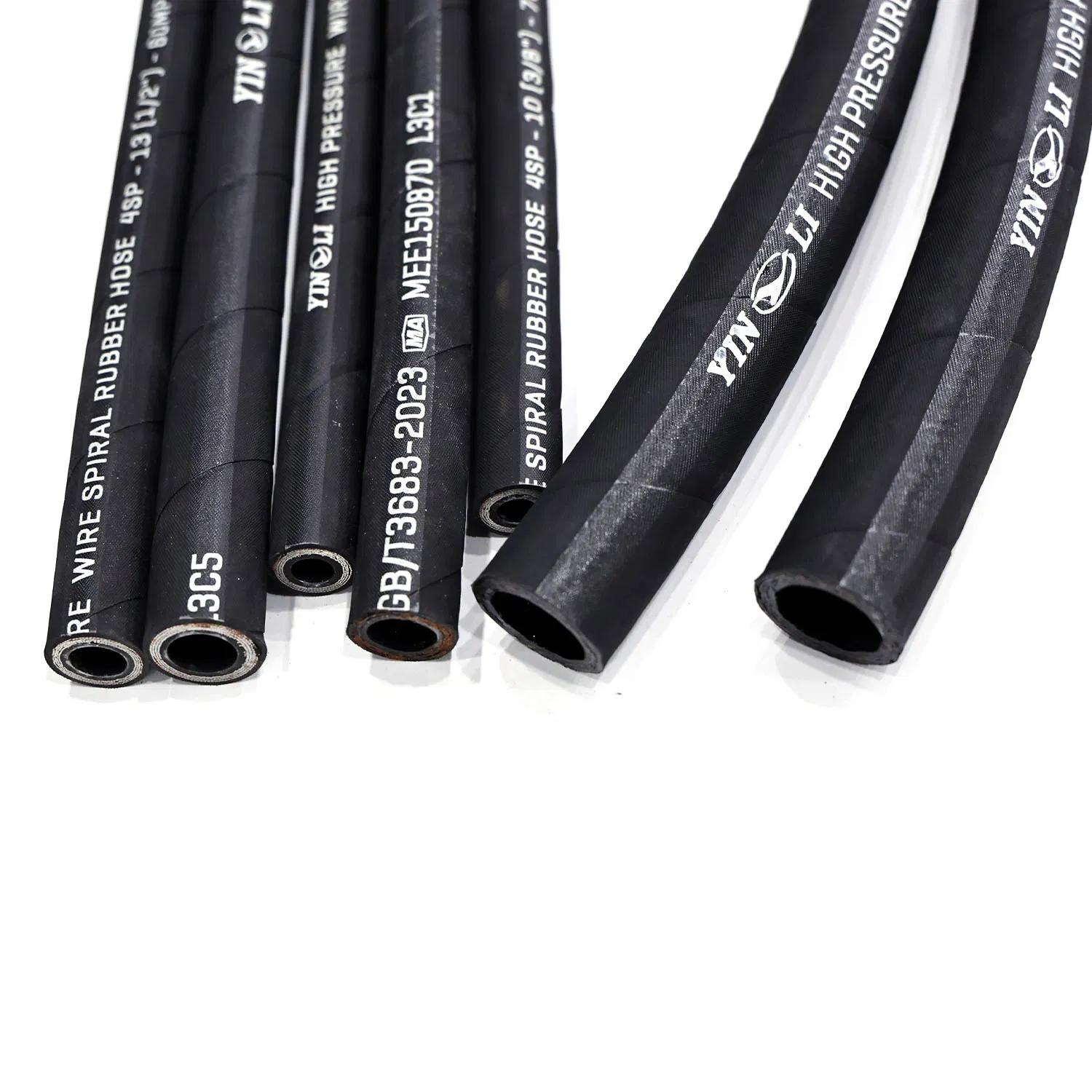

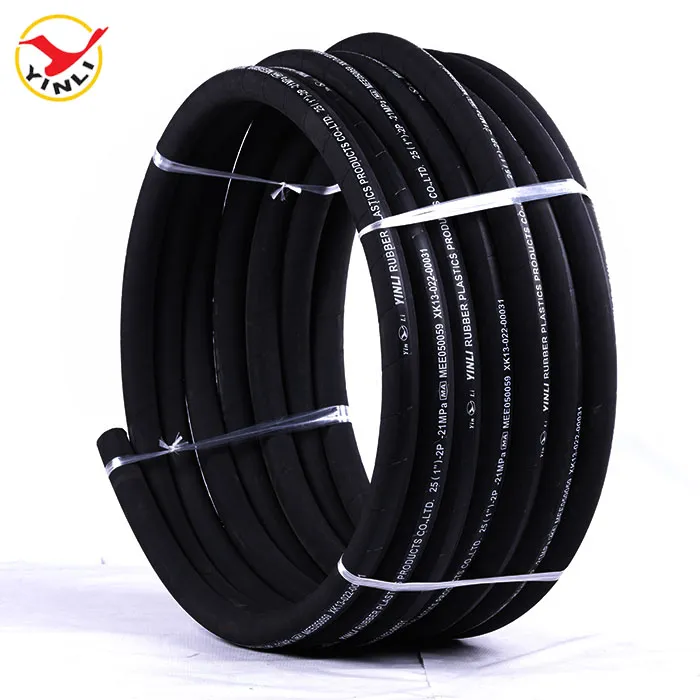

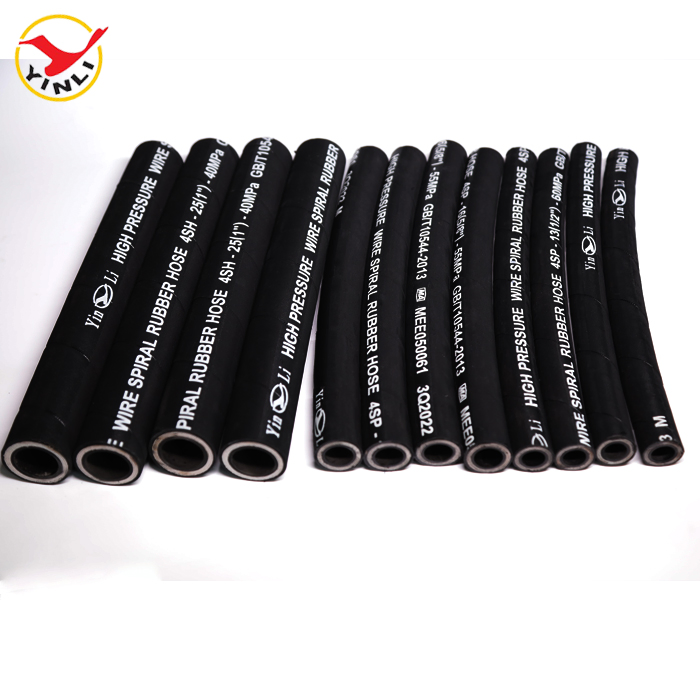

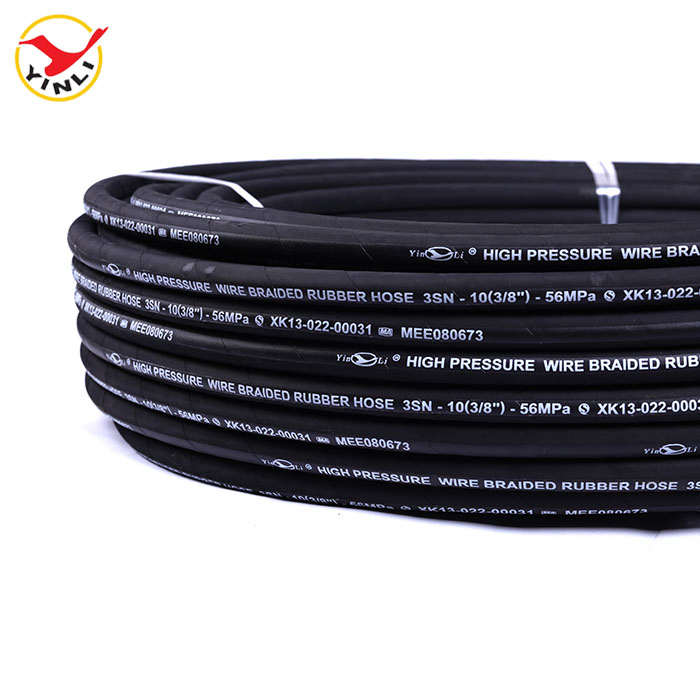

📸 Product Variations

📊 Technical Specifications (100R1AT)

Part Number	Size (mm)	Size (inch)	SAE	ID Min	ID Max	Wire Dim	OD (mm)	W.P. (MPa)	Weight (kg/m)
100R1AT-04	6.3	1/4	-4	6.2	7.0	11	13.5	20	0.25
100R1AT-08	12.5	1/2	-8	12.3	13.5	18	20.5	14	0.45
100R1AT-12	19	3/4	-12	18.6	19.8	25	27.5	10	0.65
100R1AT-16	25	1	-16	25.0	26.4	31	32.8	8	0.8
100R1AT-32	51	2	-32	50.4	52.0	57.8	60	4	1.8

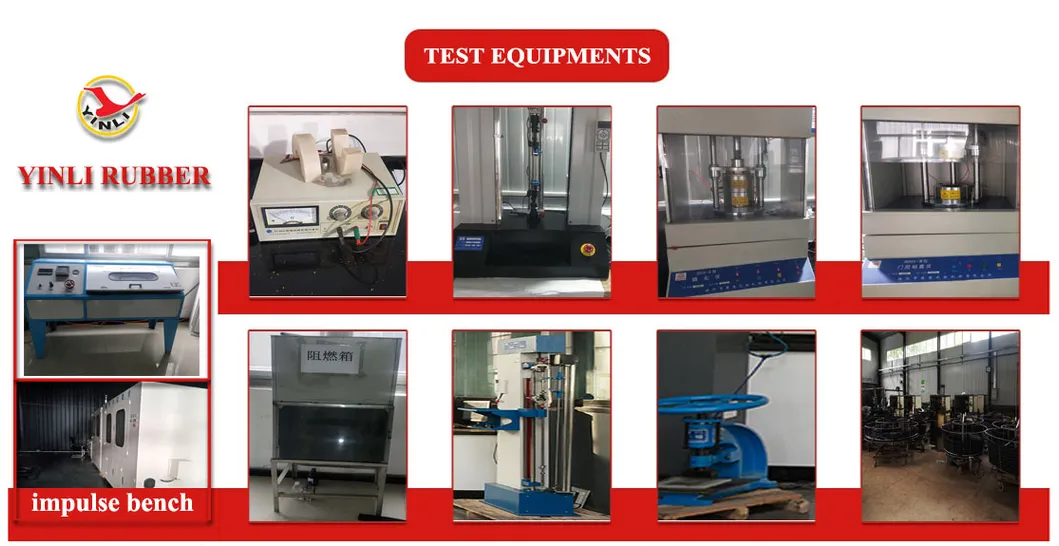

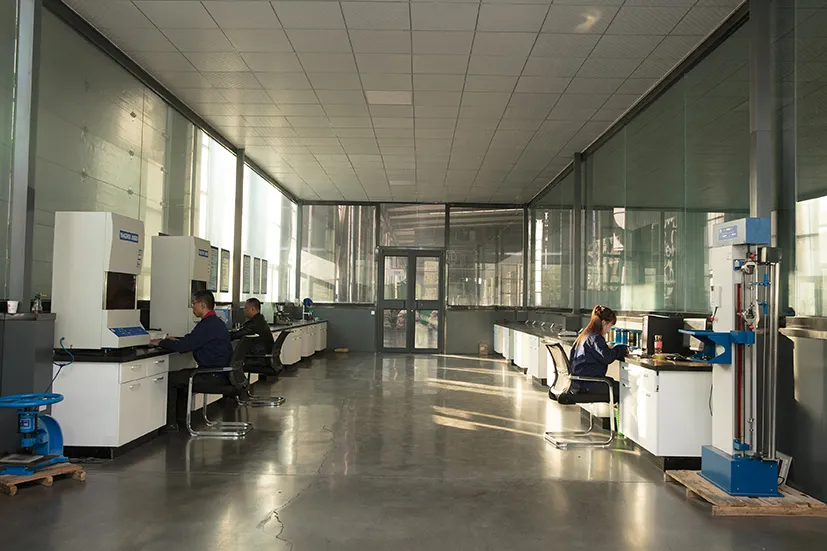

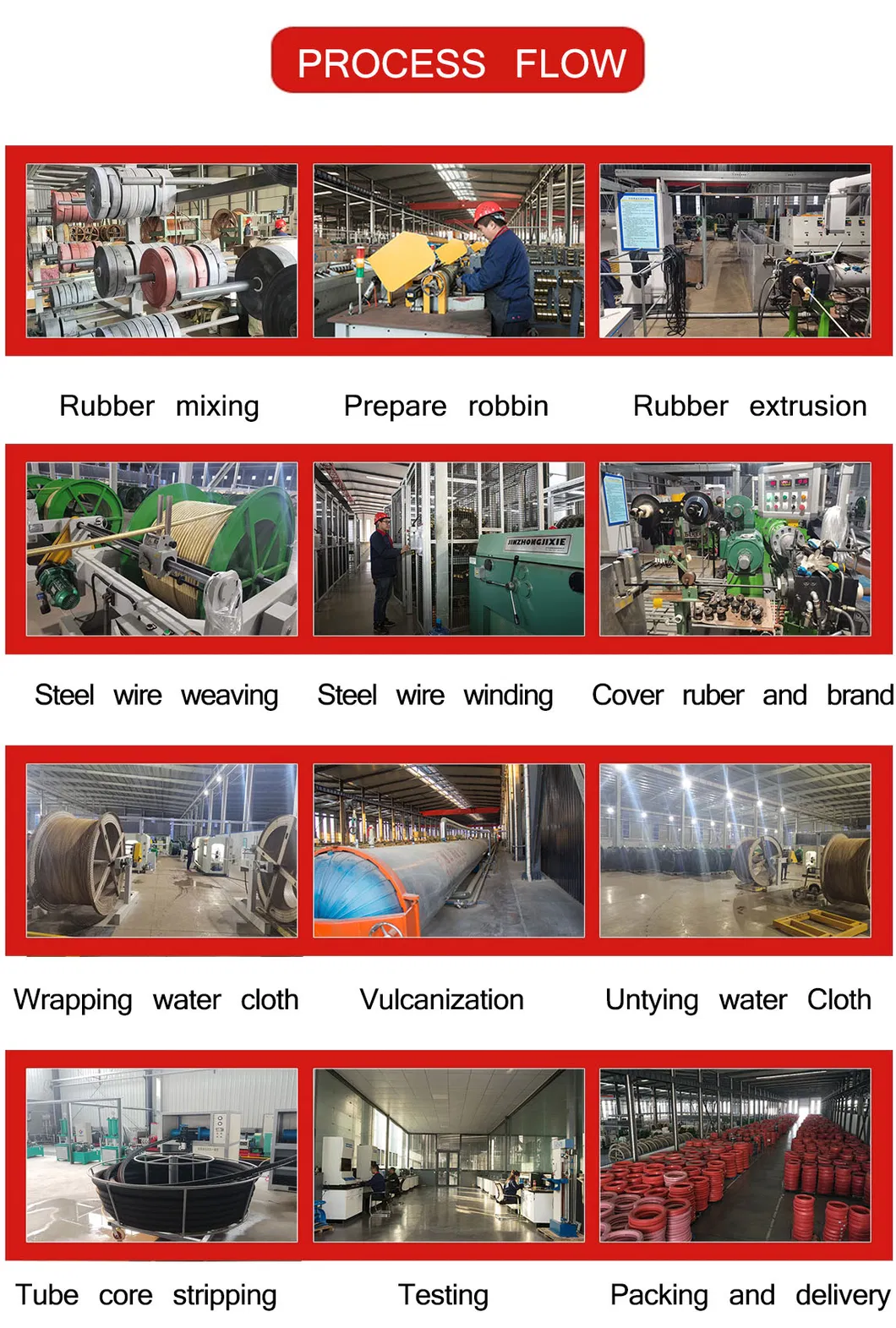

🛡️ QC System & Production

Control the quality from the beginning to the end:

More than 20 years experienced material engineer
High quality rubber and steel wire material
High Advanced rubber refining center
Data test and record in every step to control the quality

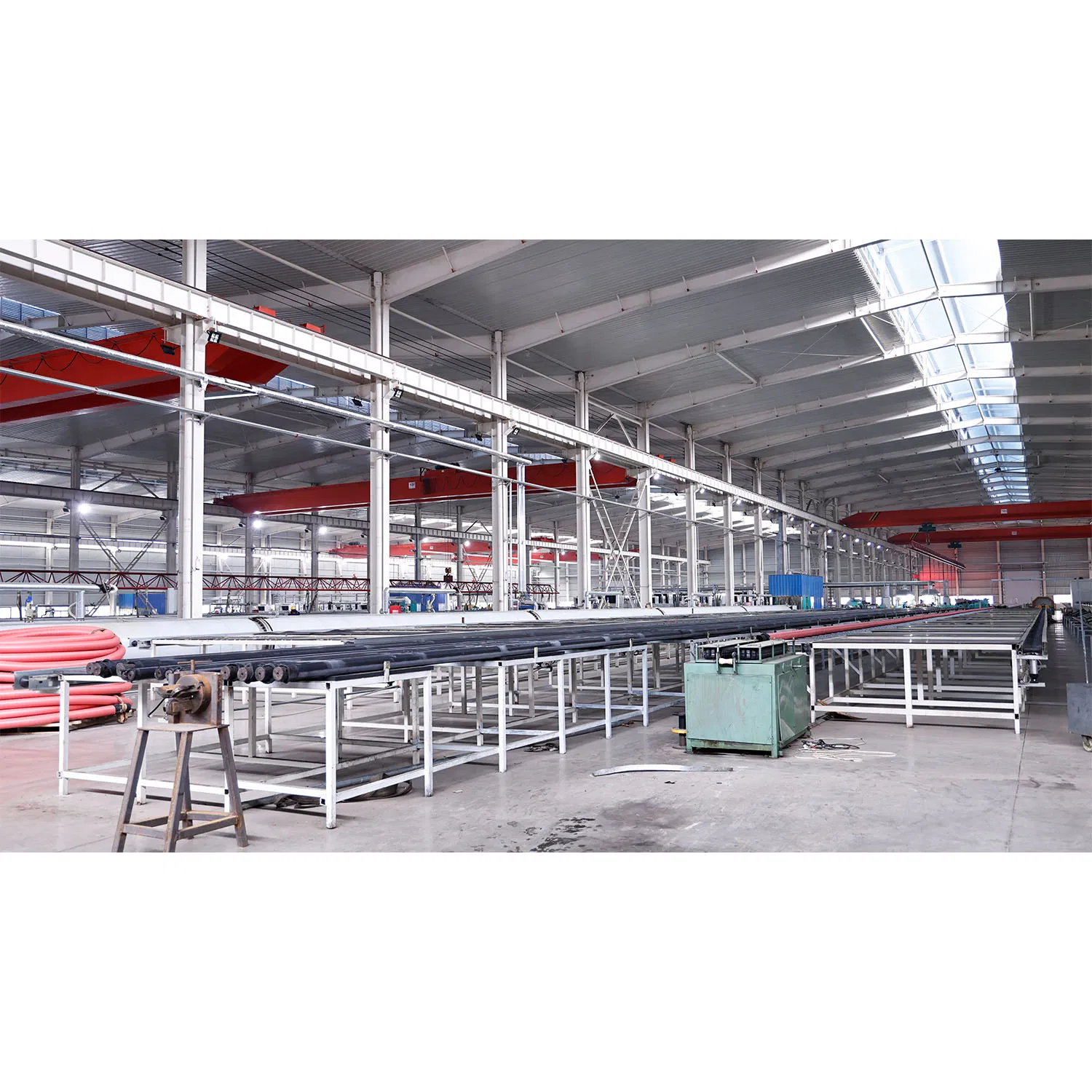

High improved 60m length vulcanizer to ensure good vulcanization

📦 Packaging & Shipping

Package Size

50.00cm * 50.00cm * 20.00cm

Gross Weight

25.000kg

Lead Time

20 days (1 - 50000 Meters)

❓ FAQ

Are you a factory?

Yes, we are a factory since 1997, with more than 20 years of experience in rubber hose production.

Do you produce embossed marking?

Yes, we provide embossed and printing markings with different colors.

Can you produce products with my own brand?

Yes, OEM service is available except for famous brands which are restricted.

What is the largest size you can produce?

Hydraulic hose inner diameter up to 304mm, and industrial rubber hose up to 1300mm.

Is colorful hose available?

Yes, we can produce hoses in various colors according to your requirements.

What are your payment terms?

30% deposit, and 70% balance payment before delivery.
