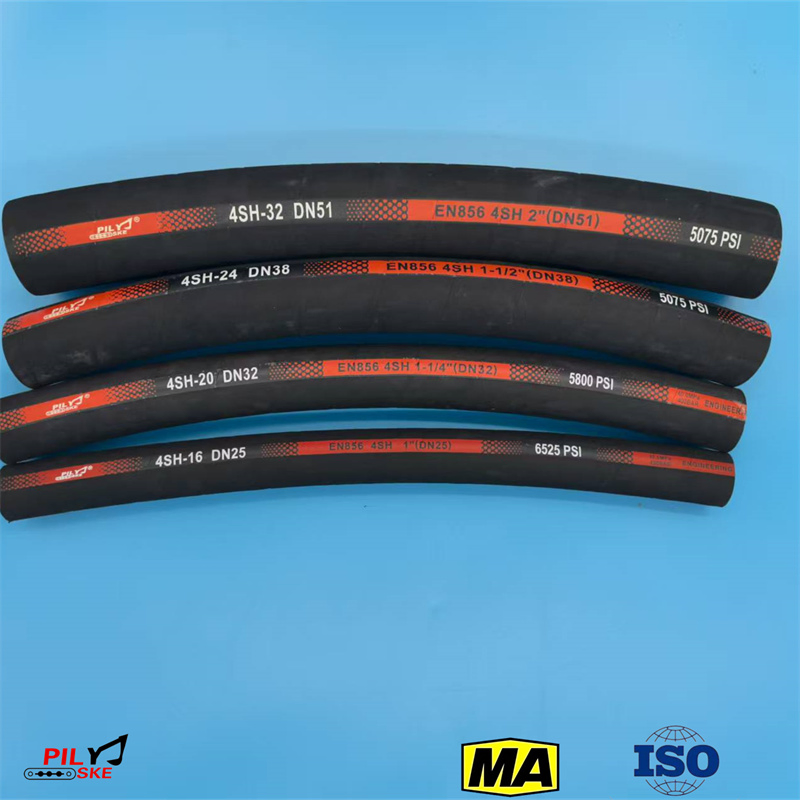

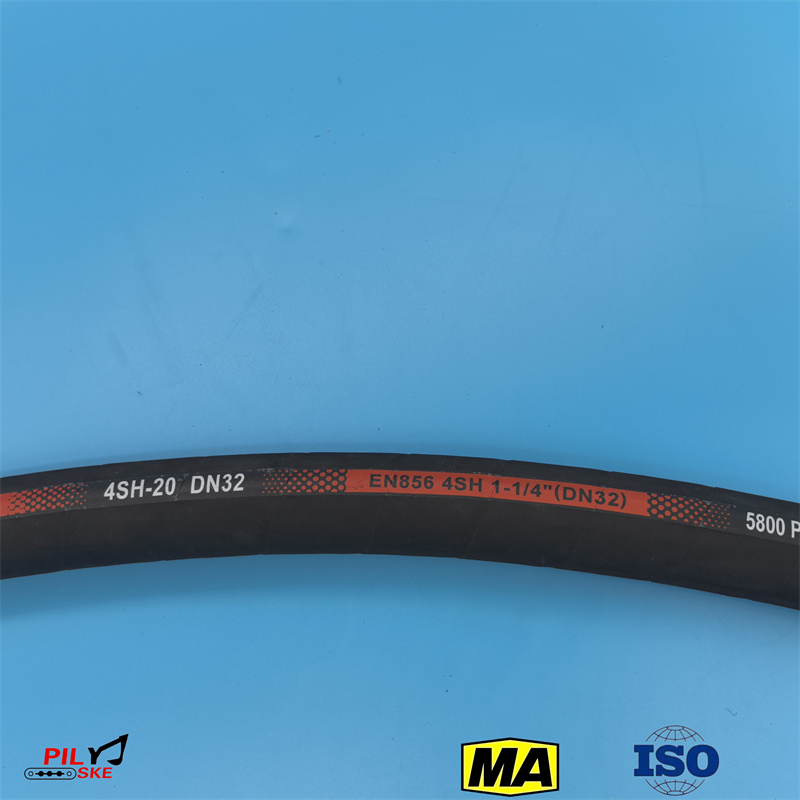

DIN En856 4sh 3/4" Inch Air/Water Rubber Industrial Hoses Flexible Air Hose

1 / 5

DIN En856 4sh 3/4" Inch Air/Water Rubber Industrial Hoses Flexible Air Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

4SH

Color

Black

Product Name

Hydraulic Hose

Usage

Industrial Work, Construction Machinery, Vehicle

Certificate

MSHA, MA, ISO 9001

Surface

Clothed

Transport Package

Pallet or Wooden Box

Origin

China

HS Code

40092100

Production Capacity

60,000,000 meters/Year

Product Description

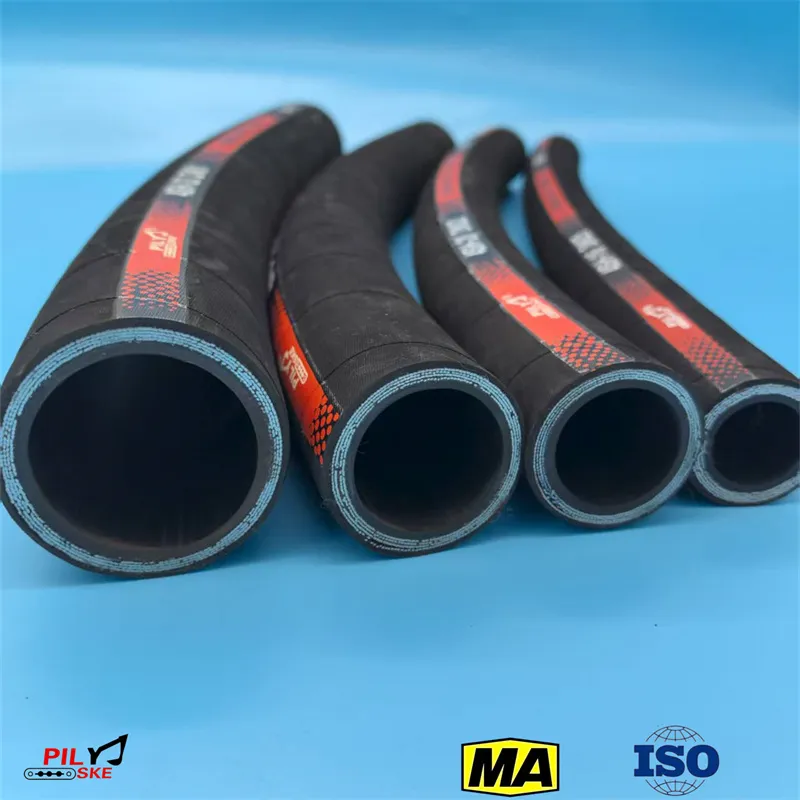

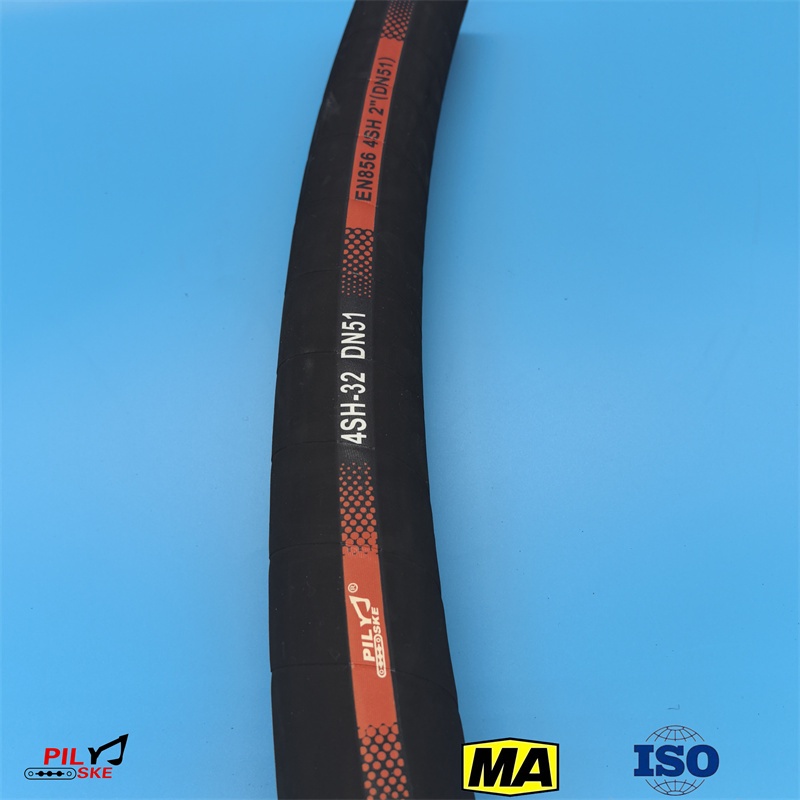

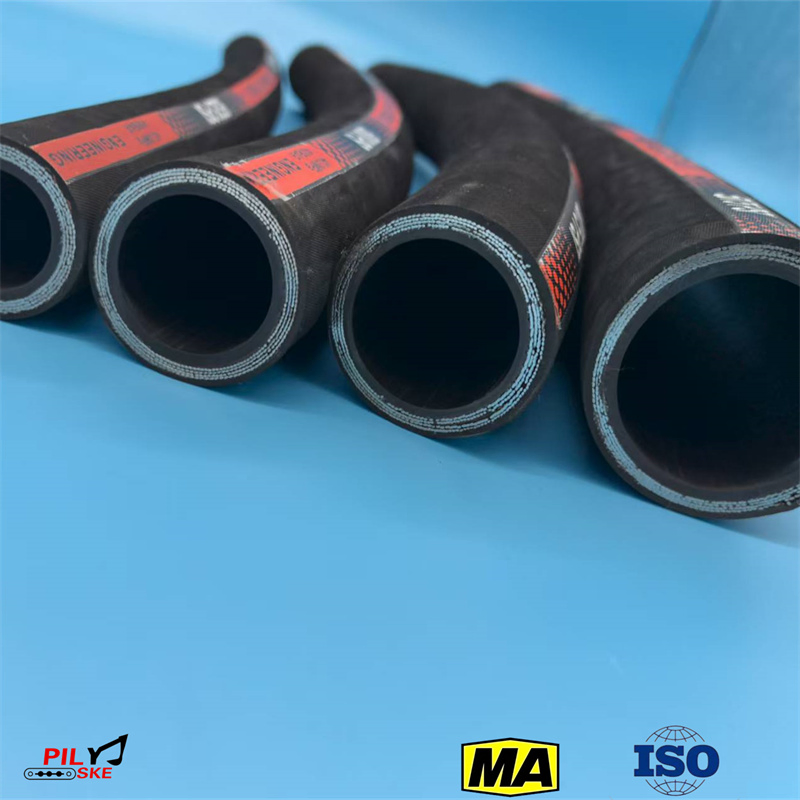

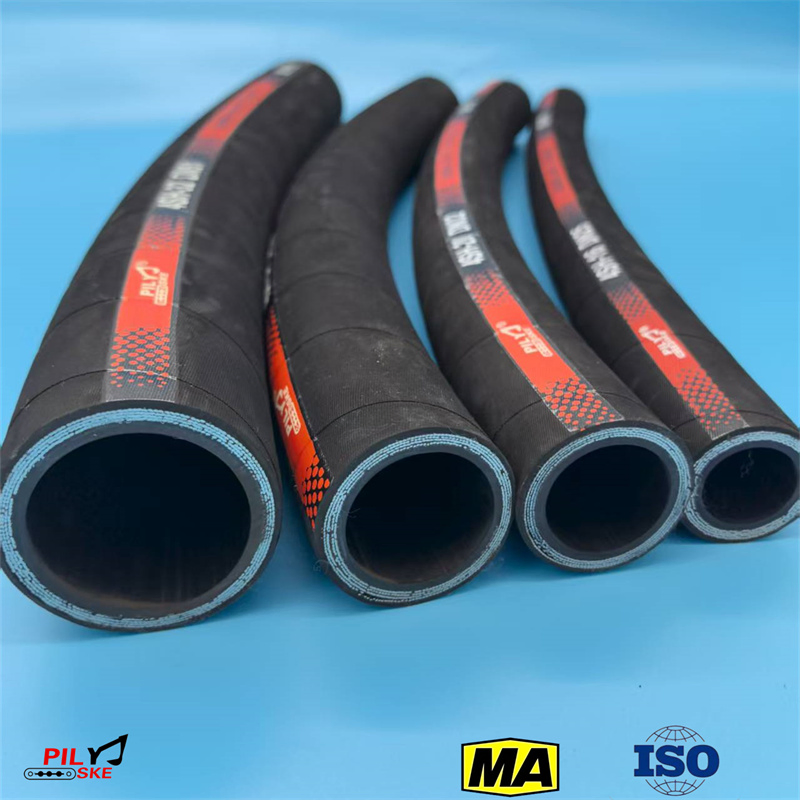

Hydraulic Hose DIN EN856 4SH

Tube: Oil resistant synthetic rubber

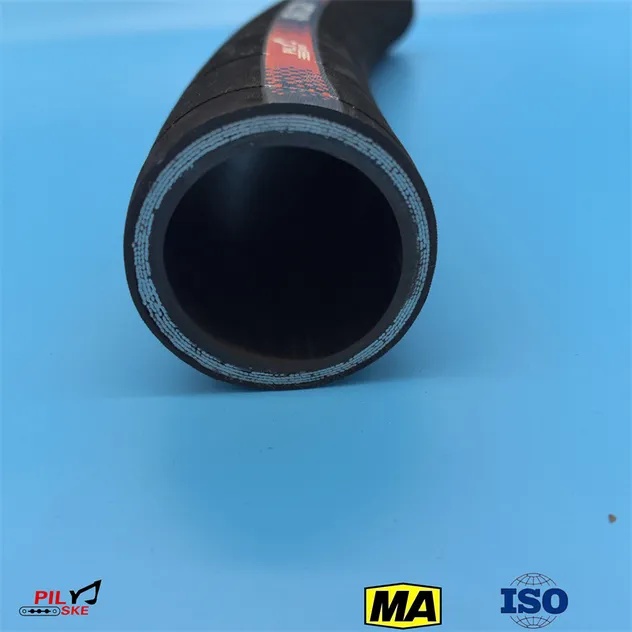

Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion and weather resistant synthetic rubber, MSHA accepted
Temperature Range: -40°C to +125°C

Technical Specifications

Part No.	I.D.		O.D.	W.P		B.P		B.R	W.T
Dash	Inch	mm	mm	MPa	PSI	MPa	PSI	mm	kg/m
4SH-12	3/4"	19.1	31.8	42.0	6090	168	24360	280	1.476
4SH-16	1"	25.4	38.7	38.0	5510	152	22040	340	1.984
4SH-20	1.1/4"	31.8	46.2	32.5	4713	130	18850	460	2.428
4SH-24	1.1/2"	38.1	53.5	29.0	4205	116	16820	560	2.871
4SH-32	2"	50.8	68.0	25.0	3625	100	14500	700	4.534

Production & Quality Control

Frequently Asked Questions

Can your products be customized?

Yes, we provide customized design and production for high pressure steel wire braided/spiral hoses, marine oil hoses, and various rubber assembly components.

Are you a manufacturer or a trading company?

We are a dedicated manufacturing company specializing in industrial and hydraulic rubber hoses.

Do you produce smooth or cloth wrapped covers?

We can produce both smooth and cloth-wrapped covers based on your specific application requirements.

Can I get free samples?

Yes, we can provide samples. Please provide your specifications and express account details for delivery.

What are your terms of payment?

Generally, our terms are T/T 30% as deposit and 70% before delivery. We provide product and package photos prior to final payment.

How about your delivery time?

It usually takes 15 to 30 days, depending on your order quantity and our current stock levels.

DIN En856 4sh 3/4" Inch Air/Water Rubber Industrial Hoses Flexible Air Hose

Product Description

Hydraulic Hose DIN EN856 4SH
