Product Description
Widely used in vibration machinery, garden machinery, water pumps, and other mechanical products. Suitable for all non-linear motion machines.
Constructed from high-quality rubber, steel-wire net, canvas, and lining spring for maximum durability.
Extensive application in flexible transmission for various industrial equipment including vibrators and garden machines.
Available Rubber Hose Sizes for Concrete Vibrator:
- DIA24MM X 13MM
- DIA25MM X 13MM
- DIA30MM X 14MM
- DIA32MM X 18MM
- DIA36MM X 20MM
- DIA38MM X 20MM
- DIA42MM X 25MM
| Model |
Outer Dia |
Inner Dia |
Rubber Tensile |
Adhesive Inner |
Steel Material |
Steel Hardness |
Rubber Hardness |
Braid |
Min. Bending (mm) |
| JYG-16 |
16mm |
9mm |
> 1000 N/ |
50-60 N/ |
40Mn-65Mn |
20HRC-30HRC |
50-62 |
1 |
75 |
| JYG-20 |
20mm |
10mm |
1 |
80 |
| JYG-22 |
22mm |
10mm |
2 |
80 |
| JYG-24 |
24mm |
13mm |
60-65 |
20Mn-65Mn |
75-80 |
Demand Based |
100 |
| JYG-30 |
30mm |
16mm |
120 |
| JYG-32 |
32mm |
18mm |
150 |
| JYG-36 |
36mm |
20mm |
200 |
| JYG-42 |
42mm |
25mm |
250 |
Frequently Asked Questions
What materials are used in the construction of these flexible hoses?

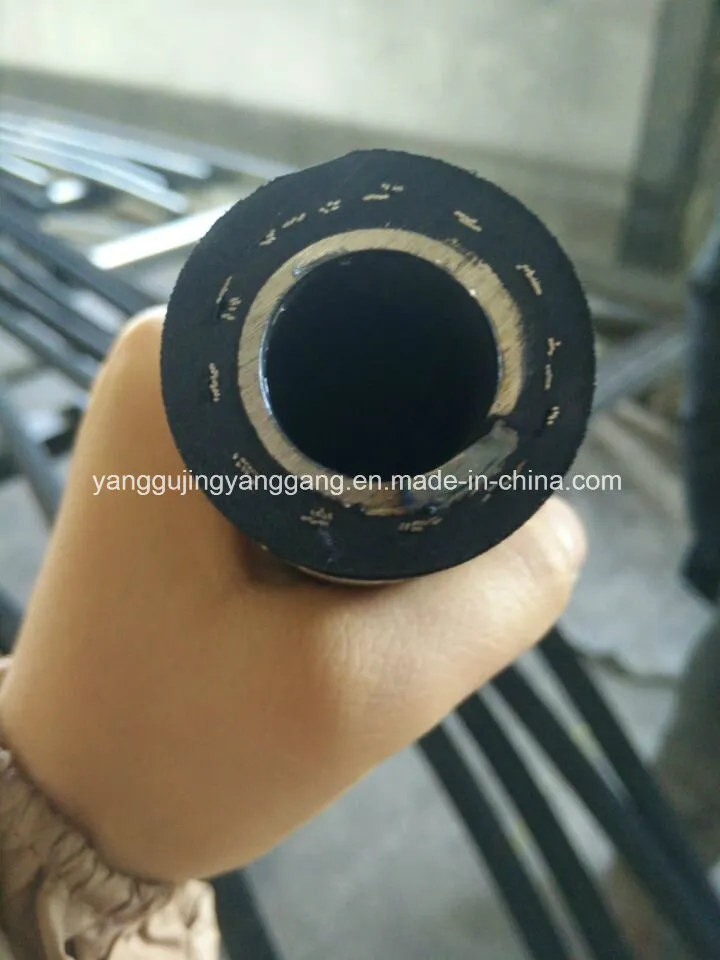

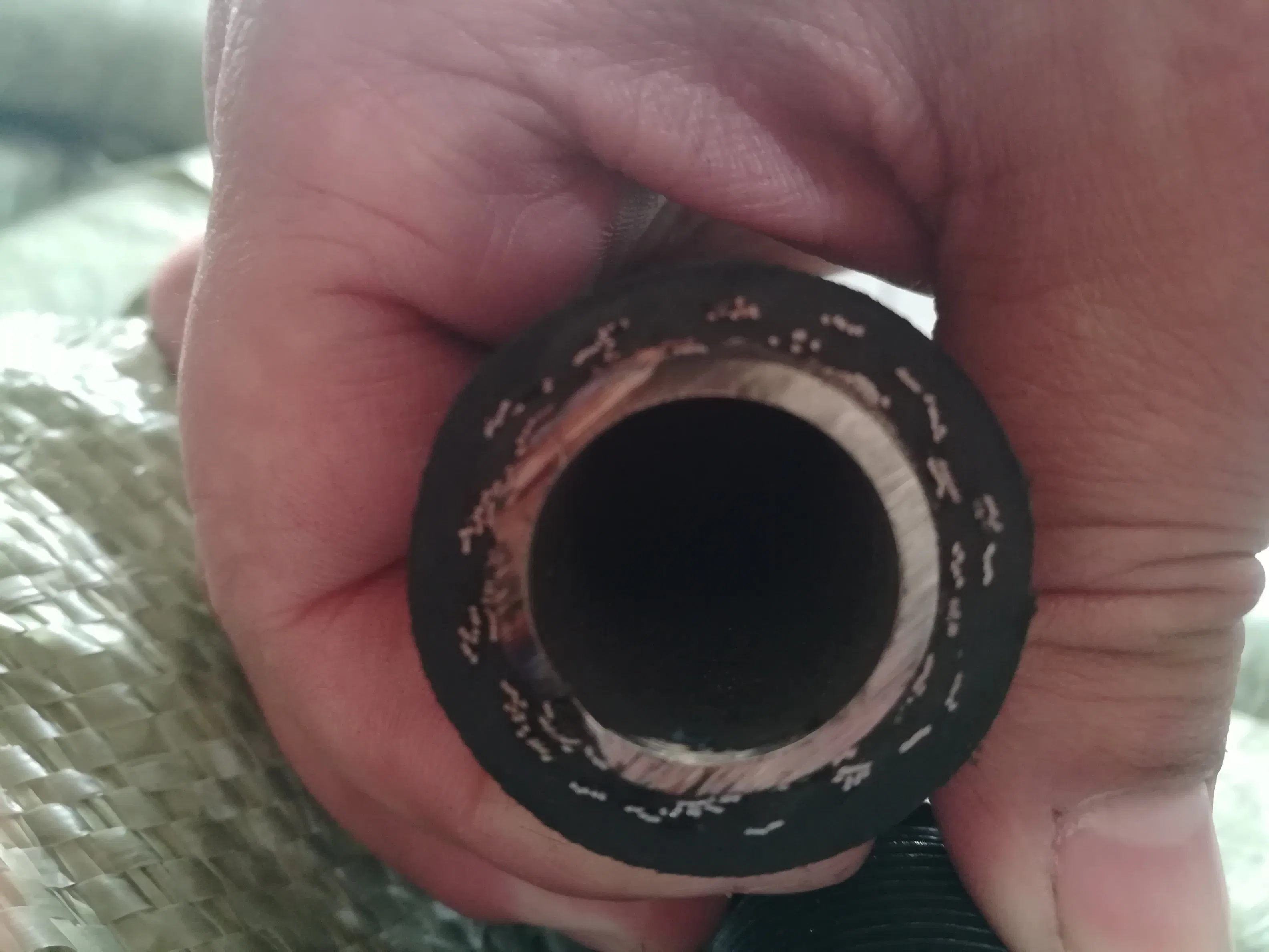

The hoses are manufactured using high-grade rubber, reinforced with a steel-wire net, canvas, and a lining spring for enhanced structural integrity.
What are the primary applications for the JYG series hoses?
They are extensively used in vibration machinery, garden equipment, water pumps, and any mechanical products requiring flexible transmission or non-linear motion.
Do these products meet international quality standards?
Yes, the production processes and specifications comply with ISO9000: 2008 quality management system standards.
What is the production capacity for these rubber hoses?
We maintain a stable production capacity of approximately 300,000 meters per month to ensure timely delivery for large-scale orders.
How do I choose the right model based on bending requirements?
The minimum bending radius varies by model, ranging from 75mm (JYG-16) to 250mm (JYG-42). Please refer to our technical specification table for exact details.
What is the hardness level of the steel and rubber components?
The steel belt hardness ranges between 20HRC-30HRC, while the rubber hardness typically ranges from 50 to 80 depending on the specific model and requirement.
