Basic Information
Delivery Time
20 days for 20FT Container
Tube
Oil Resistant Synthetic Rubber

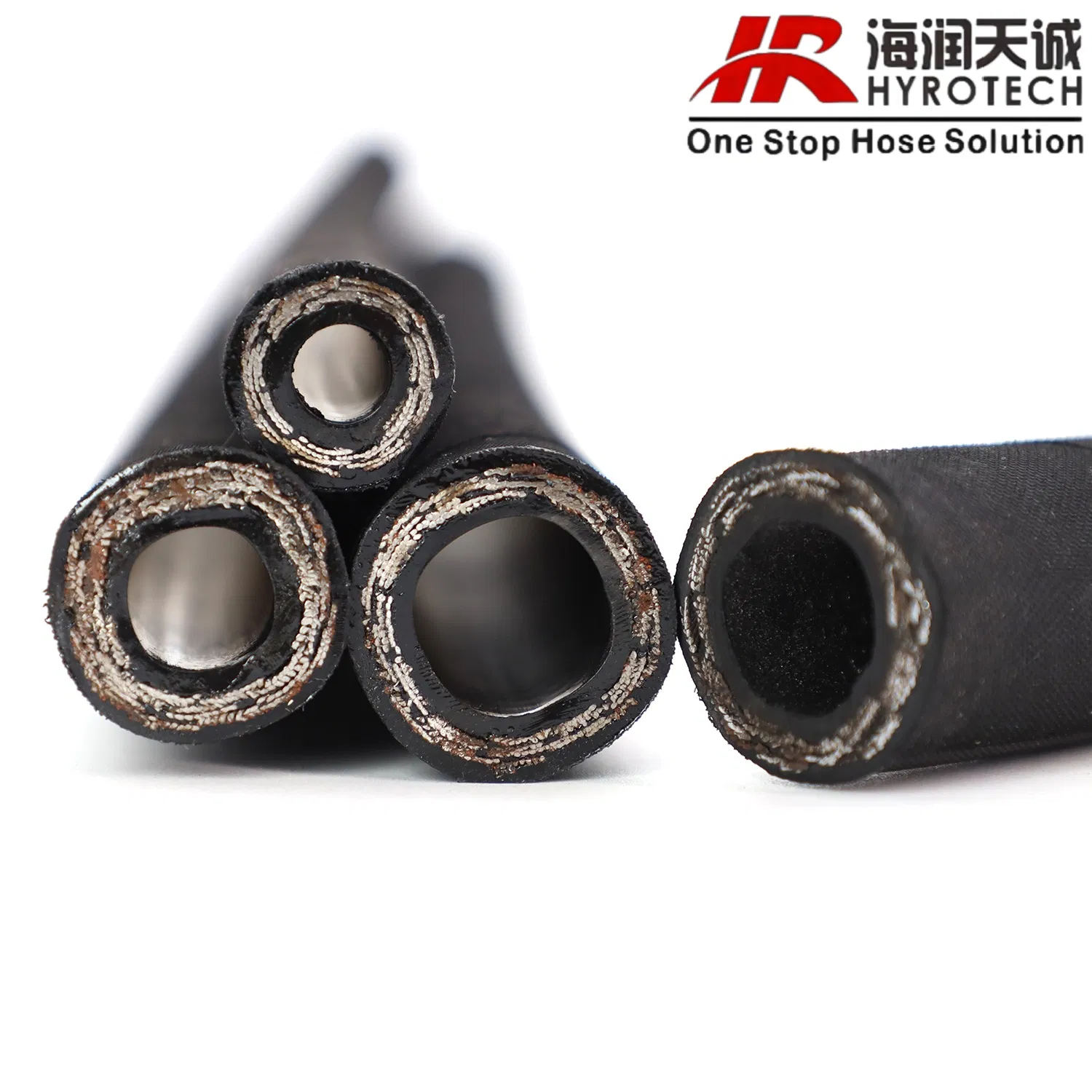

Reinforcement
Two High Tensile Steel Wire Braids
Cover
Oil and Weather Resistant Synthetic Rubber
Special Temp
-55 to +100°C
Length
100m/50m/40m/20m as Request

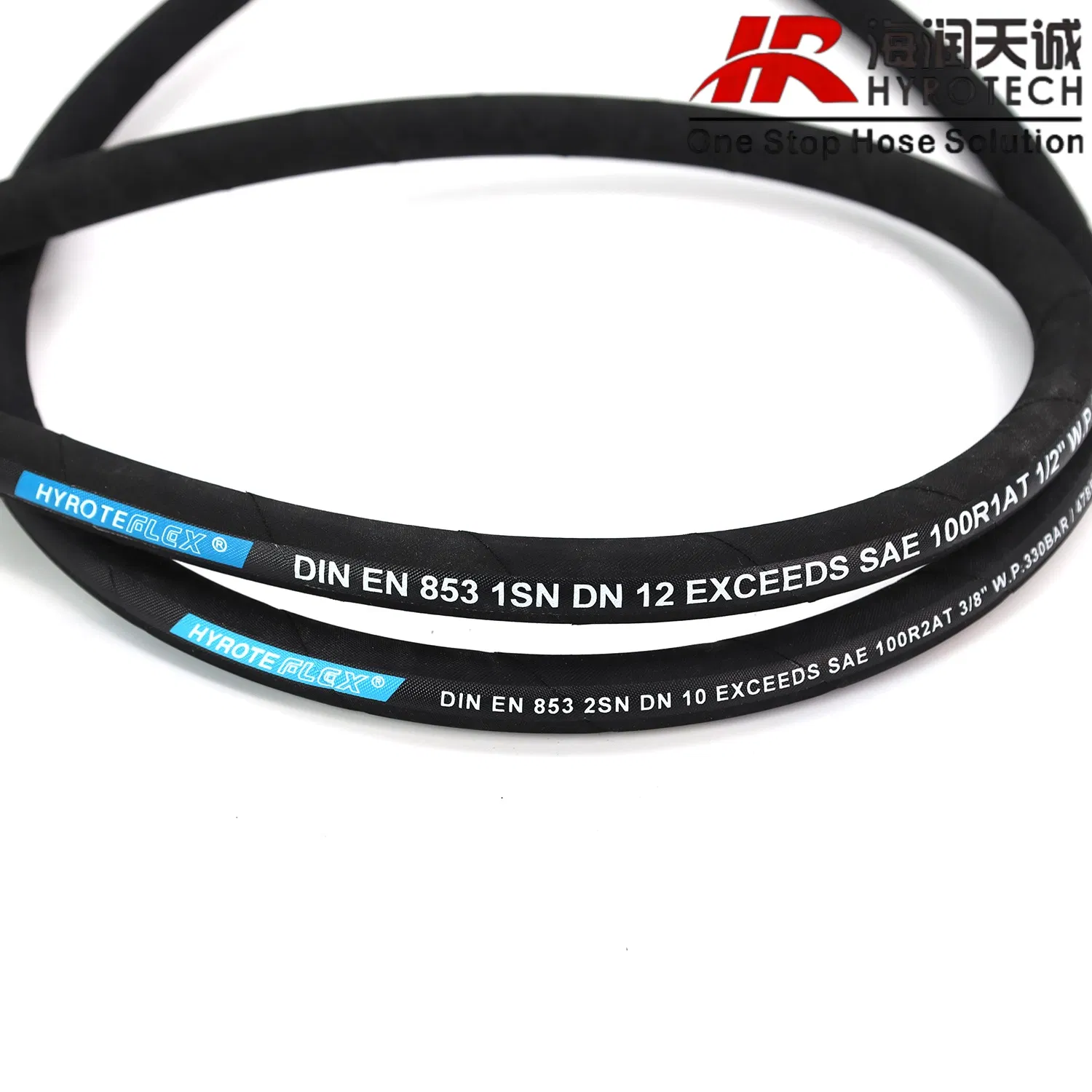

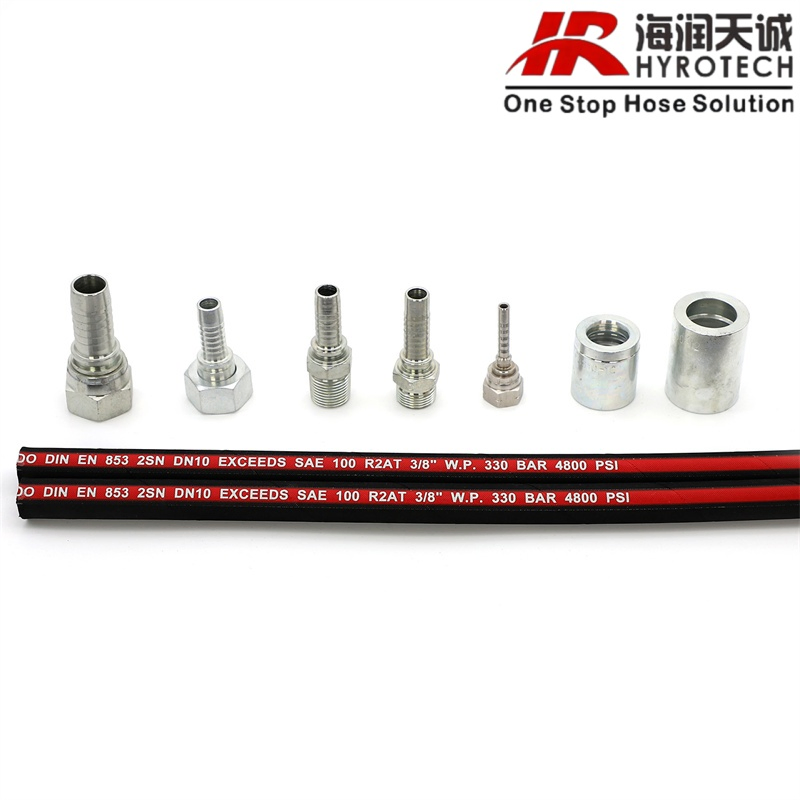

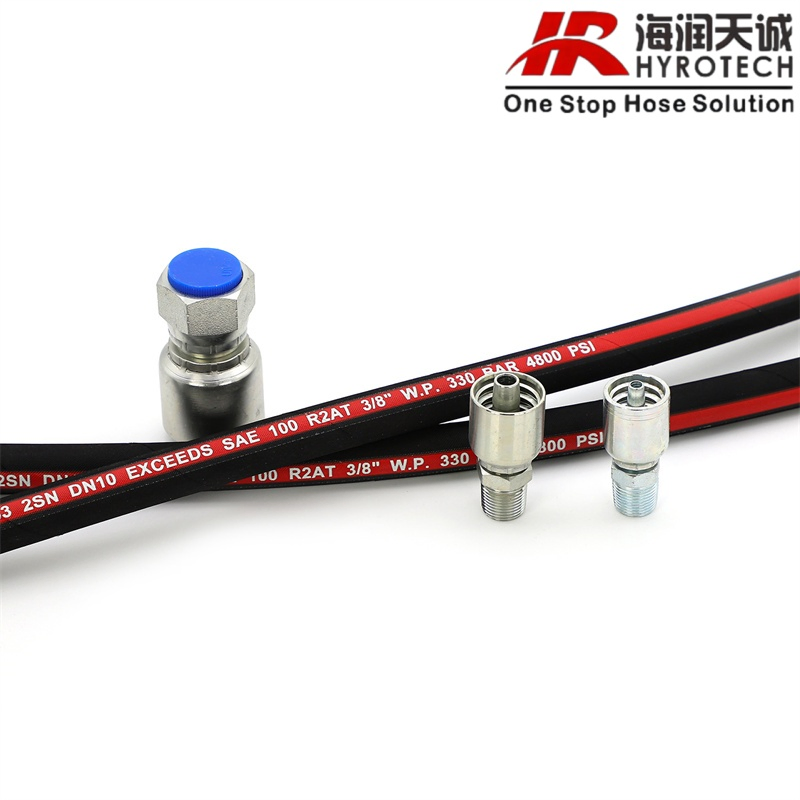

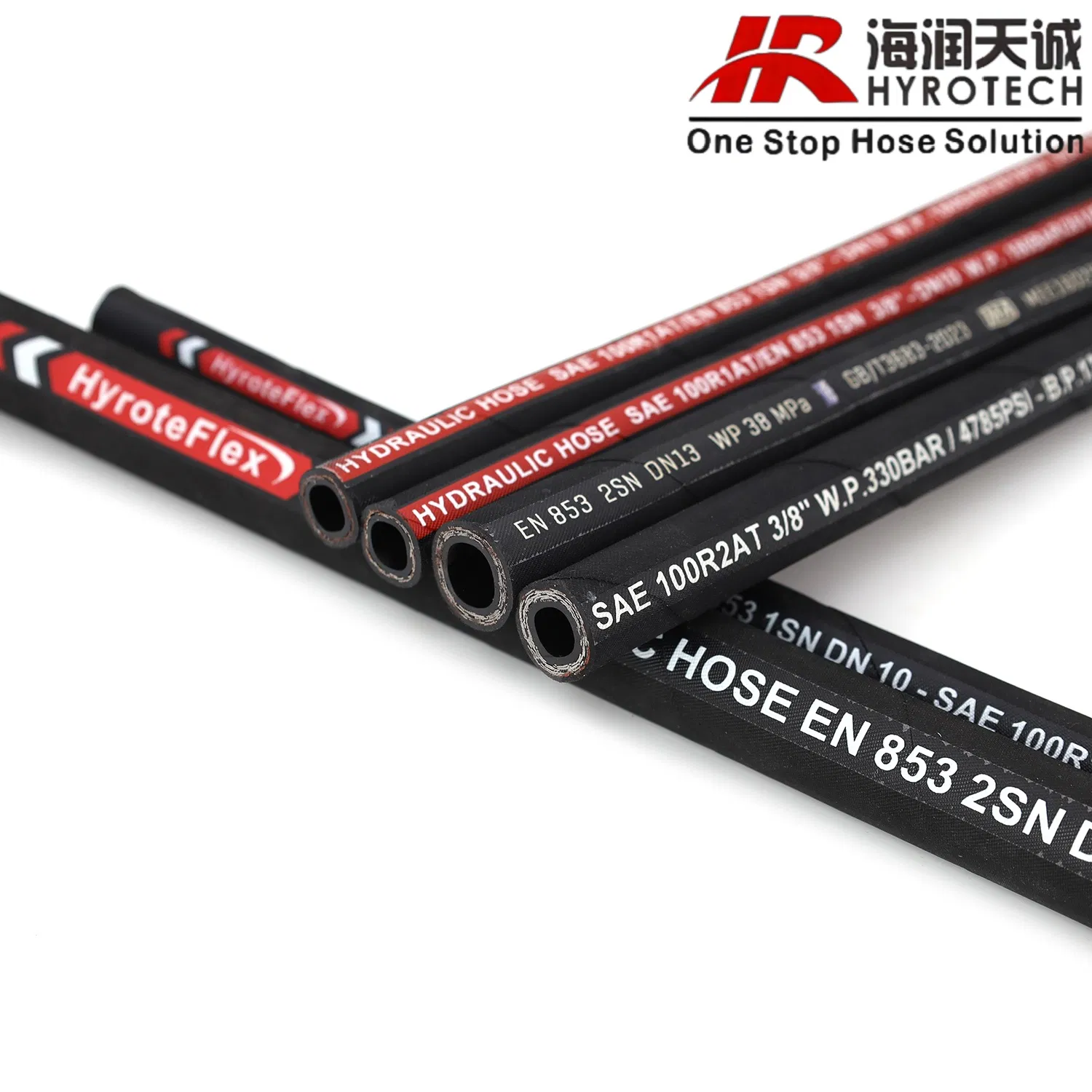

Hot Sell! Long Life DIN EN Standard Hydraulic Hose DIN EN853 2SN/R2AT
The factory covers an area of 20,000 square meters workshop with a total investment up to RMB 100 million. We own 100 sets of different equipments for production, testing and employ more than 200 staffs, including 15 technicians. Our annual output is 10 million meters for hydraulic hoses and 5 million meters for industrial hoses.
Product Description
Product Parameters
| Hose ID |
Hose O.D. |
Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Length |
Weight |
| In. | mm | In. | mm | psi | MPa | psi | MPa | In. | mm | m | kg/m | lb/ft |
| 1/4 | 6.4 | 0.59 | 15.1 | 5800 | 40.0 | 23200 | 160.0 | 3.94 | 100 | 50/100 | 0.38 | 0.26 |
| 5/16 | 7.9 | 0.64 | 16.3 | 5075 | 35.0 | 20300 | 140.0 | 4.53 | 115 | 50/100 | 0.44 | 0.30 |
| 3/8 | 9.5 | 0.74 | 18.7 | 4800 | 33.0 | 19200 | 132.0 | 4.92 | 125 | 50/100 | 0.56 | 0.38 |
| 1/2 | 12.7 | 0.86 | 21.8 | 4000 | 27.5 | 16000 | 110.0 | 7.09 | 180 | 50/100 | 0.66 | 0.45 |
| 5/8 | 15.9 | 0.98 | 25.0 | 3625 | 25.0 | 14500 | 100.0 | 7.87 | 200 | 50/100 | 0.80 | 0.54 |
| 3/4 | 19.1 | 1.14 | 29.0 | 3120 | 21.5 | 12480 | 85.0 | 9.45 | 240 | 50/100 | 0.99 | 0.67 |
| 1 | 25.4 | 1.43 | 36.5 | 2400 | 16.5 | 9600 | 65.0 | 11.81 | 300 | 50/100 | 1.36 | 0.92 |
Company Profile
Exhibition & Certifications
Packaging & Shipping
Customers' Feedback
FAQ
What is the temperature range for this hydraulic hose?
The standard operating temperature range is -40 to +100°C, with a special low-temperature version available that operates from -55 to +100°C.

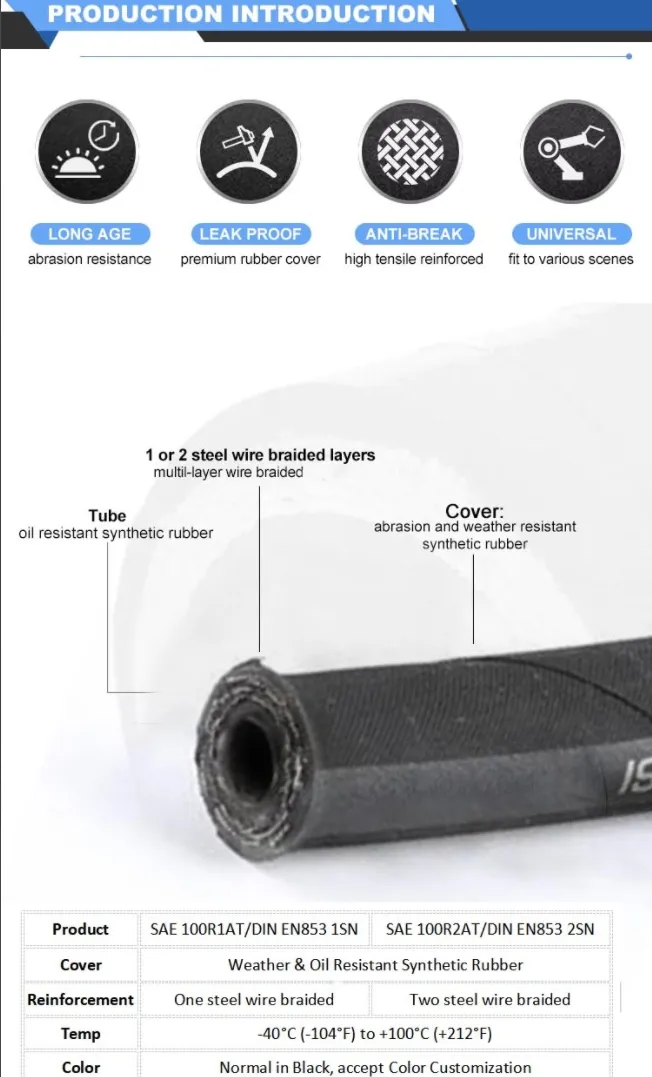

What materials are used in the construction of the DIN EN853 2SN hose?
It features an oil-resistant synthetic rubber inner tube, reinforced with two high-tensile steel wire braids, and an oil and weather-resistant synthetic rubber cover.
What are the available lengths for the hose?
We offer standard lengths of 100m, 50m, 40m, and 20m, or we can customize the length according to your specific request.
How long is the delivery time for a bulk order?
For a standard 20FT container, the delivery time is approximately 20 days.
Which quality certifications do your products hold?
Our products are manufactured under strict quality control and hold the ISO 9001:2008 certification.
Is the hose cover resistant to external factors?
Yes, the outer cover is specifically designed to be resistant to both oil and various weather conditions for a longer service life.
