Wholesale Industrial Excavator Diesel Fuel Gas Garden Air Washer Flexible Hydraulic Pipe Steel Braided Oil High Pressure Rubber Hydraulic Hose with Fittings

Basic Information

Model NO.: SAE 100R1AT

Color: Black

Reinforcement: One Braid High-Tensile Steel Wire

Compound: Oil and Weather Resistant Rubber

Length: 50/100m

Working Pressure: 4MPa~25MPa

Temperature: -40c to +100c

Specification: 3/16"-2"

Product Description

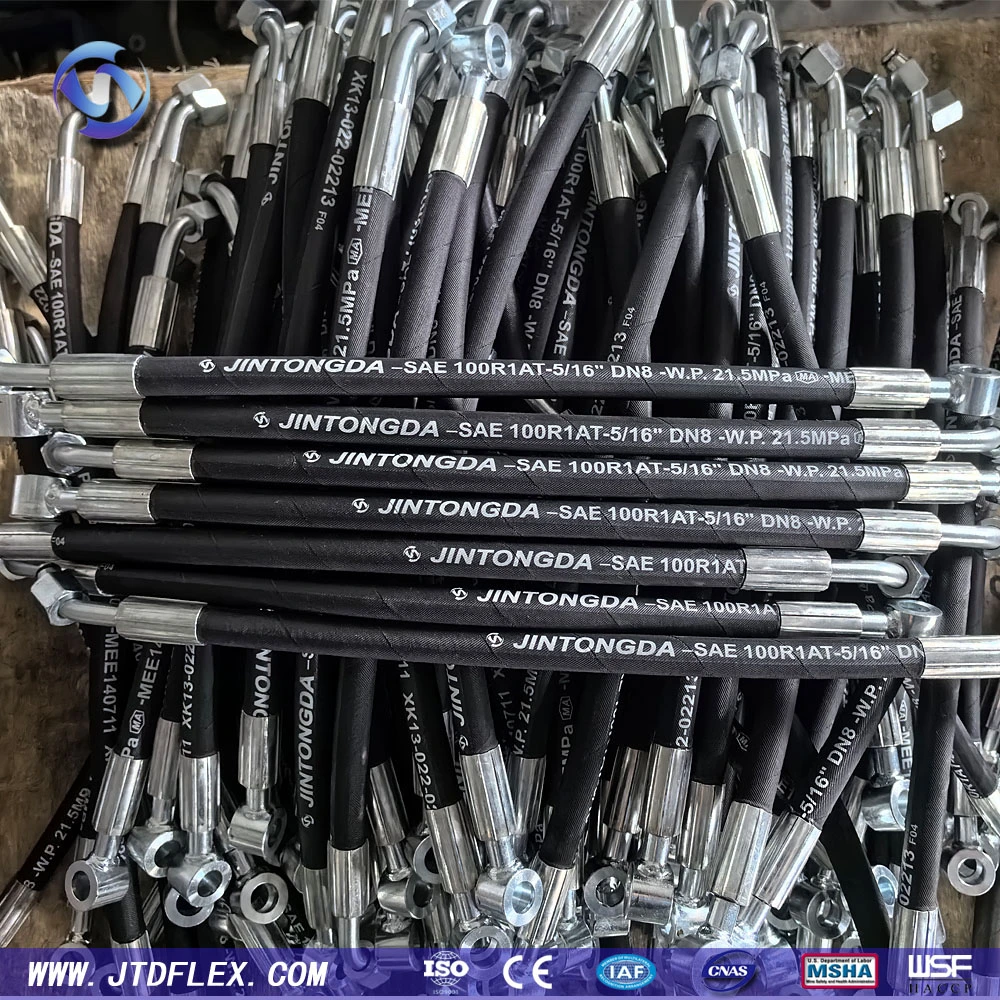

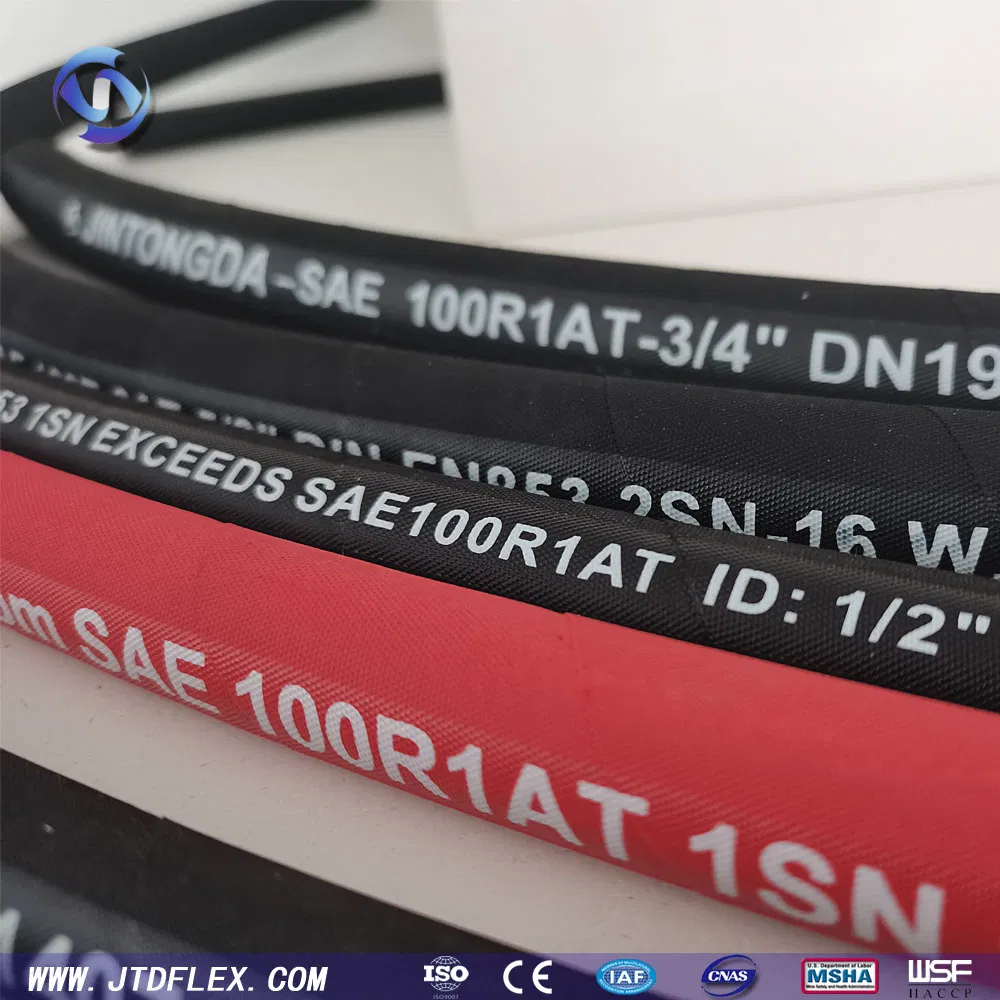

One Layer Steel Wire Braid Flexible High Pressure SAE 100R1AT 1SN Hydraulic Rubber Hose

Tube: Oil Resistant Synthetic rubber
Reinforcement: One braid of high-tensile steel wire
Cover: Smooth or Wrapped finishing
Application: Ideal for Agricultural Machinery and industrial hydraulic systems
Durability: Weather-resistant, oil-resistant, and abrasion-resistant

Technical Parameters

DN	Hose I.D (Inch/MM)		Hose O.D (MM)	Working Pressure (MPa/Psi)		Bend Radius (MM)	Weight (Kg/m)
DN	5	3/16	4.6-5.4	8.9-10.1	25.0	3625	89	0.20
6	1/4	6.2-7.0	12.7-13.5	22.5	3260	102	0.25
10	3/8	9.3-10.1	16.7-17.5	18.0	2610	127	0.36
13	1/2	12.3-13.5	19.8-20.6	16.0	2320	178	0.45
19	3/4	18.6-19.8	26.9-27.7	10.5	1520	241	0.65
25	1	25.2-26.4	34.6-35.4	8.8	1280	305	0.91

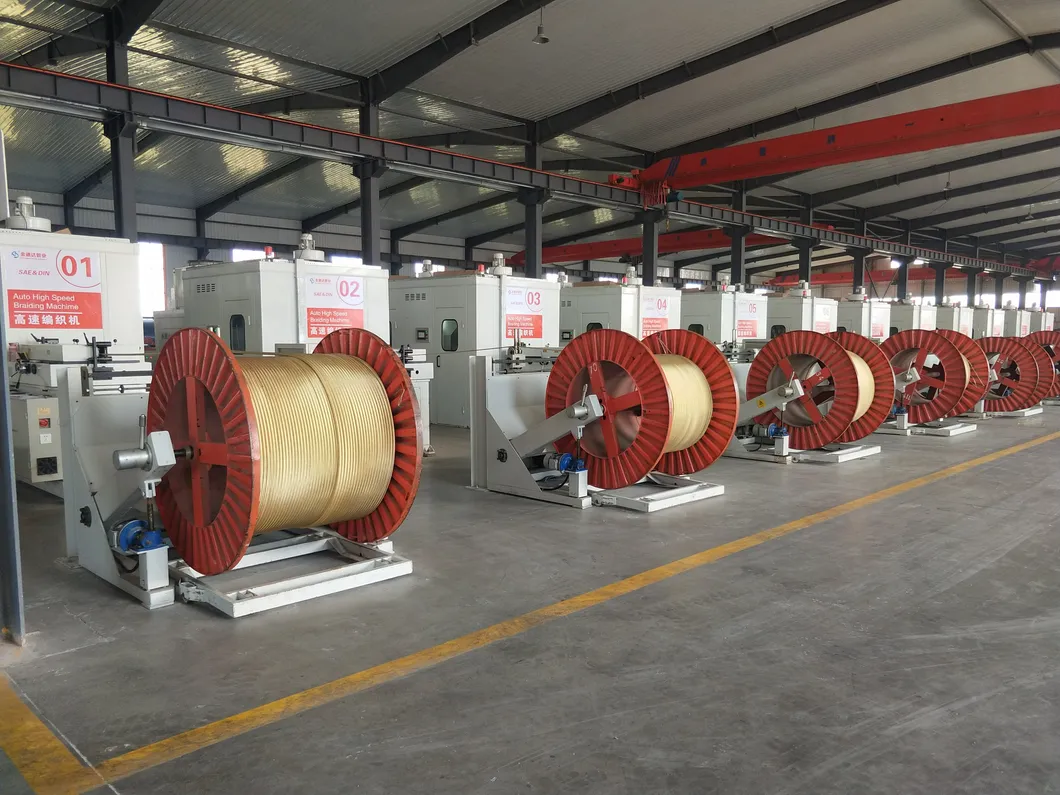

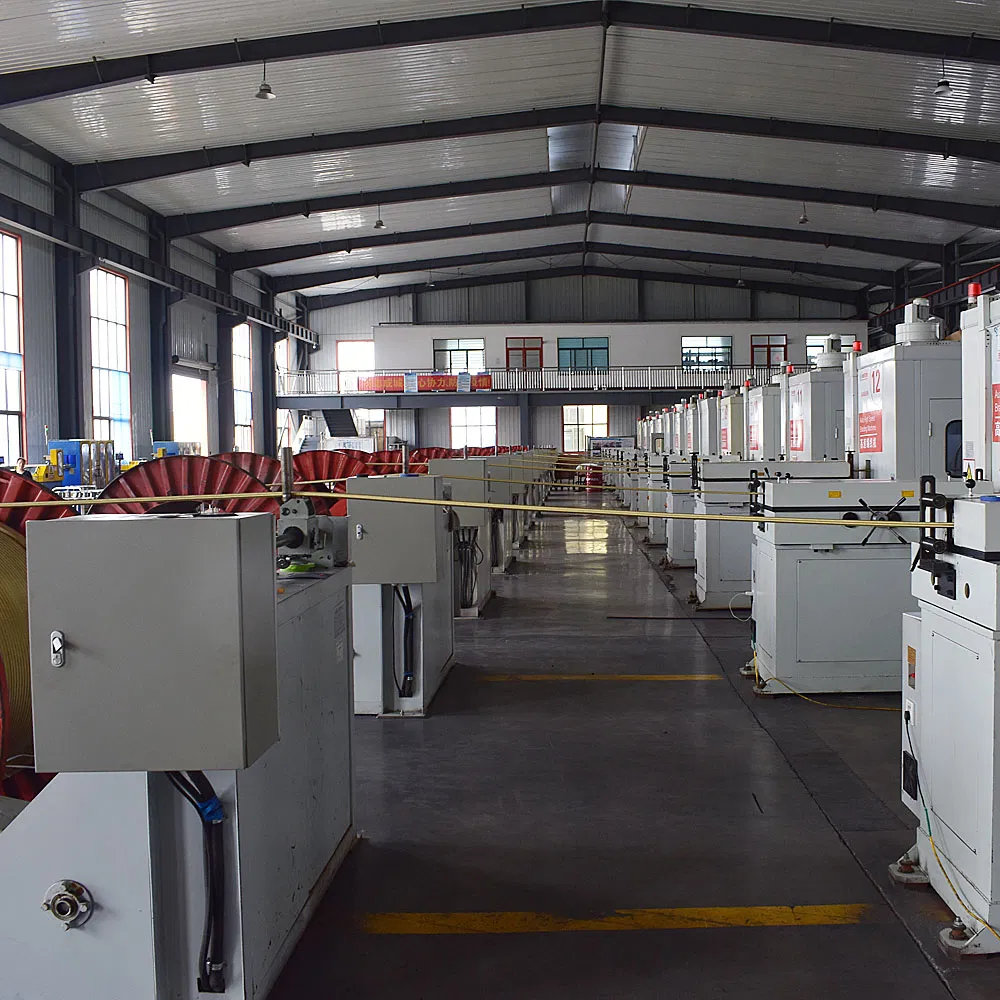

Capabilities & Quality Control

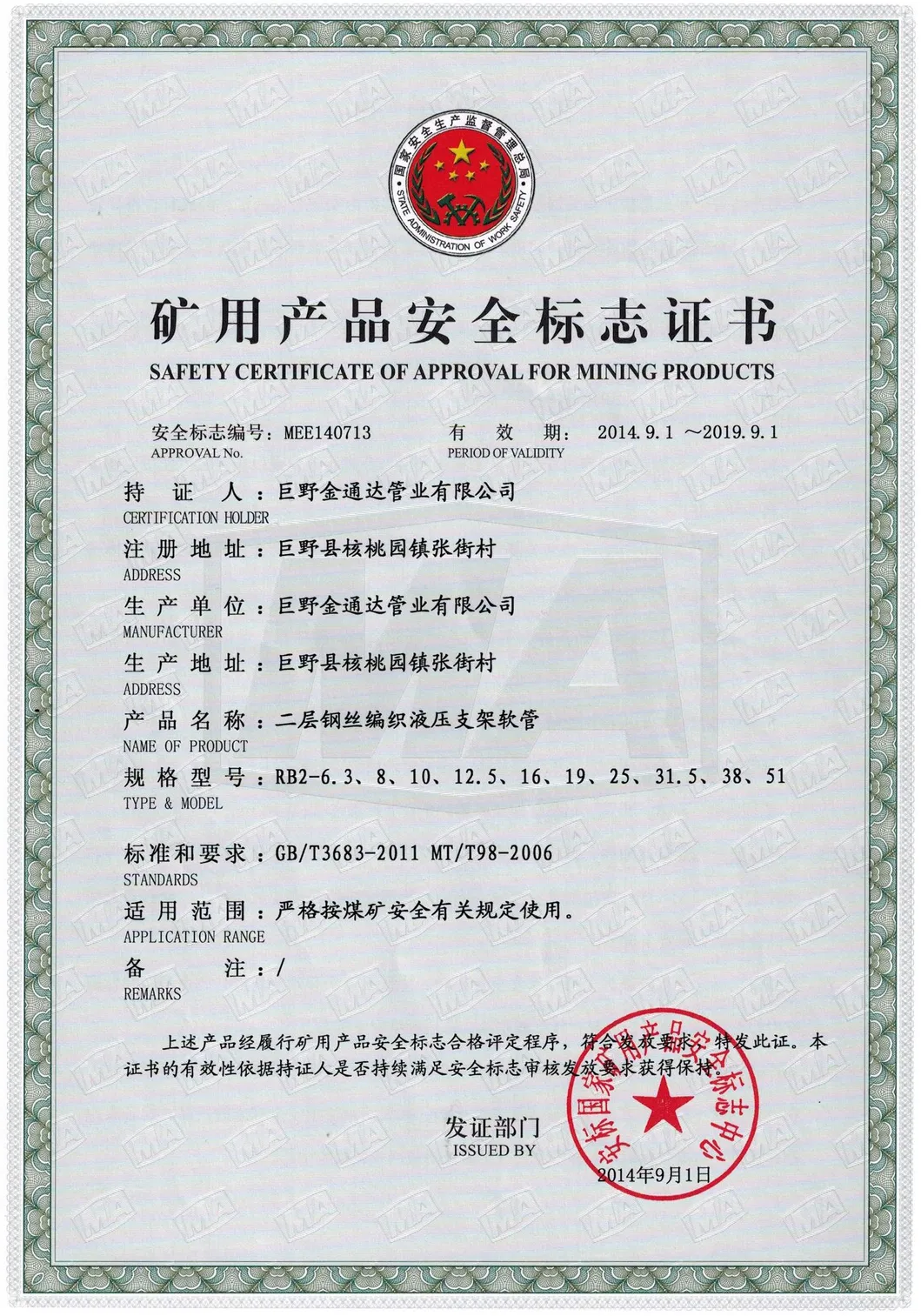

Certifications

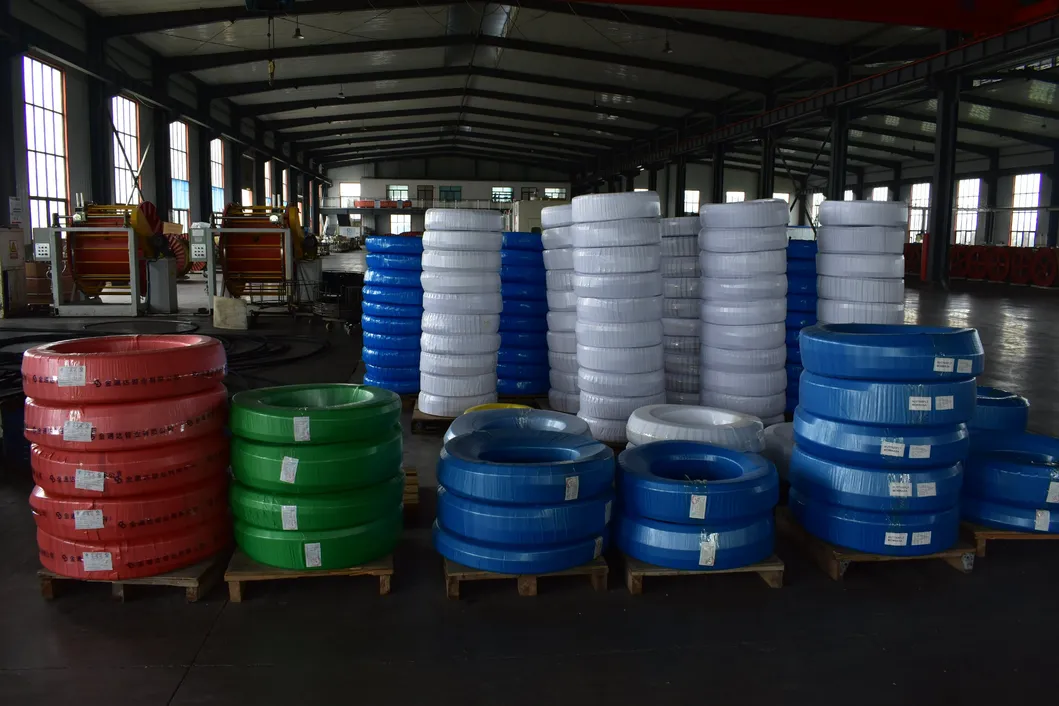

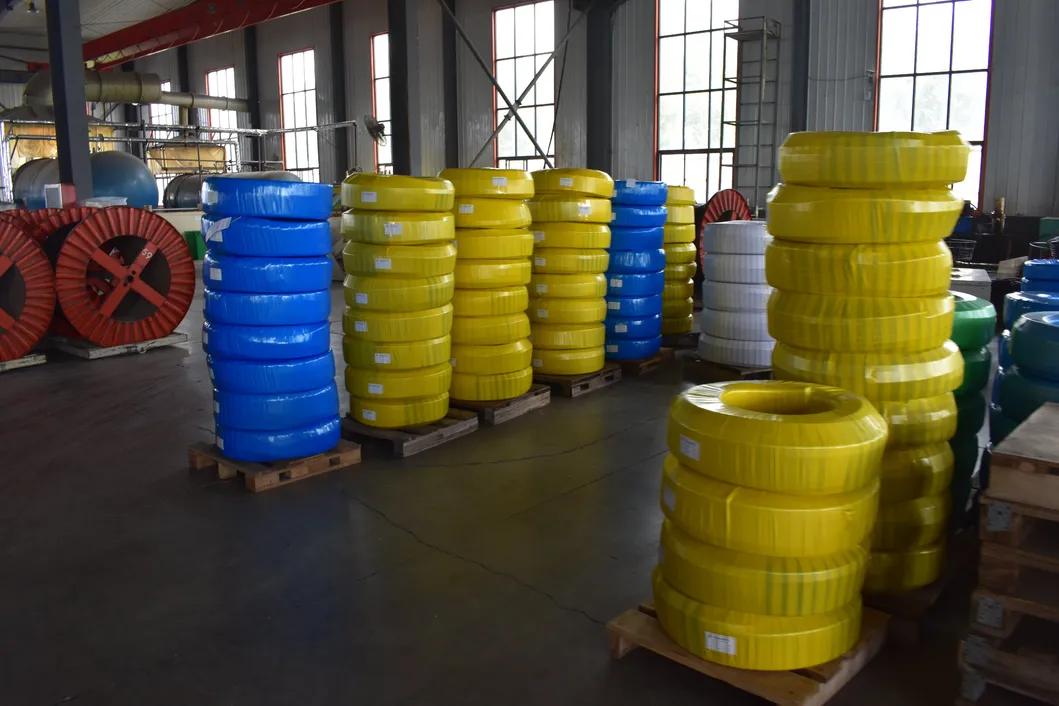

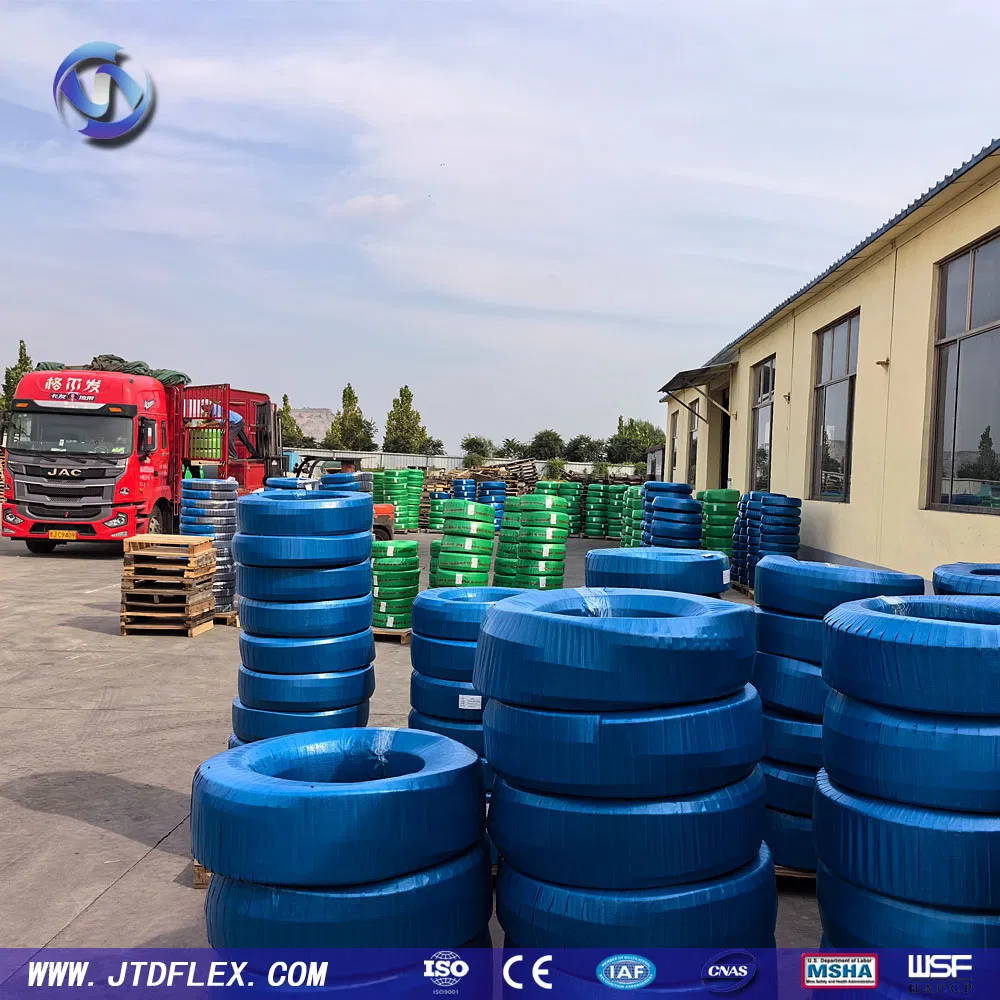

Packaging & Shipping

Frequently Asked Questions

What are your payment terms?

We accept T/T with 30% in advance and the balance upon receipt of the copy of the Bill of Lading.

What are your delivery terms?

We offer multiple delivery terms including FOB, CIF, EXW, and CFR to suit your logistics needs.

What is the typical delivery time?

Our standard delivery time is 15 days for a 1x20'GP container and 25 days for a 1x40'GP container, depending on item specifics.

What is your Minimum Order Quantity (MOQ)?

Our standard MOQ is 500 meters per size. We also accept trial orders for quality verification.

Do you test all your products before delivery?

Yes, we conduct 100% burst pressure tests and impulse tests on all our products before they leave our facility.

Are your products compliant with international standards?

Absolutely. Our hydraulic hoses meet American standards of SAEJ517 and European standards of DIN.
