API Standard Oil Hose Quick Connection, Convenient Installation, Time-Saving and Efficient Fluid Transmission Lt301f

1 / 5

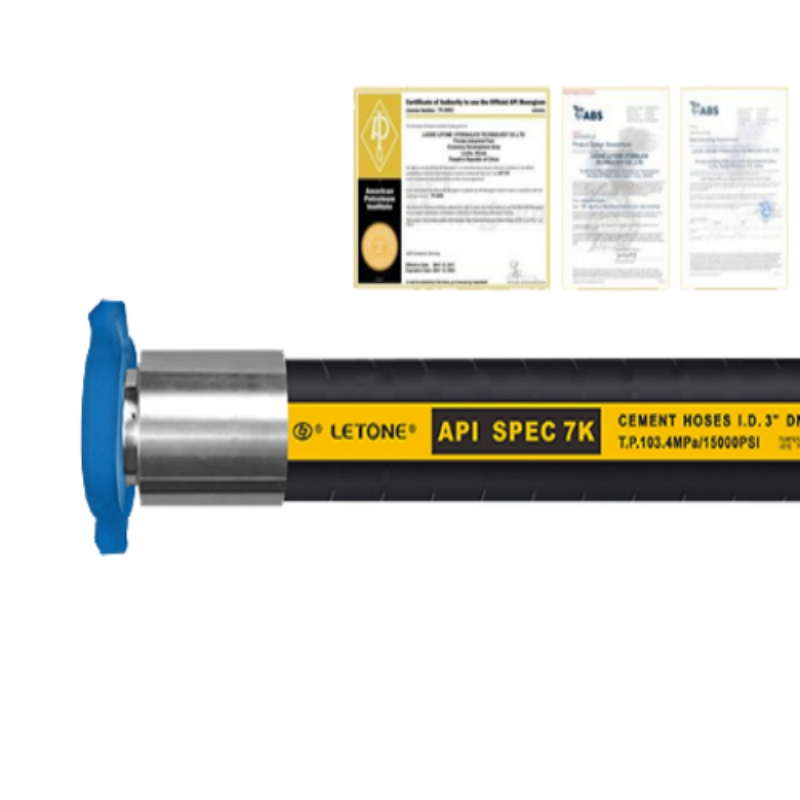

API Standard Oil Hose Quick Connection, Convenient Installation, Time-Saving and Efficient Fluid Transmission Lt301f

Customization:	Available
Material:	Upe/PTFE
Capability:	Rubber Oil Hose

Send Inquiry

Product Description

Basic Information

Model NO.LT301 F

ColorBlack

Inner TubeUpe and Nr&SBR Sythentic Rubber

Tube TypeFull Flow

StandardAPI Spec. 7K Fsl0 ABS

Outer LayerAbrasion and Weather Resistant Synthetic Rubber

Temperature-20℃~+100℃ (-4℉~+212℉)

PackagePallet or Wooden Box

Capacity50,000,000 meters/Year

Package Size100cm * 100cm * 100cm

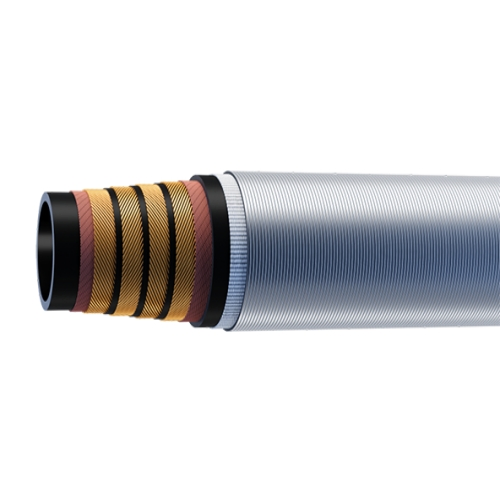

Product Description

Application: flexible line using for delivery water-based, oil-based, acid-based and foam fracturing fluids under high pressure in acid, sand and hydraulic fracturing works.

Inner Tube: UPE and NR&SBR sythentic rubber

Tube Type: Full flow

Reinforcement: many layers of high tensile super flexible spiral steel wire or steel cable

Outer Layer: abrasion and weather resistant synthetic rubber

Standard: API Spec. 7K FSL0 | ABS

Temperature Range: -20ºC~+100ºC (-4ºF~+212ºF)

Product Parameters

Size (inch)	I.D. (mm)	O.D. (mm)	W.P. (psi)	P.P. (psi)	Min.B.R. (mm)	W.T (kg/m)	Vol (bbl/min)	Vol (m³/min)	Connector (kg)	Connections
2"	45	95	15000	22500	1.4	18	9	1.46	53	3"1502 hammer union ended or 3-1/16" API 15K flange ended
2"	51	105	15000	22500	1.4	20	12	1.91	55
2-1/2"	58	121	15000	22500	1.5	24	14.8	2.34	57
2-1/2"	64	128	15000	22500	1.5	27	18.5	2.90	58
3"	70	135	15000	22500	1.6	30	22	3.50	60
3"	76	141	15000	22500	1.6	33	26	4.17	65
4"	89	165	15000	22500	2.0	50	35.8	5.70	75	4"1502 or 4-1/16" API 15K
5"	127	215	15000	22500	2.1	86	80	11.58	348	5-1/8" API 15K flange

Packaging & Shipping

International Exhibition

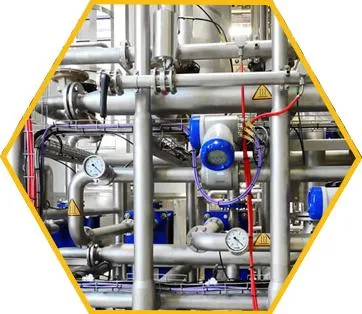

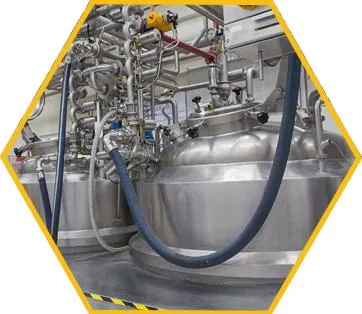

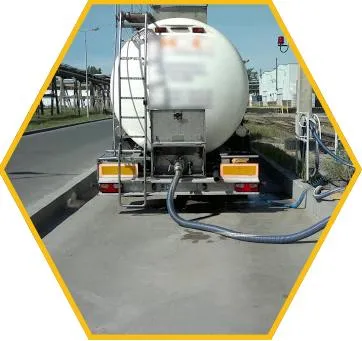

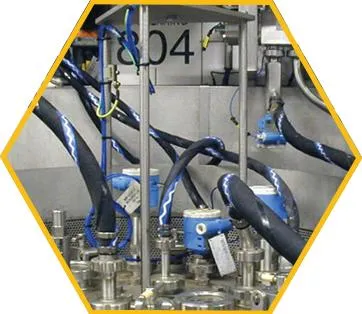

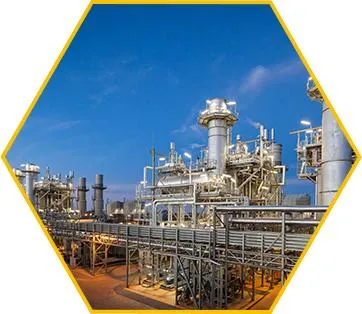

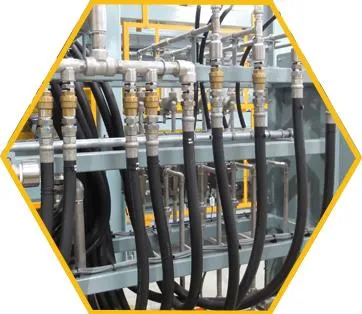

Application Scenario

Company Profile

Established in 2003, our company is an industry-recognized high-quality rubber hose manufacture and service provider. We devote to the production, R&D, and sale of rubber compounds, rubber hoses, fluid connectors, and rubber-plastic seals. Thanks to stable quality and a strong market reputation, the company has been recognized as a top-tier enterprise in the rubber hose industry for many consecutive years.

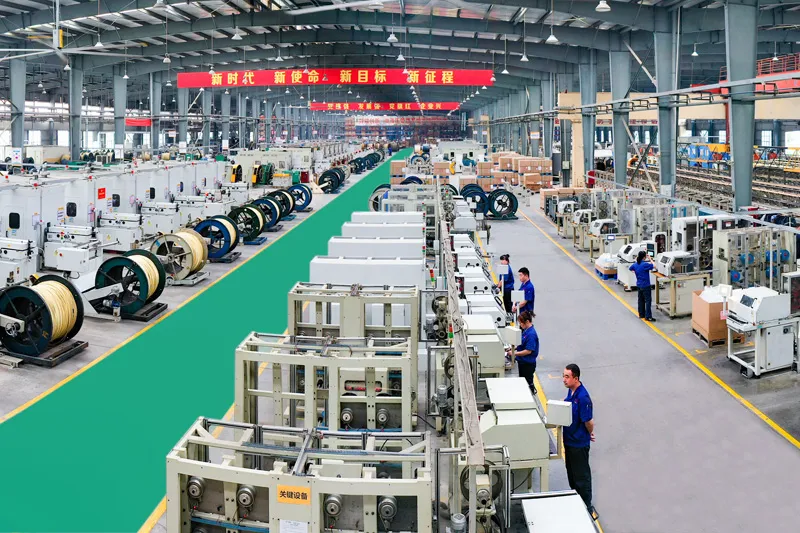

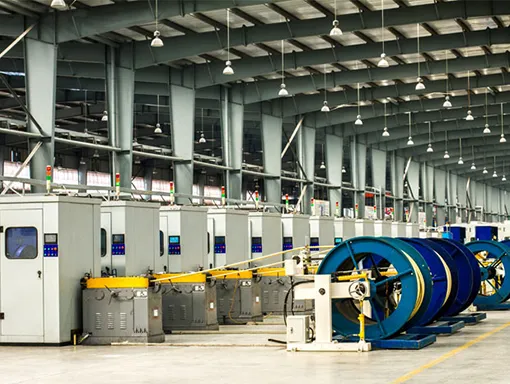

Our facility operates 46 high-speed steel wire braiders, 12 steel wire spiral production lines, 8 industrial hose production lines, 200 CNC lathes, and 2 automatic rubber compound production lines. We are capable of producing 15,000 tons of rubber compounds and 20 million pieces of rubber seals annually, with an annual capacity of 30 million meters for hydraulic and industrial hoses.

Certifications

As a professional hose manufacturer, we have obtained Safety Certificates for Mining Products, MSHA, API Type Approval (API 16C and API 7K), ABS Type Approval, GOST, and Lloyd's Fire Test Certificates. Our management systems comply with ISO14001:2015, ISO9001:2015, API Q1, and IATF 16949:2016. Our Testing Center is CNAS accredited, featuring over 20 specialized laboratories for impulse, burst, fire, and salt spray testing.

Success Case

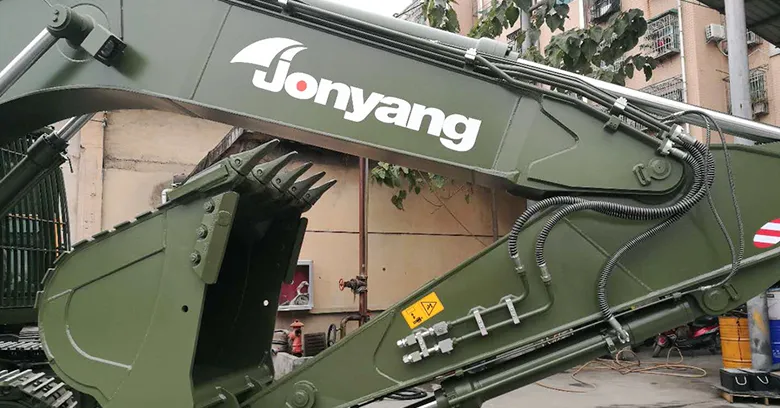

Construction Machinery Application

Widely used in various types of construction machinery such as excavators. Features include long service life, high pressure resistance (25% higher than SAE/DIN standards), pulse resistance, and low bending radius.

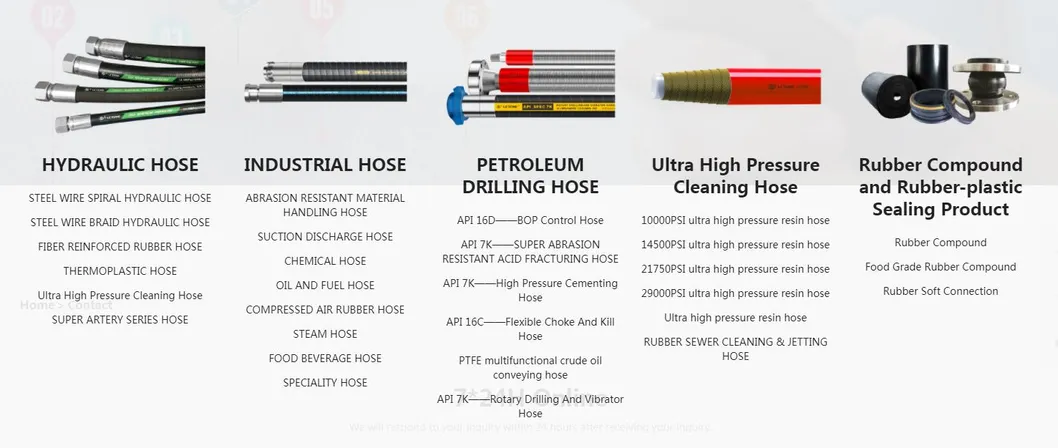

More Products

Frequently Asked Questions

What are the primary applications for this high-pressure hose?

The hose is designed for delivery of water-based, oil-based, acid-based, and foam fracturing fluids under high pressure, specifically for acidizing, sand, and hydraulic fracturing operations.

What standards does the LT301 F hose comply with?

It meets the API Spec. 7K FSL0 and ABS standards, ensuring safety and performance in demanding oilfield environments.

What is the temperature range for safe operation?

The hose is rated for temperatures ranging from -20ºC to +100ºC (-4ºF to +212ºF).

What materials are used in the construction of the hose?

The inner tube consists of UPE and NR&SBR synthetic rubber, reinforced with multiple layers of high tensile spiral steel wire or steel cable, and an outer layer of abrasion and weather-resistant synthetic rubber.

Are there different connection types available?

Yes, common connections include 3" 1502 hammer unions or API 15K/20K flanges, depending on the hose size and pressure requirements.

Does the product come with any quality certifications?

Yes, the products are backed by certifications including API 7K, MSHA, ABS Type Approval, and are manufactured under ISO9001 and IATF 16949 quality management systems.
